EN 521:2019+AC:2019

Specifications for dedicated liquefied petroleum gas appliances - Portable vapour pressure liquefied petroleum gas appliances

This document specifies the construction and performance characteristics related to safety and the rational use of energy of portable appliances burning liquefied petroleum gases at the vapour pressure within the gas cartridge or gas cylinder, excepting those where the gas cartridge is inserted horizontally in the chassis.
NOTE   These appliances are referred to in the body of the text as "appliances".
This document applies to various types of portable appliances burning liquefied petroleum gases at vapour pressure and designed to be used with cartridges as complying with EN 417 or gas cylinders.
This document covers appliances for outdoor or in well ventilated areas uses only.
For example the following types of appliances are covered:
a)   cooking appliances (stoves, grills, barbecues...);
This document does not cover barbecues that can be used indoors;
b)   lighting appliances;
c)   heating appliances;
This document only applies to appliances with a maximum heat input of up to 3 kW (Hs) for outdoor use only;
d)   blowtorches;
This document only applies to blowtorches without a flexible hose;
e)   laboratory burners.
The requirements apply to these appliances or their functional sections whether or not the latter are independent or incorporated into an assembly.
Appliances covered by this document are not connected to a flue for the discharge of products of combustion and are not connected to the mains electricity supply.
This document covers neither appliances supplied with LPG in the liquid phase nor appliance with fixed integral container which may or may not be refilled by the user
It does not apply to lighters as defined in EN ISO 9994.
It does not apply to gas appliances operating with a valve cartridge which is horizontally integrated into the chassis of the appliance also called "flat portable gas stove".
Requirements for rational use of energy have been included for stove burners.
However, such requirements have not been included for the other types of appliances because:
-   for grills and barbecues, this is a type of cooking which is achieved by various means such as radiant elements; in addition this type of cooking varies according to the type of food and region where the appliance is used;
-   for lighting appliances, the consumption is insignificant because these appliances have a very low rate and are used only for a few hours in a year;
-   for heating appliances, all the heat produced is discharged into the environment;
-   for tools such as blowtorches which are not professional tools in regular use, the gas consumption depends very much on the way it is used.

Festlegungen für Flüssiggasgeräte - Tragbare, mit Dampfdruck betriebene Flüssiggasgeräte

Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés - Appareils portatifs alimentés à la pression de vapeur des gaz de pétrole liquéfiés

La présente Norme européenne définit les caractéristiques de construction et de fonctionnement liées à la sécurité et à l'utilisation rationnelle de l'énergie des appareils portatifs utilisant des gaz de pétrole liquéfiés à la pression de vapeur des cartouches à gaz ou des récipients à gaz à l’exception de ceux dont la cartouche est insérée horizontalement dans le châssis.
NOTE   Ces appareils portatifs sont désignés dans l'ensemble du texte par « appareils ».
La présente Norme européenne s'applique aux différents types d'appareils portatifs utilisant des gaz de pétrole liquéfiés à la pression de vapeur et conçus pour être utilisés avec des cartouches conformes à l'EN 417 ou d'autres types de récipients de gaz.
Cette norme couvre les appareils pour utilisation en plein air ou dans des espaces bien aérés uniquement.
Sont par exemple visés les types d'appareils suivants :
a)   appareils de cuisson (réchauds, grilloirs, barbecues, ...) ;
La présente Norme européenne ne s'applique pas aux barbecues utilisables dans des locaux.
b)   appareils d'éclairage ;
c)   appareils de chauffage ;
La présente Norme européenne ne s'applique qu'aux appareils de chauffage ayant une puissance calorifique maximale de 3 kW (Hs) et utilisables exclusivement en plein air.
d)   appareils de brasage ;
Seuls les appareils de brasage sans tuyau souple sont couverts par la présente Norme européenne.
e)   brûleurs de laboratoire.
Les exigences s'appliquent à tous ces appareils ou éléments, que ces derniers soient indépendants ou incorporés dans un ensemble.
Les appareils couverts par la présente Norme européenne ne sont pas raccordés à un conduit d'évacuation des produits de la combustion et n'ont pas de raccordement au réseau électrique.
La présente Norme européenne ne s'applique ni aux appareils alimentés aux GPL en phase liquide ni à ceux avec réservoir fixe incorporé remplissable ou non par l'utilisateur.
Elle ne s'applique pas non plus aux briquets définis par l'EN ISO 9994.
Elle ne s’applique pas aux appareils fonctionnant avec une cartouche qui est incorporée horizontalement dans le châssis de l’appareil appelés aussi « réchauds plats à gaz portatifs ».
Des exigences concernant l'utilisation rationnelle de l'énergie ont été définies pour les brûleurs de réchaud.
En revanche, de telles exigences n'ont pas été fixées pour les autres types d'appareils car :
-   pour les grilloirs et les barbecues, la qualité de cuisson est obtenue par différents moyens tels que des éléments rayonnants, laquelle qualité de cuisson varie par ailleurs en fonction du type d'aliment et des régions où l’appareil est utilisé ;
-   pour les appareils d'éclairage, la consommation est insignifiante car ces appareils ont un débit très faible et ne sont utilisés que quelques heures dans l'année ;
-   pour les appareils de chauffage, toute la chaleur produite est transmise dans l'environnement ;
-   pour les outils tels que les lampes à souder, qui ne sont pas des outils professionnels utilisés en permanence, la consommation de gaz dépend beaucoup des habitudes de travail de l'utilisateur.

Specifikacije za plinske aparate na utekočinjeni naftni plin - Prenosni aparati, ki delujejo s tlakom uparjenega plina (vključno s popravkom AC)

Ta dokument določa konstrukcijske značilnosti in značilnosti delovanja, povezane z varnostjo in racionalno uporabo energije prenosnih aparatov na utekočinjene naftne pline pri parnem tlaku v plinski kartuši ali plinski jeklenki, razen tistih, pri katerih je plinska kartuša vstavljena v ohišje vodoravno.
OPOMBA: Ti aparati so v telesu besedila označeni z besedo »aparati«.
Ta dokument se uporablja za različne vrste prenosnih aparatov na utekočinjene naftne pline pri parnem tlaku, zasnovanih za uporabo s kartušami (skladno s standardom EN 417) ali s plinskimi jeklenkami.
Ta dokument zajema aparate samo za zunanjo uporabo ali uporabo v dobro prezračevanih prostorih.
Zajete so na primer naslednje vrste aparatov:
a) aparati za kuhanje (štedilniki, žari ...);
Ta dokument ne zajema žarov, ki se lahko uporabljajo v zaprtih prostorih;
b) aparati za razsvetljavo;
c) grelni aparati;
Ta dokument se uporablja le za aparate z največjo toplotno močjo do 3 kW (Hs), ki so predvideni samo za notranjo uporabo;
d) spajkalni gorilniki;
Ta dokument se uporablja le za spajkalne gorilnike brez gibke cevi;
e) laboratorijski gorilniki.
Zahteve se uporabljajo za te aparate ali njihove funkcionalne dele ne glede na to, ali so ti deli samostojni ali vgrajeni v sestav.
Aparati, ki jih ta dokument ne zajema, niso povezani s cevjo za praznjenje produktov gorenja in niso povezani z električnim omrežjem.
Ta dokument ne zajema niti aparatov na utekočinjeni naftni plin (LPG) v tekoči fazi niti aparatov s fiksno vgrajeno posodo, ki jo uporabnik lahko znova napolni ali ne.
Ne uporablja se za vžigalnike, kot je opredeljeno v standardu EN ISO 9994.
Ne uporablja se za plinske aparate, ki delujejo s kartušo z ventilom, ki je vodoravno vgrajena v ohišje aparata, imenovanega tudi »ploski prenosni plinski štedilnik«.
Za štedilniške gorilnike so bile vključene zahteve za racionalno uporabo energije.
Vendar pa takšne zahteve niso bile vključene za druge vrste aparatov zaradi naslednjih razlogov:
– pri žarih gre za vrsto kuhanja, ki se doseže z različnimi sredstvi, kot so sevalni elementi; poleg tega se takšna vrsta kuhanja razlikuje glede na vrsto hrane in območje, v katerem se aparat uporablja;
– pri aparatih za razsvetljavo je poraba zanemarljiva, saj imajo ti aparati zelo nizko stopnjo porabe in se uporabljajo samo nekaj ur na leto;
– pri grelnih aparatih vsa proizvedena toplota prehaja v okolje;
– pri orodjih, kot so spajkalni gorilniki, ki niso profesionalno orodje v redni uporabi, je poraba plina zelo odvisna od načina uporabe.

General Information

• Status: Published
• Publication Date: 06-Aug-2019
• Withdrawal Date: 28-Feb-2020
• ICS: 27.060.20 - Gas fuel burners
• Technical Committee: CEN/TC 181 - Dedicated liquified petroleum gas appliances
• Drafting Committee: CEN/TC 181/WG 1 - Flueless space heaters
• Current Stage: 9000 - Start of review/2 Year Review Enquiry - Review Enquiry
• Start Date: 03-Apr-2024
• Completion Date: 03-Apr-2024
• Ref Project: SIST EN 521:2019+AC:2019 - Specifications for dedicated liquefied petroleum gas appliances - Portable vapour pressure liquefied petroleum gas appliances

Relations

• Merged From: EN 521:2019 - Specifications for dedicated liquefied petroleum gas appliances - Portable vapour pressure liquefied petroleum gas appliances
• Effective Date: 16-Jan-2023
• Revised: FprEN 521 - Specifications for dedicated liquefied petroleum gas appliances - Portable vapour pressure liquefied petroleum gas appliances
• Effective Date: 19-Jan-2023

Overview

EN 521:2019+AC:2019 (equivalent to EN 521:2019 with Corrigendum AC) specifies construction and performance requirements for portable vapour‑pressure liquefied petroleum gas (LPG) appliances. It applies to portable appliances that burn LPG at the vapour pressure from a gas cartridge (EN 417) or gas cylinder, intended for outdoor or well‑ventilated use only. Examples covered include cooking appliances (stoves, grills, barbecues - excluding indoor barbecues), lighting appliances, heating appliances (limited heat input), blowtorches without flexible hoses, and laboratory burners.

This standard is focused on safety and the rational use of energy for these dedicated portable LPG appliances and their functional sections, whether independent or part of an assembly. It excludes appliances supplied with liquid‑phase LPG, appliances with fixed integral refillable containers, lighters (EN ISO 9994), and appliances using horizontally integrated valve cartridges (flat portable gas stoves).

Key technical topics and requirements

The standard addresses a comprehensive set of safety, performance and test topics for portable vapour pressure LPG appliances, including:

• Classification and scope (gas types, appliance categories)
• Safety requirements: burner adjustment, materials, assembly, cleaning, maintenance
• Mechanical integrity: strength, stability, resistance to overheating and spillage
• Gas system integrity: soundness of gas circuit, connections, compartments for cartridges/cylinders
• Controls and components: taps, needle valves, control handles, injectors, ignition and flame‑supervision devices
• Combustion and emissions: combustion behaviour, accumulation of unburnt gas, sooting/condensation
• Thermal limits: temperatures of parts, panel (floor/wall/ceiling) temperatures, fireguards
• Energy efficiency: rational use of energy requirements included for stove burners (efficiency/heat input verification)
• Durability and marking: durability of markings, strength/endurance testing
• Test methods: defined test gases/pressures, test conditions, procedures for verifying heat inputs and component performance

Practical applications - who uses this standard

EN 521:2019+AC:2019 is essential for:

• Manufacturers and designers developing portable LPG stoves, grills, blowtorches, lighting and small heating appliances
• Test laboratories and conformity assessors performing safety and performance testing against EN 521
• Regulators, procurement and certification bodies establishing market access and safety compliance
• Safety engineers and product compliance teams ensuring appliance designs meet gas safety, mechanical and thermal requirements
• Importers and retailers verifying supplied appliances are compliant for outdoor/well‑ventilated use

Using this standard helps reduce safety risks, ensures reliable operation with EN 417 cartridges or approved cylinders, and supports clear documentation for compliance and market entry.

Related standards

• EN 521 references and is used in conjunction with cartridge specifications EN 417 (gas cartridges).
• Lighters are covered separately by EN ISO 9994 (excluded from EN 521 scope).

Keywords: SIST EN 521:2019, EN 521, portable vapour pressure LPG appliances, portable LPG standard, safety requirements, gas cartridge EN 417, stove burner efficiency, portable liquefied petroleum gas.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2019
Nadomešča:
SIST EN 521:2019
Specifikacije za plinske aparate na utekočinjeni naftni plin - Prenosni aparati, ki
delujejo s tlakom uparjenega plina (vključno s popravkom AC)
Specifications for dedicated liquefied petroleum gas appliances - Portable vapour
pressure liquefied petroleum gas appliances
Festlegungen für Flüssiggasgeräte - Tragbare, mit Dampfdruck betriebene
Flüssiggasgeräte
Spécifications pour les appareils fonctionnant exclusivement aux gaz de pétrole liquéfiés
- Appareils portatifs alimentés à la pression de vapeur des gaz de pétrole liquéfiés
Ta slovenski standard je istoveten z: EN 521:2019+AC:2019
ICS:
27.060.20 Plinski gorilniki Gas fuel burners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 521:2019+AC
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 27.060.20
English Version
Specifications for dedicated liquefied petroleum gas
appliances - Portable vapour pressure liquefied petroleum
gas appliances
Spécifications pour les appareils fonctionnant Festlegungen für Flüssiggasgeräte - Tragbare, mit
exclusivement aux gaz de pétrole liquéfiés - Appareils Dampfdruck betriebene Flüssiggasgeräte
portatifs alimentés à la pression de vapeur des gaz de
pétrole liquéfiés
This European Standard was approved by CEN on 15 February 2019 and includes Corrigendum AC approved by CEN on 15
February 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 521:2019+AC:2019 E
worldwide for CEN national Members.

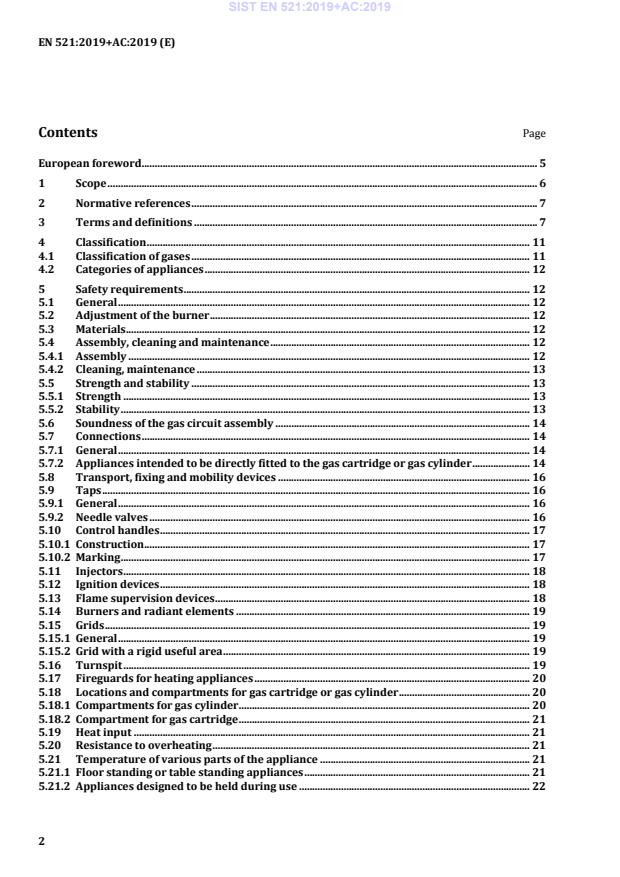

Contents Page
European foreword . 5
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 7
4 Classification . 11
4.1 Classification of gases . 11
4.2 Categories of appliances . 12
5 Safety requirements . 12
5.1 General . 12
5.2 Adjustment of the burner . 12
5.3 Materials . 12
5.4 Assembly, cleaning and maintenance . 12
5.4.1 Assembly . 12
5.4.2 Cleaning, maintenance . 13
5.5 Strength and stability . 13
5.5.1 Strength . 13
5.5.2 Stability . 13
5.6 Soundness of the gas circuit assembly . 14
5.7 Connections . 14
5.7.1 General . 14
5.7.2 Appliances intended to be directly fitted to the gas cartridge or gas cylinder . 14
5.8 Transport, fixing and mobility devices . 16
5.9 Taps . 16
5.9.1 General . 16
5.9.2 Needle valves . 16
5.10 Control handles . 17
5.10.1 Construction . 17
5.10.2 Marking . 17
5.11 Injectors . 18
5.12 Ignition devices . 18
5.13 Flame supervision devices . 18
5.14 Burners and radiant elements . 19
5.15 Grids . 19
5.15.1 General . 19
5.15.2 Grid with a rigid useful area . 19
5.16 Turnspit . 19
5.17 Fireguards for heating appliances . 20
5.18 Locations and compartments for gas cartridge or gas cylinder . 20
5.18.1 Compartments for gas cylinder . 20
5.18.2 Compartment for gas cartridge . 21
5.19 Heat input . 21
5.20 Resistance to overheating . 21
5.21 Temperature of various parts of the appliance . 21
5.21.1 Floor standing or table standing appliances . 21
5.21.2 Appliances designed to be held during use . 22
5.22 Temperature of panels (floors, walls or ceilings) . 22
5.22.1 Floor and table standing appliances . 22
5.22.2 Appliances intended for suspension . 22
5.23 Ignition, crosslighting and flame stability . 22
5.24 Resistance to draught . 23
5.25 Resistance to liquid spillage . 23
5.26 Combustion . 23
5.27 Accumulation of un-burnt gas . 23
5.28 Safety at high temperature . 23
5.29 Sooting - condensation. 23
5.30 Rational use of energy . 23
5.30.1 Efficiency of stove burners . 23
5.31 Durability of markings . 24
5.32 Strength and endurance requirements . 24
6 Test methods . 24
6.1 General . 24
6.1.1 Test gases. 24
6.1.2 Test conditions . 25
6.1.3 Test gases and pressures . 25
6.1.4 Test vessel . 26
6.2 Adjustment of the burner . 26
6.3 Materials . 26
6.4 Assembly, cleaning and maintenance . 26
6.5 Strength and stability . 26
6.5.1 Strength . 26
6.5.2 Stability . 27
6.6 Soundness of the gas circuit assembly . 28
6.6.1 Soundness of the appliance . 28
6.6.2 Soundness of flexible tube connections. 29
6.6.3 Soundness of burner assemblies . 29
6.7 Connections . 29
6.7.1 General . 29
6.7.2 Appliances directly connected to gas cartridge or gas cylinder . 29
6.8 Transport, fixing and mobility devices . 30
6.9 Taps . 30
6.10 Control handles . 30
6.11 Injectors . 31
6.12 Ignition devices . 31
6.13 Flame supervision devices . 31
6.13.1 General . 31
6.13.2 Ignition delay time . 31
6.13.3 Extinction delay time . 31
6.14 Burners and radiant elements . 31
6.15 Grids . 31
6.16 Turnspit. 31
6.17 Fireguards for heating appliances . 32
6.17.1 Strength of fireguards . 32
6.17.2 Dimensions . 32
6.18 Locations and compartments for gas cartridge or gas cylinder . 32
6.19 Verification of heat inputs . 32
6.19.1 Test . 32
6.19.2 Calculation of heat inputs . 33
6.20 Resistance to overheating . 33
6.21 Temperatures of the various parts of the appliance . 34
6.21.1 Test installation . 34
6.21.2 Test method . 34
6.22 Temperature of panels (floor, wall or ceiling) . 35
6.22.1 Floor standing appliances . 35
6.22.2 Fixed appliances . 35
6.23 Ignition, crosslighting and flame stability . 35
6.23.1 Test conditions . 35
6.23.2 Test on individual burners, others being extinguished . 36
6.23.3 Test on individual burners, others being lit . 36
6.24 Resistance to draught . 37
6.25 Resistance to liquid spillage . 37
6.26 Combustion . 38
6.26.1 General conditions . 38
6.26.2 Stove burners. 38
6.26.3 Analysis of the products of combustion . 38
6.27 Accumulation of un-burnt gases . 39
6.28 Safety at high temperature . 39
6.29 Sooting - condensation . 39
6.30 Rational use of energy . 40
6.30.1 Uncovered stove burners . 40
6.30.2 Covered burners . 41
6.31 Durability of the marking . 41
6.32 Strength and endurance test . 42
7 Markings . 42
7.1 Appliance marking . 42
7.2 Packaging marking . 43
8 Instructions for use, maintenance and assembly . 43
8.1 General . 43
8.2 Instruction contents . 43
Annex A (normative) Characteristics of test vessels (see 6.5.2.3) . 58
Annex B (normative) Tests on needle valves (see 6.9) . 60
B.1 Resistance to temperature . 60
B.2 Endurance . 60
Annex C (informative) Examples of authorized solutions . 61
Bibliography . 68

European foreword
This document (EN 521:2019+AC:2019) has been prepared by Technical Committee CEN/TC 181
“Appliances and leisure vehicle installations using liquefied petroleum gas and appliances using natural
gas for outdoor use”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards shall
be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Corrigendum 1 issued by CEN on 7 August 2019.
This document supersedes ˜EN 521:2019™.
This document includes the corrigendum 1 which updates Figure 3 and adds a key to Figures C.2 and
C.4.
The start and finish of text introduced or altered by corrigendum is indicated in the text by tags ˜™.
The main changes from the 2006 version are linked to the fact that the flat gas stoves have been
removed from the scope of this new version.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document specifies the construction and performance characteristics related to safety and the
rational use of energy of portable appliances burning liquefied petroleum gases at the vapour pressure
within the gas cartridge or gas cylinder, excepting those where the gas cartridge is inserted horizontally
in the chassis.
NOTE These appliances are referred to in the body of the text as “appliances”.
This document applies to various types of portable appliances burning liquefied petroleum gases at
vapour pressure and designed to be used with cartridges as complying with EN 417 or gas cylinders.
This document covers appliances for outdoor or in well ventilated areas uses only.
For example the following types of appliances are covered:
a) cooking appliances (stoves, grills, barbecues.);
This document does not cover barbecues that can be used indoors;
b) lighting appliances;
c) heating appliances;
This document only applies to appliances with a maximum heat input of up to 3 kW (H ) for outdoor
s
use only;
d) blowtorches;
This document only applies to blowtorches without a flexible hose;
e) laboratory burners.
The requirements apply to these appliances or their functional sections whether or not the latter are
independent or incorporated into an assembly.
Appliances covered by this document are not connected to a flue for the discharge of products of
combustion and are not connected to the mains electricity supply.
This document covers neither appliances supplied with LPG in the liquid phase nor appliance with fixed
integral container which may or may not be refilled by the user
It does not apply to lighters as defined in EN ISO 9994.
It does not apply to gas appliances operating with a valve cartridge which is horizontally integrated into
the chassis of the appliance also called “flat portable gas stove”.
Requirements for rational use of energy have been included for stove burners.
However, such requirements have not been included for the other types of appliances because:
— for grills and barbecues, this is a type of cooking which is achieved by various means such as
radiant elements; in addition this type of cooking varies according to the type of food and region
where the appliance is used;
— for lighting appliances, the consumption is insignificant because these appliances have a very low
rate and are used only for a few hours in a year;
— for heating appliances, all the heat produced is discharged into the environment;
— for tools such as blowtorches which are not professional tools in regular use, the gas consumption
depends very much on the way it is used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
EN 30-1-1:— , Domestic cooking appliances burning gas fuel — Part 1-1: Safety — General
EN 125:2010+A1:2015, Flame supervision devices for gas burning appliances — Thermoelectric flame
supervision devices
EN 437:2018, Test gases — Test pressures — Appliance categories
EN 549:1994, Rubber materials for seals and diaphragms for gas appliances and gas equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
stove
cooking appliance incorporating one or several burners and a pan support(s) designed in such a way
that it(they) can support the vessels containing the food
3.2
flat portable gas stove
flat stove operating with a gas cartridge horizontally placed in the chassis for which the length or width
is bigger than its height
Note 1 to entry: Figure 2 gives an example of a flat portable gas stove
3.3
vapour pressure appliance
appliance for which the pressure at the gas inlet is equal to the pressure in the gas cartridge or gas
cylinder
Note 1 to entry: If the appliance is fixed directly to the gas cylinder by a rigid connection, the appliance inlet is
the part of the connection that takes the gas from the cylinder. A pressure reducing device may be incorporated in
the gas circuit, between the gas inlet and the injector.
Note 2 to entry: If the appliance is connected to the gas cylinder by a flexible hose, the pressure in the flexible
hose once it is connected to the gas cylinder is equal to the pressure in the gas cylinder. A pressure reducing
device may be incorporated in the gas circuit downstream of the flexible hose

)
Under preparation. Stage at the time of publication: prEN 30-1-1:2017
3.4
gas cylinder
refillable or non-refillable container fitted with a valve filled with gas or a gas mixture
3.5
gas cartridge
non-refillable container with a maximum capacity of 1 000 ml filled with gas or a gas mixture
Note 1 to entry: It may be fitted with a valve. If it is not fitted with a valve, the release of gas is carried out
following perforation of the cartridge by means of a device incorporated in the appliance
3.6
cooking device
device supplied with the appliance designed to hold or receive the food to be cooked
Note 1 to entry: Grid, turnspit, baking tray etc.
3.7
useful part of a cooking device
part of the device in contact with food during cooking
3.8
grid
cooking device designed to hold the food to be cooked
Note 1 to entry: Its useful component(s) can be rigid or flexible
3.9
grid with flexible useful components
cooking device made up of two jointed components enabling tight gripping of the food to be cooked
Note 1 to entry: Each component consists of a rigid frame on which metallic wires are fixed and form a flexible
mesh inside the frame distorting around the food
3.10
barbecue
appliance designed principally to roast and/or grill food
Note 1 to entry: Cooking is carried out by radiant heat and, possibly, by convection and conduction
3.11
griddle
part of a stove consisting of a plate placed above a burner, that allows the cooking of food by direct
contact with the surface of the plate which is brought to a high temperature
3.12
stabilizer
part of the appliance designed to increase mechanical stability
3.13
pan support
support placed above an open stove burner and designed to support the pan to be heated
3.14
turnspit
cooking device enabling the rotation of the food to be roasted
Note 1 to entry: The rotation can be manual or using a mechanical or electrical motor (battery)
3.15
glass panel
glass surface or part of a glass surface allowing the inside of an enclosure to be seen
3.16
fittings
safety devices, controlling devices or regulating devices and sub-assemblies thereof, designed to be
incorporated into an appliance or to be assembled to constitute an appliance
Note 1 to entry: for example valves, flame supervision devices
Note 2 to entry: cartridge is not considered as fittings
3.17
flame supervision device
device which, due to the presence of a flame on the sensing element, keeps open the gas flow to the
burner and any pilot and which cuts off the gas supply to the burner and possibly a pilot in the event of
extinction of the supervised flame
3.18
ignition delay time
time between the ignition of the supervised flame and the moment when the effect of this flame is
sufficient to keep the closing device open
3.19
extinction delay time
time between the extinction of the supervised flame and the closure of the gas supply to the burner and
possibly a pilot
3.20
tap
controlling device, part of the appliance, designed to isolate a burner from the internal gas pipework
and possibly to adjust its rate during use
3.21
control handle
component designed to be operated manually so as to operate a control of the appliance
Note 1 to entry: e.g. a tap, thermostat etc.
3.22
gripping area
outside part of the appliance designed to be handled during use
3.23
burner
component that allows the gas to burn
Note 1 to entry: two types of burners are distinguished
— ignition burner: small burner whose flame is designed to light a main burner. It is referred to as “pilot” in
this European Standard;
— main burner: burner designed to fulfil a thermal function of the appliance. It is referred to as “burner” in this
European Standard
3.24
injector
component part that admits the gas into a burner
Note 1 to entry: An injector is said to be calibrated when the section of the outlet orifice is fixed
3.25
ignition device
device to ignite one or more burners directly or indirectly
3.26
primary air adjuster
device allowing the modification of the primary air rate
Note 1 to entry: The action consisting in operating this device is termed “primary air adjustment”
3.27
means of sealing
static or dynamic device designed to ensure leak tightness
Note 1 to entry: for example: flat-faced joints, O-ring or conical joints, diaphragms, grease, pastes, putties etc.
3.28
detachable
possible to dismantle without using a tool
3.29
removable
removal only possible with a tool
3.30
soft solder
solder for which the lowest temperature of the melting range, after application, is less than 450 °C
3.31
flame stability
flames are stable at the burner ports when the phenomena of flame lift or light back do not occur
3.32
flame lift
phenomenon characterized by the partial or total movement of the base of the flame away from the
burner port
3.33
light back
phenomenon characterized by the return of the flame inside the body of the burner
3.34
calorific value
quantity of heat produced by the complete combustion, at a constant pressure equal to 1 013,25 mbar,
of a unit volume or mass of gas, the constituents of the combustible mixture being taken at reference
conditions and the products of combustion being brought back to the same conditions
Note 1 to entry: A distinction is made between:
— the gross calorific value Hs: the water produced by combustion is assumed to be condensed;
— the net calorific value Hi: the water produced by combustion is assumed to be in the vapour state
Note 2 to entry: The calorific value is expressed:
— either in megajoules per cubic metre (MJ/m3) of dry gas under the reference conditions;
— or in megajoules per kilogram (MJ/kg) of dry gas.
[SOURCE: EN 437:2018]
3.35
gas supply pressure
difference between the static pressure measured at the gas inlet connection of the appliance and the
atmospheric pressure. It is expressed in bar
4 Classification
4.1 Classification of gases
Gases likely to be used are classified in three groups according to their pressures:
a) butane:
Mixture of hydrocarbons containing mainly butanes and butenes having a maximum pressure of
8 bar gauge at 50 °C;
b) butane-propane mixture:
Mixture of hydrocarbons containing mainly butanes, butenes, propane and propene having a
pressure between 8 bar gauge and 12 bar gauge at 50 °C;
c) propane:
Mixture of hydrocarbons containing mainly propane and propene having a pressure above 12 bar
gauge at 50 °C.
4.2 Categories of appliances
Appliances are classified in three categories according to the gases likely to be used:
— category direct pressure – butane;
— category direct pressure - butane-propane mixture;
— category direct pressure - propane.
5 Safety requirements
5.1 General
The test methods and the means of verification are indicated in Clause 6.
The design shall make it impossible to incorrectly fit or refit any user-removable or replaceable part(s)
or component(s) that can have an adverse effect on combustion or cause CO emissions to exceed limits
in Clause 5.26.
5.2 Adjustment of the burner
For appliances of types a), b) and c) of the scope of this European Standard, not any adjustment of the
burner shall be possible.
5.3 Materials
Non-metallic materials used as radiant elements in appliances (for example volcanic rocks, refractory
blocks) shall be of a quality suitable to their use.
The quality and thickness of materials used in the construction of appliances shall be such that the
constructional and performance characteristics are not altered in use. In particular all the parts of the
appliance shall withstand mechanical, chemical and thermal actions to which they may be submitted
during use. In normal conditions of operation, of cleaning or of adjustment, they shall not be liable to
any alterations which might impair their safety.
Sheet-metal parts, not made of corrosion-resistant material, shall be effectively protected against
corrosion. This requirement does not apply to grilles supporting lava rocks nor to cooking devices.
Seals and joining compounds shall have characteristics suited to their use.
Rubber based materials shall comply with EN 549:1994 class A2 minimum, and LPG resistant.
Hoses being part of the appliance shall be LPG resistant.
Copper tubing shall be used upstream of the injector only if its temperature does not exceed 100 °C
when the test described in 6.21 is carried out.
Asbestos or asbestos based materials shall not be used.
5.4 Assembly, cleaning and maintenance
5.4.1 Assembly
The entire appliance gas circuit, including the injector and flexible hoses if any, shall be factory
assembled. If clamps are used, they shall be of the machine formed type. Removable clamps are not
permitted.
Parts, whose assembly is carried out by the user, shall be able to be assembled correctly by following
the instructions given in the instructions.
It shall not be possible to dismantle parts which are adjusted at the factory, which are not intended to
be dismantled by the user and whose dismantling would affect safety, without using tools. If
dismantling is possible using an open ended spanner or a screwdriver, direct access to such nuts and
screw heads shall not be possible, unless they are sealed.
If a pressure reducing device is integrated in the gas circuit, it shall not be removable nor replaceable by
the user.
NOTE This device can provide the functions of adjustment, opening and closing of the gas flow.
Connections shall allow the flexible hose to move freely without risk of coming into contact with a part
of the appliance whose temperature rise exceeds 70 K during the test defined in 6.21 when fitted in
accordance with the instructions.
5.4.2 Cleaning, maintenance
All parts of the appliance requiring frequent cleaning by the user shall be easily accessible. It shall be
possible to put these parts back correctly.
There shall be no sharp corners and edges on the accessible parts of an appliance which could give rise
to injury, for example during cleaning.
5.5 Strength and stability
5.5.1 Strength
5.5.1.1 General
The construction of an appliance shall be such that, during normal conditions of use:
— any displacement of parts;
— any distortion;
— any deterioration
likely to impair safe operation will not occur.
5.5.1.2 Stove pan supports
The application of a mass as described in 6.5.1.2 on the pan support shall not cause any breakage or
permanent distortion of the pan support exceeding 1 mm.
5.5.1.3 Glass components
The accessible edges of glass components shall not be sharp. They shall withstand the various stresses
to which they are subjected during the tests described in this European Standard without damage. In
particular they shall withstand the tests described in 6.5.1.3.1 (when they are a part of the appliance)
and in 6.5.1.3.2.
5.5.2 Stability
If the appliance is fitted with a foldable support, it shall be possible to lock this in the position of use (for
example: stop, locking device).
If the radiant device of a barbecue or a grill can have several positions, a stop shall be provided for each
of them.
The stability of an appliance designed to rest on a table or on the ground shall allow safe use on level
ground. In addition, the appliance shall not tilt or fall over when it is placed on a slope of 10° and any lid
shall not close.
This requirement shall also be met when the appliance is fitted with optional parts (for example: lamp
extension posts).
These requirements shall be met under the test conditions described in 6.5.2.
5.6 Soundness of the gas circuit assembly
Holes for screws, pins, etc, intended for the assembly of components shall not open into the space
reserved for the gas ways leading to the injector.
The soundness of parts and assemblies connected to the gas circuit shall be ensured by means of metal-
to-metal joints or joints with seals (for example, flat-faced joints, O-rings or gaskets), i.e. excluding the
use of any product which ensures soundness in the threads. For parts that do not require to be
dismantled during normal maintenance, for example taps, the use of thread sealing compounds is
permitted.
Removable components or the threaded parts of the gas pipework which may be dismantled during
maintenance described in the instructions shall remain sound after five disconnections and re-
connections in
...
