EN 13529:2003

Products and systems for the protection and repair of concrete structures - Test methods - Resistance to severe chemical attack

This European Standard specifies a method for determining the resistance to severe chemical attack of surface protection systems.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Widerstand gegen starken chemischen Angriff

Diese Europäische Norm legt ein Verfahren zur Bestimmung des Widerstandes von Oberflächenschutz-systemen gegen starken chemischen Angriff fest.

Produits et systèmes pour la protection et la réparation des structures en béton - Méthodes d'essai - Résistance aux fortes attaques chimiques

La présente Norme européenne prescrit une méthode destinée à déterminer la résistance des systèmes de protection de surface aux fortes attaques chimiques.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Preskusne metode – Odpornost proti močni kemijski agresiji

General Information

• Status: Published
• Publication Date: 16-Sep-2003
• Withdrawal Date: 30-Mar-2004
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 1 - Surface protection systems
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Nov-2020
• Completion Date: 23-Sep-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/128 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on products for concrete, mortar and grout
• Ref Project: SIST EN 13529:2003 - Products and systems for the protection and repair of concrete structures - Test methods - Resistance to severe chemical attack

Overview

EN 13529:2003 is a European Standard developed by CEN that specifies the test methods for assessing the resistance of surface protection systems to severe chemical attack on concrete structures. This standard applies to products and systems designed for the protection and repair of concrete and provides a systematic approach to evaluate their durability when exposed to harsh chemical environments.

The standard outlines the principles, apparatus, sampling methods, test procedures, and evaluation criteria necessary for determining the chemical resistance of coatings and protective layers applied to concrete substrates. EN 13529:2003 supports manufacturers, testing laboratories, and construction professionals in ensuring the reliability and longevity of protective coatings used in chemically aggressive conditions.

---

Key Topics

Scope and Purpose

• Focuses on surface protection systems for concrete structures
• Evaluates resistance to severe chemical attack to predict durability
• Addresses protection and repair applications

Test Specimens and Preparation

• Use of concrete slabs prepared per EN 1766
• Surface preparation by grit-blasting for uniformity
• Coating application and curing follow manufacturer’s instructions
• Measurement of coating thickness according to EN ISO 2808

Testing Apparatus

• Metal frame with bell-type caisson chambers to contain testing liquids
• Application of pressure (1 bar) during testing or without pressure
• Testing chamber uses rubber cuff seals to maintain containment

Test Procedure

• Testing liquids chosen according to Annex A or agreed mutually
• Exposure durations typically include 1, 3, 7, 28, or 90 days depending on requirements
• Two separate exposure areas possible with use of dual rings
• Initial and post-exposure hardness measurements (EN ISO 868, EN ISO 2815)

Evaluation Criteria

• Visual inspection for blistering, flaking, cracking, and optical changes per ISO 4628 series
• Measurement of coating hardness and adhesion changes
• Assessment of liquid penetration through coating
• Post-test coating thickness measurement

Reporting Requirements

• Detailed test reports covering test conditions, materials, results, and any method deviations
• Clear identification of product batch, testing laboratory, and reference to EN 13529

---

Applications

EN 13529:2003 is essential for assessing the chemical resistance of protective coatings and repair systems used in concrete infrastructure exposed to aggressive chemicals. Typical applications include:

• Industrial Flooring and Structures: Protection of concrete floors and structural elements in chemical plants, refineries, and manufacturing facilities.
• Wastewater Treatment Plants: Coatings resistant to acids, alkalis, and organic solvents encountered in treatment environments.
• Marine and Coastal Structures: Durability testing against saltwater, hydrocarbons, and other corrosive substances.
• Transportation Infrastructure: Surface protection for bridges, tunnels, and highways exposed to de-icing salts and chemical pollutants.
• Storage and Containment Areas: Concrete protection in tanks or areas where chemical spills may occur.

This standard enables manufacturers to validate product performance, regulatory bodies to ensure compliance, and end-users to select appropriate surface protection systems for chemically demanding environments.

---

Related Standards

EN 13529:2003 complements several other important standards for concrete protection and repair, including:

• prEN 1504-2: Defines requirements, definitions, and conformity evaluation for surface protection systems of concrete structures.
• EN 1766: Provides guidelines for producing reference concrete specimens on which protection systems are tested.
• EN ISO 868 & EN ISO 2815: Test methods for determining hardness of coatings, used in evaluating chemical resistance.
• ISO 4628 series: Standards for assessing coating degradation including blistering, cracking, and flaking.
• prEN 1062-7: Related test methods for crack-bridging properties of coatings on concrete.

Understanding the interplay between EN 13529 and these standards is vital for comprehensive quality control, durability assessment, and certification of concrete protection products.

---

Keywords: EN 13529, chemical resistance testing, concrete protection, surface protection systems, severe chemical attack, concrete repair, coating durability, CEN standards, concrete coatings testing, protective coatings for concrete, chemical attack resistance, European standard concrete protection.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2003
3URL]YRGLLQVLVWHPL]D]DãþLWRLQSRSUDYLOREHWRQVNLKNRQVWUXNFLM3UHVNXVQH
PHWRGH±2GSRUQRVWSURWLPRþQLNHPLMVNLDJUHVLML
Products and systems for the protection and repair of concrete structures - Test methods
- Resistance to severe chemical attack
Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken -
Prüfverfahren - Widerstand gegen starken chemischen Angriff
Produits et systemes pour la protection et la réparation des structures en béton -
Méthodes d'essai - Résistance aux fortes attaques chimiques
Ta slovenski standard je istoveten z: EN 13529:2003
ICS:
91.080.40 Betonske konstrukcije Concrete structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13529
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2003
ICS 91.080.40
English version
Products and systems for the protection and repair of concrete
structures - Test methods - Resistance to severe chemical
attack
Produits et systèmes pour la protection et la réparation des Produkte und Systeme für den Schutz und die
structures en béton - Méthodes d'essai - Résistance aux Instandsetzung von Betontragwerken - Prüfverfahren -
fortes attaques chimiques Widerstand gegen starken chemischen Angriff
This European Standard was approved by CEN on 1 August 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13529:2003 E
worldwide for CEN national Members.

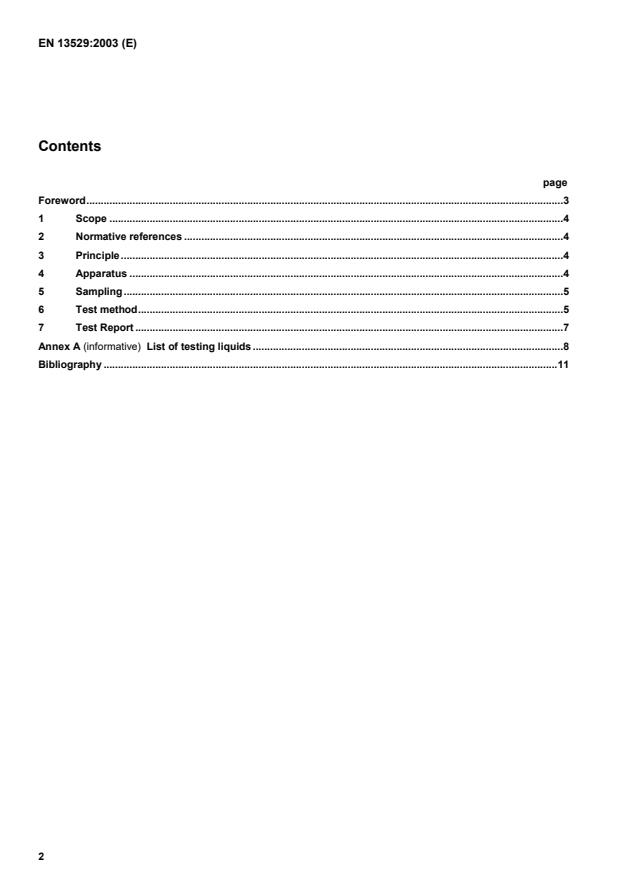

Contents
page
Foreword.3
1 Scope .4
2 Normative references .4
3 Principle.4
4 Apparatus .4
5 Sampling.5
6 Test method.5
7 Test Report .7
Annex A (informative) List of testing liquids .8
Bibliography .11
Foreword
This document (EN 13529:2003) has been prepared by Technical Committee CEN/TC 104, "Concrete and related
products", the Secretariat of which is held by DIN.
It has been prepared by Sub-committee 8 "Products and systems for the protection and repair of concrete
structures" (Secretariat AFNOR).
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by March 2004, and conflicting national standards shall be withdrawn at the latest by
March 2004.
Annex A is informative
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies a method for determining the resistance to severe chemical attack of surface
protection systems.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
prEN 1504-2, Products and systems for the protection and repair of concrete structures – Definitions, requirements,
quality control and evaluation of conformity – Part 2 : Surface protection systems.
EN 1766, Products and systems for the protection and repair of concrete structures - Test methods - Reference
concretes for testing.
EN ISO 868, Plastics and ebonite - Determination of indentation hardness by means of a durometer (Shore
hardness) (ISO 868:1985).
EN ISO 1513, Paints and varnishes - Examination and preparation of samples for testing (ISO 1513:1992).
EN ISO 2808, Paints and varnishes – Determination of film thickness (ISO 2808:1997).
EN ISO 2815, Paints and varnishes – Buchholz indentation test (ISO 2815:2003).
EN ISO 15528, Paints, varnishes and raw materials for paints and varnishes – Sampling (ISO 15528:2000).
ISO 4628-1, Paints and varnishes – Evaluation of degradation of paint coatings – Designation of intensity, quantity
and size of common types of defect – Part 1 : General principles and rating schemes.
ISO 4628-2, Paints and varnishes – Evaluation of degradation of paint coatings – Designation of intensity, quantity
and size of common types of defect – Part 2 : Designation of degree of blistering.
ISO 4628-4, Paints and varnishes – Evaluation of degradation of paint coatings – Designation of intensity, quantity
and size of common types of defect – Part 4 :Designation of degree of cracking
ISO 4628-5, Paints and varnishes – Evaluation of degradation of paint coatings – Designation of intensity, quantity
and size of common types of defect – Part 5 : Designation of degree of flaking.
3 Principle
Resistance of the coating system to severe chemical attack is assessed by exposing one side of the surface
protection system to the testing liquid.
4 Apparatus
4.1 Laboratory maintained at the temperature of (21 – 2) °C and the relative humidity of (60 – 10) %.
4.2 Usual accessories to apply the surface protection system to the basic test pieces.
4.3 Concrete slabs as basic test pieces, according to EN 1766.
4.4 Test apparatus
The test apparatus consists of a metal frame to take up the test piece and to clamp one or two bell-type caisson
chambers (see Figure 1) The bell-type caisson chamber consists of a bell-type steel cup with an inner diameter
of > 100 mm. (The tested area is a circle with a diameter of 100 mm inside of the glued rings). It is connected to a
compressed air vessel equipped with a pressure reducing valve via a compressed air hose. The pressure device is
fixed on the surface protection system by a metal clamp. To ensure the tightness of the caisson chamber, a rubber
cuff is placed between the surface protection system and the caisson chamber.
Key
1 Fixing plate 5 Caisson chamber
2 Compressed air hose 6 Testing liquid
3 Glued rings 7 Surface Protection System
4 Concrete slab 8 Metal frame
Figure 1 — Test apparatus
5 Sampling
A representative and homogenous sample of the material under test shall be taken as described in EN ISO 15528.
The sample shall be examined and prepared as described in EN ISO 1513.
6 Test method
6.1 Test pieces
Test pieces are concrete slabs measuring at least 300 mm x 200 mm x 40 mm and are fabricated in accordance
with EN 1766 using a test concrete (C (0.45) with a maximum aggregate size of 8 mm.
Concrete slabs are prepared and stored according to EN 1766. Surface preparation is carried out according to
EN 1766 by grit-blasting. After storage, according to EN 1766, the concrete slabs shall be stored
...
