prEN 17937
(Main)Regulated chemicals in products - Determination of the content of polycyclic aromatic hydrocarbons (PAHs) by gas chromatography coupled to mass-spectrometry in plastic and rubber in articles supplied to the general public that come into direct contact with human skin and oral cavity
Regulated chemicals in products - Determination of the content of polycyclic aromatic hydrocarbons (PAHs) by gas chromatography coupled to mass-spectrometry in plastic and rubber in articles supplied to the general public that come into direct contact with human skin and oral cavity
This document specifies a method to determine the total content of the 8 regulated polycyclic aromatic hydrocarbons (PAHs), see Table 1, in plastic and rubber articles by using GC-MS allowing detection at 0,1 mg PAHs/kg for plastic and 0,2 mg PAHs/kg for rubber material.
Table 1 - List of PAHs
...
NOTE Other PAHs compounds can also be analysed with this method, provided suitability has been proven.
Reglementierte Chemikalien in Erzeugnissen - Bestimmung des Gehalts von polyzyklischen aromatischen Kohlenwasserstoffen (PAK) mittels Gaschromatographie in Kunststoff und Gummi in Gegenständen für die breite Öffentlichkeit, die in direkten Kontakt mit der menschlichen Haut und der Mundhöhle kommen
Dieses Dokument legt ein Verfahren zur Bestimmung des Gesamtgehaltes der 8 regulierten polyzyklischen aromatischen Kohlenwasserstoffe (PAK), siehe Tabelle 1, in Kunststoff und Gummierzeugnissen durch GC MS (Gaschromatographie/Massenspektrometrie) auf 0,1 mg PAK/kg bei Kunststoff und auf 0,2 mg PAK/kg bei Gummi fest.
Tabelle 1 - PAK Liste...
ANMERKUNG Andere PAK Verbindungen können ebenfalls mit diesem Verfahren analysiert werden, wenn die Eignung überprüft wurde.
Substances chimiques règlementées dans les produits - Détermination de la teneur en hydrocarbures aromatiques polycycliques (HAP) par chromatographie en phase gazeuse couplée à la spectrométrie de masse dans les articles en plastique et en caoutchouc fournis au grand public entrant en contact direct avec la peau humaine et la cavité buccale
Le présent document spécifie une méthode de détermination de la teneur totale des huit hydrocarbures aromatiques polycycliques (HAP) réglementés (voir Tableau 1) dans les articles en plastique et en caoutchouc, par CG-SM permettant la détection à 0,1 mg de HAP/kg pour le plastique et 0,2 mg de HAP/kg pour le caoutchouc.
Tableau 1 - Liste des HAP...
NOTE D’autres composés HAP peuvent également être analysés avec cette méthode, à condition que sa pertinence soit prouvée.
Regulirane kemikalije v izdelkih - Določanje vsebnosti policikličnih aromatskih ogljikovodikov (PAH) z metodo plinske kromatografije z masno spektrometrijo v polimernih materialih in gumi v izdelkih, namenjenih širši javnosti, ki prihajajo v neposredni stik s človeško kožo in ustno votlino
General Information
- Status
- Not Published
- Publication Date
- 26-Nov-2023
- Technical Committee
- CEN/TC 462 - Regulated chemicals in products
- Drafting Committee
- CEN/TC 462/WG 1 - Polycyclic Aromatic Hydrocarbons
- Current Stage
- 4060 - Closure of enquiry - Enquiry
- Start Date
- 13-Apr-2023
- Due Date
- 27-Mar-2023
- Completion Date
- 13-Apr-2023
Overview
prEN 17937 is a forthcoming European standard developed by CEN/TC 462 that specifies an analytical method for determining the total content of eight regulated polycyclic aromatic hydrocarbons (PAHs) in plastic and rubber articles. These products are supplied to the general public and intended for direct contact with human skin or the oral cavity. The method employs gas chromatography coupled with mass spectrometry (GC-MS) to accurately detect PAHs down to levels of 0.1 mg/kg for plastics and 0.2 mg/kg for rubber materials.
This standard supports the enforcement of EU REACH Annex XVII restrictions (Entry 50) on carcinogenic PAHs in consumer items, helping manufacturers, regulators, and testing laboratories ensure compliance with health and safety requirements.
Key Topics
Scope and Substance List:
prEN 17937 targets eight specific PAHs-Benzo[a]pyrene, Benzo[e]pyrene, Benzo[a]anthracene, Chrysene, Benzo[b]fluoranthene, Benzo[j]fluoranthene, Benzo[k]fluoranthene, and Dibenzo[a,h]anthracene. The method allows for analysis of other PAHs if proven suitable.Analytical Principle:
The procedure involves extracting PAHs from representative samples of plastic or rubber using solvents such as toluene or n-heptane. Extraction can be performed by Soxhlet, automated Soxhlet (Randall), or ultrasonic bath methods. After extraction, samples undergo cleanup to remove interferences before GC-MS analysis, where PAHs are identified and quantified using internal standards.Reagents and Equipment:
The protocol requires high-purity solvents and PAH standard solutions, at least three internal deuterated standards matching ring systems, and specialized GC-MS instrumentation capable of electron ionization and single ion monitoring or tandem MS/MS.Sample Preparation:
Samples representing portions in direct skin or oral contact must be homogenized into small fragments (~2-3 mm). Liquids, coatings, powders, and granulates have specific preparatory guidelines to maintain representative, unaltered samples for analysis.Calibration and Quantification:
Calibration curves use native PAH standards, while internal standards ensure accuracy and consistency with GC-MS measurements. Storage and handling conditions for reagents and samples are defined to maintain stability.Safety Notice:
PAHs are hazardous substances with carcinogenic and teratogenic properties. Appropriate laboratory safety and handling precautions are mandatory.
Applications
Regulatory Compliance:
prEN 17937 is essential for manufacturers and importers of consumer rubber and plastic products to verify compliance with EU restrictions on PAHs, particularly for toys, personal care items, and other articles with prolonged skin or oral cavity contact.Market Surveillance:
Testing laboratories can adopt this harmonized GC-MS method to conduct reliable surveillance and enforcement testing, supporting public health protection and consumer safety.Quality Control:
Manufacturers can integrate this analytical procedure into routine quality control measures to monitor PAH levels during production, minimizing regulatory risks.Research and Development:
The standard also provides a validated analytical approach for studying the migration, degradation, or presence of PAHs in new polymer formulations intended for consumer use.
Related Standards
EN ISO 22892: Guidelines for compound identification by gas chromatography and mass spectrometry, supporting analytical methodology standardization.
ISO 1407: Procedures for solvent extract determination in rubber, complementary to preparing samples for PAH analysis.
ISO 21461: Method for determining aromatic oil content in vulcanized rubber compounds, relevant to understanding polymer chemistry context.
REACH Regulation (EC) No. 1907/2006 Annex XVII, Entry 50: Legally binds PAH limits in consumer products, which this standard helps enforce.
CEN/CLC Technical Board Working Group 13: Responsible for PAH-related product safety standards development within European standardization.
Keywords
Polycyclic Aromatic Hydrocarbons, PAHs, GC-MS, gas chromatography, mass spectrometry, plastic articles, rubber articles, REACH regulation, consumer product safety, analytical method, skin contact, oral cavity contact, regulated chemicals, European standard, prEN 17937, PAH detection, hazardous substances, chemical analysis, market surveillance, quality control.
Frequently Asked Questions
prEN 17937 is a draft published by the European Committee for Standardization (CEN). Its full title is "Regulated chemicals in products - Determination of the content of polycyclic aromatic hydrocarbons (PAHs) by gas chromatography coupled to mass-spectrometry in plastic and rubber in articles supplied to the general public that come into direct contact with human skin and oral cavity". This standard covers: This document specifies a method to determine the total content of the 8 regulated polycyclic aromatic hydrocarbons (PAHs), see Table 1, in plastic and rubber articles by using GC-MS allowing detection at 0,1 mg PAHs/kg for plastic and 0,2 mg PAHs/kg for rubber material. Table 1 - List of PAHs ... NOTE Other PAHs compounds can also be analysed with this method, provided suitability has been proven.
This document specifies a method to determine the total content of the 8 regulated polycyclic aromatic hydrocarbons (PAHs), see Table 1, in plastic and rubber articles by using GC-MS allowing detection at 0,1 mg PAHs/kg for plastic and 0,2 mg PAHs/kg for rubber material. Table 1 - List of PAHs ... NOTE Other PAHs compounds can also be analysed with this method, provided suitability has been proven.
prEN 17937 is classified under the following ICS (International Classification for Standards) categories: 71.080.15 - Aromatic hydrocarbons; 83.140.01 - Rubber and plastics products in general. The ICS classification helps identify the subject area and facilitates finding related standards.
prEN 17937 is associated with the following European legislation: EU Directives/Regulations: 1907/2006; Standardization Mandates: M/556. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase prEN 17937 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2023
Regulirane kemikalije v izdelkih - Določanje vsebnosti policikličnih aromatskih
ogljikovodikov (PAH) z metodo plinske kromatografije z masno spektrometrijo v
polimernih materialih in gumi v izdelkih, namenjenih širši javnosti, ki prihajajo v
neposredni stik s človeško kožo in ustno votlino
Regulated chemicals in products - Determination of the content of polycyclic aromatic
hydrocarbons (PAHs) by gas chromatography coupled to mass-spectrometry in plastic
and rubber in articles supplied to the general public that come into direct contact with
human skin and oral cavity
Reglementierte Chemikalien in Erzeugnissen - Bestimmung des Gehalts von
polyzyklischen aromatischen Kohlenwasserstoffen (PAK) mittels Gaschromatographie in
Kunststoff und Gummi in Gegenständen für die breite Öffentlichkeit, die in direkten
Kontakt mit der menschlichen Haut und der Mundhöhle kommen
Substances chimiques règlementées dans les produits - Détermination de la teneur en
hydrocarbures aromatiques polycycliques (HAP) par chromatographie en phase gazeuse
couplée à la spectrométrie de masse dans les articles en plastique et en caoutchouc
fournis au grand public entrant en contact direct avec la peau humaine et la cavité
buccale
Ta slovenski standard je istoveten z: prEN 17937
ICS:
71.080.15 Aromatski ogljikovodiki Aromatic hydrocarbons
83.140.01 Izdelki iz gume in polimernih Rubber and plastics products
materialov na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2023
ICS 71.080.15; 83.140.01
English Version
Regulated chemicals in products - Determination of the
content of polycyclic aromatic hydrocarbons (PAHs) by gas
chromatography coupled to mass-spectrometry in plastic
and rubber in articles supplied to the general public that
come into direct contact with human skin and oral cavity
Substances chimiques règlementées dans les produits - Reglementierte Chemikalien in Erzeugnissen -
Détermination de la teneur en hydrocarbures Bestimmung des Gehalts von polyzyklischen
aromatiques polycycliques (HAP) par chromatographie aromatischen Kohlenwasserstoffen (PAK) mittels
en phase gazeuse couplée à la spectrométrie de masse Gaschromatographie in Kunststoff und Gummi in
dans les articles en plastique et en caoutchouc fournis Gegenständen für die breite Öffentlichkeit, die in
au grand public entrant en contact direct avec la peau direkten Kontakt mit der menschlichen Haut und der
humaine et la cavité buccale Mundhöhle kommen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 462.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N
E UROPÄISCHES KOMITEE FÜR NORMUN G
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17937:2023 E
worldwide for CEN national Members.

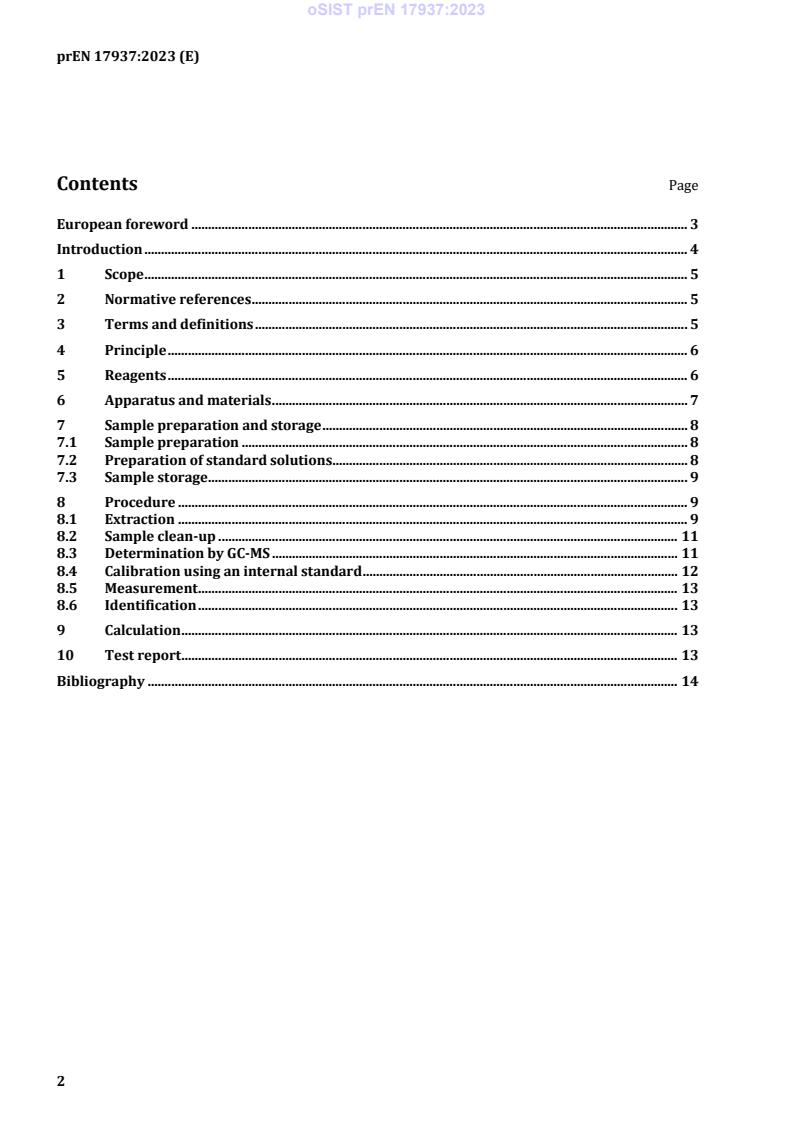

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 Reagents . 6
6 Apparatus and materials . 7
7 Sample preparation and storage . 8
7.1 Sample preparation . 8
7.2 Preparation of standard solutions. 8
7.3 Sample storage . 9
8 Procedure . 9
8.1 Extraction . 9
8.2 Sample clean-up . 11
8.3 Determination by GC-MS . 11
8.4 Calibration using an internal standard . 12
8.5 Measurement . 13
8.6 Identification . 13
9 Calculation . 13
10 Test report . 13
Bibliography . 14
European foreword
This document (prEN 17937:2023) has been prepared by Technical Committee CEN/TC 462 “Regulated
chemicals in products”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
Introduction
In December 2013, based on a report established in 2010 by the German authorities, the European
Commission amended the REACH Annex XVII through the Regulation (EU) No. 1272/2013, with amend
entry 50, with the addition of paragraphs 5 and 6. This Regulation addresses and restricts the use of
eight PAHs (Polycyclic Aromatic Hydrocarbons) in rubber and plastic articles supplied to the general
public that come into direct as well as prolonged contact or short-term repetitive contact with human
skin or the oral cavity, under normal or reasonably foreseeable conditions of use.
To support the enforcement of this restriction the European Commission requested the European
Committee for Standardization (CEN) and the European Committee for Electrotechnical Standardization
(CENELEC) to draft harmonized standards for the analytical determination of the individual
concentrations of the 8 carcinogenic PAHs, listed in entry 50 of Annex XVII to Regulation (EC) No.
1907/2006 (REACH), in plastic and rubber components (see standardization request M/556).
A Technical Board Working Group 13 "PAHs" (CEN-CLC/BT/WG 13) established by CEN-CENELEC had
to investigate that request through a scoping study which had to identify if any existing methods to
determine the total content for PAHs in rubber and plastic articles exist but also if any spectroscopic
methods could assist Market Surveillance Authorities in performing non-destructive screening tests.
The result of the scoping study based on an up to date literature review concluded the need to develop
a harmonized standard to support (EU) No. 1272/2013 legislation, which is developed hereafter.
1 Scope
This document specifies a method to determine the total content of the 8 regulated polycyclic aromatic
hydrocarbons (PAHs), see Table 1, in plastic and rubber articles by using GC-MS allowing detection at
0,1 mg PAHs/kg for plastic and 0,2 mg PAHs/kg for rubber material.
Table 1 — List of PAHs
PAHs CAS number
Benzo[a]pyrene (BaP) CAS No 50-32-8
Benzo[e]pyrene (BeP) CAS No 192-97-2
Benzo[a]anthracene (BaA) CAS No 56-55-3
Chrysene (CHR) CAS No 218-01-9
Benzo[b]fluoranthene (BbFA) CAS No 205-99-2
Benzo[j]fluoranthene (BjFA) CAS No 205-82-3
Benzo[k]fluoranthene (BkFA) CAS No 207-08-9
Dibenzo[a,h]anthracene (DBahA) CAS No 53-70-3
NOTE Other PAHs compounds can also be analysed with this method, provided suitability has been proven.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 22892:2011, Soil quality — Guidelines for the identification of target compounds by gas
chromatography and mass spectrometry (ISO 22892:2006)
ISO 1407:2011, Rubber — Determination of solvent extract
ISO 21461:2012, Rubber — Determination of the aromaticity of oil in vulcanized rubber compounds
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Principle
The test specimen is extracted using toluene (or n-heptane) using a Soxhlet or Randall (automated
Soxhlet) extraction or ultrasonic bath extraction method. The extract is concentrated and interfering
compounds are removed by a clean-up method. An aliquot is then analysed using a gas chromatograph
with mass selective detector (GC-MS).
PAHs are identified and quantified with GC-MS by comparison of relative retention times and relative
peak heights (or peak areas) with respect to internal standards added.
5 Reagents
WARNING — Polycyclic Aromatic Hydrocarbons can cause cancer, are suspected of damaging an
unborn child, can cause damage to organs through prolonged or repeated exposure, and can be
fatal if swallowed and/or enter airways. Appropriate measures shall be taken to ensure safety.
All reagents shall be of recognized analytical grade unless specified in a different way.
— Toluene, CAS number: 108-88-3. or n-heptane, CAS number: 142-82-5
— Ethanol, CAS number: 64-17-5
— Cyclohexane, CAS number: 110-82-7
— PAHs standard solutions
The standards shall be chosen so that they behave in the same way as the corresponding analytes and
that they can be readily quantified (see Table 2).
All purchased PAHs standard materials shall be 98 % pure or better and certified in respect of their
purity, concentration level, and authenticity by the manufacturer. PAH standards diluted in cyclohexane
can be accepted.
Standard solutions and extracts should be stored in a dark place (e.g. in amber glassware) at about
(5+/- 3) °C. These standard solutions and extracts shall not be used after 1 year.
— Internal standards
At least 3 internal standards shall be used, using one of each ring system family as shown in Table 2. The
internal standards given in Table 2 are examples. Others may be used, as long as they represent at least
the 3+, the 4+ and the 5+ ring systems
Table 2 — Native (calibration standards) and deuterated (internal standards) PAHs
compounds
Calibration standard Ring system Internal standard
benzo[a]anthracene 3+ benzo[a]anthracene-d12
chrysene 3+ benzo[a]anthracene-d12
benzo[k]fluoranthene 4+ benzo[b]fluoranthene-d12
benzo[b]fluoranthene 4+ benzo[b]fluoranthene-d12
benzo[j]fluoranthene 4+ benzo[b]fluoranthene-d12
benzo[a]pyrene 5+ benzo[a]pyrene-d12
benzo[e]pyrene 5+ benzo[a]pyrene-d12
dibenzo[a,h]anthracene 5+ benzo[a]pyrene-d12
6 Apparatus and materials
To prevent any interference, it is recommended to avoid plastic and other organic materials.
It is recommended to use the usual equipment and laboratory glassware according to EN ISO 4787:2021
and the following:
— Analytical balance, with a precision of at least 0,1 mg to weigh the samples;
Analytical balance, with precision of at least 0,01 mg shall be used by labs which are preparing their
stock solutions from pure chemicals.
— Micropipettes, 50 μl and 100 μl;
— Pipette, 0,5 ml to 5 ml capacity;
— Glass vials (amber);
— Gas chromatograph coupled to a mass-spectrometer (MS) with electron ionisation (EI) capability
and single ion monitoring (SIM) mode or MS/MS with multiple reaction monitoring (MRM) mode.
GC Capillary Column: it is strongly recommended to use a GC column specifically dedicated for PAHs
analysis, with column length of at least 30 m, internal diameter 0,25 mm to 0,32 mm, film thickness
0,17 μm to 0,25 μm.
Deactivated straight borosilicate liner with small piece of deactivated glass wool - this liner may be used
as long as peak resolution is satisfactory.
An alternative liner is a split/splitless not deactivated liner with glass wool (4-mm internal diameter,
straight liner).
Liners shall be deactivated with a silanizing agent before use. Another alternative is a split/splitless liner
with fluorocarbon liner seals. Such a liner will already contain conditioned silanized glass wool.
Other liners can be used if they produce acceptable results.
It is recommended to use a gold-plated seal for GC injector port or similar nonreactive seal.
GC/MS amber autosampler vials with polytetrafluoroethylene (PTFE)-coated caps.
Crimping tool.
— Extraction apparatus:
— Ultrasonic bath: Minimum power 200W wi
...
The standard prEN 17937 provides a comprehensive methodology for the determination of the total content of polycyclic aromatic hydrocarbons (PAHs) in plastic and rubber articles designed for direct contact with human skin and the oral cavity. This document is significant in its scope as it specifically targets products supplied to the general public, ensuring safety and compliance with health regulations. One of the key strengths of prEN 17937 is its clear specification for utilizing gas chromatography coupled to mass spectrometry (GC-MS) for accurate detection of PAHs. The standard allows for detection limits as low as 0.1 mg PAHs/kg in plastic materials and 0.2 mg PAHs/kg in rubber, which highlights its effectiveness in identifying regulated chemicals in products. The inclusion of a list of the 8 regulated PAHs (as per Table 1 in the document) demonstrates its relevance to existing regulatory frameworks and provides a reliable reference point for manufacturers and quality control professionals. Furthermore, the standard also encompasses the flexibility to analyze other PAH compounds, provided their suitability has been verified. This aspect not only enhances the utility of the document but also indicates its adaptability to evolving chemical safety requirements and advances in analytical methodologies. In summary, prEN 17937 stands out as a crucial standard that effectively addresses the need for rigorous testing of regulated chemicals in consumer products. Its methodological rigor, combined with the focus on safety and compliance, reinforces its essential role in protecting public health against the risks associated with PAHs in plastic and rubber items.
표준 oSIST prEN 17937:2023은 일반 대중에게 공급되는 제품 중 인체 피부 및 구강과 직접 접촉하는 플라스틱 및 고무 물질에서의 다환 방향족 탄화수소(이하 PAHs)의 함량을 가스 크로마토그래피-질량 분석(GC-MS) 방법으로 규명하는 방법을 명확히 규정하고 있습니다. 이 문서는 8종의 규제된 PAHs의 총 함량을 정량화하기 위해 고안되었으며, 플라스틱의 경우 0.1 mg PAHs/kg, 고무의 경우 0.2 mg PAHs/kg 수준의 감지가 가능합니다. 이 표준의 강점은 정밀하고 신뢰할 수 있는 측정 방법을 제공한다는 점입니다. PAHs는 환경 및 건강에 미치는 영향이 크기 때문에, 이 문서는 소비자의 안전을 보장하기 위한 중요한 기준을 마련하고 있습니다. GC-MS 기반의 분석법은 고감도와 선택성을 제공하여 다양한 샘플을 효과적으로 분석할 수 있습니다. 또한, 표준에서는 PAHs 목록이 제공되어 규제 대상 물질이 명확하게 인식되며, 이를 통해 제조업체가 준수해야 할 기준을 이해하기 쉽게 설명합니다. 이 표준은 플라스틱 및 고무 제품의 안전성을 평가하는 데 필수적이며, 소비자와 제조업체 모두에게 중요한 가이드라인 역할을 합니다. 나아가, 다른 PAHs 화합물 역시 이 방법을 통해 분석할 수 있다는 점은, 다양한 제품에서의 추가적인 안전 평가를 가능하게 하여 기존의 적용 범위를 넓힙니다. 결론적으로, oSIST prEN 17937:2023 표준은 소비자 보호와 환경 안전성을 강화하는 데 기여하며, PAHs 함량 분석의 신뢰성을 높이기 위한 기초를 제공합니다.
La norme prEN 17937 se concentre sur la détermination du contenu des hydrocarbures aromatiques polycycliques (PAHs) réglementés dans les produits en plastique et en caoutchouc. Son champ d'application est clairement défini, permettant une évaluation précise de la présence de ces substances dans des articles destinés au grand public, en particulier ceux qui entrent en contact direct avec la peau humaine et la cavité buccale. L'une des forces majeures de cette norme réside dans la méthode qu'elle propose, qui utilise la chromatographie en phase gazeuse couplée à la spectrométrie de masse (GC-MS). Cette technologie avancée offre une sensibilité exceptionnelle, permettant la détection des PAHs à des niveaux aussi bas que 0,1 mg/kg pour les plastiques et 0,2 mg/kg pour les matériaux en caoutchouc. Cela garantit une conformité réglementaire rigoureuse et une protection adéquate des consommateurs face aux risques associés à ces substances dangereuses. En outre, la normeprEN 17937 est pertinente dans le contexte actuel, où la sécurité des produits en contact avec la peau et la bouche est une préoccupation croissante. Elle répond aux exigences réglementaires tout en offrant un cadre systématique pour les fabricants et les contrôleurs de qualité. La possibilité d'analyser d'autres composés de PAHs, à condition de démontrer leur adéquation, élargit également l'applicabilité de cette norme et en fait un outil précieux pour les laboratoires de test. En somme, la norme prEN 17937 se distingue par sa rigueur scientifique et sa pertinence, intégrant des méthodes analytiques fiables pour la détection des hydrocarbures aromatiques polycycliques dans des produits en plastique et en caoutchouc. Cela renforce non seulement la sécurité des consommateurs, mais aussi la confiance des fabricants dans leur conformité aux réglementations de sécurité.
Die Norm prEN 17937 bietet eine präzise und umfassende Methode zur Bestimmung des Gehalts an polyzyklischen aromatischen Kohlenwasserstoffen (PAHs) in Kunststoff- und Gummiprodukten, die in direktem Kontakt mit der menschlichen Haut und der Mundhöhle stehen. Die Norm ist besonders relevant im Kontext der Produktsicherheit und des Verbraucherschutzes, da sie die Analyse von 8 regulierten PAH-Verbindungen ermöglicht. Ein wesentlicher Stärke dieser Norm ist die hohe Empfindlichkeit der angewendeten Methodik, die eine Nachweisgrenze von 0,1 mg PAHs/kg für Kunststoffe und 0,2 mg PAHs/kg für Gummimaterialien bietet. Dies stellt sicher, dass auch sehr niedrige Konzentrationen von schädlichen Stoffen zuverlässig identifiziert werden können, was für Hersteller von großer Bedeutung ist, die konform mit gesetzlichen Vorgaben handeln müssen. Darüber hinaus wird in der Norm anerkannt, dass auch andere PAH-Verbindungen mit dieser Methode analysiert werden können, solange ihre Eignung nachgewiesen ist. Dies erweitert die Anwendungsmöglichkeiten und macht die Norm flexibler, da Hersteller zusätzliche Tests für Spezialanwendungen durchführen können. Die Relevanz der Norm prEN 17937 wird durch die steigenden Anforderungen an die Sicherheit von Konsumgütern untermauert. Mit der zunehmenden Sensibilisierung der Öffentlichkeit für chemische Risiken bieten die in dieser Norm festgelegten Prüfverfahren eine wertvolle Unterstützung für Unternehmen, die sicherstellen wollen, dass ihre Produkte für den Endverbraucher unbedenklich sind. Insgesamt liefert die Norm prEN 17937 einen wichtigen Rahmen für die Analyse von PAHs in Produkten, der sowohl sicherheitsorientierte als auch marktorientierte Aspekte berücksichtigt. Sie stärkt das Vertrauen der Verbraucher und hilft Herstellern, regulatorische Anforderungen effizient zu erfüllen.
prEN 17937は、一般向けに供給される製品におけるポリサイクル芳香族炭化水素（PAH）の含有量を、ガスクロマトグラフィーと質量分析法（GC-MS）を用いて測定するための標準化文書です。この標準は、プラスチックおよびゴム製品が直接人間の肌や口腔と接触する場合におけるPAHの安全性を確保するために極めて重要です。 この文書では、規制された8種類のポリサイクル芳香族炭化水素の総含有量を測定する手法が明記されており、プラスチックにおいては0.1 mg PAHs/kg、ゴム素材では0.2 mg PAHs/kgの濃度での検出が可能です。これにより、企業は製品の安全性を順守し、消費者保護を実現するための基準を確立できます。 また、表1に示されているPAHのリストは、どの化合物がこの評価の対象となるかを具体的に示しており、標準の実用性と適用範囲を明確にしています。さらには、他のPAH化合物もこの手法で分析可能であることが示されており、使用の柔軟性と拡張性が確保されています。 全体として、prEN 17937は、プラスチックおよびゴム製品の安全基準を確立するための強力なツールであり、業界の信頼性向上に寄与しています。以上の点から、この標準は、消費者の健康と安全を守るために不可欠な文書であると言えます。
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
