EN 1993-1-11:2006
(Main)Eurocode 3 - Design of steel structures - Part 1-11: Design of structures with tension components
Eurocode 3 - Design of steel structures - Part 1-11: Design of structures with tension components
EN1993-1-11 gives design rules for structures with tension components made of steel, which, due to their connections with the structure, are adjustable and replaceable
Eurocode 3 - Bemessung und Konstruktion von Stahlbauten - Teil 1-11: Bemessung und Konstruktion von Tragwerken mit Zuggliedern aus Stahl
(1) EN 1993 1 11 regelt die Bemessung und die Konstruktion von Zuggliedern aus Stahl, die aufgrund ihrer Anschlussausbildung nachstellbar und austauschbar sind, siehe Tabelle 1.1.
ANMERKUNG Aufgrund der Anforderung, dass die Zugglieder nachstellbar und austauschbar sind, handelt es sich bei Zuggliedern im Allgemeinen um vorgefertigte Produkte, die in dem Tragwerk installiert werden. Nicht nachstellbare oder austauschbare Zugglieder, z. B. luftgesponnene Hauptkabel von Hängebrücken oder externe Spannglieder im Spann¬beton¬bau, befinden sich, obwohl ein Teil der hier angegebenen Regeln anwendbar wäre, außerhalb des Anwendungs¬bereiches von EN 1993 1 11.
(2) Die Regeln ermöglichen, technische Anforderungen an vorgefertigte Zugglieder festzulegen und ihre Tragsicherheit, Gebrauchstauglichkeit und Dauerhaftigkeit nachzuweisen.
Tabelle 1.1 Gruppen von Zuggliedern
Gruppe Hauptsächlicher Bestandteil bzw. Grundelement Zugglied
A Zugstab Zugstabsystem, Vorspannstab
B Runddraht Spiralseil
Rund und Z Draht Vollverschlossenes Seil
Rund und Litzendraht Litzenseil
C Runddraht Paralleldrahtlitze
Runddraht Paralleldrahtbündel
Sieben Drähte (Vorspann )Litze Parallellitzenbündel
ANMERKUNG 1 Produkte der Gruppe A sind Zugstäbe und Zugstabsysteme, die im Allgemeinen aus runden Voll¬stäben bestehen, mit Gewinden an den Enden. Die Anwendung erfolgt im Wesentlichen bei
- Verbänden für Dächer, Wände und Träger;
- Abspannungen für Dachelemente und Pylone;
- Zugstabsystemen in Stahl Holz Fachwerken und Stahltragwerken sowie Raumfachwerken.
ANMERKUNG 2 Produkte der Gruppe B umfassen Spirallitzen, vollverschlossene Seile und Drahtseile, die in Seil¬köpfen oder anderen Endstücken verankert sind. Sie werden hauptsächlich mit Durchmessern im Bereich von 5 mm bis 160 mm hergestellt, siehe EN 12385-2. Die Anwendung besteht im Wesentlichen in
- Abspannungen: für Antennen, Kamine, Maste und Brücken;
- Tragseilen und Randseilen: für Leichtbautragwerke;
Eurocode 3 - Calcul des structures en acier - Partie 1-11: Calcul des structures à câbles ou éléments tendus
Evrokod 3: Projektiranje jeklenih konstrukcij – 1-11. del: Projektiranje konstrukcij z nateznimi komponentami.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Eurocode 3 - Design of steel structures - Part 1-11: Design of structures with tension componentsEvrokod 3: Projektiranje jeklenih konstrukcij – 1-11. del: Projektiranje konstrukcij z nateznimi komponentami.Eurocode 3 - Calcul des structures en acier - Partie 1-11: Calcul des structures a câbles ou éléments tendusEurocode 3 - Bemessung und Konstruktion von Stahlbauten - Teil 1-11: Bemessung und Konstruktion von Tragwerken mit Zuggliedern aus StahlTa slovenski standard je istoveten z:EN 1993-1-11:2006SIST EN 1993-1-11:2007en93.040Gradnja mostovBridge construction91.080.10Kovinske konstrukcijeMetal structures91.010.30Technical aspectsICS:SIST ENV 1993-2:20011DGRPHãþDSLOVENSKI
STANDARDSIST EN 1993-1-11:200701-marec-2007
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1993-1-11October 2006ICS 91.010.30; 91.080.10; 93.040Supersedes ENV 1993-2:1997
English VersionEurocode 3 - Design of steel structures - Part 1-11: Design ofstructures with tension componentsEurocode 3 - Calcul des structures en acier - Partie 1-11:Calcul des structures à câbles ou éléments tendusEurocode 3 - Bemessung und Konstruktion vonStahlbauten - Teil 1-11: Bemessung und Konstruktion vonTragwerken mit Zuggliedern aus StahlThis European Standard was approved by CEN on 13 January 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1993-1-11:2006: E
EN 1993-1-11: 2006 (E)

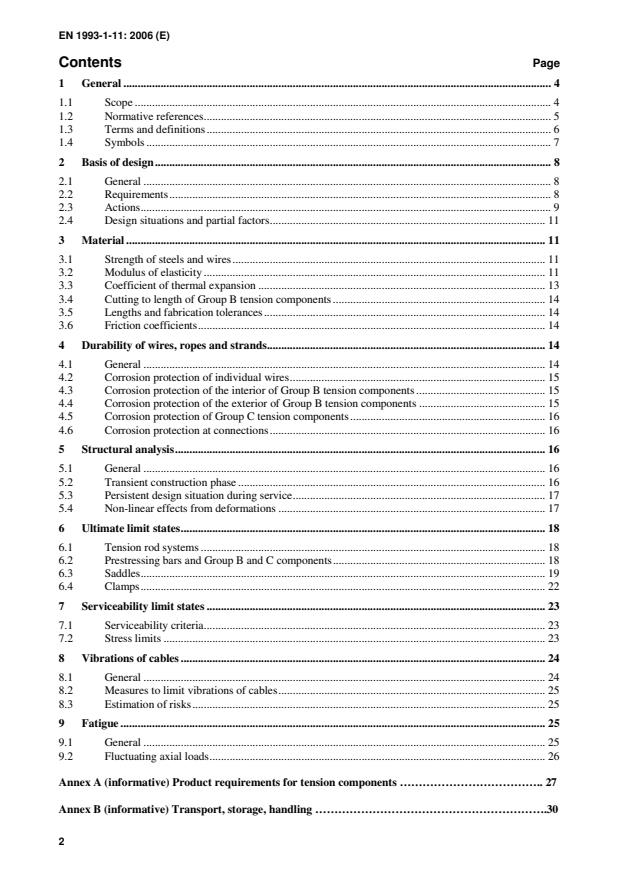

2 Contents Page 1 General.4 1.1 Scope.4 1.2 Normative references.5 1.3 Terms and definitions.6 1.4 Symbols.7 2 Basis of design.8 2.1 General.8 2.2 Requirements.8 2.3 Actions.9 2.4 Design situations and partial factors.11 3 Material.11 3.1 Strength of steels and wires.11 3.2 Modulus of elasticity.11 3.3 Coefficient of thermal expansion.13 3.4 Cutting to length of Group B tension components.14 3.5 Lengths and fabrication tolerances.14 3.6 Friction coefficients.14 4 Durability of wires, ropes and strands.14 4.1 General.14 4.2 Corrosion protection of individual wires.15 4.3 Corrosion protection of the interior of Group B tension components.15 4.4 Corrosion protection of the exterior of Group B tension components.15 4.5 Corrosion protection of Group C tension components.16 4.6 Corrosion protection at connections.16 5 Structural analysis.16 5.1 General.16 5.2 Transient construction phase.16 5.3 Persistent design situation during service.17 5.4 Non-linear effects from deformations.17 6 Ultimate limit states.18 6.1 Tension rod systems.18 6.2 Prestressing bars and Group B and C components.18 6.3 Saddles.19 6.4 Clamps.22 7 Serviceability limit states.23 7.1 Serviceability criteria.23 7.2 Stress limits.23 8 Vibrations of cables.24 8.1 General.24 8.2 Measures to limit vibrations of cables.25 8.3 Estimation of risks.25 9 Fatigue.25 9.1 General.25 9.2 Fluctuating axial loads.26
Annex A (informative) Product requirements for tension components ………………………………. 27
Annex B (informative) Transport, storage, handling …………………………………………………….30
EN 1993-1-11: 2006 (E)
Annex C (informative) Glossary …………………………………………………………………………31
Foreword
This European Standard EN 1993-1-11, Eurocode 3: Design of steel structures: Part 1-11 Design of structures with tension components, has been prepared by Technical Committee CEN/TC250 « Structural Eurocodes », the Secretariat of which is held by BSI. CEN/TC250 is responsible for all Structural Eurocodes.
This European Standard shall be given the status of a National Standard, either by publication of an identical text or by endorsement, at the latest by April 2007 and conflicting National Standards shall be withdrawn at latest by March 2010.
This Eurocode partially supersedes ENV 1993-2.
According to the CEN-CENELEC Internal Regulations, the National Standard Organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
National annex for EN 1993-1-11
This standard gives alternative procedures, values and recommendations with notes indicating where national choices may have to be made. The National Standard implementing EN 1993-1-11 should have a National Annex containing all Nationally Determined Parameters to be used for the design of tension components to be constructed in the relevant country.
National choice is allowed in EN 1993-1-11 through: – 2.3.6(1) – 2.3.6(2) – 2.4.1(1) – 3.1(1) – 4.4(2) – 4.5(4) – 5.2(3) – 5.3(2) – 6.2(2) – 6.3.2(1) – 6.3.4(1) – 6.4.1(1)P – 7.2(2) – A.4.5.1(1) – A.4.5.2(1) – B(6)
EN 1993-1-11: 2006 (E)
1 General 1.1 Scope
(1) prEN1993-1-11 gives design rules for structures with tension components made of steel, which, due to their connections with the structure, are adjustable and replaceable see Table 1.1.
NOTE:
Due to the requirement of adjustability and replaceability such tension components are generally prefabricated products delivered to site and installed into the structure. Tension components that are not adjustable or replaceable, e.g. air spun cables of suspension bridges, or for externally post-tensioned bridges, are outside the scope of this part. However, rules of this standard may be applicable.
(2) This standard also gives rules for determining the technical requirements for prefabricated tension components for assessing their safety, serviceability and durability.
Table 1.1:
Groups of tension components Group Main tension element Component A rod (bar) tension rod (bar) system, prestressing bar circular wire spiral strand rope circular and Z-wires fully locked coil rope B circular wire and stranded wire strand rope circular wire parallel wire strand (PWS) circular wire bundle of parallel wires C seven wire (prestressing) strand bundle of parallel strands
NOTE 1: Group A products in general have a single solid round cross section connected to end terminations by threads. They are mainly used as
– bracings for roofs, walls, girders – stays for roof elements, pylons – tensioning systems for steel-wooden truss and steel structures, space frames
NOTE 2:
Group B products are composed of wires which are anchored in sockets or other end terminations and are fabricated primarily in the diameter range of 5 mm to 160 mm, see EN 12385-2. Spiral strand ropes are mainly used as – stay cables for aerials, smoke stacks, masts and bridges – carrying cables and edge cables for light weight structures – hangers or suspenders for suspension bridges – stabilizing cables for cable nets and wood and steel trusses – hand-rail cables for banisters, balconies, bridge rails and guardrails
Fully locked coil ropes are fabricated in the diameter range of 20 mm to 180 mm and are mainly used as – stay cables, suspension cables and hangers for bridge construction – suspension cables and stabilizing cables in cable trusses – edge cables for cable nets – stay cables for pylons, masts, aerials
EN 1993-1-11: 2006 (E)
5 Structural strand ropes are mainly used as – stay cables for masts, aerials – hangers for suspension bridges – damper / spacer tie cables between stay cables – edge cables for fabric membranes – rail cables for banister, balcony, bridge and guide rails.
NOTE 3: Group C products need individual or collective anchoring and appropriate protection. Bundles of parallel wires are mainly used as stay cables, main cables for suspension bridges and external tendons. Bundles of parallel strands are mainly used as stay cables for composite and steel bridges.
(4) The types of termination dealt with in this part for Group B and C products are
– metal and resin sockets, see EN 13411-4 – sockets with cement grout – ferrules and ferrule securing, see EN 13411-3 – swaged sockets and swaged fitting – U-bolt wire rope grips, see EN 13411-5 – anchoring for bundles with wedges, cold formed button heads for wires and nuts for bars.
NOTE:
For terminology see Annex C. 1.2 Normative references
(1) This European Standard incorporates dated and undated reference to other publications. These normative references are cited at the appropriate places in the text and the publications are listed hereafter. For dated references, subsequent amendments or revisions to any of these publications apply to this European Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the publication referred to applies. EN 10138 Prestressing steels
Part 1 General requirements
Part 2 Wires
Part 3 Strands
Part 4 Bars EN 10244 Steel wire and wire products – Non-ferrous metallic coatings on steel wi
...
