EN 13274-6:2001
(Main)Respiratory protective devices - Methods of test - Part 6: Determination of carbon dioxide content of the inhalation air
Respiratory protective devices - Methods of test - Part 6: Determination of carbon dioxide content of the inhalation air
This European Standard specifies the test procedure for measuring the carbon dioxide content in the inhaled air (dead space) of respiratory protective devices.
Atemschutzgeräte - Prüfverfahren - Teil 6: Bestimmung des Kohlenstoffdioxid-Gehaltes der Einatemluft
Diese Europäische Norm legt das Verfahren zum Messen des Kohlendioxid-Gehaltes in der Einatemluft (Totraum) für Atemschutzgeräte fest.
Appareils de protection respiratoire - Méthodes d'essai - Partie 6: Détermination de la teneur en dioxyde de carbone de l'air inhalé
La présente norme européenne spécifie le mode opératoire d'essai pour mesurer la teneur en dioxyde de carbone de l'air inspiré (espace mort) des appareils de protection respiratoire.
Oprema za varovanje dihal – Metode preskušanja – 6. del: Določevanje ogljikovega dioksida v vdihanem zraku
General Information
- Status
- Published
- Publication Date
- 11-Dec-2001
- Withdrawal Date
- 29-Jun-2002
- Technical Committee
- CEN/TC 79 - Respiratory protective devices
- Drafting Committee
- CEN/TC 79/WG 9 - Test methods and interpretation of CEN/TC 79 standards
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 03-Dec-2022
- Completion Date
- 14-Apr-2025
Overview
EN 13274-6:2001 - issued by CEN - defines a standardized test method for determining the carbon dioxide (CO2) content of inhaled air (dead space) in respiratory protective devices. It is a supplement to device-specific standards and is intended for laboratory measurement of CO2 retained within facepieces, hoods or complete respiratory equipment under controlled conditions.
Key topics and technical requirements
- Scope: Specifies the test procedure to measure CO2 concentration in the inhalation air (dead space) of respiratory protective devices.
- Test principle: A breathing machine supplies a defined CO2 concentration to a Sheffield dummy head/torso fitted with the device; inhaled samples are analysed to assess dead-space CO2 (an indicator of CO2 accumulation).
- Typical test arrangement:
- Sheffield head/torso with concentric tubing and central CO2 sampling tube.
- Breathing machine with solenoid valves; solenoid action must seal cleanly and avoid timing overlap.
- Auxiliary lung to sample a fixed fraction of the inhalation stroke in phase with the breathing machine.
- CO2 analyser, flowmeter, compensator bag and CO2 absorber to control circuit conditions.
- Auxiliary fan (when applicable) delivering 0.5 m/s at 50 mm in front of the device inlet to prevent rebreathing of exhaled air.
- Example settings: 25 cycles/min and 2.0 L/stroke; auxiliary lung sample = 100 ml (5% of inhalation stroke); CO2 feed ≈ 2.5 L/min to produce 5% CO2 in exhaled air.
- Environmental and equipment constraints:
- Ambient test conditions: 16 °C to 32 °C, 20% to 80% RH.
- Total dead space of the test gas path (excluding breathing machine) ≤ 2000 ml.
- Ambient CO2 measured 50 mm in front of inlet must be < 0.1% (or supply air CO2 < 0.1% for independent-air devices).
- Prerequisites: The applicable device standard must specify sampling numbers, preconditioning, facepiece sizes, sealing method, whether the device is tested complete or as a facepiece, air‑supply settings, direction of supplementary airflow and pass/fail criteria.
- Annexes:
- Annex A: normative fitting procedure for neck-sealing hoods (collar and pressure control).
- Annex B: informative guidance on measurement uncertainty.
- Annex ZA: relationship to EU Directive requirements.
Applications and who uses it
- Manufacturers of respirators and hoods - to evaluate and optimize dead-space design and demonstrate product performance.
- Testing and calibration laboratories - for standardized CO2 measurement during type testing and certification.
- Conformity assessors and certification bodies - to verify compliance with device-specific standards and EU directives.
- Occupational health and safety engineers - to interpret CO2 accumulation risk in PPE selection and workplace PPE policies.
Related standards
- EN 132 (terms and definitions for respiratory protective devices)
- EN 13274 series (other parts): Part 1 (inward leakage), Part 2 (practical performance), Part 3 (breathing resistance), Part 4 (flame tests), Part 5 (climatic conditions), Part 7 (particle filter penetration), Part 8 (dolomite clogging)
Keywords: EN 13274-6:2001, respiratory protective devices, carbon dioxide content, inhalation air, dead space, Sheffield head, breathing machine, CO2 test method, CEN.
Frequently Asked Questions
EN 13274-6:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Respiratory protective devices - Methods of test - Part 6: Determination of carbon dioxide content of the inhalation air". This standard covers: This European Standard specifies the test procedure for measuring the carbon dioxide content in the inhaled air (dead space) of respiratory protective devices.
This European Standard specifies the test procedure for measuring the carbon dioxide content in the inhaled air (dead space) of respiratory protective devices.
EN 13274-6:2001 is classified under the following ICS (International Classification for Standards) categories: 13.340.30 - Respiratory protective devices. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13274-6:2001 is associated with the following European legislation: EU Directives/Regulations: 2016/425, 89/686/EEC; Standardization Mandates: M/031. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 13274-6:2001 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Respiratory protective devices - Methods of test - Part 6: Determination of carbon dioxide content of the inhalation airAppareils de protection respiratoire - Méthodes d'essai - Partie 6: Détermination de la teneur en dioxyde de carbone de l'air inhaléAtemschutzgeräte - Prüfverfahren - Teil 6: Bestimmung des Kohlenstoffdioxid-Gehaltes der Einatemluft13.340.30Varovalne dihalne napraveRespiratory protective devicesICS:SIST EN 13274-6:2002enTa slovenski standard je istoveten z:EN 13274-6:200101-junij-2002SIST EN 13274-6:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13274-6December 2001ICS 13.340.30English versionRespiratory protective devices - Methods of test - Part 6:Determination of carbon dioxide content of the inhalation airAppareils de protection respiratoire - Méthodes d'essai -Partie 6: Détermination de la teneur en dioxyde de carbonede l'air inhaléAtemschutzgeräte - Prüfverfahren - Teil 6: Bestimmung desKohlenstoffdioxid-Gehaltes der EinatemluftThis European Standard was approved by CEN on 16 November 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13274-6:2001 E

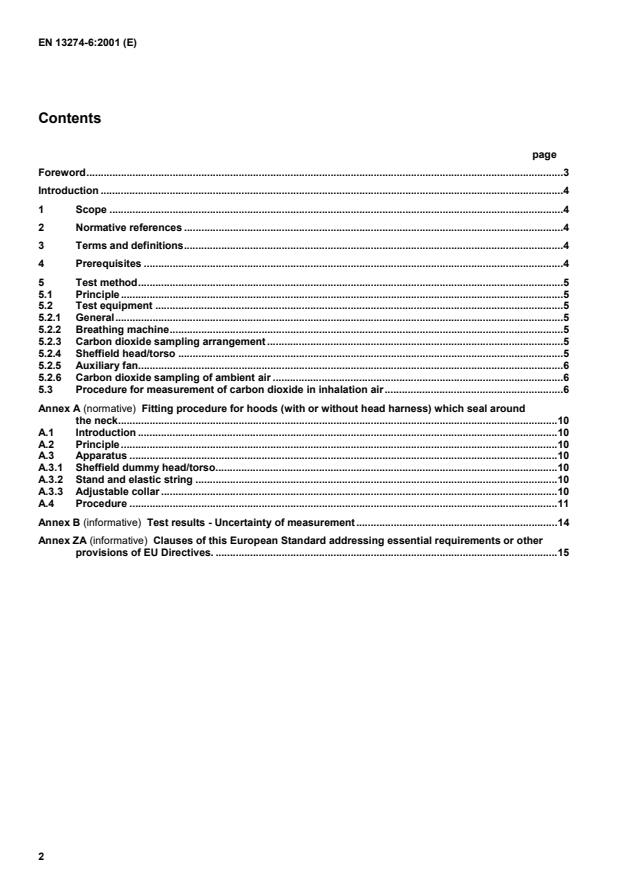

Fitting procedure for hoods (with or without head harness) which seal aroundthe neck.10A.1Introduction.10A.2Principle.10A.3Apparatus.10A.3.1Sheffield dummy head/torso.10A.3.2Stand and elastic string.10A.3.3Adjustable collar.10A.4Procedure.11Annex B (informative)
Test results - Uncertainty of measurement.14Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or otherprovisions of EU Directives.15
direction of any supplementary air flow; pass/fail criteria; any deviations from test method.5 Test method5.1 PrincipleThe device is fitted, as described by the device standard, to a Sheffield dummy head/torso and, in the case ofcomplete equipment tests, any air supply is operated in the manufacturer's minimum condition unless prescribedotherwise by that standard. Breathing air containing a defined concentration of carbon dioxide is supplied at aspecified rate from a breathing machine to a dummy head/torso. The inhaled air is analysed for carbon dioxidecontent.The carbon dioxide level measured gives an assessment of the "dead space" of the facepiece rather than a "reallife" measurement of the level of carbon dioxide in the inhaled air.5.2 Test equipment5.2.1 GeneralA typical test arrangement using a single cylinder breathing machine is shown in Figure 1.The total dead space of the gas path of the test installation, excluding the volume of the breathing machine, shallnot exceed 2000 ml.The test shall be carried out at ambient conditions.5.2.2 Breathing machineA breathing machine and associated equipment with solenoid valves controlled by the breathing machine. In orderto avoid errors in the measurement of carbon dioxide in the inhaled air, it is important that the solenoid valves makea good seal on closing and that the timing of their action allows no overlap to occur.5.2.3 Carbon dioxide sampling arrangementA sample of the inhaled air is taken by an auxiliary lung driven by the breathing machine and in phase with it. It isset to inhale a known sample volume (a chosen percentage of the inhalation volume of the breathing machine)during the inhalation stroke of the breathing machine. This apparent "loss" in inhalation volume of the breathingmachine is compensated for by the volume of carbon dioxide fed via the flowmeter into the breathing machine onits inhalation stroke. It is therefore important that these two volumes are equal.The exhaled air is continuously monitored for carbon dioxide content at a flow determined by the analyser. Thesample point is immediately before the solenoid valve in the exhalation circuit. To maintain equilibrium the sampleis returned to the circuit upstream of the sample point.The carb
...
SIST EN 13274-6:2002 문서는 호흡 보호 장비의 안전성과 효과성 확보에 중요한 역할을 하는 기준으로, 호흡 시 흡입되는 공기 내 이산화탄소 농도를 측정하는 방법을 명확히 정의하고 있습니다. 이 표준의 범위는 주로 호흡 보호 장비에서의 '죽은 공간' 측정과 관련되어 있으며, 이산화탄소 농도가 인체에 미치는 영향을 평가하는 데 있어서 필수적인 절차를 포함하고 있습니다. 이 표준의 강점 중 하나는 테스트 절차가 매우 구체적이고 체계적이라는 점입니다. 이를 통해 제조업체들은 자신들의 제품이 규정된 기준을 준수하고 있는지를 명확히 확인할 수 있습니다. 또한, 표준화된 테스트 방법은 다양한 종류의 호흡 보호 장비 간에 일관된 비교가 가능하게 하여, 사용자들이 보다 나은 선택을 할 수 있도록 돕습니다. SIST EN 13274-6:2002는 유럽 연합의 안전 기준에 부합하여, 환경 및 노동 안전 분야에서의 관련성을 높이고 있으며, 호흡 보호 장비 사용자의 건강과 안전을 지키기 위한 중요한 문서입니다. 이 표준은 호흡 보호 장비의 이산화탄소 농도 측정뿐만 아니라, 전반적인 보호 장비의 품질 관리에도 기여하여, 사용자의 신뢰성을 강화하는 데 큰 역할을 하고 있습니다. 따라서, SIST EN 13274-6:2002 문서는 호흡 보호 관련 산업에서 매우 중요한 기준으로 자리매김하고 있으며, 관련 업계 내에서의 적용과 실천은 필수적이라 하겠습니다. 이 기준에 따라 이루어진 테스트는 호흡 보호 장비의 효과성을 한층 높이며, 사용자에게 보다 안전한 환경을 제공할 수 있도록 합니다.
Die EN 13274-6:2001 ist eine entscheidende Norm, die sich mit der Messung des Kohlenstoffdioxid-Gehalts in der eingeatmeten Luft (Toten Raum) von Atemschutzgeräten befasst. Diese Standardisierung bietet eine präzise Testmethode, die nicht nur die Sicherheit der Benutzer von Atemschutzvorrichtungen gewährleistet, sondern auch die Effektivität dieser Geräte bewertet. Ein wesentlicher Vorteil der EN 13274-6:2001 liegt in ihrem klaren und strukturierten Prüfverfahren, welches eine zuverlässige und reproduzierbare Messung des CO2-Gehalts ermöglicht. Durch die Definition spezifischer Testkriterien und -methoden wird sichergestellt, dass die Ergebnisse konsistent sind und die Qualität der Atemschutzgeräte objektiv bewertet werden kann. Die Relevanz dieser Norm ergibt sich aus der Notwendigkeit, die Atmungsbedingungen unter verschiedenen Einsatzbedingungen zu überwachen. In Umgebungen, in denen akute Gesundheitsrisiken bestehen, ist es unerlässlich, dass die Atemschutzgeräte nicht nur Partikel, sondern auch gasförmige Schadstoffe wie Kohlendioxid effektiv kontrollieren können. Dies erhöht die Anforderungen an die Atemschutzgeräte und stellt sicher, dass die Benutzer unter sicheren Bedingungen arbeiten können. Darüber hinaus fördert die EN 13274-6:2001 die Entwicklung innovativer Techniken zur Verbesserung der Atemschutzgeräte. Hersteller, die sich an diese Norm halten, können sicherstellen, dass ihre Produkte die Richtlinien zur CO2-Kontrolle erfüllen und somit deren Marktakzeptanz steigern. Die Norm hat somit nicht nur erweiterte Anwendungsmöglichkeiten, sondern trägt auch zur allgemeinen Sicherheit und Gesundheit der Mitarbeiter in potenziell gefährlichen Arbeitsumgebungen bei. In Anbetracht der aktuellen gesundheitlichen Herausforderungen und der Bedeutung des Arbeitsschutzes bleibt die EN 13274-6:2001 eine unverzichtbare Richtlinie für alle Hersteller und Anwender von Atemschutzvorrichtungen.
EN 13274-6:2001は、呼吸保護具の吸気空気中の二酸化炭素（CO2）含有量を測定するための試験手順を規定した重要な標準です。この標準の適用範囲は、呼吸保護具の性能評価において必要不可欠であり、特に職場や危険な環境において安全の確保に寄与します。 この標準の強みは、定められた試験手順が明確であるため、様々な呼吸保護具の比較と検証が容易である点です。特に、吸気空気中の二酸化炭素の決定に焦点を当てており、この測定は使用者の健康を守るために重要です。また、標準は実践的な試験方法を提供することで、製造者が製品の品質を保証し、規制の遵守を支援します。 さらに、EN 13274-6:2001は、呼吸器保護具の選択と使用に関する重要性が高まっている現代において、その関連性がますます増しています。特に、さまざまな職業環境において、適切な呼吸保護具が安全を確保するために不可欠であるため、この標準の遵守は、業界全体にとっての利点となります。
The standard EN 13274-6:2001 provides a crucial framework for evaluating the carbon dioxide content in the inhaled air of respiratory protective devices. The scope of this standard is specifically designed to ensure that manufacturers and users of these devices understand the importance of carbon dioxide levels, which can significantly affect the efficacy and safety of respiratory protection. One of the primary strengths of EN 13274-6:2001 lies in its methodological approach to testing. By specifying clear procedures for measuring the carbon dioxide content, the standard facilitates consistent testing across various respiratory protective devices. This is essential for ensuring that devices not only meet safety regulations but also perform effectively in real-world conditions. Adherence to this standard helps mitigate risks associated with high levels of carbon dioxide, which can cause discomfort, respiratory issues, or cognitive impairment in wearers. The relevance of EN 13274-6:2001 cannot be overstated, especially in industries where respiratory protection is paramount, such as healthcare, construction, and emergency services. As the global emphasis on workplace safety increases, the demand for reliable testing methods becomes more critical. This standard not only supports compliance with safety regulations but also encourages manufacturers to innovate and improve their products based on scientifically backed testing methods. Furthermore, the standard’s alignment with European norms signifies its importance across multiple markets, enhancing its applicability and credibility. As companies aim to reach wider audiences, the utilization of EN 13274-6:2001 in their testing procedures strengthens their product offerings and market competitiveness. Overall, EN 13274-6:2001 stands out as a vital standard for ensuring the quality and safety of respiratory protective devices by rigorously addressing the assessment of carbon dioxide content in inhaled air. Its strength lies in its clear procedural outlines, relevance to various high-risk industries, and its role in promoting uniform safety standards across Europe.
La norme SIST EN 13274-6:2002 est essentielle pour garantir la sécurité et l'efficacité des dispositifs de protection respiratoire. Son objectif principal est de fournir une méthode de test standardisée afin de mesurer la concentration de dioxyde de carbone dans l'air inhalé, également connu sous le nom d'"espace mort". Cette norme s'inscrit dans un cadre normatif européen, ce qui renforce sa fiabilité et sa reconnaissance à l'échelle continentale. Parmi les points forts de cette norme, on note sa clarté et sa précision dans la description des procédures de test. L'approche systématique qu'elle propose permet d’obtenir des résultats cohérents, nécessaires pour évaluer la performance des dispositifs de protection respiratoire. En définissant les paramètres de mesure, la norme garantit que les produits testés répondent aux critères de sécurité essentiels, réduisant ainsi les risques d'exposition à des niveaux élevés de dioxyde de carbone. La pertinence de la norme EN 13274-6:2001 dans le contexte actuel ne peut être sous-estimée. Avec l'importance croissante du contrôle de la qualité de l'air, notamment dans les environnements de travail à risque, cette norme offre une base solide pour le développement de dispositifs respiratoires efficaces et sûrs. En assurant une compréhension uniforme des tests de dioxyde de carbone, la norme contribue à l'amélioration continue des produits sur le marché, renforçant ainsi la confiance des utilisateurs finaux dans leur protection. En conclusion, la conformité à la norme SIST EN 13274-6:2002 est cruciale pour tous les fabricants de dispositifs de protection respiratoire. Elle assure que les produits non seulement respectent les exigences de sécurité, mais optimisent également la santé des utilisateurs en contrôlant précisément le contenu en dioxyde de carbone de l’air inhalé.
