EN 17106-2:2021
(Main)Road operation machinery - Safety - Part 2: Specific requirements for road surface cleaning machines
Road operation machinery - Safety - Part 2: Specific requirements for road surface cleaning machines
This document together with EN 17106 1:2021 deals with all significant hazards, hazardous situations and events relevant to road surface cleaning machines (as defined in EN 15429 1:2007 and EN 17106 1:2021, 3.7) when used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer (see Annex B) associated with the whole lifetime of the machine as described in EN ISO 12100:2010, 5.4.
The requirements of this document are complementary to the common requirements formulated in EN 17106 1:2021. This document does not repeat the requirements from EN 17106 1:2021 but supplements or modifies the requirements for road surface cleaning machines.
This document is not applicable to road surface cleaning machines manufactured before the date of its publication.
Maschinen für den Straßenbetriebsdienst - Sicherheit - Teil 2: Spezifische Anforderungen für Kehrmaschinen
Dieses Dokument behandelt zusammen mit EN 17106-1:2021 alle signifikanten Gefährdungen, Gefährdungssituationen und ereignisse von Maschinen zur Straßenreinigung (wie in EN 15429-1:2007 und EN 17106-1:2021, 3.7, festgelegt), wenn diese Maschinen bestimmungsgemäß und unter den vom Hersteller (siehe Anhang B) vernünftigerweise für die gesamte Lebensdauer der Maschine vorhersehbaren Bedingungen wie in EN ISO 12100:2010, 5.4, beschrieben betrieben werden.
Die Anforderungen dieses Dokuments ergänzen die gemeinsamen Anforderungen, die in EN 17106-1:2021 formuliert sind. Dieses Dokument wiederholt nicht die Anforderungen aus EN 17106-1:2021, sondern ergänzt oder ersetzt die Anforderungen an Kehrmaschinen.
Dieses Dokument gilt nicht für Kehrmaschinen, die vor dem Veröffentlichungsdatum dieses Dokuments hergestellt wurden.
Machines d'exploitation des routes - Sécurité - Partie 2 : Prescriptions spécifiques pour les machines de nettoiement des surfaces routières
Le présent document, avec l’EN 17106 1:2021, traite de tous les phénomènes, situations et événements dangereux significatifs applicables aux machines de nettoiement des surfaces routières (comme défini dans l’EN 15429 1:2007 et dans l’EN 17106 1:2021, 3.7), lorsqu’elles sont utilisées normalement et dans les conditions de mauvaise utilisation raisonnablement prévisibles par le fabricant (voir l’Annexe B), associés à toute la durée de vie des machines comme décrit dans l’EN ISO 12100:2010, 5.4.
Les prescriptions figurant dans le présent document viennent en complément des prescriptions communes spécifiées dans l’EN 17106 1:2021. Le présent document ne répète pas les prescriptions de l’EN 17106 1:2021, mais complète ou modifie les prescriptions applicables aux machines de nettoiement des surfaces routières.
Le présent document ne s’applique pas aux machines de nettoiement des surfaces routières fabriquées avant la date de sa publication.
Obratovanje cestnih strojev - Varnost - 2. del: Posebne zahteve za stroje za čiščenje cestnih površin
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2021
Nadomešča:
SIST EN 13019:2002+A1:2009
SIST EN 13021:2004+A1:2009
SIST EN 13524:2004+A2:2014
Obratovanje cestnih strojev - Varnost - 2. del: Posebne zahteve za stroje za
čiščenje cestnih površin
Road operation machinery - Safety - Part 2: Specific requirements for road surface
cleaning machines
Maschinen für den Straßenbetriebsdienst - Sicherheit - Teil 2 Spezifische Anforderungen
für Kehrmaschinen
Machines d'exploitation des routes - Sécurité - Partie 2 : Prescriptions spécifiques pour
les machines de nettoiement des surfaces routières
Ta slovenski standard je istoveten z: EN 17106-2:2021
ICS:
43.160 Vozila za posebne namene Special purpose vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 17106-2
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2021
EUROPÄISCHE NORM
ICS 43.160; 93.080.99; C Supersedes EN 13019:2001+A1:2008, EN
13021:2003+A1:2008, EN 13524:2003+A2:2014
English Version
Road operation machinery - Safety - Part 2: Specific
requirements for road surface cleaning machines
Machines d'exploitation des routes - Sécurité - Partie 2 Maschinen für den Straßenbetriebsdienst - Sicherheit -
: Prescriptions spécifiques pour les machines de Teil 2 Spezifische Anforderungen für Kehrmaschinen
nettoiement des surfaces routières
This European Standard was approved by CEN on 16 August 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17106-2:2021 E
worldwide for CEN national Members.

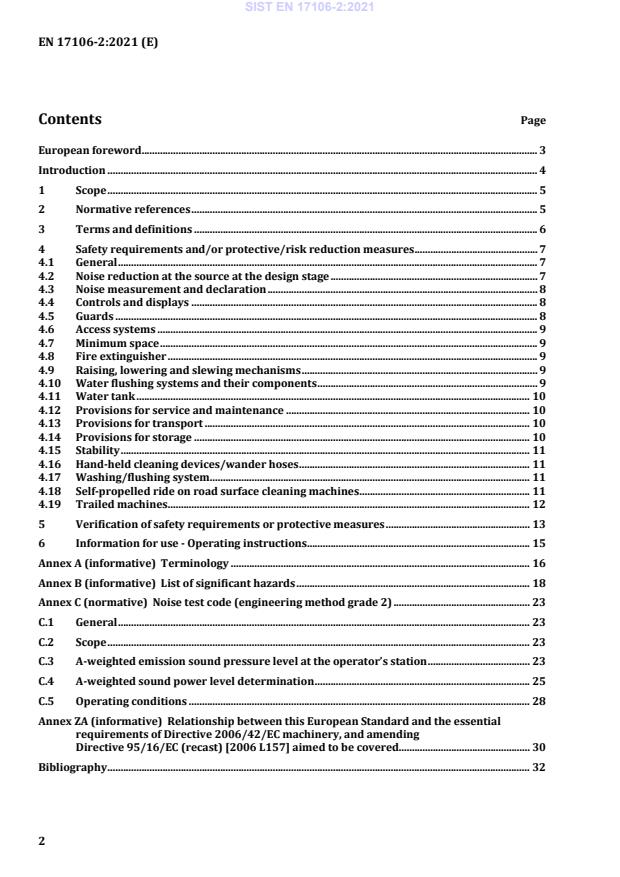

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Safety requirements and/or protective/risk reduction measures . 7
4.1 General . 7
4.2 Noise reduction at the source at the design stage . 7
4.3 Noise measurement and declaration . 8
4.4 Controls and displays . 8
4.5 Guards . 8
4.6 Access systems . 9
4.7 Minimum space . 9
4.8 Fire extinguisher . 9
4.9 Raising, lowering and slewing mechanisms . 9
4.10 Water flushing systems and their components . 9
4.11 Water tank . 10
4.12 Provisions for service and maintenance . 10
4.13 Provisions for transport . 10
4.14 Provisions for storage . 10
4.15 Stability . 11
4.16 Hand-held cleaning devices/wander hoses . 11
4.17 Washing/flushing system . 11
4.18 Self-propelled ride on road surface cleaning machines . 11
4.19 Trailed machines . 12
5 Verification of safety requirements or protective measures . 13
6 Information for use - Operating instructions . 15
Annex A (informative) Terminology . 16
Annex B (informative) List of significant hazards . 18
Annex C (normative) Noise test code (engineering method grade 2) . 23
C.1 General . 23
C.2 Scope . 23
C.3 A-weighted emission sound pressure level at the operator’s station . 23
C.4 A-weighted sound power level determination . 25
C.5 Operating conditions . 28
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC machinery, and amending
Directive 95/16/EC (recast) [2006 L157] aimed to be covered. 30
Bibliography . 32
European foreword
This document (EN 17106-2:2021) has been prepared by Technical Committee CEN/TC 151
“Construction equipment and building material machines - Safet”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2022, and conflicting national standards shall be
withdrawn at the latest by April 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13019:2001+A1:2008, EN 13021:2003+A1:2008 and
EN 13524:2003+A2:2014.
This document has been prepared under a standardization request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
EN 17106:2021 consists of the following parts under the general title “Road operation machinery –
Safety”:
— Part 1: General requirements
— Part 2: Specific requirements for road surface cleaning machines
— Part 3-1: Winter service machines - Specific requirements for snow clearing machines with rotating
tools and snow ploughs
— Part 3-2: Winter service machines - Specific requirements for spreading machines
— Part 4: Road service area maintenance machines - Specific requirements for grass and brush cutting
machines
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document is a type-C standard as stated in EN ISO 12100:2010.
This document is of relevance, in particular, to the following stakeholder groups representing the market
players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organizations, market surveillance etc.).
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events are
covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or type-B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
1 Scope
This document together with EN 17106-1:2021 deals with all significant hazards, hazardous situations
and events relevant to road surface cleaning machines (as defined in EN 15429-1:2007 and
EN 17106-1:2021, 3.7) when used as intended and under the conditions of misuse which are reasonably
foreseeable by the manufacturer (see Annex B) associated with the whole lifetime of the machine as
described in EN ISO 12100:2010, 5.4.
The requirements of this document are complementary to the common requirements formulated in
EN 17106-1:2021. This document does not repeat the requirements from EN 17106-1:2021 but
supplements or modifies the requirements for road surface cleaning machines.
This document is not applicable to road surface cleaning machines manufactured before the date of its
publication.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1829-1:2021, High pressure water jet machines - Safety requirements - Part 1: Machines
EN 15429-1:2007, Sweepers - Part 1: Classification and Terminology
EN 15429-4:2015, Sweepers - Part 4: Symbols for operator controls and other displays
EN 17106-1:2021, Road operation machinery - Safety - Part 1: General requirements
EN 60335-2-72:2012, Household and similar electrical appliances - Safety - Part 2-72: Particular
requirements for floor treatment machines with or without traction drive, for commercial use
EN 60335-2-79:2012, Household and similar electrical appliances - Safety - Part 2-79: Particular
requirements for high pressure cleaners and steam cleaners
EN ISO 2867:2011, Earth-moving machinery - Access systems (ISO 2867:2011)
EN ISO 3744:2010, Acoustics - Determination of sou
...
