EN 16712-1:2015

Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable foam equipment - Part 1: Inductors PN 16

1.1   This European Standard defines requirements and tests which apply to inductors PN 16 which are used to proportion foam concentrate or other additives to the water stream and work using the Venturi principle.
1.2   This European Standard is not applicable to inductors which are integrated in self-inducting foam branchpipe.
1.3   This European Standard is not applicable to inductors which have been manufactured before its date of publication as European Standard.

Tragbare Geräte zum Ausbringen von Löschmitteln, die mit Feuerlöschpumpen gefördert werden - Tragbare Schaumgeräte - Teil 1: Zumischer PN 16

1.1   Diese Europäische Norm legt Anforderungen und Prüfungen fest, die für Zumischer PN 16 gelten, die der Zumischung von Schaummitteln oder anderen Zusätzen zum Wasserstrom dienen und nach dem Venturiprinzip arbeiten.
1.2   Diese Europäische Norm gilt nicht für Zumischer, die in selbst-zumischende Schaumstrahlrohre eingebaut sind.
1.3   Diese Europäische Norm gilt nicht für Zumischer, die vor der Veröffentlichung dieser Europäischen Norm hergestellt wurden.

Equipement portable de projection d’agents d’extinction alimenté par des pompes à usage incendie - Equipements mousse portables - Partie 1 : Proportionneurs PN 16

1.1   La présente Norme européenne définit les prescriptions et les essais qui s'appliquent aux proportionneurs PN 16 utilisés pour doser des émulseurs ou d’autres additifs dans le jet d'eau, et qui fonctionnent selon le principe Venturi.
1.2   La présente Norme européenne ne s'applique pas aux proportionneurs intégrés dans les lances à mousse auto-aspirantes.
1.3   La présente Norme européenne ne s'applique pas aux proportionneurs qui ont été fabriqués avant sa date de publication en tant que Norme européenne.

Prenosna oprema za črpanje in uporabo gasilnih sredstev iz gasilskih črpalk - Prenosna oprema za izdelavo gasilne pene - 1. del: Primešalniki penil

1.1 Ta standard določa zahteve in preskuse v zvezi s primešalniki penil PN 16, ki se uporabljajo za porazdeljeno dodajanje tekočih penil ali drugih aditivov v vodni tok in delujejo v skladu z Venturijevim načelom.
1.2 Ta standard se ne uporablja za primešalnike penil, vgrajene v samosprožilne ročnike za peno.

General Information

• Status: Published
• Publication Date: 08-Sep-2015
• Withdrawal Date: 30-Mar-2016
• ICS: 13.220.10 - Fire-fighting
• Technical Committee: CEN/TC 192 - Fire service equipment
• Drafting Committee: CEN/TC 192/WG 8 - Hand-held branchpipes for fire service use
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 10-Jan-2024
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 16712-1:2015 - Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable foam equipment - Part 1: Inductors PN 16

Overview

EN 16712-1:2015 is a CEN European Standard that specifies requirements and type tests for portable inductors PN 16 used to proportion foam concentrate or other additives into a water stream by the Venturi principle. It applies to standalone inductors supplied by fire‑fighting pumps and excludes inductors integrated into self‑inducting foam branchpipes or units manufactured before publication.

Key topics and technical requirements

• Scope and principle
  • Applies to Venturi‑type inductors designed to inject foam concentrate/additives into water at predetermined proportions.
  • Not applicable to integrated self‑inducting branchpipes or pre‑existing units.
• Types and nominal flows
  • Inductors are categorized (Z0.5, Z1, Z2, Z4, Z8 and R variants) by nominal foam‑water solution flow rates (examples: 50, 100, 200, 400, 800 l/min measured under specified pressure conditions).
• Hydraulic and mechanical tests
  • Nominal pressure (pN): 16 bar, test pressure (pt): 25.5 bar, burst pressure (pB): 50 bar - used for leak and burst verification.
  • Geodetic suction height requirement: (1.5 + 0.10) m.
  • Flow and proportioning tests are performed using standardized setups (outlet pressure p2 example: 6.5 bar at nominal flow).
• Proportioning performance
  • Inductors without setting device are fixed to a single marked proportion.
  • Inductors with setting device cover a range (typically 0.1% to 6%) with defined tolerances (e.g., ±10% or ±25% depending on range).
• Construction and components
  • Materials must resist foam concentrates and operating environments; special material choices (e.g., for marine use) should be agreed between manufacturer and purchaser.
  • Mandatory features: appropriate inlet/outlet connections, backflow preventer on foam inlet, direction arrow, pick‑up tube per EN 16712‑2, optional strainer (noting added pressure loss).
• Leakage and marking
  • Leak‑tightness tests: no more than a minimal leak (informative limit: up to 10 droplets/min) at test pressures.
  • Permanent marking and delivery with instruction and maintenance handbook (including maintenance, exploded diagrams and spare parts list).

Applications and users

• Practical use: field proportioning of foam concentrate for fire‑fighting operations supplied by fire pumps (land and potentially marine applications when materials agreed).
• Primary users:
  • Manufacturers of portable foam equipment and inductors
  • Fire and rescue services specifying or procuring foam induction gear
  • Testing bodies and conformity assessors performing type tests
  • Procurement/specification engineers and safety officers

Related standards

• EN 16712-2 (Pick‑up tubes) - normative companion
• EN 1568 series - foam concentrate performance
• EN 837-1 / EN 837-3 - pressure gauge standards referenced for testing

Keywords: EN 16712-1:2015, portable foam equipment, inductors PN 16, Venturi inductors, foam proportioning, fire fighting pumps, proportion ratio, CEN standard.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HQLOTragbare Geräte zum Ausbringen von Löschmitteln, die mit Feuerlöschpumpen gefördert werden - Tragbare Schaumgeräte - Teil 1: Zumischer PN 16Equipement portable de projection d’agents d’extinction alimenté par des pompes à usage incendie - Equipements mousse portables - Partie 1: Proportionneurs PN 16Portable equipment for projecting extinguishing agents supplied by fire fighting pumps - Portable foam equipment - Part 1: Inductors PN 1613.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 16712-1:2015SIST EN 16712-1:2015en,fr,de01-november-2015SIST EN 16712-1:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16712-1
September
t r s w ICS
s uä t t rä s r English Version
Portable equipment for projecting extinguishing agents supplied by fire fighting pumps æ Portable foam equipment æ Part
sã Inductors PN
s x Equipement portable de projection d 5agents d 5extinction alimenté par des pompes à usage incendie æ Equipements mousse portables æ Partie
s ã Proportionneurs PN
s x
Tragbare Geräte zum Ausbringen von Löschmittelná die mit Feuerlöschpumpen gefördert werden æ Tragbare Schaumgeräte æ Teil
sã Zumischer PN
s x This European Standard was approved by CEN on
s August
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x y s tæ sã t r s w ESIST EN 16712-1:2015

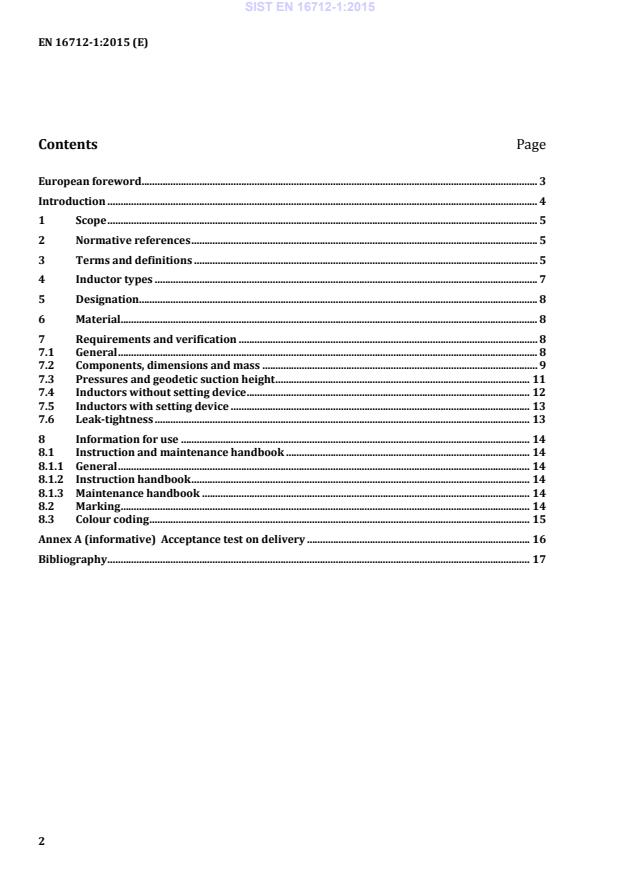

Acceptance test on delivery . 16 Bibliography . 17
...
