(Main)Cryogenic vessels - Large transportable vacuum insulated vessels - Part 2: Design, fabrication, inspection and testing
Cryogenic vessels - Large transportable vacuum insulated vessels - Part 2: Design, fabrication, inspection and testing
This European Standard specifies requirements for the design, fabrication, inspection and testing of large transportable vacuum insulated cryogenic vessels of more than 1 000 l volume, which are permanently (fixed tanks) or not permanently (demountable tanks) attached to a vehicle, for carriage by road. However, it can be used for other mode of transport providing the specific regulations/requirements are complied with.
This European Standard applies to large transportable vacuum insulated cryogenic vessels for fluids specified in prEN 13530-1:2001 and does not apply to vessels designed for toxic fluids.
This European Standard does not include the general vehicle requirements e.g. running gear, brakes, lighting etc. that should be in accordance with the relevant standards/regulations.
Kryo-Behälter - Große ortsbewegliche vakuum-isolierte Behälter - Teil 2: Bemessung, Herstellung und Prüfung
Diese Europäische Norm gilt für die Bemessung, Herstellung und Prüfung von großen ortsbeweglichen, vakuum-isolierten Kryo-Behältern mit einem Fassungsraum von mehr als 1000 Liter für festverbundene Tanks (von Tank-oder Schienenfahrzeugen), Aufsetztanks, Tanks von Batterie-Fahrzeugen und Tankcontainern (TC) für tiefgekühlte verflüssigte Gase im Sinne der Regelungen für die Beförderung gefährlicher Güter.
Diese Norm gilt für große ortsbewegliche, vakuum-isolierte Kryo-Behälter mit Fluiden, die in EN 13530-1:2002 festgelegt sind, und sie gilt nicht für giftige Fluide.
Diese Europäische Norm enthält keine allgemeinen Anforderungen an Fahrzeuge wie z. B. an Fahrgestell, Bremsen, Beleuchtung usw., diese müssen mit den relevanten Normen/Gesetzen übereinstimmen.
Récipients cryogéniques - Grands récipients transportables isolés sous vide - Partie 2 : Conception, fabrication, inspection et essais
La présente Norme européenne s'applique à la conception, à la fabrication, aux contrôles et aux essais des grands récipients cryogéniques transportables, isolés sous vide, d'un volume excédant 1 000 l, fixés sur un véhicule de manière permanente (réservoirs fixes) ou non (réservoirs démontables), pour le transport routier. Elle peut cependant être utilisée pour d'autres modes de transport à condition que soient respectées les lois et exigences correspondantes.
La présente Norme européenne s'applique aux grands récipients cryogéniques transportables, isolés sous vide, pour les fluides spécifiés dans l'EN 13530-1:2002 et ne s'applique pas à des récipients prévus pour contenir des fluides toxiques.
La présente Norme européenne ne couvre pas les exigences générales relatives aux véhicules, par exemple les organes de roulement, les freins, les feux, etc., qui doivent être conformes aux normes/règlements correspondants.
Kriogene posode - Velike premične, vakuumsko izolirane posode - 2. del: Načrtovanje, izdelava, nadzor in preskus
General Information
- Status
- Published
- Publication Date
- 17-Sep-2002
- Withdrawal Date
- 30-Mar-2003
- Technical Committee
- CEN/TC 268 - Cryogenic vessels
- Drafting Committee
- CEN/TC 268/WG 2 - Compatibility, insulation, accessories
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 07-Sep-2018
- Completion Date
- 23-Sep-2025
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 22-Dec-2008
- Effective Date
- 04-Oct-2023
- Effective Date
- 22-Dec-2008
Overview
EN 13530-2:2002 is a CEN European Standard that specifies requirements for the design, fabrication, inspection and testing of large transportable, vacuum‑insulated cryogenic vessels (greater than 1 000 L). It covers both fixed tanks (permanently attached to a vehicle) and demountable tanks (non‑permanently attached) intended primarily for road carriage, and may be applied to other transport modes when applicable regulations are met. The standard applies to cryogenic fluids listed in EN 13530‑1 and excludes vessels designed for toxic fluids. General vehicle requirements (running gear, brakes, lighting) are not included.
Key topics and technical requirements
- Scope & design options
- Applies to large transportable vacuum‑insulated vessels >1 000 L.
- Three permitted design approaches: design by calculation, design by calculation with pressure‑strengthening (for austenitic stainless steels, see Annex C), or calculation supplemented by experimental methods.
- Materials
- Metallic materials for cryogenic service must meet EN 1252‑1 / EN 1252‑2 requirements.
- 9 % Ni steel has additional normative requirements (Annex B).
- Structural design
- Requirements for inner vessel, outer jacket, supporting frames, allowable pressures, and allowances for dynamic loads.
- Definitions and symbols for pressure, thickness, buckling, material properties included.
- Fabrication
- Detailed coverage of cutting, cold/hot forming, tolerances, welding (procedures & qualification), and non‑welded joints.
- Inspection & testing
- Mandatory quality plan, production control test plates, non‑destructive testing (radiography, radioscopy), rectification rules, and pressure testing procedures.
- Annexes
- Informative: Elastic stress analysis (A), specific weld details (D), outer jacket relief devices (F).
- Normative: 9 % Ni requirements (B), pressure strengthening for austenitic steels (C), increased austenitic properties (E).
Practical applications and users
- Typical applications: transport of cryogenic liquids such as industrial gases and liquefied natural gas (non‑toxic), mobile tank vehicles, demountable tank containers, and large vacuum‑insulated trailers.
- Primary users:
- Design engineers and pressure‑vessel manufacturers
- Fabricators and welding specialists
- NDT and inspection personnel
- Fleet operators, QA managers, conformity assessors and regulatory authorities implementing RID/ADR referenced standards
Related standards (examples)
- EN 13530‑1:2002 (Fundamental requirements)
- EN 1252‑1 / EN 1252‑2 (Cryogenic material toughness)
- EN 1626 (Valves for cryogenic service)
- EN 1435 / EN 13068‑3 (Radiography / radioscopy)
- prEN 13445‑3 (Unfired pressure vessels – design)
Keywords: EN 13530‑2:2002, cryogenic vessels, large transportable vacuum insulated vessels, design fabrication inspection testing, 9 % Ni, austenitic stainless steel, CEN, road tankers, demountable tanks.
Frequently Asked Questions
EN 13530-2:2002 is a standard published by the European Committee for Standardization (CEN). Its full title is "Cryogenic vessels - Large transportable vacuum insulated vessels - Part 2: Design, fabrication, inspection and testing". This standard covers: This European Standard specifies requirements for the design, fabrication, inspection and testing of large transportable vacuum insulated cryogenic vessels of more than 1 000 l volume, which are permanently (fixed tanks) or not permanently (demountable tanks) attached to a vehicle, for carriage by road. However, it can be used for other mode of transport providing the specific regulations/requirements are complied with. This European Standard applies to large transportable vacuum insulated cryogenic vessels for fluids specified in prEN 13530-1:2001 and does not apply to vessels designed for toxic fluids. This European Standard does not include the general vehicle requirements e.g. running gear, brakes, lighting etc. that should be in accordance with the relevant standards/regulations.
This European Standard specifies requirements for the design, fabrication, inspection and testing of large transportable vacuum insulated cryogenic vessels of more than 1 000 l volume, which are permanently (fixed tanks) or not permanently (demountable tanks) attached to a vehicle, for carriage by road. However, it can be used for other mode of transport providing the specific regulations/requirements are complied with. This European Standard applies to large transportable vacuum insulated cryogenic vessels for fluids specified in prEN 13530-1:2001 and does not apply to vessels designed for toxic fluids. This European Standard does not include the general vehicle requirements e.g. running gear, brakes, lighting etc. that should be in accordance with the relevant standards/regulations.
EN 13530-2:2002 is classified under the following ICS (International Classification for Standards) categories: 23.020.40 - Cryogenic vessels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13530-2:2002 has the following relationships with other standards: It is inter standard links to EN 13530-2:2002/A1:2004, EN 13530-2:2002/AC:2006, prEN ISO 20421-1; is excused to EN 13530-1:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13530-2:2002 is associated with the following European legislation: EU Directives/Regulations: 94/55/EC, 96/49/EC, 96/86/EC, 96/87/EC, TRRTP121; Standardization Mandates: M/086. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 13530-2:2002 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kryo-Behälter - Große ortsbewegliche vakuum-isolierte Behälter - Teil 2: Bemessung, Herstellung und PrüfungRécipients cryogéniques - Grands récipients transportables isolés sous vide - Partie 2 : Conception, fabrication, inspection et essaisCryogenic vessels - Large transportable vacuum insulated vessels - Part 2: Design, fabrication, inspection and testing23.020.40Proti mrazu odporne posode (kriogenske posode)Cryogenic vesselsICS:Ta slovenski standard je istoveten z:EN 13530-2:2002SIST EN 13530-2:2003en01-december-2003SIST EN 13530-2:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13530-2September 2002ICS 23.020.40English versionCryogenic vessels - Large transportable vacuum insulatedvessels - Part 2: Design, fabrication, inspection and testingRécipients cryogéniques - Grands récipients transportablesisolés sous vide - Partie 2: Conception, fabrication,contrôles et essaisKryo-Behälter - Große ortsbewegliche, vakuum-isolierteBehälter - Teil 2: Bemessung, Herstellung und PrüfungThis European Standard was approved by CEN on 29 May 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13530-2:2002 ESIST EN 13530-2:2003

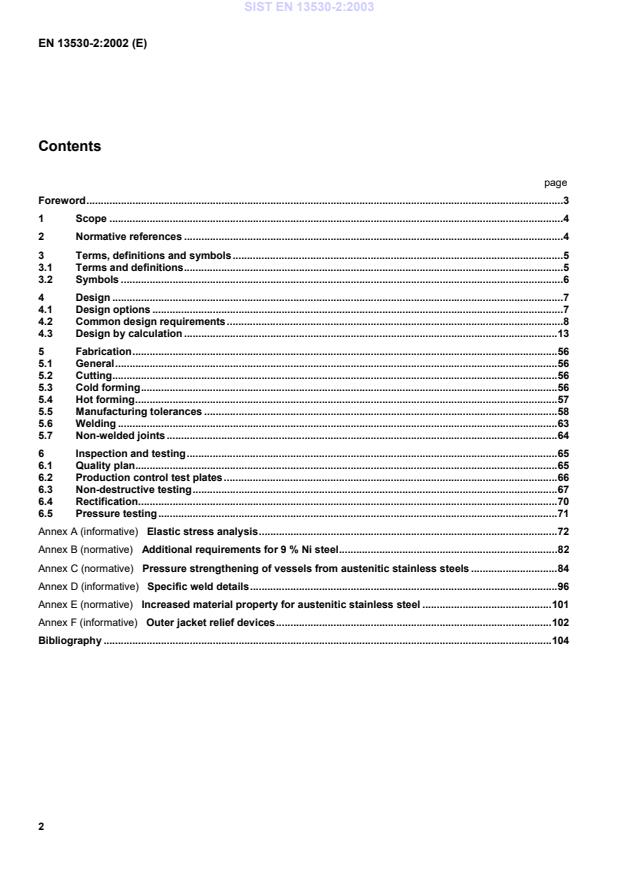

Elastic stress analysis.72Annex B (normative)
