Roof coverings - Continuous rooflights of plastics with or without upstands - Classification, requirements and test methods

This European Standard specifies requirements for continuous rooflights made of plastic materials (e.g.
GF-UP, PC, PMMA, PVC) with or without bearing profiles to be used with upstands made of e.g. GF-UP, PVC, steel, aluminium, wood or concrete, for laying in roofs, which serve the purpose of lighting by means of daylight and, possibly, of ventilating interior spaces by means of opening devices.
This European Standard applies to continuous rooflights without upstand and to continuous rooflights, where a single manufacturer provides all components of the rooflight with upstand, which are bought in a single purchase.  Products covered by this European Standard may be supplied as continuous rooflights with and without upstand and rooflights intended to be used with an upstand, for which the upstand is specified, but not supplied.
It applies to continuous rooflights when mounted with an inclination  in the longitudinal direction not more than 10° to the horizontal and not more than 10° in the transversal direction (see Figure 1):
a)   with bearing profiles:
   symmetrical, angled, curved (see Figure 2) or flat (see Figure 3);
   constructed with bearing profiles parallel to the span and with a rectangular ground plan;
b)   without bearing profiles:
   symmetrical, angled or curved with an  angle not more than 45° (measured to the horizontal at the line of fixing, see Figure 4);
   constructed with a span (width) lower than or equal 2,5 m and with a rectangular ground plan.
This European Standard applies to continuous rooflights, including barrel vault rooflights, with a rectangular ground plan of plastic glazing laying in roofs having, in addition a minimum distance of b/3
(b = effective span of rooflights, corresponding to the light opening). The upstands may be self-supporting or non self-supporting.
The design of the upstand is not part of this European Standard. Upstands can be prefabricated or site fabricated. Prefabricated upstands are to be considered as p

Dachdeckungen - Dachlichtbänder aus Kunststoff mit oder ohne Aufsetzkränzen - Klassifizierung, Anforderungen und Prüfverfahren

Diese Europäische Norm legt Anforderungen an Dachlichtbänder aus Kunststoff (z. B. GF UP, PC, PMMA, PVC) mit oder ohne Tragkonstruktion zur Verwendung mit Aufsetzkränzen aus z. B. GF UP, PVC, Stahl, Alu¬minium, Holz oder Beton zum Einbau in Dächern fest, die zur Ausleuchtung mit Tageslicht und möglicherweise zum Lüften von Räumen mittels Öffnungselementen dienen.
Diese Europäische Norm gilt für Dachlichtbänder ohne Aufsetzkränze und für Dachlichtbänder, bei denen ein einzelner Hersteller alle Komponenten des Dachlichtbandes mit Aufsetzkranz bereitstellt, die in einem einzelnen Kauf erworben werden. Die durch diese Europäische Norm abgedeckten Produkte können als Dachlichtbänder mit oder ohne Aufsetzkranz sowie als Dachlichtbänder geliefert werden, die zur Anwendung mit einem Aufsetzkranz vorgesehen sind, der festgelegt ist, jedoch nicht mitgeliefert wird.
Die Norm gilt für Dachlichtbänder, die mit einer Neigung  von höchstens 10° gegen die Horizontale in Längs  und Querrichtung eingebaut werden (siehe Bild 1):
a)   mit Tragkonstruktion:
-   symmetrisch, geneigt, gebogen (siehe Bild 2) oder flach (siehe Bild 3);
-   hergestellt mit der Tragkonstruktion parallel zur Spannweite und mit rechteckigem Grundriss;
b)   ohne Tragkonstruktion:
-   symmetrisch, geneigt oder gebogen mit einem Winkel  von höchstens 45° (gemessen zur Horizontalen an der Befestigungslinie, siehe Bild 4);
-   hergestellt mit einer Spannweite (Breite) kleiner oder gleich 2,5 m und mit rechteckigem Grundriss.
Diese Europäische Norm gilt für Dachlichtbänder, einschließlich Tonnengewölbelichtbänder, mit rechteckigem Grundriss der Kunststoffverglasung, die in Dächer eingebaut werden und zusätzlich einen Mindestabstand von b/3 untereinander haben (b  rechnerische Spannweite der Oberlichter, entspricht der Lichtöffnung). Die Aufsetzkränze können selbsttragend oder nicht selbsttragend sein.

Éléments de couverture - Lanterneaux continus en matière plastique avec et sans costière - Classification, spécifications et méthodes d'essais

Strešna kritina - Zvezni plastični svetlobniki z razmikom ali brez njega - Klasifikacija, zahteve in preskusne metode

General Information

Status
Published
Publication Date
10-Oct-2006
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
11-Oct-2006
Completion Date
11-Oct-2006

RELATIONS

Buy Standard

Standard
EN 14963:2007
English language
56 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Roof coverings - Continuous rooflights of plastics with or without upstands - Classification, requirements and test methodsÉléments de couverture - Lanterneaux continus en matiere plastique avec et sans costiere - Classification, spécifications et méthodes d'essaisDachdeckungen - Dachlichtbänder aus Kunststoff mit oder ohne Aufsetzkränzen - Klassifizierung, Anforderungen und PrüfverfahrenTa slovenski standard je istoveten z:EN 14963:2006SIST EN 14963:2007en91.060.20StreheRoofsICS:SLOVENSKI

STANDARDSIST EN 14963:200701-marec-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14963October 2006ICS 91.060.20 English VersionRoof coverings - Continuous rooflights of plastics with or withoutupstands - Classification, requirements and test methodsÉléments de couverture - Lanterneaux continus en matièreplastique avec et sans costière - Classification,spécifications et méthodes d'essaisDachdeckungen - Dachlichtbänder aus Kunststoff mit oderohne Aufsetzkränzen - Klassifizierung, Anforderungen undPrüfverfahrenThis European Standard was approved by CEN on 4 September 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14963:2006: E

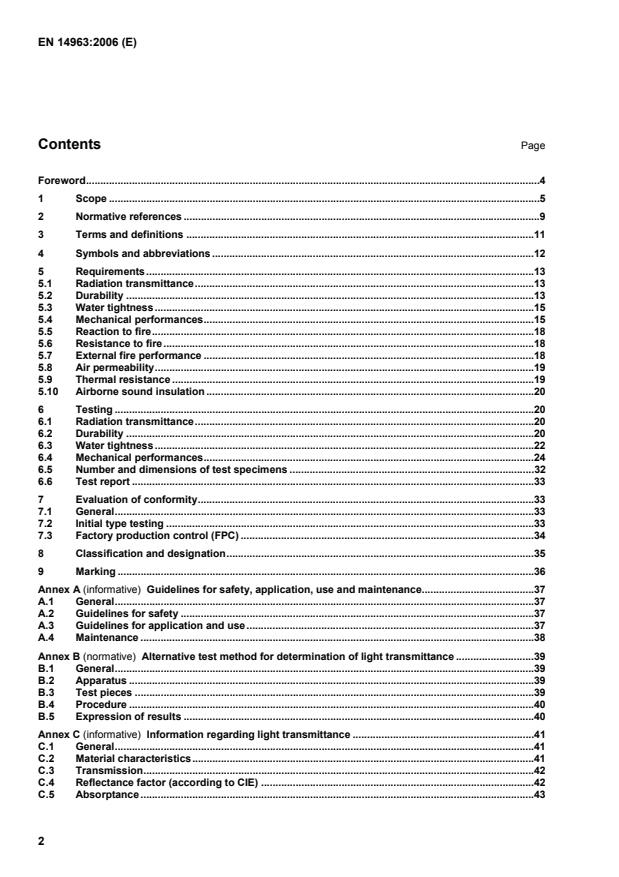

EN 14963:2006 (E) 2 Contents Page Foreword..............................................................................................................................................................4 1 Scope......................................................................................................................................................5 2 Normative references............................................................................................................................9 3 Terms and definitions.........................................................................................................................11 4 Symbols and abbreviations................................................................................................................12 5 Requirements.......................................................................................................................................13 5.1 Radiation transmittance......................................................................................................................13 5.2 Durability..............................................................................................................................................13 5.3 Water tightness....................................................................................................................................15 5.4 Mechanical performances...................................................................................................................15 5.5 Reaction to fire.....................................................................................................................................18 5.6 Resistance to fire.................................................................................................................................18 5.7 External fire performance...................................................................................................................18 5.8 Air permeability....................................................................................................................................19 5.9 Thermal resistance..............................................................................................................................19 5.10 Airborne sound insulation..................................................................................................................20 6 Testing..................................................................................................................................................20 6.1 Radiation transmittance......................................................................................................................20 6.2 Durability..............................................................................................................................................20 6.3 Water tightness....................................................................................................................................22 6.4 Mechanical performances...................................................................................................................24 6.5 Number and dimensions of test specimens.....................................................................................32 6.6 Test report............................................................................................................................................33 7 Evaluation of conformity.....................................................................................................................33 7.1 General..................................................................................................................................................33 7.2 Initial type testing................................................................................................................................33 7.3 Factory production control (FPC)......................................................................................................34 8 Classification and designation...........................................................................................................35 9 Marking.................................................................................................................................................36 Annex A (informative)
