EN 755-2:2008

Aluminium and aluminium alloys - Extruded rod/bar, tube and profiles - Part 2: Mechanical properties

This document specifies the mechanical property limits resulting from tensile testing applicable to aluminium and aluminium alloy extruded rod/bar, tube and profile.
Technical conditions for inspection and delivery, including product and testing requirements, are specified in EN 755-1. Temper designations are defined in EN 515. The chemical composition limits for these materials are given in EN 573-3.

Aluminium und Aluminiumlegierungen - Stranggepresste Stangen, Rohre und Profile - Teil 2: Mechanische Eigenschaften

Dieses Dokument legt die Grenzwerte für die mechanischen Eigenschaften von stranggepressten Stangen, Rohren und Profilen aus Aluminium und Aluminiumlegierungen fest.
Die technischen Lieferbedingungen, einschließlich Erzeugnis- und Prüfanforderungen, sind in EN 755 1 festgelegt. Die Bezeichnungen der Werkstoffzustände sind in EN 515 definiert. In der EN 573-3 sind die Grenzen der chemischen Zusammensetzung für diese Werkstoffe angegeben.

Aluminium et alliages d'aluminium - Barres , tubes et profilés filés - Partie 2: Caractéristiques mécaniques

Le présent document spécifie les limites des caractéristiques mécaniques provenant de l’essai de traction applicables aux barres, tubes et profilés filés en aluminium et alliages d’aluminium.
Les conditions techniques de contrôle et de livraison, y compris les produits et les exigences d’essai, sont spécifiées dans l’EN 755-1. La désignation des états métallurgiques sont définis dans l’EN 515. Les limites de composition chimique de ces matériaux sont données dans l’EN 573-3.

Aluminij in aluminijeve zlitine - Iztiskane palice/drogovi, cevi in profili - 2. del: Mehanske lastnosti

General Information

• Status: Withdrawn
• Publication Date: 18-Mar-2008
• Withdrawal Date: 01-Oct-2013
• ICS: 77.150.10 - Aluminium products
• Technical Committee: CEN/TC 132 - Aluminium and aluminium alloys
• Drafting Committee: CEN/TC 132/WG 5 - Extruded and drawn products
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 02-Oct-2013
• Completion Date: 02-Oct-2013
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/120 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on structural metallic products and ancillaries
• Ref Project: SIST EN 755-2:2008 - Aluminium and aluminium alloys - Extruded rod/bar, tube and profiles - Part 2: Mechanical properties

Relations

• Replaces: EN 755-2:1997 - Aluminium and aluminium alloys - Extruded rod/bar, tube and profiles - Part 2: Mechanical properties
• Effective Date: 22-Dec-2008
• Replaced By: EN 755-2:2013 - Aluminium and aluminium alloys - Extruded rod/bar, tube and profiles - Part 2: Mechanical properties
• Effective Date: 16-Jul-2011

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2008
1DGRPHãþD
SIST EN 755-2:1998
Aluminij in aluminijeve zlitine - Iztiskane palice/drogovi, cevi in profili - 2. del:
Mehanske lastnosti
Aluminium and aluminium alloys - Extruded rod/bar, tube and profiles - Part 2:
Mechanical properties
Aluminium und Aluminiumlegierungen - Stranggepresste Stangen, Rohre und Profile -
Teil 2: Mechanische Eigenschaften
Aluminium et alliages d'aluminium - Barres, tubes et profilés filés - Partie 2 :
Caractéristiques mécaniques
Ta slovenski standard je istoveten z: EN 755-2:2008
ICS:
77.150.10
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 755-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2008
ICS 77.150.10 Supersedes EN 755-2:1997
English Version
Aluminium and aluminium alloys - Extruded rod/bar, tube and
profiles - Part 2: Mechanical properties
Aluminium et alliages d'aluminium - Barres , tubes et Aluminium und Aluminiumlegierungen - Stranggepresste
profilés filés - Partie 2: Caractéristiques mécaniques Stangen, Rohre und Profile - Teil 2: Mechanische
Eigenschaften
This European Standard was approved by CEN on 10 February 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 755-2:2008: E
worldwide for CEN national Members.

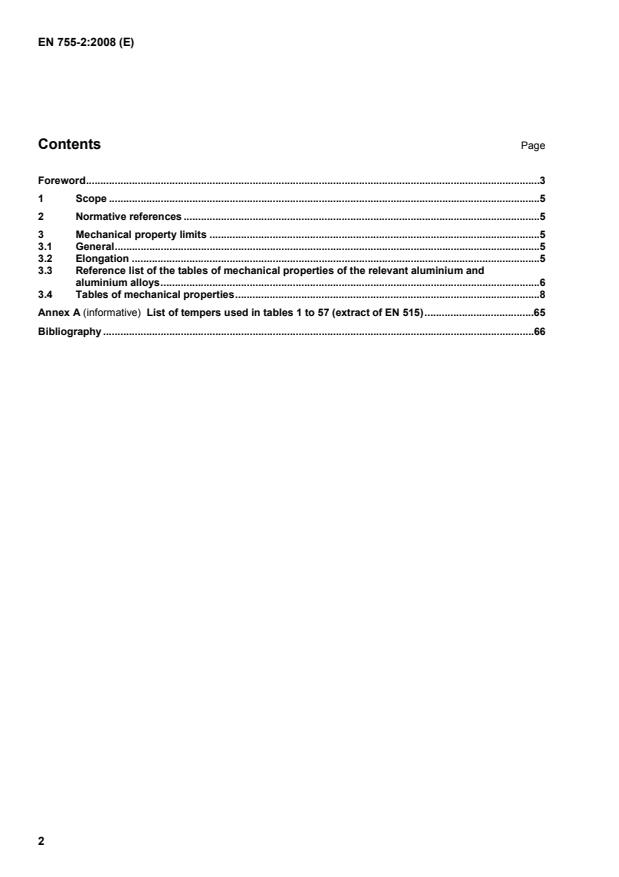

Contents Page
Foreword.3
1 Scope.5
2 Normative references.5
3 Mechanical property limits .5
3.1 General.5
3.2 Elongation.5
3.3 Reference list of the tables of mechanical properties of the relevant aluminium and
aluminium alloys.6
3.4 Tables of mechanical properties.8
Annex A (informative) List of tempers used in tables 1 to 57 (extract of EN 515).65
Bibliography .66

Foreword
This document (EN 755-2:2008) has been prepared by Technical Committee CEN/TC 132 “Aluminium and
aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2008, and conflicting national standards shall be
withdrawn at the latest by September 2008.
This document supersedes EN 755-2:1997.
Within its programme of work, Technical committee CEN/TC 132 entrusted CEN/TC 132/WG 5 "Extruded and
drawn products" to revise EN 755-2:1997.
The following technical modifications have been introduced during the revision:
 General: Typical Brinell hardness values are introduced in the tables for mechanical properties for
information only
The following new alloys are included; EN AW-3102, EN AW-5049, EN AW-6008, EN AW-6110A,
EN AW-6014, EN AW-6023, EN AW-6360, EN AW-6262A and EN AW-6065, EN AW-6182, EN AW-7108,
EN AW-7108A, EN AW-7021
For Alloy EN AW-5005 and EN AW-5005A new temper H111 is added
 Subclause 3.2: A value should be used for elongation if not otherwise agreed, with exception of certain
products
 Annex A: Informative Annex A added explaining temper designation used in all tables
 Former annexes A and B are deleted (content moved to Part 1)
EN 755 comprises the following parts under the general title "Aluminium and aluminium alloys — Extruded
rod/bar, tube and profiles":
 Part 1: Technical conditions for inspection and delivery
 Part 2: Mechanical properties
 Part 3: Round bars, tolerances on dimensions and form
 Part 4: Square bars, tolerances on dimensions and form
 Part 5: Rectangular bars, tolerances on dimensions and form
 Part 6: Hexagonal bars, tolerances on dimensions and form
 Part 7: Seamless tubes, tolerances on dimensions and form
 Part 8: Porthole tubes, tolerances on dimensions and form
 Part 9: Profiles, tolerances on dimensions and form
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
CEN/TC 132 affirms it is its policy that in the case when a patentee refuses to grant licenses on standardized
standards products under reasonable and not discriminatory conditions then this product shall be removed
from the corresponding standard.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

1 Scope
This document specifies the mechanical property limits resulting from tensile testing applicable to aluminium
and aluminium alloy extruded rod/bar, tube and profile.
Technical conditions for inspection and delivery, including product and testing requirements, are specified in
EN 755-1. Temper designations are defined in EN 515. The chemical composition limits for these materials
are given in EN 573-3.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references only the edition cited applies. For undated references the latest edition of the referenced document
(including any amendments) applies.
EN 755-1, Aluminium and aluminium alloys — Extruded rod/bar, tube and profiles — Part 1: Technical
conditions for inspection and delivery
EN 10002-1, Metallic materials — Tensile testing — Part 1: Method of test at ambient temperature
3 Mechanical property limits
3.1 General
The mechanical properties shall be in conformity with those specified in Tables 1 to 57 or those agreed upon
between supplier and purchaser and stated in the order document.
Tables 1 to 57 contain limits of mechanical property values obtained by tensile testing according to EN 10002-
1 after sampling and test piece preparation according to EN 755-1.
NOTE The mechanical properties refer to test pieces taken in the longitudinal direction. Mechanical properties of test
pieces taken in other directions can differ from those for the longitudinal direction quoted in this standard.
Brinell hardness values given in Tables 1 to 57 expressed as HBW values are for information only.
3.2 Elongation
If not otherwise agreed, the A value shall be used.
The A value for elongation is the % elongation measured over a gauge length of 5,65 S (where S is the initial
0 0
cross-sectional area of the test-piece), and expressed in percent.
For certain products the supplier may choose (if not otherwise specified in the order documents) to use the
elongation based on A Consequently values for the A are included in the following tables.
50mm. 50mm
The A value is the elongation measured over a gauge length of 50 mm and expressed in percent.
50mm
Test pieces and their location in the specimen are given in EN 755-1.

3.3 Reference list of the tables of mechanical properties of the relevant aluminium and
aluminium alloys
Page
Table 1 Aluminium EN AW-1050A  [Al 99,5] 8
Table 2 Aluminium EN AW-1070A [Al 99,7] 9
Table 3 Aluminium EN AW-1200 [Al 99,0] 10
Table 4 Aluminium EN AW-1350 [EAl 99,5] 11
Table 5 Alloy EN AW-2007 [Al Cu4PbMgMn] 12
Table 6 Alloy EN AW-2011 and EN AW-2011A [Al Cu6BiPb] and [Al Cu6BiPb(A)] 13
Table 7 Alloy EN AW-2014 and EN AW-2014A [Al Cu4SiMg] and [Al Cu4SiMg(A)] 14
Table 8 Alloy EN AW-2017A [Al Cu4MgSi(A)] 15
Table 9 Alloy EN AW-2024 [Al Cu4Mg1] 16
Table 10 Alloy EN AW-2030 [Al Cu4PbMg] 17
Table 11 Alloy EN AW-3102 [Al Mn0,2] 18
Table 12 Alloy EN AW-3003 [Al Mn1Cu] 19
Table 13 Alloy EN AW-3103 [Al Mn1] 20
Table 14 Alloy EN AW-5005 and EN AW-5005A [Al Mg1(B)] and [Al Mg 1(C)] 21
Table 15 Alloy EN AW-5019 [Al Mg5] 22
Table 16 Alloy EN AW-5049 [Al Mg2Mn0,8] 23
Table 17 Alloy EN AW-5051A [Al Mg2] 24
Table 18 Alloy EN AW-5251 [Al Mg2Mn0,3] 25
Table 19 Alloy EN AW-5052 [Al Mg2,5] 26
Table 20 Alloy EN AW-5154A [Al Mg3,5(A)] 27
Table 21 Alloy EN AW-5454 [Al Mg3Mn] 28
Table 22 Alloy EN AW-5754 [Al Mg3] 29
Table 23 Alloy EN AW-5083 [Al Mg4,5Mn0,7] 30
Table 24 Alloy EN AW-5086 [Al Mg4] 31
Table 25 Alloy EN AW-6101A [EAI MgSi(A)] 32
Table 26 Alloy EN AW-6101B [EAI MgSi(B)] 33
Table 27 Alloy EN AW-6005 and EN AW-6005A [Al SiMg] and [Al SiMg(A)] 34
Table 28 Alloy EN AW-6106 [Al MgSiMn] 35
Table 29 Alloy EN AW-6008 [Al SiMgV] 36
Table 30 Alloy EN AW-6110A [Al Mg0,9Si0,9MnCu(A)] 37
Table 31 Alloy EN AW-6012 [Al MgSiPb] 38
Table 32 Alloy EN AW-6014 [Al Mg0,6SiV] 39
Table 33 Alloy EN AW-6018 [Al Mg1SiPbMn] 40
Table 34 Alloy EN AW-6023 [Al Si1Sn1MgBi] 41
Table 35 Alloy EN AW-6351 [Al Si1Mg0,5Mn] 42
Table 36 Alloy EN AW-6060 [Al MgSi] 43
Table 37 Alloy EN AW-6360 [Al SiMgMn] 44
Table 38 Alloy EN AW-6061 [AI Mg1SiCu] 45
Table 39 Alloy EN AW-6261 [Al Mg1SiCuMn 46
Table 40 Alloy EN AW-6262 [Al Mg1SiPb] 47
Table 41 Alloy EN AW-6262A [Al Mg1SiSn] 48
Table 42 Alloy EN AW-6063 [Al Mg0,7Si] 49
Table 43 Alloy EN AW-6063A [AI Mg0,7Si(A)] 50
Table 44 Alloy EN AW-6463 [Al Mg0,7Si(B)] 51
Table 45 Alloy EN AW-6065 [Al Mg1Bi1Si] 52
Table 46 Alloy EN AW-6081 [Al Si0,9MgMn] 53
Table 47 Alloy EN AW-6082 [Al Si1MgMn] 54
Table 48 Alloy EN AW-6182 [Al Si1MgZr] 55
Table 49 Alloy EN AW-7003 [Al Zn6Mg0,8Zr] 56
Table 50 Alloy EN AW-7005 [Al Zn4,5Mg1,5Mn] 57
Table 51 Alloy EN-AW-7108 [Al Zn5Mg1Zr] 58
Table 52 Alloy EN-AW- 7108A [Al Zn5Mg1Zr(A)] 59
Table 53 Alloy EN AW-7020 [AI Zn4,5Mg1] 60
Table 54 Alloy EN AW-7021 [Al Zn5,5Mg1,5] 61
Table 55 Alloy EN AW-7022 [Al Zn5Mg3Cu] 62
Table 56 Alloy EN AW-7049A [Al Zn8MgCu] 63
Table 57 Alloy EN AW-7075 [Al Zn5,5MgCu] 64

3.4 Tables of mechanical properties
Table 1 — Aluminium EN AW-1050A [Al 99,5]
Extruded rod/bar
R R
Dimensions m p0,2
A A
HBW
50 mm
mm
MPa MPa
Temper % %
Typical
a b value
min. min.
D S
min. max. min. max.
c
F , H112 all all 60 - 20 - 25 23 20
O, H111 all all 60 95 20 - 25 23 20
Extruded tube
R R
m p0,2 A A
HBW
50 mm
Wall thickness
MPa MPa
Temper t % %
Typical
mm
value
min. min
min. max. min. max.
c
F , H112 all 60 20 - 25 23 20
O, H111 all 60 95 20 - 25 23 20
Extruded profile
R R
m p0,2 A A
HBW
50 mm
Wall thickness
MPa MPa
Temper t % %
Typical
mm
value
min. min
min. max. min. max.
c
F , H112 all 60 20 - 25 23 20
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.
Table 2 — Aluminium EN AW-1070A [Al 99,7]
Extruded rod/bar
R R
Dimensions m p0,2
A A
HBW
50 mm
mm
MPa MPa
Temper % %
Typical
a b value
min. min.
D S min. max. min. max.
c
F , H112 all all 60 - 23 25 23 18
Extruded tube
Not specified
Extruded profile
Not specified
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 3 — Aluminium EN AW-1200 [Al 99,0]
Extruded rod/bar
R R
Dimensions
m p0,2
A A HBW
50 mm
mm
MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 75 - 25 - 20 18 23
Extruded tube
R R
m p0,2
A A
50 mm HBW
Wall thickness
MPa MPa
Temper t % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all all 75 - 25 20 18 23
Extruded profile
R R
m p0,2
A A
HBW
Wall thickness 50 mm
MPa MPa
Temper t % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 75 - 25 20 18 23
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 4 — Aluminium EN AW-1350 [EAl 99,5]
d
Extruded rod/bar
R R
Dimensions
m p0,2 A A
HBW
50 mm
mm
MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 60 - - - 25 23 20
d
Extruded tube
R R
m p0,2
A A HBW
50 mm
Wall thickness
MPa MPa
Temper t % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all all 60 - - - 25 23 20
d
Extruded profile
R R
m p0,2
A A
50 mm HBW
Wall thickness
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 60 - - - 25 23 20
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.
d
Electrical conductivity γ ≥ 35,4 MS/m.

Table 5 — Alloy EN AW-2007 [Al Cu4PbMgMn]
Extruded rod/bar
R R
Dimensions
m p0,2 A A
HBW
50 mm
mm
MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 80 ≤ 80
370 - 250 - 8 6
T4, T4510,
80 < D ≤ 200 80 < S ≤ 200 340 - 220 - 8 - 95
c
T4511
330 - 210 - 7 -
200 < D ≤ 250 200 < S ≤ 250
Extruded tube
R R
m p0,2
A A
HBW
Wall thickness 50 mm
MPa MPa
Temper t % %
Typical
mm
min. value
min.
min. max. min. max.
T4, T4510,
≤ 25 370 - 250 - 8 6 95
c
T4511
Extruded profile
R R
m p0,2 A A
HBW
50 mm
Wall thickness
MPa MPa
Temper t % %
Typical
mm
value
min. min.
min. max. min. max.
T4, T4510,
≤ 30 370 - 250 - 8 6 95
c
T4511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 6 — Alloy EN AW-2011 [Al Cu6BiPb] and Alloy EN AW-2011A [Al Cu6BiPb(A)]
Extruded rod/bar
Dimensions R R
m p0,2
A A
50 mm HBW
mm MPa MPa
Temper
% %
Typical
a b value
min. min.
D S min. max. min. max.
c
T4 ≤ 200 ≤ 60 275 - 125 - 14 12 95
≤ 75 ≤ 60 310 - 230 - 8 6 110
c
T6
75 < D ≤ 200 - 295 - 195 - 6 - 110
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min.max.
c
T6 310 - 230 - 6 4 110
≤ 25
Extruded profile
Not specified
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 7 — Alloy EN AW-2014 [Al Cu4SiMg] and Alloy EN AW-2014A [Al Cu4SiMg(A)]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 250 - 135
≤ 200 ≤ 200 - 12 10 45
≤ 25 ≤ 25
370 - 230 - 13 11 110
25 < D ≤ 75 25 < S ≤ 75
410 - 270 - 12 - 110
T4, T4510,
T4511
390 - 250 - 10 - 110
75 < D ≤ 150 75 < S ≤ 150
350 - 230 - 8 - 110
150 < D ≤ 200 150 < S ≤ 200
≤ 25 ≤ 25
415 - 370 - 6 5 140
25 < D ≤ 75 25 < S ≤ 75 460 - 415 - 7 - 140
T6, T6510,
75 < D ≤ 150 75 < S ≤ 150 465 - 420 - 7 - 140
T6511
430 - 350 - 6 - 140
150 < D ≤ 200 150 < S ≤ 200
420 - 320 - 5 - 140
200 < D ≤ 250 200 < S ≤ 250
Extruded tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min.max.
O, H111 ≤ 20 - 250 - 135 12 10 45
T4, T4510,
370 - 230 - 11 10 110
≤ 20
T4511
T6, T6510, ≤ 10 415 - 370 - 7 5 140
T6511 450 - 400 - 6 4 140
10 < t ≤ 40
c
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
250 - 135
O, H111 all - 12 10 45
≤ 25 370 - 230 - 11 10 110
T4, T4510,
T4511
25 < t ≤ 75 410 - 270 - 10 - 110
≤ 25 415 - 370 - 7 5
T6, T6510,
T6511
25 < D ≤ 75 460 - 415 - 7 -
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
If a profile cross section is comprised of different thicknesses which fall in more than one set of specified mechanical
property values, the lowest specified value shall be considered as valid for the whole profile cross section.

Table 8 — Alloy EN AW-2017A [Al Cu4MgSi(A)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b value
min. min.
min. max. min. max.
D S
O, H111 - 250 - 135 12 10 45
≤ 200 ≤ 200
≤ 25 ≤ 25
380 - 260 - 12 10 105
25 < D ≤ 75 25 < S ≤ 75
400 - 270 - 10 - 105
T4,T4510,
390 - 260 - 9 - 105
75 < D ≤ 150 75 < S ≤ 150
c
T4511
370 - 240 - 8 - 105
150 < D ≤ 200 150 < S ≤ 200
360 - 220 - 7 - 105
200 < D ≤ 250 200 < S ≤ 250
Extruded tube
R R
m p0.2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper %
% Typical
mm
value
min. min.
min. max. min. max.
O, H111 - 250 - 135 12 10 45
≤ 20
T4, T4510, ≤ 10 380 - 260 - 12 10 105
c
T4511 400 - 270 - 10 8 105
10 < t ≤ 75
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T4, T4510,
380 - 260 - 10 8 105
c ≤ 30
T4511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 9 — Alloy EN AW-2024 [AL Cu4Mg1]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 - 250 - 150 12 10 47
≤ 200 ≤ 200
≤ 50 ≤ 50
450 - 310 - 8 6 120
50 < D ≤ 100 50 < S ≤ 100
440 - 300 - 8 - 120
T3, T3510,
T3511
420 - 280 - 8 - 120
100 < D ≤ 200 100 < S ≤ 200
400 - 270 - 8 - 120
200 < D ≤ 250 200 < S ≤ 250
T8, T8510,
≤ 150 ≤ 150 455 - 380 - 5 4 130
T8511
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper
% %
Typical
mm
value
min. min.
min. max. min. max.
O, H111 - 250 - 150 12 10 47
≤ 30
T3, T3510,
≤ 30 420 - 290 - 8 6 120
T3511
T8, T8510,
≤ 30 455 - 380 - 5 4 130
T8511
c
Extruded profile
R R
m p0,2 A A
HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
O, H111 all - 250 - 150 12 10 47
≤ 15 395 - 290 - 8 6 120
T3, T3510,
T3511
15 < t ≤ 50 420 - 290 - 8 - 120
T8, T8510,
455 - 380 - 5 4 130
≤ 50
T8511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
If a profile cross section is comprised of different thickness which fall in more than one set of specified mechanical property
values, the lowest specified value shall be considered as valid for the whole profile cross section.

Table 10 — Alloy EN AW-2030 [Al Cu4PbMg]
Extruded rod/bar
Dimensions R R
m p0,2
A A HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 80 ≤ 80
370 - 250 - 8 6 115
T4, T4510,
80 < D ≤ 200 80 < S ≤ 200 340 - 220 - 8 - 115
c
T4511
330 - 210 - 7 - 115
200 < D ≤ 250 200 < S ≤ 250
Extruded tube
R R
m p0,2 A A
HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T4, T4510,
≤ 25 370 - 250 - 8 6 115
c
T4511
Extruded profile
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper %
% Typical
mm
value
min. min.
min. max. min. max.
T4, T4510,
≤ 30 370 - 250 - 8 6 115
c
T4511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 11 — Alloy EN AW-3102 [Al Mn0,2]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 80 - 30 - 25 23 23
Extruded tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 80 - 30 - 25 23 23
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 80 - 30 - 25 23 23
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 12 — Alloy EN AW-3003 [Al Mn1Cu]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 95 - 35 - 25 20 30
O, H111 all all 95 135 35 - 25 20 30
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 95 - 35 - 25 20 30
O, H111 all 95 135 35 - 25 20 30
Extruded profile
R R
m p0,2
A A
Wall thickness HBW
50 mm
t MPa MPa
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 95 - 35 - 25 20 30
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 13 — Alloy EN AW-3103 [Al Mn1]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 95 - 35 - 25 20 28
O, H111 all all 95 135 35 - 25 20 28
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 95 - 35 - 25 20 28
O, H111 all 95 135 35 - 25 20 28
Extruded profile
R R
m p0,2 A A
HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 95 - 35 - 25 20 28
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 14 — Alloy EN AW-5005 [Al Mg1(B)] and Alloy EN AW-5005A [Al Mg1(C)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all 100 100 - 40 - 18 16 30
O, H111 ≤ 80 ≤ 60 100 150 40 - 18 16 30
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 100 - 40 - 18 16 30
O, H111 ≤ 20 100 150 40 - 20 18 30
Extruded Profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 all 100 - 40 - 18 16 30
O, H111 ≤ 20 100 150 40 - 20 18 30
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 15 — Alloy EN AW-5019 [Al Mg5]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 250 - 110 - 14 12 65
≤ 200 ≤ 200
O, H111 ≤ 200 ≤ 200 250 320 110 - 15 13 65
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 ≤ 30 250 - 110 - 14 12 65
O, H111 ≤ 30 250 320 110 - 15 13 65
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 250 - 110 - 14 12 65
≤ 30
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 16 — Alloy EN AW-5049 [Al Mg2Mn0,8]
Extruded rod/bar
Dimensions R R
m p0,2
A A HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 180 - 80 - 15 13 50
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 180 - 80 - 15 13 50
Extruded profile
R R
m p0,2
A A
Wall thickness HBW
50 mm
t MPa MPa
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 180 - 80 - 15 13 50
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 17 — Alloy EN AW-5051A [Al Mg2]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 150 - 50 - 16 14 40
O, H111 all all 150 200 50 - 18 16 40
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 150 - 60 - 16 14 40
O, H111 all 150 200 60 - 18 16 40
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 all 150 - 60 - 16 14 40
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 18 — Alloy EN AW-5251 [Al Mg2Mn0,3]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 all all 160 - 60 - 16 14 45
O, H111 all all 160 220 60 - 17 15 45
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 160 - 60 - 16 14 45
O, H111 all 160 220 60 - 17 15 45
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 all 160 - 60 - 16 14 45
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 19 — Alloy EN AW-5052 [Al Mg2,5]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b value
min. min.
min. max. min. max.
D S
c
F , H112 all - 70 -
all 170 15 13 47
O, H111 all all 170 230 70 - 17 15 45
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 170 - 70 - 15 13 47
O, H111 all 170 230 70 - 17 15 45
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 170 70 - 15
all - 13 47
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 20 — Alloy EN AW-5154A [Al Mg3,5(A)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b value
min. min.
min. max. min. max.
D S
c
F , H112 - 85 -
≤ 200 ≤ 200 200 16 14 55
O, H111 ≤ 200 ≤ 200 200 275 85 - 18 16 55
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 ≤ 25 200 - 85 - 16 14 55
O, H111 ≤ 25 200 275 85 - 18 16 55
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 200 85 - 16
≤ 25 - 14 55
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 21 — Alloy EN AW-5454 [Al Mg3Mn]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b value
min. min.
min. max. min. max.
D S
c
F , H112 - 85 -
≤ 200 ≤ 200 200 16 14 60
O, H111 ≤ 200 ≤ 200 200 275 85 - 18 16 60
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 ≤ 25 200 - 85 - 16 14 60
O, H111 ≤ 25 200 275 85 - 18 16 60
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 200 85 - 16
≤ 25 - 14 60
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 22 — Alloy EN AW-5754 [Al Mg3]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 150 ≤ 150 180 - 80 - 14 12 47
c
F , H112
180 - 70 - 13 - 47
150 < D ≤ 250 200 < S ≤ 250
O, H111 ≤ 150 ≤ 150 180 250 80 - 17 15 45
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper %
% Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 180 - 80 - 14 12 47
≤ 25
O, H111 ≤ 25 180 250 80 - 17 15 45
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 ≤ 25 180 - 80 - 14 12 47
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 23 — Alloy EN AW-5083 [Al Mg4,5Mn0,7]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 200 ≤ 200 270 - 110 - 12 10 70
c
F
260 - 100 - 12 - 70
200 < D ≤ 250 200 < S ≤ 250
O, H111 ≤ 200 ≤ 200 270 - 110 - 12 10 70
H112 ≤ 200 ≤ 200 270 - 125 - 12 10 70
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper
% %
Typical
mm
value
min. min.
min. max. min. max.
c
F all 270 - 110 - 12 10 70
O, H111 all 270 - 110 - 12 10 70
H112 all 270 - 125 - 12 10 70
Extruded profile
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F all 270 - 110 - 12 10 70
H112 all 270 - 125 - 12 10 70
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 24 — Alloy EN AW-5086 [Al Mg4]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
F , H112 240 - 95 - 12 10 65
≤ 250 ≤ 250
O, H111 ≤ 200 ≤ 200 240 320 95 - 18 15 65
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
F , H112 all 240 - 95 - 12 10 65
O, H111 all 240 320 95 - 18 15 65
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
F , H112 all 240 - 95 - 12 10 65
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
F Temper: property values are for information only.

Table 25 — Alloy EN AW-6101A [EAl MgSi(A)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
T6 200 - 170 - 10 8 70
≤ 150 ≤ 150
Extruded tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
T6 ≤ 25 200 - 170 - 10 8 70
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
T6 ≤ 50 200 - 170 - 10 8 70
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 26 — Alloy EN AW-6101B [EAl MgSi(B)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c d
T6 - 215 - 160 - 8 6 70
≤ 15
c e
T7 - ≤ 15 170 - 120 - 12 10 60
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c d
T6 ≤ 15 215 - 160 - 8 6 70
c e
T7 ≤ 15 170 - 120 - 12 10 60
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c d
T6 215 - 160 - 8 6 70
≤ 15
c e
T7 ≤ 15 170 - 120 - 12 10 60
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.
d
Electrical conductivity γ ≥ 30 MS/m.
e
Electrical conductivity γ ≥ 32 MS/m.

Table 27 — Alloy EN AW-6005 [Al SiMg] and Alloy EN AW-6005A [Al SiMg(A)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 25 ≤ 25 270 - 225 - 10 8 90
c
T6 25 < D ≤ 50 25 < S ≤ 50 270 - 225 - 8 - 90
260 - 215 - 8 - 85
50 < D ≤ 100 50 < S ≤ 100
Extruded tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
≤ 5 270 - 225 - 8 6 90
c
T6
260 - 215 - 8 6 85
5 < t ≤ 10
d
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
Open profile
≤ 25 180 - 90 - 15 13 50
c
T4
≤ 5
270 - 225 - 8 6 90
Open profile
5 < t ≤ 10 260 - 215 - 8 6 85
c
T6
250 - 200 - 8 6 85
10 < t ≤ 25
Hollow profile
180 - 90 - 15 13 50
≤ 10
c
T4
Hollow profile
≤ 5 255 - 215 - 8 6 85
c
T6 250 - 200 - 8 6 85
5 < t ≤ 15
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.
d
If a profile cross section is comprised of different thickness which fall in more than one set of specified mechanical
property values, the lowest specified value shall be considered as valid for the whole profile cross section.

Table 28 — Alloy EN AW-6106 [Al MgSiMn]
Extruded rod/bar
Not specified
Extruded tube
Not specified
Extruded profile
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper
% %
Typical
mm
value
min. min.
min. max. min. max.
a
T6 ≤ 10 250 - 200 - 8 6 75
a
Properties may be obtained by press quenching.

Table 29 — Alloy EN AW-6008 [Al SiMgV]
Extruded rod/bar
Not specified
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T4 180 - 90 15 13 50
≤ 10
≤ 5 270 - 225 - 8 6 90
a
T6
260 - 215 - 8 6 85
5 < t ≤ 10
b
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
Open profile
≤ 10 180 - 90 - 15 13 50
a
T4
Open profile ≤ 5 270 - 225 - 8 6 90
a
T6 5 < t ≤ 10 260 - 215 - 8 6 85
Hollow profile
180 - 90 - 15 13 50
≤ 10
a
T4
Hollow profile ≤ 5 255 - 215 - 8 6 85
a
T6 250 - 200 - 8 6 85
5 < t ≤ 10
a
Properties may be obtained by press quenching.
b
If a profile cross section is comprised of different thickness which fall in more than one set of specified mechanical property
values, the lowest specified value shall be considered as valid for the whole profile cross section.

Table 30 — Alloy EN AW-6110A [Al Mg0,9Si0,9MnCu(A)]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
c
T5 380 - 360 - 10 8 115
≤ 120 ≤ 120
c
T6 ≤ 120 ≤ 150 410 - 380 - 10 8 120
Extruded tube
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
c
T4 ≤ 25 320 220 - 16 14 85
c
T6 ≤ 25 380 - 360 - 10 8 120
Extruded profile
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
min. value
min.
min. max. min. max.
c
T4 320 220 - 16 14 85
≤ 25
c
T6 ≤ 25 380 - 360 - 10 8 120
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 31 — Alloy EN AW-6012 [Al MgSiPb]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 150 ≤ 150 310 - 260 - 8 6 105
T6, T6510,
c
T6511
260 - 200 - 8 - 105
150 < D ≤ 200 150 < S ≤ 200
Extruded tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T6, T6510,
≤ 30 310 - 260 - 8 6 105
c
T6511
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T6, T6510,
≤ 30 310 - 260 - 8 6 105
c
T6511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 32 — Alloy EN AW-6014 [Al Mg0,6SiV]
Extruded rod/bar
Not specified
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
a
T4 140 70 - 15 13 55
≤ 10
≤ 5 250 - 200 - 8 6 80
a
T6
225 - 180 - 8 6 80
5 < t ≤ 10
b
Extruded profile
R R
m p0,2
A A HBW
Wall thickness 50 mm
MPa MPa
t
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
Open profile
≤ 10 140 - 70 - 15 13 55
a
T4
Open profile ≤ 5 250 - 200 - 10 8 80
a
T6 225 - 180 - 8 6 80
5 < t ≤ 10
Hollow profile
≤ 10 140 - 70 - 15 13 55
a
T4
Hollow profile
≤ 5 250 - 200 - 8 6 80
a
T6 225 - 180 - 8 6 80
5 < t ≤ 10
a
Properties may be obtained by press quenching.
b
If a profile cross section is comprised of different thickness which fall in more than one set of specified mechanical property
values, the lowest specified value shall be considered as valid for the whole profile cross section.

Table 33 — Alloy EN AW-6018 [Al Mg1SiPbMn]
Extruded rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 150 ≤ 150 310 - 260 - 8 6 -
T6, T6510,
c
T6511
260 - 200 - 8 - -
150 < D ≤ 200 150 < S ≤ 200
Extruded tube
R R
m p0,2
A A
Wall thickness 50 mm HBW
MPa MPa
t
Temper % %
Typical
mm
value
min. max. min. max. min. min.
T6, T6510,
≤ 30 310 - 260 - 8 6 -
c
T6511
Extruded profile
R R
m p0,2
A A
Wall thickness HBW
50 mm
t MPa MPa
Temper % %
Typical
mm
value
min. min.
min. max. min. max.
T6, T6510,
≤ 30 310 - 260 - 8 6 -
c
T6511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 34 — Alloy EN AW-6023 [Al Si1Sn1MgBi]
Extruded rod/bar
Dimensions R R
m p0,2
A A
50 mm HBW
mm MPa MPa
Temper
% %
Typical
a b value
min. min.
D S min. max. min. max.
T6, T6510,
≤ 150 ≤ 150 320 - 270 - 10 8 -
c
T6511
Extruded tube
Not specified
Extruded profile
Not specified
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 35 — Alloy EN AW-6351 [Al Si1Mg0,5Mn]
Extruded rod/bar
Dimensi
...
