Bituminous mixtures - Test methods - Part 19: Permeability of specimen

This document specifies a method for determining the vertical and horizontal permeability of cylindrical specimens of bituminous mixtures with interconnecting voids. The document applies to specimens cored out of the road, specimens from laboratory made slabs or laboratory specimens prepared with a compaction device provided the thickness of the specimen is not less than twice the nominal maximum particle size of the aggregate in the mixture. The nominal diameter of specimens should be either 100 mm or 150 mm unless the nominal maximum particle size of the aggregate size exceeds 22 mm, when the nominal diameter is 150 mm.

Asphalt - Prüfverfahren - Teil 19: Durchlässigkeit der Probekörper

Dieses Dokument legt ein Verfahren zur Bestimmung der vertikalen und horizontalen Durchlässigkeit von zylindrischen Asphalt-Probekörpern mit miteinander verbundenen Hohlräumen fest. Dieses Dokument gilt für durch Kernbohren aus einer Fahrbahnbefestigung entnommene Probekörper, für Probekörper aus im Laboratorium hergestellten Platten oder für im Laboratorium mit einer Verdichtungsvorrichtung hergestellte Probekörper, sofern die Dicke des Probekörpers nicht geringer als das Zweifache der maximalen Nennkorngröße der im Gemisch verwendeten Gesteinskörnung ist. Der Nenndurchmesser der Probekörper sollte entweder 100 mm oder 150 mm betragen, es sei denn, die maximale Nennkorngröße der Gesteinskörnung überschreitet 22 mm, in diesem Fall beträgt der Nenndurchmesser 150 mm.

Mélanges bitumineux - Méthodes d'essai - Partie 19 : Perméabilité des éprouvettes

Ce document spécifie une méthode pour déterminer la perméabilité verticale et horizontale d’éprouvettes cylindriques de mélanges bitumineux avec des vides communicants. Ce document s’applique à des carottes prélevées dans la chaussée, à des éprouvettes extraites de plaques fabriquées en laboratoire ou à des éprouvettes de laboratoire préparées avec un dispositif de compactage, à condition que l’épaisseur de l’éprouvette ne soit pas inférieure à deux fois la dimension nominale maximale des granulats du mélange. Il convient que le diamètre nominal des éprouvettes soit égal à 100 mm ou à 150 mm, sauf si la dimension nominale maximale des granulats dépasse 22 mm alors que le diamètre nominal est de 150 mm.

Bitumenske zmesi - Preskusne metode - 19. del: Prepustnost preskušancev

General Information

Status
Withdrawn
Publication Date
30-May-2020
Withdrawal Date
30-Aug-2020
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
26-Feb-2020
Due Date
08-Feb-2021
Completion Date
26-Feb-2020

Relations

Buy Standard

Standard
EN 12697-19:2020
English language
10 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 12697-19:2020
01-maj-2020
Nadomešča:
SIST EN 12697-19:2012
Bitumenske zmesi - Preskusne metode - 19. del: Prepustnost preskušancev
Bituminous mixtures - Test methods - Part 19: Permeability of specimen
Asphalt - Prüfverfahren - Teil 19: Durchlässigkeit der Probekörper
Mélanges bitumineux - Méthodes d'essai - Partie 19: Perméabilité des éprouvettes
Ta slovenski standard je istoveten z: EN 12697-19:2020
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
SIST EN 12697-19:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 12697-19:2020
---------------------- Page: 2 ----------------------
SIST EN 12697-19:2020
EN 12697-19
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2020
EUROPÄISCHE NORM
ICS 93.080.20 Supersedes EN 12697-19:2012
English Version
Bituminous mixtures - Test methods - Part 19:
Permeability of specimen

Mélanges bitumineux - Méthodes d'essai - Partie 19 : Asphalt - Prüfverfahren - Teil 19: Durchlässigkeit der

Perméabilité des éprouvettes Probekörper
This European Standard was approved by CEN on 18 November 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12697-19:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 12697-19:2020
EN 12697-19:2020 (E)

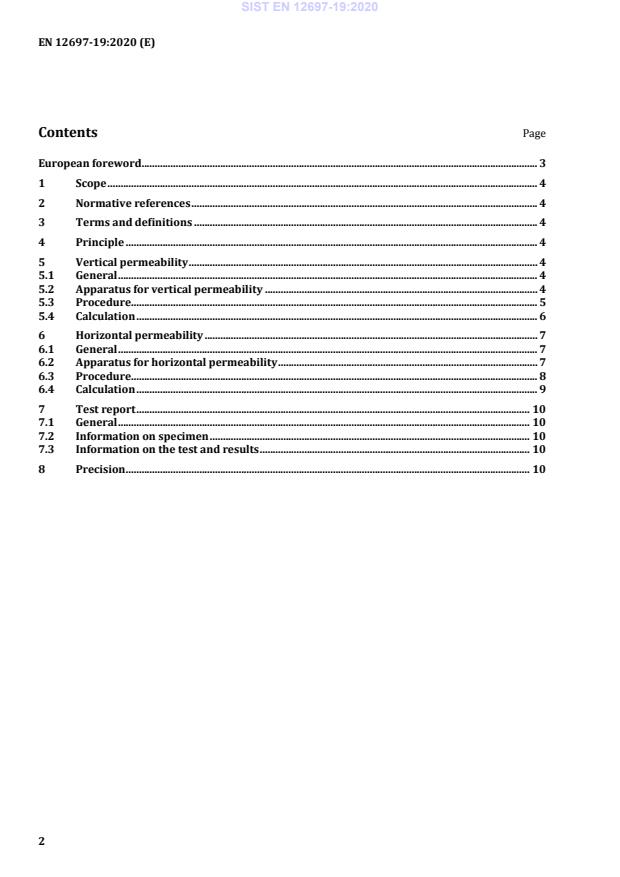

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Principle ............................................................................................................................................................. 4

5 Vertical permeability ..................................................................................................................................... 4

5.1 General ................................................................................................................................................................ 4

5.2 Apparatus for vertical permeability ........................................................................................................ 4

5.3 Procedure........................................................................................................................................................... 5

5.4 Calculation ......................................................................................................................................................... 6

6 Horizontal permeability ............................................................................................................................... 7

6.1 General ................................................................................................................................................................ 7

6.2 Apparatus for horizontal permeability ................................................................................................... 7

6.3 Procedure........................................................................................................................................................... 8

6.4 Calculation ......................................................................................................................................................... 9

7 Test report ...................................................................................................................................................... 10

7.1 General ............................................................................................................................................................. 10

7.2 Information on specimen .......................................................................................................................... 10

7.3 Information on the test and results ....................................................................................................... 10

8 Precision .......................................................................................................................................................... 10

---------------------- Page: 4 ----------------------
SIST EN 12697-19:2020
EN 12697-19:2020 (E)
European foreword

This document (EN 12697-19:2020) has been prepared by Technical Committee CEN/TC 227 “Road

materials”, the secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by August 2020, and conflicting national standards shall

be withdrawn at the latest by August 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 12697-19:2012.

The following is a list of significant technical changes since the previous edition:

— the title no longer makes the method exclusively for hot mix asphalt;
— [ge] editorial update according to current standard template;

— [Clause 3, new clause: 3 Terms and definitions introduced. Following clauses renumbered

accordingly;

— [5.2.2] accuracy of balance of ± 0,5 g introduced. (4.2.2 in previous version);

— [5.4.1] Formula (1): rounding rules for calculation introduced. (4.4.1 in previous version);

— [5.4.2] Formula (2) corrected. (4.4.2 in previous version);

— [6.2.4] accuracy of balance of ± 0,5 g introduced. (5.2.4 in previous version);

— [6.4.1] Formula (3): rounding rules for calculation introduced. (5.4.1 in previous version);

— [6.4.2] Formula (4), key for K : unit for the horizontal permeability corrected to (m/s). (5.4.2 in

previous version);
A list of all parts in the EN 12697 series can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 12697-19:2020
EN 12697-19:2020 (E)
1 Scope

This document specifies a method for determining the vertical and horizontal permeability of

cylindrical specimens of bituminous mixtures with interconnecting voids. The document applies to

specimens cored out of the road, specimens from laboratory made slabs or laboratory specimens

prepared with a compaction device provided the thickness of the specimen is not less than twice the

nominal maximum particle size of the aggregate in the mixture. The nominal diameter of specimens

should be either 100 mm or 150 mm unless the nominal maximum particle size of the aggregate size

exceeds 22 mm, when the nominal diameter is 150 mm.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 12697-29, Bituminous mixtures — Test methods — Part 29: Determination of the dimensions of a

bituminous specimen
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp/ui
4 Principle

A column of water with a constant height is applied to a cylindrical specimen and is allowed to

permeate through the specimen for a controlled time in either a vertical or horizontal direction

depending upon the parameter being measured. The resultant flow rate of the water Q or Q is a

v h

calculated measure of the permeability value K or K . The test is carried out at ambient temperature.

v h

NOTE When the void content of the same specimen is determined, the relationship between permeability and

void content can be established.
5 Vertical permeability
5.1 General

In this method, only the water flow in a vertical direction through the specimen is measured.

5.2 Apparatus for vertical permeability

5.2.1 Apparatus as shown in Figure 1. The dimensions shall be such to ensure the water column

height is (300 ± 1) mm. The external diameter of the tube and any fittings shall be such that no water

can flow between the wall of the tube and the specimen when in place; the thickness of the tube shall be

sufficient to ensure it retains its shape but shall not be more than 5 mm.

The external diameter of the tube should generally be greater than the diameter of the specimen by up

to 5 mm.
---------------------- Page: 6 ----------------------
SIST EN 12697-19:2020
EN 12697-19:2020 (E)

NOTE A suitable rubber cuff that fits snugly around the tube and sample is one method to ensure that no

water can flow between the two. Another approach that could be used is to attach the plastic tube with duct tape

to the specimen.
5.2.2 A balance with suit
...
