prEN 13160-2
(Main)Leak detection systems - Part 2: Requirements and test/assessment methods for pressure and vacuum systems
Leak detection systems - Part 2: Requirements and test/assessment methods for pressure and vacuum systems
This document gives requirements and the corresponding test/assessment methods applicable to leak detector based on the measurement of pressure change. Leak detectors are intended to be used with double skin, underground or above ground, pressurized or non-pressurized, tanks or pipe designed for water polluting liquids/fluids. The leak detectors are usually composed of:
- measuring device;
- evaluation device;
- alarm device;
- pressure generator;
- pressure relief device;
- liquid stop device;
- condensate trap.
Leckanzeigesysteme - Teil 2: Anforderungen und Prüf /Bewertungsmethoden für Über- und Unterdrucksysteme
Dieses Dokument legt Anforderungen an und die einschlägigen Prüf-/Bewertungsverfahren für Leckdetektoren, die auf der Messung der Druckänderung basieren, fest. Leckdetektoren sind für den Einsatz an doppelwandigen, unterirdischen oder oberirdischen, druckbeaufschlagten oder nicht druckbeaufschlagten Tanks oder Rohren für wassergefährdende Flüssigkeiten/Fluide bestimmt. Die Leckdetektoren bestehen in der Regel aus:
- Messeinrichtung;
- Auswerteeinrichtung;
- Alarmeinrichtung;
- Druckerzeuger;
- Überdruckventil;
- Flüssigkeitssperre;
- Kondensatgefäß.
Systèmes de détection de fuites - Partie 2 : Exigences et méthodes d'essai/d'évaluation des systèmes sous pression et à dépression
Le présent document spécifie les exigences et les méthodes d'essai/d'évaluation correspondantes applicables aux détecteurs de fuites fondées sur le mesurage de la variation de pression. Les détecteurs de fuites sont destinés à être utilisés avec des réservoirs ou des tuyauteries à double paroi, souterrains ou aériens, sous pression ou non, conçus pour des liquides/fluides polluant l'eau. Les détecteurs de fuites sont généralement constitués des éléments suivants :
- dispositif de mesurage ;
- dispositif d'évaluation ;
- dispositifs d'alarme ;
- générateur de pression ;
- dispositif de décharge de pression ;
- dispositif d'arrêt de remplissage ;
- purgeur de condensats.
Sistemi za kontrolo tesnosti - 2. del: Zahteve in metode za preskušanje in ocenjevanje tlačnih in vakuumskih sistemov
General Information
Relations
Standards Content (Sample)

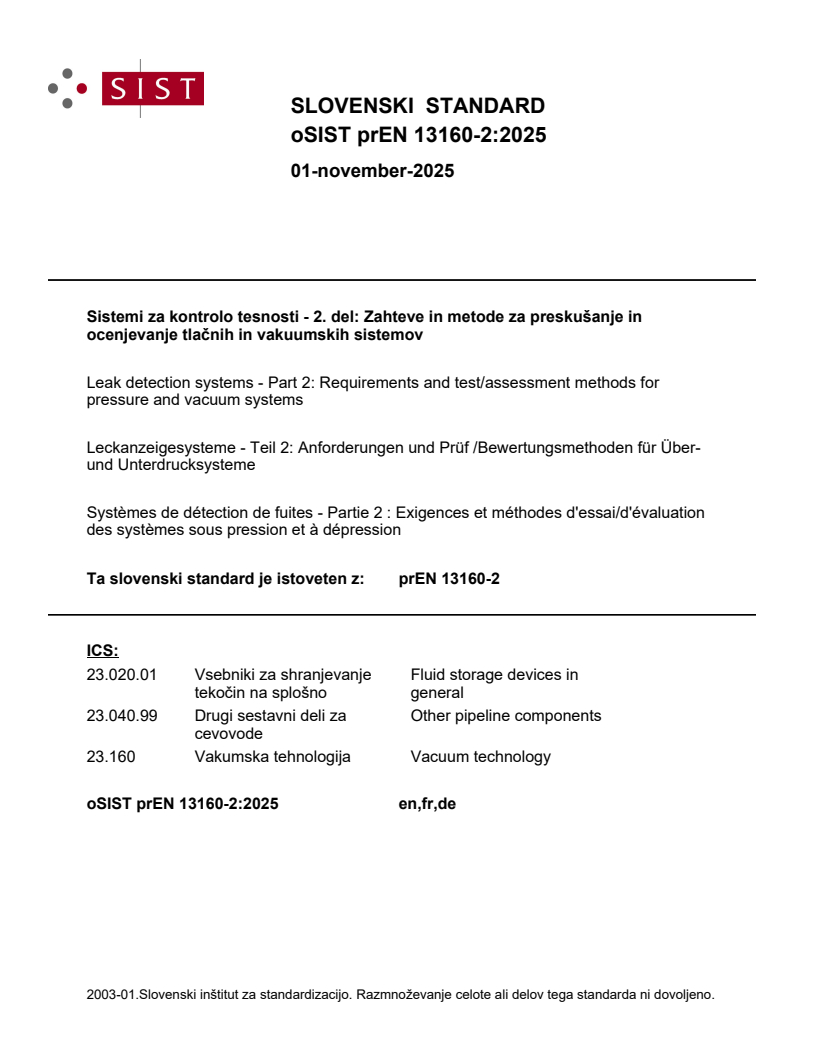

SLOVENSKI STANDARD
01-november-2025
Sistemi za kontrolo tesnosti - 2. del: Zahteve in metode za preskušanje in
ocenjevanje tlačnih in vakuumskih sistemov
Leak detection systems - Part 2: Requirements and test/assessment methods for
pressure and vacuum systems
Leckanzeigesysteme - Teil 2: Anforderungen und Prüf /Bewertungsmethoden für Über-
und Unterdrucksysteme
Systèmes de détection de fuites - Partie 2 : Exigences et méthodes d'essai/d'évaluation
des systèmes sous pression et à dépression
Ta slovenski standard je istoveten z: prEN 13160-2
ICS:
23.020.01 Vsebniki za shranjevanje Fluid storage devices in
tekočin na splošno general
23.040.99 Drugi sestavni deli za Other pipeline components
cevovode
23.160 Vakumska tehnologija Vacuum technology
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

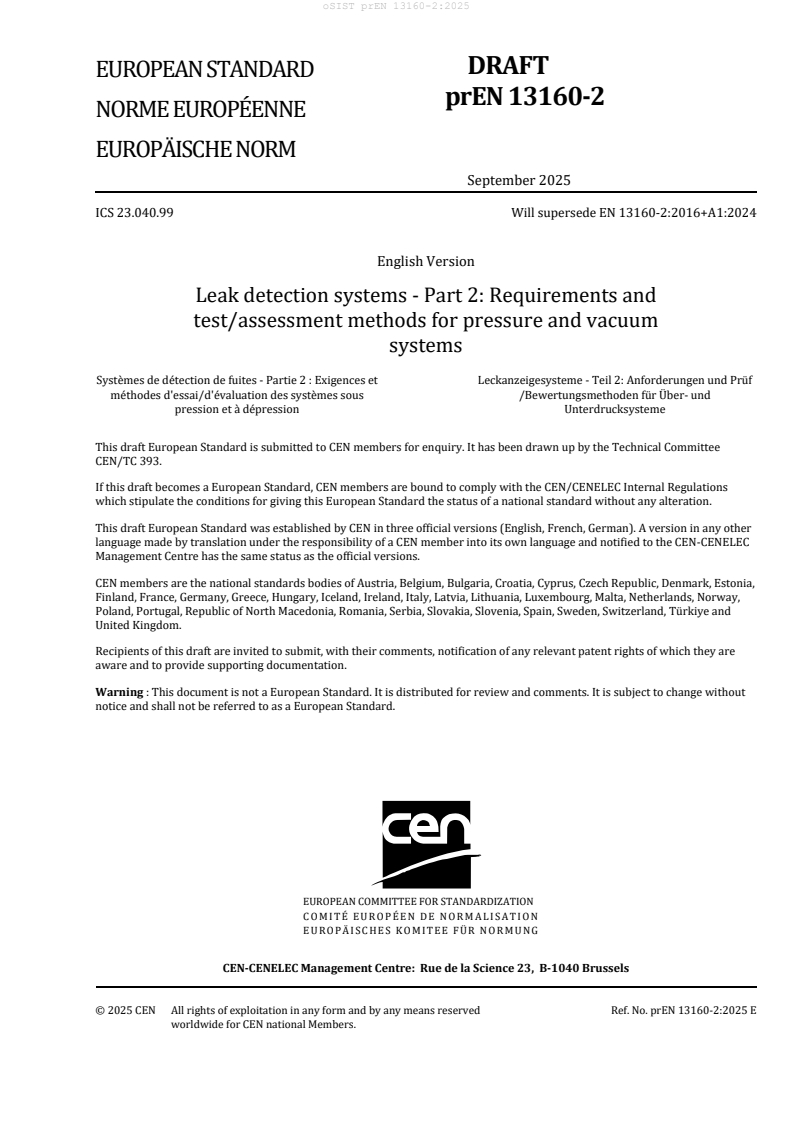

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2025
ICS 23.040.99 Will supersede EN 13160-2:2016+A1:2024
English Version
Leak detection systems - Part 2: Requirements and
test/assessment methods for pressure and vacuum
systems
Systèmes de détection de fuites - Partie 2 : Exigences et Leckanzeigesysteme - Teil 2: Anforderungen und Prüf
méthodes d'essai/d'évaluation des systèmes sous /Bewertungsmethoden für Über- und
pression et à dépression Unterdrucksysteme
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 393.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13160-2:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions, symbols and abbreviated terms . 5
3.1 Terms and definitions . 5
3.2 Symbols and abbreviated terms . 6
4 Requirements . 7
4.1 Effectiveness . 7
4.1.1 General. 7
4.1.2 Measurement of the pressure change . 8
4.1.3 Replenishment rate of the medium (only if provided) . 11
4.1.4 Software (only if provided) . 11
4.1.5 Function and tightness of leak detector . 12
4.2 Durability of effectiveness . 12
4.2.1 Durability of effectiveness against temperature . 12
4.2.2 Durability of effectiveness against chemical attack . 12
4.2.3 Durability of effectiveness against fatigue through cycling of pressure . 12
4.2.4 Humidity measurement of the leak detection medium (only if provided) . 12
4.3 Additional requirement. 12
4.3.1 Over pressure change . 12
4.3.2 Vacuum change . 13
5 Testing, assessment and sampling methods . 13
5.1 Effectiveness . 13
5.1.1 General. 13
5.1.2 Measure the pressure change . 14
5.1.3 Replenishment rate of the medium (only if provided) . 22
5.1.4 Software (only if provided) . 25
5.1.5 Function and tightness of the leak detector . 26
5.2 Durability of effectiveness . 28
5.2.1 Durability of effectiveness against temperature . 28
5.2.2 Durability of effectiveness against chemical attack . 31
5.2.3 Durability of effectiveness against fatigue through cycling of pressure . 32
5.2.4 Humidity measurement of the leak detection medium (only if provided) . 33
5.3 Additional tests . 33
5.3.1 Device for over pressure . 33
5.3.2 Device for vacuum . 34
6 Checking the functionality and durability . 37
6.1 General. 37
6.2 Type testing . 37
6.2.1 General. 37
6.2.2 Test samples and testing . 37
6.2.3 Test reports . 38
6.3 Factory production control . 38
6.3.1 General. 38
6.3.2 Scope of testing . 38
6.3.3 Customised products manufactured in very small quantities . 38
7 Marking, labelling and packaging . 38
Annex A (normative) Calculation of the dry filter . 40
Annex B (normative) Test of the over pressure device. 42
Bibliography . 45
European foreword
This document (prEN 13160-2:2025) has been prepared by Technical Committee CEN/TC 393
“Equipment for storage tanks and for service stations”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13160-2:2016+A1:2024.
This document includes the following significant technical changes with respect to
EN 13160-2:2016+A1:2024:
— The term leak detection kit has been replaced by leak detector;
— Clause 6 has been revised and renamed to Checking the functionality and durability.
The EN 13160 series, under the general title Leak detection systems, is composed of the following parts:
— Part 1: General principles
— Part 2: Requirements and test/assessment methods for pressure and vacuum systems
— Part 3: Requirements and test/assessment methods for liquid systems for tanks
— Part 4: Requirements and test/assessment methods for sensor-based leak detection systems
— Part 5: Requirements and test/assessment methods for in-tank gauge systems and pressurized pipework
systems
— Part 6: Sensors in monitoring wells
— Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and leak
detection jackets
1 Scope
This document gives requirements and the corresponding test/assessment methods applicable to leak
detector based on the measurement of pressure change. Leak detectors are intended to be used with
double skin, underground or above ground, pressurized or non-pressurized, tanks or pipe designed for
water polluting liquids/fluids. The leak detectors are usually composed of:
— measuring device;
— evaluation device;
— alarm device;
— pressure generator;
— pressure relief device;
— liquid stop device;
— condensate trap.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 228, Automotive fuels — Unleaded petrol — Requirements and test methods
EN 981:1996+A1:2008, Safety of machinery — System of auditory and visual danger and information
signals
EN 12285-2, Workshop fabricated steel tanks — Part 2: Horizontal cylindrical single skin and double skin
tanks for the aboveground storage of flammable and non-flammable water polluting liquids
EN 13160-1:2016, Leak detection systems — Part 1: General principles
EN 13160-7, Leak detection systems — Part 7: Requirements and test/assessment methods for interstitial
spaces, leak detection linings and leak detection jackets
EN 14879-4:2007, Organic coating systems and linings for protection of industrial apparatus and plants
against corrosion caused by aggressive media — Part 4: Linings on metallic components
EN 61672-1, Electroacoustics — Sound level meters — Part 1: Specifications
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13160-1:2016 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1.1
design pressure
maximum pressure expected to be applied to a system component
3.1.2
pressure full
...
