EN 13491:2018

Geosynthetic barriers - Characteristics required for use in the construction of tunnels and associated underground structures

This document specifies the characteristics of geosynthetic barriers, including polymeric geosynthetic barriers, clay geosynthetic barriers and bituminous geosynthetic barriers, when used as fluid barriers and separation layer in the construction of tunnels and associated underground structures, and the appropriate test methods to determine these characteristics.
The intended use of these products is to control the leakage of fluid through the construction.
This document is not applicable to geotextiles or geotextile-related products as defined in EN ISO 10318 1.
This document provides for the assessment and verification of constancy of performance (AVCP) of the product to this European Standard including factory production control procedures.
This document defines characteristics to be considered with regard to the presentation of performance.
This document does not cover applications where the geosynthetic barrier is to be in contact with water that has been treated for human consumption.
NOTE   Where potable water is or can be in direct contact with the product, other relevant standards, requirements and/or regulations can be considered for the design.

Geosynthetische Dichtungsbahnen - Eigenschaften, die für die Anwendung beim Bau von Tunneln und damit verbundenen Tiefbauwerken erforderlich sind

Dieses Dokument legt die Eigenschaften von geosynthetischen Dichtungsbahnen, einschließlich geosynthetische Kunststoff-, Ton- und Bitumendichtungsbahnen, die als Abdichtung und Trennschicht beim Bau von Tunneln und damit verbundenen Tiefbauwerken verwendet werden, und die geeigneten Prüfverfahren zur Bestimmung dieser Eigenschaften fest.
Die bestimmungsgemäße Anwendung dieser Produkte ist das Durchsickern von Flüssigkeiten durch das Bauwerk zu kontrollieren.
Dieses Dokument ist nicht anwendbar auf Geotextilien oder geotextilverwandte Produkte im Sinne der Definition von EN ISO 10318 1.
Dieses Dokument behandelt die Bewertung und Überprüfung der Leistungsbeständigkeit (AVCP) des Produkts nach dieser Europäischen Norm, einschließlich der Verfahren für die werkseigene Produktions-kontrolle.
Dieses Dokument legt die Eigenschaften fest, die in Bezug auf die Darstellung der Leistung eingehalten werden müssen.
Dieses Dokument umfasst nicht die Anwendungen, bei denen die geosynthetische Dichtungsbahn in Kontakt mit Trinkwasser kommt, das für den unmittelbaren menschlichen Gebrauch behandelt wurde.
ANMERKUNG   Wo Trinkwasser in direkten Kontakt mit dem Produkt kommt oder kommen kann, können einschlägige Normen, Anforderungen und/oder Bestimmungen bei der Planung berücksichtig werden.

Géomembranes et géosynthétiques bentonitiques - Caractéristiques requises pour l'utilisation dans la construction de tunnels et des structures souterraines associées

Le présent document spécifie les caractéristiques applicables aux géosynthétiques d'étanchéité incluant les géomembranes polymériques, les géosynthétiques bentonitiques et les géomembranes bitumineuses utilisés comme barrière aux fluides ou couche de séparation dans la construction des tunnels et des structures souterraines associées, ainsi que les méthodes d'essai appropriées pour déterminer ces caractéristiques.
Ces produits sont destinés à contrôler les fuites de fluides à travers la construction.
Le présent document ne s'applique pas aux géotextiles ou produits apparentés, tels que définis dans l'EN ISO 10318-1.
Le présent document permet d'évaluer et de vérifier la constance des performances (AVCP) du produit à la présente Norme européenne et les procédures de contrôle de la production en usine.
Le présent document établit les caractéristiques à considérer au regard des performances à vérifier.
Le présent document ne couvre pas les applications pour lesquelles les géosynthétiques d’étanchéité sont en contact avec de l’eau potable ayant fait l’objet d’un traitement pour la consommation humaine.
NOTE   Si de l'eau potable est ou peut être en contact direct avec le produit, il convient que le concepteur se réfère également aux normes, exigences et/ou règlements applicables.

Geosintetične zapore - Zahtevane lastnosti pri uporabi za zaščito pred tekočinami pri gradnji predorov in pripadajočih podzemnih konstrukcij

Ta dokument določa ustrezne lastnosti geosintetičnih zapor, vključno s polimernimi, opečnati in bitumenskimi geosintetičnimi zaporami, če se uporabljajo za zaščito pred tekočinami pri gradnji predorov in podzemnih gradnjah, in ustrezne preskusne metode za določanje teh lastnosti. Ti proizvodi se predvidoma uporabljajo za nadzor uhajanja vode skozi steno konstrukcije. Ta dokument ne velja za geotekstilije ali sorodne izdelke. Ta dokument omogoča vrednotenje skladnosti izdelka s tem dokumentom. Ta dokument določa zahteve, ki jih morajo izpolniti proizvajalci in distributerji glede predstavitve lastnosti izdelka. Ta dokument ne zajema uporabe, kjer bodo geosintetične zapore v stiku s pitno vodo, ki je namenjena ljudem.  OPOMBA: Če je oz. bo lahko proizvod v stiku s pitno vodo, mora projektant upoštevati tudi druge ustrezne standarde, zahteve in/ali predpise.

General Information

• Status: Published
• Publication Date: 13-Mar-2018
• Withdrawal Date: 30-Dec-2019
• ICS: 59.080.70 - Geotextiles
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: CEN/TC 189 - Geotextiles and geotextile-related products
• Drafting Committee: CEN/TC 189/WG 6 - Geomembranes and geosynthetic clay liners - General and specific requirements
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 06-Oct-2023
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/107 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on geotextiles
• Ref Project: SIST EN 13491:2018 - Geosynthetic barriers - Characteristics required for use as a fluid barrier in the construction of tunnels and associated underground structures

Relations

• Replaces: EN 13491:2013 - Geosynthetic barriers - Characteristics required for use as a fluid barrier in the construction of tunnels and associated underground structures
• Effective Date: 21-Mar-2018

Overview

EN 13491:2018 (EN 13491) defines the required characteristics and test methods for geosynthetic barriers used as a fluid barrier and separation layer in the construction of tunnels and associated underground structures. It covers polymeric geosynthetic barriers, clay geosynthetic barriers and bituminous geosynthetic barriers intended to control leakage through tunnel linings and underground works. The standard also sets out procedures for assessment and verification of constancy of performance (AVCP) including factory production control (FPC).

Not applicable: geotextiles and geotextile‑related products as defined in EN ISO 10318‑1, and applications where the barrier is in direct contact with potable (treated) water.

Key topics and technical requirements

• Scope of use: Specifies intended use as a fluid-tight and separating layer in tunnels and related underground structures.
• Types of barriers: Polymeric (geomembranes), clay geosynthetic barriers (bentonitic), and bituminous geosynthetic barriers.
• Performance characteristics: Declared characteristics relevant to leakage control (e.g., permeability, tensile and puncture resistance, dimensional and thermal properties) and characteristics relevant to specific site conditions.
• Test methods: References standardized test methods for permeability, tensile properties, burst strength, mass/thickness, durability and chemical/root resistance (examples include EN 14150, EN 14151, EN ISO 10319, EN 14196 and EN 16416 among others).
• Durability: Annex A addresses long‑term behavior and accelerated ageing-weathering, oxidation, freezing/thawing and wetting/drying effects-relevant to design life (temporary vs permanent installations).
• Conformity and AVCP: Procedures for type testing and factory production control to demonstrate constancy of performance in line with EU requirements (see informative Annex ZA regarding Regulation (EU) No. 305/2011).

Practical applications and users

Who uses EN 13491:

• Manufacturers of geomembranes, bentonite geosynthetic liners and bituminous barrier sheets for product specification and CE marking.
• Designers and tunnel engineers selecting barrier systems for groundwater control, seepage management and separation layers in tunnels, shafts and underground structures.
• Contractors and specifiers writing procurement documents and acceptance criteria.
• Testing laboratories performing the referenced standardized tests to evaluate declared performance.
• Certification bodies and authorities verifying AVCP and FPC documentation.

Practical benefits:

• Ensures consistent, test‑based performance declarations for leakage control.
• Supports selection of appropriate barrier type and durability expectations for design life.
• Aligns product conformity assessment with European regulatory frameworks.

Related standards (examples referenced)

• EN 14150 - Geosynthetic barriers: permeability to liquids
• EN 14151 - Determination of burst strength
• EN 16416 - Geosynthetic clay barriers: water flux index
• EN ISO 10319 / EN ISO 527 - Tensile testing of geosynthetics and plastics
• EN ISO 10318‑1 - Terms and definitions (geosynthetics)

Keywords: EN 13491, geosynthetic barriers, geomembrane, geosynthetic clay barrier, bituminous geosynthetic barrier, tunnel waterproofing, fluid barrier, AVCP, factory production control, permeability, durability.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Geosynthetische Dichtungsbahnen - Eigenschaften, die für die Anwendung beim Bau von Tunneln und damit verbundenen Tiefbauwerken erforderlich sindBarrières géosynthétiques - Caractéristiques requises pour l'utilisation comme barrière contre les liquides dans la construction des tunnels et des structures souterrainesGeosynthetic barriers - Characteristics required for use as a fluid barrier in the construction of tunnels and associated underground structures93.060Gradnja predorovTunnel construction59.080.70GeotekstilijeGeotextilesICS:Ta slovenski standard je istoveten z:EN 13491:2018SIST EN 13491:2018en,fr,de01-maj-2018SIST EN 13491:2018SLOVENSKI
STANDARDSIST EN 13491:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13491
March
t r s z ICS
w {ä r z rä y râ
{ sä s r rä w r Supersedes EN
s u v { sã t r s uEnglish Version
Geosynthetic barriers æ Characteristics required for use in the construction of tunnels and associated underground structures Géomembranes et géosynthétiques bentonitiques æ Caractéristiques requises pour l 5utilisation dans la construction de tunnels et des structures souterraines associées
Geosynthetische Dichtungsbahnen æ Eigenschaftená die für die Anwendung beim Bau von Tunneln und damit verbundenen Tiefbauwerken erforderlich sind This European Standard was approved by CEN on
t u October
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u v { sã t r s z ESIST EN 13491:2018

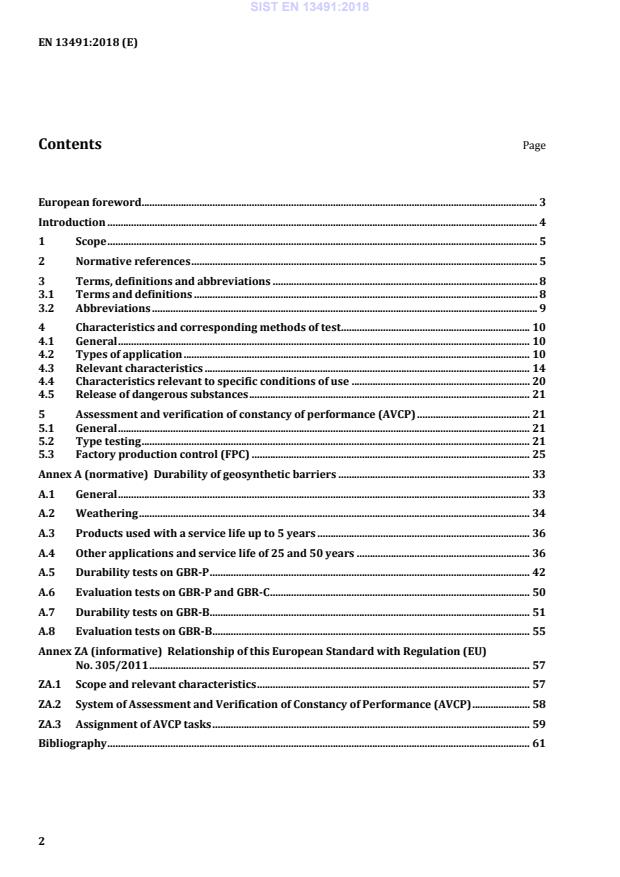

European foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms, definitions and abbreviations . 8 3.1 Terms and definitions . 8 3.2 Abbreviations . 9 4 Characteristics and corresponding methods of test . 10 4.1 General . 10 4.2 Types of application . 10 4.3 Relevant characteristics . 14 4.4 Characteristics relevant to specific conditions of use . 20 4.5 Release of dangerous substances . 21 5 Assessment and verification of constancy of performance (AVCP) . 21 5.1 General . 21 5.2 Type testing . 21 5.3 Factory production control (FPC) . 25 Annex A (normative)
