Road restraint systems - Part 2: Performance classes, impact test acceptance criteria and test methods for safety barriers including vehicle parapets

This European Standard specifies requirements on impact performance of safety barriers, including vehicle parapets, classes of containment, working width, vehicle intrusion and impact severity levels.
NOTE   This European Standard should be read in conjunction with EN 1317-1. Both these standards support EN 1317-5.
The modifications included in standard are not a change of test criteria, in the sense of the EN 1317-5:2007, ZA.3.

Rückhaltesysteme an Straßen - Teil 2: Leistungsklassen, Abnahmekriterien für Anprallprüfungen und Prüfverfahren für Schutzeinrichtungen und Fahrzeugbrüstungen

Diese Europäische Norm legt Anforderungen fest an die Leistungsfähigkeit von Schutzeinrichtungen und
Brüstungen für Fahrzeuge beim Anprallen, Aufhalteklassen, den Wirkungsbereich, die Fahrzeugeindringung
und Stufen der Anprallheftigkeit.
ANMERKUNG Diese Europäischen Norm ist in Verbindung mit EN 1317-1 zu lesen. Diese beiden Normen unterstützen
EN 1317-5.
Die in diesem Teil der Norm angegebenen Änderungen stellen im Sinne von EN 1317-5:2001+A1:2008, ZA.3,
keine Veränderung der Prüfkriterien dar.

Dispositifs de retenue routiers - Partie 2: Classes de performance, critères d'acceptation des essais de choc et méthodes d'essai pour les barrières de sécurité incluant les barrières de bord d'ouvrage d'art

La présente Norme européenne spécifie des exigences concernant la performance au choc des barrières de sécurité (y compris les barrières de bord d’ouvrage d’art), les classes de retenue, la largeur de fonctionnement, l’intrusion du véhicule et les niveaux de sévérité de choc.
NOTE   Il convient de lire la présente Norme européenne conjointement avec l’EN 1317-1. Ces deux normes viennent à l’appui de l’EN 1317-5.
Les modifications incluses dans la présente norme ne constituent pas un changement de critères d’essai au sens de l’EN 1317-5:2007+A1 :2008, ZA.3.

Oprema cest - 2. del: Razredi uporabnosti, merila sprejemljivosti pri preskusnih trčenjih in preskusne metode za varnostne ograje

Ta evropski standard določa zahteve za uporabnost varnostnih ograj pri trčenjih, vključno z razredi zadrževanja, delovno širino, vdorom vozil in stopnjami moči naleta.

General Information

Status
Published
Publication Date
06-Jul-2010
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
07-Jul-2010
Completion Date
07-Jul-2010

RELATIONS

Buy Standard

Standard
EN 1317-2:2010 - natisnjeno za čitalnico
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Rückhaltesysteme an Straßen - Teil 2: Leistungsklassen, Abnahmekriterien für Anprallprüfungen und Prüfverfahren für Schutzeinrichtungen und FahrzeugbrüstungenDispositifs de retenue routiers - Partie 2: Classes de performance, critères d'acceptation des essais de choc et méthodes d'essai pour les barrières de sécurité incluant les barrières de bord d'ouvrage d'artRoad restraint systems - Part 2: Performance classes, impact test acceptance criteria and test methods for safety barriers including vehicle parapets93.080.30Cestna oprema in pomožne napraveRoad equipment and installations13.200NDWDVWURIAccident and disaster controlICS:Ta slovenski standard je istoveten z:EN 1317-2:2010SIST EN 1317-2:2010en,fr,de01-december-2010SIST EN 1317-2:2010SLOVENSKI

STANDARDSIST EN 1317-2:1999/A1:2006SIST EN 1317-2:19991DGRPHãþD
SIST EN 1317-2:2010
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1317-2
July 2010 ICS 13.200; 93.080.30 Supersedes EN 1317-2:1998English Version

Road restraint systems - Part 2: Performance classes, impact test acceptance criteria and test methods for safety barriers including vehicle parapets

Dispositifs de retenue routiers - Partie 2: Classes de performance, critères d'acceptation des essais de choc et méthodes d'essai pour les barrières de sécurité incluant les barrières de bord d'ouvrage d'art

Rückhaltesysteme an Straßen - Teil 2: Leistungsklassen, Abnahmekriterien für Anprallprüfungen und Prüfverfahren für Schutzeinrichtungen und Fahrzeugbrüstungen This European Standard was approved by CEN on 29 April 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1317-2:2010: ESIST EN 1317-2:2010

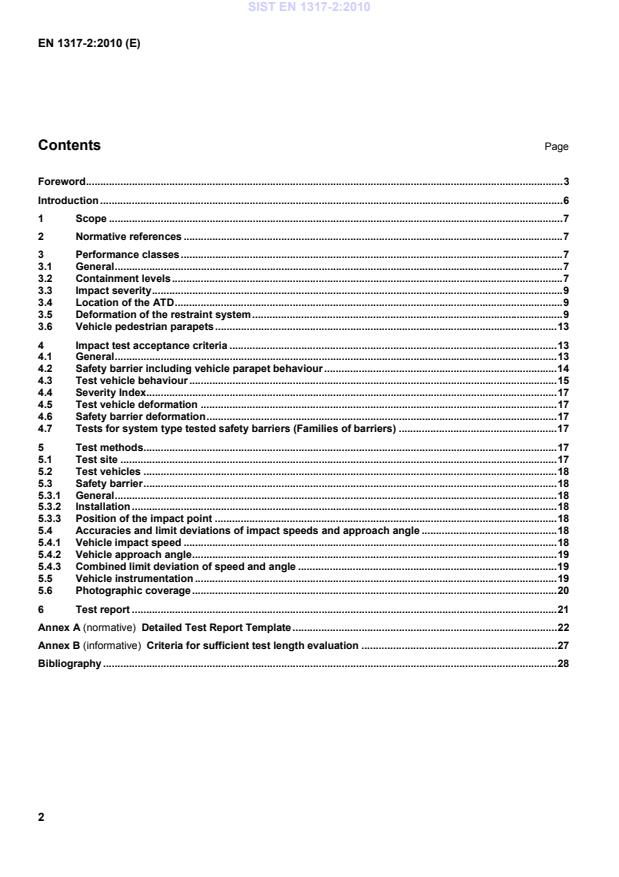

EN 1317-2:2010 (E) 2 Contents Page Foreword ...................................................................................................................................................................... 3Introduction ................................................................................................................................................................. 61Scope .............................................................................................................................................................. 72Normative references .................................................................................................................................... 73Performance classes ..................................................................................................................................... 73.1General ............................................................................................................................................................ 73.2Containment levels ........................................................................................................................................ 73.3Impact severity ............................................................................................................................................... 93.4Location of the ATD ....................................................................................................................................... 93.5Deformation of the restraint system ............................................................................................................ 93.6Vehicle pedestrian parapets ....................................................................................................................... 134Impact test acceptance criteria .................................................................................................................. 134.1General .......................................................................................................................................................... 134.2Safety barrier including vehicle parapet behaviour ................................................................................. 144.3Test vehicle behaviour ................................................................................................................................ 154.4Severity Index ............................................................................................................................................... 174.5Test vehicle deformation ............................................................................................................................ 174.6Safety barrier deformation .......................................................................................................................... 174.7Tests for system type tested safety barriers (Families of barriers) ....................................................... 175Test methods ................................................................................................................................................ 175.1Test site ........................................................................................................................................................ 175.2Test vehicles ................................................................................................................................................ 185.3Safety barrier ................................................................................................................................................ 185.3.1General .......................................................................................................................................................... 185.3.2Installation .................................................................................................................................................... 185.3.3Position of the impact point ....................................................................................................................... 185.4Accuracies and limit deviations of impact speeds and approach angle ............................................... 185.4.1Vehicle impact speed .................................................................................................................................. 185.4.2Vehicle approach angle ............................................................................................................................... 195.4.3Combined limit deviation of speed and angle .......................................................................................... 195.5Vehicle instrumentation .............................................................................................................................. 195.6Photographic coverage ............................................................................................................................... 206Test report .................................................................................................................................................... 21Annex A (normative)
