FprEN 16307-2

Industrial trucks - Safety requirements and verification - Part 2: Supplementary requirements for self-propelled variable-reach trucks

This document gives requirements for the types of industrial trucks specified in the scope of EN ISO 3691 2:2016.
This document is intended to be used in conjunction with EN ISO 3691 2:2016. These requirements are supplementary to those stated in EN ISO 3691 2:2016.
This document deals with the following significant hazards, hazardous situations or hazardous events relevant, when it is used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer:
-   electrical requirements;
-   noise emissions;
-   vibration;
-   electromagnetic radiation.
This document defines supplementary requirements to EN ISO 3691 2:2016:
-   operator's seat;
-   protection against crushing, shearing and trapping;
-   longitudinal stability determination;
-   visibility;
-   information for use (instruction handbook and marking).
Annex A (informative) contains the list of significant hazards covered by this document.

Sicherheit von Flurförderzeugen - Sicherheitsanforderungen und Verifizierung - Teil 2: Zusätzliche Anforderungen für motorkraftbetriebene Flurförderzeuge mit veränderlicher Reichweite

Diese Europäische Norm enthält Anforderungen für die im Anwendungsbereich der EN ISO 3691 2 spezifizierten Flurförderzeuge.
Diese Norm soll in Verbindung mit EN ISO 3691-2 verwendet werden. Diese Anforderungen gelten zusätzlich zu den in der EN ISO 3691 2 genannten, mit dem Zusatz der Gefährdungen, die im Betrieb in explosionsgefährdeten Bereichen auftreten können.
Diese Europäische Norm ersetzt die folgenden Anforderungen der EN ISO 3691-2:
-   Elektrische Anforderungen
Diese Europäische Norm deckt die folgenden Anforderungen nach der Spezifikation in der EN ISO 3691-2 ab:
-   Geräuschemissionen
-   Schwingungen
-   Elektromagnetische Verträglichkeit (EMV)
Diese Europäische Norm definiert zusätzliche Anforderungen zur EN ISO 3691-2:
-   Fahrersitz
-   Schutz gegen Quetschen, Scheren und Fangen
-   Bestimmung der Standsicherheit in Längsrichtung
-   Information zur Anwendung (Betriebsanleitung und Kennzeichnung)
Anhang A (informativ) enthält die Liste der signifikanten Gefährdungen, die von dieser Norm abgedeckt werden.

Chariots de manutention - Exigences de sécurité et vérification - Partie 2 : Exigences supplémentaires pour les chariots automoteurs à portée variable

La présente Norme européenne donne des prescriptions pour les types de chariots de manutention spécifiés dans le domaine d’application de l’EN ISO 3691 2.
La présente norme est destinée à être utilisée conjointement avec l’EN ISO 3691-2. Ces prescriptions sont complémentaires à celles énoncées dans l’EN ISO 3691-2 avec l’ajout d’un phénomène dangereux qui peut survenir lors du fonctionnement en atmosphères explosibles.
La présente Norme européenne remplace les prescriptions suivantes de l’EN ISO 3691-2 :
-   prescriptions électriques.
La présente Norme européenne couvre les prescriptions suivantes telles que spécifiées dans l’EN ISO 3691-2 :
-   émissions de bruit ;
-   vibrations ;
-   compatibilité électromagnétique (EMC).
La présente Norme européenne définit des prescriptions supplémentaires à l’EN ISO 3691 2 :
-   siège de l'opérateur ;
-   protection contre l’écrasement, le cisaillement et l’emprisonnement ;
-   détermination de la stabilité longitudinale ;
-   informations pour l’utilisation (notice d’instruction et marquage).
L’Annexe A (informative) contient la liste des phénomènes dangereux significatifs couverts par la présente Norme européenne.

Vozila za talni transport - Varnostne zahteve in preverjanje - 2. del: Dodatne zahteve za vozila za talni transport z lastnim pogonom za dviganje s spremenljivim dosegom

General Information

• Status: Not Published
• ICS: 53.060 - Industrial trucks
• Technical Committee: CEN/TC 150 - Industrial trucks - Safety
• Drafting Committee: CEN/TC 150/WG 11 - Investigation into the lateral and general stability of industrial trucks covered by standards EN 1726-1 and EN 1459
• Current Stage: 4098 - Decision to abandon - Enquiry
• Completion Date: 03-Mar-2021
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: oSIST prEN 16307-2:2018 - Industrial trucks - Safety requirements and verification - Part 2: Supplementary requirements for self-propelled variable-reach trucks

Overview

FprEN 16307-2 is a European standard that outlines supplementary safety requirements and verification methods specifically for self-propelled variable-reach industrial trucks. Published by CEN, this standard works in conjunction with EN ISO 3691-2:2016, extending and enhancing safety provisions relevant to this truck category. The standard addresses critical hazards associated with these trucks-including electrical safety, noise and vibration control, electromagnetic compatibility, and operation in potentially explosive atmospheres.

As a Type-C machine-specific standard under EN ISO 12100, FprEN 16307-2 ensures that manufacturers implement risk assessments and design measures to mitigate hazards throughout the lifecycle of variable-reach trucks. This covers normal operational conditions as well as reasonably foreseeable misuse scenarios.

Key Topics

• Electrical Requirements
  Compliance with EN 1175 parts is mandatory, ensuring safe electrical system design and operation on variable-reach trucks.

• Operator’s Seat Standards
  Operator seating must meet ergonomic and safety criteria as specified in EN 13490, supplementing EN ISO 3691-2 for enhanced operator protection and comfort.

• Protection Against Mechanical Risks
  Additional safeguards are required to prevent crushing, shearing, and trapping injuries. Fixed and removable guards must follow EN ISO 14120’s comprehensive guidelines, including retaining fixing systems upon removal.

• Longitudinal Stability and Load Handling
  Trucks are mandated to incorporate longitudinal load moment indicators and control systems compliant with EN 15000 to prevent instability risks.

• Visibility Requirements
  Enhanced visibility criteria supersede existing ISO 13564-1 specifications, ensuring operators have appropriate forward and rearward visibility for safe maneuvering.

• Noise Reduction by Design
  The standard calls for low-noise design practices per EN ISO 11688-1, targeting noise emission sources like combustion engines and hydraulic pumps. Measures include mounting isolation and operator cabin soundproofing.

• Vibration Limits
  Whole-body vibration exposure must be quantified as per EN 13059 to minimize operator fatigue and health risks.

• Electromagnetic Compatibility (EMC)
  Trucks must achieve EMC compliance according to EN 12895 to avoid electromagnetic interference affecting operation or surrounding equipment.

• Use in Explosive Atmospheres
  Specific provisions for trucks operating in potentially explosive environments are delineated by EN 1755, enhancing safety under hazardous conditions.

• User Information and Marking
  The standard requires comprehensive instruction handbooks and durable marking plates to inform users of safe operation, maintenance, and applicable hazards.

Applications

FprEN 16307-2 is crucial for manufacturers, safety engineers, and regulatory bodies involved in the design, certification, and deployment of self-propelled variable-reach trucks in industrial settings. It is especially relevant in warehousing, logistics, manufacturing plants, and outdoor loading operations where these trucks are widely used for material handling and storage.

Adherence to this standard helps:

• Reduce workplace accidents related to variable-reach truck operation.
• Enhance operator safety and comfort through ergonomic seat and vibration standards.
• Minimize noise pollution in industrial environments.
• Ensure machinery compatibility with electromagnetic environments.
• Facilitate safe operation in environments with explosive atmosphere risks.

Related Standards

FprEN 16307-2 should be applied alongside the following standards for a comprehensive safety framework:

• EN ISO 3691-2:2016 - Basic safety requirements for self-propelled variable-reach trucks.
• EN 1175 series - Electrical safety of industrial trucks.
• EN ISO 11688-1 - Low-noise machinery design principles.
• EN ISO 14120 - Safety guards for machinery.
• EN 15000 - Load moment indicators and limiters.
• EN 12895 - Electromagnetic compatibility for industrial trucks.
• EN 1755 - Safety for operation in explosive atmospheres.
• EN 13059 and EN 13490 - Measurement of vibration and seat safety.

Together, these standards establish rigorous safety, ergonomic, and performance criteria to ensure industrial trucks meet modern regulatory and operational demands. Following FprEN 16307-2 is essential to improve safety, reliability, and efficiency in the use of self-propelled variable-reach trucks.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2018
Vozila za talni transport - Varnostne zahteve in preverjanje - 2. del: Dodatne
zahteve za vozila za talni transport z lastnim pogonom za dviganje s spremenljivim
dosegom
Industrial trucks - Safety requirements and verification - Part 2: Supplementary
requirements for self-propelled variable-reach trucks
Sicherheit von Flurförderzeugen - Sicherheitsanforderungen und Verifizierung - Teil 2:
Zusätzliche Anforderungen für motorkraftbetriebene Flurförderzeuge mit veränderlicher
Reichweite
Chariots de manutention - Exigences de sécurité et vérification - Partie 2 : Exigences
supplémentaires pour les chariots automoteurs à portée variable
Ta slovenski standard je istoveten z: prEN 16307-2
ICS:
53.060 Industrijski tovornjaki Industrial trucks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
prEN 16307-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2017
ICS 53.060
English Version
Industrial trucks - Safety requirements and verification -
Part 2: Supplementary requirements for self-propelled
variable-reach trucks
Chariots de manutention - Exigences de sécurité et
vérification - Partie 2 : Exigences supplémentaires pour
les chariots automoteurs à portée variable
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 150.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16307-2:2017 E
worldwide for CEN national Members.

prEN 16307-2:2017 (E)

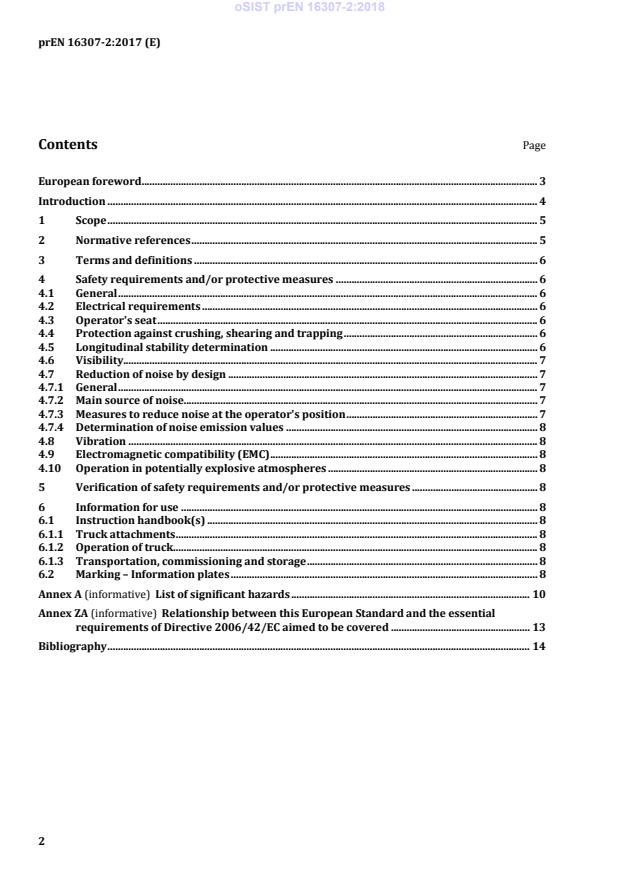

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Safety requirements and/or protective measures . 6
4.1 General . 6
4.2 Electrical requirements . 6
4.3 Operator's seat . 6
4.4 Protection against crushing, shearing and trapping . 6
4.5 Longitudinal stability determination . 6
4.6 Visibility. 7
4.7 Reduction of noise by design . 7
4.7.1 General . 7
4.7.2 Main source of noise. 7
4.7.3 Measures to reduce noise at the operator's position . 7
4.7.4 Determination of noise emission values . 8
4.8 Vibration . 8
4.9 Electromagnetic compatibility (EMC) . 8
4.10 Operation in potentially explosive atmospheres . 8
5 Verification of safety requirements and/or protective measures . 8
6 Information for use . 8
6.1 Instruction handbook(s) . 8
6.1.1 Truck attachments . 8
6.1.2 Operation of truck . 8
6.1.3 Transportation, commissioning and storage . 8
6.2 Marking – Information plates . 8
Annex A (informative) List of significant hazards . 10
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 13
Bibliography . 14
prEN 16307-2:2017 (E)
European foreword
This document (prEN 16307-2:2017) has been prepared by Technical Committee CEN/TC 150
“Industrial trucks - Safety”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this
document.
This document is based on ISO/TS 3691-7 “Industrial trucks - Safety requirements and verification - Part
7: Regional additions for countries within the European Community” and is limited to self propelled
industrial trucks.
EN 16307 consists of the following parts, under the general title 'Industrial trucks — Safety
requirements and verification':
— Part 1: “Supplementary requirements for self-propelled industrial trucks, other than driverless trucks,
variable-reach trucks and burden-carrier trucks”
— Part 2: “Supplementary requirements for self-propelled variable-reach trucks”
— Part 3: “Supplementary requirements for trucks with elevating operator position and trucks
specifically designed to travel with elevated loads (additional requirements to EN 16307-1)”
— Part 4: “Supplementary requirements for driverless industrial trucks and their systems”
— Part 5: “Supplementary requirements for pedestrian-propelled trucks”
— Part 6: “Supplementary requirements for burden and personnel carriers”
This document is intended to be used with EN ISO 3691-2 “Industrial trucks — Safety requirements and
verification: Part: 2: self-propelled variable-reach trucks “.
prEN 16307-2:2017 (E)
Introduction
General
This document is a type-C standard as stated in EN ISO 12100.
The machines concerned and the extent to which hazards, hazardous situations or hazardous events are
covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or B
standards, the requirements of this type-C standard take precedence over the requirements of the other
standards for machines that have been designed and built according to the requirements of this type-C
standard.
The EN 16307 series of standards covers safety requirements and their verification for industrial trucks
as defined in ISO 5053-1 that are not covered exhaustively by EN ISO 3691 series.
Assessment of hazards
The product should be designed in such a way that it is fit for its purpose or function and can be
adjusted and maintained without putting persons at risk when used under the conditions foreseen by
the manufacturer.
In order to properly design a product and to cover all specific safety requirements, the manufacturer
will identify the hazards that apply to his product and carry out a risk assessment. The manufacturer
will then design and construct the product taking this assessment into account.
The aim of this procedure is to eliminate the risk of accidents throughout the foreseeable lifetime of the
machinery, including the phases of assembling and dismantling where risks of accidents could also arise
from foreseeable abnormal situations.
In selecting the most appropriate methods, the manufacturer will apply the following principles, in the
order given here:
a) eliminate or reduce risks as far as possible by design (inherently safe machinery design and
construction);
b) take the necessary protective measures in relation to risks that cannot be eliminated by design;
c) inform users of any shortcoming of the protective measures adopted;
d) indicate whether any particular training is required;
e) specify any need to provide personal protection equipment;
f) refer to the appropriate user's document for proper operating instructions.
Industrial trucks should be designed to prevent foreseeable misuse wherever possible, if such would
engender risk. In other cases, the instructions should draw the user's attention to ways shown by
experience in which the machinery ought not be used.
This part of EN 16307 does not repeat all the technical rules which are state-of-the art and which are
applicable to the material used to construct the industrial truck. Reference should also be made to
EN ISO 12100.
prEN 16307-2:2017 (E)
1 Scope
This European standard gives requirements for the types of industrial trucks specified in the scope of
EN ISO 3691-2.
This standard is intended to be used in conjunction with EN ISO 3691-2. These requirements are
supplementary to those stated in EN ISO 3691-2 with the addition of hazard which can occur when
operating in potentially explosive atmospheres.
This European standard replaces the following requirements of EN ISO 3691-2:
• electrical requirements.
This European standard covers the following requirements as specified in EN ISO 3691-2:
• noise emissions;
• vibration;
• electromagnetic compatibility (EMC).
This European standard defines supplementary requirements to EN ISO 3691-2:
• operator's seat;
• protection against crushing, shearing and trapping;
• l
...
