CEN

prEN ISO 20607

(Main)

Safety of machinery - Instruction handbook - General drafting principles (ISO/DIS 20607:2025)

Safety of machinery - Instruction handbook - General drafting principles (ISO/DIS 20607:2025)

This document specifies requirements for the machine manufacturer for preparation of the safety-relevant parts of an instruction handbook for machinery.
This document:
— provides further specifications to the general requirements on information for use given in ISO 12100:2010, 6.4.5; and
— deals with the safety-related content, the corresponding structure and presentation of the instruction handbook, taking into account all phases of the life cycle of the machine.
NOTE 1 The strategy for risk reduction at the machine is given in ISO 12100:2010, Clause 6, and includes inherently safe design measures, safeguarding and complementary risk reduction measures as well as information for use.
NOTE 2 Annex A contains a correspondence table between ISO 12100:2010, 6.4, and this document.
NOTE 3 Information for conception and preparation of instructions in general is available in IEC/IEEE 82079-1.
This document establishes the principles which are indispensable to provide information on residual risks.
This document does not address requirements for declaration of noise and vibration emissions.
This document is not applicable to machinery manufactured before the date of its publication.

Sicherheit von Maschinen - Betriebsanleitung - Allgemeine Gestaltungsgrundsätze (ISO/DIS 20607:2025)

Sécurité des machines - Notice d'instructions - Principes rédactionnels généraux (ISO/DIS 20607:2025)

Le présent document spécifie des exigences, pour le fabricant de machine, pour la préparation des parties relatives à la sécurité de la notice d'instructions de cette machine.
Le présent document:
— fournit des spécifications complémentaires aux exigences générales relatives aux informations pour l'utilisation données dans l'ISO 12100:2010, 6.4.5, et
— traite avec les contenus relatifs à la sécurité, de la structure correspondante et de la présentation de la notice d'instructions en tenant compte de toutes les phases du cycle de vie de la machine.
NOTE 1 La stratégie pour la réduction des risques au niveau de la machine est donnée dans l'ISO 12100:2010, Article 6, et comprend les mesures de prévention intrinsèque, la protection et/ou les mesures de prévention complémentaires ainsi que les informations pour l'utilisation.
NOTE 2 L'Annexe A contient un tableau de correspondance entre l'ISO 12100:2010, 6.4, et le présent document.
NOTE 3 Des informations pour la conception et la préparation des instructions en général sont disponibles dans l'IEC/IEEE 82079‑1.
Le présent document définit les principes indispensables pour la fourniture d'informations sur les risques résiduels.
Le présent document ne répond pas aux exigences de déclaration d'émission acoustique et vibratoire.
Le présent document ne s'applique pas aux machines fabriquées avant la date de sa publication.

Varnost strojev - Navodila za uporabo - Splošna načela za načrtovanje (ISO/DIS 20607:2025)

General Information

Status
Not Published
Publication Date
06-Sep-2026
ICS
13.110 - Safety of machinery
Technical Committee
CEN/TC 114 - Safety of machinery
Drafting Committee
CEN/TC 114 - Safety of machinery
Current Stage
4020 - Submission to enquiry - Enquiry
Start Date
06-Feb-2025
Due Date
06-Feb-2025
Completion Date
06-Feb-2025
Directive
2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
Mandate
M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
M/605 - on a standardisation request to the European Committee for Standardization and to the European Committee for Electrotechnical Standardization as regards machinery and related products in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
Ref Project
oSIST prEN ISO 20607:2025 - Safety of machinery - Instruction handbook - General drafting principles (ISO/DIS 20607:2025)

Relations

Revises
EN ISO 20607:2019 - Safety of machinery - Instruction handbook - General drafting principles (ISO 20607:2019)
Effective Date
09-Oct-2024

Buy Standard

prEN ISO 20607:2025 - BARVEprEN ISO 20607:2025 - BARVE
PreviousNext
Draft
prEN ISO 20607:2025 - BARVE
English language
32 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

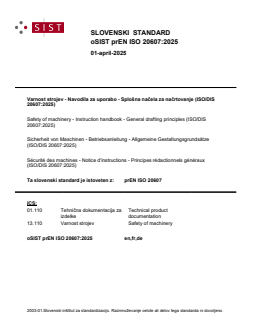

SLOVENSKI STANDARD
01-april-2025
Varnost strojev - Navodila za uporabo - Splošna načela za načrtovanje (ISO/DIS
20607:2025)
Safety of machinery - Instruction handbook - General drafting principles (ISO/DIS
20607:2025)
Sicherheit von Maschinen - Betriebsanleitung - Allgemeine Gestaltungsgrundsätze
(ISO/DIS 20607:2025)
Sécurité des machines - Notice d'instructions - Principes rédactionnels généraux
(ISO/DIS 20607:2025)
Ta slovenski standard je istoveten z: prEN ISO 20607
ICS:
01.110 Tehnična dokumentacija za Technical product
izdelke documentation
13.110 Varnost strojev Safety of machinery
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

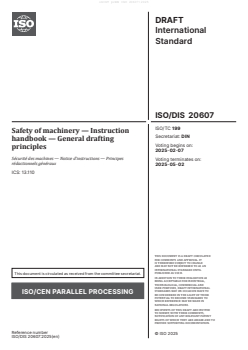

DRAFT
International
Standard
ISO/DIS 20607
ISO/TC 199
Safety of machinery — Instruction
Secretariat: DIN
handbook — General drafting
Voting begins on:
principles
2025-02-07
Sécurité des machines — Notice d'instructions — Principes
Voting terminates on:
rédactionnels généraux
2025-05-02
ICS: 13.110
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 20607:2025(en)
DRAFT
ISO/DIS 20607:2025(en)
International
Standard
ISO/DIS 20607
ISO/TC 199
Safety of machinery — Instruction
Secretariat: DIN
handbook — General drafting
Voting begins on:
principles
Sécurité des machines — Notice d'instructions — Principes
Voting terminates on:
rédactionnels généraux
ICS: 13.110
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
This document is circulated as received from the committee secretariat.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2025
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
ISO/CEN PARALLEL PROCESSING
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: +41 22 749 01 11
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 20607:2025(en)
ii
ISO/DIS 20607:2025(en)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principles and general information . 2
4.1 General .2
4.2 Target group for the instruction handbook .3
4.3 Information needs .3
4.4 Comprehensible terminology and wording .3
4.5 Presentation of the instruction handbook .3
4.6 Information from component or subsystem suppliers .4
4.7 Legibility .4
4.8 Warnings, hazard and safety symbols used in the instruction handbook .4
4.9 Structuring .4
4.10 Residual risks .4
4.10.1 General .4
4.10.2 Signals and warning devices provided with the machine .5
4.11 IT security vulnerabilities .5
5 Content and structure of the instruction handbook . 5
5.1 General .5
5.2 Instruction handbook content .6
5.2.1 Basic parts of an introduction handbook .6
5.2.2 Safety .7
5.2.3 Machine overview .8
5.2.4 Transportation, handling and storage .8
5.2.5 Assembly, installation and commissioning .9
5.2.6 Original equipment manufacturer settings .10
5.2.7 Operation .10
5.2.8 Product or capacity changeover .11
5.2.9 Inspection, testing and maintenance .11
5.2.10 Cleaning and sanitizing . 12
5.2.11 Fault finding/troubleshooting and repair . 12
5.2.12 Dismantling, disabling and scrapping . 13
5.2.13 Documents and drawings. 13
5.2.14 Index . 13
5.2.15 Glossary . 13
5.2.16 Annexes .14
6 Language and formulation/style guide . 14
6.1 General .14
6.2 Language version(s) .14
6.3 Formulation guidance for instructions .14
6.4 Simple wording for instructions .14
6.5 Warnings . 15
7 Forms of publication .15
7.1 General . 15
7.2 Requirements for fully digital instruction handbook .16
7.2.1 General .16
7.2.2 Essential safety information for non-professional use .16
Annex A (informative) Correspondence between ISO 12100:2010, 6.4, and this document . 17
Annex B (informative) Presentation and formatting .18

iii
ISO/DIS 20607:2025(en)
Annex C (informative) Recommendations for writing instructions.21
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered .24
Annex ZB (informative) Relationship between this European Standard and the essential
requirements of Regulation (EU) 2023/1230 aimed to be covered .25
Bibliography .26

iv
---------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

CEN
EN ISO 14119:2025(Main)
Safety of machinery - Interlocking devices associated with guards - Principles for design and selection (ISO 14119:2024)
kSIST FprEN ISO 14119:2024

This document specifies principles for the design and selection (independent of the nature of the energy source) of interlocking devices associated with guards and provides guidance on measures to minimize the possibility of defeat of interlocking devices in a reasonably foreseeable manner.
This document covers principles for the design, selection and application of the following:
—     parts of the guards which actuate interlocking devices;
—     trapped key interlocking devices and systems for machinery applications.
NOTE            ISO 14120 specifies general requirements for the design and construction of guards provided primarily to protect persons from mechanical hazards. The processing of the signal from the interlocking device to stop the machine and prevent unexpected start up is covered in ISO 14118, ISO 13849-1 and IEC 62061.

  • Draft
    121 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 13855:2024(Main)
Safety of machinery - Positioning of safeguards with respect to the approach of the human body (ISO 13855:2024)
SIST EN ISO 13855:2025

This document specifies requirements for the positioning and dimensioning of safeguards with respect to the approach of the human body or its parts towards hazard(s) within the intended span-of-control as follows:
—     the position and dimension of the detection zone(s) of ESPE and pressure-sensitive mats and pressure-sensitive floors;
—     the position of two-hand control devices and single control devices;
—     the position of interlocking guards.
This document also specifies requirements for the positioning of safety-related manual control devices (SRMCD) with respect to the approach of the human body or its parts from within the safeguard space relative to:
—     the position and dimension of the detection zone(s) of ESPE and pressure-sensitive mats and pressure-sensitive floors; and
—     the position and dimension of interlocking guards.
When evaluating the ability of the human body or its parts to access SRMCD from within the intended safeguarded space, the requirements of this document are also applicable to determine the dimensions of safeguard(s). Approaches such as running, jumping or falling, are not considered in this document.
NOTE 1        The values for approach speeds (walking speed and upper limb movement) in this document are time tested and proven in practical experience.
NOTE 2        Other types of approach can result in approach speeds that are higher or lower than those defined in this document.
This document applies to safeguards used on machinery for the protection of persons 14 years and older.
Safeguards considered in this document include:
a)       electro-sensitive protective equipment (ESPE) such as:
—    active opto-electronic protective devices (AOPDs) (see IEC 61496-2);
—    AOPDs responsive to diffuse reflection that have one or more detection zone(s) specified in two dimensions (AOPDDRs-2D) (see IEC 61496-3);
—    AOPDs responsive to diffuse reflection that have one or more detection zone(s) specified in three dimensions (AOPDDRs-3D) (see IEC 61496-3);
—    vision based protective devices using reference pattern techniques (VBPDPP) (see IEC/TS 61496-4-2);
—    vision based protective devices using stereo vision techniques (VBPDST) (see IEC/TS 61496-4-3);
b)       pressure-sensitive mats and pressure-sensitive floors (see ISO 13856-1);
c)        two-hand control devices (see ISO 13851);
d)       single control devices;
e)       interlocking guards (see ISO 14120).
This document is not applicable to:
—     safeguards (e.g. pendant two-hand control devices) that can be manually moved, without using tools, nearer to the hazard zone than the separation distance;
—     protection against the risks from hazards arising from emissions (e.g. the ejection of solid or fluid materials, radiation, electric arcs, heat, noise, fumes, gases);
—     protection against the risks arising from failure of mechanical parts of the machine or gravity falls.
The separation distances derived from this document do not apply to safeguards used solely for presence sensing function.

  • Standard
    85 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 13849-1:2023(Main)
Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design (ISO 13849-1:2023)
SIST EN ISO 13849-1:2023

This document specifies a methodology and provides related requirements, recommendations and guidance for the design and integration of safety‐related parts of control systems (SRP/CS) that perform safety functions, including the design of software.
This document applies to SRP/CS for high demand and continuous modes of operation including their subsystems, regardless of the type of technology and energy (e.g. electrical, hydraulic, pneumatic, and mechanical). This document does not apply to low demand mode of operation.
NOTE 1        See 3.1.44 and the IEC 61508 series for low demand mode of operation.
This document does not specify the safety functions or required performance levels (PLr) that are to be used in particular applications.
NOTE 2        This document specifies a methodology for SRP/CS design without considering if certain machinery (e.g. mobile machinery) has specific requirements. These specific requirements can be considered in a Type‑C standard.
This document does not give specific requirements for the design of products/components that are parts of SRP/CS. Specific requirements for the design of some components of SRP/CS are covered by applicable ISO and IEC standards.
This document does not provide specific measures for security aspects (e.g. physical, IT-security, cyber security).
NOTE 3        Security issues can have an effect on safety functions. See ISO/TR 22100-4 and IEC/TR 63074 for further information.

  • Standard
    167 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
CEN ISO/TR 22100-5:2022(Main)
Safety of machinery - Relationship with ISO 12100 - Part 5: Implications of artificial intelligence machine learning (ISO/TR 22100-5:2021)
SIST-TP CEN ISO/TR 22100-5:2022

This document addresses how artificial intelligence machine learning can impact the safety of machinery and machinery systems.
This document describes how hazards being associated with artificial intelligence (AI) applications machine learning in machinery or machinery systems, and designed to act within specific limits, can be considered in the risk assessment process.
This document is not applicable to machinery or machinery systems with AI applications machine learning designed to act beyond specified limits that can result in unpredictable effects.
This document does not address safety systems with AI, for example, safety-related sensors and other safety-related parts of control systems.

  • Technical report
    14 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
CEN ISO/TR 22100-1:2021(Main)
Safety of machinery - Relationship with ISO 12100 - Part 1: How ISO 12100 relates to type-B and type-C standards (ISO/TR 22100-1:2021)
SIST-TP EN ISO/TR 22100-1:2021

This document provides assistance to the designer/manufacturer of machinery and related components as to how the system of existing type-A, type-B and type-C machinery safety standards should be applied in order to design a machine to achieve a level of tolerable risk by adequate risk reduction.
This document explains the general principles of ISO 12100 and how this type-A standard is used for practical cases in conjunction with type-B and type-C machinery safety standards.
This document provides assistance to standards-writing committees on how ISO 12100 and type-B and type-C standards relate and explains their function in the risk assessment and risk reduction process according to ISO 12100.
This document includes an overview of existing categories of type-B standards to assist standards readers and writers to navigate the many standards.

  • Technical report
    25 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
CEN ISO/TR 22100-4:2020(Main)
Safety of machinery - Relationship with ISO 12100 - Part 4: Guidance to machinery manufacturers for consideration of related IT-security (cyber security) aspects (ISO/TR 22100-4:2018)
SIST-TP CEN ISO/TR 22100-4:2021

This document gives machine manufacturers guidance on potential security aspects in relation to safety of machinery when putting a machine into service or placing on the market for the first time. It provides essential information to identify and address IT-security threats which can influence safety of machinery.
This document gives guidance but does not provide detailed specifications on how to address IT-security aspects which can influence safety of machinery.
This document does not address the bypass or defeat of risk reduction measures through physical manipulation.

  • Technical report
    23 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 13857:2019(Main)
Safety of machinery - Safety distances to prevent hazard zones being reached by upper and lower limbs (ISO 13857:2019)
SIST EN ISO 13857:2020

This document establishes values for safety distances in both industrial and non-industrial environments to prevent machinery hazard zones being reached. The safety distances are appropriate for protective structures. It also gives information about distances to impede free access by the lower limbs (see Annex B).
This document covers people of 14 years and older (the 5th percentile stature of 14-year-olds is approximately 1 400 mm). In addition, for upper limbs only, it provides information for children older than 3 years (5th percentile stature of 3-year-olds is approximately 900 mm) where reaching through openings needs to be addressed.
NOTE 1  It is not practical to specify safety distances for all persons. Therefore, the values presented are intended to cover the 95th percentile of the population.
Data for preventing lower limb access for children is not considered.
The distances apply when sufficient risk reduction can be achieved by distance alone. Because safety distances depend on size, some people of extreme dimensions will still be able to reach hazard zones even when the requirements of this document are met.
Compliance with the requirements in this document will prevent access to the hazard zone. Nevertheless the user of this document is advised that it does not provide the required risk reduction for every hazard (e.g. hazards related to machine emissions such as ionizing radiation, heat sources, noise, dust).
The clauses covering lower limbs apply on their own only when access by the upper limbs to the same hazard zone is not foreseeable according to the risk assessment.
The safety distances are intended to protect those persons trying to reach hazard zones under the conditions specified (see 4.1.1).
NOTE 2  This document is not intended to provide measures against reaching a hazard zone by climbing over (see ISO 14120:2015, 5.18).

  • Standard
    31 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 13854:2019(Main)
Safety of machinery - Minimum gaps to avoid crushing of parts of the human body (ISO 13854:2017)
SIST EN ISO 13854:2020

ISO 13854:2017 enables the user (e.g. standard makers, designers of machinery) to avoid hazards from crushing zones. It specifies minimum gaps relative to parts of the human body and is applicable when adequate safety can be achieved by this method.
ISO 13854:2017 is applicable to risks from crushing hazards only and is not applicable to other possible hazards, e.g. impact, shearing, drawing-in.
NOTE       For impact, shearing, drawing-in hazards, additional or other measures are to be taken.

  • Standard
    15 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 20607:2019(Main)
Safety of machinery - Instruction handbook - General drafting principles (ISO 20607:2019)
SIST EN ISO 20607:2020

This document specifies requirements for the machine manufacturer for preparation of the safety-relevant parts of an instruction handbook for machinery.
This document:
—          provides further specifications to the general requirements on information for use given in ISO 12100:2010, 6.4.5; and
—          deals with the safety-related content, the corresponding structure and presentation of the instruction handbook, taking into account all phases of the life cycle of the machine.
NOTE 1    The strategy for risk reduction at the machine is given in ISO 12100:2010, Clause 6, and includes inherently safe design measures, safeguarding and complementary risk reduction measures as well as information for use.
NOTE 2    Annex A contains a correspondence table between ISO 12100:2010, 6.4, and this document.
NOTE 3    Information for conception and preparation of instructions in general is available in IEC/IEEE 82079-1.
This document establishes the principles which are indispensable to provide information on residual risks.
This document does not address requirements for declaration of noise and vibration emissions.
This document is not applicable to machinery manufactured before the date of its publication.

  • Standard
    34 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN ISO 13851:2019(Main)
Safety of machinery - Two-hand control devices - Principles for design and selection (ISO 13851:2019)
SIST EN ISO 13851:2019

This document specifies the safety requirements of a two-hand control device (THCD) and the dependency of the output signal from the actuation by hand of the control actuating devices.
This document describes the main characteristics of THCDs for the achievement of safety and sets out combinations of functional characteristics for three types. It does not apply to devices intended to be used as enabling devices, as hold-to-run devices or as special control devices.
This document does not specify with which machines THCDs shall be used. It also does not specify which types of two-hand-control device shall be used for a specific application. Moreover, while guidance is given, it does not specify the required distance between the THCD and the danger zone (see 8.8).
This document provides requirements for design and guidance on the selection (based on a risk assessment) of THCDs including the prevention of defeat, the avoidance of faults and verification of compliance.
NOTE 1    A THCD only offers protection for the person using it.
NOTE 2    For specific machines, the suitability of a two-hand control as a suitable protective device can be defined in a type-C standard. If such a standard does not exist or is not appropriate, the risk assessment and determination of suitable protective measures is the responsibility of the manufacturer of the machine.
This document applies to all THCDs, independent of the energy used, including:
—          THCDs which are fully assembled for installation;
—          THCDs which are assembled by the machine manufacturer or integrator.
This document is not applicable to THCDs manufactured before the date of its publication.

  • Standard
    31 pages
    English language
    sale 10% off
    e-Library read for
    1 day
