EN 13613:2009
(Main)Roller sports equipment - Skateboards - Safety requirements and tests methods
Roller sports equipment - Skateboards - Safety requirements and tests methods
This standard specifies requirements for non-motorized skateboards which are supplied for use by one rider at a time.
The skateboards covered by this standard are graded by performance criteria for different categories of body weight.
This standard is not applicable for skateboards for use by a rider up to 20 kg. EN 71-1 is applicable for those.
This standard does not apply to individual components.
Rollsportgeräte - Skateboards - Sicherheitstechnische Anforderungen und Prüfverfahren
Diese Norm legt Anforderungen an Skateboards ohne Motorantrieb, die zum Gebrauch durch einen Fahrer
angeboten werden, fest.
Die Skateboards, die in dieser Norm behandelt werden, sind in Leistungsstufen nach unterschiedlichen
Körpergewichtsklassen eingeteilt.
Diese Norm gilt nicht für Skateboards zur Benutzung durch einen Fahrer bis zu 20 kg. Für diese gilt EN 71-1.
Diese Norm gilt nicht für einzelnen Bauteile.
Equipement de sports à roulettes - Planches à roulettes - Exigences de sécurité et méthodes d'essai
La présente norme spécifie des exigences relatives aux planches à roulettes non motorisées conçues pour être utilisées par un utilisateur à la fois.
Les planches à roulettes couvertes par la présente norme sont classées en fonction de critères de performances en différentes catégories basées sur la masse corporelle.
Les planches à roulettes conçues pour être utilisées par un utilisateur pesant moins de 20 kg ne sont pas couvertes par la présente norme européenne. Ces dernières sont couvertes par l'EN 71-1.
La présente norme ne s'applique pas aux composants individuels.
Oprema za športe na koleščkih - Rolke - Varnostne zahteve in preskusne metode
General Information
- Status
- Published
- Publication Date
- 07-Apr-2009
- Withdrawal Date
- 30-Oct-2009
- Technical Committee
- CEN/TC 136 - Sports, playground and other recreational equipment
- Drafting Committee
- CEN/TC 136/WG 10 - Roller sports equipment
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 17-Feb-2024
- Completion Date
- 14-Apr-2025
Relations
- Replaces
EN 13613:2001 - Roller sports equipment - Skateboards - Safety requirements and test methods - Effective Date
- 22-Dec-2008
Overview
EN 13613:2009 - published by CEN - specifies safety requirements and test methods for non‑motorized skateboards supplied for use by one rider at a time. It covers fully assembled skateboards graded by rider mass (Class A: >20 kg up to 100 kg; Class B: >20 kg up to 50 kg). The standard is not applicable to skateboards for riders up to 20 kg (see EN 71‑1). EN 13613:2009 supersedes EN 13613:2001 and sets mandatory construction, testing, marking and user‑information requirements to reduce mechanical and functional hazards.
Key topics and requirements
- Scope & classification
- Applies to non‑motorized, single‑rider skateboards; two weight classes defined (A and B).
- Construction requirements
- No projections above deck; full anti‑slide upper surface.
- Rounded deck edges (minimum radius 10 mm); no sharp or protruding edges.
- Kingpin (action bolt) must not contact underside of deck when fully tightened.
- Self‑locking fixings: thread engagement and user information about loss of effectiveness.
- Performance criteria
- Minimum wheel adhesion coefficient (µ0) of 0.3 when tested on a brushed/degreased steel plate.
- Wheel bearings must not seize or disintegrate under speed testing.
- No breakage or functional failure allowed after endurance, drop and impact tests.
- Test methods
- Tests performed on fully assembled boards at mid‑steering setting; two specimens used with defined test sequences.
- Conditioning at specified temperature/humidity prior to testing.
- Representative tests include: wheel adhesion, speed (20 km/h), endurance drum (cumulative wheel distance ~25 km), external design/protrusion check (50 mm cylinder), drop tests (cylindrical mass) and impact against a kerb.
- Marking & documentation
- Skateboard must be marked with the standard number, manufacturer ID, product ID, maximum user mass and protective equipment advice.
- Manufacturer’s instructions must include construction notes, use limitations, maintenance (bearings, wheels, lubrication, steering adjustment), inspection guidance and a safety warning.
Applications and users
Who uses EN 13613:2009:
- Skateboard manufacturers and designers for product design, materials and assembly requirements.
- Test laboratories performing conformity and type testing to the standard’s methods.
- Retailers, importers and compliance officers to verify marking and documentation.
- Safety regulators and procurement teams specifying safe equipment for public facilities, clubs or schools.
- Consumers and clubs benefit from clear maintenance and safety guidance supplied with the product.
Keywords: EN 13613:2009, skateboard safety standard, skateboard test methods, non‑motorized skateboards, skateboard manufacturers, skateboarding safety.
Related standards
- EN 71‑1 - Safety of toys (applicable for skateboards intended for riders up to 20 kg).
- EN 22768‑1 - General tolerances (referenced for dimensional tolerances).
Frequently Asked Questions
EN 13613:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Roller sports equipment - Skateboards - Safety requirements and tests methods". This standard covers: This standard specifies requirements for non-motorized skateboards which are supplied for use by one rider at a time. The skateboards covered by this standard are graded by performance criteria for different categories of body weight. This standard is not applicable for skateboards for use by a rider up to 20 kg. EN 71-1 is applicable for those. This standard does not apply to individual components.
This standard specifies requirements for non-motorized skateboards which are supplied for use by one rider at a time. The skateboards covered by this standard are graded by performance criteria for different categories of body weight. This standard is not applicable for skateboards for use by a rider up to 20 kg. EN 71-1 is applicable for those. This standard does not apply to individual components.
EN 13613:2009 is classified under the following ICS (International Classification for Standards) categories: 97.220.40 - Outdoor and water sports equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13613:2009 has the following relationships with other standards: It is inter standard links to EN 13613:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 13613:2009 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Rollsportgeräte - Skateboards - Sicherheitstechnische Anforderungen und PrüfverfahrenEquipement de sports à roulettes - Planches à roulettes - Exigences de sécurité et méthodes d'essaiRoller sports equipment - Skateboards - Safety requirements and tests methods97.220.40Oprema za športe na prostem in vodne športeOutdoor and water sports equipmentICS:Ta slovenski standard je istoveten z:EN 13613:2009SIST EN 13613:2009en,fr,de01-julij-2009SIST EN 13613:2009SLOVENSKI
STANDARDSIST EN 13613:20021DGRPHãþD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13613April 2009ICS 97.220.40Supersedes EN 13613:2001
English VersionRoller sports equipment - Skateboards - Safety requirementsand tests methodsEquipement de sports à roulettes - Planches à roulettes -Exigences de sécurité et méthodes d'essaiRollsportgeräte - Skateboards - SicherheitstechnischeAnforderungen und PrüfverfahrenThis European Standard was approved by CEN on 5 March 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13613:2009: ESIST EN 13613:2009

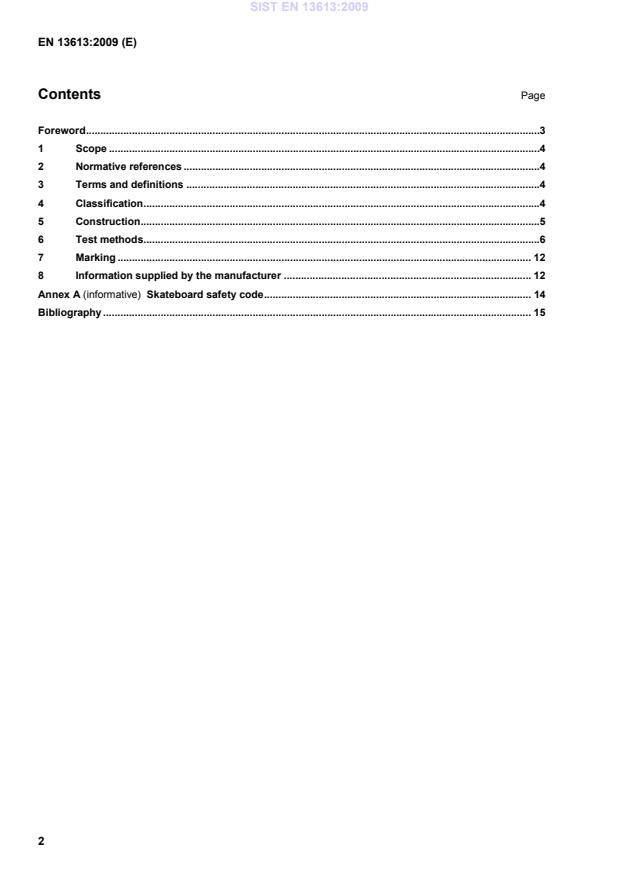

Skateboard safety code . 14Bibliography . 15 SIST EN 13613:2009
a) classification in 4.1 modified; b) velocity in 6.7.2 and 6.10.2 changed; c) marking in Clause 7 d) and e) modified; d) service and maintenance in 8.3 a) and f) modified; e) WARNING in 8.4 modified. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Repub-lic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 13613:2009
Key 1 Deck 2 Cushion 3 Riser pad 4 Action bolt (Kingpin) 5 Axle 6 Wheels 7 Trucks Figure 1 — Components of a skateboard 5.2 Requirements 5.2.1 There shall be no projections above the upper surface of the deck. The complete upper surface of the deck shall be equipped with an anti-slide surface. 5.2.2 When tested in accordance with 6.8, it shall not be possible to touch, with the test cylinder (see 6.8.2), any projection which has a length greater than 10 mm and less than 100 mm2 in area. 5.2.3 When the action bolt (kingpin) of the truck is fully tightened, no part of the action bolt shall be in con-tact with the underside of the deck. 5.2.4 If a part of the axles and means of securing the wheels shall project beyond the outer edge of the wheels than the axle and means of securing the wheels shall not project beyond the deck. All edges on the skateboard which can come into contact with parts of the body during normal use shall be rendered safe, or shaped so that injuries cannot occur. 5.2.5 The corners and edges of the deck shall be rounded off and free from burr and sharp or protruding edges. The outlines of the deck shall be rounded off with a minimum radius of 10 mm as shown in Figure 2.
Key R ≥ 10 mm Figure 2 — Radius of edges of deck SIST EN 13613:2009
...
The EN 13613:2009 standard, titled "Roller sports equipment - Skateboards - Safety requirements and test methods," establishes a comprehensive framework for the safety and performance of non-motorized skateboards intended for individual riders. Its primary scope focuses on outlining essential requirements and performance criteria that skateboard manufacturers must adhere to, thus ensuring safety across various body weight categories. One of the notable strengths of this standard is its detailed categorization of skateboards based on performance criteria correlated to the rider's body weight. This targeted approach enhances user safety by ensuring that each skateboard is suitable for its intended user, reducing the risk of accidents and injuries. Additionally, the standard specifies rigorous safety requirements and test methods that manufacturers must follow, promoting consistent quality across products within the market. The EN 13613:2009 standard's relevance extends to both manufacturers and consumers. For manufacturers, compliance with this standard not only verifies the safety and reliability of their products but also provides market credibility. For consumers, it offers assurance that the skateboards they purchase meet established safety benchmarks, allowing for more informed decisions when selecting equipment. While the standard effectively covers a broad range of safety aspects, it is important to note the limitations specified; it does not apply to skateboards intended for riders weighing up to 20 kg, for which EN 71-1 is deemed more suitable. Furthermore, this standard does not address individual components of skateboards, indicating a focused scope that preserves clarity within its application. Overall, the EN 13613:2009 standard is a crucial document in the realm of roller sports equipment, particularly for ensuring the safety and functionality of skateboards designed for one rider. Its structured impact on performance and safety, coupled with its targeted applicability, reinforces its importance in the development and regulation of skateboard equipment.
SIST EN 13613:2009は、非動力式スケートボードの安全要件と試験方法を定めた規格であり、その範囲は一度に一人のライダーが使用するためのスケートボードに特化しています。この標準は、体重の異なるカテゴリに応じたパフォーマンス基準によってスケートボードを評価します。特に、安全性を確保しつつ、使用者の体重に応じた適切な性能を保証することが強調されています。これは、ユーザーの安全を守る上で非常に重要な要素です。 この標準の強みは、明確な基準を設けることで、スケートボードが適切に設計され、製造されることを促進する点にあります。また、EN 71-1が適用される20 kg以下のライダー向けのスケートボードには適用されないことを明示することにより、対象範囲を明確に区別しています。これにより、規格の適用性が向上し、実際の使用場面におけるニーズに対応することが可能となります。 総じて、SIST EN 13613:2009は、非動力式スケートボードの安全性を向上させるための信頼できる基準を提供しており、その関連性は非常に高いです。ユーザーの安全を重視した設計と評価基準の策定は、スケートボード業界において必須の取り組みであり、その重要性は今後も増していくと考えられます。
La norme SIST EN 13613:2009 définit des exigences précises pour les équipements de roller, en particulier les planches à roulettes non motorisées, utilisées par un seul utilisateur à la fois. Cette norme se distingue par son approche systématique, fournissant des critères de performance adaptés à différentes catégories de poids corporel. Cela permet d'assurer que chaque skateboard répond aux besoins spécifiques de l'utilisateur en matière de sécurité et de performance, ce qui renforce sa pertinence sur le marché des équipements de sports de glisse. Un des points forts de la norme EN 13613:2009 est son orientation vers la sécurité. Elle établit des méthodes de test rigoureuses afin de garantir que les planches à roulettes respectent des standards de sécurité élevés avant d'être mises à disposition des consommateurs. Cela est essentiel dans un domaine où les risques d'accidents peuvent être élevés, surtout pour les jeunes utilisateurs. Il convient de noter que cette norme ne s'applique pas aux skateboards destinés aux utilisateurs pesant moins de 20 kg, une limite qui est intelligemment précisée, car ces produits relèvent plutôt de la norme EN 71-1. Cette clarification renforce l'intégrité de la norme en établissant des directives claires sur son champ d'application et les types de produits concernés. Enfin, le fait que la norme ne s'applique pas aux composants individuels des skateboard est également un aspect à souligner. Cela permet de se concentrer sur l’équipement en tant qu’entité complète, assurant ainsi que les exigences de sécurité et de performance s’appliquent à l'ensemble du produit utilisé par l'utilisateur final. En résumé, la norme SIST EN 13613:2009 se positionne comme une référence essentielle dans le secteur des équipements de roller, en garantissant la sécurité et la qualité des skateboards pour les utilisateurs tout en spécifiant clairement son champ d’application.
SIST EN 13613:2009 표준은 비모터화된 스케이트보드의 안전 요구 사항 및 시험 방법을 규정하고 있습니다. 이 표준의 주요 범위는 여러 체중 범주에 따라 성능 기준으로 등급이 매겨진 스케이트보드를 다루며, 한 번에 한 명의 라이더가 사용하도록 공급되는 스케이트보드에 적용됩니다. 이는 스케이트보드 안전성에 대한 명확한 기준을 제공하여, 소비자들이 올바른 제품을 선택할 수 있도록 돕습니다. 이 표준의 강점 중 하나는 다양한 체중 카테고리에 따라 성능 기준이 세분화되어 있다는 점입니다. 이는 각각의 사용자에게 적합한 스케이트보드를 선택할 수 있는 기회를 제공하며, 라이더의 신체 조건에 맞는 안전성을 보장합니다. 또한, EN 13613:2009 표준은 다소 중량이 높은 사용자들을 위해 설계된 스케이트보드에 대한 상세한 안전 요구 사항을 규정하고 있어, 사용자의 안전을 지속적으로 최우선으로 생각하고 있음을 보여줍니다. 또한, 이 표준은 20kg 이하의 라이더를 위한 스케이트보드에는 적용되지 않으며, 대신 EN 71-1 기준을 적용해야 한다고 명확히 언급하고 있습니다. 이는 서로 다른 표준 간의 명확한 구분을 통해, 각 스케이트보드의 안전성 및 적합성을 보장하는 데 기여합니다. 결론적으로, SIST EN 13613:2009 표준은 스케이트보드의 안전성을 증진하고 사용자 보호를 위한 필수적인 지침을 제공함으로써, 스케이트보드 시장에서의 안전 요구 사항에 있어 매우 중요한 기준으로 자리 잡고 있습니다.
Die Norm EN 13613:2009, die sich mit der Sicherheit und den Prüfmethoden für Rollersportgeräte, insbesondere Skateboards, befasst, bietet eine umfassende Grundlage für die Anforderungen an nicht-motorisierte Skateboards. Diese Norm ist von großer Bedeutung, da sie die Sicherheit der Benutzer in den Mittelpunkt stellt und somit das Risiko von Verletzungen beim Skaten minimiert. Der Geltungsbereich der Norm ist klar definiert und fokussiert sich auf Skateboards, die für die Nutzung durch einen einzelnen Fahrer vorgesehen sind. Dies bedeutet, dass die Norm spezifische Anforderungen für unterschiedliche Kategorien von Körpergewicht umfasst, was die Relevanz für eine breite Benutzergruppe erhöht. Die Möglichkeit, Skateboards entsprechend ihrer Leistungsanforderungen zu klassifizieren, stärkt zusätzlich die Anpassungsfähigkeit und Benutzerfreundlichkeit dieser Produkte. Ein weiterer entscheidender Punkt ist, dass die Norm nicht für Skateboards gilt, die für Fahrer bis 20 kg vorgesehen sind, stattdessen wird auf die Norm EN 71-1 verwiesen. Dies zeigt, dass EN 13613:2009 sich gezielt an eine bestimmte Zielgruppe richtet und somit die Sicherheit in diesem Segment weiterhin gewährleistet ist. Die Stärken der Norm liegen nicht nur in ihren klaren Sicherheitsanforderungen, sondern auch in den festgelegten Prüfmethoden, die sicherstellen, dass die Skateboards den festgelegten Standards entsprechen. Dies fördert nicht nur die Produktqualität, sondern auch das Vertrauen der Verbraucher in die Sicherheit und Leistungsfähigkeit der Skateboards. Insgesamt ist die SIST EN 13613:2009 für Hersteller, Händler und Anwender von Skateboards von zentraler Bedeutung, da sie nicht nur Richtlinien für Produktentwicklung und -vertrieb bietet, sondern auch zur allgemeinen Förderung sicherer Rollersportpraktiken beiträgt. Die Norm bleibt somit ein unverzichtbares Werkzeug in der Branche, um die Sicherheit und Zufriedenheit der Nutzer zu gewährleisten.
