EN 50591:2019

Railway Applications - Rolling Stock - Specification and verification of energy consumption

The purpose of this document is to support rolling stock procurement, especially life cycle cost (LCC) assessment. This document is applicable to the specification and verification of energy consumption of railway rolling stock. It establishes a criterion for the energy consumption of rolling stock to calculate the total net energy consumed, either at current collector or from the fuel tank, over a predefined service profile, to ensure that the results are directly comparable or representative of the real operation of the train. For this purpose, this document considers the energy consumed and regenerated by the rolling stock. The determination methods covered are the simulation and the measurement. This document provides the framework that gives guidance on the generation of comparable energy performance values for trains and locomotives on a common basis and thereby supports benchmarking and improvement of the energy efficiency of rail vehicles. This document does not cover the comparison of energy consumption with other modes of transportation, or even for comparison between diesel and electric traction, covering only the energy consumption of the railway rolling stock itself.

Bahnanwendungen - Fahrzeuge - Spezifikation und Überprüfung des Energieverbrauchs

Applications ferroviaires - Spécification et vérification de la consommation d’énergie pour le matériel roulant ferroviaire

L'objectif principal de la présente norme est l'appui à l'acquisition de matériel roulant, en particulier à la lumière d'une évaluation du coût du cycle de vie (CCV). La présente Norme européenne est applicable à la spécification et à la vérification de la consommation d'énergie du matériel roulant ferroviaire. Elle établit pour la consommation d'énergie du matériel roulant un critère qui permet de calculer la consommation d'énergie totale nette, mesurée au niveau de l'appareil de captage de courant ou du réservoir de combustible, sur un profil de service prédéfini, afin de s'assurer que les résultats sont directement comparables ou représentatifs de l'exploitation réelle du train. Dans ce cadre, le présent document comptabilise l'énergie consommée et régénérée par le matériel roulant. La présente Norme européenne fournit le cadre et des recommandations pour la production de valeurs de performance énergétique comparables pour les trains et les locomotives en se fondant sur une base commune, ce qui favorise l'analyse comparative et l'amélioration de l'efficacité énergétique des véhicules ferroviaires. La présente Norme européenne n'est pas une spécification visant à comparer la consommation d'énergie entre différents modes de transport, ou à comparer la consommation d'énergie entre les systèmes de traction diesel et électrique. Elle s'intéresse uniquement à la consommation d'énergie du matériel roulant ferroviaire.

Železniške naprave - Vozna sredstva - Specifikacija in preverjanje porabe energije

General Information

• Status: Published
• Publication Date: 01-Aug-2019
• Withdrawal Date: 01-Aug-2022
• ICS: 45.060.10 - Tractive stock
• Technical Committee: CLC/TC 9X - Electrical and electronic applications for railways
• Drafting Committee: CLC/SC 9XB - Electromechanical material on board rolling stock
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 02-Aug-2019
• Due Date: 27-Mar-2019
• Completion Date: 02-Aug-2019
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Ref Project: SIST EN 50591:2020 - Specification and verification of energy consumption for railway rolling stock

Relations

• Replaces: CLC/TS 50591:2013 - Specification and verification of energy consumption for railway rolling stock
• Effective Date: 23-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50591:2020
01-maj-2020
Nadomešča:
SIST-TS CLC/TS 50591:2014

Železniške naprave - Vozna sredstva - Specifikacija in preverjanje porabe energije

Specification and verification of energy consumption for railway rolling stock
Spezifikation und Überprüfung des Energieverbrauchs von Schienenfahrzeugen

Spécification et vérification de la consommation d’énergie pour le matériel roulant

ferroviaire
Ta slovenski standard je istoveten z: EN 50591:2019
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN 50591:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50591:2020
---------------------- Page: 2 ----------------------
SIST EN 50591:2020
EUROPEAN STANDARD EN 50591
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2019
ICS 45.060.10 Supersedes CLC/TS 50591:2013
English Version
Railway Applications - Rolling Stock - Specification and
verification of energy consumption

Applications ferroviaires - Spécification et vérification de la Bahnanwendungen - Fahrzeuge - Spezifikation und

consommation d'énergie pour le matériel roulant ferroviaire Überprüfung des Energieverbrauchs

This European Standard was approved by CENELEC on 2018-12-14. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50591:2019 E
---------------------- Page: 3 ----------------------
SIST EN 50591:2020
EN 50591:2019

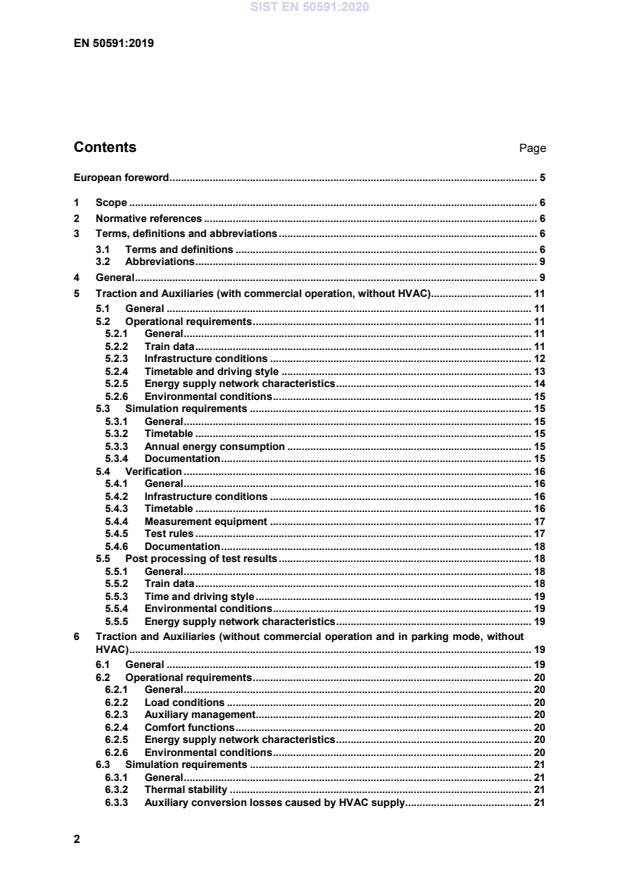

Contents Page

European foreword ................................................................................................................................ 5

1 Scope .............................................................................................................................................. 6

2 Normative references .................................................................................................................... 6

3 Terms, definitions and abbreviations .......................................................................................... 6

3.1 Terms and definitions ......................................................................................................... 6

3.2 Abbreviations ....................................................................................................................... 9

4 General ............................................................................................................................................ 9

5 Traction and Auxiliaries (with commercial operation, without HVAC) ................................... 11

5.1 General ............................................................................................................................... 11

5.2 Operational requirements ................................................................................................. 11

5.2.1 General ......................................................................................................................... 11

5.2.2 Train data ..................................................................................................................... 11

5.2.3 Infrastructure conditions ........................................................................................... 12

5.2.4 Timetable and driving style ....................................................................................... 13

5.2.5 Energy supply network characteristics .................................................................... 14

5.2.6 Environmental conditions .......................................................................................... 15

5.3 Simulation requirements .................................................................................................. 15

5.3.1 General ......................................................................................................................... 15

5.3.2 Timetable ..................................................................................................................... 15

5.3.3 Annual energy consumption ..................................................................................... 15

5.3.4 Documentation ............................................................................................................ 15

5.4 Verification ......................................................................................................................... 16

5.4.1 General ......................................................................................................................... 16

5.4.2 Infrastructure conditions ........................................................................................... 16

5.4.3 Timetable ..................................................................................................................... 16

5.4.4 Measurement equipment ........................................................................................... 17

5.4.5 Test rules ..................................................................................................................... 17

5.4.6 Documentation ............................................................................................................ 18

5.5 Post processing of test results ........................................................................................ 18

5.5.1 General ......................................................................................................................... 18

5.5.2 Train data ..................................................................................................................... 18

5.5.3 Time and driving style ................................................................................................ 19

5.5.4 Environmental conditions .......................................................................................... 19

5.5.5 Energy supply network characteristics .................................................................... 19

6 Traction and Auxiliaries (without commercial operation and in parking mode, without

HVAC) ............................................................................................................................................ 19

6.1 General ............................................................................................................................... 19

6.2 Operational requirements ................................................................................................. 20

6.2.1 General ......................................................................................................................... 20

6.2.2 Load conditions .......................................................................................................... 20

6.2.3 Auxiliary management................................................................................................ 20

6.2.4 Comfort functions ....................................................................................................... 20

6.2.5 Energy supply network characteristics .................................................................... 20

6.2.6 Environmental conditions .......................................................................................... 20

6.3 Simulation requirements .................................................................................................. 21

6.3.1 General ......................................................................................................................... 21

6.3.2 Thermal stability ......................................................................................................... 21

6.3.3 Auxiliary conversion losses caused by HVAC supply............................................ 21

---------------------- Page: 4 ----------------------
SIST EN 50591:2020
EN 50591:2019

6.3.4 Energy storage systems ............................................................................................ 21

6.3.5 Annual energy consumption ..................................................................................... 21

6.3.6 Documentation ............................................................................................................ 21

6.4 Verification ......................................................................................................................... 21

6.4.1 General ......................................................................................................................... 21

6.4.2 Comfort functions ....................................................................................................... 21

6.4.3 Test preparation .......................................................................................................... 22

6.4.4 Environmental conditions .......................................................................................... 22

6.4.5 Measurement equipment ........................................................................................... 22

6.4.6 Test duration ............................................................................................................... 22

6.4.7 Documentation ............................................................................................................ 22

6.5 Post-processing of test results ........................................................................................ 22

7 HVAC ............................................................................................................................................. 22

7.1 General ............................................................................................................................... 22

7.2 Methods .............................................................................................................................. 23

7.2.1 General ......................................................................................................................... 23

7.2.2 Method I [with climatic chamber / EN 13129:2016] .................................................. 23

7.2.3 Method II [without climatic chamber] ....................................................................... 23

7.3 Operational requirements ................................................................................................. 23

7.3.1 In-service with commercial operation mode ............................................................ 23

7.3.2 In-service without commercial operation mode ...................................................... 25

7.3.3 Parking mode .............................................................................................................. 26

7.3.4 Total annual consumption ......................................................................................... 26

7.4 Simulation requirements .................................................................................................. 26

7.4.1 General ......................................................................................................................... 26

7.4.2 Documentation ............................................................................................................ 27

7.5 Verification ......................................................................................................................... 27

7.5.1 General ......................................................................................................................... 27

7.5.2 Measurement equipment ........................................................................................... 27

7.5.3 Test rules ..................................................................................................................... 27

7.5.4 Documentation ............................................................................................................ 28

7.6 Post-processing ................................................................................................................ 28

Annex A (normative) Definition of standard parameters ................................................................. 29

A.1 General ............................................................................................................................... 29

A.2 Infrastructure characteristics ........................................................................................... 29

A.3 Electric traction system characteristics ......................................................................... 30

A.4 In-service with commercial operation mode .................................................................. 31

A.5 In-service without commercial operation mode and in parking mode ........................ 32

A.6 Fuel characteristics ........................................................................................................... 33

Annex B (normative) Definition of standard values for service profiles ........................................ 34

B.1 General ............................................................................................................................... 34

B.2 Suburban passenger traffic .............................................................................................. 34

B.3 Regional passenger traffic ............................................................................................... 35

B.4 Intercity passenger traffic................................................................................................. 37

B.5 High-speed passenger traffic ........................................................................................... 38

B.6 Freight mainline ................................................................................................................. 40

B.7 Metro passenger traffic ..................................................................................................... 43

Annex C (normative) Operational Hours of HVAC ........................................................................... 45

Annex D (informative) Application Guide .......................................................................................... 47

D.1 Objectives for use in procurement projects ................................................................... 47

D.2 Application in Procurement Process ...............................................................................47

---------------------- Page: 5 ----------------------
SIST EN 50591:2020
EN 50591:2019

Annex ZZ (informative) Relationship between this European standard and the essential

requirements of EU Directive 2016/797/EU [2016 OJ L138] aimed to be covered ..................49

Bibliography ......................................................................................................................................... 52

---------------------- Page: 6 ----------------------
SIST EN 50591:2020
EN 50591:2019
European foreword

This document (EN 50591:2019) has been prepared by CLC/SC 9XB “Electrical, electronic and

electromechanical material on board rolling stock, including associated software” with contribution of

UNIFE-UIC TECREC 100_001.
The following dates are fixed:
(doa) 2019-11-02
— latest date by which the existence of this document
has to be announced at national level
(dop) 2020-02-02
— latest date by which this document has to be
implemented at national level by publication of an
identical national standard or by endorsement
(dow) 2022-08-02
— latest date by which the national standards
conflicting with this document have to be withdrawn
This document supersedes CLC/TS 50591:2013.

The main changes in this edition compared to CLC/TS 50591:2013 are the adoption of existing

CLC/TS 50591 enquiry comments, the harmonization with results from the European Lighthouse

Project Roll2Rail and the inclusion of an HVAC energy quantification method. Since separate methods

for traction and HVAC energy quantification are described, the document structure had to be revised.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission

and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.
---------------------- Page: 7 ----------------------
SIST EN 50591:2020
EN 50591:2019
1 Scope

The purpose of this document is to support rolling stock procurement, especially life cycle cost (LCC)

assessment.

This document is applicable to the specification and verification of energy consumption of railway

rolling stock. It establishes a criterion for the energy consumption of rolling stock to calculate the total

net energy consumed, either at current collector or from the fuel tank, over a predefined service

profile, to ensure that the results are directly comparable or representative of the real operation of the

train. For this purpose, this document considers the energy consumed and regenerated by the rolling

stock. The determination methods covered are the simulation and the measurement.

This document provides the framework that gives guidance on the generation of comparable energy

performance values for trains and locomotives on a common basis and thereby supports

benchmarking and improvement of the energy efficiency of rail vehicles.

This document does not cover the comparison of energy consumption with other modes of

transportation, or even for comparison between diesel and electric traction, covering only the energy

consumption of the railway rolling stock itself.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

EN 13129:2016, Railway applications – Air conditioning for main line rolling stock – Comfort

parameters and type tests
EN 15663:2017+A1:2018, Railway applications – Vehicle reference masses
EN 50163:2004, Railway applications – Supply voltages of traction systems

EN 50388:2012, Railway Applications – Power supply and rolling stock – Technical criteria for the

coordination between power supply (substation) and rolling stock to achieve interoperability

EN 50463-1:2017, Railway applications – Energy measurement on board trains – Part 1: General

EN 50463-2:2017, Railway applications – Energy measurement on board trains – Part 2: Energy

measuring

UIC leaflet 552, Electrical power supply for trains – Standard technical characteristics of the train line

(10th edition, June 2005)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

NOTE When possible, the following definitions have been taken from the relevant chapters of the

International Electrotechnical Vocabulary (IEV), IEC 60050. In such cases, the appropriate IEV reference is given.

Certain new definitions or modifications of IEV definitions have been added in this standard in order to facilitate

---------------------- Page: 8 ----------------------
SIST EN 50591:2020
EN 50591:2019

understanding. Expression of the performance of electrical and electronic measuring equipment has been taken

from EN 60359:2002.
3.1.1
comfort systems

all equipment consuming energy for passenger and crew comfort belonging neither to the traction

equipment nor to traction auxiliaries, mainly for the provision of a comfortable environment (for

example lighting, heating, air conditioning, toilets, information and entertainment systems, laptop

supplies)

Note 1 to entry: Comfort systems are split in two groups for use in this standard: Heating, Ventilation and Air

Conditioning (HVAC) and Other comfort functions.
3.1.2
consist

single vehicle or a group of vehicles which are not separated during normal operation

Note 1 to entry: A consist can contain no, one or several consist networks.
[SOURCE: IEC 60050-811:2017, 811-37-20]
3.1.3
contact line

conductor system for supplying electric energy to vehicles through current-collecting equipment

[SOURCE: IEC 60050-811:2017, 811-33-01, modified – the Note 1 to entry has been omitted.]

3.1.4
electric traction system

railway electric distribution network (infrastructure) used to provide energy for rolling stock

[SOURCE: IEC 60050-811:2017, 811-36-21, modified – “(infrastructure)” has been added and the

Note 1 to entry has been omitted.]
3.1.5
energy storage system
ESS

physical system which is comprised of energy storage technologies such as batteries, double-layer

capacitors, flywheel, etc. and other equipment to connect the storage technologies to traction

equipment, including control, cooling and monitoring systems
3.1.6
heating, ventilation and air conditioning
HVAC
system to provide heating, ventilation and air conditioning for comfort
3.1.7
infrastructure

fixed installations of the railway system (for example tracks, power supply, signalling, communication)

3.1.8
net energy

difference between the energy taken (consumed) from the contact line, fuel tank by the traction unit,

and the energy fed back (regenerated) into the contact line by the traction unit
---------------------- Page: 9 ----------------------
SIST EN 50591:2020
EN 50591:2019
3.1.9
primary power source

subsystem in a hybrid system the primary purpose of which is to supply energy to other subsystems in

the hybrid system by either consuming the fuel stored on-board or taking in energy from external

source
3.1.10
regenerative braking

braking in which the energy produced by the motors is fed into the line or used by on-board devices

[SOURCE: IEC 60050-811:2017, 811-06-25, modified – “electro-dynamic” and “contact” have been

removed, “into energy storage” has been replaced with “or used by”, and the Note 1 to entry has been

omitted.]
3.1.11
rolling stock
all vehicles with or without motors

Note 1 to entry: Examples of vehicles include a locomotive, a coach and a wagon.

[SOURCE: IEC 60050-811:2017, 811-02-01]
3.1.12
service profile

outline of the expected range and variation in the mission with respect to parameters such as time,

loading, speed, distance, stops, tunnels, etc., in the commercial exploitation of the train

3.1.13
single-train run

run of one train over a part of the infrastructure, without inclusion of effects of other trains

3.1.14
state of energy
SoE

remaining energy to be discharged, normally expressed as a percentage of full energy

[SOURCE: EN 62864-1:2016, 3.1.14, modified – the end of the definition “as expressed in relevant

standards” has been removed and the Note 1 to entry has been omitted.]
3.1.15
traction auxiliaries

equipment needed to operate the traction equipment and the train in normal operation mode, but not

producing tractive or dynamic braking efforts themselves (for example cooling fans, oil and water

pumps, compressor, air supply for brakes, HVAC for the leading driver’s cabin, train control and

management system and signalling equipment)
3.1.16
traction equipment

equipment on-board of the train directly needed to produce tractive or dynamic braking effort (for

example transformers, converters, motors, gearboxes, internal combustion engines, fuel cells, energy

storage systems)
3.1.17
traction unit
locomotive, motor coach or train-unit
[SOURCE: IEC 60050-811:2017, 811-02-04]
---------------------- Page: 10 ----------------------
SIST EN 50591:2020
EN 50591:2019
3.1.18
train
combination of rolling stock coupled together

[SOURCE: IEC 60050-811:2017, 811-01-08, modified – the Note 1 to entry has been omitted.]

3.1.19
user-defined service profile

service profile which is defined by the user for the comparison of the energy consumption of trains

Note 1 to entry: It is also intended for the comparison of simulations and real tests of the energy consumption of

trains on an existing infrastructure.
3.2 Abbreviations
For the purposes of this document, the following abbreviations apply.
AC Alternating Current
DC Direct Current
ESS Energy Storage System
HVAC Heating, Ventilation and Air Conditioning System
LCC Life Cycle Cost
SoE State of Energy
UIC Union Internationale des Chemins de Fer
4 General

Energy is an integral quantity. This means that the cumulated energy is the decisive factor. Realistic

train operation always takes place under the constraints of infrastructure and operational

requirements.
The following train modes are used in this standard:
— In-service with commercial operation mode:

This mode covers the normal operation of a train, including several passenger load cases or a

locomotive hauling a consist of freight wagons. The train is moving or is stationary and the HVAC

system is running in its normal operation mode.
— In-service without commercial operation mode:

In this mode a passenger train is stationary, the HVAC system is in operation as for commercial

operation but without passengers in the train. This situation occurs frequently, for example when

the train is waiting between two commercial runs.
— Parking mode:

A train is in parking mode when it is stationary in depots, with the power supply active, without

staff or passengers being on board. Usually, the HVAC system runs with reduced settings for

temperature and airflow.

Other train modes such as empty carriage stock movements are not considered in this standard as

they do not contribute significantly to the annual energy consumption.

In this standard the preconditioning (pre-heating or pre-cooling) and cleaning are not considered

separately. The corresponding hours shall be counted in the in-service without commercial operation

mode.
---------------------- Page: 11 ----------------------
SIST EN 50591:2020
EN 50591:2019

The train is switched OFF for remaining time of each day, therefore without any energy consumption.

To keep different characteristics, requirements and procedures manageable, the energy consumption

of the whole train is subdivided into the following three different energy categories, which are handled

separately:

1) Traction and Auxiliaries (in-service with commercial operation mode, without HVAC);

2) Traction and Auxiliaries (in-service without commercial operation mode and in parking mode,

without HVAC);
3) HVAC.

This document incorporates infrastructure and operational conditions into “service profiles” for the

train. The service profile for traction and auxiliaries is assessed via train runs along a line for in service

with commercial operation and stationary at the depot for in service without commercial operation.

HVAC is assessed via an operational point matrix for different operational modes.

The energy consumption over such service profiles shall be used as an input when assessing LCC.

This requires a well-defined and harmonized methodology for specification and verification of the

energy consumption. The selected approach has two steps:

a) simulation of the energy consumption of the train for the three energy categories mentioned

above;
b) verification of the simulation by undertaking measurements.

It is important to note that two different types of service profiles for traction and auxiliaries may be

chosen:

4) user-defined service profiles based on data from a real railway line, normally one or several lines

of the railway network where the train will be operated;
5) standard service profiles, for the following categories:
— suburban (passenger service);
— regional (passenger service);
— intercity (passenger service);
— high speed (passenger service);
