EN 60349-1:2010

Electric traction - Rotating electrical machines for rail and road vehicles - Part 1: Machines other than electronic converter-fed alternating current motors

IEC 60349-1:2010 is applicable to rotating electrical machines, other than electronic converter-fed alternating current motors, forming part of the equipment of electrically propelled rail and road vehicles. The vehicles may obtain power either from an external supply or from an internal source. The object of this standard is to enable the performance of a machine to be confirmed by tests and to provide a basis for assessment of its suitability for a specified duty and for comparison with other machines. The main technical changes with regard to the previous edition are as follows: - the limits valid for traction motors are now directly stated in this standard; - the methods described in the relevant ISO standards are now allowed.

Elektrische Zugförderung - Drehende elektrische Maschinen für Bahn- und Straßenfahrzeuge - Teil 1: Elektrische Maschinen ausgenommen umrichtergespeiste Wechselstrommotoren

Traction électrique - Machines électriques tournantes des véhicules ferroviaires et routiers - Partie 1: Machines autres que les moteurs à courant alternatif alimentés par convertisseur électronique

La CEI 60349-1:2010 est applicable aux machines électriques tournantes, autres que les moteurs à courant alternatif alimentés par convertisseur électronique, qui font partie de l'équipement des véhicules ferroviaires et routiers à propulsion électrique. Les véhicules peuvent être alimentés soit par une source externe, soit par une source interne. L'objet de cette norme est de permettre de confirmer, par des essais, les qualités de fonctionnement d'une machine et de procurer une base d'estimation de son aptitude à fournir un service spécifié et une base de comparaison avec d'autres machines. Les modifications techniques principales par rapport à l'édition précédente sont les suivantes: - les limites valables pour les moteurs de traction sont maintenant directement spécifiées dans cette norme; - les méthodes décrites dans les normes ISO pertinentes sont à présent autorisées.

Električna vleka - Rotacijski električni stroji za železniška in cestna vozila - 1. del: Stroji, razen elektronsko napajanih izmeničnih motorjev (IEC 60349-1:2010)

Ta del IEC 60349 velja za rotacijske električne stroje, razen elektronsko napajanih izmeničnih motorjev, ki tvorijo del opreme električno gnanih železniških in cestnih vozil. Vozila lahko dobijo električno energijo iz zunanjega napajanja ali notranjega vira. Cilj tega standarda je omogočiti, da preskusi potrdijo zmogljivost stroja ter da se zagotovi osnova za ocenjevanje njegove primernosti za določeno funkcijo in za primerjavo z drugimi stroji. Kjer se bodo izvedla nadaljnja preskušanja v skladu z IEC 61377-2, bo morda bolje, da se nekateri tipski in preiskovalni preskusi izvedejo v kombinirani preskusni napravi v izogib podvajanju.

General Information

• Status: Published
• Publication Date: 11-Nov-2010
• Withdrawal Date: 31-Oct-2013
• ICS: 45.060 - Railway rolling stock
• Technical Committee: CLC/TC 9X - Electrical and electronic applications for railways
• Drafting Committee: CLC/SC 9XB - Electromechanical material on board rolling stock
• Parallel Committee: IEC/TC 9 - IEC_TC_9
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 12-Nov-2010
• Completion Date: 12-Nov-2010
• Ref Project: SIST EN 60349-1:2011 - Electric traction - Rotating electrical machines for rail and road vehicles - Part 1: Machines other than electronic convertor-fed alternating current motors (IEC 60349-1:2010)

Relations

• Replaces: EN 60349-1:2000 - Electric traction - Rotating electrical machines for rail and road vehicles - Part 1: Machines other than electronic convertor-fed alternating current motors
• Effective Date: 29-Jan-2023
• Replaces: EN 60349-1:2000/A1:2002 - Electric traction - Rotating electrical machines for rail and road vehicles - Part 1: Machines other than electronic convertor-fed alternating current motors
• Effective Date: 28-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2011
1DGRPHãþD
SIST EN 60349-1:2001
SIST EN 60349-1:2001/A1:2003
(OHNWULþQDYOHND5RWDFLMVNLHOHNWULþQLVWURML]DåHOH]QLãNDLQFHVWQDYR]LODGHO
6WURMLUD]HQHOHNWURQVNRQDSDMDQLKL]PHQLþQLKPRWRUMHY,(&
Electric traction - Rotating electrical machines for rail and road vehicles - Part 1:
Machines other than electronic convertor-fed alternating current motors (IEC 60349-
1:2010)
Elektrische Zugförderung - Drehende elektrische Maschinen für Bahn- und
Straßenfahrzeuge - Teil 1: Elektrische Maschinen ausgenommen umrichtergespeiste
Wechselstrommotoren (IEC 60349-1:2010)
Traction électrique - Machines électriques tournantes des véhicules ferroviaires et
routiers - Partie 1: Machines autres que les moteurs à courant alternatif alimentés par
convertisseur électronique (CEI 60349-1:2010)
Ta slovenski standard je istoveten z: EN 60349-1:2010
ICS:
29.160.01 Rotacijski stroji na splošno Rotating machinery in
general
29.280 (OHNWULþQDYOHþQDRSUHPD Electric traction equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60349-1
NORME EUROPÉENNE
November 2010
EUROPÄISCHE NORM
ICS 45.060 Supersedes EN 60349-1:2000 + A1:2002

English version
Electric traction -
Rotating electrical machines for rail and road vehicles -
Part 1: Machines other than electronic converter-fed alternating current
motors
(IEC 60349-1:2010)
Traction électrique -  Elektrische Zugförderung -
Machines électriques tournantes des Drehende elektrische Maschinen für
véhicules ferroviaires et routiers - Bahn- und Straßenfahrzeuge -
Partie 1: Machines autres que les moteurs Teil 1: Elektrische Maschinen
à courant alternatif alimentés par ausgenommen umrichtergespeiste
convertisseur électronique Wechselstrommotoren
(CEI 60349-1:2010) (IEC 60349-1:2010)

This European Standard was approved by CENELEC on 2010-11-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60349-1:2010 E

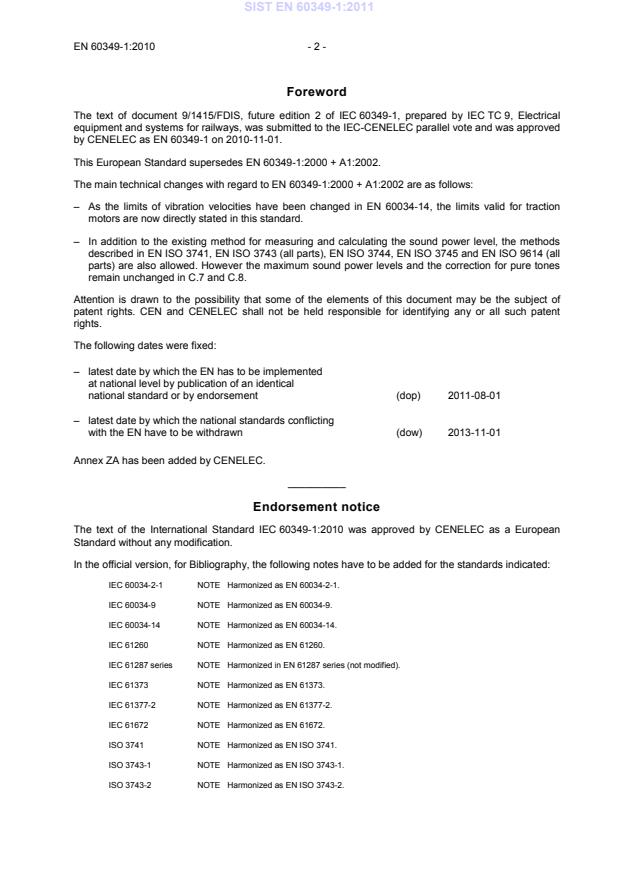

Foreword
The text of document 9/1415/FDIS, future edition 2 of IEC 60349-1, prepared by IEC TC 9, Electrical
equipment and systems for railways, was submitted to the IEC-CENELEC parallel vote and was approved
by CENELEC as EN 60349-1 on 2010-11-01.
This European Standard supersedes EN 60349-1:2000 + A1:2002.
The main technical changes with regard to EN 60349-1:2000 + A1:2002 are as follows:
– As the limits of vibration velocities have been changed in EN 60034-14, the limits valid for traction
motors are now directly stated in this standard.
– In addition to the existing method for measuring and calculating the sound power level, the methods
described in EN ISO 3741, EN ISO 3743 (all parts), EN ISO 3744, EN ISO 3745 and EN ISO 9614 (all
parts) are also allowed. However the maximum sound power levels and the correction for pure tones
remain unchanged in C.7 and C.8.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-08-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-11-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60349-1:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60034-2-1 NOTE  Harmonized as EN 60034-2-1.
IEC 60034-9 NOTE  Harmonized as EN 60034-9.
IEC 60034-14 NOTE  Harmonized as EN 60034-14.
IEC 61260 NOTE  Harmonized as EN 61260.
IEC 61287 series NOTE  Harmonized in EN 61287 series (not modified).
IEC 61373 NOTE  Harmonized as EN 61373.
IEC 61377-2 NOTE  Harmonized as EN 61377-2.
IEC 61672 NOTE  Harmonized as EN 61672.
ISO 3741 NOTE  Harmonized as EN ISO 3741.
ISO 3743-1 NOTE  Harmonized as EN ISO 3743-1.
ISO 3743-2 NOTE  Harmonized as EN ISO 3743-2.

- 3 - EN 60349-1:2010
ISO 3744 NOTE  Harmonized as EN ISO 3744.
ISO 3745 NOTE  Harmonized as EN ISO 3745.
ISO 3746 NOTE  Harmonized as EN ISO 3746.
ISO 3747 NOTE  Harmonized as EN ISO 3747.
ISO 9614-1 NOTE  Harmonized as EN ISO 9614-1.
ISO 9614-2 NOTE  Harmonized as EN ISO 9614-2.
__________
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60034-1 (mod) - Rotating electrical machines - EN 60034-1 -
Part 1: Rating and performance

IEC 60034-8 - Rotating electrical machines - EN 60034-8 -
Part 8: Terminal markings and direction of
rotation
IEC 60085 - Electrical insulation - Thermal EN 60085 -
evaluation and designation
IEC 60638 - Criteria for assessing and coding of the - -
commutation of rotating electrical machines
for traction
IEC 62498-1 - Railway applications - Environmental - -
conditions for equipment -
Part 1: Equipment on board rolling stock

IEC 60349-1 ®
Edition 2.0 2010-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric traction – Rotating electrical machines for rail and road vehicles –
Part 1: Machines other than electronic converter-fed alternating current motors

Traction électrique – Machines électriques tournantes des véhicules ferroviaires
et routiers –
Partie 1: Machines autres que les moteurs à courant alternatif alimentés par
convertisseur électronique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
XB
CODE PRIX
ICS 45.060 ISBN 978-2-88912-182-3
– 2 – 60349-1 © IEC:2010
CONTENTS
FOREWORD.5
1 Scope and object.7
2 Normative references .8
3 Terms and definitions .8
4 Environmental conditions.13
5 Characteristics .13
5.1 General .13
5.2 Reference temperature.13
5.3 Efficiency characteristics .14
5.4 Commutator type traction motor characteristics .14
5.5 Main generator characteristics.14
5.6 Auxiliary motor characteristics.15
5.7 Auxiliary generator characteristics.15
5.8 Auxiliary motor-generator set and rotary converter characteristics.15
6 Marking .15
6.1 Nameplate.15
6.2 Terminal and lead markings .16
7 Test categories and summary of tests .16
7.1 Test categories .16
7.1.1 General .16
7.1.2 Type tests .16
7.1.3 Routine tests .16
7.1.4 Investigation tests .16
7.2 Summary of tests .17
8 Type tests .19
8.1 Temperature-rise tests .19
8.1.1 General .19
8.1.2 Ventilation during temperature-rise tests .19
8.1.3 Judgement of results .19
8.1.4 Limits of temperature rise .20
8.1.5 Short-time overload temperature-rise test.20
8.2 Characteristic tests and tolerances.21
8.2.1 General .21
8.2.2 Commutator type traction motors .21
8.2.3 Main generators (refer to Figure 2) .22
8.2.4 Auxiliary motors.23
8.2.5 Auxiliary generators.23
8.2.6 Auxiliary motor-generator sets and rotary converters .23
8.3 Commutation tests .24
8.3.1 General .24
8.3.2 Traction motors (refer to Figure 1) .24
8.3.3 Main generators (refer to Figure 2) .25
8.3.4 Auxiliary motors and generators and motor-generator sets .25
8.4 Transient tests .26
8.4.1 General .26

60349-1 © IEC:2010 – 3 –
8.4.2 Traction motors and motors of main motor-generator sets .26
8.4.3 Auxiliary motors, auxiliary motor-generator sets and auxiliary rotary
converters .26
8.4.4 Voltage jump test on auxiliary motors, auxiliary motor-generator sets
and auxiliary rotary converters.27
8.5 Short-circuit tests on main and auxiliary alternators.27
8.6 Starting tests.27
8.6.1 General .27
8.6.2 Single-phase a.c. locomotive motors .28
8.6.3 Main motor-generator sets.28
8.6.4 Auxiliary motors, auxiliary mot
...
