EN IEC 61753-086-02:2025
(Main)Fibre optic interconnecting devices and passive components - Performance standard - Part 086-02: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm downstream and 1 310 nm upstream WWDM devices for category C - Indoor controlled environment
Fibre optic interconnecting devices and passive components - Performance standard - Part 086-02: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm downstream and 1 310 nm upstream WWDM devices for category C - Indoor controlled environment
IEC 61753-086-02:2025 contains the minimum initial performance, test and measurement requirements and severities which a fibre optic pigtailed 1 490/1 550 nm downstream and 1 310 nm upstream wide wavelength division multiplexing (WWDM) passive optical network (PON) device will satisfy in order to be categorized as meeting the requirements of category C (indoor controlled environment), as defined in IEC 61753-1:2018, Annex A. WWDM is defined in IEC 62074-1. Annex B gives general information for these PON WWDM devices. This first edition cancels and replaces the first edition of IEC 61753-086-2 published in 2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) Change of test conditions harmonizing with IEC 61753-1: 2018.
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil 086-2: Nicht mit Steckverbindern versehene bidirektionale 1 490/1 550-nm-downstream-1 310-nm-upstream-Einmoden-WWDM-Bauteile für die Kategorie C - Kontrollierte Innenraumumgebung
Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance – Partie 086-02: Dispositifs WWDM unimodaux non connectorisés bidirectionnels 1 490 nm/1 550 nm en voie descendante et 1 310 nm en voie montante pour la catégorie C – Environnement intérieur contrôlé
IEC 61753-086-02:2025 La présente partie de l’IEC 61753 contient les exigences minimales initiales de performance, d’essai et de mesure, ainsi que les sévérités auxquelles un dispositif de réseau optique passif (PON, Passive Optical Network) de multiplexage par répartition en longueur d'onde large (WWDM, Wide Wavelength Division Multiplexing) 1 490/1 550 nm en voie descendante et 1 310 nm en voie montante équipé de fibres amorces satisfait pour être classé conforme aux exigences de la catégorie C (environnement intérieur contrôlé), selon la définition donnée à l’Annexe A de l’IEC 61753-1:2018. Le WWDM est défini dans l’IEC 62074-1. L'Annexe B donne des informations générales pour ces dispositifs PON WWDM. Cette première édition annule et remplace la première édition de l'IEC 61753-086-2 parue en 2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) Modification des conditions d'essai pour harmonisation avec l’IEC 61753-1: 2018.
Optični spojni elementi in pasivne komponente - Tehnični standard - 086-02. del: Elementi WWDM brez konektorjev z enorodovnimi vlakni, velikosti 1490/1550 nm za prenos navzdol (dolvodni) in 1310 nm za prenos navzgor (gorvodni) za kategorijo C - Notranje nadzorovano okolje (IEC 61753-086-02:2025)
General Information
Relations
Standards Content (Sample)

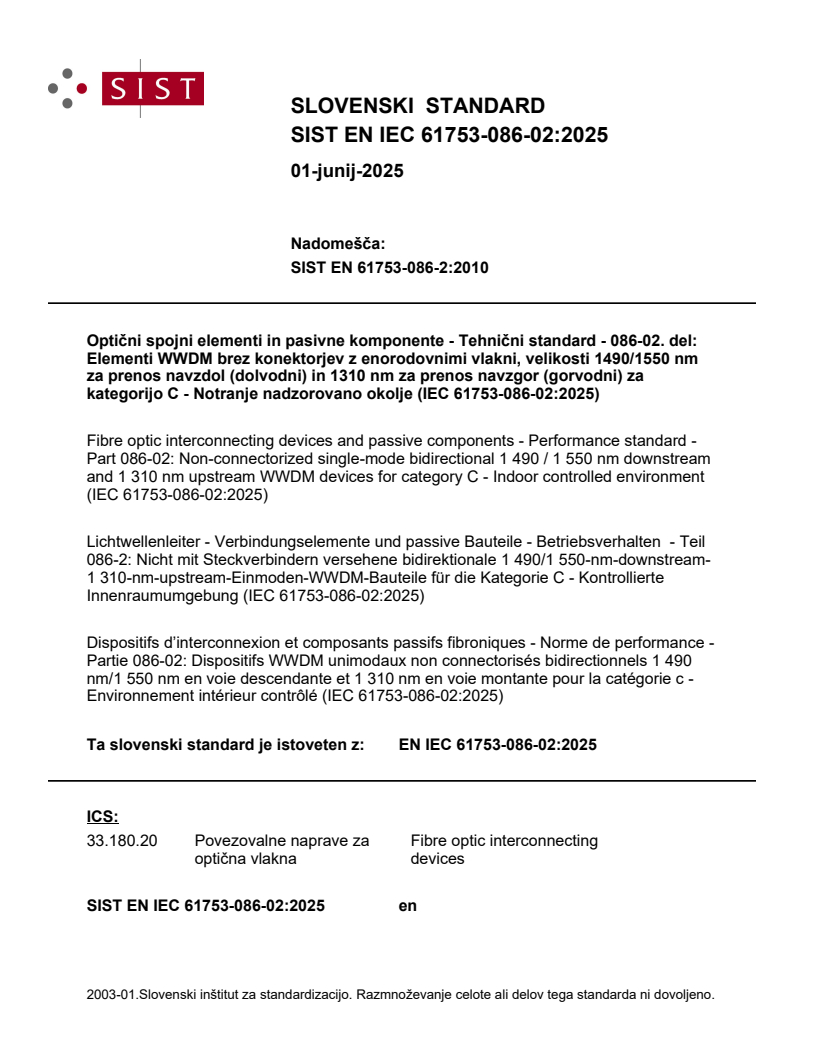

SLOVENSKI STANDARD
01-junij-2025
Nadomešča:
SIST EN 61753-086-2:2010
Optični spojni elementi in pasivne komponente - Tehnični standard - 086-02. del:
Elementi WWDM brez konektorjev z enorodovnimi vlakni, velikosti 1490/1550 nm
za prenos navzdol (dolvodni) in 1310 nm za prenos navzgor (gorvodni) za
kategorijo C - Notranje nadzorovano okolje (IEC 61753-086-02:2025)
Fibre optic interconnecting devices and passive components - Performance standard -
Part 086-02: Non-connectorized single-mode bidirectional 1 490 / 1 550 nm downstream
and 1 310 nm upstream WWDM devices for category C - Indoor controlled environment
(IEC 61753-086-02:2025)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
086-2: Nicht mit Steckverbindern versehene bidirektionale 1 490/1 550-nm-downstream-
1 310-nm-upstream-Einmoden-WWDM-Bauteile für die Kategorie C - Kontrollierte
Innenraumumgebung (IEC 61753-086-02:2025)
Dispositifs d’interconnexion et composants passifs fibroniques - Norme de performance -
Partie 086-02: Dispositifs WWDM unimodaux non connectorisés bidirectionnels 1 490
nm/1 550 nm en voie descendante et 1 310 nm en voie montante pour la catégorie c -
Environnement intérieur contrôlé (IEC 61753-086-02:2025)
Ta slovenski standard je istoveten z: EN IEC 61753-086-02:2025
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

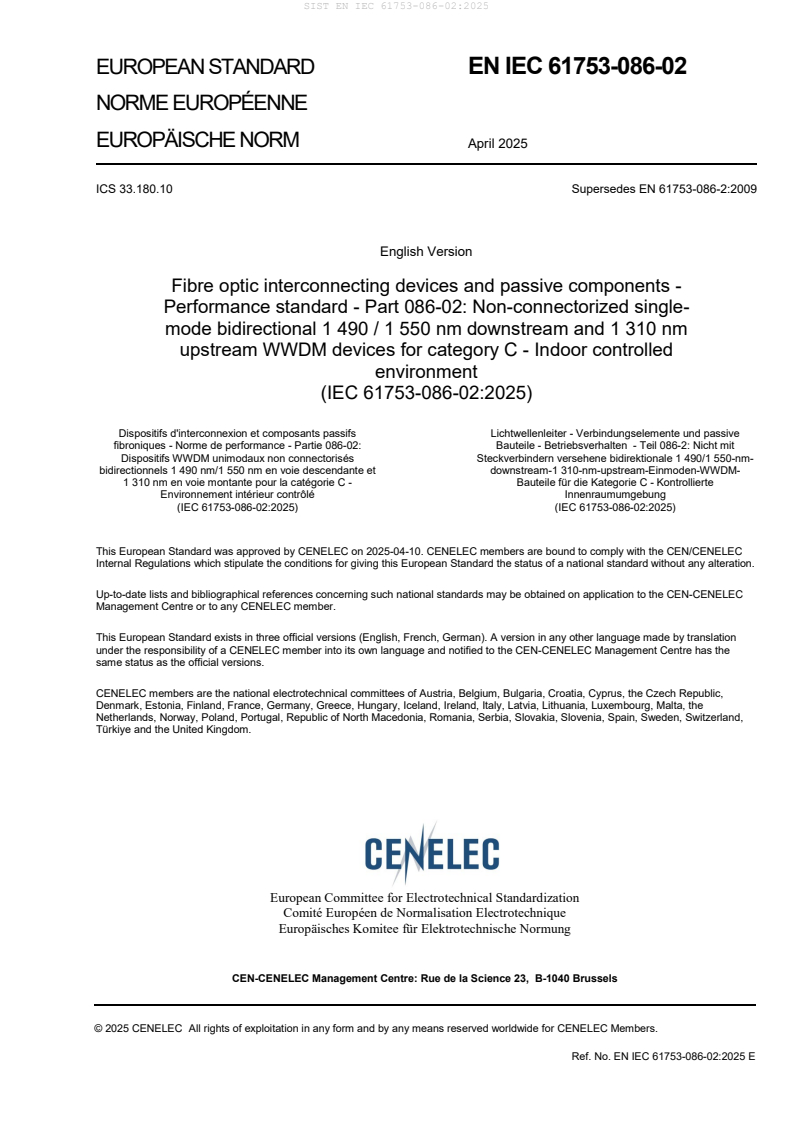

EUROPEAN STANDARD EN IEC 61753-086-02
NORME EUROPÉENNE
EUROPÄISCHE NORM April 2025
ICS 33.180.10 Supersedes EN 61753-086-2:2009
English Version
Fibre optic interconnecting devices and passive components -
Performance standard - Part 086-02: Non-connectorized single-
mode bidirectional 1 490 / 1 550 nm downstream and 1 310 nm
upstream WWDM devices for category C - Indoor controlled
environment
(IEC 61753-086-02:2025)
Dispositifs d'interconnexion et composants passifs Lichtwellenleiter - Verbindungselemente und passive
fibroniques - Norme de performance - Partie 086-02: Bauteile - Betriebsverhalten - Teil 086-2: Nicht mit
Dispositifs WWDM unimodaux non connectorisés Steckverbindern versehene bidirektionale 1 490/1 550-nm-
bidirectionnels 1 490 nm/1 550 nm en voie descendante et downstream-1 310-nm-upstream-Einmoden-WWDM-
1 310 nm en voie montante pour la catégorie C - Bauteile für die Kategorie C - Kontrollierte
Environnement intérieur contrôlé Innenraumumgebung
(IEC 61753-086-02:2025) (IEC 61753-086-02:2025)
This European Standard was approved by CENELEC on 2025-04-10. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61753-086-02:2025 E
European foreword
The text of document 86B/4998/FDIS, future edition 1 of IEC 61753-086-02, prepared by SC 86B
"Fibre optic interconnecting devices and passive components" of IEC/TC 86 "Fibre optics" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61753-086-
02:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-04-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-04-30
document have to be withdrawn
This document supersedes EN 61753-086-2:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61753-086-02:2025 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60793-2-50 - Optical fibres - Part 2-50: Product EN IEC 60793-2-50 -
specifications - Sectional specification for
class B single-mode fibres
IEC 60794-2-50 - Optical fibre cables - Part 2-50: Indoor EN IEC 60794-2-50 -
cables - Family specification for simplex
and duplex cables for use in terminated
cable assemblies
IEC 61300 series Fibre optic interconnecting devices and EN IEC 61300 series
passive components - Basic test and
measurement procedures
IEC 61300-1 - Fibre optic interconnecting devices and EN IEC 61300-1 -
passive components - Basic test and
measurement procedures - Part 1: General
and guidance
IEC 61300-2-1 - Fibre optic interconnecting devices and EN IEC 61300-2-1 -
passive components - Basic test and
measurement procedures - Part 2-1: Tests -
Vibration (sinusoidal)
IEC 61300-2-4 - Fibre optic interconnecting devices and EN IEC 61300-2-4 -
passive components - Basic test and
measurement procedures - Part 2-4: Tests -
Fibre or cable retention
IEC 61300-2-5 - Fibre optic interconnecting devices and EN IEC 61300-2-5 -
passive components - Basic test and
measurement procedures - Part 2-5: Tests -
Torsion
IEC 61300-2-9 - Fibre optic interconnecting devices and EN 61300-2-9 -
passive components - Basic test and
measurement procedures - Part 2-9: Tests -
Shock
IEC 61300-2-14 - Fibre optic interconnecting devices and EN IEC 61300-2-14 -
passive components - Basic test and
measurement procedures - Part 2-14: Tests
- High optical power
IEC 61300-2-17 - Fibre optic interconnecting devices and EN 61300-2-17 -
passive components - Basic test and
measurement procedures - Part 2-17: Tests
- Cold
IEC 61300-2-18 - Fibre optic interconnecting devices and EN IEC 61300-2-18 -
passive components - Basic test and
measurement procedures - Part 2-18: Tests
- Dry heat
IEC 61300-2-19 - Fibre optic interconnecting devices and EN 61300-2-19 -
passive components - Basic test and
measurement procedures - Part 2-19: Tests
- Damp heat (steady state)
IEC 61300-2-22 - Fibre optic interconnecting devices and EN IEC 61300-2-22 -
passive components - Basic test and
measurement procedures - Part 2-22: Tests
- Change of temperature
IEC 61300-2-42 - Fibre optic interconnecting devices and EN 61300-2-42 -
passive components - Basic test and
measurement procedures - Part 2-42: Tests
- Static side load for strain relief
IEC 61300-2-44 - Fibre optic interconnecting devices and EN IEC 61300-2-44 -
passive components - Basic test and
measurement procedures - Part 2-44: Tests
- Flexing of the strain relief of fibre optic
devices and components
IEC 61300-3-2 - Fibre optic interconnecting devices and EN 61300-3-2 -
passive components - Basic test and
measurement procedures - Part 3-2:
Examination and measurements -
Polarization dependent loss in a single-
mode fibre optic device
IEC 61300-3-6 - Fibre optic interconnecting devices and EN 61300-3-6 -
passive components - Basic test and
measurement procedures - Part 3-6:
Examinations and measurements - Return
loss
IEC 61300-3-7 - Fibre optic interconnecting devices and EN IEC 61300-3-7 -
passive components - Basic test and
measurement procedures - Part 3-7:
Examinations and measurements -
Wavelength dependence of attenuation and
return loss of single mode components
IEC 61300-3-20 - Fibre optic interconnecting devices and EN 61300-3-20 -
passive components - Basic test and
measurement procedures - Part 3-20:
Examinations and measurements -
Directivity of fibre optic branching devices
IEC 61300-3-29 - Fibre optic interconnecting devices and EN 61300-3-29 -
passive components - Basic test and
measurement procedures - Part 3-29:
Examinations and measurements - Spectral
transfer characteristics of DWDM devices
IEC 61753-1 2018 Fibre optic interconnecting devices and EN IEC 61753-1 2018
passive components - Performance
standard - Part 1: General and guidance
IEC 62074-1 - Fibre optic interconnecting devices and EN 62074-1 -
passive components - Fibre optic WDM
devices - Part 1: Generic specification
IEC/TS 62627-09 - Fibre optic interconnecting devices and - -
passive components - Vocabulary for
passive optical devices
IEC 61753-086-02 ®
Edition 1.0 2025-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 086-02: Non-connectorized single-mode bidirectional 1490 / 1550 nm
downstream and 1310 nm upstream WWDM devices for category C – Indoor
controlled environment
Dispositifs d'interconnexion et composants passifs fibroniques - Norme de
performance –
Partie 086-02: Dispositifs WWDM unimodaux non connectorisés bidirectionnels
1 490 nm/1 550 nm en voie descendante et 1 310 nm en voie montante pour la
catégorie C – Environnement intérieur contrôlé
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8327-0280-2
– 2 – IEC 61753-086-02:2025 © IEC 2025
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Test . 7
5 Test report . 7
6 Performance requirements . 7
6.1 Reference components. 7
6.2 Dimensions . 7
6.3 Sample size . 7
6.4 Test details and requirements . 8
Annex A (normative) Sample size . 14
Annex B (informative) General information for 1 490/1 550 nm downstream and
1 310 nm upstream PON WWDM device . 15
Bibliography . 16
Figure B.1 – Example of 1 490/1 550 nm downstream and 1 310 nm upstream WWDM
at central office and customer side . 15
Figure B.2 – Example of 1 490/1 550 nm downstream and 1 310 nm upstream WWDM
at central office side . 15
Table 1 – Single-mode spectral bands . 7
Table 2 – Test details and requirements for category C .
...
