EN 50131-2-8:2025
(Main)Alarm systems - Intrusion and hold-up systems - Part 2-8: Requirements for shock detectors
Alarm systems - Intrusion and hold-up systems - Part 2-8: Requirements for shock detectors
This document is for shock detectors installed in buildings to detect the shock or series of shocks due to a forcible attack through a physical barrier (for example doors or windows). It specifies four security grades 1-4 (in accordance with EN 50131 1), specific or non-specific wired or wire-free shock detectors and uses environmental Classes I-IV (in accordance with EN 50130 5). This document does not include requirements for detectors intended to detect penetration attacks on safes and vaults for example by drilling, cutting or thermal lance. This document does not include requirements for shock detectors intended for use outdoors. A shock detector needs to fulfil all the requirements of the specified grade. Functions additional to the mandatory functions specified in this document can be included in the shock detector, providing they do not adversely influence the correct operation of the mandatory functions. This document does not deal with requirements for compliance with regulatory directives, such as EMC-directive, low-voltage directive, etc., except that it specifies the equipment operating conditions for EMC- susceptibility testing as required by EN 50130 4. This document does not apply to system interconnections.
Alarmanlagen - Einbruch- und Überfallmeldeanlagen – Teil 2-8: Anforderungen an Erschütterungsmelder
Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et les hold-up - Partie 2-8: Détecteurs d'intrusion - Détecteurs de chocs
Le présent document concerne les détecteurs de chocs installés dans les bâtiments afin de détecter le choc ou la succession de chocs résultant d’une attaque violente contre une barrière matérielle (par exemple, les portes ou les fenêtres). Il spécifie quatre grades de sécurité allant de 1 à 4 (conformément à l’EN 50131 1), des détecteurs de chocs filaires ou sans fil spécifiques ou non spécifiques, et il utilise des classes d’environnement allant de I à IV (conformément à l’EN 50130 5). Le présent document ne contient pas les exigences relatives aux détecteurs destinés à détecter les attaques pour accéder aux coffres-forts et aux chambres fortes, par exemple par perçage, découpe ou en utilisant une lance thermique. Le présent document ne comprend pas les exigences relatives aux détecteurs de chocs destinés à être utilisés à l’extérieur. Il est nécessaire qu’un détecteur de chocs satisfasse à toutes les exigences du grade spécifié. Des fonctions complémentaires aux fonctions obligatoires spécifiées dans le présent document peuvent être incluses dans le détecteur de chocs, sous réserve qu’elles ne compromettent pas la bonne marche des fonctions obligatoires. Le présent document ne traite pas des exigences de conformité aux directives réglementaires, telles que la directive CEM, la directive Basse Tension, etc., mais il spécifie les conditions de fonctionnement du matériel pour les essais de susceptibilité CEM, comme cela est exigé par l’EN 50130 4. Le présent document ne s’applique pas aux liaisons entre systèmes.
Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-8. del: Javljalniki vloma - Javljalniki udara
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
oSIST prEN 50131-2-8:2024
01-september-2024
Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-8. del: Javljalniki vloma -
Javljalniki udara
Alarm systems - Intrusion and hold-up systems - Part 2-8: Intrusion detectors - Shock
detectors
Alarmanlagen - Einbruchmeldeanlagen - Teil 2-8: Anforderungen an
Erschütterungsmelder
Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et les hold-up - Partie 2-8:
Détecteurs d'intrusion - Détecteurs de chocs
Ta slovenski standard je istoveten z: prEN 50131-2-8
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
oSIST prEN 50131-2-8:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN 50131-2-8:2024
oSIST prEN 50131-2-8:2024
EUROPEAN STANDARD DRAFT
prEN 50131-2-8
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2024
ICS 13.320 Will supersede EN 50131-2-8:2016
English Version
Alarm systems - Intrusion and hold-up systems - Part 2-8:
Intrusion detectors - Shock detectors
Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et Alarmanlagen - Einbruchmeldeanlagen - Teil 2-8:
les hold-up - Partie 2-8: Détecteurs d'intrusion - Détecteurs Anforderungen an Erschütterungsmelder
de chocs
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2024-10-11.
It has been drawn up by CLC/TC 79.
If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 76632 Ref. No. prEN 50131-2-8 E
oSIST prEN 50131-2-8:2024
prEN 50131-2-8:2024 (E)

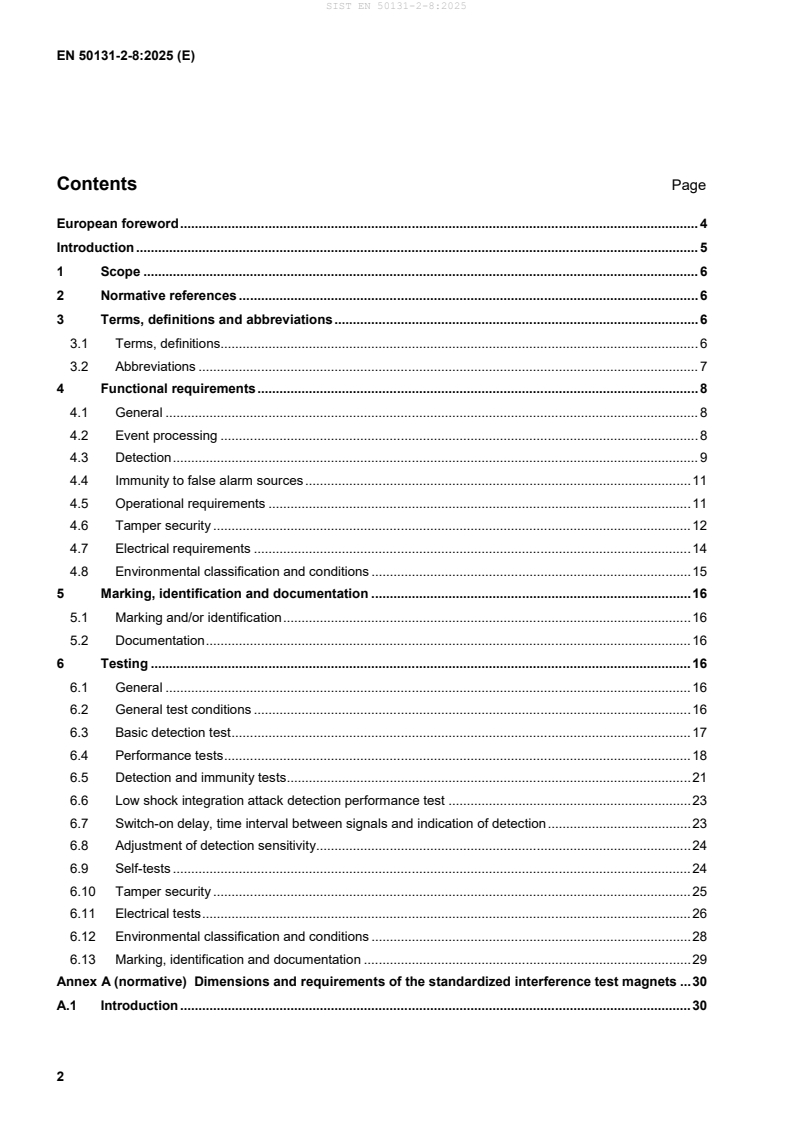

1 Contents Page
2 European foreword . 4
3 Introduction . 5
4 1 Scope . 6
5 2 Normative references . 6
6 3 Terms, definitions and abbreviations . 6
7 3.1 Terms, definitions. 6
8 3.2 Abbreviations . 7
9 4 Functional requirements . 7
10 4.1 General . 7
11 4.2 Event Processing . 8
12 4.3 Detection . 9
13 4.4 Immunity to false alarm sources . 11
14 4.5 Operational requirements . 11
15 4.6 Tamper security . 12
16 4.7 Electrical requirements . 14
17 4.8 Environmental classification and conditions . 15
18 5 Marking, identification and documentation . 16
19 5.1 Marking and/or identification . 16
20 5.2 Documentation . 16
21 6 Testing . 16
22 6.1 General . 16
23 6.2 General test conditions . 16
24 6.3 Basic Detection Test . 17
25 6.4 Performance tests . 18
26 6.5 Detection and immunity tests . 20
27 6.6 Low shock integration attack detection performance test . 22
28 6.7 Switch-on delay, time interval between signals and indication of detection . 23
29 6.8 Adjustment of detection sensitivity . 23
30 6.9 Self-tests . 23
31 6.10 Tamper security . 24
32 6.11 Electrical tests . 26
33 6.12 Environmental classification and conditions . 27
oSIST prEN 50131-2-8:2024
prEN 50131-2-8:2024 (E)
34 6.13 Marking, identification and documentation . 29
35 Annex A (normative) Dimensions and requirements of the standardized interference test magnets . 30
36 A.1 Normative references . 30
37 A.2 Requirements . 30
38 Annex B (normative) General Testing Matrix . 33
39 Annex C (informative) Example list of small tools . 35
40 Annex D (normative) Mounting substrate . 36
41 Annex E (normative) Verification of detection performance and false alarm immunity . 37
42 Annex F (informative) Low shock integration attack test carousel . 40
43 Annex G (normative) Immunity to small objects hitting the mounting surface . 41
44 Bibliography . 43
oSIST prEN 50131-2-8:2024
prEN 50131-2-8:2024 (E)
46 European foreword
47 This document (prEN 50131-2-8) has been prepared by Technical Committee CLC/TC 79 “Alarm systems”, the
48 secretariat of which is held by BSI.
49 This document is currently submitted to the Enquiry/ Primary Questionnaire.
50 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
51 This document will supersede EN 50131-2-8:2016 and all of its amendments and corrigenda (if any).
52 prEN 50131-2-8:2024 includes the following significant technical changes with respect to EN 50131-2-8:2016 :
53 — Reworked the document structure in general;
54 — Reworked the requirements and test sections in general;
55 — Redefined the detection performance requirements and test methods;
56 — Redefined the immunity requirements and test methods;
57 — Clarified wording wherever necessary to avoid misunderstanding and to optimize for reading.
oSIST prEN 50131-2-8:2024
prEN 50131-2-8:2024 (E)
58 Introduction
59 This document is a European Standard for shock detectors used as part of an Intrusion and Hold-up Alarm
60 System (I&HAS) installed in buildings. It includes four security grades and four environmental classes.
61 The purpose of a shock detector is to detect the shock or series of shocks due to a forcible attack through a
62 physical barrier (for example doors or windows).
63 The shock detector must provide the necessary range of signals or messages to be used by the rest of the
64 I&HAS.
65 The number and scope of these signals or messages will be more comprehensive for systems that are specified
66 at the higher Grades.
67 This document is only concerned with the requirements and tests for the shock detectors. Other types of
68 detectors are covered by other documents identified as in the EN 50131-2 series.
oSIST prEN 50131-2-8:2024
prEN 50131-2-8:2024 (E)
69 1 Scope
70 This document is for Shock Detectors installed in buildings to detect the shock or series of shocks due to a
71 forcible attack through a physical barrier (for example doors or windows).
72 It specifies four security Grades 1-4 (in accordance with EN 50131-1), specific or non-specific wired or wire-free
73 shock detectors and uses environmental Classes I-IV (in accordance with EN 50130-5).
74 This document does not include requirements for detectors intended to detect penetration attacks on safes and
75 vaults for example by drilling, cutting or thermal lance.
76 This document does not include requirements for shock detectors intended for use outdoors.
77 A shock detector needs to fulfil all the requirements of the specified grade.
78 Functions additional to the mandatory functions specified in this document can be included in the shock detector,
79 providing they do not adversely influence the correct operation of the mandatory functions.
80 This document does not deal with requirements for compliance with regulatory directives, such as EMC-
81 directive, low-voltage directive, etc., except that it specifies the equipment operating conditions for EMC-
82 susceptibility testing as required by EN 50130-4.
83 This document does not apply to system interconnections.
84 2 Normative references
85 The following documents, in whole or in part, are normatively referenced in this document and are indispensable
86 for its application. For dated references, only the edition cited applies. For undated references, the latest edition
87 of the referenced document (including any amendments) applies.
88 EN 50130-4, Alarm systems - Part 4: Electromagnetic compatibility - Product family standard: Immunity
89 requirements for components of fire, intruder, hold up, CCTV, access control and social alarm systems
90 EN 50130-5, Alarm systems - Part 5: Environmental test methods
91 EN 50131-1, Alarm systems - Intrusion and hold-up systems - Part 1: System requirements
92 EN 50131-6, Alarm systems - Intrusion and hold-up systems - Part 6: Power supplies
93 3 Terms, definitions and abbreviations
94 For the purposes of this document, the terms, definitions and abbreviations given in EN 50131-1 and the
95 following apply.
96 3.1 Terms, definitions
97 3.1.1
98 analyser
99 physical unit or processing capabilities used to process the signal(s) produc
...
