Overview - EN 61800-5-1:2007 (Adjustable speed electrical power drive systems)
EN 61800-5-1:2007 is the CLC-adopted European version of IEC 61800-5-1. It defines safety requirements - electrical, thermal and energy - for adjustable speed electrical power drive systems (PDS) and their elements (power conversion, drive control and motor(s)). The standard applies to:
- d.c. drive systems connected to line voltages up to 1 kV a.c. (50/60 Hz), and
- a.c. drive systems with converter input and output voltages up to 35 kV (50/60 Hz).
It excludes traction and electric vehicle drives and does not cover the driven machinery except for interface requirements.
Key topics and technical requirements
- Protection against electric shock: definitions, touch voltage/current limits, protective conductor current, protective bonding and earthing requirements (expanded in 4.3.5.3).
- Insulation and clearance/creepage: revised insulation rules (Clause 4.3.6) to include solid insulation, high-frequency insulation requirements (4.3.6.9, Annex E), and overvoltage categories I and II for HV insulation.
- Thermal and energy hazards: design requirements to prevent overheating, energy-related safety measures and safe stopping/energy discharge provisions.
- Test requirements: detailed electrical, thermal and mechanical test procedures (Clause 5), including voltage test procedures that avoid overstressing basic insulation, short-circuit testing for large/high-voltage/one-off PDS, and added climatic and vibration tests (5.2.6).
- Liquid-cooled systems: new requirements for liquid-cooled PDS (4.4.5).
- Information and marking: manufacturer information for selection, installation, commissioning, use and maintenance (Clause 6).
- Updates and guidance: new tables for relevance to PDS/CDM/BDM, a summary of decisive voltage class requirements, addition of informative Annex B on overvoltage category reduction, and guidance on measuring clearances and creepage (Annex C).
Practical applications - who uses this standard
EN 61800-5-1 is essential for:
- Drive system designers and electrical engineers specifying safety-related electrical and thermal protections for VSDs and motor drives.
- Manufacturers of converters, drive controls and motors ensuring product compliance for European markets.
- Test laboratories performing insulation, surge, vibration and short-circuit tests.
- Installation and commissioning engineers, safety assessors and compliance officers preparing technical files and CE marking evidence.
- System integrators who must ensure safe interfaces between drives and driven equipment.
Related standards
Standards commonly referenced alongside EN 61800-5-1 include:
- EN/IEC 61800-1, EN/IEC 61800-2, EN/IEC 61800-4 (other PDS parts)
- IEC/EN 60664 (insulation coordination) and IEC/EN 60664‑4 (high-frequency stress)
- IEC/EN 60204-11 (high-voltage machine safety)
- IEC 60034 series (motors), IEC 60990 (touch current measurement)
EN 61800-5-1 is a practical, prescriptive resource for ensuring electrical, thermal and energy safety of adjustable speed drives in industrial and high-voltage applications.
Frequently Asked Questions
EN 61800-5-1:2007 is a standard published by CLC. Its full title is "Adjustable speed electrical power drive systems - Part 5-1: Safety requirements - Electrical, thermal and energy". This standard covers: It specifies requirements for adjustable speed power drive systems, or their elements, with respect to electrical, thermal and energy safety considerations. It does not cover the driven equipment except for interface requirements. It applies to adjustable speed electric drive systems which include the power conversion, drive control, and motor or motors. Excluded are traction and electric vehicle drives. It applies to d.c. drive systems connected to line voltages up to 1 kV a.c., 50 Hz or 60 Hz and a.c. drive systems with converter input voltages up to 35 kV, 50 Hz or 60 Hz and output voltages up to 35 kV. The major areas of change in this edition are the following: addition of alphabetical Table 1 in Clause 3; addition of Table 2 in 4.1 for relevance to PDS/CDM/BDM; addition of Table 4 summary of decisive voltage class requirements; expansion of subclause on protective bonding (4.3.5.3); clarification of distinction between touch current and protective conductor current; revision of section on insulation (now 4.3.6) to include solid insulation; addition of overvoltage categories I and II to HV insulation voltage; revision of section on Solid insulation (now 4.3.6.8); addition of high-frequency insulation requirements (4.3.6.9, Annex E); addition of requirements for liquid-cooled PDS (4.4.5); addition of climatic and vibration tests (5.2.6); clarification of voltage test procedure to avoid over-stress of basic insulation (5.2.3.2.3); revision of short-circuit test requirement for large, high-voltage and one-off PDS (now 5.2.3.6); addition of informative Annex B for overvoltage category reduction
It specifies requirements for adjustable speed power drive systems, or their elements, with respect to electrical, thermal and energy safety considerations. It does not cover the driven equipment except for interface requirements. It applies to adjustable speed electric drive systems which include the power conversion, drive control, and motor or motors. Excluded are traction and electric vehicle drives. It applies to d.c. drive systems connected to line voltages up to 1 kV a.c., 50 Hz or 60 Hz and a.c. drive systems with converter input voltages up to 35 kV, 50 Hz or 60 Hz and output voltages up to 35 kV. The major areas of change in this edition are the following: addition of alphabetical Table 1 in Clause 3; addition of Table 2 in 4.1 for relevance to PDS/CDM/BDM; addition of Table 4 summary of decisive voltage class requirements; expansion of subclause on protective bonding (4.3.5.3); clarification of distinction between touch current and protective conductor current; revision of section on insulation (now 4.3.6) to include solid insulation; addition of overvoltage categories I and II to HV insulation voltage; revision of section on Solid insulation (now 4.3.6.8); addition of high-frequency insulation requirements (4.3.6.9, Annex E); addition of requirements for liquid-cooled PDS (4.4.5); addition of climatic and vibration tests (5.2.6); clarification of voltage test procedure to avoid over-stress of basic insulation (5.2.3.2.3); revision of short-circuit test requirement for large, high-voltage and one-off PDS (now 5.2.3.6); addition of informative Annex B for overvoltage category reduction
EN 61800-5-1:2007 is classified under the following ICS (International Classification for Standards) categories: 29.130 - Switchgear and controlgear. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 61800-5-1:2007 has the following relationships with other standards: It is inter standard links to EN 61800-5-1:2003, EN IEC 61800-5-1:2023, EN 61800-5-1:2007/A11:2021, EN 61800-5-1:2007/A1:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 61800-5-1:2007 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU, 2014/53/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 61800-5-1:2007 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektrische Leistungsantriebssysteme mit einstellbarer Drehzahl -- Teil 5-1: Anforderungen an die Sicherheit - Elektrische, thermische und energetische AnforderungenEntraînements électriques de puissance à vitesse variable -- Partie 5-1: Exigences de sécurité - Electrique, thermique et énergétiqueAdjustable speed electrical power drive systems -- Part 5-1: Safety requirements - Electrical, thermal and energy29.200QDSDMDQMHRectifiers. Convertors. Stabilized power supply29.160.30MotorjiMotorsICS:Ta slovenski standard je istoveten z:EN 61800-5-1:2007SIST EN 61800-5-1:2008en,fr,de01-januar-2008SIST EN 61800-5-1:2008SLOVENSKI
STANDARDSIST EN 61800-5-1:20041DGRPHãþD
EUROPEAN STANDARD EN 61800-5-1 NORME EUROPÉENNE
EUROPÄISCHE NORM September 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61800-5-1:2007 E
ICS 29.130 Supersedes EN 61800-5-1:2003
English version
Adjustable speed electrical power drive systems -
Part 5-1: Safety requirements -
Electrical, thermal and energy (IEC 61800-5-1:2007)
Entraînements électriques de puissance
à vitesse variable -
Partie 5-1: Exigences de sécurité -
Electrique, thermique et énergétique (CEI 61800-5-1:2007)
Elektrische Leistungsantriebssysteme
mit einstellbarer Drehzahl -
Teil 5-1: Anforderungen
an die Sicherheit -
Elektrische, thermische
und energetische Anforderungen (IEC 61800-5-1:2007)
This European Standard was approved by CENELEC on 2007-08-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
- 2 -

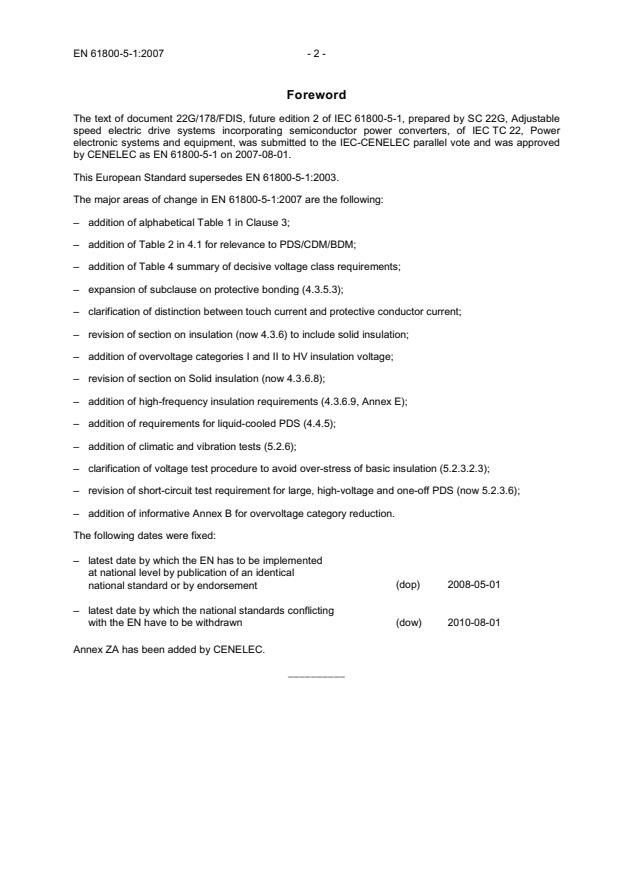

Foreword The text of document 22G/178/FDIS, future edition 2 of IEC 61800-5-1, prepared by SC 22G, Adjustable speed electric drive systems incorporating semiconductor power converters, of IEC TC 22, Power electronic systems and equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61800-5-1 on 2007-08-01. This European Standard supersedes EN 61800-5-1:2003. The major areas of change in EN 61800-5-1:2007 are the following: –
addition of alphabetical Table 1 in Clause 3; –
addition of Table 2 in 4.1 for relevance to PDS/CDM/BDM; –
addition of Table 4 summary of decisive voltage class requirements; –
expansion of subclause on protective bonding (4.3.5.3); –
clarification of distinction between touch current and protective conductor current; –
revision of section on insulation (now 4.3.6) to include solid insulation; –
addition of overvoltage categories I and II to HV insulation voltage; –
revision of section on Solid insulation (now 4.3.6.8); –
addition of high-frequency insulation requirements (4.3.6.9, Annex E); –
addition of requirements for liquid-cooled PDS (4.4.5); –
addition of climatic and vibration tests (5.2.6); –
clarification of voltage test procedure to avoid over-stress of basic insulation (5.2.3.2.3); –
revision of short-circuit test requirement for large, high-voltage and one-off PDS (now 5.2.3.6); –
addition of informative Annex B for overvoltage category reduction. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2008-05-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-08-01 Annex ZA has been added by CENELEC. __________
- 3 - EN 61800-5-1:2007 Endorsement notice The text of the International Standard IEC 61800-5-1:2007 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 60034-9 NOTE
Harmonized as EN 60034-9:2005 (modified). IEC 60071 NOTE
Harmonized in EN 60071 series (not modified). IEC 60071-1 NOTE
Harmonized as EN 60071-1:2006 (not modified). IEC 60071-2 NOTE
Harmonized as EN 60071-2:1997 (not modified). IEC 60146-1-1 NOTE
Harmonized as EN 60146-1-1:1993 (not modified). IEC 60309-1 NOTE
Harmonized as EN 60309-1:1999 (not modified). IEC 60364-4-44 NOTE
Amendment 1:2003 to IEC 60364-4-44:2001
is harmonized as HD 60364-4-443:2006 (modified) IEC 60664 NOTE
Harmonized in EN 60664 series (not modified). IEC 60695-2-11 NOTE
Harmonized as EN 60695-2-11:2001 (not modified). IEC 60695-2-12 NOTE
Harmonized as EN 60695-2-12:2001 (not modified). IEC 60721 NOTE
Harmonized in EN 60721 series (not modified). IEC 61082 NOTE
Harmonized in EN 61082 series (not modified). IEC 61140 NOTE
Harmonized as EN 61140:2002 (not modified). IEC 61180-1 NOTE
Harmonized as EN 61180-1:1994 (not modified). IEC 61189-2 NOTE
Harmonized as EN 61189-2:2006 (not modified). IEC 61643-12 NOTE
Harmonized as CLC/TS 61643-12:2006 (modified). IEC 61800-3 NOTE
Harmonized as EN 61800-3:2004 (not modified). IEC 62079 NOTE
Harmonized as EN 62079:2001 (not modified). __________
- 4 -
Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60034 Series Rotating electrical machines EN 60034 Series
IEC 60034-1 -1) Rotating electrical machines -
Part 1: Rating and performance EN 60034-1 20042)
IEC 60034-5
-1) Rotating electrical machines -
Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP code) - Classification EN 60034-5 20012)
IEC 60050-111 -1) International Electrotechnical Vocabulary (IEV) -
Chapter 111: Physics and chemistry - -
IEC 60050-151 -1) International Electrotechnical Vocabulary (IEV) -
Part 151: Electrical and magnetic devices - -
IEC 60050-161 -1) International Electrotechnical Vocabulary (IEV) -
Chapter 161: Electromagnetic compatibility - -
IEC 60050-191 -1) International Electrotechnical Vocabulary (IEV) -
Chapter 191: Dependability and quality of service - -
IEC 60050-441 -1) International Electrotechnical Vocabulary (IEV) -
Chapter 441: Switchgear, controlgear and fuses - -
IEC 60050-442 -1) International Electrotechnical Vocabulary (IEV) -
Part 442: Electrical accessories - -
IEC 60050-551 -1) International Electrotechnical Vocabulary (IEV) -
Part 551: Power electronics - -
IEC 60050-601 -1) International Electrotechnical Vocabulary (IEV) -
Chapter 601: Generation, transmission and distribution of electricity - General - -
1) Undated reference. 2) Valid edition at date of issue.
- 5 - EN 61800-5-1:2007 Publication Year Title EN/HD Year IEC 60060-1
1989 High-voltage test techniques -
Part 1: General definitions and test requirements HD 588.1 S1 1991
IEC 60068-2-2 1974 Environmental testing -
Part 2: Tests - Tests B: Dry heat EN 60068-2-23)
IEC 60068-2-6
-1) Environmental testing -
Part 2: Tests - Test Fc: Vibration (sinusoidal) EN 60068-2-6 19952)
IEC 60068-2-78 -1) Environmental testing -
Part 2-78: Tests - Test Cab: Damp heat, steady state EN 60068-2-78 20012)
IEC 60112
2003 Method for the determination of the proof
and the comparative tracking indices of solid insulating materials EN 60112 2003
IEC 60204-11 -1) Safety of machinery - Electrical equipment
of machines -
Part 11: Requirements for HV equipment for voltages above 1 000 V a.c. or 1 500 V d.c. and not exceeding 36 kV EN 60204-11 2000
IEC 60309 (mod) Series Plugs, socket-outlets and couplers for industrial purposes EN 60309 Series
IEC 60364-1 (mod) -1) Low-voltage electrical installations -
Part 1: Fundamental principles, assessment of general characteristics, definitions -4) -
IEC 60364-5-54 (mod) 2002 Electrical installations of buildings -
Part 5-54: Selection and erection of electrical equipment - Earthing arrangements, protective conductors and protective bonding conductors HD 60364-5-54 2007
IEC 60417 Data-base Graphical symbols for use on equipment - -
IEC 60529 1989 Degrees of protection provided by enclosures (IP Code) EN 60529 + corr. May
1991 1993
IEC 60617 Data-base Graphical symbols for diagrams - -
IEC 60664-1 + A1 + A2 1992 2000 2002 Insulation coordination for equipment within low-voltage systems -
Part 1: Principles, requirements and tests
EN 60664-1 5)
IEC 60664-3 2003 Insulation coordination for equipment within low-voltage systems -
Part 3: Use of coating, potting or moulding for protection against pollution EN 60664-3 2003
3) EN 60068-2-2 includes supplement A:1976 to IEC 60068-2-2. 4) IEC 60364-1:2005 (modified) will be submitted to formal vote for acceptance as HD 60364-1. 5) EN 60664-1 is superseded by EN 60664-1:2007, which is based on IEC 60664-1:2007.
- 6 -
Publication Year Title EN/HD Year IEC 60664-4 2005 Insulation coordination for equipment within low-voltage systems -
Part 4: Consideration of high-frequency voltage stress EN 60664-4 + corr. October
2006 2006
IEC 60695-2-10 -1) Fire hazard testing -
Part 2-10: Glowing/hot-wire based test methods - Glow-wire apparatus and common test procedure EN 60695-2-10 20012)
IEC 60695-2-13 -1) Fire hazard testing -
Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignitability test method for materials EN 60695-2-13 20012)
IEC 60695-11-10 -1) Fire hazard testing -
Part 11-10: Test flames - 50 W horizontal and vertical flame test methods EN 60695-11-10 19992)
IEC 60695-11-20
-1) Fire hazard testing -
Part 11-20: Test flames - 500 W flame test methods EN 60695-11-20 19992)
IEC/TR 60755 -1) General requirements for residual current operated protective devices - -
IEC 60947-7-1
2002 Low-voltage switchgear and controlgear -
Part 7-1: Ancillary equipment - Terminal blocks for copper conductors EN 60947-7-1 2002
IEC 60947-7-2 2002 Low-voltage switchgear and controlgear -
Part 7-2: Ancillary equipment - Protective conductor terminal blocks for copper conductors EN 60947-7-2 2002
IEC 60990 1999 Methods of measurement of touch current and protective conductor current EN 60990 1999
IEC 61230 (mod) -1) Live working - Portable equipment for earthing or earthing and short-circuiting EN 61230 +A11 19952) 1999
IEC 61800-1 -1) Adjustable speed electrical power drive systems -
Part 1: General requirements - Rating specifications for low voltage adjustable speed d.c. power drive systems EN 61800-1 19982)
IEC 61800-2 -1) Adjustable speed electrical power drive systems -
Part 2: General requirements - Rating specifications for low voltage adjustable frequency a.c. power drive systems EN 61800-2 19982)
IEC 61800-4 -1) Adjustable speed electrical power drive systems -
Part 4: General requirements - Rating specifications for a.c. power drive systems above 1 000 V a.c. and not exceeding 35 kV EN 61800-4 20032)
IEC 62020 -1) Electrical accessories - Residual current monitors for household and similar uses (RCMs) - -
- 7 - EN 61800-5-1:2007 Publication Year Title EN/HD Year IEC 62271-102
-1) High-voltage switchgear and controlgear -
Part 102: Alternating current disconnectors and earthing switches
EN 62271-102 + corr. March
20022) 2005
ISO 3864 Series Graphical symbols - Safety colours and safetysigns - -
ISO 7000 2004 Graphical symbols for use on equipment - Index and synopsis - -
INTERNATIONAL STANDARD IECCEI NORME INTERNATIONALE61800-5-1Second editionDeuxième édition2007-07 Adjustable speed electrical
power drive systems – Part 5-1: Safety requirements – Electrical, thermal and energy
Entraînements électriques de
puissance à vitesse variable – Partie 5-1: Exigences de sécurité – Electrique, thermique et énergétique XE Commission Electrotechnique InternationaleInternational Electrotechnical CommissionPRICE CODE CODE PRIX For price, see current cataloguePour prix, voir catalogue en vigueur
– 2 – 61800-5-1 © IEC:2007
CONTENTS FOREWORD.5
1 Scope.7 2 Normative references.7 3 Terms and definitions.10 4 Protection against electric shock, thermal, and energy hazards.16 4.1 General.16 4.2 Fault conditions.17 4.3 Protection against electric shock.18 4.4 Protection against thermal hazards.51 4.5 Protection against energy hazards.56 4.6 Protection against environmental stresses.57 5 Test requirements.57 5.1 General.57 5.2 Test specifications.60 6 Information and marking requirements.82 6.1 General.82 6.2 Information for selection.85 6.3 Information for installation and commissioning.85 6.4 Information for use.89 6.5 Information for maintenance.91
Annex A (informative)
Examples of protection in case of direct contact.93 Annex B (informative)
Examples of overvoltage category reduction.95 Annex C (normative)
Measurement of clearance and creepage distances.101 Annex D (informative)
Altitude correction for clearances.107 Annex E (informative)
Clearance and creepage distance determination for frequencies greater than 30 kHz.109 Annex F (informative)
Cross-sections of round conductors.112 Annex G (informative)
Guidelines for RCD compatibility.113 Annex H (informative)
Symbols referred to in this part of IEC 61800.116
Bibliography.117
Figure 1 – PDS hardware configuration within an installation.16 Figure 2 – Typical waveform for a.c. working voltage.19 Figure 3 – Typical waveform for d.c. working voltage.20 Figure 4 – Typical waveform for pulsating working voltage.20 Figure 5 – Examples for protection against direct contact.22 Figure 6 – Example of protective bonding.26 Figure 7 – Voltage limits under fault conditions.28 Figure 8 – Voltage test procedures.68 Figure 9 – Circuit for high-current arcing test.77
61800-5-1 © IEC:2007 – 3 –
Figure 10 – Test fixture for hot-wire ignition test.78 Figure A.1 – Protection by DVC A,
with protective separation.93 Figure A.2 – Protection by means of protective impedance.94 Figure A.3 – Protection by using limited voltages.94 Figure B.1 – Basic insulation evaluation for circuits connected directly to the origin of the installation supply mains.95 Figure B.2 – Basic insulation evaluation for circuits connected directly to the supply mains.96 Figure B.3 – Basic insulation evaluation for equipment not permanently connected to the supply mains.96 Figure B.4 – Basic insulation evaluation for circuits connected directly to the origin of the installation supply mains where internal SPDs are used.96 Figure B.5 - Basic insulation evaluation for circuits connected directly to the supply mains where internal SPDs are used.97 Figure B.6 – Example of protective separation evaluation for circuits connected directly to the supply mains where internal SPDs are used.97 Figure B.7 – Example of protective separation evaluation for circuits connected directly to the supply mains where internal SPDs are used.97 Figure B.8 Example of protective separation evaluation for circuits connected directly to the supply mains where internal SPDs are used.98 Figure B.9 – Basic insulation evaluation for circuits not connected directly to the supply mains.98 Figure B.10 – Basic insulation evaluation for circuits not connected directly to the supply mains.98 Figure B.11 – Functional insulation evaluation within circuits affected by external transients.99 Figure B.12 – Basic insulation evaluation for circuits both connected and not connected directly to the supply mains.99 Figure B.13 – Insulation evaluation for accessible circuit of DVC A.100 Figure G.1 – Flow chart leading to selection of the RCD/RCM type upstream of a PDS.113 Figure G.2 – Fault current waveforms in connections with semiconductor devices.114
Table 1 – Alphabetical list of terms.10 Table 2 – Relevance of requirements to PDS/CDM/BDM.17 Table 3 – Summary of the limits of the decisive voltage classes.18 Table 4 – Protection requirements for considered circuit.19 Table 5 – Protective earthing conductor cross-section.28 Table 6 – Definitions of pollution degrees.31 Table 7 – Insulation voltage for low voltage circuits.33 Table 8 – Insulation voltage for high voltage circuits.33 Table 9 – Clearance distances.37 Table 10 – Creepage distances (mm).39 Table 11 – Thickness of sheet metal for enclosures:
carbon steel or stainless steel.45 Table 12 – Thickness of sheet metal for enclosures:
aluminium, copper or brass.46 Table 13 – Wire bending space from terminals to enclosure.49 Table 14 – Generic materials for the direct support of uninsulated live parts.52 Table 15 – Maximum measured temperatures for internal materials and components.54
– 4 – 61800-5-1 © IEC:2007
Table 16 – Maximum measured temperatures for external parts of the CDM.55 Table 17 – Test overview.59 Table 18 – Impulse voltage test.63 Table 19 – Impulse test voltage for low-voltage PDS.64 Table 20 – Impulse test voltage for high-voltage PDS.64 Table 21 – A.C. or d.c. test voltage for circuits connected directly to low voltage mains.65 Table 22 – A.C. or d.c. test voltage for circuits connected directly to high voltage mains.66 Table 23 – A.C. or d.c. test voltage for circuits not connected directly to the mains.67 Table 24 – Partial discharge test.70 Table 25 – Dry heat test (steady state).80 Table 26 – Damp heat test (steady state).81 Table 27 – Vibration test.82 Table 28 – Information requirements.84 Table C.1 – Width of grooves by pollution degree.101 Table D.1 – Correction factor for clearances at altitudes between 2 000 m and 20 000 m (see
4.3.6.4.1).107 Table D.2 – Test voltages for verifying clearances at different altitudes.107 Table E.1 – Minimum values of clearances in air at atmospheric pressure for inhomogeneous field conditions (Table 1 of IEC 60664-4).110 Table E.2 – Minimum values of creepage distances for different frequency ranges (Table 2 of IEC 60664-4).111 Table F.1 – Standard cross-sections of round conductors.112 Table H.1 – Symbols used.116
61800-5-1 © IEC:2007 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
ADJUSTABLE SPEED ELECTRICAL POWER DRIVE SYSTEMS –
Part 5-1: Safety requirements – Electrical, thermal and energy
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61800-5-1 has been prepared by subcommittee 22G: Semi-conductor power converters for adjustable speed electric drive systems, of IEC technical committee 22: Power electronic systems and equipment. This second edition cancels and replaces the first edition published in 2003. It constitutes a technical revision. The major areas of change in this edition are the following: a) addition of alphabetical Table 1 in Clause 3; b) addition of Table 2 in 4.1 for relevance to PDS/CDM/BDM; c) addition of Table 4 summary of decisive voltage class requirements; d) expansion of subclause on protective bonding (4.3.5.3);
– 6 – 61800-5-1 © IEC:2007
e) clarification of distinction between touch current and protective conductor current; f) revision of section on insulation (now 4.3.6) to include solid insulation; g) addition of overvoltage categoruies I and II to HV insulation voltage; h) revision of section on Solid insulation (now 4.3.6.8) i) addition of high-frequency insulation requirements (4.3.6.9, Annex E); j) addition of requirements for liquid-cooled PDS (4.4.5); k) addition of climatic and vibration tests (5.2.6); l) clarification of voltage test procedure to avoid over-stress of basic insulation (5.2.3.2.3); m) revision of short-circuit test requirement for large, high-voltage and one-off PDS (now 5.2.3.6); n) addition of informative Annex B for overvoltage category reduction. The text of this standard is based on the following documents: FDIS Report on voting 22G/178/FDIS 22G/181/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. A list of all parts of the IEC 61800 series, published under the general title Adjustable speed electrical power drive systems, can be found on the IEC website. Terms in italics in the text are defined in Clause 3. The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
61800-5-1 © IEC:2007 – 7 –
ADJUSTABLE SPEED ELECTRICAL POWER DRIVE SYSTEMS –
Part 5-1: Safety requirements – Electrical, thermal and energy
1 Scope This part of IEC 61800 specifies requirements for adjustable speed power drive systems, or their elements, with respect to electrical, thermal and energy safety considerations. It does not cover the driven equipment except for interface requirements. It applies to adjustable speed electric drive systems which include the power conversion, drive control, and motor or motors. Excluded are traction and electric vehicle drives. It applies to d.c. drive systems connected to line voltages up to 1 kV a.c., 50 Hz or 60 Hz and a.c. drive systems with converter input voltages up to 35 kV, 50 Hz or 60 Hz and output voltages up to 35 kV. Other parts of IEC 61800 cover rating specifications, EMC, functional safety, etc. The scope of this part of IEC 61800 does not include devices used as component parts of a PDS if they comply with the safety requirements of a relevant product standard for the same environment. For example, motors used in PDS shall comply with the relevant parts of IEC 60034.
Unless specifically stated, the requirements of this International Standard apply to all parts of the PDS, including the CDM/BDM (see Figure 1). NOTE In some cases, safety requirements of the PDS (for example, protection against direct contact) can necessitate the use of special components and/or additional measures. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. NOTE This does not mean that compliance is required with all clauses of the referenced documents, but rather that this international standard makes a reference that cannot be understood in the absence of the referenced document. IEC 60034 (all parts), Rotating electrical machines IEC 60034-1, Rotating electrical machines – Part 1: Rating and performance IEC 60034-5, Rotating electrical machines – Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP code) - Classification IEC 60050-111, International Electrotechnical Vocabulary (IEV) – Chapter 111: Physics and chemistry
– 8 – 61800-5-1 © IEC:2007
IEC 60050-151, International Electrotechnical Vocabulary (IEV) – Part 151: Electrical and magnetic devices IEC 60050-161, International Electrotechnical Vocabulary (IEV) – Chapter 161: Electromagnetic compatibility IEC 60050-191, International Electrotechnical Vocabulary (IEV) – Chapter 191: Dependability and quality of service IEC 60050-441, International Electrotechnical Vocabulary (IEV) – Chapter 441: Switchgear, controlgear and fuses IEC 60050-442, International Electrotechnical Vocabulary (IEV) – Part 442: Electrical accessories
IEC 60050-551, International Electrotechnical Vocabulary (IEV) – Part 551: Power electronics IEC 60050-601, International Electrotechnical Vocabulary (IEV) – Chapter 601: Generation, transmission and distribution of electricity – General IEC 60060-1:1989, High-voltage test techniques – Part 1: General definitions and test requirements IEC 60068-2-2:1974,
Environmental testing – Part 2: Tests. Tests B: Dry heat IEC 60068-2-6, Environmental testing – Part 2: Tests – Test Fc: Vibration (sinusoidal) IEC 60068-2-78, Environmental testing – Part 78: Tests – Test Cab: Damp heat, steady state IEC 60112:2003, Method for the determination of the proof and the comparative tracking indices of solid insulating materials
IEC 60204-11, Safety of machinery – Electrical equipment of machines – Part 11: Requirements for HV equipment for voltages above 1 000 V a.c. or 1 500 V d.c. and not exceeding 36 kV IEC 60309, Plugs, socket-outlets and couplers for industrial purposes
IEC 60364-1, Low-voltage electrical installations – Part 1: Fundamental principles, assessment of general characteristics, definitions
IEC 60364-5-54:2002, Electrical installations of buildings – Part 5-54: Selection and erection of electrical equipment – Earthing arrangements, protective conductors and protective bonding conductors IEC 60417, Graphical symbols for use on equipment IEC 60529:1989, Degrees of protection provided by enclosures (IP code) IEC 60617, Graphical symbols for diagrams
61800-5-1 © IEC:2007 – 9 –
IEC 60664-1:1992, Insulation coordination for equipment within low-voltage systems – Part 1: Principles, requirements and tests1) Amendment 1 (2000) Amendment 2 (2002) IEC 60664-3:2003, Insulation coordination for equipment within low-voltage systems – Part 3: Use of coating, potting or moulding for protection against pollution IEC 60664-4:2005, Insulation coordination for equipment within low-voltage systems – Part 4: Consideration of high-frequency voltage stress IEC 60695-2-10, Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure IEC 60695-2-13, Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials IEC 60695-11-10, Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and vertical flame test methods IEC 60695-11-20, Fire hazard testing – Part 11-20: Test flames – 500 W flame test methods IEC 60755, General requirements for residual current operated protective devices IEC 60947-7-1:2002, Low-voltage switchgear and control gear – Part 7-1: Ancillary equipment –Terminal blocks for copper conductors IEC 60947-7-2:2002, Low-voltage switchgear and controlgear – Part 7-2: Ancillary equipment –Protective conductor terminal blocks for copper conductors IEC 60990:1999, Methods of measurement of touch current and protective conductor current IEC 61230, Live working – Portable equipment for earthing or earthing and short-circuiting IEC 61800-1, Adjustable speed electrical power drive systems – Part 1: General requirements – Rating specifications for low voltage adjustable speed d.c. power drive systems IEC 61800-2, Adjustable speed electrical power drive systems – Part 2: General requirements – Rating specifications for low voltage adjustable frequency a.c. power drive systems IEC 61800-4, Adjustable speed electrical power drive systems – Part 4: General requirements – Rating specifications for a.c. power drive systems above 1 000 V a.c. and not exceeding 35 kV IEC 62020, Electrical accessories – Residual current monitors for household and similar uses (RCMs) ___________ 1
There exists a consolidated edition 1.2 (2002) including IEC 60664-1:1992 and its Amendments 1 and 2.
– 10 – 61800-5-1 © IEC:2007
IEC 62271-102, High-voltage switchgear and controlgear – Part 102: Alternating current disconnectors and earthing switches ISO 3864 (all parts), Graphical symbols – Safety colours and safety signs ISO 7000:2004, Graphical symbols for use on equipment – Index and synopsis
3 Terms and definitions For the purposes of this international standard, the terms and definitions given in IEC 60050-111, IEC 60050-151, IEC 60050-161, IEC 60050-191, IEC 60050-441, IEC 60050-442, IEC 60050-551, IEC 60050-601, IEC 60664-1, IEC 61800-1, IEC 61800-2, IEC 61800-3 and
IEC 61800-4 (some of which are repeated below for convenience), and the following definitions apply. Table 1 provides an alphabetical cross-reference listing of terms. Table 1 – Alphabetical list of terms Term Term number Term Term number Term Term number adjacent circuit 3.1 (earth) leakage current 3.16 protective screening 3.31 basic drive module (BDM) 3.2 live part 3.17 protective separation 3.32 basic insulation 3.3 low-voltage PDS 3.18 reinforced insulation 3.33 CDM (complete drive module ) 3.4 open-type (product) 3.19 routine test 3.34 closed electrical operating area 3.5 power drive system (PDS) 3.20 safety ELV (SELV) circuit 3.35 commissioning test 3.6 protective ELV (PELV) circuit 3.21 sample test 3.36 decisive voltage class (DVC) 3.7 prospective short-circuit current 3.22 supplementary insulation 3.37 double insulation 3.8
protective bonding 3.23 system voltage 3.38 extra low voltage (ELV) 3.9 protective class 0 3.24 temporary overvoltage 3.39 electrical breakdown 3.10 protective class I 3.25 touch current 3.40 expected lifetime 3.11 protective class II 3.26 type test 3.41 functional insulation 3.12 protective class III 3.27 user terminal 3.42 high-voltage PDS 3.13 protective earthing (PE) 3.28 working voltage 3.43 installation 3.14 protective earthing conductor 3.29 zone of equipotential bonding 3.44 integrated PDS 3.15 protective impedance 3.30
3.1
adjacent circuit circuit having no galvanic connection to the circuit under consideration NOTE A protective impedance is not considered to be a galvanic connection.
61800-5-1 © IEC:2007 – 11 –
3.2
basic drive module (BDM) drive module, consisting of a converter section and a control section for speed, torque, current or voltage, etc. (see Figure 1) 3.3
basic insulation insulation applied to live parts to provide basic protection against electrical shock [IEV 826-12-14, modified] 3.4
complete drive module
CDM drive system, without the motor and the sensors which are mechanically coupled to the motor shaft, consisting of, but not limited to, the BDM, and extensions such as feeding section and auxiliaries (see Figure 1) 3.5
closed electrical operating area room or location for electrical equipment to which access is restricted to skilled or instructed persons by the opening of a door or the removal of a barrier by the use of a key or tool and which is clearly marked by appropriate warning signs 3.6
commissioning test test on a device or equipment performed on site, to prove the correctness of installation and operation
[IEV 151-16-24, modified] 3.7
decisive voltage class
DVC classification of voltage range used to determine the protective measures against electric shock 3.8
double insulation insulation comprising both basic insulation and supplementary insulation [IEV 826-12-16] NOTE Basic and supplementary insulation are separate, each designed for basic protection against electric shock. 3.9
extra low voltage
ELV any voltage not exceeding 50 V a.c. r.m.s. and 120 V d.c. NOTE 1 R.M.S. ripple voltage of not more than 10 % of the d.c. component. NOTE 2 In this international standard, protection against electric shock is dependent on the decisive voltage classification. DVC A and B are contained in the voltage range of ELV.
– 12 – 61800-5-1 © IEC:2007
3.10
electrical breakdown failure of insulation under electric stress when the discharge completely bridges the insulation, thus reducing the voltage between the electrodes almost to zero
[IEC 60664-1:1992, definition 1.3.20] 3.11
expected lifetime minimum duration for which the safety performance characteristics are valid at rated conditions of operation 3.12
functional insulation insulation between conductive parts within a circuit, which is necessary for the proper functioning of the circuit, but which does not provide protection against electric shock 3.13
high-voltage PDS product with rated supply voltage between 1 kV and 35 kV a.c., 50 Hz or 60 Hz NOTE These products fall into the scope of IEC 61800-4 3.14
installation equipment or equipments including at least the PDS and the driven equipment (see
Figure 1) NOTE The word “installation” is also used in this international standard to denote the process of installing a PDS/CDM/BDM. In these cases, the word does not appear in italics. 3.15
integrated PDS PDS where motor and CDM/BDM are mechanically integrated into a single unit 3.16
(earth) leakage current current flowing from the live parts of the installation to earth, in the absence of an insulation fault [IEV 442-01-24] 3.17
live part conductor or conductive part intended to be energized in normal use, including a neutral conductor but not a protective earth neutral 3.18
low-voltage PDS product with rated supply voltage up to 1 000 V a.c., 50 Hz or 60 Hz NOTE These products fall into the scope of IEC 61800-1 or IEC 61800-2. 3.19
open type (product) (product) intended for incorporation within enclosure or assembly which will provide access protection
61800-5-1 © IEC:2007 – 13 –
3.20
power drive system
PDS system for the speed control of an electric motor, including the CDM and motor but not the driven equipment (see Figure 1) 3.21
protective ELV (PELV) circuit electrical circuit with the following characteristics: • the voltage does not continuously exceed ELV under single fault as well as normal conditions; • protective separation from circuits other than PELV or SELV; • provisions for earthing of the PELV circuit, or its accessible conductive parts, or both 3.22
prospective short-circuit current current which flows when the supply conductors to the circuit are short-circuited by a conductor of negligible impedance located as near as possible to the supply terminals of the PDS/CDM/BDM 3.23
protective bonding electrical connection of conductive parts for safety purposes 3.24
protective class 0 equipment in which protection against electric shock relies only upon basic insulation NOTE Equipment of this class becomes hazardous in the event of a failure of the basic insulation. 3.25
protective class I equipment in which protection against electric shock does not rely on basic insulation only, but which includes an additional safety precaution in such a way that means are provided for the connection of accessible conductive parts to the protective (earthing) conductor in the fixed wiring of the installation, so that accessible conductive parts cannot become live in the event of a failure of the basic insulation 3.26
protective class II equipment in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions such as supplementary insulation or rei
...
SIST EN 61800-5-1:2008は、調整可能な速度の電動パワードライブシステムに関する重要な標準であり、その安全性要求に焦点を当てています。この標準は、電気的、熱的、エネルギーにおける安全性に関する要求事項を明確に定義しており、特にアジャスタブルスピード電動駆動システムに関連する要素に対して適用されます。調整可能な速度電動駆動システムは、パワー変換、ドライブ制御、モーターを含むため、これらの全体的な性能と安全性を評価するための基準を提供します。 本標準の強みは、具体的な安全性要求の詳しい記述にあります。新たに追加された表1および表2は、関連分野における基準の明確化を促進しており、特にPDS/CDM/BDMとの関連性を詳述しています。また、出力電圧が最大35kVまでの交流駆動システムに対応しているため、高電圧条件下での運用にも適用可能です。 さらに、保護接地に関する定義の明確化や、固体絶縁に関するセクションの改訂により、現代の技術ニーズに合わせた安全基準が示されています。高周波絶縁要件や液冷式PDSに追加された要件は、特に新しい技術の導入において重要な意味を持ちます。また、気候試験および振動試験の追加は、実環境での性能評価に関する重要な補足情報を提供します。 この標準は、調整可能な速度電動駆動システムの設計や運用において、スムーズで安全な運用を確保するための指針を提供するものであり、関連する業界にとって極めて重要な内容を含んでいます。
Die Norm EN 61800-5-1:2007 legt spezifische Anforderungen für einstellbare elektrische Antriebssysteme fest, insbesondere im Hinblick auf elektrische, thermische und energetische Sicherheitsaspekte. Dies ist von großer Bedeutung für die Entwicklung und Implementierung moderner Antriebstechnologien, da sie nicht nur die Sicherheit der Systeme selbst, sondern auch die der Benutzer und der umgebenden Einrichtungen gewährleistet. Zu den Stärken dieser Norm gehört die umfassende Abdeckung der sicherheitsrelevanten Aspekte, die für einstellbare Antriebssysteme entscheidend sind. Die Norm bietet klare Richtlinien für die Identifizierung und Minimierung von Risiken und stellt sicher, dass die Systeme den international anerkannten Sicherheitsstandards entsprechen. Besonders hervorzuheben ist die Einführung neuer Tabellen, wie z.B. Tabelle 1 und Tabelle 2, die zur besseren Übersichtlichkeit und Anwendbarkeit der Norm beitragen und deren Relevanz im Kontext von PDS/CDM/BDM verdeutlichen. Ein weiterer wichtiger Punkt ist die Erweiterung der Bestimmungen zur Schutzleitungsverbindung und die Klarstellung der Unterscheidung zwischen Berührungstrom und Schutzleiterstrom. Dies zeigt die Fortschrittlichkeit der Norm, da sie den aktuellen Stand der Technik berücksichtigt und die Notwendigkeit unterstreicht, überall dort, wo elektrische Sicherheit eine Rolle spielt, präzise Vorgaben zu machen. Die Überarbeitung des Abschnitts zur Isolierung und die Einfügung neuer Kategorien für Hochspannungs-Isolierungsanforderungen demonstrieren das Engagement der Norm, nicht nur kontinuierlich Verbesserungen zu integrieren, sondern auch den sich verändernden Anforderungen der Technologie gerecht zu werden. Die Aufnahme von Hochfrequenz-Isolationsanforderungen und spezifischen Anforderungen für Flüssigkeitskühlungssysteme belegt die Relevanz der Norm in einem zunehmend technologisierten Umfeld. Die Ergänzung von klimatischen und vibrationstechnischen Prüfungen sowie die präzisierten Verfahren für die Spannungsprüfung verdeutlichen die Umfassendheit der Norm und die notwendige Sorgfalt, um sicherzustellen, dass einstellbare Antriebssysteme unter realen Betriebsbedingungen zuverlässig und sicher arbeiten. Insgesamt bietet die SIST EN 61800-5-1:2008 eine solide Grundlage für die Entwicklung und den Einsatz anpassbarer elektrischer Antriebssysteme, wobei die ständigen Aktualisierungen und Ergänzungen sicherstellen, dass sie nicht nur den aktuellen Anforderungen entspricht, sondern auch zukunftsweisende Aspekte der elektrischen Sicherheit berücksichtigt.
The EN 61800-5-1:2007 standard delineates essential safety requirements for adjustable speed electrical power drive systems, specifically focusing on electrical, thermal, and energy safety considerations. This standard is significant as it establishes a comprehensive framework for ensuring the safety of adjustable speed power drive systems and their components, which include power conversion, drive control, and motors. One of the primary strengths of this standard is its clearly defined scope, as it specifically applies to adjustable speed electric drive systems connected to line voltages up to 1 kV a.c. and those with converter input voltages up to 35 kV a.c. This allows practitioners in the field to navigate complex safety protocols easily, while the exclusion of traction and electric vehicle drives helps avoid misunderstandings regarding applicability. The amendments in this edition represent a proactive approach to evolving technological needs. Notably, the addition of tables within the clauses enhances clarity. For instance, Table 1 in Clause 3 underscores important definitions, while Table 2 in Clause 4.1 is particularly relevant for PDS/CDM/BDM, demonstrating the standard's adaptability to various operational contexts. The introduction of Table 4, which summarizes decisive voltage class requirements, enables users to streamline compliance processes. Further strengths lie in the enhanced specification regarding protective measures. The expanded subclause on protective bonding (4.3.5.3) and the clear distinction between touch current and protective conductor current bolster the standard's emphasis on user safety. The revisions in insulation requirements to include solid insulation and high-voltage overvoltage categories reflect awareness of contemporary electrical safety challenges, ensuring users implement robust protective measures. The addition of high-frequency insulation requirements in Clause 4.3.6.9, along with guidelines for liquid-cooled PDS (4.4.5), demonstrates a forward-thinking approach, taking into account innovations in design and functionality. Moreover, the inclusion of climatic and vibration tests in Clause 5.2.6 indicates a thorough understanding of real-world operating conditions that may affect system performance and longevity. The revision of the short-circuit test requirement for large, high-voltage PDS and the clarification of voltage test procedures not only enhance compliance but also prioritize equipment durability and reliability. The informative Annex B, addressing overvoltage category reduction, contributes further assistance to practitioners, ensuring an informed approach to safety assessments. Overall, EN 61800-5-1:2007 serves as an essential reference point for industry professionals, marrying safety with practical application standards and reinforcing the relevance of these guidelines in developing safe, efficient adjustable speed electrical power drive systems.
La norme EN 61800-5-1:2007, intitulée "Systèmes de conduite d'énergie électrique à vitesse variable - Partie 5-1 : Exigences de sécurité - Électriques, thermiques et d'énergie", présente un cadre essentiel pour assurer la sécurité des systèmes de conduite à vitesse variable. Cette norme spécifie des exigences précises en matière de sécurité électrique, thermique et énergétique, assurant ainsi la protection des utilisateurs et des équipements. L’étendue de cette norme est bien définie, car elle concerne les systèmes de conduite électrique à vitesse variable, englobant tous les éléments relatifs à la conversion de puissance, au contrôle de la conduite et aux moteurs associés. En revanche, il est important de noter que la norme ne couvre pas les équipements entraînés excepté pour les exigences d'interface. Cela souligne son orientation spécifique sur les systèmes de conduite, garantissant que les dispositifs de sécurité sont adaptés à cette technologie. Parmi les points forts de cette norme, on trouve l'introduction de plusieurs tableaux et clarifications qui améliorent la compréhension et l'application des exigences. L'ajout du tableau 1 dans la clause 3 et le tableau 2 dans la clause 4.1 sont particulièrement pertinents pour le développement des systèmes de conduite de puissance (PDS), de commande de moteur (CDM) et de machine de base (BDM). De plus, la révision des exigences d'isolation, incluant la solidité de l'isolation, et l'ajout des catégories de surtension I et II pour l'isolation haute tension, renforcent la robustesse des prescriptions de sécurité. Une autre avancée significative est l'inclusion de nouveaux critères pour les systèmes PDS refroidis par liquide, ce qui répond aux besoins croissants dans le domaine de l'efficacité énergétique et de la performance thermique. Les tests climatiques et de vibrations, spécifiés dans la norme, attestent également de la vigilance portée à la durabilité et à la fiabilité des équipements dans des conditions d'exploitation variées. De plus, la clarification des procédures de test de tension afin d'éviter le surmenage de l'isolation de base ainsi que la révision des exigences de test de court-circuit pour les PDS de grande taille et haute tension mettent en avant l'accent mis sur la sécurité opérationnelle, réduisant les risques liés à une mauvaise conformité. En conclusion, la norme EN 61800-5-1:2007 représente une avancée significative dans le domaine des systèmes de conduite à vitesse variable, en intégrant des exigences de sécurité modernes et pertinentes qui font d'elle un document essentiel pour les acteurs de l'industrie électrique. Sa capacité à s'adapter aux évolutions technologiques et à répondre aux normes de sécurité actuelles témoigne de sa pertinence continue dans un environnement de plus en plus complexe.
SIST EN 61800-5-1:2008은 조정 가능한 전동 전력 드라이브 시스템에 대한 안전 요구 사항을 규정하는 문서로, 전기, 열 및 에너지 안전에 중점을 두고 있습니다. 이 표준은 조정 가능한 전속 전기 드라이브 시스템과 그 구성 요소에 대한 요구 사항을 명확히 하며, 파워 변환, 드라이브 제어, 모터를 포함한 시스템에 적용됩니다. 특히, 드라이브되는 장비는 인터페이스 요구 사항을 제외하고는 커버하지 않으며, 이는 해당 기술을 개발하는 데 중요한 기준을 마련해 줍니다. 이 문서의 주요 강점은 전기적 및 열적 안전 요구 사항의 세밀한 정의입니다. 1kV a.c.의 라인 전압에 연결된 직류 드라이브 시스템 및 최대 35kV의 변환기 입력 전압을 사용하는 교류 드라이브 시스템 모두를 포괄하고 있습니다. 이는 전 세계적으로 다양한 전기 드라이브 시스템에 대한 안전성을 보장하는 데 기여합니다. 특히, 본 개정판에서는 여러 새로운 요소가 추가되어 더욱 강화된 안전성을 제공합니다. 예를 들어, 보호 접지 및 절연에 관한 조항이 확장 되었으며, 고주파 절연 요구 사항과 액체 냉각 PDS에 대한 요구 사항이 추가되었습니다. 이는 복잡한 운영 환경에서도 시스템의 안정성과 신뢰성을 높이는 데 기여합니다. 추가로, 단락 전류와 보호 도체 전류 간의 구분이 명확해지면서 안전 요구 사항이 보다 실용적이고 이해하기 쉬워졌습니다. 이러한 요소들은 조정 가능한 전기 드라이브 시스템의 설계 및 운영 시 요구되는 안전 기준을 충족하는 데 필수적입니다. 결론적으로, SIST EN 61800-5-1:2008 표준은 조정 가능한 전속 전기 드라이브 시스템의 개발과 안전성을 보장하기 위한 중요한 기준을 제시하며, 업계에서의 실용성과 관련성을 중시하는 점에서 강력한 기반이 됩니다. 이 표준은 국제적으로 통용되는 안전 요구 사항을 통해 통합된 접근 방식을 제공하며, 다양한 산업 분야에서의 활용성 또한 높이는 중요한 역할을 하고 있습니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
