EN IEC 61010-2-061:2021/A11:2021

Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-061: Particular requirements for laboratory atomic spectrometers with thermal atomization and ionization

2017-10-06 SW: See 41_x_or for Annex ZZ, ZA and common mods provided.

Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2-061: Besondere Anforderungen an Labor-Atomspektrometer mit thermischer Atomisierung und Ionisation

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-061: Exigences particulières pour spectromètres atomiques de laboratoire avec vaporisation et ionisation thermiques

Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko uporabo - 2-061. del: Posebne zahteve za laboratorijske atomske spektrometre s termično atomizacijo in ionizacijo

General Information

• Status: Published
• Publication Date: 09-Sep-2021
• ICS: 19.080 - Electrical and electronic testing
• ICS: 71.040.20 - Laboratory ware and related apparatus
• Technical Committee: CLC/TC 66X - Safety of measuring, control, and laboratory equipment
• Drafting Committee: CLC/TC 66X - Safety of measuring, control, and laboratory equipment
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 10-Sep-2021
• Due Date: 25-Mar-2020
• Completion Date: 10-Sep-2021
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: SIST EN IEC 61010-2-061:2021/A11:2021 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-061: Particular requirements for laboratory atomic spectrometers with thermal atomization and ionization

Relations

• Amends: EN IEC 61010-2-061:2021 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-061: Particular requirements for laboratory atomic spectrometers with thermal atomization and ionization
• Effective Date: 10-Oct-2017

Overview

EN IEC 61010-2-061:2021/A11:2021 is a CENELEC amendment to the European safety standard for electrical equipment for measurement, control and laboratory use - specifically Part 2-061, which defines particular safety requirements for laboratory atomic spectrometers with thermal atomization and ionization. This amendment (A11, issued Sept 2021) updates normative references, clarifies protection and marking requirements, and adds EU relationship annexes (ZA, ZZ) to support conformity with the Low Voltage Directive (2014/35/EU).

Key topics and technical requirements

• Scope: Safety requirements for laboratory atomic spectrometers using thermal atomization/ionization, intended to guide design, testing and installation.
• New normative references: Adds IEC 62061 and ISO 13849‑1/2 for functional safety and interlock validation, aligning machine-safety principles with laboratory equipment safety.
• Sampling probe safety: Systems that withdraw probe tips must fail-safe - probes must remain in the most exposed position when a sample vessel is removed unless designed so a SINGLE FAULT cannot leave the tip exposed.
• Gas and liquid connections: Connectors must be clearly marked adjacent to the equipment with identity, maximum permitted pressure and flow direction; marking may be specific (e.g., acetylene) or generic (e.g., fuel gas).
• Fume extraction and exhaust: Installation requirements now explicitly include fume extraction to remove potentially hazardous exhaust gases (see clause 13.1).
• Test provisions: Clarifies mechanical/test exceptions for fixed equipment and equipment >100 kg; equipment is not operated during specific mechanical tests.
• Protection against hot gases/plasma: Requires protective structures (e.g., chimneys) to prevent unintentional access to hot gases/plasma; surfaces in contact with such gases must be marked.
• Interlock and SIL/PL conformity: If IEC 62061 or ISO 13849‑1 is used, conformity is checked via the manufacturer’s SIL/PL determination and validation documentation; certified components/systems need not be separately validated.
• Administrative updates: Annex A renamed Annex F; adds Annex ZA (normative cross‑references to EN standards) and Annex ZZ (relationship to EU safety objectives).

Applications and users

Who uses this standard:

• Manufacturers and designers of laboratory atomic spectrometers (thermal atomizers, ionizers)
• Compliance and safety engineers performing risk assessments, machine safety and functional-safety integration
• Test laboratories and notified bodies validating conformity for CE marking under the Low Voltage Directive
• Laboratory managers and installers implementing safe installation, gas connections and fume extraction

Practical uses:

• Design verification to prevent operator exposure to hot gases, plasma or hazardous emissions
• Specifying interlock architecture and documenting SIL/PL validation per IEC 62061 / ISO 13849
• Labeling gas/liquid connectors and defining installation/fume-extraction requirements
• Demonstrating conformity to EU directives using harmonized standard clauses

Related standards

• IEC 62061 - Functional safety of safety-related electrical/electronic/programmable control systems
• ISO 13849‑1 / ISO 13849‑2 - Safety-related parts of control systems (design and validation)
• EN IEC 61010-1 - General safety requirements for laboratory and measurement equipment

Keywords: EN IEC 61010-2-061, laboratory atomic spectrometers, thermal atomization, ionization, safety standard, interlock, IEC 62061, ISO 13849, fume extraction, gas connections, Low Voltage Directive.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2021
Varnostne zahteve za električno opremo za meritve, nadzor in laboratorijsko
uporabo - 2-061. del: Posebne zahteve za laboratorijske atomske spektrometre s
termično atomizacijo in ionizacijo
Safety requirements for electrical equipment for measurement, control and laboratory
use - Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization
Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte - Teil 2
-061: Besondere Anforderungen an Labor-Atomspektrometer mit thermischer
Atomisierung und Ionisation
Exigences de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire - Partie 2-061: Exigences particulières pour spectromètres atomiques de
laboratoire avec vaporisation et ionisation thermiques
Ta slovenski standard je istoveten z: EN IEC 61010-2-061:2021/A11:2021
ICS:
19.080 Električno in elektronsko Electrical and electronic
preskušanje testing
71.040.10 Kemijski laboratoriji. Chemical laboratories.
Laboratorijska oprema Laboratory equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61010-2-
061:2021/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2021
ICS 19.080; 71.040.20
English Version
Safety requirements for electrical equipment for measurement,
control and laboratory use - Part 2-061: Particular requirements
for laboratory atomic spectrometers with thermal atomization and
ionization
Exigences de sécurité pour appareils électriques de Sicherheitsbestimmungen für elektrische Mess-, Steuer-,
mesurage, de régulation et de laboratoire - Partie 2-061: Regel- und Laborgeräte - Teil 2-061: Besondere
Exigences particulières pour spectromètres atomiques de Anforderungen an Labor-Atomspektrometer mit thermischer
laboratoire avec vaporisation et ionisation thermiques Atomisierung und Ionisation
This amendment A11 modifies the European Standard EN IEC 61010-2-061:2021; it was approved by CENELEC on 2021-08-02.
CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
amendment the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61010-2-061:2021/A11:2021 E

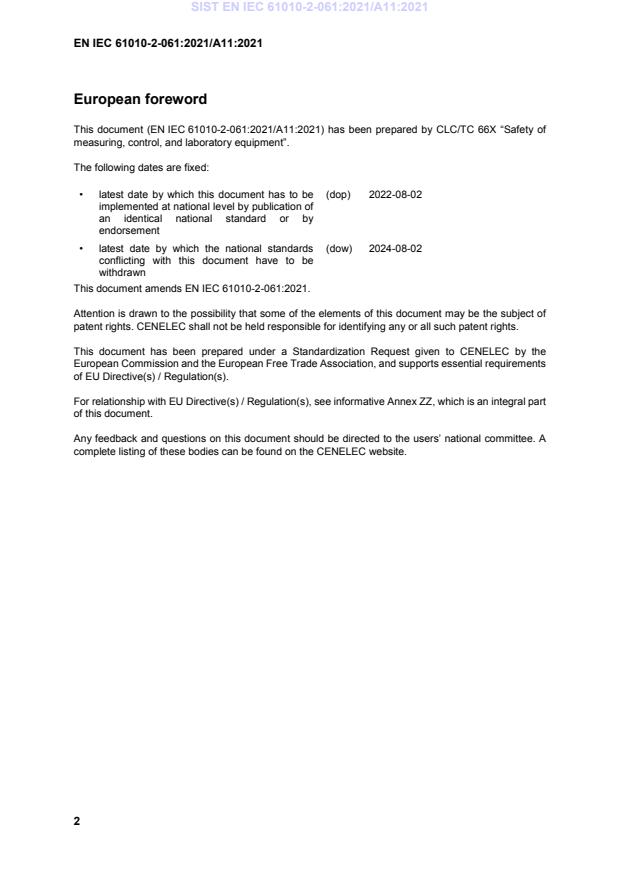

European foreword
This document (EN IEC 61010-2-061:2021/A11:2021) has been prepared by CLC/TC 66X “Safety of
measuring, control, and laboratory equipment”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2022-08-02
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2024-08-02
conflicting with this document have to be
withdrawn
This document amends EN IEC 61010-2-061:2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the
European Commission and the European Free Trade Association, and supports essential requirements
of EU Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an integral part
of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to Clause 2 “Normative references”
Add the following normative references:
“IEC 62061, Safety of machinery — Functional safety of safety-related electrical, electronic and
programmable electronic control systems
ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design
ISO 13849-2, Safety of machinery — Safety-related parts of control systems — Part 2: Validation"
2 Modification to 4.4.2.101, “Sampling probe tip”
Replace the entire subclause by the following:
“Any system designed to withdraw a sampling probe tip after sampling has been completed shall be
overridden, so as to leave the tip in its most exposed position when a sample vessel is removed.
Exception:
The withdrawal system need not be overridden if the sampling probe is designed in such a manner that
no SINGLE FAULT CONDITION can cause the tip to remain exposed after sampling has been completed.”
3 Modification to 5.1.5.101, “Gas and liquid connections”
Replace the entire subclause by the following:
“The following shall be unambiguously marked adjacent to the connector on the equipment (see 5.2):
a) the identity of the gas or liquid;
b) the maximum permitted pressure,
c) flow direction of the gas and liquid, if applicable.
NOTE Such markings can be specific (for example acetylene, propane, water) or generic (for example fuel
gas, oxidant gas, coolant, waste liquid).
Where no internationally recognized symbol (such as a chemical formula) exists, the equipment shall
be marked with symbol 14 of Table 1.
Conformity is checked by inspection.”
4 Modification to 5.4.3, “Equipment installation”
Replace list item bb) by the following:
“bb) requirements for a fume extraction system to remove exhaust gases which could be hazardous
(see 13.1);”
5 Modification to 8.1, “General”
Replace the text of item 3) by the following text:
“3) except for FIXED EQUIPMENT and equipment with a mass over 100 kg, the test of 8.3.1 or 8.3.2, as
applicable. The equipment is not operated during the tests.”
6 Modification to 10.1, “Surface temperature limits for protection against
burns”
Replace the newly added paragraph by the following text:
“Protection shall be provided to prevent unintentional direct access to hot gases or plasma emerging
from the equipment by
...
