EUROPEAN STANDARD
EN 60669-2-6
NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM
ICS 29.120.40 Supersedes EN 50425:2008
English version
Switches for household and similar fixed electrical installations -
Part 2-6: Particular requirements -
Fireman's switches for exterior and interior signs and luminaires
(IEC 60669-2-6:2012, modified)
Interrupteurs pour installations électriques Schalter für Haushalt und ähnliche
fixes domestiques et analogues - ortsfeste elektrische Installationen -
Partie 2-6: Prescriptions particulières - Teil 2-6: Besondere Anforderungen -
Interrupteurs pompiers pour enseignes Feuerwehrschalter für äußere und innere
lumineuses et luminaires extérieurs et Anzeigen und Leuchten
intérieurs (IEC 60669-2-6:2012, modifiziert)
(CEI 60669-2-6:2012, modifiée)
This European Standard was approved by CENELEC on 2012-02-22. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60669-2-6:2012 E

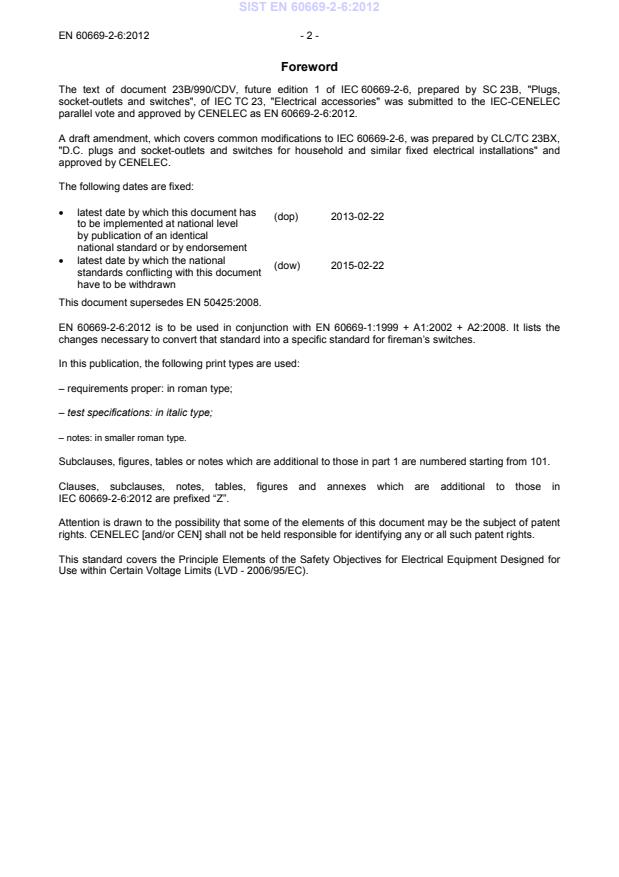

Foreword
The text of document 23B/990/CDV, future edition 1 of IEC 60669-2-6, prepared by SC 23B, "Plugs,
socket-outlets and switches", of IEC TC 23, "Electrical accessories" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN 60669-2-6:2012.
A draft amendment, which covers common modifications to IEC 60669-2-6, was prepared by CLC/TC 23BX,
"D.C. plugs and socket-outlets and switches for household and similar fixed electrical installations" and
approved by CENELEC.
The following dates are fixed:
• latest date by which this document has
(dop) 2013-02-22
to be implemented at national level
by publication of an identical
national standard or by endorsement
• latest date by which the national
(dow) 2015-02-22
standards conflicting with this document
have to be withdrawn
This document supersedes EN 50425:2008.
changes necessary to convert that standard into a specific standard for fireman’s switches.
In this publication, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, figures, tables or notes which are additional to those in part 1 are numbered starting from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 60669-2-6:2012 are prefixed “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2006/95/EC).
- 3 - EN 60669-2-6:2012
Endorsement notice
The text of the International Standard IEC 60669-2-6:2012 was approved by CENELEC as a European
Standard with agreed common modifications.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60669-2-4 NOTE Harmonized as EN 60669-2-4.
IEC 60364-5-51 NOTE Harmonized as HD 60364-5-51.
COMMON MODIFICATIONS
1 Scope
Replace the text of NOTE 101 by:
NOTE 101 The working voltage for the signs and luminous-discharge-tube installations is higher than 1 kV but lower
than 10 kV and these should be in accordance with EN 50107.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Addition to Annex ZA of EN 60669-1:1999:
Publication Year Title EN/HD Year
IEC 60669-1 (mod) 1998 Switches for household and similar fixed- EN 60669-1 1999
+ A1 (mod) 1999 electrical installations - + A1 2002
+ A2 (mod) 2006 Part 1: General requirements + A2 2008
IEC 62262 - Degrees of protection provided by enclosures EN 62262 -
for electrical equipment against external
mechanical impacts (IK code)
- 5 - EN 60669-2-6:2012
Annex ZB
(normative)
Special national conditions
Special national condition: National characteristic or practice that cannot be changed even over a
long period, e.g. climatic conditions, electrical earthing conditions.
NOTE If it affects harmonization, it forms part of the European Standard / Harmonization Document.
For the countries in which the relevant special national conditions apply these provisions are normative,
for other countries they are informative.
Clause Special national condition
Foreword United Kingdom
Add an additional paragraph:
"Fireman’s switches which cover applications suited to light industrial units, retail
units and petrol station forecourts fall under the scope of EN 60947-3."
since the scope of EN 60669-1 only covers household and similar fixed electrical
installations.
13.108 France
The enclosure of the fireman’s switch and of the actuating handle could be of an
other colour than red if it is equipped with an red illuminated indicator according to
13.107.
The colours yellow, green and blue are not allowed (according to NF X 08-003-1).
13.108 Portugal
Fireman’s switches may have colours different from red for the enclosure and
different from black for the actuating handle, if they are equipped with a red
illuminated indicator, according to 13.107.
Annex ZC
(informative)
A-deviations
A-deviation: National deviation due to regulations, the alteration of which is for the time being outside
the competence of the CENELEC national member.
This European Standard falls under Directive 2006/95/EC.
NOTE (from CEN/CENELEC IR Part 2:2011, 2.17) Where standards fall under EU Directives, it is the view of the Commission
of the European Communities (OJ No C 59, 1982-03-09) that the effect of the decision of the Court of Justice in case 815/79
Cremonini/Vrankovich (European Court Reports 1980, p. 3583) is that compliance with A-deviations is no longer mandatory and
that the free movement of products complying with such a standard should not be restricted except under the safeguard
procedure provided for in the relevant Directive.
In the relevant CENELEC countries these A-deviations are valid instead of the provisions of the European
Standard/Harmonization Document until they have been removed.
Clause Deviation
1 Italy (Installation Rules)
The Italian installation rules may require different protection switching devices in order
to comply with the function given in the scope of this standard. The installation
practice shall be in accordance with the requirements of the following Italian
legislative decrees, applicable to the various types of installations.
Decree Title
DPR 27/04/55 Norme per la prevenzione degli infortuni sul lavoro
No. 547
DPR 09/04/59 Norme di polizia delle miniere e delle cave
No. 128
DM 12/01/71 Norme di sicurezza per gli impianti di distribuzione stradale di gas di petrolio liquefatto per
No. 208 autotrazione
DM 08/03/85 Direttive sulle misure più urgenti ed essenziali di prevenzione incendi ai fini del rilascio del
nullaosta provvisorio di cui alla legge 7 dicembre 1984, n. 818
DM 11/01/88 Norme prevenzioni incendi nelle metropolitane
DM 20/05/92 Regolamento contenente norme di sicurezza antincendio per gli edifici storici e artistici destinati
No. 569 a musei, gallerie, esposizioni e mostre
DM 26/08/92 Norme di prevenzione incendi per l'edilizia scolastica
DM 09/04/94 Approvazione della regola tecnica di prevenzione incendi per la costruzione e l'esercizio delle
attività ricettive turistico-alberghiere.
DPR 30/06/95 Regolamento concernente norme di sicurezza antincendio per gli edifici di interesse storico-
No. 418 artistico destinati a biblioteche ed archivi
DM 12/04/96 Approvazione della regola tecnica di prevenzione incendi per la progettazione, la costruzione e
l'esercizio degli impianti termici alimentati da combustibili gassosi
DM 19/08/96 Approvazione della regola tecnica di prevenzione incendi per la progettazione, costruzione ed
esercizio dei locali di intrattenimento e di pubblico spettacolo
DM 18/09/02 Approvazione della regola tecnica di prevenzione incendi per la progettazione, la costruzione e
l'esercizio delle strutture sanitarie pubbliche e private
DM 28/04/05 Approvazione della regola tecnica di prevenzione incendi per la progettazione, la costruzione e
l'esercizio degli impianti termici alimentati da combustibili liquidi
DM 18/03/96 Norme di sicurezza per la costruzione e l'esercizio degli impianti sportivi
DM 16/05/05
DM 22/02/06 Approvazione della regola tecnica di prevenzione incendi per la progettazione, la costruzione e
l'esercizio di edifici e/o locali destinati ad uffici
DM 31/08/06 Approvazione della regola tecnica di prevenzione incendi per la progettazione, costruzione ed
esercizio degli impianti di distribuzione di idrogeno per autototrazione
- 7 - EN 60669-2-6:2012
1 Portugal
(Installation Rules and Safety Code on Fire in Buildings)
The Portuguese Electrical Installation Rules and the Safety Code on Fire in Buildings
also cover fireman’s switches, for which the applicable requirements must follow the
Portuguese legislation.
Decree Title
Decreto-Lei Nº 226/2005 Regras Técnicas das Instalações Eléctricas de Baixa Tensão
Portaria Nº 949-A/2006
Clauses: 64- Exploração das instalações
536.4 -Dispositivos de corte de emergência
802- Instalações de alta tensão alimentadas a partir de instalações de baixa
tensão
Decreto-Lei Nº 220/2008
Regulamento Técnico de Segurança contra Incêndio em Edifícios (SCIE)
Portaria Nº1532/2008
8.3 United kingdom
(UK wiring rules) Building and Buildings, England and Wales - The Building
(Amendment) Regulations 2003 {Statutory Instrument 2003 No. 2692} which require
compliance with UK Wiring Rules BS 7671:2001 (incl. Amendment 2), Clause 537-04-
06.
The following information shall be distinctly and durably marked on the fireman’s switch in
a position where it can be clearly seen from a person standing on the ground at the
intended site, without opening the enclosure and when the switch is installed:
– “ON” and “OFF” positions, in letters not less than 10 mm high;
– letters reading “FIREMAN’S SWITCH" or “FIRE SWITCH” in letters not less than
10 mm high.
13.101 United kingdom
(UK wiring rules) Building and Buildings, England and Wales - The Building
(Amendment) Regulations 2003 {Statutory Instrument 2003 No. 2692} which require
compliance with UK Wiring Rules BS 7671:2001 (incl. Amendment 2), Clause 537-04-
06.
Once installed, the handle off position shall be up.
NOTE The on position means powered and the off position means unpowered.
Compliance is checked by inspection.
13.107 United kingdom
(UK wiring rules) Building and Buildings, England and Wales - The Building (Amendment)
Regulations 2003 {Statutory Instrument 2003 No. 2692} which require compliance with UK
Wiring Rules BS 7671:2001 (incl. Amendment 2), Clause 537-04-06.
This subclause does not apply.
In the UK, indication must be ‘clearly indicated’ as required by BS 7671 which means
that use of an illuminated indicator is considered unsafe since a false indication will
occur if there is a failure of the illumination indicator or circuit.
SIST EN 60669-
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
