EN IEC 62501:2024
(Main)Voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) power transmission - Electrical testing
Voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) power transmission - Electrical testing
IEC 62501:2024 applies to self-commutated converter valves, for use in a three-phase bridge voltage sourced converter (VSC) for high voltage DC power transmission or as part of a back-to-back link, and to dynamic braking valves. It is restricted to electrical type and production tests. This document can be used as a guide for testing of high-voltage VSC valves used in energy storage systems (ESS). The tests specified in this document are based on air insulated valves. The test requirements and acceptance criteria can be used for guidance to specify the electrical type and production tests of other types of valves. This edition includes the following significant technical changes with respect to the previous edition: a) Conditions for use of evidence in lieu are inserted as a new Table 1; b) Test parameters for valve support DC voltage test, 7.3.2, and MVU DC voltage test, 8.4.1, updated; c) AC-DC voltage test between valve terminals, Clause 9, is restructured and alternative tests, by individual AC and DC voltage tests, added in 9.4.2; d) Partial discharge test in routine test program is removed; e) More information on valve component fault tolerance, Annex B, is added; f) Valve losses determination is added as Annex C.
Ventile von Spannungszwischenkreis-Stromrichtern (VSC) für die Hochspannungsgleichstromübertragung (HGÜ) - Elektrische Prüfung
Valves à convertisseur de source de tension (VSC) pour le transport d'énergie en courant continu à haute tension (CCHT) - Essais électriques
L'IEC 62501:2024 s'applique aux valves à convertisseur auto-commuté, conçues pour être utilisées dans un convertisseur de source de tension (VSC) en pont triphasé pour le transport d'énergie en courant continu à haute tension ou dans une liaison dos-à-dos, ainsi qu'aux valves à freinage dynamique. Elle est limitée aux essais de type électriques et de série. Le présent document peut servir de guide pour les essais des valves à VSC à haute tension utilisées dans les systèmes de stockage d'énergie (ESS). Les essais spécifiés dans le présent document sont basés sur des valves isolées par l'air. Les exigences d'essai et les critères d'acceptation peuvent servir de guide pour spécifier les essais de type électriques et de série d'autres types de valves. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) un nouveau tableau relatif aux conditions d'utilisation de la substitution de preuve (Tableau 1) a été inséré; b) les paramètres d'essai relatifs à l'essai de support de valve sous tension continue (7.3.2) et à l'essai de MVU sous tension continue (8.4.1) ont été mis à jour; c) l'Article 9 concernant l'essai sous tension alternative-continue entre les bornes de valve a été réorganisé et des variantes ont été ajoutées en 9.4.2 pour les essais individuels sous tension alternative et continue; d) l'essai de décharge partielle a été supprimé du programme des essais individuels de série; e) des informations complémentaires relatives à la tolérance aux pannes des composants de valve ont été ajoutées à l'Annexe B; f) la détermination des pertes de valve a été ajoutée à l'Annexe C.
Elektronke za pretvornike napetostnih virov (VSC) za enosmerni visokonapetostni prenos električne energije (HVDC) - Električno preskušanje (IEC 62501:2024)
Standard IEC 62501:2024 se uporablja za elektronke za pretvornike z lastno komutacijo za uporabo v trifaznih pretvornikih napetostnih virov (VSC) za enosmerni visokonapetostni prenos električne energije ali kot del povezave zaporedne vrste in za dinamične zavorne ventile. Omejen je na električno vrsto in proizvodne preskuse. Ta dokument je mogoče uporabljati kot vodilo za preskušanje elektronk za pretvornike visokonapetostnih virov, ki se uporabljajo v sistemih za shranjevanje energije (ESS). Preskusi, določeni v tem dokumentu, temeljijo na zračno izoliranih elektronkah. Zahteve glede preskusa in merila sprejemljivosti je mogoče uporabiti kot vodilo pri določanju električne vrste in proizvodnih preskusov drugih vrst elektronk. Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) pogoji za uporabo nadomestnih dokazov so bili vstavljeni kot nova preglednica 1;
b) preskusni parametri za preskus enosmerne napetosti za elektronke (7.3.2) in za MVU (8.4.1) so bili posodobljeni;
c) preskus enosmerne/izmenične napetosti med priključki elektronke (točka 9) so bili preoblikovani ter v točki 9.4.2 so bili dodani alternativni preskusi s posamičnim preskušanjem enosmerne oziroma izmenične napetosti;
d) preskus delne razelektritve v programu rutinskih preskusov je bil odstranjen;
e) dodanih je bilo več informacij o toleranci okvar sestavnih delov elektronke (dodatek B);
f) določevanje izgub elektronk je bilo dodano kot dodatek C.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2024
Elektronke za pretvornike napetostnih virov (VSC) za enosmerni visokonapetostni
prenos električne energije (HVDC) - Električno preskušanje (IEC 62501:2024)
Voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) power
transmission - Electrical testing (IEC 62501:2024)
Ventile von Spannungszwischenkreis-Stromrichtern (VSC) für die
Hochspannungsgleichstromübertragung (HGÜ) – Elektrische Prüfung (IEC 62501:2024)
Valves à convertisseur de source de tension (VSC) pour le transport d'énergie en
courant continu à haute tension (CCHT) - Essais électriques (IEC 62501:2024)
Ta slovenski standard je istoveten z: EN IEC 62501:2024
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62501
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2024
ICS 29.200; 29.240.99 Supersedes EN 62501:2009;
EN 62501:2009/A1:2014;
EN 62501:2009/A2:2017
English Version
Voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) power transmission - Electrical testing
(IEC 62501:2024)
Valves à convertisseur de source de tension (VSC) pour le Ventile von Spannungszwischenkreis-Stromrichtern (VSC)
transport d'énergie en courant continu à haute tension für die Hochspannungsgleichstromübertragung (HGÜ) -
(CCHT) - Essais électriques Elektrische Prüfung
(IEC 62501:2024) (IEC 62501:2024)
This European Standard was approved by CENELEC on 2024-05-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62501:2024 E

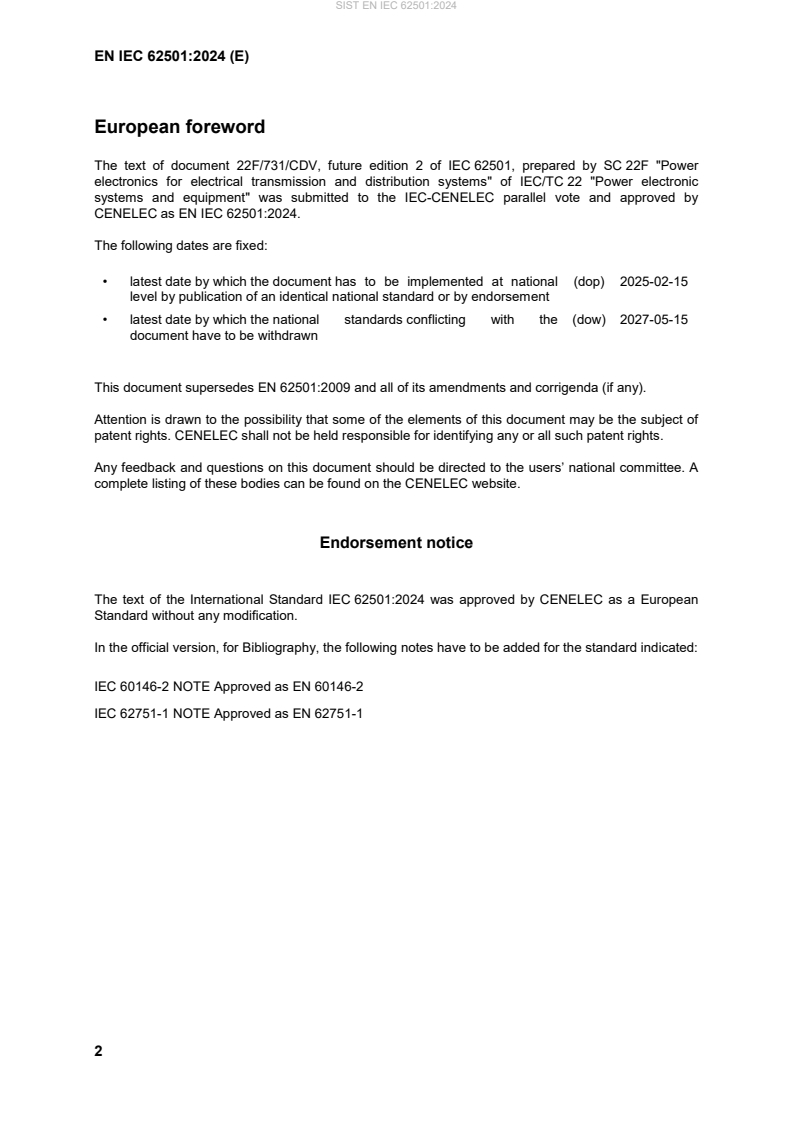

European foreword
The text of document 22F/731/CDV, future edition 2 of IEC 62501, prepared by SC 22F "Power
electronics for electrical transmission and distribution systems" of IEC/TC 22 "Power electronic
systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62501:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-02-15
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-05-15
document have to be withdrawn
This document supersedes EN 62501:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62501:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60146-2 NOTE Approved as EN 60146-2
IEC 62751-1 NOTE Approved as EN 62751-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60060 series High-voltage test techniques EN 60060 series
IEC 60071 series Insulation co-ordination EN IEC 60071 series
IEC 60270 - High-voltage test techniques - Partial EN 60270 -
discharge measurements
IEC 60700-1 2015 Thyristor valves for high voltage direct EN 60700-1 2015
current (HVDC) power transmission - Part
1: Electrical testing
+ AMD1 2021 + A1 2021
IEC 62747 - Terminology for voltage-sourced EN 62747 -
converters (VSC) for high-voltage direct
current (HVDC) systems
ISO/IEC 17025 - General requirements for the competence EN ISO/IEC 17025 -
of testing and calibration laboratories
IEC 62501 ®
Edition 2.0 2024-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Voltage sourced converter (VSC) valves for high-voltage direct current (HVDC)
power transmission – Electrical testing
Valves à convertisseur de source de tension (VSC) pour le transport d'énergie
en courant continu à haute tension (CCHT) – Essais électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200, 29.240.99 ISBN 978-2-8322-8514-5
– 2 – IEC 62501:2024 © IEC 2024
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
3.1 Insulation coordination terms . 8
3.2 Power semiconductor terms . 8
3.3 Operating states of converter . 8
3.4 VSC construction terms . 9
3.5 Valve structure terms . 10
4 General requirements . 11
4.1 Guidelines for the performance of type tests . 11
4.1.1 Evidence in lieu . 11
4.1.2 Selection of test object . 12
4.1.3 Test procedure . 12
4.1.4 Ambient temperature for testing . 12
4.1.5 Frequency for testing . 12
4.1.6 Test reports . 12
4.1.7 Conditions to be considered in determination of type test parameters . 12
4.2 Atmospheric correction factor . 13
4.3 Treatment of redundancy . 13
4.3.1 Operational tests . 13
4.3.2 Dielectric tests . 13
4.4 Criteria for successful type testing . 14
4.4.1 General . 14
4.4.2 Criteria applicable to valve levels . 14
4.4.3 Criteria applicable to the valve as a whole . 15
5 List of type tests . 15
6 Operational tests . 16
6.1 Purpose of tests . 16
6.2 Test object . 16
6.3 Test circuit . 17
6.4 Maximum continuous operating duty test . 17
6.5 Maximum temporary over-load operating duty test . 18
6.6 Minimum DC voltage test . 18
7 Dielectric tests on valve support structure . 19
7.1 Purpose of tests . 19
7.2 Test object . 19
7.3 Test requirements . 19
7.3.1 General . 19
7.3.2 Valve support DC voltage test. 19
7.3.3 Valve support AC voltage test . 20
7.3.4 Valve support switching impulse test . 21
7.3.5 Valve support lightning impulse test . 21
8 Dielectric tests on multiple valve unit . 22
8.1 General . 22
8.2 Purpose of tests . 22
IEC 62501:2024 © IEC 2024 – 3 –
8.3 Test object . 22
8.4 Test requirements . 22
8.4.1 MVU DC voltage test to earth . 22
8.4.2 MVU AC voltage test . 23
8.4.3 MVU switching impulse test . 24
8.4.4 MVU lightning impulse test . 25
9 Dielectric tests between valve terminals . 25
9.1 Purpose of the test . 25
9.2 Test object . 26
9.3 Test methods . 26
9.3.1 General . 26
9.3.2 Method one . 27
9.3.3 Method two . 27
9.4 Test requirements
...
