EUROPEAN STANDARD
EN 60598-2-13
NORME EUROPÉENNE
August 2006
EUROPÄISCHE NORM
ICS 29.140.40 Incorporates Corrigendum December 2006
English version
Luminaires
Part 2-13: Particular requirements -
Ground recessed luminaires
(IEC 60598-2-13:2006)
Luminaires Leuchten
Partie 2-13: Règles particulières - Teil 2-13: Besondere Anforderungen -
Luminaires encastrés dans le sol Bodeneinbauleuchten
(CEI 60598-2-13:2006) (IEC 60598-2-13:2006)
This European Standard was approved by CENELEC on 2006-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60598-2-13:2006 E

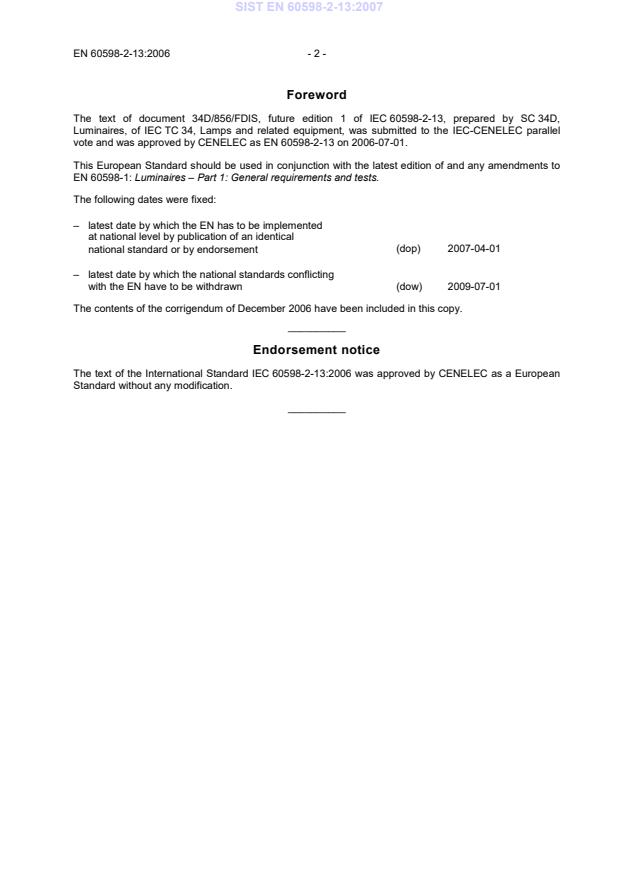

Foreword
The text of document 34D/856/FDIS, future edition 1 of IEC 60598-2-13, prepared by SC 34D,
Luminaires, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 60598-2-13 on 2006-07-01.
This European Standard should be used in conjunction with the latest edition of and any amendments to
EN 60598-1: Luminaires – Part 1: General requirements and tests.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-07-01
The contents of the corrigendum of December 2006 have been included in this copy.
__________
Endorsement notice
The text of the International Standard IEC 60598-2-13:2006 was approved by CENELEC as a European
Standard without any modification.
__________
NORME CEI
INTERNATIONALE
IEC
60598-2-13
INTERNATIONAL
Première édition
STANDARD
First edition
2006-06
Luminaires –
Partie 2-13:
Règles particulières –
Luminaires encastrés dans le sol
Luminaires –
Part 2-13:
Particular requirements –
Ground recessed luminaires
IEC 2006 Droits de reproduction réservés Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
L
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue
60598-2-13 IEC:2006 – 3 –
CONTENTS
FOREWORD.5
13.1 Scope.9
13.2 General test requirements .9
13.3 Definitions .9
13.4 Classification.9
13.5 Marking .9
13.6 Construction.11
13.7 Creepage distances and clearances .19
13.8 Provisions for earthing .19
13.9 Terminals .19
13.10 External and internal wiring .19
13.11 Protection against electric shock .19
13.12 Endurance test and thermal test .19
13.13 Resistance to dust, solid objects and moisture .21
13.14 Insulation resistance and electric strength.21
13.15 Resistance to heat, fire and tracking .21
Annex A (informative) Guide to good installation practice .23
60598-2-13 IEC:2006 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-13: Particular requirements –
Ground recessed luminaires
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-13 has been prepared by subcommittee 34D: Luminaires,
of IEC technical committee 34:Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34D/856/FDIS 34D/860/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
60598-2-13 IEC:2006 – 7 –
This publication is intended to be read in conjunction with IEC 60598-1: Luminaires − Part 1:
General requirements and tests. It was established on the basis of the sixth edition of that
standard.
Part 2 of IEC 60598 consists of the following parts under the general title Luminaires –
Part 2: Particular requirements:
Part 2-1: Fixed general purpose luminaires
Part 2-2: Recessed luminaires
Part 2-3: Luminaires for road and street lighting
Part 2-4: Portable general purpose luminaires
Part 2-5: Floodlights
Part 2-6: Luminaires with built-in transformers for filament lamps
Part 2-7: Portable luminaires for garden use
Part 2-8: Handlamps
Part 2-9: Photo and film luminaires (non-professional)
Part 2-10: Portable luminaires for children
Part 2-11: Aquarium luminaires
Part 2-13: Ground recessed luminaires
Part 2-17: Luminaires for stage lighting, television and film studios (outdoor and indoor)
Part 2-18: Luminaires for swimming pools and similar applications
Part 2-19: Air-handling luminaires (safety requirements)
Part 2-20: Lighting chains
Part 2-22: Luminaires for emergency lighting
Part 2-23: Extra low voltage lighting systems for filament lamps
Part 2-24: Luminaires with limited surface temperatures
Part 2-25: Luminaires for use in clinical areas of hospitals and health care buildings
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
___________
Other parts are under consideration.
60598-2-13 IEC:2006 – 9 –
LUMINAIRES –
Part 2-13: Particular requirements –
Ground recessed luminaires
13.1 Scope
This Part 2 of IEC 60598 specifies requirements for ground recessed luminaires incorporating
electric light sources for operation from supply voltages up to 1 000 V, for indoor or outdoor
use, e.g. in gardens, yards, carriageways, parking lots, cycleways, footways, pedestrian
areas, swimming pools areas outside zones for SELV, nurseries and similar applications.
This part does not cover ground recessed luminaires for motorised roads and for airfields
already specified in IEC 61827 .
13.1.1 Normative references
The references of Section 0 of IEC 60598-1 apply.
13.2 General test requirements
The provisions of Section 0 of IEC 60598-1 apply.
13.3 Definitions
The definitions of Section 1 of IEC 60598-1 apply together with the following:
13.3.1
ground recessed luminaire
luminaire suitable to be installed in the ground, having the supply connections and electrical
components located below ground level
13.3.2
rated maximum surface temperature
T
the highest temperature on the accessible outer surface, under normal operating conditions
according to 13.12
13.4 Classification
Luminaires shall be classified in accordance with Section 2 of IEC 60598-1.
13.5 Marking
The provisions of Section 3 of IEC 60598-1 apply together with the requirements of 13.5.1 to
13.5.3
13.5.1 Rated load in N, according to 13.6.1 (in the manufacturer’s instructions).
___________
IEC 61827: Electrical installation and beaconing of aerodromes – Characteristics of inset and elevated
luminaires used in aerodromes.
60598-2-13 IEC:2006 – 11 –
13.5.2 Rated maximum
...
