HD 60364-7-701:2024
(Main)Low-voltage electrical installations - Part 7-701: Requirements for special installations or locations - Locations containing a bath or shower
Low-voltage electrical installations - Part 7-701: Requirements for special installations or locations - Locations containing a bath or shower
IEC 60364-7-701:2019 applies to electrical installations in indoor or outdoor locations where a bath tub and/or a shower is intended to be permanently placed in a specific location. The extent of the location containing a bath tub and/or a shower is limited by: – the lowest finished floor level; – a horizontal plane 3 m above the lowest finished floor level; – a vertical circumscribing virtual surface at a distance of 4 m from the fixed water outlet for the bath tub or shower; and – the volume within the walls, floor and ceiling that border the location containing a bath or shower, measured to a depth of 6 cm. The requirements of this document also apply to fixed electrical installations in mobile applications, for example caravans, mobile homes, shower containers. This document does not apply to emergency facilities, for example emergency showers used in industrial areas or laboratories. This third edition cancels and replaces the second edition published in 2006. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: – the scope gives precisions relevant to the application of this document; – the description of zones is improved; – relevant terms are defined.
Errichten von Niederspannungsanlagen - Teil 7-701: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art - Orte mit Badewanne oder Dusche
Installations électriques à basse tension - Partie 7-701: Exigences pour les installations et emplacements spéciaux - Emplacements contenant une baignoire ou une douche
IEC 60364-7-701:2019 s’applique aux installations électriques se trouvant dans des emplacements intérieurs ou extérieurs où une baignoire et/ou une douche sont destinées à être installées de façon permanente dans un emplacement spécifique. L’étendue de l’emplacement contenant une baignoire et/ou une douche est délimitée par: – le niveau le plus bas du sol fini; – un plan horizontal situé 3 m au-dessus du niveau le plus bas du sol fini; – une surface virtuelle verticale se situant à une distance de 4 m de l’arrivée d’eau fixe pour la baignoire ou la douche; et – le volume entre les murs, sol et plafond qui délimitent l’emplacement contenant une baignoire ou une douche, mesuré à une profondeur de 6 cm. Les exigences du présent document s’appliquent également aux installations électriques fixes dans des applications mobiles, par exemple les caravanes, mobil-homes, sanitaires mobiles. Le présent document ne s’applique pas aux équipements d’urgence, par exemple les douches d’urgence utilisées dans les installations industrielles ou dans les laboratoires. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: – le domaine d’application donne des précisions relatives à l’application du présent document; – la description des volumes est améliorée; – les termes pertinents sont définis.
Nizkonapetostne električne inštalacije - 7-701. del: Zahteve za posebne inštalacije ali lokacije - Prostori s kadjo ali prho (IEC 60364-7-701:2019)
General Information
Relations
Standards Content (Sample)

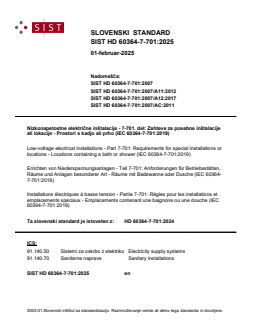

SLOVENSKI STANDARD
01-februar-2025
Nadomešča:
SIST HD 60364-7-701:2007
SIST HD 60364-7-701:2007/A11:2012
SIST HD 60364-7-701:2007/A12:2017
SIST HD 60364-7-701:2007/AC:2011
Nizkonapetostne električne inštalacije - 7-701. del: Zahteve za posebne inštalacije
ali lokacije - Prostori s kadjo ali prho (IEC 60364-7-701:2019)
Low-voltage electrical installations - Part 7-701: Requirements for special installations or
locations - Locations containing a bath or shower (IEC 60364-7-701:2019)
Errichten von Niederspannungsanlagen - Teil 7-701: Anforderungen für Betriebsstätten,
Räume und Anlagen besonderer Art - Räume mit Badewanne oder Dusche (IEC 60364-
7-701:2019)
Installations électriques à basse tension - Partie 7-701: Règles pour les installations et
emplacements spéciaux - Emplacements contenant une baignoire ou une douche (IEC
60364-7-701:2019)
Ta slovenski standard je istoveten z: HD 60364-7-701:2024
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
91.140.70 Sanitarne naprave Sanitary installations
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

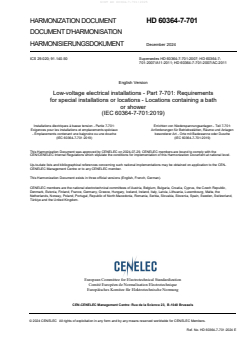

HARMONIZATION DOCUMENT HD 60364-7-701
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT December 2024
ICS 29.020; 91.140.50 Supersedes HD 60364-7-701:2007; HD 60364-7-
701:2007/A11:2011; HD 60364-7-701:2007/AC:2011
English Version
Low-voltage electrical installations - Part 7-701: Requirements
for special installations or locations - Locations containing a bath
or shower
(IEC 60364-7-701:2019)
Installations électriques à basse tension - Partie 7-701: Errichten von Niederspannungsanlagen - Teil 7-701:
Exigences pour les installations et emplacements spéciaux Anforderungen für Betriebsstätten, Räume und Anlagen
- Emplacements contenant une baignoire ou une douche besonderer Art - Orte mit Badewanne oder Dusche
(IEC 60364-7-701:2019) (IEC 60364-7-701:2019)
This Harmonization Document was approved by CENELEC on 2024-07-29. CENELEC members are bound to comply with the
CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this Harmonization Document at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This Harmonization Document exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. HD 60364-7-701:2024 E

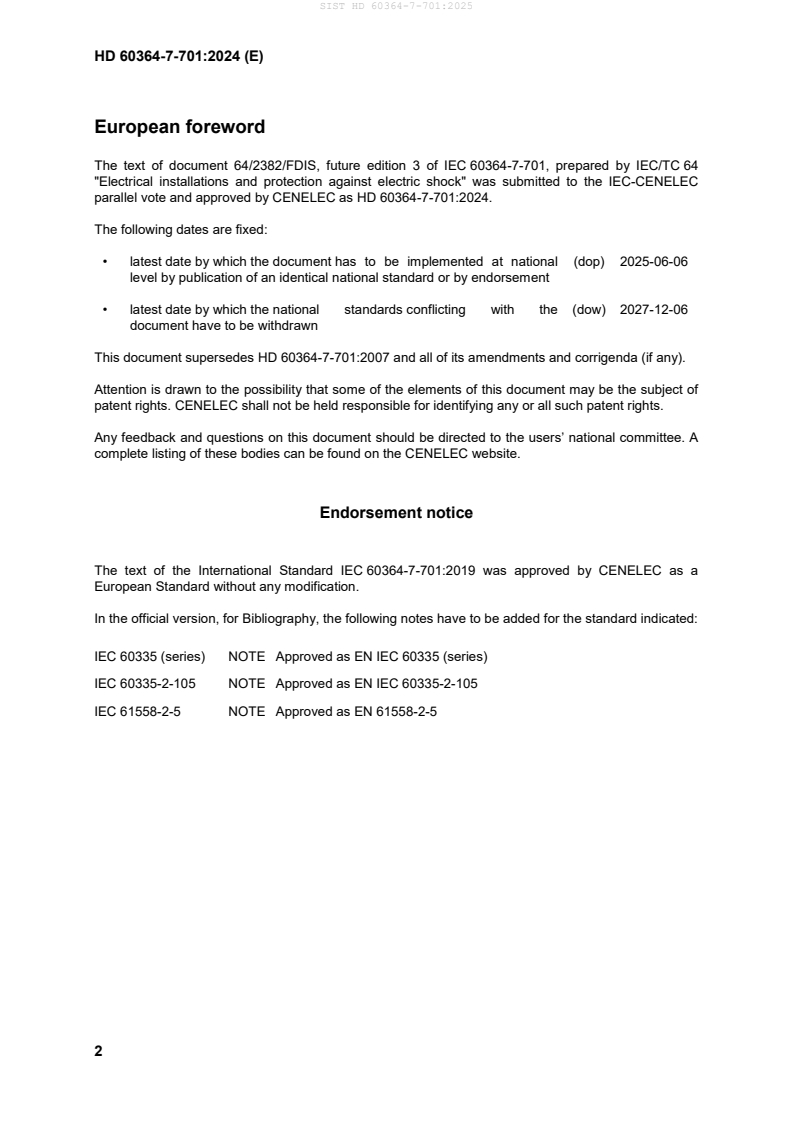

European foreword
The text of document 64/2382/FDIS, future edition 3 of IEC 60364-7-701, prepared by IEC/TC 64
"Electrical installations and protection against electric shock" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as HD 60364-7-701:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-06-06
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-12-06
document have to be withdrawn
This document supersedes HD 60364-7-701:2007 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60364-7-701:2019 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60335 (series) NOTE Approved as EN IEC 60335 (series)
IEC 60335-2-105 NOTE Approved as EN IEC 60335-2-105
IEC 61558-2-5 NOTE Approved as EN 61558-2-5
IEC 60364-7-701 ®
Edition 3.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage electrical installations –
Part 7-701: Requirements for special installations or locations – Locations
containing a bath or shower
Installations électriques à basse tension –
Partie 7-701: Exigences pour les installations et emplacements spéciaux –
Emplacements contenant une baignoire ou une douche
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.020; 91.140.50 ISBN 978-2-8322-7414-9
– 2 – IEC 60364-7-701:2019 IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
701 Locations containing a bath or shower . 6
701.1 Scope . 6
701.2 Normative references . 6
701.3 Terms and definitions . 6
701.30 Assessment of general characteristics . 7
701.4 Protection for safety . 8
701.41 Protection against electric shock . 8
701.411 Protective measure: automatic disconnection of supply . 9
701.414 Protective measure: extra-low-voltage provided by SELV and PELV . 9
701.415 Additional protection . 9
701.5 Selection and erection of electrical equipment. 10
701.51 Common rules . 10
701.512 Operational conditions and external influences . 10
701.52 Wiring systems . 11
701.522 Selection and erection of wiring systems in relation to external
influences . 11
701.53 Devices for protection for safety, isolation, switching, control and
monitoring . 12
701.531 Devices for protection against indirect contact by automatic
disconnection of supply . 12
Annex A (informative) List of notes concerning certain countries . 21
Bibliography . 27
Figure 1 – Remaining wall thickness behind zones . 12
Figure 2 – Dimensions of zones: side view of a bath tub . 13
Figure 3 – Dimensions of zones: top view of a bath tub without partition . 14
Figure 4 – Dimensions of zones: top view of a bath tub with fixed partition . 15
Figure 5 – Dimensions of zones 0 and 1: side view of a shower . 16
Figure 6 – Dimensions of zones 0 and 1: side view of a shower with fixed partition . 17
Figure 7 – Dimensions of zones 0 and 1: top view of a shower with fixed water outlet
close to a corner . 18
Figure 8 – Dimensions of zones 0 and 1: top view of a shower with fixed water outlet at
a distance from a corner . 18
Figure 9 – Dimensions of zones 0 and 1: top view of a shower with a fixed partition . 19
Figure 10 – Example of zone for shower with doors . 20
Figure 11 – Dimensions of zones in locations containing a shower with a basin . 26
IEC 60364-7-701:2019 IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE ELECTRICAL INSTALLATIONS –
Part 7-701: Requirements for special installations or locations –
Locations containing a bath or shower
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60364-7-701 has been prepared by IEC technical committee 64:
Electrical installations and protection against electric shock.
This third edition cancels and replaces the second edition published in 2006. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– the scope gives precisions relevant to the application of this document;
– the description of zones is improved;
– relevant terms are defined.
– 4 – IEC 60364-7-701:2019 IEC 2019
The text of this International Standard is based on the following documents:
FDIS Report on voting
64/2382/FDIS 64/2395/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
...
