SLOVENSKI STANDARD
SIST EN 60947-6-1:2006/A1:2014
01-junij-2014
1L]NRQDSHWRVWQHVWLNDOQHQDSUDYHGHO9HþIXQNFLMVNDRSUHPD2SUHPD]D
VDPRGHMQRSUHGDMDQMHVWLNDQMD'RSROQLOR$ ,(&$
Low-voltage switchgear and controlgear - Part 6-1: Multiple function equipment -
Transfer switching equipment

Niederspannungsschaltgeräte - Teil 6-1: Mehrfunktionsschaltgeräte - Netzumschalter

Appareillage à basse tension - Partie 6-1: Matériels à fonctions multiples - Matériels de

connexion de transfert
Ta slovenski standard je istoveten z: EN 60947-6-1:2005/A1:2014
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
SIST EN 60947-6-1:2006/A1:2014 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60947-6-1:2006/A1:2014
---------------------- Page: 2 ----------------------
SIST EN 60947-6-1:2006/A1:2014
EUROPEAN STANDARD
EN 60947-6-1/A1
NORME EUROPÉENNE
April 2014
EUROPÄISCHE NORM
ICS 29.120.40; 29.130.20
English version
Low-voltage switchgear and controlgear -
Part 6-1: Multiple function equipment -
Transfer switching equipment
(IEC 60947-6-1:2005/A1:2013)
Appareillage à basse tension - Niederspannungsschaltgeräte -

Partie 6-1: Matériels à fonctions multiples Teil 6-1: Mehrfunktionsschaltgeräte -

- Netzumschalter
Matériels de connexion de transfert (IEC 60947-6-1:2005/A1:2013)
(CEI 60947-6-1:2005/A1:2013)

This amendment A1 modifies the European Standard EN 60947-6-1:2005; it was approved by CENELEC on

2014-01-17. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which

stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language

made by translation under the responsibility of a CENELEC member into its own language and notified to the

CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60947-6-1:2005/A1:2014 E
---------------------- Page: 3 ----------------------
SIST EN 60947-6-1:2006/A1:2014

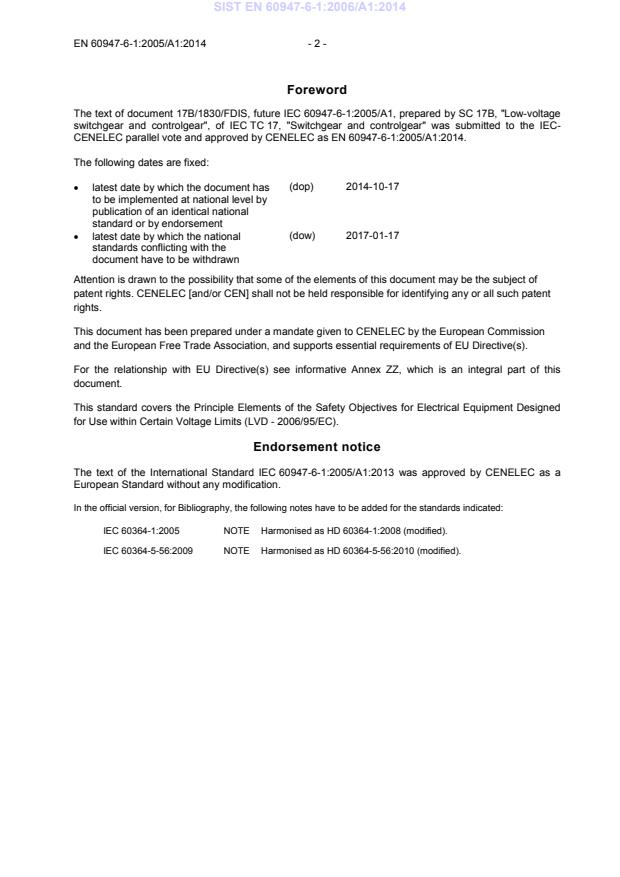

EN 60947-6-1:2005/A1:2014 - 2 -
Foreword

The text of document 17B/1830/FDIS, future IEC 60947-6-1:2005/A1, prepared by SC 17B, "Low-voltage

switchgear and controlgear", of IEC TC 17, "Switchgear and controlgear" was submitted to the IEC-

CENELEC parallel vote and approved by CENELEC as EN 60947-6-1:2005/A1:2014.
The following dates are fixed:
(dop) 2014-10-17
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-01-17
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent

rights.

This document has been prepared under a mandate given to CENELEC by the European Commission

and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.

This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed

for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice

The text of the International Standard IEC 60947-6-1:2005/A1:2013 was approved by CENELEC as a

European Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60364-1:2005 NOTE Harmonised as HD 60364-1:2008 (modified).
IEC 60364-5-56:2009 NOTE Harmonised as HD 60364-5-56:2010 (modified).
---------------------- Page: 4 ----------------------
SIST EN 60947-6-1:2006/A1:2014
- 3 - EN 60947-6-1:2005/A1:2014
Replace Annex ZA of EN 60947-6-1:2005 by:
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60695-11-10 1999 Fire hazard testing - EN 60695-11-10 1999
Part 11-10: Test flames - 50
A1 2003 A1 2003
W horizontal and vertical
flame test methods
IEC 60947-1 2007 Low-voltage switchgear and EN 60947-1 2007
controlgear-
A1 2010 A1 2011
Part 1: General rules
IEC 60947-2 2006 Low-voltage switchgear and
EN 60947-2 2006
controlgear -
A1 2009 A1 2009
Part 2: Circuit-breakers
A2 2013 A2 2013
IEC 60947-3 2008 Low-voltage switchgear and EN 60947-3 2009
controlgear -
A1 2012 A1 2012
Part 3: Switches,
disconnectors, switch-
disconnectors and fuse-
combination units
IEC 60947-4-1 2009 Low-voltage switchgear and EN 60947-4-1 2010
controlgear -
A1 2012 A1 2012
Part 4-1: Contactors and
motor-starters -
Electromechanical contactors
and motorstarters
IEC 60947-4-2 1999 Low-voltage switchgear and
EN 60947-4-2 2000
controlgear -
A1 2001 A1 2002
Part 4-2: Contactors and
motor-starters -AC
semiconductor motor
controllers and starters
IEC 60947-4-3 1999 Low-voltage switchgear and EN 60947-4-3 2000
controlgear -
Part 4-3: Contactors and
motor-starters - AC
semiconductor controllers and
contactors for non-motor
loads
IEC 60947-6-2 2002 Low-voltage switchgear and EN 60947-6-2 2003
controlgear -
A1 2007 A1 2007
Part 6-2: Multiple function
---------------------- Page: 5 ----------------------
SIST EN 60947-6-1:2006/A1:2014
EN 60947-6-1:2005/A1:2014 - 4 -
equipment - Control and
protective switching devices
(or equipment) (CPS)
IEC 61000-4-2 1995 Electromagnetic compatibility EN 61000-4-2 1995
(EMC) –
A1 1998 A1 1998
Part 4-2: Testing and
A2 2000 A2 2001
measurement techniques –
Electrostatic discharge
immunity test
IEC 61000-4-3 2002 Electromagnetic compatibility IEC 61000-4-3 2002
(EMC) –
A1 2002 A1 2002
Part 4-3: Testing and
measurement techniques –
Radiated, radio-frequency,
electromagnetic field immunity
test
IEC 61000-4-4 1995 Electromagnetic compatibility EN 61000-4-4 1995
(EMC) –
A1 2000 A1 2001
Part 4-4: Testing and
A2 2001 A2 2001
measurement techniques –
Electrical fast transient/burst
immunity test
IEC 61000-4-5 1995 Electromagnetic compatibility EN 61000-4-5 1995
(EMC) –
A1 2000 A1 2001
Part 4-5: Testing and
measurement techniques –
Surge immunity test
IEC 61000-4-6 2003 Electromagnetic compatibility EN 61000-4-6 2007
(EMC) –
A1 2004
Part 4-6: Testing and
measurement techniques –
Immunity to conducted
disturbances, induced by radio-
frequency
fields
IEC 61000-4-13 2002 Electromagnetic compatibility EN 61000-4-13 2002
(EMC) -
A1 2009 A1 2009
Part 4-13: Testing and
measurement techniques –
Harmonics and
interharmonics including
mains signalling at a.c. power
port, low frequency immunity
tests
CISPR 11 2009 Industrial scientific and EN 55011 2009
medical (ISM) radio-
A1 2010 A1 2010
frequency equipment -
Electromagnetic disturbance
characteristics - Limits and
methods of measurement
IEC 60417 - Graphical symbols for use on - -
(Data base) equipment
---------------------- Page: 6 ----------------------
SIST EN 60947-6-1:2006/A1:2014
- 5 - EN 60947-6-1:2005/A1:2014
Replace Annex ZZ of EN 60947-6-1:2005 by:
Annex ZZ
(informative)
Coverage of Essential Requirements of EU Directives
This European Standard has been prepared under a mandate given to CENELEC by the

European Commission and the European Free Trade Association and within its scope the

standard covers protection requirements of Annex I Article 1 of the EU Directive 2004/108/EC.

Compliance with this standard provides presumption of conformity with the specified essential

requirements of the Directives concerned.

NOTE: Other requirements and other EU Directives may be applicable to the products falling within the scope of this

standard.
---------------------- Page: 7 ----------------------
SIST EN 60947-6-1:2006/A1:2014
---------------------- Page: 8 ----------------------
SIST EN 60947-6-1:2006/A1:2014
IEC 60947-6-1
Edition 2.0 2013-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Low-voltage switchgear and controlgear –
Part 6-1: Multiple function equipment – Transfer switching equipment
Appareillage à basse tension –

Partie 6-1: Matériels à fonctions multiples – Matériels de connexion de transfert

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX Q
ICS 29.120.40, 29.130.20 ISBN 978-2-8322-1304-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN 60947-6-1:2006/A1:2014
– 2 – 60947-6-1 Amend.1 © IEC:2013
FOREWORD
This amendment has been prepared by subcommittee 17B: Low-voltage switchgear and
controlgear, of IEC technical committee 17: Switchgear and controlgear.
The text of this amendment is based on the following documents:
FDIS Report on voting
17B/1830FDIS 17B/1840/RVD

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC web site under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
---------------------- Page: 10 ----------------------
SIST EN 60947-6-1:2006/A1:2014
60947-6-1 Amend.1 © IEC:2013 – 3 –
INTRODUCTION to the Amendment

This amendment includes the following significant technical changes with respect to the

second edition of IEC 60947-6-1 published in 2005:
• clarification of the scope and object;
• update of the normative references;
• clarification of the classification in Clause 4;
• new EMC test: voltage harmonics
• minimum test for derived TSE;
• alignments to the Amendment 1 (2010) of IEC 60947-1:2007:
– electrically or electronically controlled circuits;
– markings ("s", "sol", "r" or "f");
– constructional requirements including material requirements;
– requirement for screwless terminals;
– references to EMC test.
• alignments to the Amendment 1 (2012) of IEC 60947-4-1:2009:

– test at the rated conditional short-circuit current I of protected switching devices;

– short-circuit tests harmonisation.
• creation of bibliography.
_____________
1 Scope and object

Replace the existing first paragraph of this clause by the following new paragraph:

This part of IEC 60947 applies to transfer switching equipment (TSE) to be used in power

systems for transferring a load supply between a normal and an alternate source with a

supply interruption during transfer, the rated voltage of which does not exceed 1 000 V a.c. or

1 500 V d.c.
Replace in the second dash of the second paragraph "remote" by "remotely".
Renumber the existing note as "NOTE 1".
Delete, in the existing list, the existing items a) and b) under 1).
Add, at the end of the existing text, the following new notes:

NOTE 2 This standard covers also ATSE or RTSE which can be used for safety services as defined in

IEC 60364-1 and for which the installation requirements are given by IEC 60364-5-56.

NOTE 3 Other ATSE requirements are under consideration such as closed transition TSE (make before break

transfer operation).
2 Normative references

Replace the existing references to the IEC 60947-1, IEC 60947-2, IEC 60947-3, IEC 60947-4-

1 and to the IEC 60947-6-2 by the following new references:
---------------------- Page: 11 ----------------------
SIST EN 60947-6-1:2006/A1:2014
– 4 – 60947-6-1 Amend.1 © IEC:2013
IEC 60947-1:2007, Low-voltage switchgear and controlgear – Part 1: General rules
Amendment 1:2010

IEC 60947-2:2006, Low-voltage switchgear and controlgear – Part 2: Circuit-breakers

Amendment 1:2009
Amendment 2:2013

IEC 60947-3:2008, Low-voltage switchgear and controlgear – Part 3: Switches, disconnectors,

switch-disconnectors and fuse-combination units
Amendment 1:2012

IEC 60947-4-1:2009, Low-voltage switchgear and controlgear – Part 4-1: Contactors and

motor-starters – Electromechanical contactors and motor-starters
Amendment 1:2012

IEC 60947-6-2:2002, Low voltage switchgear and controlgear – Part 6-2: Multiple function

equipment – Control and protective switching devices (or equipment) (CPS)
Amendment 1:2007
Add the following new references to the existing list:
IEC 60417-DB , Graphical symbols for use on equipment

CISPR 11:2009, Industrial, scientific and medical equipment – Radio-frequency disturbance

characteristics – Limits and methods of measurement
Amendment 1:2010

IEC 61000-4-13:2002, Electromagnetic compatibility (EMC) – Part 4-13: Testing and

measurement techniques – Harmonics and interharmonics including mains signalling at a.c.

power port, low-frequency immunity tests
Amendment 1:2009
3 Terms and definitions, symbols and abbreviations
Add the following new term and new reference to the existing list as follows:

Switching position ............................................................................................................. 3.3.4

3.3 Main contact positions

Add, after the existing term and definition 3.3.3, the following new term and definition:

3.3.4
switching position (of a TSE)

mechanical configuration of the main contacts of a TSE regarding the load connexion to a

source, which could be either connected to the normal source in the normal position, the

alternate source in the alternative position, or disconnected in the off position (if applicable)

3.4 Symbols and abbreviations
Add the following new symbols and abbreviations to the existing list:
___________
Available at: http://www.graphical-symbols.info/equipment
---------------------- Page: 12 ----------------------
SIST EN 60947-6-1:2006/A1:2014
60947-6-1 Amend.1 © IEC:2013 – 5 –
ATSE Automatic transfer switching equipment
MTSE Manually operated transfer switching equipment
RTSE Remotely operated transfer switching equipment
TSE Transfer switching equipment
"r" Minimum short-circuit test current
I Rated conditional short-circuit current
4 Classification
Renumber the existing note as "NOTE 1".
Replace in a) the second existing dash by the following new dash:

– class CB: TSE that is capable of making, withstanding and is intended for breaking short-

circuit currents and is provided with over-current releases;

Replace, in the third existing dash of a), “short-circuit currents. TSE based" by "short-circuit

currents and is based".
Add, after the existing text of a), the following new notes:

NOTE 2 The mirror contact defined in IEC 60947-4-1 should be used to monitor the state of the contacts of a

class CC TSE.

NOTE 3 The appropriate ATSE classification for use for safety services in electrical supply systems is under

consideration.
Replace, in the second existing dash of b), "remote" by "remotely".
5.3 Rated and limiting values for the main circuit
Add, at the end of the existing text, "or in Table 11".
5.3.6.1 Rated short-time withstand current (I )
Add, at the end of the third paragraph, "or in Table 11".
5.3.6.3 Rated short-circuit breaking capacity (I )
Add, at the end of the first sentence of the third paragraph, "or in Table 11".
5.3.6.4 Rated conditional short-circuit current
Add, at the end of the second paragraph, "or in Table 11".
5.4 Utilization category

Replace, in the first paragraph, "assigned one" by "assigned to one" and replace "utilization

voltages" by "operational voltages".
5.5.2 Transfer control devices
Replace the existing item b) by the following new items:
b) the contact transfer time and the off time range for all TSE;
c) the operating transfer time and the return transfer time range for ATSE.
Add, after the existing text of this subclause, the following new text:
---------------------- Page: 13 ----------------------
SIST EN 60947-6-1:2006/A1:2014
– 6 – 60947-6-1 Amend.1 © IEC:2013

The tolerance of the voltage frequency deviations and of the times shall be specified by the

manufacturer but no more than ±10 %. If the time value is lower than 1 s, the manufacturer

shall state the tolerances.
6.1 Nature of information
Replace the existing item h) by the following new item h):
h) rated short-circuit making capacity for class PC;
Add, at the end of item j), "for class PC and CC".
Replace the existing item n) by the following new item n):

n) operating sequence time data according to 5.5.2 b), time delays and their position in the

operating sequence if any;
Renumber the existing note as "NOTE 1".
Replace the existing item r) by the following new items and new note:

r) length of insulation to be removed before insertion of the conductor into the terminal;

s) maximum number of conductors which may be clamped;
t) for non-universal screwless terminals:
– “s” or "sol" for terminals declared for rigid-solid conductors;
– "r" for terminals declared for rigid (solid and stranded) conductors;
– "f" for terminals declared for flexible conductors.
u) switching position of the TSE.

NOTE 2 In the case of electronically controlled electromagnets, other information can also be necessary, for

example the control circuit configuration (see 4.5 and Annex U of IEC 60947-1:2007, Amendment 1 (2010)).

6.2 Marking
Replace, in the second paragraph, "and o)" by ", o) and u)".
Replace, in the last paragraph, "to r)" by "to t)".
6.3 Instructions for installation, operation and maintenance
Delete the existing second paragraph.
8.1.1.1 Resistance to abnormal heat and fire

Renumber this subclause as 8.1.1 and replace the existing text by the following new text:

Subclause 7.1.2 of IEC 60947-1:2007, Amendment 1 (2010) applies.

When tests on the equipment or on sections taken from the equipment are used, parts of

insulating materials necessary to retain current-carrying parts in position shall conform to the

glow wire test of subclause 8.2.1.1.1 of IEC 60947-1:
...
