Self-ballasted LED lamps for general lighting services with supply voltages > 50 V - Performance requirements

IEC 62612:2013 specifies the performance requirements, together with the test methods and conditions, required to show compliance of LED lamps with integral means for stable operation, intended for domestic and similar general lighting purposes, having: - a rated power up to 60 W; - a rated voltage of > 50 V a.c. up to 250 V a.c.; - a lamp cap as listed in IEC 62560. This first edition of IEC 62612 cancels and replaces IEC/PAS 62612. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to IEC/PAS 62612. a) The standard explicitly states that real life time tests are not part of the test regime. Instead, a period of up to 6 000 h is chosen in order to assess manufacturers' claims of maintenance. b) Technical features have been adapted to IEC/PAS 62717 (performance of LED modules) as far as possible. Examples are the family approach and the temperature measuring point. c) Marking requirements are shifted from the product to the packaging. d) The number of lamps to be tested is made test specific, not general. e) First requirements are given for setting the colour for colour adjustable lamps and the luminous flux level of dimmable lamps. f) The structure of tests is clearly divided between requirement and compliance. g) Statistical compliance is separated into individual and average. h) Light output requirements are extended to luminous intensity distribution, peak intensity, beam angle and efficacy. i) The use of the terms 'correlated colour temperature' and 'chromaticity coordinates' is corrected. j) The number of tolerance categories is reduced from 8 to 4, and split between initial and maintained values. k) Colour rendering is differently assessed at initial and maintained state. l) Three lumen maintenance categories are given instead of five. m) The endurance tests are completely re-established. n) The verification (formerly: assessment) clause is completed. o) Information for luminaire design is added. p) Stabilisation is more precise (Annex A on the method of measuring lamp characteristics) and extension is made for the additional photometric and colorimetric parameters. q) Annex B on measuring luminous flux is contained in Annex A. New Annex B provides the photometric code. r) Further annexes are added: Annex C and D for displacement factor, Annex E for life time metrics/reliability and Annex F for examples of LED dies and LED packages.

LED-Lampen mit eingebautem Vorschaltgerät für Allgemeinbeleuchtung mit Versorgungsspannungen > 50 V - Anforderungen an die Arbeitsweise

Lampes à LED autoballastées pour l'éclairage général avec des tensions d'alimentation > 50 V - Exigences de performances

La CEI 62612:2013 spécifie les exigences de performances, ainsi que les conditions et les méthodes d'essais, requises pour assurer la conformité des lampes à LED à dispositif de stabilisation incorporé, destinées à l'éclairage domestique et à l'éclairage général similaire, ayant: - une puissance assignée pouvant atteindre 60 W; - une tension assignée comprise entre 50 V c.a. et 250 V c.a.; - un culot de lampe tel qu'indiqué dans la CEI 62560. Cette première édition de la CEI 62612 annule et remplace la CEI/PAS 62612. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à la CEI/PAS 62612. a) La norme indique explicitement que les essais de durée de vie réelle ne font pas partie du régime d'essais. Au lieu de cela, on choisit une période pouvant atteindre 6 000 h pour évaluer les déclarations de maintien données par un fabricant. b) Des caractéristiques techniques ont été adaptées autant que possible à la CEI/PAS 62717 (performances des modules de LED). Des exemples incluent l'utilisation de familles et le point de mesure de la température. c) Les exigences de marquage s'appliquent au boîtier et non au produit. d) Le nombre de lampes à soumettre aux essais est spécifique aux essais. e) Les premières exigences sont données pour régler la couleur des lampes à couleur ajustable et le niveau de flux lumineux des lampes à variation d'intensité. f) La structure des essais est divisée entre exigences et conformité. g) La conformité statistique est divisée en individuelle et moyenne. h) Les exigences sur la lumière de sortie sont étendues à la distribution d'intensité lumineuse, l'intensité de crête, l'angle de faisceau et l'efficacité. i) L'utilisation des termes 'température de couleur proximale' et 'coordonnées trichromatiques' est corrigée. j) Le nombre de catégories de tolérance est réduit de 8 à 4 et divisé entre les valeurs initiales et valeurs de maintien. k) Le rendu des couleurs est évalué différemment à l'état initial et à l'état de maintien. l) Trois catégories de maintien de flux lumineux sont données au lieu de cinq. m) Les essais d'endurance sont entièrement rétablis. n) L'article sur la vérification (auparavant appelée évaluation) est complété. o) Des informations pour la conception de luminaires sont ajoutées. p) La stabilisation est plus précise (Annexe A sur la méthode de mesure des caractéristiques des lampes) et des paramètres photométriques et colorimétriques supplémentaires ont été ajoutés. q) L'Annexe B sur la mesure du flux lumineux est incluse dans l'Annexe A. Une nouvelle Annexe B fournit le code photométrique. r) D'autres annexes ont été ajoutées. L'Annexe C et l'Annexe D sur le facteur de déplacement, l'Annexe E sur les valeurs et la fiabilité de la durée de vie et l'Annexe F qui donne des exemples de puces de LED et de boîtier de LED.

LED-sijalke za splošno razsvetljavo z vgrajeno predstikalno napravo pri napajalni napetosti nad 50 V - Tehnične zahteve (IEC 62612:2013)

Ta mednarodni standard določa zahteve glede zmogljivosti, vključno s preskusnimi metodami in pogoji, ki so potrebni za preverjanje skladnosti sijalk LED z vključenimi sredstvi za stabilno delovanje, ki so namenjene za domačo in podobno splošno razsvetljavo ter imajo:
• nazivno moč do 60 W;
• nazivno napetost od 50 do 250 VAC;
• svetilno osnovo, kot je opredeljeno v standardu IEC 62560.
Te zahteve glede zmogljivosti so dodane k zahtevam iz standarda IEC 62560., Edina lastnost, podana s tem standardom, ko se ta uporablja za namene zamenjave, je informacija o največjem obsegu svetilke. Zahteve iz tega standarda se nanašajo na tipsko preskušanje. Ta standard zajema svetilke LED, ki namenoma proizvajajo belo svetlobo, osnovano na neorganskih svetilkah LED.
Priporočila za preskušanje celotnega proizvoda ali serije so v obravnavi. Življenjska doba svetilk LED je v večini primerov precej daljša od preskusnih časov v praksi. Posledično ni mogoče preveriti proizvajalčeve trditve o življenjski dobi z zadostno mero zanesljivosti, ker projekcija preskusnih podatkov v prihodnost ni standardizirana. Zaradi tega sprejetje ali zavrnitev proizvajalčevih trditev o življenjski dobi nad nazivno življenjsko dobo, kot je opredeljeno v točki v 7.1, je zunaj področja uporabe tega standarda. Namesto preverjanja veljavnosti življenjske dobe ta standard določa kode vzdrževanja lumnov pri opredeljenem končnem preskusnem času. Zato številka kode ne predvideva napovedi dosegljive življenjske dobe. Kategorije, ki jih predstavljajo kode, so kategorije znižanja vrednosti lumnov, ki delujejo v skladu z informacijami proizvajalca, ki so na voljo pred začetkom preskusa. Za preverjanje trditve o življenjski dobi obstaja več metod za ekstrapolacijo preskusnih podatkov. Presoja se splošna metoda projiciranja podatkov meritev zunaj omejenega preskusnega časa. Merilo za uspel/neuspel preskus življenjske dobe, kot je določeno v tem standardu, se razlikuje od nazivnih meritev proizvajalcev. Za razlago priporočenih meritev življenjske dobe glej dodatek E. OPOMBA: Če žarnice delujejo v svetilki, se lahko podatki o zmogljivosti razlikujejo od vrednosti v tem standardu, predvsem zaradi komponent svetilke, ki vplivajo na delovanje žarnice.

General Information

Status
Published
Publication Date
29-Aug-2013
Current Stage
6060 - Document made available
Due Date
30-Aug-2013
Completion Date
30-Aug-2013

RELATIONS

Buy Standard

Standard
EN 62612:2014 - BARVE na PDF-strani 30,37,46,47
English language
45 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 62612:2014
01-april-2014

/('VLMDONH]DVSORãQRUD]VYHWOMDYR]YJUDMHQRSUHGVWLNDOQRQDSUDYRSULQDSDMDOQL

QDSHWRVWLQDG97HKQLþQH]DKWHYH ,(&

Self-ballasted LED lamps for general lighting services with supply voltages > 50 V -

Performance requirements
LED-Lampen mit eingebautem Vorschaltgerät für Allgemeinbeleuchtung mit
Versorgungsspannungen > 50 V - Anforderungen an die Arbeitsweise

Lampes à LED autoballastées pour l'éclairage général avec des tensions d'alimentation

> 50 V - Exigences de performances
Ta slovenski standard je istoveten z: EN 62612:2013
ICS:
29.140.01 Žarnice na splošno Lamps in general
SIST EN 62612:2014 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 62612:2014
---------------------- Page: 2 ----------------------
SIST EN 62612:2014
EUROPEAN STANDARD
EN 62612
NORME EUROPÉENNE
August 2013
EUROPÄISCHE NORM
ICS 29.140.01
English version
Self-ballasted LED lamps for general lighting services with supply
voltages > 50 V -
Performance requirements
(IEC 62612:2013)
Lampes à LED autoballastées pour LED-Lampen mit eingebautem
l'éclairage général avec des tensions Vorschaltgerät für Allgemeinbeleuchtung
d'alimentation > 50 V - mit Versorgungsspannungen > 50 V -
Exigences de performances Anforderungen an die Arbeitsweise
(CEI 62612:2013) (IEC 62612:2013)

This European Standard was approved by CENELEC on 2013-07-23. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 62612:2013 E
---------------------- Page: 3 ----------------------
SIST EN 62612:2014
EN 62612:2013 -2-

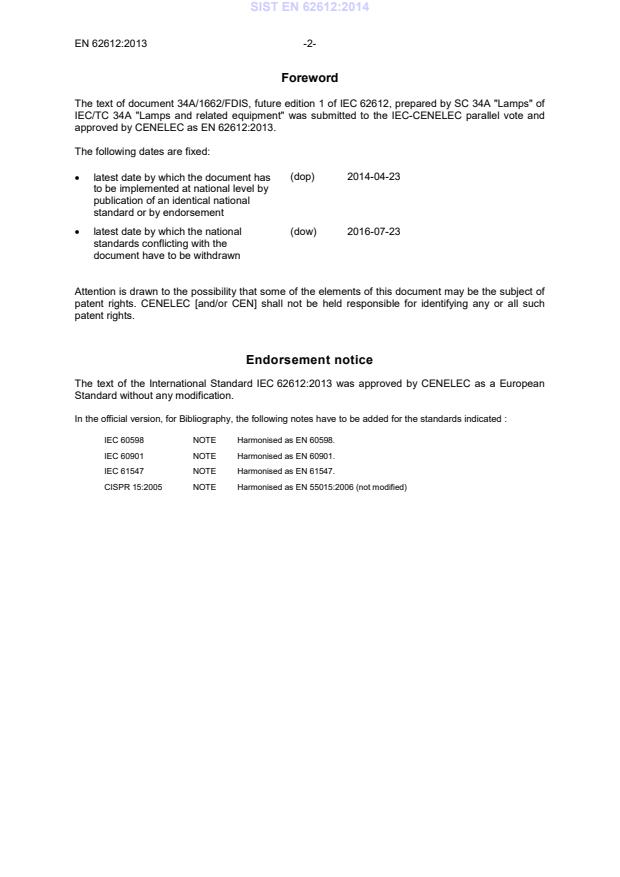

Foreword

The text of document 34A/1662/FDIS, future edition 1 of IEC 62612, prepared by SC 34A "Lamps" of

IEC/TC 34A "Lamps and related equipment" was submitted to the IEC-CENELEC parallel vote and

approved by CENELEC as EN 62612:2013.
The following dates are fixed:
(dop) 2014-04-23
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-07-23
• latest date by which the national
standards conflicting with the
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such

patent rights.
Endorsement notice

The text of the International Standard IEC 62612:2013 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated :

IEC 60598 NOTE Harmonised as EN 60598.
IEC 60901 NOTE Harmonised as EN 60901.
IEC 61547 NOTE Harmonised as EN 61547.
CISPR 15:2005 NOTE Harmonised as EN 55015:2006 (not modified)
---------------------- Page: 4 ----------------------
SIST EN 62612:2014
- 3 - EN 62612:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60050 Series International Electrotechnical Vocabulary - -
(IEV)
IEC 60068-2-14 - Environmental testing - Part 2-14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60081 - Double-capped fluorescent lamps - EN 60081 -
Performance specifications
IEC 60630 - Maximum lamp outlines for incandescent EN 60630 -
lamps
IEC 61000-3-2 2005 Electromagnetic compatibility (EMC) - Part EN 61000-3-2 2006
3-2: Limits - Limits for harmonic current
emissions (equipment input current <= 16 A
per phase)
IEC 61000-4-7 - Electromagnetic compatibility (EMC) - Part EN 61000-4-7 -
4-7: Testing and measurement techniques -
General guide on harmonics and
interharmonics measurements and
instrumentation, for power supply systems
and equipment connected thereto
IEC/TR 61341 - Method of measurement of centre beam EN 61341 -
intensity and beam angle(s) of reflector
lamps
IEC/TS 62504 - General lighting - LEDs and LED modules - - -
Terms and definitions
IEC 62560 - Self-ballasted LED-lamps for general lighting EN 62560 -
services by voltage > 50 V - Safety
specifications
IEC/TR 62732 - Three-digit code for designation of colour - -
rendering and correlated colour temperature
CIE 13.2 1974 Methods of measuring and specifying colour - -
rendering properties of light sources
CIE 13.3 1995 Method of measuring and specifying colour - -
rendering of light sources
CIE S 017/E 2011 ILV: International Lighting Vocabulary - -
CIE 191 1996 The photometry and goniophotometry of - -
luminaires
CIE 177 2007 Colour rendering of white LED light sources - -
---------------------- Page: 5 ----------------------
SIST EN 62612:2014
---------------------- Page: 6 ----------------------
SIST EN 62612:2014
IEC 62612
Edition 1.0 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Self-ballasted LED lamps for general lighting services with supply voltages
> 50 V – Performance requirements
Lampes à LED autoballastées pour l'éclairage général avec des tensions
d'alimentation > 50 V – Exigences de performances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.140.01 ISBN 978-2-83220-872-4

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 62612:2014
– 2 – 62612  IEC:2013
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope ............................................................................................................................... 7

2 Normative references ....................................................................................................... 7

3 Terms and definitions ....................................................................................................... 8

4 General requirements on tests ........................................................................................ 11

5 Marking .......................................................................................................................... 11

5.1 General requirements for marking ......................................................................... 11

5.2 Places of marking .................................................................................................. 12

6 Dimensions .................................................................................................................... 12

7 Test conditions ............................................................................................................... 12

7.1 General test conditions .......................................................................................... 12

7.2 Creation of lamp families to reduce test effort ........................................................ 13

7.2.1 General ..................................................................................................... 13

7.2.2 Variations within a family ........................................................................... 13

7.2.3 Compliance testing of family members ....................................................... 14

8 Lamp input ..................................................................................................................... 14

8.1 Lamp power .......................................................................................................... 14

8.2 Displacement factor ............................................................................................... 15

9 Light output .................................................................................................................... 15

9.1 Luminous flux ........................................................................................................ 15

9.2 Luminous intensity distribution, peak intensity and beam angle ............................. 15

9.2.1 General ..................................................................................................... 15

9.2.2 Measurement ............................................................................................. 15

9.2.3 Luminous intensity distribution ................................................................... 15

9.2.4 Peak intensity value .................................................................................. 16

9.2.5 Beam angle value ...................................................................................... 16

9.3 Efficacy ................................................................................................................. 16

10 Colour nomenclature, variation and rendering................................................................. 16

10.1 Colour variation categories .................................................................................... 16

10.2 Colour rendering index (CRI) ................................................................................. 18

11 Lamp life ........................................................................................................................ 18

11.1 General ................................................................................................................. 18

11.2 Lumen maintenance .............................................................................................. 18

11.3 Endurance tests .................................................................................................... 20

11.3.1 General ..................................................................................................... 20

11.3.2 Temperature cycling test ........................................................................... 20

11.3.3 Supply switching test ................................................................................. 21

11.3.4 Accelerated operational life test ................................................................. 21

12 Verification ..................................................................................................................... 21

Annex A (normative) Method of measuring lamp characteristics ........................................... 23

Annex B (normative) Explanation of the photometric code.................................................... 30

Annex C (normative) Measurement of displacement factor ................................................... 31

Annex D (informative) Explanation of displacement factor .................................................... 33

Annex E (informative) Explanation of recommended life time metrics ................................... 35

---------------------- Page: 8 ----------------------
SIST EN 62612:2014
62612  IEC:2013 – 3 –

Annex F (informative) Examples of LED dies and LED packages ......................................... 40

Bibliography .......................................................................................................................... 42

Figure 1 – Luminous flux depreciation over test time ............................................................. 20

Figure A.1 – Relation of rated voltage to test voltage ............................................................ 24

Figure A.2 – Relation of rated frequency to test frequency .................................................... 24

Figure A.3 – Relation of type of tests to test voltage and test frequency .............................. 25

Figure C.1 – Definition of the 1 harmonic current phase-angle (φ ) (I leads U ,
1 1 mains

φ > 0) .................................................................................................................................. 31

Figure C.2 – Definition of the 1 harmonic current phase-angle (φ ) (I lags U ,
1 1 mains

φ < 0) .................................................................................................................................. 32

Figure E.1 – Life time specification for gradual light output degradation ................................ 35

Figure E.2 – Life time specification for abrupt light output degradation .................................. 37

Figure E.3 – Reliability curve R for gradual light output degradation .......................... 38

gradual

Figure E.4 – Reliability curve R for abrupt light output degradation .............................. 38

abrupt

Figure E.5 – Combined R and R degradation ................................................... 39

gradual abrupt

Figure F.1 – Schematic drawings of LED dies ....................................................................... 40

Figure F.2 – Schematic drawings of LED packages ............................................................... 41

Table 1 – Required markings ................................................................................................ 12

Table 2 – Variations allowed within a family .......................................................................... 14

Table 3 – Colour ................................................................................................................... 17

Table 4 – Tolerance (categories) on rated chromaticity co-ordinate values ........................... 17

Table 5 – Lumen maintenance code at an operational time as stated in 7.1 .......................... 18

Table 6 – Sample sizes ......................................................................................................... 22

Table A.1 – Relation of rated voltage to test voltage ............................................................. 25

Table A.2 – Initial tests ......................................................................................................... 27

Table A.3 – Lifetime and endurance tests ............................................................................. 27

Table D.1 – Recommended values for displacement factor ................................................... 34

Table E.1 – Recommended x and y values for life time metrics to be used in life time

specification.......................................................................................................................... 39

---------------------- Page: 9 ----------------------
SIST EN 62612:2014
– 4 – 62612  IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SELF-BALLASTED LED LAMPS FOR GENERAL
LIGHTING SERVICES WITH SUPPLY VOLTAGES > 50 V –
PERFORMANCE REQUIREMENTS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62612 has been prepared by subcommittee 34A: Lamps, of IEC

technical committee 34: Lamps and related equipment.

This first edition of IEC 62612 cancels and replaces IEC/PAS 62612. This edition constitutes

a technical revision.

This edition includes the following significant technical changes with respect to

IEC/PAS 62612.

a) The standard explicitly states that real life time tests are not part of the test regime.

Instead, a period of up to 6 000 h is chosen in order to assess manufacturers’ claims of

maintenance.

b) Technical features have been adapted to IEC/PAS 62717 (performance of LED modules)

as far as possible. Examples are the family approach and the temperature measuring

point.
c) Marking requirements are shifted from the product to the packaging.
d) The number of lamps to be tested is made test specific, not general.
---------------------- Page: 10 ----------------------
SIST EN 62612:2014
62612  IEC:2013 – 5 –

e) First requirements are given for setting the colour for colour adjustable lamps and the

luminous flux level of dimmable lamps.
f) The structure of tests is clearly divided between requirement and compliance.
g) Statistical compliance is separated into individual and average.

h) Light output requirements are extended to luminous intensity distribution, peak intensity,

beam angle and efficacy.

i) The use of the terms “correlated colour temperature” and “chromaticity coordinates” is

corrected.

j) The number of tolerance categories is reduced from 8 to 4, and split between initial and

maintained values.
k) Colour rendering is differently assessed at initial and maintained state.
l) Three lumen maintenance categories are given instead of five.
m) The endurance tests are completely re-established.
n) The verification (formerly: assessment) clause is completed.
o) Information for luminaire design is added.

p) Stabilisation is more precise (Annex A on the method of measuring lamp characteristics)

and extension is made for the additional photometric and colorimetric parameters.

q) Annex B on measuring luminous flux is contained in Annex A. New Annex B provides the

photometric code.

r) Further annexes are added: Annex C and D for displacement factor, Annex E for life time

metrics/reliability and Annex F for examples of LED dies and LED packages.
The text of this standard is based on the following documents:
FDIS Report on voting
34A/1662/FDIS 34A/1679/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

In this standard, the following print types are used:
– requirements: roman type;
– test specifications: italic type;
– notes: small roman type.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 11 ----------------------
SIST EN 62612:2014
– 6 – 62612  IEC:2013
INTRODUCTION

This International Standard is the first edition of a performance standard (precursor:

IEC/PAS 62612) for self-ballasted LED lamps for general lighting applications and

acknowledges the need for relevant tests for this new source of electrical light, sometimes

called “solid state lighting”.

The provisions in this standard represent the technical knowledge of experts from the fields of

the semiconductor (LED chip) industry and of those of the traditional electrical light sources.

---------------------- Page: 12 ----------------------
SIST EN 62612:2014
62612  IEC:2013 – 7 –
SELF-BALLASTED LED LAMPS FOR GENERAL
LIGHTING SERVICES WITH SUPPLY VOLTAGES > 50 V –
PERFORMANCE REQUIREMENTS
1 Scope

This International Standard specifies the performance requirements, together with the test

methods and conditions, required to show compliance of LED lamps with integral means for

stable operation, intended for domestic and similar general lighting purposes, having:

• a rated power up to 60 W;
• a rated voltage of > 50 V a.c. up to 250 V a.c.;
• a lamp cap as listed in IEC 62560.

These performance requirements are additional to the safety requirements in IEC 62560.

The only feature provided by this standard, when applied for replacement purposes, is

information on maximum lamp outlines.

The requirements of this standard relate to type testing. This standard covers LED lamps that

intentionally produce white light, based on inorganic LEDs.

Recommendations for whole product testing or batch testing are under consideration.

The life time of LED lamps is in most cases much longer than the practical test times.

Consequently, verification of manufacturer’s life time claims cannot be made in a sufficiently

confident way, because projecting test data further in time is not standardised. For that

reason the acceptance or rejection of a manufacturer's life time claim, past an operational

time as stated in 7.1, is out of the scope of this standard.

Instead of life time validation, this standard has opted for lumen maintenance codes at a

defined finite test time. Therefore, the code number does not imply a prediction of achievable

life time. The categories, represented by the code, are lumen-depreciation character

categories showing behaviour in agreement with manufacturer’s information, provided before

the test is started.

In order to validate a life time claim, several methods of test data extrapolation exist. A

general method of projecting measurement data beyond limited test time is under
consideration.

The pass/fail criterion of the life time test as defined in this standard is different from the life

time metrics claimed by manufacturers. For explanation of recommended life time metrics,

see Annex E.

NOTE When lamps are operated in a luminaire the claimed performance data can deviate from the values

established via this standard due to e.g. luminaire components that impact the performance of the lamp.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
---------------------- Page: 13 ----------------------
SIST EN 62612:2014
– 8 – 62612  IEC:2013
IEC 60050 (all parts), International Electrotechnical Vocabulary (available at
).

IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: change of temperature

IEC 60081, Double-capped fluorescent lamps – Performance specifications
IEC 60630, Maximum lamp outlines for incandescent lamps

IEC 61000-3-2:2005, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for

harmonic current emissions (equipment input current ≤ 16A per phase),
Amendment 2:2009.

IEC 61000-4-7, Electromagnetic compatibility (EMC) – Part 4-7: Testing and measurement

techniques. General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto

IEC/TR 61341, Method of measurement of centre beam intensity and beam angle(s) of

reflector lamps
IEC/TS 62504, General lighting – LEDs and LED modules – Terms and definitions

IEC 62560, Self-ballasted LED-lamps for general lighting services by voltage > 50 V – Safety

specifications

IEC/TR 62732, Three-digit code for designation of colour rendering and correlated colour

temperature

CIE 13.2:1974, Methods of measuring and specifying colour rendering properties of light

sources

CIE 13.3:1995, Method of measuring and specifying colour rendering of light sources

CIE S 017/E:2011, ILV: International Lighting Vocabulary
CIE 121:1996, The photometry and goniophotometry of luminaires
CIE 177:2007, Colour rendering of white LED light sources
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC/TS 62504 and

IEC 60050-845 as well as the following apply.
3.1
rated value

quantity value for a characteristic of an LED lamp for specified operating conditions

Note 1 to entry: The value and the conditions are specified in this standard, or assigned by the manufacturer or

responsible vendor.
3.2
test voltage
voltage at which tests are carried out
Note 1 to entry: Specification of test voltage is made in A.2.
---------------------- Page: 14 ----------------------
SIST EN 62612:2014
62612  IEC:2013 – 9 –
3.3
lumen maintenance (of an LED lamp)
luminous flux maintenance

ratio of the luminous flux emitted by an LED lamp at a given time in its life to its initial

luminous flux, the lamp being operated under specified conditions
Note 1 to entry: This ratio x is generally expressed in per cent.
Note 2 to entry: The lumen maintenance of an
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
