Hand-held motor-operated electric tools - Safety - Part 2-23: Particular requirements for die grinders and small rotary tools

IEC 60745-2-23:2012 applies to die grinders and small rotary tools for mounted accessories not exceeding 55 mm in diameter and mounted sanding accessories not exceeding 80 mm in diameter such as, threaded cones or plugs that are threaded on a mandrel with an unrelieved shoulder flange, mandrel mounted wheels and rotary files with a rated speed not exceeding a peripheral speed of the accessory of 80 m/s at rated capacity. This part 2 is to be used in conjunction with the latest edition of IEC 60745-1 and its amendments. It was established on the basis of the fourth edition (2006) of that standard. This standard does not apply to straight and vertical grinders utilizing flanges for driving an abrasive accessory. Those tools are covered by IEC 60745-2-3. Keywords: Die grinders, rotary tools, grinding, sanding.

Handgeführte motorbetriebene Elektrowerkzeuge - Sicherheit - Teil 2-23: Besondere Anforderungen für Stabschleifer und kleine rotierende Elektrowerkzeuge

Outils électroportatifs à moteur - Sécurité - Partie 2-23: Exigences particulières relatives aux meuleuses d'outillage et aux petits outils rotatifs

La CEI 60745-2-23:2012 s'applique aux meuleuses d'outillage et aux petits outils rotatifs dont les accessoires installés ne dépassent pas 55 mm de diamètre et dont les accessoires de ponçage montés ne dépassent pas 80 mm de diamètre, tels que les cônes filetés vissées sur tige avec collet épaulé sans détalonnage, les meules montées sur mandrin, et limes rotatives, avec une vitesse assignée n'excédant pas une vitesse périphérique de l'accessoire de 80 m/s à la capacité assignée. La présente partie 2 doit être utilisée conjointement avec la dernière édition de la CEI 60745-1 et ses amendements. Elle a été établie sur la base de la quatrième édition (2006) de cette norme. La présente norme ne s'applique pas aux meuleuses droites et aux meuleuses verticales employant des flasques pour l'entraînement d'un accessoire abrasif. Ces outils sont couverts par la CEI 60745-2-3. Mots-clés: meuleuses d'outillage, outils rotatifs, meuler, ponçage

Električna ročna orodja - Varnost - 2-23. del: Posebne zahteve za brusilnike čipov in mala rotacijska orodja

Ta točka 1. dela se uporablja, razen kot sledi:
Dodatek:
Ta standard se nanaša na brusilnike in majhna krožeča orodja za nameščene pripomočke, katerih premer ni večji od 55 mm, in nameščene pripomočke za brušenje, katerih premer ni večji od 80 mm, kot so:
– navojni stožci ali svečke, ki so naviti na trn z neprekinjeno ramensko prirobnico,
– kolesa, nameščena na trn, in
– krožeče pile z nazivno hitrostjo, ki ne presega periferne hitrosti pripomočka pri 80 m/s nazivne zmogljivosti.
Ta standard ne velja za ravne in navpične brusilnike s prirobnicami za upravljanje brusilnih pripomočkov. Ta orodja so zajeta v IEC 60745-2-3.

General Information

Status
Published
Publication Date
02-May-2013
Current Stage
6060 - Document made available
Due Date
24-Jun-2013
Completion Date
03-May-2013

Buy Standard

Standard
EN 60745-2-23:2013
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 60745-2-23:2013
01-julij-2013

(OHNWULþQDURþQDRURGMD9DUQRVWGHO3RVHEQH]DKWHYH]DEUXVLOQLNHþLSRY

LQPDODURWDFLMVNDRURGMD

Hand-held motor-operated electric tools - Safety - Part 2-23: Particular requirements for

die grinders and small rotary tools

Outils électroportatifs à moteur - Sécurité - Partie 2-23: Exigences particulières relatives

aux meuleuses d'outillage et aux petits outils rotatifs
Ta slovenski standard je istoveten z: EN 60745-2-23:2013
ICS:
25.080.50 Brusilni in polirni stroji Grinding and polishing
machines
25.140.20 (OHNWULþQDRURGMD Electric tools
SIST EN 60745-2-23:2013 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60745-2-23:2013
---------------------- Page: 2 ----------------------
SIST EN 60745-2-23:2013
EUROPEAN STANDARD
EN 60745-2-23
NORME EUROPÉENNE
May 2013
EUROPÄISCHE NORM
ICS 25.140; 25.140.30
English version
Hand-held motor-operated electric tools -
Safety -
Part 2-23: Particular requirements for die grinders and small rotary tools
(IEC 60745-2-23:2012, modified)
Outils électroportatifs à moteur - Handgeführte motorbetriebene
Sécurité - Elektrowerkzeuge -
Partie 2-23: Exigences particulières Sicherheit -
relatives aux meuleuses d'outillage et aux Teil 2-23: Besondere Anforderungen
petits outils rotatifs für Stabschleifer und rotierende
(CEI 60745-2-23:2012, modifiée) Kleinwerkzeuge
(IEC 60745-2-23:2012, modifiziert)

This European Standard was approved by CENELEC on 2012-12-24. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60745-2-23:2013 E
---------------------- Page: 3 ----------------------
SIST EN 60745-2-23:2013
EN 60745-2-23:2013 – 2 –

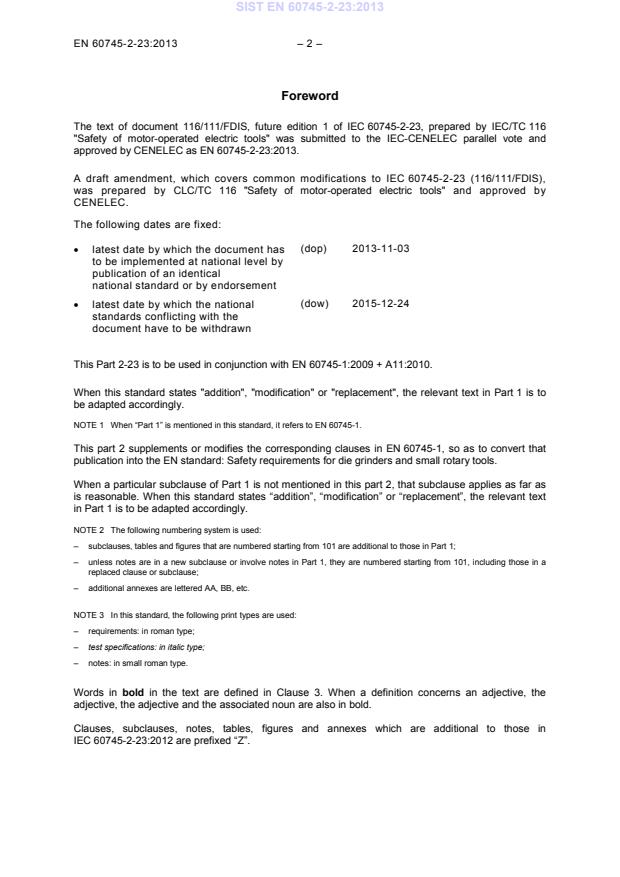

Foreword

The text of document 116/111/FDIS, future edition 1 of IEC 60745-2-23, prepared by IEC/TC 116

"Safety of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and

approved by CENELEC as EN 60745-2-23:2013.

A draft amendment, which covers common modifications to IEC 60745-2-23 (116/111/FDIS),

was prepared by CLC/TC 116 "Safety of motor-operated electric tools" and approved by

CENELEC.
The following dates are fixed:
(dop) 2013-11-03
• latest date by which the document has
to be implemented at national level by
publication of an identical
national standard or by endorsement
(dow) 2015-12-24
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This Part 2-23 is to be used in conjunction with EN 60745-1:2009 + A11:2010.

When this standard states "addition", "modification" or "replacement", the relevant text in Part 1 is to

be adapted accordingly.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to EN 60745-1.

This part 2 supplements or modifies the corresponding clauses in EN 60745-1, so as to convert that

publication into the EN standard: Safety requirements for die grinders and small rotary tools.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as far as

is reasonable. When this standard states “addition”, “modification” or “replacement”, the relevant text

in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a

replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the

adjective, the adjective and the associated noun are also in bold.

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in

IEC 60745-2-23:2012 are prefixed “Z”.
---------------------- Page: 4 ----------------------
SIST EN 60745-2-23:2013
– 3 – EN 60745-2-23:2013
This document is divided into two parts:

Part 1: General requirements which are common to most hand-held electric motor operated tools

(for the purpose of this standard referred to simply as tools) which could come within the

scope of this standard;

Part 2: Requirements for particular types of tools which either supplement or modify the

requirements given in Part 1 to account for the particular hazards and characteristics of

these specific tools.
This document follows the overall requirements of EN ISO 12100.

Attention is drawn to the possibility that some of the elements of this document may be the

subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying

any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association, and supports essential requirements

of EU Directive.

For the relationship with EU Directive see informative Annex ZZ, which is an integral part of

this document.
Endorsement notice

The text of the International Standard IEC 60745-2-23:2012 was approved by CENELEC as a

European Standard with agreed common modifications.
COMMON MODIFICATIONS
6 Void
Replace by:
6 Environmental requirements
This clause of Part 1 is applicable except as follows:
6.1.2.4 Modification:

Die grinders and small rotary tools are suspended, the motor axis being horizontal.

6.1.2.5 Modification:
Die grinders and small rotary tools are tested at no-load.
6.2.4.2 Location of measurement
Addition:
Figures Z102 to Z103 show the positions for different types of tools.
---------------------- Page: 5 ----------------------
SIST EN 60745-2-23:2013
EN 60745-2-23:2013 – 4 –
6.2.6.3 Operating conditions
Modification:

The tools shall be tested under no-load equipped with an artificial wheel under the conditions

described below in Table Z101.
Table Z101 – Vibration test conditions
Orientation Tool to be held as in normal use, the motor axis being horizontal.

Tool bit Artificial wheel as specified in Figure Z101 of a diameter equivalent to the rated capacity and

dimensions in accordance with Table Z102.

When using the artificial wheel, start with a diameter (e -1 mm) and increase the size at the

hole in stages of 1/10 mm until the required unbalance is obtained.

The artificial wheel is mounted on a mandrel with a diameter suitable for the chuck or collet of

the tool.

Feed force No feed force to be applied. Excessive gripping force shall be avoided.

Test cycle A test cycle is given by conducting a measurement for at least 10 s.

Three series of five consecutive tests shall be carried out using a different operator for each

series.
Table Z102 – Dimensions of the artificial wheel of Figure Z101
Rated capacity ø a ø b c ø d ø e Unbalance
mm mm mm mm mm mm g mm
< 25 No wheel to be mounted 0
≥ 25 and < 50 25 4,0 10 ± 0,05 18 ± 0,02 4,3 3,6
≥ 50 50 4,0 10 ± 0,05 35 ± 0,02 6,2 14,5
6.2.7.2 Declaration of the vibration total value
Addition:

The vibration total value a of the handle with the highest emission and the uncertainty K shall be

declared.
---------------------- Page: 6 ----------------------
SIST EN 60745-2-23:2013
– 5 – EN 60745-2-23:2013
Add the following figures:
Dimensions in millimetres
Key
Material: aluminium
Figure Z101 – Artificial wheel
---------------------- Page: 7 ----------------------
SIST EN 60745-2-23:2013
EN 60745-2-23:2013 – 6 –
Figure Z102 – Positions of transducers for die grinders
Figure Z103 – Positions of transducers for small rotary tools
---------------------- Page: 8 ----------------------
SIST EN 60745-2-23:2013
– 7 – EN 60745-2-23:2013
Add the following annex:
Annex ZZ
(informative)
Coverage of Essential Requirements of Directive 2006/42/EC

This European Standard has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association and within its scope the standard covers all

relevant Essential Requirements as given in EU Directive 2006/42/EC (Machinery Directive).

Compliance with this standard provides one means of conformity with the specified essential

requirements of the Directives concerned.

WARNING: Other requirements and other EU Directives may be applicable to the products falling

within the scope of this standard.
---------------------- Page: 9 ----------------------
SIST EN 60745-2-23:2013
EN 60745-2-23:2013 – 8 –
Bibliography
Add the following note under IEC 60745-2-3:
NOTE 1 Harmonised as EN 60745-2-3.
---------------------- Page: 10 ----------------------
SIST EN 60745-2-23:2013
IEC 60745-2-23
Edition 1.0 2012-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-23: Particular requirements for die grinders and small rotary tools
Outils électroportatifs à moteur – Sécurité –
Partie 2-23: Exigences particulières relatives aux meuleuses d'outillage et aux
petits outils rotatifs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX Q
ICS 25.140; 25.140.30 ISBN 978-2-83220-512-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 11 ----------------------
SIST EN 60745-2-23:2013
– 2 – 60745-2-23 © IEC:2012
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope ............................................................................................................................... 5

2 Normative references ....................................................................................................... 5

3 Terms and definitions ....................................................................................................... 5

4 General requirements ....................................................................................................... 6

5 General conditions for the tests ........................................................................................ 6

6 Void .................................................................................................................................. 6

7 Classification .................................................................................................................... 6

8 Marking and instructions ................................................................................................... 6

9 Protection against access to live parts ............................................................................ 11

10 Starting .......................................................................................................................... 11

11 Input and current ............................................................................................................ 11

12 Heating........................................................................................................................... 11

13 Leakage current ............................................................................................................. 11

14 Moisture resistance ........................................................................................................ 11

15 Electric strength ............................................................................................................. 11

16 Overload protection of transformers and associated circuits ........................................... 11

17 Endurance ...................................................................................................................... 11

18 Abnormal operation ........................................................................................................ 11

19 Mechanical hazards ........................................................................................................ 12

20 Mechanical strength ....................................................................................................... 13

21 Construction ................................................................................................................... 13

22 Internal wiring ................................................................................................................. 13

23 Components ................................................................................................................... 13

24 Supply connection and external flexible cords ................................................................ 14

25 Terminals for external conductors ................................................................................... 14

26 Provision for earthing ..................................................................................................... 14

27 Screws and connections ................................................................................................. 14

28 Creepage distances, clearances and distances through insulation .................................. 14

29 Resistance to heat, fire and tracking ............................................................................... 14

30 Resistance to rusting ...................................................................................................... 14

31 Radiation, toxicity and similar hazards ............................................................................ 14

Annexes ............................................................................................................................... 16

Annex K (normative) Battery tools and battery packs ........................................................... 16

Bibliography .......................................................................................................................... 17

Figure 101 – Wheel overhang ............................................................................................... 15

---------------------- Page: 12 ----------------------
SIST EN 60745-2-23:2013
60745-2-23 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-23: Particular requirements for
die grinders and small rotary tools
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60745-2-23 has been prepared IEC technical committee 116:

Safety of motor-operated electric tools.
The text of this standard is based on the following documents:
FDIS Report on voting
116/111/FDIS 116/120/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 13 ----------------------
SIST EN 60745-2-23:2013
– 4 – 60745-2-23 © IEC:2012

This part 2 is to be used in conjunction with the latest edition of IEC 60745-1 and its

amendments. It was established on the basis of the fourth edition (2006) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60745-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60745-1, so as to

convert that publication into the IEC standard: Safety requirements for die grinders and small

rotary tools.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies

as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,

the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

A list of all parts of the IEC 60745 series, under the general title: Hand-held motor-operated

electric tools – Safety, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 14 ----------------------
SIST EN 60745-2-23:2013
60745-2-23 © IEC:2012 – 5 –
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-23: Particular requirements for
die grinders and small rotary tools
1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:

This standard applies to die grinders and small rotary tools for mounted accessories not

exceeding 55 mm in diameter and mounted sanding accessories not exceeding 80 mm in

diameter such as

– threaded cones or plugs that are threaded on a mandrel with an unrelieved shoulder

flange,
– mandrel mounted wheels, and
– rotary files

with a rated speed not exceeding a peripheral speed of the accessory of 80 m/s at rated

capacity.

This standard does not apply to straight and vertical grinders utilizing flanges for driving an

abrasive accessory. Those tools are covered by IEC 60745-2-3.
2 Normative references
This clause of Part 1 is applicable except as follows:
Addition:

ISO 603-12, Bonded abrasive products – Dimensions – Part 12: Grinding wheels for deburring

and fettling on a straight grinder
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
3.101
cones and plugs

organic or inorganic bonded abrasives of various shapes and sizes with a threaded insert

3.102
die grinder

tool with the rotating spindle in-line with the motor shaft equipped with a collet or chuck

intended for use with mounted wheels or threaded mandrel mounted cones and plugs
---------------------- Page: 15 ----------------------
SIST EN 60745-2-23:2013
– 6 – 60745-2-23 © IEC:2012
3.103
mounted wheels

organic or inorganic bonded abrasives of various shapes and sizes that are permanently

mounted on a mandrel
3.104
rated capacity

maximum diameter of the rotating accessory to be fitted on the tool as specified by the

manufacturer’s instruction
3.105
rated speed

maximum attainable speed as designated by the manufacturer, with any accessory permitted

by the manufacturer’s instructions installed, at rated voltage or at the upper limit of the rated

voltage range
3.106
rotary tool

tool having a collet or chuck capacity not exceeding 4 mm and without any gear or other

mechanical speed reduction, to be fitted with a variety of accessories for grinding, cutting,

drilling, carving, polishing, brushing, etc.
3.107
wheel types
wheels for different applications in accordance with ISO 603-12
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Void
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
Tools shall also be marked with:
– rated speed in revolutions per minute;
– rated capacity of accessories in mm;

– tools provided with a threaded spindle shall be marked with the spindle thread size;

– “ WARNING Always wear eye protection” or sign M004 of ISO 7010 or the following

safety sign:
---------------------- Page: 16 ----------------------
SIST EN 60745-2-23:2013
60745-2-23 © IEC:2012 – 7 –
The eye protection symbol may be modified by adding other personal protective
equipment such as ear protection, dust mask, etc;

– indication of direction of rotation of the spindle. This shall be indicated by an arrow, raised

or sunk, or by any other means no less visible and indelible.
8.6 Addition:
n……………………….rated speed
8.12.1 Addition:

For the following safety instructions specified in 8.12.1.101 to 8.12.1.104, the terms such as

grinding/grinder, sanding/sander, wire brushing/wire brush, polishing/polisher, carving/carving

tool or cutting-off/cut-off tool, are selected as recommended by the manufacturer. These

terms in the warnings and headings shall be consistently used or deleted based on the

selected operations. The “and”/“or” conjunctions may be used as appropriate.

If the power tool is recommended only for one of the listed operations, the heading of that

section is to be used for all warnings.
8.12.1.101 Safety instructions for all operations

Safety warnings common for grinding, sanding, wire brushing, polishing, carving or

abrasive cutting-off operations:
NOTE In the above heading those operations not applicable are omitted.

a) This power tool is intended to function as a grinder, sander, wire brush, polisher,

carving or cut-off tool. Read all safety warnings, instructions, illustrations and

specifications provided with this power tool. Failure to follow all instructions listed

below may result in electric shock, fire and/or serious injury.
NOTE List only those operations that are applicable.

b) Operations such as grinding, sanding, wire brushing, polishing or cutting-off are

not recommended to be performed with this power tool. Operations for which the
power tool was not designed may create a hazard and cause personal injury.

NOTE List only those operations that were not included in the first warning. If all listed operations are

applicable, then this warning is omitted, but all subsequent warnings are given without exclusion.

c) Do not use accessories which are not specifically designed and recommended by

the tool manufacturer. Just because the accessory can be attached to your power tool, it

does not assure safe operation.

d) The rated speed of the grinding accessories must be at least equal to the maximum

speed marked on the power tool. Grinding accessories running faster than their rated

speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the

capacity rating of your power tool. Incorrectly sized accessories cannot be adequately

controlled.

f) The arbour size of wheels, sanding drums or any other accessory must properly fit

the spindle or collet of the power tool. Accessories that do not match the mounting

hardware of the power tool will run out of balance, vibrate excessively and may cause loss

of control.
---------------------- Page: 17 ----------------------
SIST EN 60745-2-23:2013
– 8 – 60745-2-23 © IEC:2012

g) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully

inserted into the collet or chuck. If the mandrel is insufficiently held and/or the

overhang of the wheel is too long, the mounted wheel may become loose and be ejected

at high velocity.
h) Do not use a damaged accessory. Before each use inspect the accessory such as

abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear,

wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect

for damage or install an undamaged accessory. After inspecting and installing an
accessory, position yourself and bystanders away from the plane of the rotating
accessory and run the power tool at maximum no-load speed for one minute.
Damaged accessories will normally break apart during this test time.

i) Wear personal protective equipment. Depending on application, use face shield,

safety goggles or safety glasses. As appropriate, wear dust mask, hearing
protectors, gloves and workshop apron capable of stopping small abrasive or

workpiece fragments. The eye protection must be capable of stopping flying debris

generated by various operations. The dust mask or respirator must be capable of filtrating

particles generated by your operation. Prolonged exposure to high intensity noise may

cause hearing loss.
j) Keep bystanders a safe distance away from work area. Anyone entering the work

area must wear personal protective equipment. Fragments of workpiece or of a broken

accessory may fly away and cause injury beyond immediate area of operation.
k) Hold power tool b
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
