EN IEC 62769-103-4:2023

Field Device Integration (FDI)® - Part 103-4: PROFINET

IEC 62769-103-4:2023 is available as IEC 62769-103-4:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 62769-103-4:2023 specifies an FDI®[1] profile of IEC 62769 for IEC 61784-2_CP 3/4, IEC 61784-2_CP3/5 and IEC 61784-2_CP3/6 (PROFINET[2]). [1] FDI is a registered trademark of the non-profit organization Fieldbus Foundation, Inc. This information is given for the convenience of users of this document and does not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance does not require use of the trade name. Use of the trade name requires permission of the trade name holder. [2] PROFINET is the trade name of the non-profit consortium PROFIBUS & PROFINET International. This information is given for the convenience of users of this technical report and does not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance does not require use of the trade name. Use of the trade name requires permission of the trade name holder.

Feldgeräteintegration (FDI) - Teil 103-4: Profile - PROFINET

Intégration des appareils de terrain (FDI)® - Partie 103-4: PROFINET

IEC 62769-103-4:2023 est disponible sous forme de IEC 62769-103-4:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 62769-103-4:2023 spécifie un profil FDI®[1] de l'IEC 62769 pour les profils de communication CP 3/4, CP 3/5 et CP 3/6 (PROFINET[2]) définis dans l'IEC 61784-2. [1] FDI est une marque déposée de l’organisation à but non lucratif Fieldbus Foundation, Inc. Cette information est donnée à l'intention des utilisateurs du présent document et ne signifie nullement que l'IEC approuve le détenteur de la marque ou l'emploi de ses produits. La conformité n'exige pas l'utilisation de la marque. L'utilisation de la marque exige l'autorisation du détenteur de la marque. [2] PROFINET est l'appellation commerciale du consortium PROFIBUS & PROFINET International, une organisation à but non lucratif. Cette information est donnée à l'intention des utilisateurs du présent rapport technique et ne signifie nullement que l'IEC approuve le détenteur des appellations commerciales ou l'emploi de ses produits. La conformité n'exige pas l'utilisation de l'appellation commerciale. L'utilisation de l'appellation commerciale exige l'autorisation du détenteur de l'appellation commerciale.

Integracija procesne naprave (FDI)® - 103-4. del: Profili - PROFINET (IEC 62769-103-4:2023)

Ta del standarda IEC 62769 določa profil FDI® 1 standarda IEC 62769 za IEC 61784-2_CP 3/4, IEC 61784-2_CP3/5 in IEC 61784-2_CP3/6 (PROFINET 2).

General Information

• Status: Published
• Publication Date: 25-May-2023
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.05 - Multilayer applications
• Technical Committee: CLC/TC 65X - Industrial-process measurement, control and automation
• Drafting Committee: IEC/SC 65E - IEC_SC_65E
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 26-May-2023
• Due Date: 28-Oct-2022
• Completion Date: 26-May-2023
• Ref Project: SIST EN IEC 62769-103-4:2023 - Field Device Integration (FDI)® - Part 103-4: PROFINET (IEC 62769-103-4:2023)

Relations

• Replaces: EN IEC 62769-103-4:2020 - Field device integration (FDI) - Part 103-4: Profiles - PROFINET
• Effective Date: 09-Nov-2021

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2023
Integracija procesne naprave (FDI)® - 103-4. del: Profili - PROFINET (IEC 62769-103
-4:2023)
Field Device Integration (FDI)® - Part 103-4: PROFINET (IEC 62769-103-4:2023)
Feldgeräteintegration (FDI)® - Teil 103-4: Profile - PROFINET (IEC 62769-103-4:2023)
Intégration des appareils de terrain (FDI)® - Partie 103-4: PROFINET (IEC 62769-103-
4:2023)
Ta slovenski standard je istoveten z: EN IEC 62769-103-4:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62769-103-4

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 25.040.40; 35.100.05 Supersedes EN IEC 62769-103-4:2020
English Version
Field Device Integration (FDI)® - Part 103-4: PROFINET
(IEC 62769-103-4:2023)
Intégration des appareils de terrain (FDI)® - Partie 103-4: Feldgeräteintegration (FDI) - Teil 103-4: Profile -
PROFINET PROFINET
(IEC 62769-103-4:2023) (IEC 62769-103-4:2023)
This European Standard was approved by CENELEC on 2023-05-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62769-103-4:2023 E

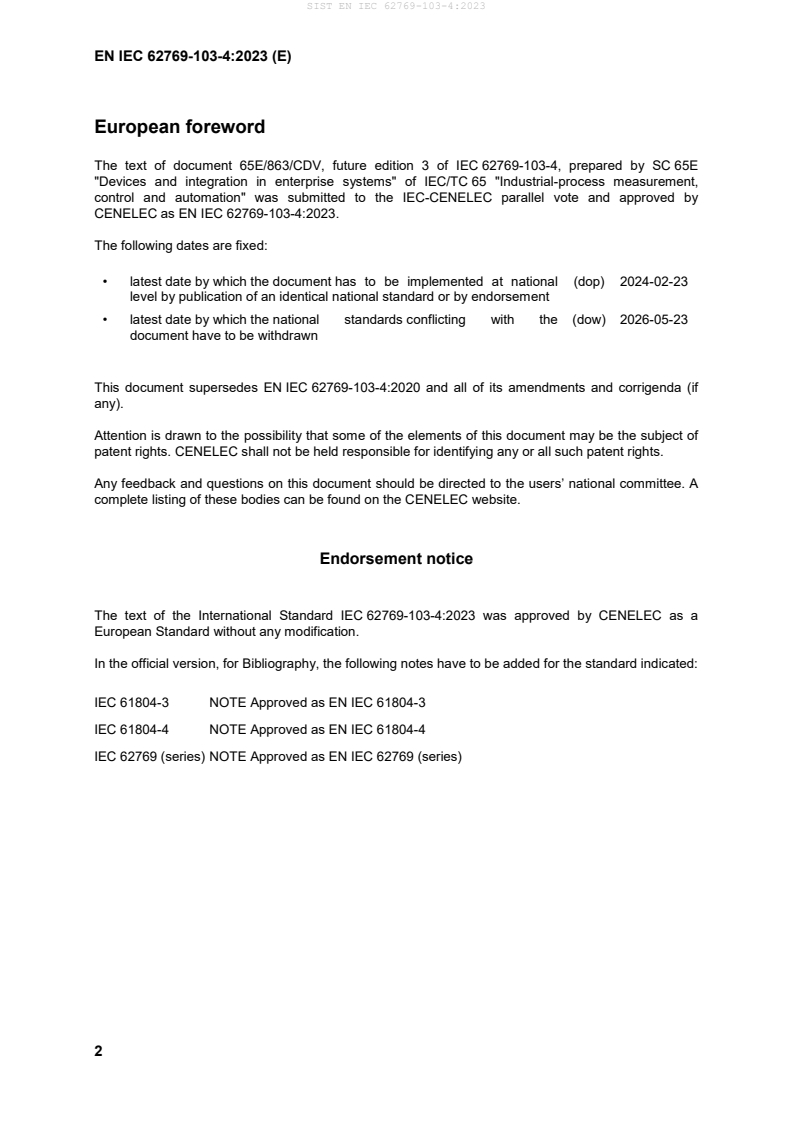

European foreword
The text of document 65E/863/CDV, future edition 3 of IEC 62769-103-4, prepared by SC 65E
"Devices and integration in enterprise systems" of IEC/TC 65 "Industrial-process measurement,
control and automation" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62769-103-4:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-02-23
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-05-23
document have to be withdrawn
This document supersedes EN IEC 62769-103-4:2020 and all of its amendments and corrigenda (if
any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62769-103-4:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61804-3 NOTE Approved as EN IEC 61804-3
IEC 61804-4 NOTE Approved as EN IEC 61804-4
IEC 62769 (series) NOTE Approved as EN IEC 62769 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61158-5-10 - Industrial communication networks - EN IEC 61158-5-10 -
Fieldbus specifications - Part 5-10:
Application layer service definition - Type
10 elements
IEC 61804 series Devices and integration in enterprise EN IEC 61804 series
systems - Function blocks (FB) for process
control and electronic device description
language (EDDL)
IEC 61784-2 - Industrial communication networks - EN IEC 61784-2 -
Profiles - Part 2: Additional fieldbus profiles
for real-time networks based on ISO/IEC
8802-3
IEC 62541-100 2015 OPC Unified Architecture - Part 100: EN 62541-100 2015
Device Interface
IEC 62769-2 - Field Device Integration (FDI®) - Part 2: EN IEC 62769-2 -
Client
IEC 62769-4 - Field Device Integration (FDI®) - Part 4: EN IEC 62769-4 -
FDI Packages
IEC 62769-5 - Field Device Integration (FDI®) - Part 5: EN IEC 62769-5 -
FDI Information Model
IEC 62769-6 - Field Device Integration (FDI®) - Part 6: EN IEC 6269-6 -
FDI Technology Mappings
IEC 62769-7 - Field Device Integration (FDI®) - Part 7: EN IEC 62769-7 -
Communication Devices
PI Order No.: 2.122 2008 Specification for PROFIBUS - Device - -
Description and Device Integration -
Volume 1; GSD, V5.1, July 2008: GSD

IEC 62769-103-4 ®
Edition 3.0 2023-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside ®
Field Device Integration (FDI) –
Part 103-4: PROFINET ®
Intégration des appareils de terrain (FDI) –
Partie 103-4: PROFINET
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-6821-6
– 2 – IEC 62769-103-4:2023 © IEC 2023
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, abbreviated terms and acronyms . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms and acronyms . 7
4 Conventions . 7
4.1 EDDL syntax . 7
4.2 XML syntax . 7
4.3 Capitalizations . 7
5 Profile for PROFINET . 8
5.1 General . 8
5.2 Catalog profile . 8
5.2.1 Protocol support file . 8
5.2.2 CommunicationProfile definition . 9
5.2.3 Profile device . 9
5.2.4 Protocol version information . 9
5.3 Associating a Package with a device . 10
5.3.1 Device type identification mapping . 10
5.3.2 Device type revision mapping . 11
5.4 Information Model mapping . 12
5.4.1 ProtocolType definition . 12
5.4.2 DeviceType mapping . 13
5.4.3 FunctionalGroup identification definition . 13
5.5 Topology elements . 14
5.5.1 ConnectionPoint definition . 14
5.5.2 Communication Device definition . 15
5.5.3 Communication service provider definition . 16
5.5.4 Network definition . 17
5.6 Methods . 17 ®
5.6.1 Methods for FDI Communication Servers . 17
5.6.2 Methods for Gateways . 21
Annex A (normative) Topology scan schema . 29
A.1 General . 29
A.2 Target Namespace . 29
A.3 Network . 29
A.4 ProfinetNetworkT . 29
A.5 ProfinetConnectionPointT . 30
A.6 ProfinetIdentificationT . 30
A.7 MACT . 32
A.8 IPv4T . 32
A.9 IPv6T . 32
A.10 DNSNameT . 32
A.11 Hex4DigitT . 32
Annex B (normative) Transfer service parameters . 33
B.1 General . 33

IEC 62769-103-4:2023 © IEC 2023 – 3 –
B.2 Target Namespace . 33
B.3 sendData . 33
B.4 receiveData . 33
B.5 TransferSendDataT . 33
B.6 TransferResultDataT . 34
B.7 OperationT . 35
Annex C (informative) Mapping to PA DIM . 36
C.1 General . 36
C.2 Mapping table . 36
Bibliography . 37

Figure 1 – Version mapping problem . 11
®
Table 1 – ProtocolSupportFile for FDI Device Packages . 9 ®
Table 2 – ProtocolSupportFile for FDI Com
...
