EN 61076-2-109:2014 - Overview

Standard reference: EN 61076-2-109:2014 (CLC)
This European adoption of IEC 61076-2-109 specifies product requirements for circular connectors with M12 × 1 screw‑locking designed for data transmission frequencies up to 500 MHz. It covers connector forms with IP65/IP67 protection, available as fixed or free (panel and cable) versions and as rewireable or non‑rewireable assemblies. Two non‑interchangeable contact arrangements - type X and type H - are defined; male contacts have a diameter of 0.6 mm. Typical applications include vision systems and data acquisition.

Key topics and technical requirements

• Mechanical and dimensional requirements
  • Interface dimensions for connector types X and H, gauges and polarizing methods.
• Ratings and electrical characteristics
  • Intended for data up to 500 MHz; rated voltages, insulation, contact resistance and current‑carrying capacity are specified.
• Environmental and mechanical performance
  • IP65/IP67 degree of protection, climatic category, vibration and shock endurance, insertion/withdrawal forces, contact retention.
• Safety and marking
  • Marking, safety aspects and insulation coordination requirements.
• Termination and contact details
  • Fixed/free variants, rewireable options and recommended termination methods; male contact Ø 0.6 mm.
• Test requirements
  • Comprehensive test schedule including climatic, mechanical, electrical, chemical resistance and signal integrity tests (referencing IEC 60512‑29‑100 for up to 500 MHz signal tests).

Practical applications

This standard is intended for:

• Industrial Ethernet, machine vision and sensor networks requiring robust, high‑frequency data links.
• Data acquisition systems and embedded controllers where durable, weather‑resistant circular connectors are needed.
• Environments demanding IP65/IP67 protection combined with controlled signal integrity up to 500 MHz.

Who should use this standard

• Connector and cable manufacturers (product design and compliance)
• OEMs and system integrators specifying M12 circular connectors for data transmission
• Test laboratories and certification bodies performing compliance verification
• Purchasing and procurement teams writing technical specifications

Related standards

Relevant cross‑references cited in EN 61076‑2‑109 include:

• IEC/EN 61076‑2 (sectional spec for circular connectors) and IEC/EN 61076‑2‑101 (M12 general)
• IEC/EN 60512 (connector tests and measurements), incl. IEC 60512‑29‑100 for signal integrity
• IEC/EN 60529 (IP code), IEC 60603‑7 series, IEC 61984 (connector safety)

Keywords: Connectors, Circular Connectors, M12 connectors, Data transmission, IP65, IP67, 500 MHz.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2014
.RQHNWRUML]DHOHNWURQVNRRSUHPR=DKWHYH]DL]GHOHNGHO2NURJOL
NRQHNWRUML3RGUREQDVSHFLILNDFLMD]DNRQHNWRUMH]YLMDþQR]DSRURP[]D
SUHQRVSRGDWNRYVIUHNYHQFDPLGR0+],(&
Connectors for electronic equipment - Product requirements - Part 2-109: Circular
connectors - Detail specification for connectors with m 12 x 1 screw-locking, for data
transmissions with frequencies up to 500 mhz
/
Connecteurs pour équipements électroniques - Exigences de produit - Partie 2-109:
Connecteurs circulaires - Spécification particulière relative aux connecteurs avec
verrouillage à vis m 12 x 1, pour les transmissions de données à des fréquences jusqu'à
500 mhz
Ta slovenski standard je istoveten z: EN 61076-2-109:2014
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61076-2-109

NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2014
ICS 31.220.10
English Version
Connectors for electronic equipment - Product requirements -
Part 2-109: Circular connectors - Detail specification for
connectors with M 12 × 1 screw-locking, for data transmission
frequencies up to 500 MHz
(IEC 61076-2-109:2014)
Connecteurs pour équipements électroniques - Exigences Steckverbinder für elektronische Einrichtungen -
de produit - Partie 2-109: Connecteurs circulaires - Produktanforderungen - Teil 2-109: Rundsteckverbinder -
Spécification particulière relative aux connecteurs avec Bauartspezifikation für Steckverbinder M 12 x 1 mit
verrouillage à vis M 12 × 1, pour les transmissions de Schraubverriegelung für Datenübertragungen bis 500 MHz
données à des fréquences jusqu'à 500 MHz (IEC 61076-2-109:2014)
(CEI 61076-2-109:2014)
This European Standard was approved by CENELEC on 2014-06-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61076-2-109:2014 E

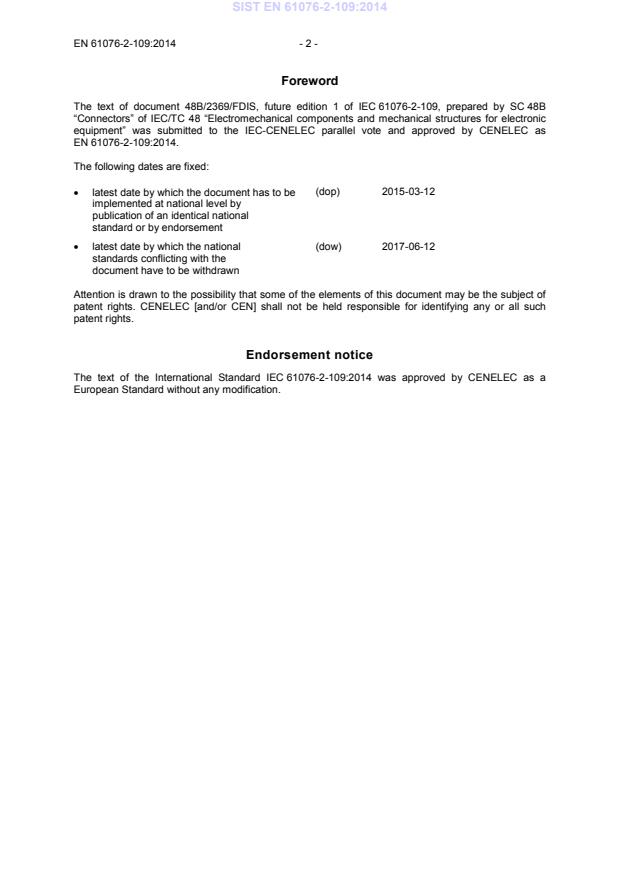

Foreword
