EN IEC 60332-3-22:2018

Tests on electric and optical fibre cables under fire conditions - Part 3-22: Test for vertical flame spread of vertically-mounted bunched wires or cables - Category A

NEW!IEC 60332-3-22:2018 is available as IEC 60332-3-22:2018 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60332-3-22:2018 covers category A for methods of test for the assessment of vertical flame spread of vertically mounted bunched wires or cables, electrical or optical, under defined conditions. This document relates to cables installed on the test ladder to achieve a nominal total volume of non-metallic material of 7 l/m of test sample. The flame application time is 40 min. The method of mounting uses the front of the ladder, a standard or wide ladder being used for cables having a conductor cross-section greater than 35 mm2 according to the number of test pieces required, and a standard ladder for conductor cross-sections 35 mm2 and smaller. The category is intended for general use where high volumes of non-metallic material are required to be evaluated. The test is intended for type approval testing. The requirements for the selection of cables for testing are given in Annex A. The flame spread is measured as the extent of damage of the cable sample. This procedure can be used to demonstrate the cable’s ability to limit flame spread. A recommended performance requirement is given in Annex B. This second edition cancels and replaces the first edition published in 2000 and Amendment 1:2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) adjustments have been made to the title, and elsewhere, to emphasise the standard is applicable to optical fibre cables as well as metallic conductor types; b) details of the way in which cables are mounted on the ladder have been better defined in order to improve repeatability and reproducibility. It has the status of a group safety publication in accordance with IEC Guide 104.

Prüfungen an Kabeln, isolierten Leitungen und Glasfaserkabeln im Brandfall - Teil 3-22: Prüfung der vertikalen Flammenausbreitung von vertikal angeordneten Bündeln von Kabeln und isolierten Leitungen - Prüfart A

Essais des câbles électriques et des câbles à fibres optiques soumis au feu - Partie 3-22: Essai de propagation verticale de la flamme des fils ou câbles montés en nappes en position verticale - Catégorie A

NEW!IEC 60332-3-22:2018 est disponible sous forme de IEC 60332-3-22:2018 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L’IEC 60332-3-22:2018 couvre la catégorie A pour les méthodes d'essai pour l'évaluation de la propagation verticale de la flamme des fils ou câbles, électriques ou optiques, disposés en nappes en position verticale, dans des conditions définie. Le présent document concerne les câbles montés sur l'échelle d'essai afin d’obtenir un volume total nominal de matériau non métallique de 7 l/m d'échantillon d'essai. La durée d'application de la flamme est de 40 min. La méthode de montage utilise la face avant de l'échelle, celle-ci étant du type standard ou du type large pour les câbles dont au moins un conducteur est de section supérieure à 35 mm2 selon le nombre d'éprouvettes exigé, et du type standard pour les câbles dont tous les conducteurs sont de sections inférieures ou égales à 35 mm2. Cette catégorie est prévue pour une utilisation générale lorsqu’il est requis d'évaluer le comportement de volumes élevés de matériau non métallique. L'essai est prévu pour les essais d'acceptation de type. Les exigences pour la sélection des câbles pour l'acceptation de type sont données à l'Annexe A. La propagation de la flamme est mesurée comme étant l'étendue de la partie endommagée de l'échantillon de câble. Cette procédure peut être utilisée pour démontrer l’aptitude du câble à limiter la propagation de la flamme. L’Annexe B donne une recommandation pour l'exigence de performance. Cette deuxième édition annule et remplace la première édition parue en 2000 et l'Amendement 1:2008. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) des ajustements ont été apportés au titre, et ailleurs, afin de souligner que la Norme s’applique aux câbles à fibre optique, ainsi qu’aux types de conducteurs métalliques; b) les détails sur la manière dont les câbles sont montés sur l'échelle ont été mieux définis afin d'améliorer la répétabilité et la reproductibilité. Elle a le statut d’une publication groupée de sécurité conformément au Guide IEC 104.

Preskusi na električnih kablih in kablih iz optičnih vlaken v požarnih razmerah - 3-22. del: Preskus navpičnega širjenja ognja po navpično pritrjenih snopih žic ali kablov - Kategorija A (IEC 60332-3-22:2018)

Ta del standarda IEC 60332 zajema kategorijo A za preskusne metode za ocenjevanje navpičnega širjenja ognja po navpično pritrjenih snopih žic ali kablov, električnih ali iz optičnih vlaken, v določenih razmerah. Ta dokument se nanaša na kable, nameščene na preskusni lestvi, da se doseže skupna nazivna prostornina nekovinskih materialov 7 l/m preskusnega vzorca. Čas uporabe ognja je 40 minut. Način montaže uporablja sprednji del lestve (standardne ali široke), ki se uporablja za vodnike s prerezom, večjim od 35 mm2, glede na število zahtevanih preskusnih delov, ter standardno lestev za vodnike s prerezom 35 mm2 in manjšim. Kategorija je namenjena za splošno uporabo, pri kateri je treba oceniti velike prostornine nekovinskih materialov.
Preskus je namenjen za homologacijsko preskušanje. Zahteve za izbiro kablov za preskušanje so podane v dodatku A. Širjenje ognja se izmeri kot obseg škode na vzorcu kabla. Ta postopek je mogoče uporabiti za prikaz zmožnosti kabla za omejitev širjenja ognja.
Priporočena zahteva glede učinkovitosti je podana v dodatku B.
OPOMBA: Za namene tega dokumenta izraz »električna žica ali kabel« zajema vse izolirane kovinske vodnike, ki se uporabljajo za prenos energije ali signalov.

General Information

• Status: Published
• Publication Date: 11-Oct-2018
• ICS: 13.220.40 - Ignitability and burning behaviour of materials and products
• ICS: 29.020 - Electrical engineering in general
• ICS: 29.060.20 - Cables
• Technical Committee: CLC/TC 20 - Electric cables
• Drafting Committee: IEC/TC 20 - IEC_TC_20
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 12-Oct-2018
• Completion Date: 12-Oct-2018
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: SIST EN IEC 60332-3-22:2018 - Tests on electric and optical fibre cables under fire conditions - Part 3-22: Test for vertical flame spread of vertically-mounted bunched wires or cables - Category A (IEC 60332-3-22:2018)

Relations

• Replaces: EN 60332-3-22:2009 - Tests on electric and optical fibre cables under fire conditions - Part 3-22: Test for vertical flame spread of vertically-mounted bunched wires or cables - Category A
• Effective Date: 25-Jan-2023

Overview

EN IEC 60332-3-22:2018 (CLC) specifies a Category A test method for assessing vertical flame spread of vertically-mounted bunched wires or cables, including electric and optical fibre cables, under defined conditions. This edition (a technical revision and RLV/redline version of IEC 60332-3-22:2018) replaces the 2000 edition and Amendment 1:2008 and has clarified mounting and applicability to optical-fibre constructions. The test is intended primarily for type approval testing and is a group safety publication in accordance with IEC Guide 104.

Key topics and requirements

• Test scope: Category A method for vertically-mounted bunched cables (electrical and optical).
• Test sample volume: Cables installed on the test ladder to achieve a nominal total volume of 7 l/m of non-metallic material.
• Flame application: Continuous flame application for 40 minutes.
• Mounting method: Samples mounted on the front of the ladder; use a standard ladder for conductor cross-sections ≤ 35 mm² (and optical cables), and a standard or wide ladder for cables with at least one conductor > 35 mm² depending on the number of test pieces.
• Configuration: Cables with conductors > 35 mm² are tested spaced; cables ≤ 35 mm² and optical fibre cables are tested touching (arrays in contact). Mounting details are more strictly defined in this edition to improve repeatability and reproducibility.
• Evaluation: Flame spread is quantified as the extent of damage to the cable sample; the method demonstrates a cable’s ability to limit flame spread.
• Annexes: Annex A gives requirements and guidance on cable selection for type approval; Annex B provides recommended performance requirements.
• Test report and retest: The standard defines reporting, retest procedures and required apparatus references.

Practical applications

• Demonstrating compliance for type approval, product certification and regulatory submissions.
• Specifying fire-performance requirements for cable bundles used in buildings, industrial plants, transport systems, data centres and other vertical installations.
• Informing design decisions where large volumes of non-metallic cable materials are bundled vertically (e.g., risers, ladder trays).
• Supporting procurement specifications and safety engineering risk assessments focused on vertical flame propagation.

Who uses this standard

• Cable manufacturers and R&D teams (product development and compliance testing)
• Independent testing laboratories and certification bodies
• Fire safety engineers, specifiers and building services consultants
• Regulators and procurement teams requiring standardized type approval evidence

Related standards

• IEC/EN 60332-3-10 (apparatus for vertical flame spread tests)
• Other parts of IEC 60332-3 series (Parts 3-21, 3-23 to 3-25) covering different categories and mounting methods

Keywords: EN IEC 60332-3-22:2018, vertical flame spread, bunched wires, optical fibre cables, Category A, test ladder, type approval, cable fire testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2018
1DGRPHãþD
SIST EN 60332-3-22:2010
3UHVNXVLQDHOHNWULþQLKNDEOLKLQNDEOLKL]RSWLþQLKYODNHQYSRåDUQLKUD]PHUDK
GHO3UHVNXVQDYSLþQHJDãLUMHQMDRJQMDSRQDYSLþQRSULWUMHQLKVQRSLKåLFDOL
NDEORY.DWHJRULMD$,(&
Tests on electric and optical fibre cables under fire conditions - Part 3-22: Test for
vertical flame spread of vertically-mounted bunched wires or cables - Category A (IEC
60332-3-22:2018)
Prüfungen an Kabeln, isolierten Leitungen und Glasfaserkabeln im Brandfall - Teil 3-22:
Prüfung der vertikalen Flammenausbreitung von vertikal angeordneten Bündeln von
Kabeln und isolierten Leitungen - Prüfart A (IEC 60332-3-22:2018)
Essais des câbles électriques et des câbles à fibres optiques soumis au feu - Partie 3-
22: Essai de propagation verticale de la flamme des fils ou câbles montés en nappes en
position verticale - Catégorie A (IEC 60332-3-22:2018)
Ta slovenski standard je istoveten z: EN IEC 60332-3-22:2018
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60332-3-22

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2018
ICS 13.220.40; 29.020; 29.060.20 Supersedes EN 60332-3-22:2009
English Version
Tests on electric and optical fibre cables under fire conditions -
Part 3-22: Test for vertical flame spread of vertically-mounted
bunched wires or cables - Category A
(IEC 60332-3-22:2018)
Essais des câbles électriques et des câbles à fibres Prüfungen an Kabeln, isolierten Leitungen und
optiques soumis au feu - Partie 3-22: Essai de propagation Glasfaserkabeln im Brandfall - Teil 3-22: Prüfung der
verticale de la flamme des fils ou câbles montés en nappes vertikalen Flammenausbreitung von vertikal angeordneten
en position verticale - Catégorie A Bündeln von Kabeln und isolierten Leitungen - Prüfart A
(IEC 60332-3-22:2018) (IEC 60332-3-22:2018)
This European Standard was approved by CENELEC on 2018-08-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60332-3-22:2018 E

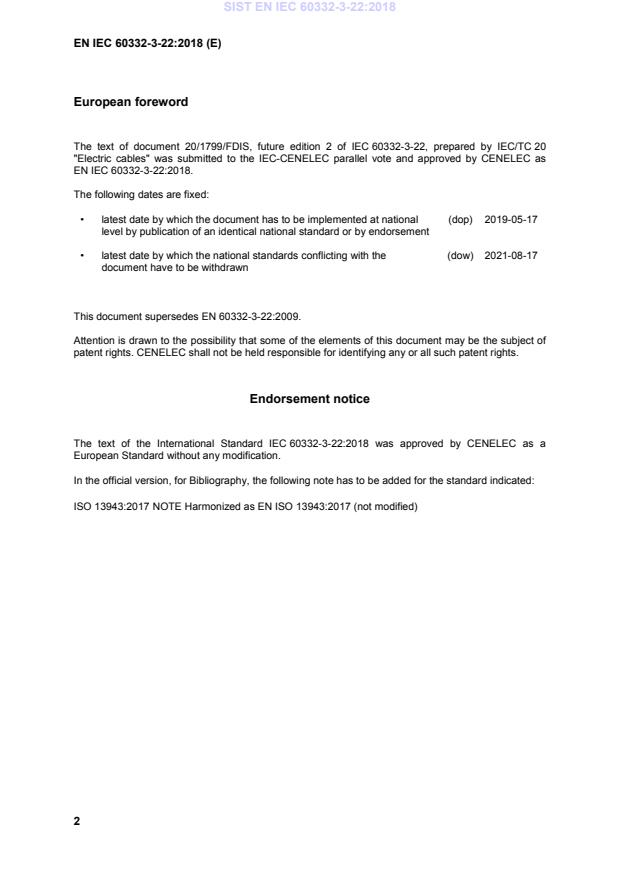

European foreword
