SLOVENSKI STANDARD
SIST EN 61850-4:2011
01-september-2011
.RPXQLNDFLMVNDRPUHåMDLQVLVWHPL]DDYWRPDWL]DFLMRSRUDEHHOHNWULþQHHQHUJLMH
GHO6LVWHPVNRLQSURMHNWQRXSUDYOMDQMH

Communication networks and systems for power utility automation - Part 4: System and

project management

Kommunikationsnetze und -systeme in Stationen - Teil 4: System- und Projektverwaltung

Réseaux et systèmes de communication pour l'automatisation des systèmes électriques

- Partie 4: Gestion du système et gestion de projet
Ta slovenski standard je istoveten z: EN 61850-4:2011
ICS:
29.240.30 Krmilna oprema za Control equipment for electric
elektroenergetske sisteme power systems
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
SIST EN 61850-4:2011 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61850-4:2011
---------------------- Page: 2 ----------------------
SIST EN 61850-4:2011
EUROPEAN STANDARD
EN 61850-4
NORME EUROPÉENNE
June 2011
EUROPÄISCHE NORM
ICS 33.200 Supersedes EN 61850-4:2002
English version
Communication networks and systems for power utility automation -
Part 4: System and project management
(IEC 61850-4:2011)
Réseaux et systèmes de communication Kommunikationsnetze und -systeme in
pour l'automatisation des systèmes Stationen -
électriques - Teil 4: System- und Projektverwaltung
Partie 4: Gestion du système et gestion de (IEC 61850-4:2011)
projet
(CEI 61850-4:2011)

This European Standard was approved by CENELEC on 2011-05-16. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61850-4:2011 E
---------------------- Page: 3 ----------------------
SIST EN 61850-4:2011

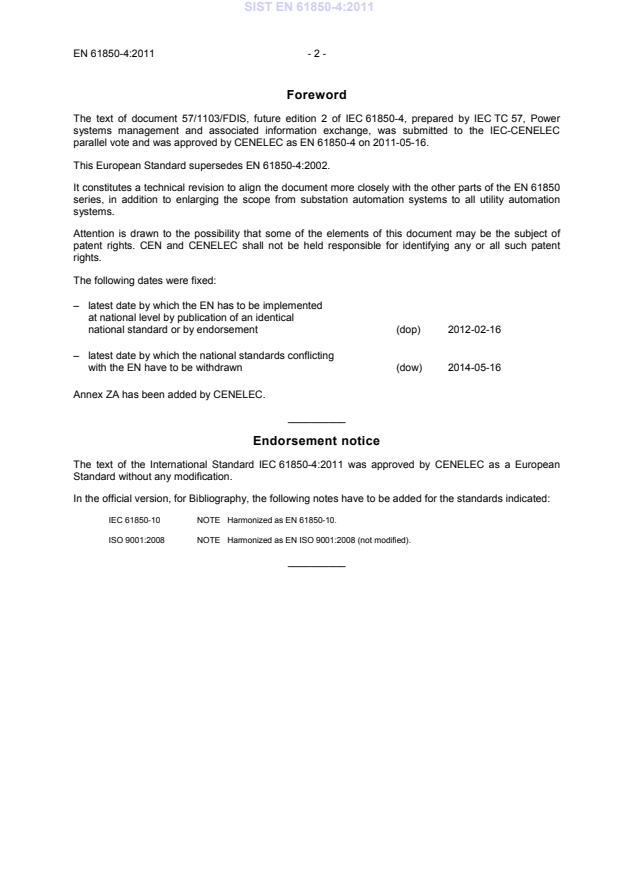

EN 61850-4:2011 - 2 -
Foreword

The text of document 57/1103/FDIS, future edition 2 of IEC 61850-4, prepared by IEC TC 57, Power

systems management and associated information exchange, was submitted to the IEC-CENELEC

parallel vote and was approved by CENELEC as EN 61850-4 on 2011-05-16.
This European Standard supersedes EN 61850-4:2002.

It constitutes a technical revision to align the document more closely with the other parts of the EN 61850

series, in addition to enlarging the scope from substation automation systems to all utility automation

systems.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent

rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2012-02-16
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-05-16
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice

The text of the International Standard IEC 61850-4:2011 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61850-10 NOTE Harmonized as EN 61850-10.
ISO 9001:2008 NOTE Harmonized as EN ISO 9001:2008 (not modified).
__________
---------------------- Page: 4 ----------------------
SIST EN 61850-4:2011
- 3 - EN 61850-4:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60848 - GRAFCET specification language for EN 60848 -
sequential function charts
IEC 61082 Series Preparation of documents used in EN 61082 Series
electrotechnology
IEC 61175 - Industrial systems, installations and EN 61175 -
equipment and industrial products -
Designation of signals
IEC 61850-6 - Communication networks and systems for EN 61850-6 -
power utility automation -
Part 6: Configuration description language for
communication in electrical substations
related to IEDs
IEC 61850-7 Series Communication networks and systems for EN 61850-7 Series
power utility automation -
Part 7: Basic information and communication
structure
IEC 81346 Series Industrial systems, installations and EN 81346 Series
equipment and industrial products -
Structuring principles and reference
designations
IEC 81346-1 - Industrial systems, installations and EN 81346-1 -
equipment and industrial products -
Structuring principles and reference
designations -
Part 1: Basic rules
IEC 81346-2 - Industrial systems, installations and EN 81346-2 -
equipment and industrial products -
Structuring principles and reference
designations -
Part 2: Classification of objects and codes for
classes
---------------------- Page: 5 ----------------------
SIST EN 61850-4:2011
---------------------- Page: 6 ----------------------
SIST EN 61850-4:2011
IEC 61850-4
Edition 2.0 2011-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Communication networks and systems for power utility automation –
Part 4: System and project management
Réseaux et systèmes de communication pour l'automatisation des systèmes
électriques –
Partie 4: Gestion du système et gestion de projet
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX W
ICS 33.200 ISBN 978-2-88912-439-8
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61850-4:2011
– 2 – 61850-4 © IEC:2011
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope ............................................................................................................................... 6

2 Normative references........................................................................................................ 6

3 Terms and definitions ....................................................................................................... 7

4 Abbreviations .................................................................................................................. 10

5 Engineering requirements ............................................................................................... 11

5.1 Overview ............................................................................................................... 11

5.2 Categories and types of parameters ....................................................................... 12

5.2.1 Classification ............................................................................................. 12

5.2.2 Parameter categories ................................................................................. 13

5.2.3 Parameter types ........................................................................................ 14

5.3 Engineering tools ................................................................................................... 15

5.3.1 Engineering process .................................................................................. 15

5.3.2 System specification tool ............................................................................ 17

5.3.3 System configuration tool ........................................................................... 17

5.3.4 IED configuration tool................................................................................. 18

5.3.5 Documentation tool .................................................................................... 19

5.4 Flexibility and expandability ................................................................................... 19

5.5 Scalability .............................................................................................................. 20

5.6 Automatic project documentation ........................................................................... 20

5.6.1 General ..................................................................................................... 20

5.6.2 Hardware documentation ........................................................................... 22

5.6.3 Parameter documentation .......................................................................... 22

5.6.4 Requirements of the documentation tool .................................................... 23

5.7 Standard documentation ........................................................................................ 23

5.8 System integrator's support ................................................................................... 24

6 System life cycle ............................................................................................................. 24

6.1 Requirements of product versions .......................................................................... 24

6.2 Announcement of product discontinuation .............................................................. 26

6.3 Support after discontinuation ................................................................................. 26

7 Quality assurance ........................................................................................................... 27

7.1 Division of responsibility ........................................................................................ 27

7.1.1 General ..................................................................................................... 27

7.1.2 Responsibility of the manufacturer and system integrator ........................... 27

7.1.3 Responsibility of the customer.................................................................... 29

7.2 Test equipment ...................................................................................................... 29

7.2.1 General ..................................................................................................... 29

7.2.2 Normal process test equipment .................................................................. 29

7.2.3 Transient and fault test equipment ............................................................. 29

7.2.4 Communication test equipment .................................................................. 30

7.3 Classification of quality tests .................................................................................. 30

7.3.1 Basic test requirements ............................................................................. 30

7.3.2 System test ................................................................................................ 30

7.3.3 Type test ................................................................................................... 31

7.3.4 Routine test ............................................................................................... 32

7.3.5 Conformance test ...................................................................................... 32

---------------------- Page: 8 ----------------------
SIST EN 61850-4:2011
61850-4 © IEC:2011 – 3 –

7.3.6 Factory Acceptance Test (FAT) .................................................................. 32

7.3.7 Site Acceptance Test (SAT) ....................................................................... 32

Annex A (informative) Announcement of discontinuation (example) ....................................... 34

Annex B (informative) Delivery obligations after discontinuation (example) ............................ 35

Bibliography .......................................................................................................................... 36

Figure 1 – Structure of the UAS and its environment .............................................................. 11

Figure 2 – Structure of UAS and IED parameters ................................................................... 13

Figure 3 – Engineering tasks and their relationship ................................................................ 16

Figure 4 – IED configuration process ..................................................................................... 18

Figure 5 – Project related documentation of UAS ................................................................... 21

Figure 6 – Two meanings of the system life cycle .................................................................. 25

Figure 7 – Stages of quality assurance – Responsibility of manufacturer and system

integrator .............................................................................................................................. 27

Figure 8 – Contents of system test ........................................................................................ 30

Figure 9 – Contents of type test ............................................................................................. 31

Figure 10 – Contents of routine test ....................................................................................... 32

Figure 11 – Testing stages for site acceptance test ............................................................... 33

Figure A.1 – Announcement conditions .................................................................................. 34

Figure B.1 – Periods for delivery obligations .......................................................................... 35

---------------------- Page: 9 ----------------------
SIST EN 61850-4:2011
– 4 – 61850-4 © IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMMUNICATION NETWORKS AND SYSTEMS
FOR POWER UTILITY AUTOMATION –
Part 4: System and project management
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote internation-

al co-operation on all questions concerning standardization in the electrical and electronic fields. To this end

and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical

Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”).

Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject

dealt with may participate in this preparatory work. International, governmental and non-governmental organiza-

tions liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Or-

ganization for Standardization (ISO) in accordance with conditions determined by agreement between the two

organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all inter-

ested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinter-

pretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence be-

tween any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and ex-

penses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publica-

tions.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61850-4 has been prepared by IEC technical committee 57: Power

systems management and associated information exchange.

This second edition cancels and replaces the first edition published in 2002. It constitutes a

technical revision to align the document more closely with the other parts of the IEC 61850

series, in addition to enlarging the scope from substation automation systems to all utility au-

tomation systems.
The text of this standard is based on the following documents:
FDIS Report on voting
57/1103/FDIS 57/1122/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
---------------------- Page: 10 ----------------------
SIST EN 61850-4:2011
61850-4 © IEC:2011 – 5 –

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61850 series, under the general title: Communication networks and

systems for power utility automation, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 11 ----------------------
SIST EN 61850-4:2011
– 6 – 61850-4 © IEC:2011
COMMUNICATION NETWORKS AND SYSTEMS
FOR POWER UTILITY AUTOMATION –
Part 4: System and project management
1 Scope

This part of IEC 61850 applies to projects associated with process near automation systems of

power utilities (UAS, utility automation system), like e.g. substation automation systems (SAS).

It defines the system and project management for UAS systems with communication between

intelligent electronic devices (IEDs) in the substation respective plant and the related system

requirements.

The specifications of this part pertain to the system and project management with respect to:

– the engineering process and its supporting tools;
– the life cycle of the overall system and its IEDs;

– the quality assurance beginning with the development stage and ending with discon-

tinuation and decommissioning of the UAS and its IEDs.

The requirements of the system and project management process and of special supporting

tools for engineering and testing are described.
2 Normative references

The following referenced documents are indispensable for the application of this document. For

dated references, only the edition cited applies. For undated references, the latest edition of

the referenced document (including any amendments) applies.
IEC 60848, GRAFCET specification language for sequential function charts
IEC 61082 (all parts), Preparation of documents used in electrotechnology

IEC 61175, Industrial systems, installations and equipment and industrial products – Designa-

tion of signals

IEC 61850-6, Communication networks and systems for power utility automation – Part 6:

Configuration description language for communication in electrical substations related to IEDs

IEC 61850-7 (all parts), Communication networks and systems for power utility automation –

Part 7: Basic communication structure

IEC 81346 (all parts), Industrial systems, installations and equipment and industrial products –

Structuring principles and reference designations

IEC 81346-1, Industrial systems, installations and equipment and industrial products – Structur-

ing principles and reference designations – Part 1: Basic rules

IEC 81346-2, Industrial systems, installations and equipment and industrial products – Structur-

ing principles and reference designations – Part 2: Classification of objects and codes for clas-

ses
---------------------- Page: 12 ----------------------
SIST EN 61850-4:2011
61850-4 © IEC:2011 – 7 –
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
supporting tools

those tools that support the user in the engineering, the operation and the management of the

UAS and its IEDs
NOTE These tools are usually a part of the UAS.
3.1.1
engineering tools

tools that support the creation and documentation of the conditions for adapting an automation

system to the specific plant (substation) and customer requirements

NOTE Engineering tools are divided into project management, configuration and documentation tools.

3.1.2
system specification tools

tools used to create a system requirement specification including the relation of system func-

tions to the plant/substation to be managed; especially a tool creating a specification in a for-

mally defined, standardized format for evaluation by other tools
3.1.3
system configuration tools

tools handling the communication between the IEDs in the system, configuration of issues

common for several IEDs, and the logical association of the IED’s functions to the process to

be controlled and supervised
NOTE See also “system parameters”.
3.1.4
IED configuration tools

tools handling the specific configuration and download of configuration data to a specific IED of

a specific type
3.2
expandability

criteria for the efficient extension of an automation system (hardware and functional) by use of

the engineering tools
3.3
flexibility

criteria for the fast and efficient implementation of functional changes including hardware

3.4
scalability

criteria for a cost effective system while recognizing various functionalities, various IEDs,

substation sizes and substation voltage ranges
3.5
parameters

variables which define the behaviour of functions of the automation system and its IEDs within

a given range of values
---------------------- Page: 13 ----------------------
SIST EN 61850-4:2011
– 8 – 61850-4 © IEC:2011
3.5.1
system parameters
data which define the interaction of IEDs in the system
NOTE System parameters are especially important in the:
– configuration of the system;
– communication between IEDs;
– marshalling of data between IEDs;

– processing and visualization of data from other IEDs (for example, at the station level).

3.5.2
IED parameters
parameters defining the behaviour of an IED and its relation to the process
3.6
IED-parameter set

all parameter values and configuration data needed for the definition of the behaviour of the

IED and its adaptation to the substation conditions

NOTE Where the IED has to operate autonomously, the parameter-set can be generated without system parame-

ters using an IED-specific parameterization tool. Where the IED is a part of the system, the parameter set may

include the IED related or complete set of system parameters, which should be coordinated by a general parameter-

ization tool at the system level.
3.7
UAS-parameter set

all parameter values and configuration data needed for the definition of the behaviour of the

overall UAS and its adaptation to the substation conditions

NOTE The parameter set includes the IED-parameter sets of all participating IEDs.

3.8
remote terminal unit
RTU

used as an outstation in a supervisory control and data acquisition (SCADA) system

NOTE An RTU may act as an interface between the communication network to the SCADA system and the substa-

tion equipment. The function of an RTU may reside in one IED or may be distributed.

3.9
UAS product family

different IEDs of one manufacturer with various functionalities and with the ability to perform

within utility automation systems

NOTE The IEDs of a product family are unified in relation to the design, the operational handling, the mounting

and wiring conditions, and they use common or coordinated supporting tools.
3.10
UAS installation

the concrete instance of a substation automation system consisting of multiple interoperable

and connected IEDs of one or more manufacturers
3.11
configuration list

overview of all instances of IEDs and other installed products of a system, their hardware and

software versions including the software versions of relevant supporting tools

NOTE The configuration list also contains the configured communication connections and addresses.

---------------------- Page: 14 ----------------------
SIST EN 61850-4:2011
61850-4 © IEC:2011 – 9 –
3.12
configuration compatibility list

overview of all compatible hardware and software versions of components and IEDs, including

the software versions of relevant supporting tools operating together in an UAS-product family

NOTE The configuration compatibility list also contains the supported transmission protocols and protocol ver-

sions for communication with other IEDs.
3.13
manufacturer
the producer of IEDs and/or supporting tools

NOTE A manufacturer may be able to deliver an UAS solely by use of his own IEDs and supporting tools (UAS

product family).
3.14
system integrator
a turnkey deliverer of UAS installations

NOTE The responsibility of system integration includes the engineering, the delivery and mounting of all participat-

ing IEDs, the factory and site acceptance tests and the trial operation. The quality assurance, the maintenance and

spare delivery obligations and the warranty are agreed in the contract between the system integrator and the cus-

tomer. A system integrator may use IEDs from several different manufacturers.
3.15
system life cycle
the term has two specific meanings:

a) for the manufacturer, the time period between the start of the production of a newly

developed UAS product family and the discontinuation of support for the relevant IEDs;

b) for the customer, the time period between the commissioning of the system installation and

the decommissioning of the last IED of the system installation
3.16
test equipment

all tools and instruments which simulate and verify the input/outputs of the operating environ-

ment of the automation system such as switchgear, transformers, network control centres or

connected telecommunication units on one side, and the communication channels between the

IEDs of the UAS on the other side
3.17
conformance test

verification of data flow on communication channels in accordance with the standard conditions

concerning access organization, formats and bit sequences, time synchronization, timing, sig-

nal form and level, reaction to errors

NOTE The conformance test can be carried out and certified for the standard or specially described parts of the

standard. The conformance test should be carried out by an ISO 9001 certified organization or system integrator.

3.18
system test

validation of correct behaviour of the IEDs and of the overall automation system under various

application conditions

NOTE The system test marks the final stage of the development of IEDs as part of a UAS product family.

3.19
type test

verification of correct behaviour of the IEDs of the automation system by use of the system

tested software un
...
