EUROPEAN STANDARD
EN 50491-2
NORME EUROPÉENNE
March 2010
EUROPÄISCHE NORM
ICS 97.120
English version
General requirements for Home and Building Electronic Systems (HBES)
and Building Automation and Control Systems (BACS) -
Part 2: Environmental conditions
Exigences générales pour systèmes Allgemeine Anforderungen an die
électroniques pour les foyers domestiques Elektrische Systemtechnik für Heim
et les bâtiments (HBES) et pour systèmes und Gebäude (ESHG) und an Systeme
de gestion technique du bâtiment (SGTB) - der Gebäudeautomation (GA) -
Partie 2: Exigences d’environnement Teil 2: Umgebungsbedingungen
This European Standard was approved by CENELEC on 2010-03-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: Avenue Marnix 17, B - 1000 Brussels
© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50491-2:2010 E

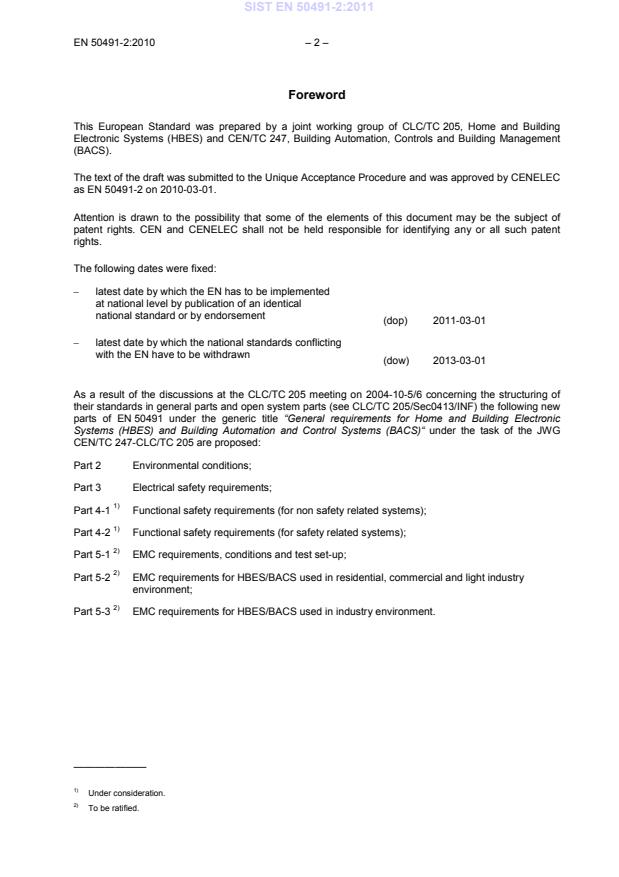

Foreword
This European Standard was prepared by a joint working group of CLC/TC 205, Home and Building
Electronic Systems (HBES) and CEN/TC 247, Building Automation, Controls and Building Management
(BACS).
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC
as EN 50491-2 on 2010-03-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop) 2011-03-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow) 2013-03-01
As a result of the discussions at the CLC/TC 205 meeting on 2004-10-5/6 concerning the structuring of
their standards in general parts and open system parts (see CLC/TC 205/Sec0413/INF) the following new
parts of EN 50491 under the generic title “General requirements for Home and Building Electronic
Systems (HBES) and Building Automation and Control Systems (BACS)“ under the task of the JWG
CEN/TC 247-CLC/TC 205 are proposed:
Part 2 Environmental conditions;
Part 3 Electrical safety requirements;
1)
Part 4-1 Functional safety requirements (for non safety related systems);
1)
Part 4-2 Functional safety requirements (for safety related systems);
2)
Part 5-1 EMC requirements, conditions and test set-up;
2)
Part 5-2 EMC requirements for HBES/BACS used in residential, commercial and light industry
environment;
2)
Part 5-3 EMC requirements for HBES/BACS used in industry environment.
———————
1)
Under consideration.
2)
To be ratified.
– 3 – EN 50491-2:2010
Contents
Introduction . 4
1 Scope . 4
2 Normative references. 4
3 Terms and definitions . 5
4 General explanation for all tests . 6
5 Environmental conditions . 6
5.1 General test conditions . 6
5.2 General performance criteria . 6
6 Environmental requirements . 8
6.1 Climatic . 8
6.2 Chemical . 9
6.3 Mechanical .10
6.4 Biological .11
Annex A (informative) Sets of environmental class combinations .12
A.1 Description of the classes .12
Bibliography .15
Tables
Table 1 - Details of climatic tests . 8
Table 2 - Details of chemical tests . 9
Table 3 - Details of mechanical tests .10
Table 4 - Details of biological tests .11
Table A.1 - Summary of classes .12
Introduction
The EN 50491 series deals with developing and testing Home and Building Electronic Systems (HBES)
and Building Automation and Control Systems (BACS).
The expression HBES/BACS covers any combination of HBES and/or BACS devices including their
separate connected/detachable devices linked together via one or more networks.
Part 2 of this series applies to HBES/BACS devices and defines the environmental conditions for these
devices.
1 Scope
This European Standard provides the environmental conditions for all devices connected to HBES/BACS.
This European Standard is applicable (but not limited) to
- operator stations and other human system interface devices,
- devices for management functions,
- control devices, automation stations and application specific controllers,
- field devices and their interfaces,
- cabling and interconnection of devices,
- dedicated devices for engineering and commissioning tools for HBES/BACS.
The standard defines the general requirements for devices operating in weather protected and non-
weather protected locations, ship environments, portable use and also for storage and transport.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 60068-2-1 Environmental testing - Part 2-1: Tests - Test A: Cold
(IEC 60068-2-1)
EN 60068-2-6 Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)
(IEC 60068-2-6:1995 + corrigendum March 1995)
EN 60068-2-10 Environmental testing - Part 2-10: Tests - Test J and guidance: Mould
growth (IEC 60068-2-10)
EN 60068-2-11 Environmental testing - Part 2: Tests - Test Ka: Salt mist
(IEC 60068-2-11)
EN 60068-2-14:1999 Environmental testing - Part 2: Tests - Test N: Change of temperature
(IEC 60068-2-14:1984 + A1:1986)
EN 60068-2-27 Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock
(IEC 60068-2-27)
EN 60068-2-30 Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle) (IEC 60068-2-30)
EN 60068-2-32 Basic environmental testing procedures - Part 2: Tests - Test Ed: Free
fall (IEC 60068-2-32)
– 5 – EN 50491-2:2010
EN 60068-2-43 Environmental testing - Part 2-43: Tests - Test Kd: Hydrogen sulphide
test for contacts and connections
(IEC 60068-2-43)
EN 60068-2-64 Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband
random and guidance (IEC 60068-2-64)
EN 60529:1991+ Degrees of protection provided by enclosures (IP Code)
A1:2000 (IEC 60529)
EN 60721-3-1 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 1: Storage (IEC 60721-3-1)
EN 60721-3-2 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 2: Transportation (IEC 60721-3-2)
EN 60721-3-3 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 3: Stationary use at weatherprotected locations
(IEC 60721-3-3)
EN 60721-3-4 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 4: Stationary use at non-weatherprotected locations
(IEC 60721-3-4)
EN 60721-3-6 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 6: Ship environment (IEC 60721-3-6)
EN 60721-3-7 Classification of environmental conditions - Part 3: Classification
of groups of environmental parameters and their severities -
Section 7: Portable and non-stationary use (IEC 60721-3-7)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 60721 series and EN 60068
series and the following apply.
3.1
product documentation
set of documents that may contain any of the following:
- the manufacturer's installation and operations literature which accompanies the product;
- the product information contained in the manufacturer's catalogue and other product
marketing material-information;
- the description, definitions, product literature and usage as presented in electronic format on the
manufacturer's (or supplier's) website on the World Wide Web/Internet
3.2
weather protected locations: controlled conditions
locations that are enclosed, and where direct weather influences are totally excluded. In addition,
temperature is controlled by heating or cooling to maintain the required conditions, especially where these
are very different from those of the open-air climate. Humidity is not controlled. Vibration and shock are
insignificant.
These locations may be in rural and some urban areas with low industrial activities and moderate traffic.
There is no particular risk of biological attack due to mould growth, animals, etc.
EXAMPLES:
- normal living or working areas, for example living rooms, and rooms for general use such as theatres,
restaurants, offices, shops, workshops for electronic assembly and products;
- telecommunication centres;
- storage rooms for valuable and sensitive products.
3.3
weather protected locations: uncontrolled conditions
locations that are enclosed, but whether direct weather influences are not completely excluded.In
addition, neither temperature nor humidity is controlled, although heating may be used to raise low
temperatures where there is a large difference between the conditions of this class and those of the open-
air-climate. Vibration is of low significance.
EXAMPLES:
- entrances and staircases of buildings, garages, cellars, and certain workshops;
- buildings in factories and industrial process plants;
- unattended equipment stations, certain telecommunication buildings, ordinary storage;
- rooms for frost-resistant products, farm buildings, etc.
4 General explanation for all tests
The variety and the diversity of the devices within the scope of this standard make it difficult to define
precise criteria for the evaluation of the immunity test results.
If, as a result of th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
