EN IEC 62613-2:2018

Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships

The purpose of the IEC/ISO/IEEE 80005-1 is to define requirements that allow compliant ships to connect to compliant high-voltage shore power supplies through a compatible shore-to-ship connection. IEC 62613 has been written to address the needs of 80005-1 in terms of plugs, socket-outlets, ship connectors and ship inlets (herein referred to as "accessories") to deliver electrical power to ships in ports. IEC 62613 applies to accessories with - three phases and earth with pilot contacts, - one single pole for neutral. These accessories have rated currents not exceeding 500 A and rated operating voltages not exceeding 12 kV 50/60 Hz. These accessories are primarily intended for use outdoors, in a seawater environment, for the shore supply of ships (ship-to-shore connection), in an ambient temperature within the range of 25 °C to +45 °C. NOTE 1: In some countries, other ambient temperatures may prevail and may need to be taken into account. These accessories are not intended for use in hazardous areas. In such locations where special conditions prevail, additional requirements may be necessary. Part 2 of IEC 62613 contains the standard sheets for different configurations of (shore) socket-outlets, (shore) plugs, ship connectors and ship inlets, up to 12 kV, 500 A, 50/60 Hz and with pilot/auxiliary contacts.

Stecker, Steckdosen und Schiffssteckvorrichtungen für Hochspannungs-Landanschlusssysteme (HVSC-Systeme) - Teil 2: Anforderungen an die Austauschbarkeit von Steckvorrichtungen, die an verschiedenen Schiffstypen anzuwenden sind

Prises de courant et connecteurs de navires pour les systèmes haute tension de raccordement des navires à quai - Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour les appareils destinés à être utilisés par divers types de navires

L'IEC 62613-2:2016 contient les feuilles de norme de différentes configurations de socles de prise (de quai), fiches (de quai), prises mobiles de navire et socles de connecteur de navire, ci-après désignés appareils, jusqu'à 12 kV, 500 A, 50/60 Hz et avec jusqu'à sept contacts pilotes ou auxiliaires. Les règles générales sont données dans l'IEC 62613-1. Cette deuxième édition annule et remplace la première édition publiée en 2011. Cette édition constitue une révision technique. Cette édition comprend les modifications techniques majeures suivantes par rapport à l'édition précédente: a) ajout de la configuration I: 7,2 kV 350 A appareils triphasés avec trois contacts pilotes IP0; b) ajout de la configuration J: 12 kV 500 A appareils triphasés avec sept contacts pilotes; c) amélioration des dessins dans les feuilles de norme et ajout de dimensions manquantes.

Vtiči, vtičnice in ladijske spojke za visokonapetostne priključne sisteme na kopnem (HVSC-sistemi) - 2. del: Zahteve za dimenzijsko skladnost in zamenljivost dodatkov, ki se uporabljajo pri različnih vrstah ladij

Namen standarda IEC/ISO/IEEE 80005-1 je določitev zahtev, ki skladnim ladjam omogoča, da se povežejo s skladnimi visokonapetostnimi viri napajanja prek združljivega priključnega sistema med ladjo in kopnim.
Standard IEC 62613 je bil oblikovan za obravnavo zahtev v skladu s standardom 80005-1, ki so povezane z vtiči, vtičnicami, ladijskimi priključki in ladijskimi dovodi (v nadaljnjem besedilu: »dodatki«), ki ladjam v pristaniščih dovajajo električno energijo.
Standard IEC 62613 se uporablja za dodatke, ki so:
– trifazni z ozemljitvijo in pilotnimi priključki;
– enopolno stikalo za nevtralni priključek.
Nazivni tok teh dodatkov ne presega 500 A in nazivna obratovalna napetost ne presega 12 kV, 50/60 Hz.
Ti dodatki so namenjeni predvsem za uporabo na prostem, v morski vodi, za oskrbo ladij (priključni sistem med ladjo in kopnim) pri temperaturi okolja od 25 °C do 45 °C.
OPOMBA 1: V nekaterih državah lahko prevladujejo druge temperature okolja, kar je treba upoštevati.
Ti dodatki niso namenjeni uporabi v nevarnih območjih. V območjih, kjer prevladujejo posebni pogoji, je treba upoštevati dodatne zahteve.
Drugi del standarda IEC 62613 vsebuje tabele standardov za različne konfiguracije (kopenskih) vtičnic, (kopenskih) vtičev, ladijskih priključkov in ladijskih dovodov do 12 kV, 500 A, 50/60 Hz in s pilotnimi/pomožnimi kontakti.

General Information

• Status: Published
• Publication Date: 22-Mar-2018
• Withdrawal Date: 04-Mar-2021
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• Technical Committee: CLC/TC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
• Drafting Committee: CLC/TC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 23-Mar-2018
• Due Date: 17-May-2019
• Completion Date: 23-Mar-2018
• Directive: 2014/94/EU - Directive 2014/94/EU of The European Parliament and of The Council of 22 October 2014 on the deployment of alternative fuels infrastructure
• Mandate: M/533 - [C(2015)1330] Standardisation request addressed to CEN, CENELEC and ETSI in support of the implementation of the Directive 2014/94/EU on the deployment of alternative fuels infrastructure
• Ref Project: SIST EN IEC 62613-2:2018 - Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stecker, Steckdosen und Schiffssteckvorrichtungen für Hochspannungs-Landanschlusssysteme (HVSC-Systeme) - Teil 2: Anforderungen an die Austauschbarkeit von Steckvorrichtungen, die an verschiedenen Schiffstypen anzuwenden sindPrises de courant et connecteurs de navires pour les systèmes haute tension de raccordement des navires à quai - Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour les appareils destinés à être utilisés par divers types de naviresPlugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships29.120.30Plugs, socket-outlets, couplersICS:Ta slovenski standard je istoveten z:EN IEC 62613-2:2018SIST EN 62613-2:2018en,fr,de01-junij-2018SIST EN 62613-2:2018SLOVENSKI
STANDARD
SIST EN 62613-2:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN IEC 62613-2
March 2018 ICS 29.120.30
English Version
Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships (IEC 62613-2:2016)
Prises de courant et connecteurs de navires pour les systèmes haute tension de raccordement des navires à quai - Partie 2: Règles dimensionnelles de compatibilité et d'interchangeabilité pour les appareils destinés à être utilisés par divers types de navires (IEC 62613-2:2016)
Stecker, Steckdosen und Schiffssteckvorrichtungen für Hochspannungs-Landanschlusssysteme (HVSC-Systeme) - Teil 2: Anforderungen an die Austauschbarkeit von Steckvorrichtungen, die an verschiedenen Schiffstypen anzuwenden sind (IEC 62613-2:2016) This European Standard was approved by CENELEC on 2018-03-05. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Rue de la Science 23,
B-1040 Brussels © 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62613-2:2018 E SIST EN 62613-2:2018

The following dates are fixed:
• latest date by which this document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2019-03-05 • latest date by which the national standards conflicting with this document have to be withdrawn (dow) 2021-03-05
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission and the European Free Trade Association.
Endorsement notice The text of the International Standard IEC 62613-2:2016 was approved by CENELEC as a European Standard without any modification. SIST EN 62613-2:2018

(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1
Where an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
NOTE 2
Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.
Annex ZA of EN 62613-1:2018 applies, except as follows:
Publication Year Title EN/HD Year Addition: IEC 62613-1 2011
Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-Systems) -
Part 1: General requirements EN 62613-1 2018
SIST EN 62613-2:2018
SIST EN 62613-2:2018
IEC 62613-2 Edition 2.0 2016-11 INTERNATIONAL STANDARD NORME INTERNATIONALE Plugs, socket-outlets and ship couplers for high-voltage shore connection systems (HVSC-systems) –
Part 2: Dimensional compatibility and interchangeability requirements for accessories to be used by various types of ships
Prises de courant et connecteurs de navires pour les systèmes haute tension de raccordement des navires à quai –
Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour les appareils destinés à être utilisés par divers types de navires
INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE
ICS 29.120.30
ISBN 978-2-8322-3715-1
– 2 – IEC 62613-2:2016 © IEC 2016 CONTENTS FOREWORD . 4 INRODUCTION . 6 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 7 4 General . 7 5 Standard ratings . 7 6 Classification . 7 7 Marking . 7 8 Dimensions. 7 9 Protection against electric shock . 8 10 Provision for Earthing . 8 11 Terminals and terminations . 8 12 Locking devices and interlocks . 8 13 Resistance to ageing of rubber and thermoplastic material . 8 14 General construction . 8 15 Construction of socket-outlets and ship inlets . 8 16 Construction of ship connectors . 8 17 Construction of plugs . 8 18 Degrees of protection . 8 19 Insulation resistance, dielectric withstand and partial discharge tests . 8 20 Normal operation . 9 21 Temperature rise . 9 22 Flexible cables and their connection . 9 23 Mechanical strength . 9 24 Screws, current-carrying parts and connections . 9 25 Resistance to heat, to fire and to tracking . 9 26 Corrosion and resistance to rusting . 9 27 Conditional short-circuit current withstand test . 9 28 Electromagnetic compatibility . 9 Annex A (normative)
Standard sheets A: 7,2 kV 350A three-phase accessories with two IP0 pilot contacts . 10 A.1 Socket-outlet. 10 A.2 Plug top . 11 A.3 Ship connector top . 12 A.4 Ship inlet . 13 Annex B (normative)
Standard sheets B:
7,2 kV 350A three-phase accessories with two IP2X pilot contacts . 14 B.1 Socket-outlet. 14 B.2 Plug top . 15 B.3 Ship connector top . 16 B.4 Ship inlet . 17 SIST EN 62613-2:2018

IEC 62613-2:2016 © IEC 2016 – 3 – Annex C (normative)
Standard sheets C: 7,2 kV 350 A three-phase accessories with three IP2X pilot contacts . 18 C.1 Socket-outlet. 18 C.2 Plug top . 19 C.3 Ship connector top . 20 C.4 Ship inlet . 21 Annex D (normative)
Standard sheets D: 12 kV 500 A three-phase accessories with two IP0 pilot contacts . 22 D.1 Socket-outlet. 22 D.2 Plug top . 23 D.3 Ship connector top . 24 D.4 Ship inlet . 25 Annex E (normative)
Standard sheets E:
12 kV 500 A three-phase accessories with two IP2X Pilot contacts . 26 E.1 Socket-outlet. 26 E.2 Plug top . 27 E.3 Ship connector top . 28 E.4 Ship inlet . 29 Annex F (normative)
Standard sheets F 12 kV 500 A three-phase accessories with three IP2X pilot contacts . 30 F.1 Socket-outlet. 30 F.2 Plug top . 31 F.3 Ship connector top . 32 F.4 Ship inlet . 33 Annex G (normative)
Standard sheets G: 12 kV 500 A three-phase accessories with two pilot contacts .
...

SLOVENSKI STANDARD
01-junij-2018
Vtiči, vtičnice in ladijske spojke za visokonapetostne priključne sisteme na
kopnem (HVSC-sistemi) - 2. del: Zahteve za dimenzijsko skladnost in zamenljivost
dodatkov, ki se uporabljajo pri različnih vrstah ladij
Plugs, socket-outlets and ship couplers for high-voltage shore connection systems
(HVSC-systems) - Part 2: Dimensional compatibility and interchangeability requirements
for accessories to be used by various types of ships
Stecker, Steckdosen und Schiffssteckvorrichtungen für Hochspannungs-
Landanschlusssysteme (HVSC-Systeme) - Teil 2: Anforderungen an die
Austauschbarkeit von Steckvorrichtungen, die an verschiedenen Schiffstypen
anzuwenden sind
Prises de courant et connecteurs de navires pour les systèmes haute tension de
raccordement des navires à quai - Partie 2: Règles dimensionnelles de compatibilité et
d’interchangeabilité pour les appareils destinés à être utilisés par divers types de navires
Ta slovenski standard je istoveten z: EN IEC 62613-2:2018
ICS:
29.120.30 Vtiči, vtičnice, spojke Plugs, socket-outlets,
couplers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62613-2

NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2018
ICS 29.120.30
English Version
Plugs, socket-outlets and ship couplers for high-voltage shore
connection systems (HVSC-systems) - Part 2: Dimensional
compatibility and interchangeability requirements for accessories
to be used by various types of ships
(IEC 62613-2:2016)
Prises de courant et connecteurs de navires pour les Stecker, Steckdosen und Schiffssteckvorrichtungen für
systèmes haute tension de raccordement des navires à Hochspannungs-Landanschlusssysteme (HVSC-Systeme) -
quai - Partie 2: Règles dimensionnelles de compatibilité et Teil 2: Anforderungen an die Austauschbarkeit von
d'interchangeabilité pour les appareils destinés à être Steckvorrichtungen, die an verschiedenen Schiffstypen
utilisés par divers types de navires anzuwenden sind
(IEC 62613-2:2016) (IEC 62613-2:2016)
This European Standard was approved by CENELEC on 2018-03-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62613-2:2018 E

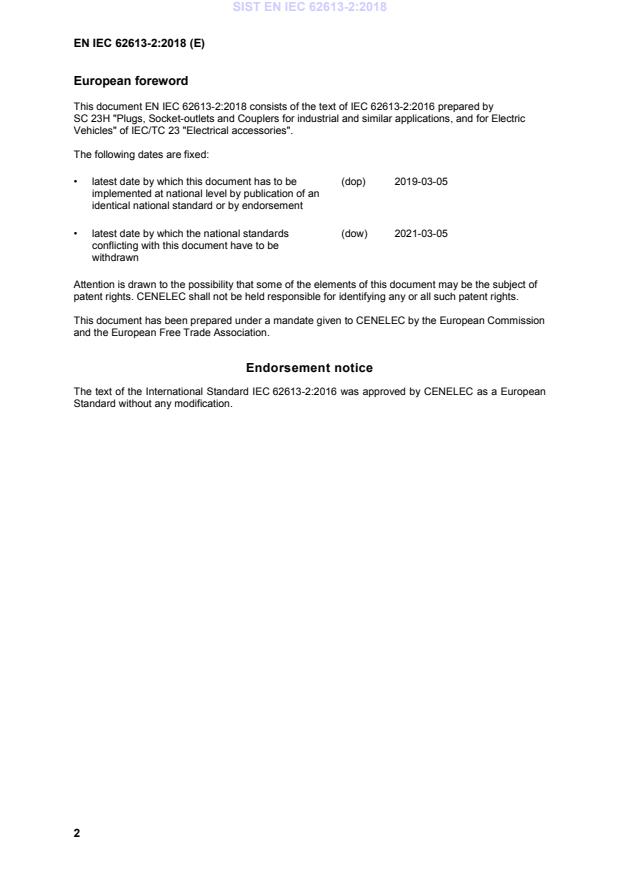

European foreword
This document EN IEC 62613-2:2018 consists of the text of IEC 62613-2:2016 prepared by
SC 23H "Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric
Vehicles" of IEC/TC 23 "Electrical accessories".

The following dates are fixed:

• latest date by which this document has to be (dop) 2019-03-05
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2021-03-05
conflicting with this document have to be
withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.

Endorsement notice
The text of the International Standard IEC 62613-2:2016 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Annex ZA of EN 62613-1:2018 applies, except as follows:

Publication Year Title EN/HD Year
Addition:
IEC 62613-1 2011 Plugs, socket-outlets and ship couplers for EN 62613-1 2018
high-voltage shore connection systems
(HVSC-Systems) -
Part 1: General requirements
IEC 62613-2 ®
Edition 2.0 2016-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets and ship couplers for high-voltage shore connection

systems (HVSC-systems) –
Part 2: Dimensional compatibility and interchangeability requirements for

accessories to be used by various types of ships

Prises de courant et connecteurs de navires pour les systèmes haute tension de

raccordement des navires à quai –

Partie 2: Règles dimensionnelles de compatibilité et d’interchangeabilité pour

les appareils destinés à être utilisés par divers types de navires

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.30 ISBN 978-2-8322-3715-1

– 2 – IEC 62613-2:2016 © IEC 2016
CONTENTS
FOREWORD . 4
INRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General . 7
5 Standard ratings . 7
6 Classification . 7
7 Marking . 7
8 Dimensions. 7
9 Protection against electric shock . 8
10 Provision for Earthing . 8
11 Terminals and terminations . 8
12 Locking devices and interlocks . 8
13 Resistance to ageing of rubber and thermoplastic material . 8
14 General construction . 8
15 Construction of socket-outlets and ship inlets . 8
16 Construction of ship connectors . 8
17 Construction of plugs . 8
18 Degrees of protection . 8
19 Insulation resistance, dielectric withstand and partial discharge tests . 8
20 Normal operation . 9
21 Temperature rise . 9
22 Flexible cables and their connection . 9
23 Mechanical strength . 9
24 Screws, current-carrying parts and connections . 9
25 Resistance to heat, to fire and to tracking . 9
26 Corrosion and resistance to rusting . 9
27 Conditional short-circuit current withstand test . 9
28 Electromagnetic compatibility . 9
Annex A (normative) Standard sheets A: 7,2 kV 350A three-phase accessories with
two IP0 pilot contacts . 10
A.1 Socket-outlet. 10
A.2 Plug top . 11
A.3 Ship connector top . 12
A.4 Ship inlet . 13
Annex B (normative) Standard sheets B:  7,2 kV 350A three-phase accessories with
two IP2X pilot contacts . 14
B.1 Socket-outlet. 14
B.2 Plug top . 15
B.3 Ship connector top . 16
B.4 Ship inlet . 17

IEC 62613-2:2016 © IEC 2016 – 3 –
Annex C (normative) Standard sheets C: 7,2 kV 350 A three-phase accessories with
three IP2X pilot contacts . 18
C.1 Socket-outlet. 18
C.2 Plug top . 19
C.3 Ship connector top . 20
C.4 Ship inlet . 21
Annex D (normative) Standard sheets D: 12 kV 500 A three-phase accessories with
two IP0 pilot contacts . 22
D.1 Socket-outlet. 22
D.2 Plug top . 23
D.3 Ship connector top . 24
D.4 Ship inlet . 25
Annex E (normative) Standard sheets E: 12 kV 500 A three-phase accessories with
two IP2X Pilot contacts . 26
E.1 Socket-outlet. 26
E.2 Plug top .
...
