EUROPEAN STANDARD EN 62841-4-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2019
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 4-2: Particular
requirements for hedge trimmers
(IEC 62841-4-2:2017 , modified + COR1:2018)
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 4-2: Exigences transportable Werkzeuge und Rasen- und
particulières pour les taille-haies Gartenmaschinen - Sicherheit - Teil 4-2: Besondere
(IEC 62841-4-2:2017 , modifiée + COR1:2018) Anforderungen für Heckenscheren
(IEC 62841-4-2:2017 , modifiziert + COR1:2018)
This European Standard was approved by CENELEC on 2018-01-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-4-2:2019 E

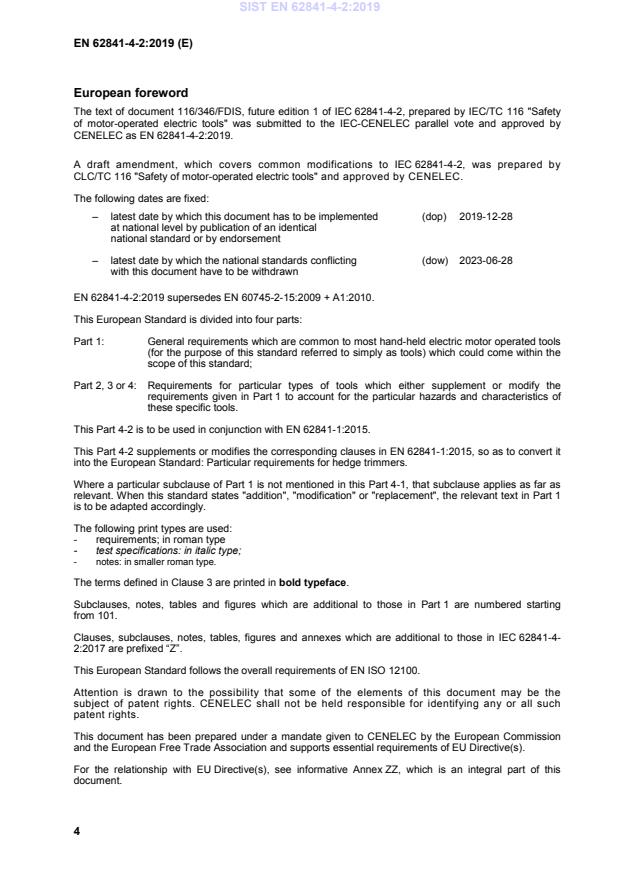

European foreword
The text of document 116/346/FDIS, future edition 1 of IEC 62841-4-2, prepared by IEC/TC 116 "Safety
of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 62841-4-2:2019.
A draft amendment, which covers common modifications to IEC 62841-4-2, was prepared by
CLC/TC 116 "Safety of motor-operated electric tools" and approved by CENELEC.
The following dates are fixed:
– latest date by which this document has to be implemented (dop) 2019-12-28
at national level by publication of an identical
national standard or by endorsement
– latest date by which the national standards conflicting (dow) 2023-06-28
with this document have to be withdrawn
This European Standard is divided into four parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
This Part 4-2 is to be used in conjunction with EN 62841-1:2015.
This Part 4-2 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to convert it
into the European Standard: Particular requirements for hedge trimmers.
Where a particular subclause of Part 1 is not mentioned in this Part 4-1, that subclause applies as far as
relevant. When this standard states "addition", "modification" or "replacement", the relevant text in Part 1
is to be adapted accordingly.
The following print types are used:
- requirements; in roman type
- test specifications: in italic type;
- notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 62841-4-
2:2017 are prefixed “Z”.
This European Standard follows the overall requirements of EN ISO 12100.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CENELEC shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
document.
Compliance with the clauses of Part 1 together with this Part 4-2 provides one means of conforming with
the essential health and safety requirements of the Directive concerned.
Endorsement notice
The text of the International Standard IEC 62841-4-2:2017 and COR1:2018 was approved by
CENELEC as a European Standard with agreed common modifications.
COMMON MODIFICATIONS
19 Mechanical hazards
Replace the existing Subclause 19.102.2.1 with the following:
19.102.2.1 The front handle shall be located so that the distance from the nearest cutting edge of the
cutter blade to the rear side of any handle, except for Category 1, is not less than 120 mm as shown in
Figure 108.
For Category 1, the shortest distance between the front of the handle grip and the nearest blade tooth
shall be at least 120 mm (see Figure 111). The distances shall be measured along the shortest path from
the front of the handle grip to the nearest cutting edge of the cutter blade.
For all categories in Table 101, if there is a front hand barrier, then the x and x distances in Figure 108
1 2
shall be measured along the shortest path from the backside of the handle, via the edge of the front hand
barrier, to the nearest cutting edge of the cutter blade. The front hand barrier shall not have any
openings with a minor dimension larger than 10 mm.
Compliance is checked by inspection and by measurement.
Replace the existing Subclause 19.102.2.2 with the following:
19.102.2.2 This subclause is not applicable.
19.103.1
Replace Table 101 with the following:
Table 101 – Hedge trimmer categories (excluding extended-reach hedge trimmers)
Items with requirements Category number and requirements
1 2 3b 4
Cutting length Not applicable Not applicable Not applicable
< 200 mm
Maximum blade stopping time No No 1 s 1 s
(Subclause 19.104)
Minimum number of handles 1 2 2 2
Minimum number of handles with 1 1 2 2
blade control
(two with (two with
simultaneous simultaneous
actuation) actuation)
Location of blade control rear handle rear handle Not applicable Not applicable
Blade configuration figure 114 114 115 116
Lower barrier required No No No No
(Subclause 19.105)
Adjustable handle during operation No Yes Yes Yes
permitted
(Subclause 19.101.3)
Front hand barrier required No No No No
(Subclause 19.102.2)
and delete NOTE 1 and NOTE 2.
Replace the existing Subclause 19.103.4 with the following:
19.103.4 This subclause is not applicable.
Replace the existing Subclause 19.105 with the following:
19.105 This subclause is not applicable.
20 Mechanical strength
Replace the existing Subclause 20.101.2 with the following:
20.101.2 The hedge trimmer is suspended vertically from a point midway along the length of the
cutting device. A mass of
– 5 kg for Categories 1 and 2; or
– 15 kg for Categories 3b and 4
is gradually suspended at the midpoint of each gripping surface of each handle identified in 8.14.2, in
turn, over an area of (75 ± 5) mm in width for 1 min.
After the test, the hedge trimmer shall comply with the acceptance criteria of 20.1 and shall not have
separated or permanently deformed to a degree that the mechanical safety of the machine as required by
this standard is impaired (excluding deformation of the cutting device) as a result of the applied force.
Delete Figures 109, 110 and 118.
Annex I
Replace the title of Annex I with the following:
Annex I
(normative)
Measurement of noise and vibration emissions
and delete the note.
Annex K
(normative)
Battery tools and battery packs
K.1 Scope
Replace Note 103 with the following:
Except for Category 1 machines, this annex does not apply to hedge trimmers equipped with integral
batteries.
Replace the NOTE 101 in Subclause K.21.18 with the following:
K.21.18.Z101 Isolation and disabling device
Machines with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the machine.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the machine;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between the
actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.102.3. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before it
can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight-line motion;
– a removable disabling device provided with the machine where it shall not be possible for the
machine to be operated when either applied or removed.
Compliance is checked by inspection and by manual test.
Annex L
(normative)
Battery tools and battery packs provided with mains connection or non-
isolated sources
L.1 Scope
Replace Note 103 with the following:
Except for Category 1 machines, this annex does not apply to hedge trimmers equipped with integral
batteries.
Replace the NOTE 101 in Subclause L.21.18 with the following:
L.21.18.Z101 Isolation and disabling device
Machines with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the machine.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the machine;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between the
actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.102.3. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before it
can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight-line motion;
– a removable disabling device provided with the machine where it shall not be possible for the
machine to be operated when either applied or removed.
Compliance is checked by inspection and by manual test.
Add the following annexes:
Annex ZA
(normative)
Normative references to international publications
with t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
