EN IEC 62052-31:2024
(Main)Electricity metering equipment - General requirements, tests and test conditions - Part 31: Product safety requirements and tests
Electricity metering equipment - General requirements, tests and test conditions - Part 31: Product safety requirements and tests
IEC 62052-31:2024 specifies general safety requirements and associated tests, with their appropriate conditions for type testing of directly connected, transformer-operated or transducer-operated AC and DC electricity meters and load control equipment. This document applies to electricity metering equipment designed to: • measure and control electrical energy on electrical networks (mains) with voltage up to 1 000 V AC, or 1 500 V DC; • have all functional elements, including add-on communication modules, enclosed in, or forming a single meter case with exception of indicating displays; • operate with integrated displays (electromechanical or static meters); • operate with detached indicating displays, or without an indicating display (static meters only); • wall-mounted or to be installed in specified matching sockets or racks; • optionally, provide additional functions other than those for measurement of electrical energy. This document also applies to transducer-operated meters or meters designed for operation with Low Power Instrument Transformers (LPIT) or sensors (as defined in the IEC 61869 series). When equipment in scope of this document is designed to be installed in a specified matching socket, then the requirements apply to, and the tests are performed on, equipment installed in its specified matching socket. However, requirements for sockets and inserting / removing the meters from the socket are outside the scope of this document. This document is also applicable to auxiliary input and output circuits, operation indicators, and test outputs of equipment for electrical energy measurement. Equipment used in conjunction with equipment for electrical energy measurement and control may need to comply with additional safety requirements. See also Clause 13. This document does not apply to: • meters rated to operate with voltage exceeding 1 000 V AC, or 1 500 V DC; • metering systems comprising multiple devices physically remote from one another; • portable meters; • meters used in rolling stock, vehicles, ships and airplanes; • laboratory and mobile meter test equipment; • reference standard meters; • conventional or low power instrument transformers; • equipment with solid-state or other non-electromechanical supply and load control switches. The safety requirements of this document are based on the following assumptions: • metering equipment has been installed correctly; • metering equipment is used generally by ordinary persons, including meter readers and consumers of electrical energy. In many cases, it is installed in a way that it is freely accessible. Its terminal covers cannot be removed, and its case cannot be opened without removing seals (if present) and using a tool; • during normal use all terminal covers, covers and barriers providing protection against accessing hazardous live parts are in place; • for installation, configuration, maintenance and repair it may be necessary to remove terminal cover(s), (a part of) the case or barriers so that hazardous live parts may become accessible. Such activities are performed by skilled persons, who have been suitably trained to be aware of working procedures necessary to ensure safety. Therefore, safety requirements covering these conditions are out of the Scope of this document. This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision. Please see the foreword of IEC 62052-31 f
Elektrizitätszähler - Allgemeine Anforderungen, Prüfungen und Prüfbedingungen - Teil 31: Sicherheitsanforderungen und Prüfungen
Équipement de comptage de l'électricité - Exigences générales, essais et conditions d'essai - Partie 31: Exigences et essais sur la sécurité de produit
IEC 62052-31:2024 spécifie les exigences de sécurité générales et les essais associés, avec leurs conditions appropriées pour les essais de type des compteurs d’électricité en courant alternatif et en courant continu à branchement direct, alimentés par transformateurs ou transducteurs, ainsi que des équipements de pilotage. Le présent document s’applique aux équipements de comptage de l’électricité conçus pour: • mesurer et piloter l’énergie électrique sur les réseaux électriques (secteur) avec une tension allant jusqu’à 1 000 V en courant alternatif ou 1 500 V en courant continu; • avoir tous les éléments fonctionnels, y compris les modules de communication complémentaires, incorporés dans ou formant un boîtier de compteur unique, à l’exception des afficheurs; • fonctionner avec des afficheurs intégrés (compteurs électromécaniques ou statiques); • fonctionner avec des afficheurs séparés ou sans afficheur (compteurs statiques uniquement); • être montés au mur ou installés dans une embase ou un bâti correspondant spécifié; • assurer en option des fonctions autres que celles relatives au comptage de l’énergie électrique. Le présent document s’applique également aux compteurs alimentés par transducteurs ou aux compteurs conçus pour fonctionner avec des transformateurs de mesure de faible puissance (LPIT) ou des capteurs (tels que ceux définis dans la série IEC 61869). NOTE 6 Pour les compteurs conçus pour fonctionner avec des LPIT, seule l’unité de comptage est considérée comme un dispositif à basse tension. Si les LPIT sont assignés pour des tensions supérieures à 1 000 V en courant alternatif ou à 1 500 V en courant continu, la combinaison de l’unité de comptage et des LPIT n’est pas un dispositif à basse tension. Lorsqu’un équipement relevant du domaine d’application du présent document est conçu pour être installé dans une embase correspondante spécifiée, les exigences s’appliquent à l’équipement installé dans son embase correspondante spécifiée et les essais sont réalisés sur cet équipement. Toutefois, les exigences concernant les embases et l’insertion/le retrait des compteurs de l’embase ne font pas partie du domaine d’application du présent document. Le présent document s’applique également aux circuits auxiliaires d’entrée et de sortie, aux indicateurs de fonctionnement et aux sorties d’essai des équipements de mesure de l’énergie électrique. Les équipements utilisés conjointement avec des équipements de mesure et de contrôle de l’énergie électrique peuvent devoir se conformer à des exigences de sécurité supplémentaires. Voir aussi l’Article 13. Le présent document ne s’applique pas: • aux compteurs assignés pour fonctionner avec une tension dépassant 1 000 V en courant alternatif ou 1 500 V en courant continu; • aux systèmes de comptage comprenant plusieurs dispositifs physiquement éloignés les uns des autres; • aux compteurs portatifs; • aux compteurs utilisés dans le matériel roulant, les véhicules, les navires et les avions; • aux équipements de laboratoire et mobiles d’essai de compteurs; • aux compteurs étalons de référence; • aux transformateurs de mesure conventionnels ou de faible puissance; • aux équipements équipés d’auxiliaires de commande d’alimentation et de charge non électromécaniques à semiconducteur ou autres. Les exigences de sécurité du présent document reposent sur les hypothèses suivantes: • l’équipement de comptage a été installé correctement; • l’équipement de comptage est généralemen
Oprema za merjenje električne energije (izmenični tok) - Splošne zahteve, preskusi in pogoji preskušanja - 31. del: Varnostne zahteve in preskusi proizvodov (IEC 62052-31:2024)
Standard IEC 62052-31:2024 določa splošne varnostne zahteve in povezane preskuse z ustreznimi pogoji za tipsko preskušanje neposredno povezanih, transformatorskih ali pretvorniških merilnikov električne energije za izmenični in enosmerni tok. Ta dokument se uporablja za opremo za merjenje električne energije:
• za merjenje in nadzor električne energije v električnih omrežjih z napetostjo do 1000 V pri izmeničnem toku ali 1500 V pri enosmernem toku;
• z vsemi funkcionalnimi elementi, vključno z dodatnimi komunikacijskimi moduli, v enotnem ohišju, razen prikazovalnikov;
• za delovanje z integriranimi prikazovalniki (elektromehanski ali statični merilniki);
• za delovanje z ločenimi prikazovalniki ali brez prikazovalnika (samo statični merilniki);
• za stensko namestitev ali namestitev v posebej zasnovano vtičnico ali stojalo;
• za zagotavljanje dodatnih funkcij po izbiri poleg tistih, ki so namenjene merjenju električne energije.
Ta dokument se uporablja tudi za pretvorniške merilnike ali merilnike, zasnovane za delovanje z instrumentnimi transformatorji majhnih moči (LPIT) ali senzorji (kot je opredeljeno v skupini standardov IEC 61869).
Ko je oprema, ki spada na področje uporabe tega dokumenta, zasnovana za namestitev v posebej zasnovano vtičnico, zahteve veljajo za opremo, ko je nameščena v vtičnico in ko se izvedejo preskusi na opremi. Zahteve za vtičnice ter vstavljanje in odstranjevanje merilnikov iz vtičnice ne spadajo na področje uporabe tega dokumenta.
Ta dokument se uporablja tudi za pomožna vhodna in izhodna vezja, indikatorje obratovanja in izhode preskusne opreme za merjenje električne energije.
Oprema, uporabljena skupaj z opremo za merjenje in nadzor električne energije, bo morda morala biti skladna z dodatnimi zahtevami za varnost. Glej tudi točko 13.
Ta dokument se ne uporablja za:
• merilnike za delovanje z nazivno napetostjo nad 1000 V pri izmeničnem toku ali 1500 V pri enosmernem toku;
• sisteme za merjenje, sestavljene iz več naprav, ki so medsebojno fizično oddaljene;
• prenosne merilnike;
• merilnike, ki se uporabljajo v tirnih vozilih, avtomobilih, ladjah in letalih;
• laboratorijsko in mobilno preskusno opremo za merilnike;
• standardne referenčne merilnike;
• konvencionalne transformatorje ali instrumentne transformatorje majhnih moči;
• opremo s polprevodniškim napajanjem ali drugim napajanjem, ki ni elektromehansko, in stikali za nadzor obremenitve.
Varnostne zahteve tega standarda temeljijo na naslednjih predpostavkah:
• oprema za merjenje je bila pravilno nameščena;
• opremo za merjenje na splošno uporabljajo nestrokovnjaki, vključno z odčitovalci števcev in uporabniki električne energije. V številnih primerih je oprema nameščena tako, da je lahko dostopna. Pokrove priključkov je mogoče odstraniti in omarice odpreti samo, če se odstranijo tesnila (če obstajajo), pri čemer je treba uporabiti orodje;
• med običajno uporabo so nameščeni vsi pokrovi priključkov, pokrovi in pregrade, ki zagotavljajo zaščito pred dostopom do nevarnih delov pod napetostjo;
• za namestitev, konfiguracijo, vzdrževanje in popravilo je pokrove priključkov, ohišje (ali del ohišja) ali pregrade morda treba odstraniti, tako da je omogočen dostop do nevarnih delov pod napetostjo. Ta dejanja mora opravljati izkušeno osebje, ki je ustrezno usposobljeno in je seznanjeno z delovnimi postopki, potrebnimi za zagotavljanje varnosti. Varnostne zahteve, ki zajemajo te pogoje, tako ne spadajo na področje uporabe tega dokumenta.
Druga izdaja razveljavlja in nadomešča prvo izdajo, objavljeno leta 2015. Ta izdaja je tehnično popravljena izdaja. Glej uvod standarda IEC 62052-31.
General Information
- Status
- Published
- Publication Date
- 05-Dec-2024
- Technical Committee
- CLC/TC 13 - Equipment for electrical energy measurement and load control
- Drafting Committee
- IEC/TC 13 - IEC_TC_13
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 06-Dec-2024
- Due Date
- 31-Dec-2021
- Completion Date
- 06-Dec-2024
Relations
- Effective Date
- 21-Sep-2021
Overview
EN IEC 62052-31:2024 - titled Electricity metering equipment - Product safety requirements and tests - is the CLC-endorsed second edition of IEC 62052-31. It specifies general product safety requirements, associated type tests and test conditions for directly connected, transformer‑operated or transducer‑operated AC and DC electricity meters and load‑control equipment. The standard applies to equipment up to 1 000 V AC or 1 500 V DC, including devices with integrated or detached displays, wall‑mounted meters, meters installed in specified sockets/racks, and devices that include add‑on communication modules enclosed in the meter case.
Key Topics
- Scope and applicability: Defines which meter types are covered (directly connected, transformer‑operated, transducer‑operated, LPIT/sensor‑operated) and clear exclusions (portable meters, meters for rolling stock, systems with devices remote from each other, equipment above voltage limits).
- Product safety requirements: Requirements for enclosures, terminal covers, insulation coordination, and protection against accidental access to hazardous live parts under normal use.
- Type tests and test conditions: Procedures and environmental conditions for type testing (normal, extended, extreme), including testing in single‑fault conditions where appropriate.
- Auxiliary circuits and outputs: Safety coverage for auxiliary inputs/outputs, operation indicators and test outputs used with metering equipment.
- Assumptions for safety: Expectations that meters are correctly installed, used by ordinary persons (including meter readers), with protective covers in place; access to live parts during maintenance is assumed to be by skilled persons.
- Marking and information: Requirements for labels, durability of markings and information for selection, installation and commissioning.
Applications and who uses it
EN IEC 62052-31:2024 is intended for:
- Meter manufacturers - for safe product design, internal safety validation and pre‑certification type testing.
- Test laboratories and certification bodies - to perform accredited type tests and safety conformity assessments.
- Utilities and system integrators - to specify compliant meters for distribution networks and smart‑meter deployments.
- Regulatory and procurement teams - to reference product safety requirements in tenders and national adoption (CENELEC implementation). Practical uses include product development, compliance demonstration, supplier evaluation and ensuring safe field operation of meters and load control devices.
Related standards
Relevant companion and referenced standards include IEC 62052-11 (general metering requirements), the IEC 61869 series (instrument transformer definitions and LPITs/sensors), and numerous IEC/EN standards for insulation, EMC and fire‑safety referenced in the normative annex. EN IEC 62052-31:2024 supersedes the 2015 edition and aligns with current CENELEC/IEC safety practice for electricity metering equipment.
Keywords: EN IEC 62052-31:2024, electricity metering equipment, product safety requirements, meter type testing, AC/DC meters, LPIT, transducer‑operated meters, meter safety tests.
Frequently Asked Questions
EN IEC 62052-31:2024 is a standard published by CLC. Its full title is "Electricity metering equipment - General requirements, tests and test conditions - Part 31: Product safety requirements and tests". This standard covers: IEC 62052-31:2024 specifies general safety requirements and associated tests, with their appropriate conditions for type testing of directly connected, transformer-operated or transducer-operated AC and DC electricity meters and load control equipment. This document applies to electricity metering equipment designed to: • measure and control electrical energy on electrical networks (mains) with voltage up to 1 000 V AC, or 1 500 V DC; • have all functional elements, including add-on communication modules, enclosed in, or forming a single meter case with exception of indicating displays; • operate with integrated displays (electromechanical or static meters); • operate with detached indicating displays, or without an indicating display (static meters only); • wall-mounted or to be installed in specified matching sockets or racks; • optionally, provide additional functions other than those for measurement of electrical energy. This document also applies to transducer-operated meters or meters designed for operation with Low Power Instrument Transformers (LPIT) or sensors (as defined in the IEC 61869 series). When equipment in scope of this document is designed to be installed in a specified matching socket, then the requirements apply to, and the tests are performed on, equipment installed in its specified matching socket. However, requirements for sockets and inserting / removing the meters from the socket are outside the scope of this document. This document is also applicable to auxiliary input and output circuits, operation indicators, and test outputs of equipment for electrical energy measurement. Equipment used in conjunction with equipment for electrical energy measurement and control may need to comply with additional safety requirements. See also Clause 13. This document does not apply to: • meters rated to operate with voltage exceeding 1 000 V AC, or 1 500 V DC; • metering systems comprising multiple devices physically remote from one another; • portable meters; • meters used in rolling stock, vehicles, ships and airplanes; • laboratory and mobile meter test equipment; • reference standard meters; • conventional or low power instrument transformers; • equipment with solid-state or other non-electromechanical supply and load control switches. The safety requirements of this document are based on the following assumptions: • metering equipment has been installed correctly; • metering equipment is used generally by ordinary persons, including meter readers and consumers of electrical energy. In many cases, it is installed in a way that it is freely accessible. Its terminal covers cannot be removed, and its case cannot be opened without removing seals (if present) and using a tool; • during normal use all terminal covers, covers and barriers providing protection against accessing hazardous live parts are in place; • for installation, configuration, maintenance and repair it may be necessary to remove terminal cover(s), (a part of) the case or barriers so that hazardous live parts may become accessible. Such activities are performed by skilled persons, who have been suitably trained to be aware of working procedures necessary to ensure safety. Therefore, safety requirements covering these conditions are out of the Scope of this document. This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision. Please see the foreword of IEC 62052-31 f
IEC 62052-31:2024 specifies general safety requirements and associated tests, with their appropriate conditions for type testing of directly connected, transformer-operated or transducer-operated AC and DC electricity meters and load control equipment. This document applies to electricity metering equipment designed to: • measure and control electrical energy on electrical networks (mains) with voltage up to 1 000 V AC, or 1 500 V DC; • have all functional elements, including add-on communication modules, enclosed in, or forming a single meter case with exception of indicating displays; • operate with integrated displays (electromechanical or static meters); • operate with detached indicating displays, or without an indicating display (static meters only); • wall-mounted or to be installed in specified matching sockets or racks; • optionally, provide additional functions other than those for measurement of electrical energy. This document also applies to transducer-operated meters or meters designed for operation with Low Power Instrument Transformers (LPIT) or sensors (as defined in the IEC 61869 series). When equipment in scope of this document is designed to be installed in a specified matching socket, then the requirements apply to, and the tests are performed on, equipment installed in its specified matching socket. However, requirements for sockets and inserting / removing the meters from the socket are outside the scope of this document. This document is also applicable to auxiliary input and output circuits, operation indicators, and test outputs of equipment for electrical energy measurement. Equipment used in conjunction with equipment for electrical energy measurement and control may need to comply with additional safety requirements. See also Clause 13. This document does not apply to: • meters rated to operate with voltage exceeding 1 000 V AC, or 1 500 V DC; • metering systems comprising multiple devices physically remote from one another; • portable meters; • meters used in rolling stock, vehicles, ships and airplanes; • laboratory and mobile meter test equipment; • reference standard meters; • conventional or low power instrument transformers; • equipment with solid-state or other non-electromechanical supply and load control switches. The safety requirements of this document are based on the following assumptions: • metering equipment has been installed correctly; • metering equipment is used generally by ordinary persons, including meter readers and consumers of electrical energy. In many cases, it is installed in a way that it is freely accessible. Its terminal covers cannot be removed, and its case cannot be opened without removing seals (if present) and using a tool; • during normal use all terminal covers, covers and barriers providing protection against accessing hazardous live parts are in place; • for installation, configuration, maintenance and repair it may be necessary to remove terminal cover(s), (a part of) the case or barriers so that hazardous live parts may become accessible. Such activities are performed by skilled persons, who have been suitably trained to be aware of working procedures necessary to ensure safety. Therefore, safety requirements covering these conditions are out of the Scope of this document. This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision. Please see the foreword of IEC 62052-31 f
EN IEC 62052-31:2024 is classified under the following ICS (International Classification for Standards) categories: 19.080 - Electrical and electronic testing; 91.140.50 - Electricity supply systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 62052-31:2024 has the following relationships with other standards: It is inter standard links to EN 62052-31:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN IEC 62052-31:2024 is associated with the following European legislation: EU Directives/Regulations: 2014/30/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN IEC 62052-31:2024 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2025
Nadomešča:
SIST EN 62052-31:2016
Oprema za merjenje električne energije (izmenični tok) - Splošne zahteve, preskusi
in pogoji preskušanja - 31. del: Varnostne zahteve in preskusi proizvodov (IEC
62052-31:2024)
Electricity metering equipment (AC) - General requirements, tests and test conditions -
Part 31: Product safety requirements and tests (IEC 62052-31:2024)
Wechselstrom-Elektrizitätszähler - Allgemeine Anforderungen, Prüfungen und
Prüfbedingungen - Teil 31: Sicherheitsanforderungen und Prüfungen (IEC 62052-
31:2024)
Équipement de comptage de l'électricité (CA) - Exigences générales, essais et
conditions d'essai - Partie 31: Exigences et essais sur la sécurité de produit (IEC 62052-
31:2024)
Ta slovenski standard je istoveten z: EN IEC 62052-31:2024
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62052-31
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2024
ICS 19.080; 91.140.50 Supersedes EN 62052-31:2016
English Version
Electricity metering equipment - General requirements, tests and
test conditions - Part 31: Product safety requirements and tests
(IEC 62052-31:2024)
Équipement de comptage de l'électricité - Exigences Wechselstrom-Elektrizitätszähler - Allgemeine
générales, essais et conditions d'essai - Partie 31: Anforderungen, Prüfungen und Prüfbedingungen - Teil 31:
Exigences et essais sur la sécurité de produit Sicherheitsanforderungen und Prüfungen
(IEC 62052-31:2024) (IEC 62052-31:2024)
This European Standard was approved by CENELEC on 2024-11-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62052-31:2024 E

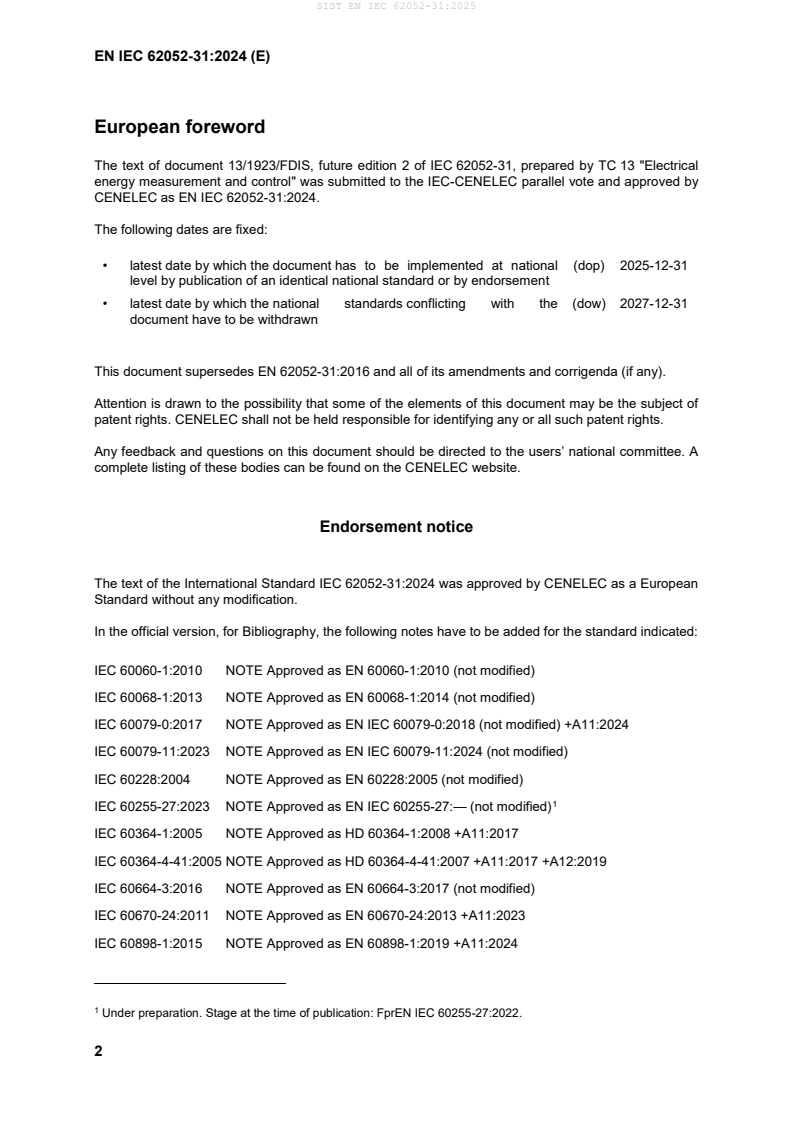

European foreword
The text of document 13/1923/FDIS, future edition 2 of IEC 62052-31, prepared by TC 13 "Electrical
energy measurement and control" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62052-31:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-12-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-12-31
document have to be withdrawn
This document supersedes EN 62052-31:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62052-31:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60060-1:2010 NOTE Approved as EN 60060-1:2010 (not modified)
IEC 60068-1:2013 NOTE Approved as EN 60068-1:2014 (not modified)
IEC 60079-0:2017 NOTE Approved as EN IEC 60079-0:2018 (not modified) +A11:2024
IEC 60079-11:2023 NOTE Approved as EN IEC 60079-11:2024 (not modified)
IEC 60228:2004 NOTE Approved as EN 60228:2005 (not modified)
IEC 60255-27:2023 NOTE Approved as EN IEC 60255-27:— (not modified)
IEC 60364-1:2005 NOTE Approved as HD 60364-1:2008 +A11:2017
IEC 60364-4-41:2005 NOTE Approved as HD 60364-4-41:2007 +A11:2017 +A12:2019
IEC 60664-3:2016 NOTE Approved as EN 60664-3:2017 (not modified)
IEC 60670-24:2011 NOTE Approved as EN 60670-24:2013 +A11:2023
IEC 60898-1:2015 NOTE Approved as EN 60898-1:2019 +A11:2024
Under preparation. Stage at the time of publication: FprEN IEC 60255-27:2022.
IEC 60947-1:2020 NOTE Approved as EN IEC 60947-1:2021 (not modified)
IEC 60990:2016 NOTE Approved as EN 60990:2016 (not modified)
IEC 61051-2:2021 NOTE Approved as EN IEC 61051-2:2021 (not modified)
IEC 61558-1:2017 NOTE Approved as EN IEC 61558-1:2019 (not modified)
IEC 61558-2-16:2021 NOTE Approved as EN IEC 61558-2-16:— (not modified)
IEC 61643-11:2011 NOTE Approved as EN 61643-11:2012 +A11:2018
IEC 61643-311 NOTE Approved as EN 61643-311
IEC 61643-321 NOTE Approved as EN 61643-321
IEC 61643-331:2020 NOTE Approved as EN IEC 61643-331:2020 (not modified)
IEC 61643-341 NOTE Approved as EN IEC 61643-341
IEC 61869 (series) NOTE Approved as EN IEC 61869 (series)
IEC 61869-99:2022 NOTE Approved as EN IEC 61869-99:2022 (not modified)
IEC 62052-21:2004 NOTE Approved as EN 62052-21:2004 (not modified)
IEC 62054-11:2004 NOTE Approved as EN 62054-11:2004 (not modified)
IEC 62054-21:2004 NOTE Approved as EN 62054-21:2004 (not modified)
IEC 62057-1:2023 NOTE Approved as EN IEC 62057-1:2023 (not modified)
IEC 62058-11:2008 NOTE Approved as EN 62058-11:2010 (modified)
IEC 62477-1:2022 NOTE Approved as EN IEC 62477-1:2023 (not modified)
ISO 14971:2019 NOTE Approved as EN ISO 14971:2019 (not modified) +A11:2021
Under preparation. Stage at the time of publication: FprEN IEC 61558-2-16:2021.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60027-1 1992 Letters symbols to be used in electrical EN 60027-1 2006
technology - Part 1: General
+ A1 1997 - -
+ A2 2005 + A2 2007
IEC 60068-2-75 2014 Environmental testing - Part 2-75: Tests - EN 60068-2-75 2014
Test Eh: Hammer tests
IEC 60068-2-78 2012 Environmental testing - Part 2-78: Tests - EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60085 2007 Electrical insulation - Thermal evaluation EN 60085 2008
and designation
IEC 60112 2020 Method for the determination of the proof EN IEC 60112 2020
and the comparative tracking indices of
solid insulating materials
IEC 60269-3 (mod) 2010 Low-voltage fuses - Part 3: Supplementary HD 60269-3 2010
requirements for fuses for use by unskilled
persons (fuses mainly for household or
similar applications) - Examples of
standardized systems of fuses A to F
IEC 60332-1-2 2004 Tests on electric and optical fibre cables EN 60332-1-2 2004
under fire conditions - Part 1-2: Test for
vertical flame propagation for a single
insulated wire or cable - Procedure for 1
kW pre-mixed flame
- - + A11 2016
- - + A12 2020
IEC 60332-2-2 2004 Tests on electric and optical fibre cables EN 60332-2-2 2004
under fire conditions - Part 2-2: Test for
vertical flame propagation for a single
small insulated wire or cable - Procedure
for diffusion flame
IEC 60364-4-44 2007 Low-voltage electrical installations - Part 4- HD 60364-4-442 2012
(mod) 44: Protection for safety - Protection
against voltage disturbances and
electromagnetic disturbances
HD 60364-4-444 2010
IEC 60384-14 2023 Fixed capacitors for use in electronic EN IEC 60384-14 2023
equipment - Part 14: Sectional
specification - Fixed capacitors for
electromagnetic interference suppression
and connection to the supply mains
IEC 60417-DB-12M - Graphical symbols for use on equipment - -
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60617-DB-12M - Graphical symbols for diagrams - -
IEC 60664-1 2020 Insulation coordination for equipment EN IEC 60664-1 2020
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60695-2-11 2021 Fire hazard testing - Part 2-11: EN IEC 60695-2-11 2021
Glowing/hot-wire based test methods -
Glow-wire flammability test method for end
products (GWEPT)
IEC 60695-11-10 2013 Fire hazard testing - Part 11-10: Test EN 60695-11-10 2013
flames - 50 W horizontal and vertical flame
test methods
IEC 60721-3-0 2020 Classification of environmental conditions - EN IEC 60721-3-0 2020
Part 3-0: Classification of groups of
environmental parameters and their
severities - Introduction
IEC 60721-3-3 2019 Classification of environmental conditions - EN IEC 60721-3-3 2019
Part 3-3: Classification of groups of
environmental parameters and their
severities - Stationary use at weather
protected locations
IEC 60950-1 2005 Information technology equipment - Safety - -
- Part 1: General requirements
+ A1 2009 - -
+ A2 2013 - -
IEC 61000-4-5 2014 Electromagnetic compatibility (EMC) - Part EN 61000-4-5 2014
4-5: Testing and measurement techniques
- Surge immunity test
+ A1 2017 + A1 2017
IEC 61010-1 2010 Safety requirements for electrical EN 61010-1 2010
equipment for measurement, control, and
laboratory use - Part 1: General
requirements
+ A1 (mod) 2016 + A1 2019
3 4
+ A2 — + A2 —
IEC 61010-2-030 2017 Safety requirements for electrical EN IEC 61010-2- 2021
equipment for measurement, control, and 030
laboratory use - Part 2-030: Particular
requirements for equipment having testing
or measuring circuits
- - + A11 2021
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification
IEC 61180 2016 High-voltage test techniques for low- EN 61180 2016
voltage equipment - Definitions, test and
procedure requirements, test equipment
IEC 61851-23 2014 Electric vehicle conductive charging EN 61851-23 2014
system - Part 23: DC electric vehicle
charging station
IEC 62052-11 2020 Electricity metering equipment - General EN IEC 62052-11 2021
requirements, tests and test conditions -
Part 11: Metering equipment
- - + A11 2022
- - + A12 2024
IEC 62052-31 2015 Electricity metering equipment (AC) - EN 62052-31 2016
General requirements, tests and test
conditions - Part 31: Product safety
requirements and tests
IEC 62368-1 2018 Audio/video, information and EN IEC 62368-1 2020
communication technology equipment -
Part 1: Safety requirements
- - + A11 2020
ISO 75-2 2013 Plastics - Determination of temperature of EN ISO 75-2 2013
deflection under load - Part 2: Plastics and
ebonite
ISO 3864-1 2011 Graphical symbols - Safety colours and - -
safety signs - Part 1: Design principles for
safety signs and safety markings
ISO 7000 2019 Graphical symbols for use on equipment - - -
Registered symbols
Under preparation. Stage at time of publication: IEC 61010-1:2010/A2 (ED.3) CDV.
Under preparation. Stage at time of publication: EN 61010-1:2010/prA2.
IEC 62052-31 ®
Edition 2.0 2024-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electricity metering equipment – General requirements, tests and test
conditions –
Part 31: Product safety requirements and tests
Équipement de comptage de l'électricité – Exigences générales, essais et
conditions d'essai –
Partie 31: Exigences et essais sur la sécurité de produit
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.080, 91.140.50 ISBN 978-2-8322-9302-7
– 2 – IEC 62052-31:2024 © IEC 2024
CONTENTS
FOREWORD . 9
INTRODUCTION . 12
1 Scope . 13
1.1 General . 13
1.2 Aspects included in scope . 14
1.3 Aspects excluded from scope . 15
1.4 Verification. 15
1.5 Environmental conditions . 15
1.5.1 Normal environmental conditions . 15
1.5.2 Extended environmental conditions . 16
1.5.3 Extreme environmental conditions . 16
2 Normative references . 17
3 Terms and definitions . 19
3.1 Equipment and states of equipment . 19
3.2 Parts, accessories, and functional elements . 19
3.3 Quantities . 25
3.4 Tests . 28
3.5 Safety terms . 28
3.6 Insulation . 33
3.7 Terms related to switches of metering equipment . 37
4 Tests . 39
4.1 General . 39
4.2 Type test – sequence of tests . 40
4.3 Reference test conditions. 40
4.3.1 Atmospheric conditions . 40
4.3.2 State of the equipment . 41
4.4 Testing in single fault condition . 44
4.4.1 General . 44
4.4.2 Application of fault conditions . 44
4.4.3 Duration of tests . 47
4.4.4 Conformity after application of fault conditions . 47
5 Information and marking requirements . 47
5.1 General . 47
5.2 Labels, signs and signals . 50
5.2.1 General . 50
5.2.2 Durability of markings . 53
5.3 Information for selection . 53
5.3.1 General . 53
5.3.2 General information . 53
5.3.3 Information specific for meters . 54
5.3.4 Information specific for stand-alone tariff and load control equipment . 54
5.3.5 Information related to LCS . 54
5.4 General information for installation and commissioning . 55
5.4.1 General . 55
5.4.2 Handling and mounting . 55
5.4.3 Enclosure . 55
IEC 62052-31:2024 © IEC 2024 – 3 –
5.4.4 Connections . 56
5.4.5 Auxiliary power supply . 58
5.4.6 Supply for external devices . 58
5.4.7 Self-consumption . 59
5.4.8 Commissioning . 59
5.5 General information for use . 59
5.5.1 General . 59
5.5.2 Display, push buttons and other controls . 59
5.5.3 Switches . 60
5.5.4 Connection to user's equipment . 60
5.6 General information for maintenance . 60
5.6.1 Maintenance instructions . 60
5.6.2 Cleaning . 60
5.6.3 Batteries . 60
6 Protection against electrical shock . 61
6.1 General requirements . 61
6.2 Determination of accessible parts . 62
6.2.1 General . 62
6.2.2 Examination . 62
6.2.3 Openings above parts that are hazardous live . 63
6.2.4 Openings for pre-set controls . 63
6.2.5 Wiring terminals . 63
6.3 Limit values for accessible parts . 64
6.3.1 General . 64
6.3.2 Levels in normal condition . 64
6.3.3 Levels in single fault condition . 65
6.4 Primary means of protection (protection against direct contact) . 67
6.4.1 General . 67
6.4.2 Equipment case . 68
6.4.3 Basic insulation . 68
6.4.4 Impedance . 68
6.5 Additional means of protection in case of single fault conditions (protection
against indirect contact) . 68
6.5.1 General . 68
6.5.2 Protective bonding . 69
6.5.3 Supplementary insulation and reinforced insulation . 72
6.5.4 Protective impedance . 73
6.5.5 Automatic disconnection of the supply . 73
6.5.6 Current- or voltage-limiting device . 73
6.6 Connection to external circuits . 74
6.6.1 General . 74
6.6.2 Terminals for external circuits . 74
6.6.3 Terminals for stranded conductors . 74
6.7 Insulation requirements . 75
6.7.1 General – electric stresses, overvoltages and working voltages . 75
6.7.2 The nature of insulation . 78
6.7.3 Insulation requirements for mains circuits . 81
6.7.4 Insulation requirements for non-mains circuits . 90
– 4 – IEC 62052-31:2024 © IEC 2024
6.7.5 Insulation in circuits with special voltage values not addressed in 6.7.3
or 6.7.4 . 97
6.7.6 Reduction of transient overvoltages by the use of overvoltage limiting
devices . 104
6.7.7 Insulation requirements between circuits and parts . 104
6.8 Constructional requirements for protection against electric shock . 108
6.8.1 General . 108
6.8.2 Insulating materials . 108
6.8.3 Color coding . 108
6.8.4 Equipment case . 108
6.8.5 Terminal blocks . 109
6.8.6 Insulating materials of SCS and LCS . 109
6.8.7 Terminals . 110
6.8.8 Requirements for current circuits . 112
6.9 Safety related electrical tests . 119
6.9.1 Overview . 119
6.9.2 Test conditions . 121
6.9.3 Dielectric test methods . 123
6.9.4 Dielectric testing on complete equipment . 126
6.9.5 Dielectric tests on sub-assemblies . 132
6.9.6 Electrical tests on current circuits of directly connected meters without
SCS . 137
6.9.7 Electrical tests on current circuits of directly connected meters with
SCS . 137
6.9.8 Electrical tests on LCS . 144
6.9.9 Cemented joints test . 147
6.9.10 Thermal cycling . 148
7 Protection against mechanical hazards . 148
7.1 General . 148
7.2 Sharp edges . 148
7.3 Provisions for lifting and carrying . 149
7.4 Wall mounting . 149
8 Resistance to mechanical stresses . 150
8.1 General . 150
8.2 Spring hammer test . 150
9 Protection against spread of fire . 150
9.1 General . 150
9.2 Eliminating or reducing the sources of ignition within the equipment . 151
9.3 Containment of fire within the equipment, should it occur . 151
9.3.1 General . 151
9.3.2 Construction requirements . 152
9.4 Limited-energy circuit . 153
9.5 Overcurrent protection . 154
10 Equipment temperature limits and resistance to heat . 154
10.1 Surface temperature limits for protection against burns . 154
10.2 Temperature limits for terminals . 155
10.3 Temperatures of internal parts . 156
10.4 Temperature test . 158
10.5 Resistance to heat . 159
IEC 62052-31:2024 © IEC 2024 – 5 –
10.5.1 Non-metallic enclosures . 159
10.5.2 Insulating materials . 160
11 Protection against penetration of dust and water . 160
11.1 General . 160
11.2 Test for protection against ingress of dust and foreign objects . 161
11.3 Test for protection against ingress of water . 161
12 Protection against liberated gases and substances explosion and implosion . 162
12.1 Batteries and battery charging . 162
12.1.1 Mounting of batteries . 162
12.1.2 Battery circuits . 162
12.1.3 Tests related to batteries and charging circuits . 163
13 Components and sub-assemblies . 164
13.1 General . 164
13.2 Mains transformers tested outside equipment . 165
13.3 Printed wiring boards . 165
13.4 Components bridging insulation . 166
13.5 Surge protective devices (SPDs, transient overvoltage limiting circuits) . 166
13.5.1 General use of SPDs . 166
13.5.2 SPD overheating test . 167
13.6 Capacitors . 167
14 Hazards resulting from application – Reasonably foreseeable misuse . 168
15 Risk assessment . 168
Annex A (normative) Measuring circuits for touch current . 169
A.1 Measuring circuit for AC with frequencies up to 1 MHz and for DC . 169
A.2 Measuring circuits for sinusoidal AC with frequencies up to 100 Hz and for
DC . 170
A.3 Current measuring circuit for electrical burns at high frequencies . 170
A.4 Current measuring circuit for wet location . 171
Annex B (informative) Examples for insulation between parts . 173
B.1 General . 173
B.2 Example of a meter protected by reinforced insulation . 173
B.3 Example of a meter protected by double insulation . 175
Annex C (informative) Examples for directly connected meters equipped with SCS and
LCS . 177
Annex D (normative) Test circuit diagram for the test of long-term overvoltage
withstand . 179
Annex E (normative) Test circuit diagram for short current test on the current circuit of
directly connected meters . 180
Annex F (informative) Examples of voltage tests . 182
F.1 General . 182
F.2 Example of a directly connected meter with SCS . 182
F.3 Example of a transformer operated meter with auxiliary power supply . 186
F.4 Example of an LPCT-operated meter with direct voltage connections . 191
Annex G (normative) Additional AC voltage tests for electromechanical meters . 196
Annex H (normative) Test equipment for cable flexion and pull test . 197
Annex I (normative) Routine tests . 199
I.1 General . 199
I.2 Protective earth . 199
– 6 – IEC 62052-31:2024 © IEC 2024
I.3 High-voltage test for mains circuits . 199
I.4 Mains circuits with voltage-limiting devices . 200
Annex J (informative) Examples of battery protection . 201
Annex K (informative) Transient overvoltage requirements in TC 13 standards . 202
Annex L (informative) Electricity meters in LVDC systems . 203
Annex M (informative) Component standards . 205
Bibliography . 206
Figure 1 – Measurements through openings in enclosures . 63
Figure 2 – Capacitance level versus voltage in normal condition and single fault
condition (see 6.3.2c) and 6.3.3c)) . 66
Figure 3 – Maximum duration of short-term accessible voltages in single fault
condition (see 6.3.3a)) . 67
Figure 4 – Acceptable arrangements of protection means against electric shock . 69
Figure 5 – Examples of binding screw assemblies . 71
Figure 6 – Distance between conductors on an interface between two layers . 88
Figure 7 – Distance between adjacent conductors along an interface of an inner layer . 88
Figure 8 – Distance between adjacent conductors located between the same two
layers. 90
Figure 9 – Example of recurring peak voltage . 102
Figure 10 – Flowchart of safety related electrical tests – part 1 . 120
Figure 11 – Flowchart of safety related electrical tests – part 2 . 121
Figure 12 – Flowchart to explain the requirements for protection against the spread of fire . 151
Figure 13 – Flowchart for conformity options 13.1 a), b), c) and d) . 165
Figure A.1 – Measuring circuit for AC with frequencies up to 1 MHz and for DC . 169
Figure A.2 – Measuring circuits for sinusoidal AC with frequencies up to 100 Hz and for
DC . 170
Figure A.3 – Current measuring circuit for electrical burns . 171
Figure A.4 – Current measuring circuit for wet location . 172
Figure B.1 – Insulation between parts – example of a meter protected by reinforced
insulation . 174
Figure B.2 – Insulation between parts – example of a meter protected by double
insulation . 175
Figure C.1 – Single phase two wire meter with UC2 SCS and 25A LCS . 177
Figure C.2 – Three phase four wire meter with UC2 SCS and 2A ACS . 178
Figure D.1 – Circuit for three-phase four-wire meters to simulate long term
overvoltage, voltage moved to L3. 179
Figure D.2 – Voltages at the meter under test . 179
Figure E.1 – Test circuit for verification of short-time withstand current test on current
circuits with and without SCS (meter example is with SCS) . 180
Figure E.2 – Example of short-circuit carrying test record in the case of a single-pole
equipment on single-phase AC . 181
Figure F.1 – Example terminal arrangement of a directly connected meter with SCS . 182
Figure F.2 – Example terminal arrangement of a transformer operated meter with
auxiliary power supply . 186
Figure F.3 – Example terminal arrangement of a LPCT-operated meter with direct
voltage connections . 191
IEC 62052-31:2024 © IEC 2024 – 7 –
Figure H.1 – Test equipment for cable flexion and pull test (see 6.8.7.3) . 197
Figure J.1 – Non-rechargeable battery protection . 201
Figure J.2 – Rechargeable battery protection . 201
Figure L.1 – Unipolar, balanced and bipolar DC systems . 203
Table 1 – Test copper conductors for current and switch terminals . 43
Table 2 – Information requirements . 48
Table 3 – IEC 60417-DB-12M and ISO 7000:2019 symbols that may be used on
metering equipment . 52
Table 4 – Tightening torque for binding screw assemblies . 72
Table 5 – Multiplication factors for clearance for altitudes up to 5 000 m . 78
Table 6 – Overview of clauses specifying requirements for insulations . 81
Table 7 – Nominal / rated voltages and rated impulse voltages . 82
Table 8 – Clearances for mains circuits . 84
Table 9 – Creepage distances for mains circuits . 85
Table 10 – Test voltages for solid insulation in mains circuits . 86
Table 11 – Test voltages for testing long-term stress of solid insulation in mains circuits . 87
Table 12 – Minimum values for distance or thickness of solid insulation in mains circuits . 89
Table 13 – Clearances and test voltages for non-mains circuits derived from mains
circuits of overvoltage category III . 92
Table 14 – Creepage distances for non-mains circuits and functional insulation . 94
Table 15 – Minimum values for distance or thickness (see 6.7.4.4.2 to 6.7.4.4.4) . 96
Table 16 – Clearance values for the calculation of 6.7.5.2 .
...
Le document SIST EN IEC 62052-31:2025, qui se concentre sur les équipements de comptage de l'électricité, établit des exigences générales de sécurité ainsi que des tests pour les compteurs de courant alternatif et continu, directement connectés ou fonctionnant avec des transformateurs ou des transducteurs. Son champ d'application est suffisamment large pour englober une variété d'équipements, allant des compteurs à ceux destinés à la gestion de l'énergie électrique sur des réseaux électriques jusqu'à 1000 V AC ou 1500 V DC. L'un des points forts de cette norme est son approche structurée en matière de sécurité, puisqu'elle spécifie clairement les conditions appropriées pour les tests de type. Cela garantit que seuls les équipements respectant des critères de sécurité rigoureux atteignent le marché. De plus, le fait que la norme englobe des compteurs avec des affichages intégrés ainsi que des affichages détachés est particulièrement pertinent pour les fabricants, car cela leur permet de concevoir des produits adaptés aux différentes exigences des utilisateurs finaux. En outre, la norme traite également des circuits d'entrée et de sortie auxiliaires, des indicateurs de fonctionnement et des sorties de test, élargissant ainsi sa portée pour inclure non seulement les mesures de l'énergie électrique, mais aussi les aspects de fonctionnement et de contrôle. Cela renforce sa pertinence dans le contexte de l'évolution des dispositifs de mesure qui intègrent des fonctionnalités additionnelles. Il est également à noter que la norme exclut des équipements tels que les compteurs destinés à fonctionner avec des tensions supérieures aux seuils définis, ce qui aide à affiner son application et à se concentrer sur des produits qui sont réellement concernés. Cela permet de s'assurer que les exigences de sécurité restent ciblées et pertinentes pour les utilisateurs expérimentés, tout en prenant en considération l'installation et l'utilisation normales par des personnes non qualifiées. Enfin, la révision technique apportée dans cette deuxième édition confirme non seulement l'engagement à mettre à jour les exigences en matière de sécurité, mais aussi à répondre aux défis actuels et futurs des technologies de mesure de l'énergie. La norme SIST EN IEC 62052-31:2025 est donc un outil essentiel pour les fabricants, les installateurs et les utilisateurs, facilitant la conformité réglementaire et la mise en œuvre de solutions efficaces et sécurisées dans le domaine de la mesure de l'électricité.
EN IEC 62052-31:2024 표준은 전기 계량 장비에 대한 일반 요구 사항, 시험 및 시험 조건을 명시하고 있으며, 특히 제품 안전 요구 사항 및 시험에 중점을 두고 있습니다. 이 표준의 범위는 직접 연결된, 변압기 작동 또는 변환器 작동 AC 및 DC 전기 계량기와 부하 제어 장비에 적용됩니다. 이 표준의 강점은 전기 계량 장비가 1,000 V AC 또는 1,500 V DC 전압에서 전기 에너지를 측정하고 제어하도록 설계되었을 때 필요한 포괄적인 안전 요구 사항을 제공하는 것입니다. 또한, 추가 통신 모듈을 포함한 모든 기능적 요소가 단일 계량기 케이스에 장착되어야 하며, 통합 표시기 디스플레이 또는 분리된 표시기 디스플레이와 함께 작동할 수 있는 조건을 규정하고 있습니다. 이러한 포괄적인 접근 방식은 사용자가 전기 계량 장비를 안전하게 사용할 수 있도록 보장합니다. 표준은 또한 저전력 계기 변환기(LPIT)나 센서와 함께 작동하도록 설계된 변환기 작동 계량기에 적용되며, 전기 에너지 측정을 위한 보조 입력 및 출력 회로와 작동 표시기 및 시험 출력을 포함합니다. 안전 요구 사항은 일반적으로 제정된 가정에 기반하여 세워졌으며, 이는 계량 장비가 올바르게 설치되고, 일반 사용자에 의해 사용되며, 정상적인 사용 중에 안전하게 작동하도록 보호 장치가 갖춰져야 함을 명시합니다. 또한, 이 문서는 특정 매칭 소켓에 설치되도록 설계된 장비에 대해서도 요구 사항을 적용하며, 전기 에너지 측정 및 제어에 관한 추가 안전 요구 사항이 필요할 수 있음을 명시하고 있습니다. 그러나 1,000 V AC 또는 1,500 V DC를 초과하는 전압에서 작동하는 계량기와 같은 특정 장비는 이 문서의 적용 범위를 벗어난다는 점에서 유의해야 합니다. 결론적으로, EN IEC 62052-31:2024 표준은 전기 계량 장비의 안전 요구 사항 및 테스트에 대한 포괄적인 지침을 제공하며, 사용자의 안전과 관련된 중요한 요소들을 반영하여 전기 계량기의 안전한 사용과 운영을 보장하기 위한 중요한 기준이 됩니다. 이는 전기세 측정의 신뢰성을 높이고, 전기 관련 시스템의 안전성을 한층 강화하는 데 기여합니다.
The EN IEC 62052-31:2024 standard provides comprehensive guidelines for electricity metering equipment by establishing general safety requirements, testing protocols, and conditions vital for ensuring the reliability and functional integrity of AC and DC electricity meters and load control equipment. The scope of this standard is noteworthy as it encompasses a broad range of metering devices operating within specific voltage limits (up to 1,000 V AC and 1,500 V DC), ensuring safety and performance across various applications in electrical networks. One of the strengths of this standard is its inclusive nature, as it addresses directly connected, transformer-operated, and transducer-operated meters, thus catering to diverse metering architectures. Additionally, it supports integrated and detached display configurations, illustrating its flexibility for installations requiring both types of displays. Furthermore, the document stipulates that all functional elements must be enclosed within a single meter case, promoting safety and operational integrity by reducing the chance of exposure to hazardous parts. Moreover, the EN IEC 62052-31:2024 standard emphasizes the importance of safety for ordinary users, indicating a strong commitment to user accessibility without compromising safety. By detailing the necessary conditions for installation and ensuring that terminal covers and protective barriers must remain in place during normal operation, the standard effectively minimizes risks associated with electric shocks and ensures that only trained personnel handle maintenance activities that may expose hazardous components. The relevance of this standard extends to auxiliary input and output circuits, which is crucial for modern metering systems as they often need to interact with various grid management systems. It also acknowledges the necessity for additional compliance regarding equipment used in conjunction with energy measurement and control systems, reflecting the dynamic landscape of electrical energy management. While the scope of the EN IEC 62052-31:2024 is extensive, it also clearly delineates exclusions, such as meters operating above the specified voltage thresholds, portable meters, and laboratory testing equipment. This clarity helps practitioners in the field to identify what is covered by the standard and ensures that they are well-informed about applicable regulations for their specific metering types. In summary, EN IEC 62052-31:2024 stands out for its comprehensive safety framework and adaptability to a wide array of electricity metering equipment. Its focus on user safety, alongside provisions for various configurations and operational scenarios, solidifies its position as a critical document for stakeholders in the electrical metering industry.
EN IEC 62052-31:2024は、電気計測機器に関する一般的な安全要件や試験条件を定めた重要なスタンダードであり、特に直接接続、変圧器操作、またはトランスデューサー操作のACおよびDC電力メーターに適用されます。この文書は、1000V ACまたは1500V DCまでの電圧で電力を測定・制御するために設計された電力計に関する基準を提供しており、その用途は非常に広範です。 このスタンダードの強みは、製品の安全性を保証するための明確な要求仕様と試験条件を示している点にあります。すべての機能要素は、表示器を除くメーターケース内に収容され、電気エネルギーの測定が行われる際の安全性を高める構造が求められています。さらに、統合表示機能を持つメーターから、取り外し可能な表示器を使用するメーターまで、さまざまな設計に対応しているため、メーカーは多様な用途に応じた製品を提供することが可能です。 また、IEC 62052-31の関連性は、低電力計測トランス（LPIT）やセンサーと連携して動作するメーターにも及ぶ点にあります。これにより、最新の技術トレンドや市場要求に応じた機器の設計に対応し、より高い安全性を確保することができます。 このスタンダードは、電気エネルギーの測定・制御機器の設計において重要なリファレンスとなるものであり、それに基づいた製品開発は、エンドユーザーである消費者やメーターリーダーが安全に機器を使用できる環境を提供します。正しい取扱いや設置条件のもとで、安全性に重きを置いた設計が求められるこの分野において、EN IEC 62052-31:2024は欠かせない文書と言えるでしょう。
Die Norm EN IEC 62052-31:2024 bietet umfassende Spezifikationen zu den allgemeinen Sicherheitsanforderungen und den dazugehörigen Tests für elektrische Messgeräte und Steuerungseinrichtungen. Diese Norm ist besonders relevant für die Entwicklung und den Betrieb von Geräten, die auf elektrischen Netzwerken bis zu 1.000 V AC oder 1.500 V DC messen und steuern. Ein herausragendes Merkmal dieser Norm ist ihre Flexibilität, da sie sich auf verschiedene Messgeräte bezieht, darunter direkt angeschlossene Meter, Transformatoren betriebene und transducerbetriebene Geräte. Ein weiterer wesentlicher Aspekt der Norm ist die umfassende Abdeckung aller funktionalen Elemente, einschließlich der Add-on-Kommunikationsmodule. Die klare Definition der Betriebsvoraussetzungen für integrierte sowie abgetrennte Anzeigeelemente ermöglicht den Herstellern eine bessere Integration in bestehende Systeme und eine vereinfachte Testsituation. Die Norm berücksichtigt auch die Installation der Geräte, die sowohl wandmontiert als auch in spezifisch passende Steckdosen oder Racks eingebaut werden können. Diese Vielseitigkeit macht die Norm besonders nützlich für Anbieter von elektrischen Messgeräten, die innovative Lösungen im Bereich der Energieüberwachung bzw. -steuerung anstreben. Die Sicherheitsanforderungen basieren auf realistischen Nutzungsszenarien und setzen voraus, dass die Messgeräte korrekt installiert sind und in einem Umfeld verwendet werden, in dem auch die Sicherheit der Endnutzer gewährleistet ist. Dabei wird darauf geachtet, dass gefährliche Teile bei normaler Nutzung nicht zugänglich sind, was das Risiko für den Benutzer erheblich senkt. Nicht zuletzt ist die Norm sowohl auf auxilary Input- und Output-Schaltungen als auch auf Betriebsanzeigen und Testausgänge anwendbar, was ihre Relevanz im Bereich der elektrischen Energieerfassung weiter erhöht. Mit dieser Überarbeitung wird die erste Ausgabe von 2015 storniert und durch eine technisch verbesserte Version ersetzt, die aktuellen Technologien und Sicherheitsanforderungen Rechnung trägt.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
