EN 50398-1:2017
(Main)Alarm systems - Combined and integrated alarm systems - Part 1: General requirements
Alarm systems - Combined and integrated alarm systems - Part 1: General requirements
This European Standard specifies the requirements for integrating alarm applications with other systems, which may or may not be alarm applications. This document defines requirements and procedures for essential testing of the specific aspects of the functionality and integrity, related to the integration of the equipment or systems, in order to complement the individual alarm application standards.
Alarmanlagen - Kombinierte und integrierte Alarmanlagen - Teil 1: Allgemeine Anforderungen
Diese Europäische Norm legt die Anforderungen zur Integration von Alarmanwendungen mit anderen Anlagen fest, bei denen es sich um Alarmanwendungen handeln darf, aber nicht muss. Dieses Dokument legt Anforderungen und Verfahren zur grundlegenden Prüfung der besonderen Aspekte der Funktionalität und Integrität in Bezug auf die Integration der Geräte oder Anlagen fest, um die individuellen Alarmanwendungsnormen zu vervollständigen.
Systèmes d'alarme - Systèmes d'alarme combinés et intégrés - Partie 1: Exigences générales
La présente Norme européenne spécifie les exigences d'intégration des applications d'alarmes avec d'autres systèmes qui peuvent être des applications d'alarmes ou d’autres types d’applications. Le présent document définit des exigences et des procédures applicables aux essais essentiels des aspects spécifiques de la fonctionnalité et de l'intégrité relatifs à l'intégration des équipements ou des systèmes, afin de compléter les normes d'application d'alarmes individuelles.
Alarmni sistemi - Kombinirani in integrirani alarmni sistemi - 1. del: Splošne zahteve
Ta osnutek evropskega standarda določa zahteve za združitev aplikacij za alarm z drugimi sistemi, ki so lahko ali pa tudi ne aplikacije za alarm.
Ta dokument opredeljuje zahteve in postopke za bistveno testiranje posebnih vidikov funkcionalnosti in celovitosti, povezanih z integracijo opreme ali sistemov, da dopolni posamezne standarde uporabe alarma.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2017
1DGRPHãþD
SIST-TS CLC/TS 50398:2009
Alarmni sistemi - Kombinirani in integrirani alarmni sistemi - 1. del: Splošne
zahteve
Alarm systems - Combined and integrated systems - Part 1: General requirements
Systèmes d'alarme - Systèmes d'alarme combinés et intégrés - Partie 1: Exigences
générales
Ta slovenski standard je istoveten z: EN 50398-1:2017
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50398-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2017
ICS 13.320 Supersedes CLC/TS 50398:2009 (PART)
English Version
Alarm systems - Combined and integrated alarm systems - Part
1: General requirements
Systèmes d'alarme - Systèmes d'alarme combinés et Alarmanlagen - Kombinierte und integrierte Alarmanlagen -
intégrés - Partie 1: Exigences générales Teil 1: Allgemeine Anforderungen
This European Standard was approved by CENELEC on 2017-07-11. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50398-1:2017 E

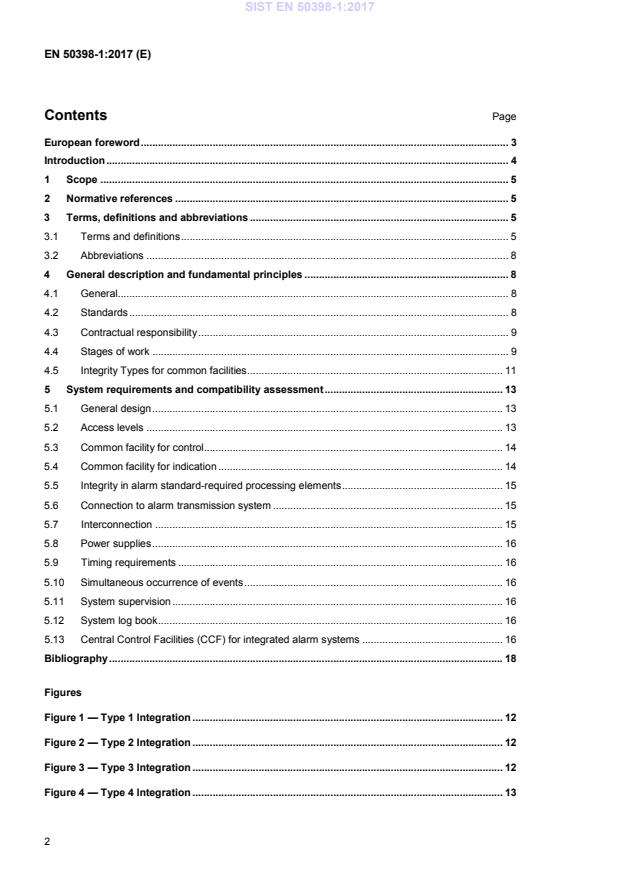

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 5
3.1 Terms and definitions . 5
3.2 Abbreviations . 8
4 General description and fundamental principles . 8
4.1 General. 8
4.2 Standards . 8
4.3 Contractual responsibility . 9
4.4 Stages of work . 9
4.5 Integrity Types for common facilities . 11
5 System requirements and compatibility assessment . 13
5.1 General design . 13
5.2 Access levels . 13
5.3 Common facility for control. 14
5.4 Common facility for indication . 14
5.5 Integrity in alarm standard-required processing elements . 15
5.6 Connection to alarm transmission system . 15
5.7 Interconnection . 15
5.8 Power supplies . 16
5.9 Timing requirements . 16
5.10 Simultaneous occurrence of events . 16
5.11 System supervision . 16
5.12 System log book . 16
5.13 Central Control Facilities (CCF) for integrated alarm systems . 16
Bibliography . 18
Figures
Figure 1 — Type 1 Integration . 12
Figure 2 — Type 2 Integration . 12
Figure 3 — Type 3 Integration . 12
Figure 4 — Type 4 Integration . 13
European foreword
This document (EN 50398-1:2017) has been prepared by CLC/TC 79 “Alarm systems”.
The following dates are fixed:
• latest date by which this document has (dop) 2018-07-11
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-07-11
standards conflicting with this document
have to be withdrawn
This document partially supersedes CLC/TS 50398:2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Introduction
Electronic system integration brings added value through sharing of common resources, adding new
functionality or enabling automated command and control functionalities for faster accurate responses.
This European Standard describes the general requirements and configuration types for combined
and integrated electronic systems, which should apply when one or more of the applications being
integrated is an alarm application. Applications that should be integrated have as a prerequisite that
they are capable of being interoperable at a specified system, sub system or component level.
The prime considerations of this European Standard are to ensure that the individual alarm standards,
requirements or guidelines are applied when alarm applications form part of an integrated system. The
requirements of this document are in addition to application specific system standards. Application
specific system standards take precedence over requirements detailed in this document.
In addition to sharing means of control or communication, the implementation of integration between
systems, as described in this document, may provide additional services to the user.
In this document, the wording 'combined and integrated alarm system' is synonymous with 'integrated
alarm system', which will mostly be used in the document.
NOTE The bibliography for this document has a non exhaustive list of alarm application standards.
1 Scope
This European Standard specifies the requirements for integrating alarm applications with other
systems, which may or may not be alarm applications.
This document defines requirements and procedures for essential testing of the specific aspects of the
functionality and integrity, related to the integration of the equipment or systems, in order to
complement the individual alarm application standards.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 60073, Basic and safety principles for man-machine interface, marking and identification —
Coding principles for indicators and actuators (IEC 60073)
3 Terms, definitions and abbreviations
For the purposes of this document, the following terms, definitions and abbreviations apply.
3.1 Terms and definitions
3.1.1
(N)ACK
(Negative)Acknowledgement Response of an application to a command
3.1.2
additional facility
facility which is not standard-required by any of the applications of the integrated alarm system
3.1.3
alarm
warning of the presence of a hazard to life, property or the environment
3.1.4
alarm application
sub system of an integrated alarm system intended for the protection of life, property or the
environment, such as but not limited to:
— intrusion and hold-up alarm system,
— social alarm system,
— lift alarm system,
— environmental alarm system,
— video surveillance systems used for security and surveillance,
— access control system,
— fire detection, fire alarm and fire protection systems
3.1.5
alarm receiving centre
continuously manned centre to which information concerning the status of one or more alarm systems
is reported
3.1.6
alarm company
organization which provides services for alarm systems
3.1.7
alarm condition
condition of an alarm system, or part thereof, which results from the response of the system to the
presence of a hazard
3.1.8
alarm system
electrical installation which responds to the manual or automatic detection of the presence of a hazard
3.1.9
alarm transmission equipment
equipment which is used primarily for the transmission of alarms from the alarm system interface at
the supervised premises to the annunciation equipment interface at the alarm receiving centre, that
may also transmit information or commands from the alarm receiving centre to one or more alarm
systems
Note 1 to entry: This does not include equipment provided by a PTT (Public and Private Telephone
Transmission) or other general telecommunications equipment (for example modems) where these are used
primarily for alarm transmission.
3.1.10
alarm transmission system
equipment and network used to transfer information concerned with the state of one or more alarm
systems to one or more alarm receiving centres
3.1.11
application
sub system of an integrated alarm system with a dedicated functionality (e.g. security system)
3.1.12
application standard
European Standard (EN) that specifies the sub system performance requirements
EXAMPLES EN 54 series for fire alarm systems, EN 50131 series for intruder alarm systems.
3.1.13
Central Control Facility
CCF
equipment used for control and/or indicating purposes, which is connected to one or more applications
and which is normally manned by operating personnel
Note 1 to entry: For example, a computer at a supervised location. The CCF is an additional facility (and not the
standard-required control and indicating equipment) for at least one of the applications.
3.1.14
command signal
instruction that affects one or more applications
3.1.15
commissioning
activating and testing of the integrated alarm system according to the design
3.1.16
common facility
facility which is shared by two or more applications
Note 1 to entry: A common facility may be additional for two or more applications, it may be standard-required
for two or more applications or it may be additional for one or more applications and standard-required for other
applications.
3.1.17
design
selection of components and fixing their specifications such that the resulting system meets the
specified system objectives of the planning
3.1.18
facility
hardware or software which enables a system to fulfil one or more functions
EXAMPLES A transmission path, a processing element, displays.
3.1.19
fault condition
condition of a system which prevents a system or part thereof from functioning as designed
3.1.20
fault signal
message generated due to the presence of a fault condition
3.1.21
handover
process of transferring ongoing responsibility for the integrated alarm system to the organization
specified in the contract, to accept the installation whi
...
