prEN IEC 63474:2025

Electrical and electronic household and office equipment - Measurement of networked standby power of edge equipment

Elektrische und elektronische Haushalts- und Bürogeräte – Messung der Leistungsaufnahme im vernetzten Bereitschaftsbetrieb von Geräten am Netzwerkrand

Appareils électriques et électroniques pour application domestique et équipement de bureau - Mesurage d'énergie en veille avec maintien de la connexion au réseau des équipements de périphérie

Električna in elektronska gospodinjska in pisarniška oprema - Merjenje porabe električne energije v stanju pripravljenosti na robu omrežja

General Information

• Status: Not Published
• Publication Date: 23-Nov-2026
• ICS: 35.020 - Information technology (IT) in general
• Technical Committee: CLC/TC 100X - Audio, video and multimedia systems and equipment and related sub-systems
• Current Stage: 4060 - Enquiry results established and sent to TC, SR, BTTF - Enquiry
• Start Date: 25-Jul-2025
• Completion Date: 25-Jul-2025
• Ref Project: oSIST prEN IEC 63474:2025 - Electrical and electronic household and office equipment - Measurement of networked standby power of edge equipment

Relations

• Revises: EN IEC 63474:2023 - Electrical and electronic household and office equipment - Measurement of networked standby power consumption of edge equipment
• Effective Date: 06-Jun-2023

Overview

The prEN IEC 63474:2025 standard, developed by the CLC (European Committee for Electrotechnical Standardization), focuses on the measurement of networked standby power in electrical and electronic household and office equipment. Specifically, it addresses devices operating at the edge of the network that maintain connectivity in standby mode. This standard is essential for assessing the energy consumption of devices capable of remote reactivation or wake-up via network connections, including wired and wireless ports.

The updated edition (second edition) extends the measurement scope to include battery-operated devices and aligns terms and measurement conditions with related standards such as IEC 62301 (ED3). The document provides comprehensive guidelines and measurement methods tailored to assessing the power efficiency and environmental impact of modern networked electronics.

Key Topics

• Networked Standby Power Measurement: Defines the procedures for accurately measuring power consumption of edge equipment in networked standby mode, where devices stay connected to networks for remote activation.
• Edge Equipment Focus: Targets household and office devices equipped with one or more wired or wireless network ports.
• Power Management Functions: Establishes methods for testing power under various wireless and wired network configurations, including power supplied by mains and battery-only operation.
• Test Preparation and Conditions:
  • Equipment Under Test (EUT) preparation
  • Network port configuration scenarios (connected/disconnected)
  • Use of calibrated power measuring instruments
  • Environmental test conditions including temperature-controlled test rooms
• Terminology and Definitions: Updates and harmonizes relevant terms and definitions related to networked standby power to ensure consistency with IEC 62301 and other related standards.
• Measurement Uncertainty and Reporting: Guidelines on managing measurement accuracy and necessary details for documenting results in formal test reports.
• Practical Test Methods: Includes procedures for managing wireless networks, activation/deactivation of network connections, and detailed steps for performing power measurements in various network states.

Applications

• Energy Efficiency Testing: Enables manufacturers, testing laboratories, and regulatory bodies to evaluate the energy consumption of network-connected home and office appliances during standby.
• Product Design and Compliance: Supports product development aimed at reducing standby power consumption to meet energy regulations and environmental standards.
• Certification and Regulatory Use: Helps ensure compliance with international and regional energy efficiency directives by providing standardized measurement protocols.
• Environmental Impact Assessment: Assists in quantifying the energy footprint of devices during standby, contributing to sustainable energy consumption practices.
• Battery-Powered Devices: Newly included to address power measurement in portable and battery-operated networked equipment.

Related Standards

• IEC 62301 (ED3): Standard for measuring standby power of electrical appliances, with alignment on terminology and measurement conditions.
• EN 50643:2018: The basis of the first edition of IEC 63474, focused on networked standby power requirements.
• IEC 100/TA 19: Addresses environmental and energy aspects of multimedia systems and equipment relevant to networked power measurement.
• General Network and IT Standards: This standard references information technology and audiovisual multimedia system considerations, broadening its applicability to modern connected devices.

Practical Value

Adoption of prEN IEC 63474:2025 provides manufacturers and testing agencies with a reliable and internationally recognized methodology for measuring networked standby power, a growing concern as smart devices and IoT proliferate. The standard helps optimize device design to achieve energy savings, comply with environmental regulations, and reduce carbon footprint. It also clarifies test conditions for both wired and wireless network interfaces, enabling consistent and reproducible power measurement results critical for certification and eco-labelling programs.

---

Keywords: networked standby power, edge equipment, power measurement, electrical household appliances, office electronics, IEC 63474, energy efficiency, standby power consumption, measurement standards, battery-operated devices, wired and wireless networks, network reactivation, environmental impact.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2025
Električna in elektronska gospodinjska in pisarniška oprema - Merjenje porabe
električne energije v stanju pripravljenosti na robu omrežja
Electrical and electronic household and office equipment - Measurement of networked
standby power of edge equipment
Elektrische und elektronische Haushalts- und Bürogeräte – Messung der
Leistungsaufnahme im vernetzten Bereitschaftsbetrieb von Geräten am Netzwerkrand
Appareils électriques et électroniques pour application domestique et équipement de
bureau - Mesurage d'énergie en veille avec maintien de la connexion au réseau des
équipements de périphérie
Ta slovenski standard je istoveten z: prEN IEC 63474:2025
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
33.160.01 Avdio, video in avdiovizualni Audio, video and audiovisual
sistemi na splošno systems in general
35.020 Informacijska tehnika in Information technology (IT) in
tehnologija na splošno general
97.030 Električni aparati za dom na Domestic electrical
splošno appliances in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

100/4306/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 63474 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-05-02 2025-07-25
SUPERSEDES DOCUMENTS:
100/4179/CD, 100/4294/CC
IEC TA 19 : ENVIRONMENTAL AND ENERGY ASPECTS FOR MULTIMEDIA SYSTEMS AND EQUIPMENT
SECRETARIAT: SECRETARY:
Germany Mr Andreas Schneider
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
TC 100/TA 19 Horizontal Group Energy Efficiency
TC 59,ACEE
ASPECTS CONCERNED:
Energy Efficiency,Environment
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which
they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries”
clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for
submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Electrical and electronic household and office equipment – Measurement of networked standby
power of edge equipment
PROPOSED STABILITY DATE: 2031
NOTE FROM TC/SC OFFICERS:
The title of IEC 63474:2023 (ED1) 'Electrical and electronic household and office equipment – Measurement
of networked standby power consumption of edge equipment' was adjusted for the 2nd edition to IEC 63474
(ED2) 'Electrical and electronic household and office equipment – Measurement of networked standby power
of edge equipment' (The word 'consumption' was deleted).

electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

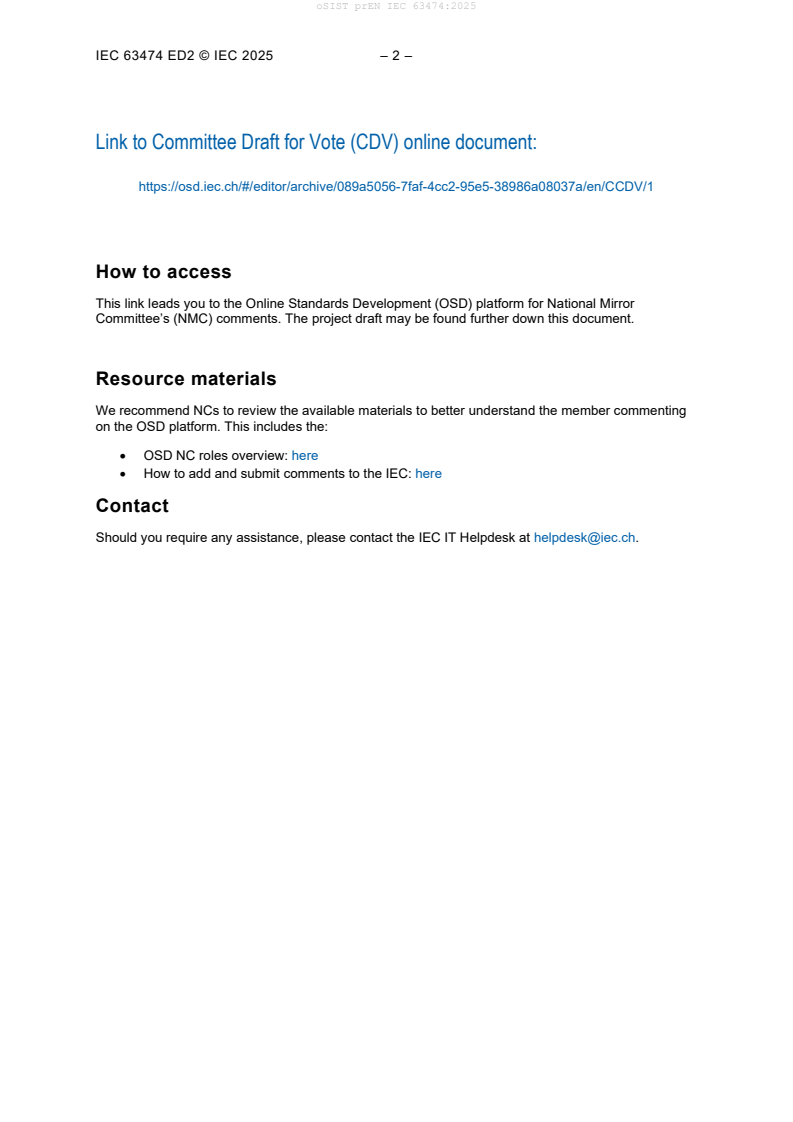

IEC 63474 ED2 © IEC 2025 – 2 –

Link to Committee Draft for Vote (CDV) online document:
https://osd.iec.ch/#/editor/archive/089a5056-7faf-4cc2-95e5-38986a08037a/en/CCDV/1

How to access
This link leads you to the Online Standards Development (OSD) platform for National Mirror
Committee’s (NMC) comments. The project draft may be found further down this document.

Resource materials
We recommend NCs to review the available materials to better understand the member commenting
on the OSD platform. This includes the:
• OSD NC roles overview: here
• How to add and submit comments to the IEC: here
Contact
Should you require any assistance, please contact the IEC IT Helpdesk at [e-mail].

IEC 63474 ED2 © IEC 2025 3
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviations . 9
3.1 Terms and definitions . 9
3.1.1 Function related terms and definitions . 9
3.1.2 Mode related terms and definitions . 12
3.1.3 Network related terms and definitions . 13
3.1.4 Other terms and definitions . 14
3.2 Abbreviated terms . 15
4 Information required for testing purposes . 15
4.1 Information about reactivation network port(s) . 15
4.2 Power management function - periods and conditions . 16
4.3 Activation and deactivation of wireless network connections . 16
5 Measurement conditions . 16
5.1 Common requirements . 16
5.2 Test room . 17
5.3 Power supply . 17
5.4 Power measuring instruments . 17
5.5 Configuration of network ports . 17
5.6 Power measurement uncertainty . 17
6 Measurements . 17
6.1 Overview . 17
6.2 Management of wireless networks and radio receivers . 18
6.2.1 General . 18
6.2.2 Wireless network connection management . 19
6.2.3 Radio receiver management . 19
6.3 Preparation of the EUT and general testing aspects . 19
6.4 Power management . 19
6.5 Measurement procedure . 20
6.6 Network port configuration . 20
6.6.1 Configuration for measurement of power in networked standby mode
using individual network ports . 20
6.6.2 Configuration for measurement of power in networked standby mode
with all network ports connected . 21
6.6.3 Configuration for measurement of power in networked standby mode
with all network ports disconnected . 21
6.7 Methods for measuring power . 21
6.7.1 Measurement of power in networked standby mode when connected to
mains power . 21
6.7.2 Measurement of power in networked standby mode when powered by
battery only . 21
7 Test report . 22
7.1 Test and laboratory details . 22

4 IEC CDV 63474 ED2 © IEC 2025
7.2 Details of equipment under test . 22
7.3 Test parameters and network configuration . 22
7.4 Measured and documented data . 23
Annex A (informative) Power modes and functions - conceptual framework . 24
Annex B (normative) Test conditions - Connection types and test conditions . 25
Annex C (informative) Additional considerations for equipment classification and
examples . 26
Annex D (informative) Examples of network technologies and network configurations
.......................................................................................................................... 28
Annex E (informative) Information to be provided to the user and other interested
parties . 29
E.1 Information available online . 29
E.2 Information available in the instructions for use . 29
Annex F (informative) Example of required information for testing template . 30
Annex G (informative) Example of a test report template . 32
Annex H (informative) Recommended EUT preparation flowchart . 34
Annex I (informative) Factors affecting wireless networked standby mode
measurement . 35
I.1 General . 35
I.2 Connection between remote reactivation trigger device and EUT . 35
I.3 Wireless Access Point/ Router/ Bridge . 35
I.4 Device sending the remote reactivation trigger . 36
I.5 Software influence . 36
Bibliography . 37

Figure 1 – Testing overview . 18
Figure A.1 – Category of functions and operating conditions of products in respect to
functions provided (modes) . 24
Figure A.2 – Concept diagram of reactivation function and related terms . 24
Figure H.1 – . 34

Table B.1 – Test conditions by type of connection . 25
Table C.1 – Classification of networked equipment . 26
Table C.2 – Examples of equipment definition and its classification . 26
Table D.1 – Examples of technologies considered for networked standby mode . 28
Table F.1 – Specific information required for testing networked edge equipment . 30
Table F.2 – Specific information required for testing network reactivation using
network ports. 30
Table F.3 – Additional information required for testing network reactivation using
network ports. 30
Table G.1 – Example of a test report template . 32

IEC 63474 ED2 © IEC 2025 5
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Electrical and electronic household and office equipment –Measurement
of networked standby power of edge equipment –

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical
Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)").
Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject
dealt with may participate in this preparatory work. International, governmental and non-governmental
organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the
International Organization for Standardization (ISO) in accordance with conditions determined by agreement
between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated
in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, IEC had received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63474 has been prepared by technical area 19: Environmental and energy aspects for
multimedia systems and equipment, of IEC technical committee 100: Audio, video and
multimedia systems and equipment. It is an International Standard, and IEC technical
committee 59: Performance of household and similar electrical appliances.
IEC 63474:2023 (ED1) is based on EN 50643:2018 [1]. It was submitted to the National
Committees for voting under the Fast Track Procedure.
This second edition cancels and replaces the first edition published in 2023. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) The scope and the measurement method were extended to battery operated products.

6 IEC CDV 63474 ED2 © IEC 2025
b) Terms and definitions, and measurement conditions have been updated and aligned for
both IEC 62301 (ED3) and IEC 63474 (ED2).
The text of this International Standard is based on the following documents:
Draft Report on voting
100/xxxx/CDV 100/xxxx/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 63474 ED2 © IEC 2025 7
INTRODUCTION
The methods defined in this document are intended to define requirements for the
measurement of power used by equipment having one or more wired or wireless network port(s)
in those modes that are able to resume a function by way of a remotely initiated trigger or
reactivation trigger from a network connection (networked standby mode).
For the measurement of power used in non-active mode other than networked standby mode
reference is made to IEC 62301.
This document also provides a method to test power management and whether it is possible to
deactivate wireless network connection(s).

8 IEC CDV 63474 ED2 © IEC 2025
Electrical and electronic household and office equipment –Measurement
of networked standby power of edge equipment –

1 Scope
This document specifies methods of measurement of electrical power in networked standby
mode and the reporting of the results for edge equipment.
The measurement of power and energy use in non-active mode, other than networked standby
mode, is covered by IEC 62301, including the input voltage range.
This document applies to edge equipment that are powered by:
– low voltage mains AC power (𝐿𝐿𝐿𝐿≤ 1000 𝐿𝐿 𝐴𝐴𝐴𝐴), or
– an external power supply that provides low voltage (𝐿𝐿𝐿𝐿≤ 1000 𝐿𝐿) or extra low voltage (𝐸𝐸𝐿𝐿𝐿𝐿≤
50 𝐿𝐿) AC or DC power, or
– a separate source of extra low voltage DC power (𝐸𝐸𝐿𝐿𝐿𝐿≤ 50 𝐿𝐿 𝐷𝐷𝐴𝐴), or
– an internal main battery.
Conditions that are out of scope:
– active mode (primary function),
– other non-active mode (which are either covered by IEC 62301 or by specific product group
standards),
– conditions where main batteries are being charged other than maintenance mode,
– disconnected condition of the equipment.
This document applies to the following product groups where a networked standby mode is
present:
– edge equipment with a network reactivation function, such as household appliances,
information technology equipment, audio, video and multimedia systems and equipment,
– digital radio receivers with an emergency warning function,
– gas burning equipment.
NOTE 1 The measurement of power, energy use and performance of products during their intended use (when
performing their primary functions) are generally specified in product standards and are not covered by this
document.
NOTE 2 Networked standby mode for lighting equipment and the measurement of power is specified in IEC 63103.
NOTE 3 interconnecting equipment (equipment that provides network infrastructure and function) is out of scope.
Measurement of electrical power in networked standby mode for interconnecting equipment is the subject of ETSI
standard EN 303 423 [2].
This document also provides a method to test power management and to test whether it is
possible to deactivate wireless network connection(s).
NOTE 4 Edge equipment can also include auxiliary battery.
This document has the status of a horizontal publication in accordance with IEC Guide 108.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition cited
applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62104, Characteristics of DAB receivers

IEC 63474 ED2 © IEC 2025 9
IEC 62301, Household electrical appliances - Measurement of standby power
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62301 as well as the
following apply. Annex A shows the conceptual framework of power modes and functions.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1.1 Function related terms and definitions
3.1.1.1
function
predetermined operation undertaken by a product
Note 1 to entry: Functions can be controlled by an interaction of the user, of other technical systems, of the system
itself, from measurable inputs from the environment and/or time.
Note 2 to entry: A function can be classified as primary function, secondary function or tertiary function, which are
broad categories.
3.1.1.2
primary function
function providing a main intended purpose
EXAMPLE Cleaning of clothes by a washing machine, displaying of video and providing sound by a television.
Note 1 to entry: Products can have more than one primary function.
Note 2 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-02 modified: ‘main’, Example and new ‘Note 1
to entry’ added, and Table 1 replaced by Figure A.1 in Note 2 to entry.]
3.1.1.3
secondary function
function that enables, supplements or enhances a primary function
EXAMPLE 1 Secondary functions can include status information functions, network integrity functions, reactivation
functions, sensor-based functions, or protective functions.
EXAMPLE 2 Timer informing the remaining time for completion of the washing program or the delay start function
of a washing machine.
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-03 modified: Examples added, in Note 1 to
entry ‘Table 1’ replaced by ‘Figure A.1’.]
3.1.1.4
tertiary function
function other than a primary function or a secondary function
EXAMPLE 1 An EMC filter, if present, can provide its function in non-active mode and active mode.
EXAMPLE 2 Event and failure data recorder in a washing machine for service purposes.
Note 1 to entry: A tertiary function does not provide a service directly to the user of the product.
Note 2 to entry: The distinction between primary functions, secondary functions and tertiary functions is not a
distinction between necessary functions and non-necessary functions since tertiary functions can be necessary
functions.
10 IEC CDV 63474 ED2 © IEC 2025
Note 3 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-04 modified: in Example 1 ‘off mode, partial
on mode and on mode’ replaced by ‘non-active modes and active modes‘, Example 2 was
amended, new ‘Note 1 to entry’ and ‘Note 2 to entry’ added. In Note 3 to entry ‘Table 1’ replaced
by ‘Figure A.1’.]
3.1.1.5
status information function
function by which the product provides usage-orientated information
EXAMPLE Date, time, timer information, or past or future operation.
Note 1 to entry: Displayed content that relates to the primary function of a display, e.g. displaying moving images,
is not status information. The primary display of a product can provide status information in active mode.
Note 2 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-07 modified: ‘equipment provides simple use-
oriented’ replaced by ‘product provides usage-oriented’, original 'Note 1 to entry' was changed
to 'EXAMPLE', new ‘Note 1 to entry added, in Note 2 to entry ‘Table 1’ replaced by ‘Figure
A.1’.]
3.1.1.6
network integrity function
function to maintain a network communication path that is external to the product
Note 1 to entry: The communication can be via wired or wireless interfaces.
Note 2 to entry: In order to communicate, it is necessary for the product to have at least one network port activated.
Note 3 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-08 modified: ‘equipment’ replaced by ‘product’,
original ‘Note 3 to entry’ deleted, in Note 3 to entry ‘Table 1’ replaced by ‘Figure A.1’.]
3.1.1.7
reactivation function
function allowing a product to be switched into a different mode with additional
functions via an internal signal, manually using a control on the product, with a remote control
unit, or via an externally initiated signal
EXAMPLE 1 A timer could provide the internal signal leading to reactivation.
EXAMPLE 2 The reactivation function can be indicated using a simple optical indicator (e.g. a light-emitting diode
(LED)).
Note 1 to entry: The mode after reactivation can be an active mode.
Note 2 to entry: Additional functions can bring the EUT in an active mode.
Note 3 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1. Figure A.2 provides a
concept diagram.
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-06 modified: definition extended to cover both
internal reactivation function and ‘network reactivation function’, original ‘Note 2 to entry’
deleted, in Note 2 to entry ‘Table 1’ replaced by ‘Figure A.1’ and ‘Figure A.2 provides a concept
diagram.’ added.]
3.1.1.8
internal reactivation function
reactivation function where the product is switched into a different mode via an
internal signal, with its remote control unit, or manually using a control on the product

IEC 63474 ED2 © IEC 2025 11
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1. Figure A.2 provides a
concept diagram.
3.1.1.9
network reactivation function
reactivation function where the product is switched into a different mode via an
external signal through a network
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1. Figure A.2 provides a
concept diagram.
3.1.1.10
sensor-based function
function using a sensor to monitor a certain condition, internally or externally to
the product
3.1.1.11
protective function
function that operates to prevent harm to persons or damage to property
EXAMPLE Protective functions can operate in different modes, for instance:
– a back-siphonage device fitted to a dishwasher can operate in an off mode,
– a flood protection device fitted to a washing machine can operate in any non-active modes,
– a no-movement deactivation switch fitted to an iron can operate in an active mode, and
– a touch control for a cooking hob requires a minimum of two activation steps (switch on &
set level) to commence heating for the primary function to prevent accidental operation.
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in figure A.1
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-05 modified: 'after the occurrence of a failure
in the equipment so as' deleted. Mode names updated in Note 1 to entry. Note 2 to entry
updated.]
3.1.1.12
emergency warning & alert function
EWF
automatic receiver switching and emergency reactivation by alarm
announcement broadcast signal
3.1.1.13
power management
power management function
automatic control mechanism that achieves within a preset timeframe, or other conditions, a
certain power demand consistent with a pre-determined level of functionality
[SOURCE: IEC 60050-904:2014 [3], IEV 904-03-01, modified - 'the smallest input power'
replaced by 'within a preset timeframe, or other conditions, a certain power demand' by ', Note
1 to entry has been omitted.]
3.1.1.14
power supply function
ability of the charging circuitry or power supply to directly power
some or all of the functions of the battery powered product without drawing power from the
battery
Note 1 to entry: This can include main batteries charging or main batteries removed.
Note 2 to entry: Chargers with a power supply function do not show the typical recharging pattern of chargers
without a power supply function as the batteries are not permanently discharged by internal processes, display

12 IEC CDV 63474 ED2 © IEC 2025
information and networked standby consumption. This consumption can be supplied exclusively from the power
supply unit or also proportionally from the battery and the power supply unit.
3.1.2 Mode related terms and definitions
3.1.2.1
mode
condition that has any combination of functions
Note 1 to entry: A mode with one or no functions could be a valid combination.
Note 2 to entry: Any transition of a product to a different mode, either through user intervention or automatically
initiated, is not be considered to form part of either mode.
Note 3 to entry: A mode can have some functions with variable power draw.
Note 4 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.2
active mode
on mode
mode in which the product is connected to a power source and provides at least one primary
function
Note 1 to entry: The terms “on”, “in-use”, and “operation” also describe this mode.
Note 2 to entry: This includes conditions during which the equipment can promptly provide a primary function but
is not doing so, such as:
– when content on a media playing device is paused,
– when noise cancelling is active but no audio is playing.
Note 3 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.3
non-active mode
non-active
mode in which the product is connected to a power source and provides no primary function
Note 1 to entry: This can include modes such as off mode, standby mode and networked standby mode, as
applicable. Product groups can have product specific non-active modes which can be identified and named as
appropriate.
Note 2 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.4
standby mode
standby
non-active mode providing at least one secondary function
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.5
networked standby mode
networked standby
standby mode in which the edge equipment is able to switch into a different mode via a network
reactivation function
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.6
off mode
off
non-active mode in which the product is providing no secondary function

IEC 63474 ED2 © IEC 2025 13
Note 1 to entry: Figure A.1 provides a structured overview as an aid to understanding functional relationships and
energy use applicable in electrotechnical products. Additional terms and definitions to fulfil the particular needs of
product sectors should be defined within the structure of the concepts shown in Figure A.1.
3.1.2.7
maintenance mode
mode of a charging circuitry that maintains a battery at a pre-set charge limit while
the battery remains connected to the charging circuitry
Note 1 to entry: Some products can periodically charge the battery while connected to mains power and run some
functions from the battery between these charging cycles. This is still considered to be maintenance mode. Not all
products have a maintenance mode.
Note 2 to entry: Maintenance mode can include the display of information or status and networked standby mode
when connected to a network. This mode is focusing on the state of the main battery and is independent from other
functions present.
3.1.3 Network related terms and definitions
3.1.3.1
network
communication infrastructure with a topology of links, an architecture, including the physical
components, organisational principles, communication procedures and formats (protocols)
EXAMPLE A network can include connections that use layers in the Open Systems Interconnection (OSI) model
such as WiFi (IEEE 802.11 [4]) and wired networks (IEEE 802.3 [5]) as well as other types of two way digital data
links that may not use all OSI layers or IP addresses such as HDMI (CEC), Bluetooth, USB and DVI. A network does
not normally include any form of one way communication (for example from an infrared remote control) or broadcast
signal (the exception being the emergency warning & alert function).
3.1.3.2
networked equipment
equipment that can connect to a network and has one or more network ports
3.1.3.3
edge equipment
networked equipment that can interact with a network or other products and that does not have,
as its primary function, the passing of network traffic to provide a network
Note 1 to entry: Examples of edge equipment are given in Annex C.
Note 2 to entry: Some edge equipment can provide some network functions found in interconnecting equipment in
addition to their primary function.
3.1.3.4
interconnecting equipment
high network availability equipment
networked equipment that has, as its primary function, the passing of network traffic to provide
a network
Note 1 to entry: Examples of interconnecting equipment are given in Annex C.
3.1.3.5
network port
wired or wireless physical interface of the network connection located on the product
Note 1 to entry: International Electrotechnical Vocabulary (IEC 60050-701 [6], IEV 701-02-10) defines "port (of a
network)" as: "a termination through which signals can enter or leave a network".
Note 2 to entry: The broadcast receiver interface of DAB+ radio receivers with EWF is regarded as a network port
for the purposes of this document.
3.1.3.6
physical network port
physical (hardware) medium of a network port
Note 1 to entry: A physical network port can consist of multiple logical network ports.
Note 2 to entry: A physical network port can host two or more network technologies.
3.1.3.7
logical network port
network technology running over a physical network port

14 IEC CDV 63474 ED2 © IEC 2025
3.1.3.8
reactivation network port
network port through which the product can receive a remote reactivation trigger
Note 1 to entry: Reactivation is remotely initiated by a signal that comes from outside the equipment via a network.
3.1.3.9
remote reactivation trigger
externally initiated signal received via a network connection that brings the networked
equipment into a different mode providing additional functions
Note 1 to entry: A transition to a different mode can include a condition where the networked equipment is waiting
for a confirmation to change mode.
Note 2 to entry: The digital radio broadcast signal for EWF is considered a remote reactivation trigger.
3.1.4 Other terms and definitions
3.1.4.1
instructions for use
information that is provided for users of the product
Note 1 to entry: Instructions for use can include a user manual and can be in paper or electronic form.
[SOURCE: IEC 62301:2011 [7], 3.12]
3.1.4.2
rated frequency
supply frequency (range) of the electricity supply designated by the manufacturer
[SOURCE: IEC 62301:2011 [7], 3.11 modified: 'of the electricity supply' added.]
3.1.4.3
rated voltage
supply voltage (range) of the electricity supply designated by the manufacturer
[SOURCE: IEC 62301:2011 [7], 3.10 modified: 'of the electricity supply' added.]
3.1.4.4
main battery
energy storage device capable to that power primary or secondary functions in addition to any
tertiary functions
3.1.4.5
auxiliary battery
energy storage device intended to power only tertiary functions
Note 1 to entry: Memory retention and remote control batteries are examples of auxiliary batteries.
3.1.4.6
fully charged
point during charging when, according to product settings or time period, the main
battery will not be further charged
Note 1 to entry: A battery can be fully charged when the energy stored is less than the technical capacity of the
battery as stated by the supplier.
Note 2 to entry: Fully charged status can be confirmed by an indicator on the product.
3.1.4.7
maintenance power
representative power of the battery-operated product in maintenance mode
3.1.4.8
equipment under test
EUT
product being tested using the methods described in this document

IEC 63474 ED2 © IEC 2025 15
[SOURCE: IEC 60268-23:2023 [8], modified: 'equipment measured' replaced by 'product
tested', ']
3.2 Abbreviated terms
For the purposes of this document, the following abbreviations apply.
DAB digital audio broadcasting
DOCSIS Data Over Cable Service Interface Specification
EPS external power supply
EUT equipment under test
EWF emergency warning & alert function
HDMI® High-Definition Multimedia Interface
LAN local area network
MoCA® Multimedia over Coax Alliance
PLC power line communication
RFradio frequency
USB Universal Serial Bus (IEC 62680 series)
WAN wide area network
4 Information required for testing purposes
4.1 Information about reactivation network port(s)
For each type of physical and associated logical reactivation network port, the following
information shall be provided by the manufacturer:
a) the default time after which power management, or a similar function, automatically
switches the equipment into networked standby mode, and, if available, the procedure for:
1) setting a time other than the default time; or
2) manually switching the equipment into networked standby mode;
NOTE 1 The word "manually" in the above context refers to any user operation intervention such as pushing a
button on the EUT itself, or sending a message from another machine.
b) any features th
...
