EN IEC 61784-1:2019
(Main)Industrial communication networks - Profiles - Part 1: Fieldbus profiles
Industrial communication networks - Profiles - Part 1: Fieldbus profiles
IEC 61784-1:2019 (E) defines a set of protocol specific communication profiles based primarily on the IEC 61158 series, to be used in the design of devices involved in communications in factory manufacturing and process control. This fifth edition cancels and replaces the fourth edition published in 2014 it constitutes a technical revision. The main changes are: • update of the dated references to the IEC 61158 series, to IEC 61784 2, to the IEC 61784 3 series, to the IEC 61784-5 series and to IEC 61918 throughout the document; • update of selection tables CPF 2, CPF 4 and CPF 8
Industrielle Kommunikationsnetze - Profile - Teil 1: Feldbusprofile
Réseaux de communication industriels - Profils - Partie 1: Profils de bus de terrain
l’IEC 61784-1:2019 définit un jeu de profils de communication spécifiques au protocole, principalement fondé sur la série de normes IEC 61158, à utiliser pour la conception d’appareils employés en communication dans le cadre du contrôle de la fabrication et du processus en usine. Chaque profil choisit des spécifications pour la pile du protocole de communication au niveau de l’appareil. Il comporte un jeu minimal de services exigés au niveau de la couche application et la spécification d'options dans les couches intermédiaires définies par le biais de références. Si aucune couche application n'est incluse, il est spécifié un jeu minimal de services exigés au niveau de la couche liaison de données. Les références appropriées aux types spécifiques au protocole sont données dans chaque famille de profils de communication ou dans des profils associés. ette cinquième édition annule et remplace la quatrième édition parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: • la mise à jour des références datées à la série IEC 61158, à l’IEC 61784-2, à la série IEC 61784-3, à la série IEC 61784-5 et à l’IEC 61918 dans l'ensemble du document; • la mise à jour des tableaux de sélection pour CPF 2, CPF 4 et CPF 8. La présente version bilingue (2020-03) correspond à la version anglaise monolingue publiée en 2019-04. La version française de cette norme n'a pas été soumise au vote
Industrijska komunikacijska omrežja - Profili - 1. del: Profili procesnih vodil (IEC 61784-1:2019)
Ta dokument določa sklop komunikacijskih profilov, specifičnih za protokol, predvsem na osnovi skupine standardov IEC 61158, za uporabo pri oblikovanju naprav, vključenih v postopkih komunikacije v tovarniški proizvodnji in kontroli procesa. Vsak profil izbere specifikacije za sklad komunikacijskega protokola na napravi. Vsebuje minimalen sklop zahtevanih opravil na aplikacijskem nivoju in specifikacijo možnosti na vmesnih nivojih, opredeljeno z napotili. Če ni vključen noben aplikacijski nivo, potem se določi minimalen sklop zahtevanih opravil na ravni podatkovnih povezav. Ustrezni sklici na posebne tipe protokola so podani v vsaki družini komunikacijskega profila ali pridruženih profilov.
General Information
- Status
- Published
- Publication Date
- 30-May-2019
- Withdrawal Date
- 14-May-2022
- Technical Committee
- CLC/TC 65X - Industrial-process measurement, control and automation
- Drafting Committee
- IEC/SC 65C - IEC_SC_65C
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 31-May-2019
- Completion Date
- 31-May-2019
Relations
- Effective Date
- 14-Feb-2017
- Effective Date
- 25-Apr-2023
- Effective Date
- 25-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 18-Apr-2023
- Effective Date
- 04-Apr-2023
Overview
EN IEC 61784-1:2019 - Industrial communication networks - Profiles - Part 1: Fieldbus profiles - defines protocol-specific communication profiles for fieldbus systems used in factory manufacturing and process control. Based primarily on the IEC 61158 series, this fifth edition (2019) replaces the 2014 edition and updates dated references across the IEC 61158 suite and related profile documents, and revises selection tables for CPF 2, CPF 4 and CPF 8. The standard provides a framework for designers and vendors to ensure interoperable fieldbus device implementations and conformance to recognized profiles.
Key topics and requirements
- Profile definitions: Protocol-specific communication profiles that map physical, data-link and application layer specifications (as specified in IEC 61158 parts) into usable fieldbus profiles.
- Conformance rules: Requirements and guidance for demonstrating conformance of devices and implementations to a given communication profile.
- Layer coverage: Reference to physical layer, data-link layer and application layer services and protocols - enabling consistent device design and integration.
- Communication Profile Families (CPF): Organization of fieldbus types into CPFs (for example, CPF 1 includes FOUNDATION™ fieldbus) with selection tables that list supported types and options. The 2019 edition updates CPF selection tables for CPF 2, 4 and 8.
- Normative references: Integrates many IEC documents (for example, multiple parts of IEC 61158, IEC 61784-2, IEC 61784-5 series and IEC 61918) which are normative for profile implementation and installation.
- Terminology and conventions: Standardized terms, definitions, abbreviations and conventions to reduce ambiguity across manufacturers and projects.
Applications and who uses it
EN IEC 61784-1:2019 is directly applicable to:
- Device manufacturers designing fieldbus-enabled sensors, actuators, I/O modules, PLCs and controllers.
- System integrators and automation engineers who select and commission fieldbus networks in factory manufacturing and process control environments.
- Control system architects specifying protocols and interoperability requirements for industrial networks.
- Test labs and certification bodies assessing conformance to fieldbus profiles.
- Procurement and compliance teams requiring clear profile mappings and standards-based interoperability guarantees.
Practical benefits include improved interoperability, clearer device specifications, simplified integration across multi-vendor systems, and alignment with up-to-date IEC fieldbus protocol definitions.
Related standards
- IEC 61158 series (fieldbus specifications - physical, data-link, application)
- IEC 61784-2 (additional fieldbus profiles for real-time Ethernet/IEEE 802.3)
- IEC 61784-5 series (installation profiles)
- IEC 61918 (installation of communication networks in industrial premises)
- IEC 62591 (WirelessHART) and IEC 61131-2 (programmable controllers) - referenced for related device and network considerations
Keywords: EN IEC 61784-1:2019, fieldbus profiles, industrial communication networks, IEC 61158, CPF, FOUNDATION fieldbus, industrial automation, process control, conformance.
Frequently Asked Questions
EN IEC 61784-1:2019 is a standard published by CLC. Its full title is "Industrial communication networks - Profiles - Part 1: Fieldbus profiles". This standard covers: IEC 61784-1:2019 (E) defines a set of protocol specific communication profiles based primarily on the IEC 61158 series, to be used in the design of devices involved in communications in factory manufacturing and process control. This fifth edition cancels and replaces the fourth edition published in 2014 it constitutes a technical revision. The main changes are: • update of the dated references to the IEC 61158 series, to IEC 61784 2, to the IEC 61784 3 series, to the IEC 61784-5 series and to IEC 61918 throughout the document; • update of selection tables CPF 2, CPF 4 and CPF 8
IEC 61784-1:2019 (E) defines a set of protocol specific communication profiles based primarily on the IEC 61158 series, to be used in the design of devices involved in communications in factory manufacturing and process control. This fifth edition cancels and replaces the fourth edition published in 2014 it constitutes a technical revision. The main changes are: • update of the dated references to the IEC 61158 series, to IEC 61784 2, to the IEC 61784 3 series, to the IEC 61784-5 series and to IEC 61918 throughout the document; • update of selection tables CPF 2, CPF 4 and CPF 8
EN IEC 61784-1:2019 is classified under the following ICS (International Classification for Standards) categories: 35.100.20 - Data link layer; 35.240.50 - IT applications in industry. The ICS classification helps identify the subject area and facilitates finding related standards.
EN IEC 61784-1:2019 has the following relationships with other standards: It is inter standard links to EN 61784-1:2014, EN IEC 61784-1-9:2023, EN IEC 61784-1-16:2023, EN IEC 61784-1-1:2023, EN IEC 61784-1-4:2023, EN IEC 61784-1-3:2023, EN IEC 61784-1-6:2023, EN IEC 61784-1-8:2023, EN IEC 61784-1-2:2023, EN IEC 61784-1-0:2023, EN IEC 61784-1-5:2023, EN IEC 61784-1-19:2023, EN IEC 61784-1-22:2023. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN IEC 61784-1:2019 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-november-2019
Nadomešča:
SIST EN 61784-1:2015
Industrijska komunikacijska omrežja - Profili - 1. del: Profili procesnih vodil (IEC
61784-1:2019)
Industrial communication networks - Profiles - Part 1: Fieldbus profiles (IEC 61784-
1:2019)
Industrielle Kommunikationsnetze - Profile - Teil 1: Feldbusprofile (IEC 61784-1:2019)
Réseaux de communication industriels - Profils - Partie 1: Profils de bus de terrain (IEC
61784-1:2019)
Ta slovenski standard je istoveten z: EN IEC 61784-1:2019
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.05 Večslojne uporabniške Multilayer applications
rešitve
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61784-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2019
ICS 35.100.20; 35.240.50 Supersedes EN 61784-1:2014
English Version
Industrial communication networks - Profiles - Part 1: Fieldbus
profiles
(IEC 61784-1:2019)
Réseaux de communication industriels - Profils - Partie 1: Industrielle Kommunikationsnetze - Profile - Teil 1:
Profils de bus de terrain Feldbusprofile
(IEC 61784-1:2019) (IEC 61784-1:2019)
This European Standard was approved by CENELEC on 2019-05-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61784-1:2019 E

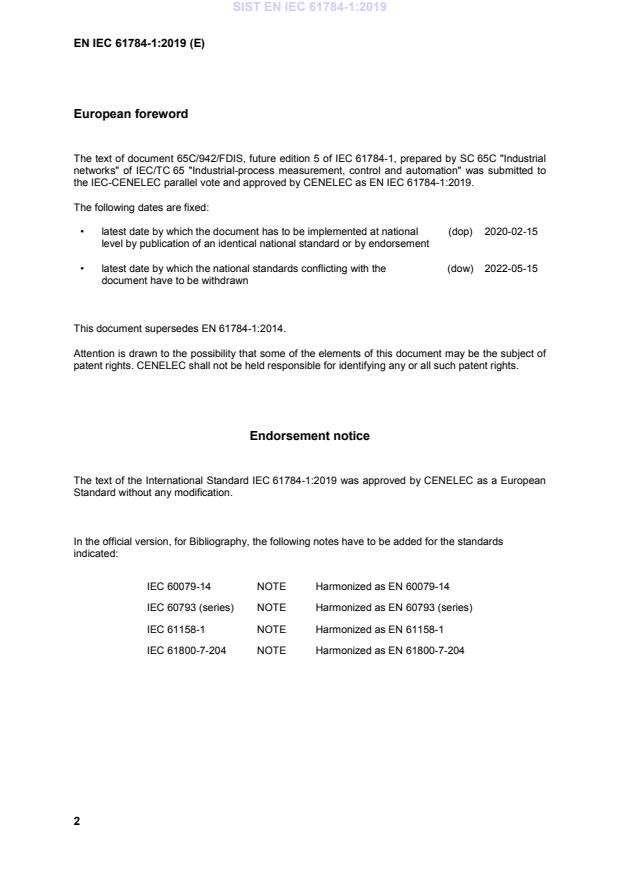

European foreword
The text of document 65C/942/FDIS, future edition 5 of IEC 61784-1, prepared by SC 65C "Industrial
networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was submitted to
the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61784-1:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-02-15
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-05-15
document have to be withdrawn
This document supersedes EN 61784-1:2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 61784-1:2019 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60079-14 NOTE Harmonized as EN 60079-14
IEC 60793 (series) NOTE Harmonized as EN 60793 (series)
IEC 61158-1 NOTE Harmonized as EN 61158-1
IEC 61800-7-204 NOTE Harmonized as EN 61800-7-204
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60079-11 - Explosive atmospheres - Part 11: Equipment EN 60079-11 -
protection by intrinsic safety "i"
IEC 60079-25 - Explosive atmospheres - Part 25: Intrinsically EN 60079-25 -
safe electrical systems
IEC 61010 series Safety requirements for electrical equipment for - series
measurement, control, and laboratory
IEC 61131-2 - Programmable controllers - -
IEC 61158 series Industrial communication networks - Fieldbus - -
specifications
IEC 61158-2 2014 Industrial communication networks - Fieldbus EN 61158-2 2014
specifications - Part 2: Physical layer
specification and service definition
IEC 61158-3-1 2014 Industrial communication networks - Fieldbus EN 61158-3-1 2014
specifications - Part 3-1: Data-link layer service
definition - Type 1 elements
IEC 61158-3-2 2014 Industrial communication networks - Fieldbus EN 61158-3-2 2014
specifications - Part 3-2: Data-lonk layer service
definition - Type 2 elements
+A1 2019 +A1 2019
IEC 61158-3-3 2014 Industrial communication networks - Fieldbus EN 61158-3-3 2014
specifications - Part 3-3: Data-link layer service
definition - Type 3 elements
IEC 61158-3-4 2019 Industrial communication networks - Fieldbus EN 61158-3-4 2019
specifications - Part 3-4: Data-link layer service
definition - Type 4 elements
IEC 61158-3-7 2007 Industrial communication networks - Fieldbus EN 61158-3-7 2008
specifications - Part 3-7: Data-link layer service
definition - Type 7 elements
IEC 61158-3-8 2007 Industrial communication networks - Fieldbus EN 61158-3-8 2008
specifications - Part 3-8: Data-link layer service
definition - Type 8 elements
IEC 61158-3-16 2007 Industrial communication networks - Fieldbus EN 61158-3-16 2008
specifications - Part 3-16: Data-link layer
service definition - Type 16 elements
IEC 61158-3-18 2007 Industrial communication networks - Fieldbus EN 61158-3-18 2008
specifications - Part 3-18: Data-link layer
service definition - Type 18 elements
IEC 61158-3-19 2019 Industrial communication networks - Fieldbus EN IEC 61158-3-19 2019
specifications - Part 3-19: Data-link layer
service definition - Type 19 elements
IEC 61158-3-20 2014 Industrial communication networks - Fieldbus EN 61158-3-20 2014
specifications - Part 3-20: Data-link layer
service definition - Type 20 elements
IEC 61158-3-24 2014 Industrial communication networks - Fieldbus EN 61158-3-24 2014
specifications - Part 3-24: Data-link layer
service definition - Type 24 elements
IEC 61158-4-1 2014 Industrial communication networks - Fieldbus EN 61158-4-1 2014
specifications - Part 4-1: Data-link layer protocol
specification - Type 1 elements
IEC 61158-4-2 2019 Industrial communication networks - Fieldbus EN IEC 61158-4-2 2019
specifications - Part 4-2: Data-link layer protocol
specification - Type 2 elements
IEC 61158-4-3 2019 Industrial communication networks - Fieldbus EN IEC 61158-4-3 2019
specifications - Part 4-3: Data-link layer protocol
specification - Type 3 elements
IEC 61158-4-4 2019 Industrial communication networks - Fieldbus EN IEC 61158-4-4 2019
specifications - Part 4-4: Data-link layer protocol
specification - Type 4 elements
IEC 61158-4-7 2007 Industrial communication networks - Fieldbus EN 61158-4-7 2008
specifications - Part 4-7: Data-link layer protocol
specification - Type 7 elements
IEC 61158-4-8 2007 Industrial communication networks - Fieldbus EN 61158-4-8 2008
specifications - Part 4-8: Data-link layer protocol
specification - Type 8 elements
IEC 61158-4-16 2007 Industrial communication networks - Fieldbus EN 61158-4-16 2008
specifications - Part 4-16: Data-link layer
protocol specification - Type 16 elements
IEC 61158-4-18 2010 Industrial communication networks - Fieldbus EN 61158-4-18 2012
specifications - Part 4-18: Data-link layer
protocol specification - Type 18 elements
IEC 61158-4-19 2019 Industrial communication networks - Fieldbus EN IEC 61158-4-19 2019
specifications - Part 4 -19: Data-link layer
protocol specification - Type 19 elements
IEC 61158-4-20 2014 Industrial communication networks - Fieldbus EN 61158-4-20 2014
specifications - Part 4-20: Data-link layer
protocol specification - Type 20 elements
IEC 61158-4-24 2019 Industrial communication networks - Fieldbus EN IEC 61158-4-20 2019
specifications - Part 4-24: Data-link layer
protocol specification - Type 24 elements
IEC 61158-5-2 2019 Industrial communication networks - Fieldbus EN IEC 61158-5-2 2019
specifications - Part 5-2: Application layer
service definition - Type 2 elements
IEC 61158-5-3 2014 Industrial communication networks - Fieldbus EN 61158-5-3 2014
specifications - Part 5-3: Application layer
service definition - Type 3 elements
IEC 61158-5-4 2019 Industrial communication networks - Fieldbus - -
specifications - Part 5-4: Application layer
service definition - Type 4 elements
IEC 61158-5-5 2014 Industrial communication networks - Fieldbus EN 61158-5-5 2014
specifications - Part 5-5: Application layer
service definition - Type 5 elements
IEC 61158-5-7 2007 Industrial communication networks - Fieldbus EN 61158-5-7 2008
specifications - Part 5-7: Application layer
service definition - Type 7 elements
IEC 61158-5-8 2007 Industrial communication networks - Fieldbus EN 61158-5-8 2008
specifications - Part 5-8: Application layer
service definition - Type 8 elements
IEC 61158-5-9 2014 Industrial communication networks - Fieldbus EN 61158-5-9 2014
specifications - Part 5-9: Application layer
service definition - Type 9 elements
IEC 61158-5-16 2007 Industrial communication networks - Fieldbus EN 61158-5-16 2008
specifications - Part 5-16: Application layer
service definition - Type 16 elements
IEC 61158-5-18 2010 Industrial communication networks - Fieldbus EN 61158-5-18 2012
specifications - Part 5-18: Application layer
service definition - Type 18 elements
IEC 61158-5-19 2019 Industrial communication networks - Fieldbus - -
specifications - Part 5-19: Application layer
service definition - Type 19 elements
IEC 61158-5-20 2014 Industrial communication networks - Fieldbus EN 61158-5-20 2014
specifications - Part 5-20: Application layer
service definition - Type 20 elements
IEC 61158-5-24 2014 Industrial communication networks - Fieldbus EN 61158-5-24 2014
specifications - Part 5-24: Application layer
service definition - Type 24 elements
IEC 61158-6-2 2019 Industrial communication networks - Fieldbus EN IEC 61158-6-2 2019
specifications - Part 6-2: Application layer
protocol specification - Type 2 elements
IEC 61158-6-3 2019 Industrial communication networks - Fieldbus EN IEC 61158-6-3 2019
specifications - Part 6-3: Application layer
protocol specification - Type 3 elements
IEC 61158-6-4 2019 Industrial communication networks - Fieldbus EN IEC 61158-6-4 2019
specifications - Part 6-4: Application layer
protocol specification - Type 4 elements
IEC 61158-6-5 2014 Industrial communication networks - Fieldbus EN 61158-6-5 2014
specifications - Part 6-5: Application layer
protocol specification - Type 5 elements
IEC 61158-6-7 2007 Industrial communication networks - Fieldbus EN 61158-6-7 2008
specifications - Part 6-7: Application layer
protocol specification - Type 7 elements
IEC 61158-6-8 2007 Industrial communication networks - Fieldbus EN 61158-6-8 2008
specifications - Part 6-8: Application layer
protocol specification - Type 8 elements
IEC 61158-6-9 2014 Industrial communication networks - Fieldbus EN 61158-6-9 2014
specifications - Part 6-9: Application layer
protocol specification - Type 9 elements
IEC 61158-6-16 2007 Industrial communication networks - Fieldbus EN 61158-6-16 2008
specifications - Part 6-16: Application layer
protocol specification - Type 16 elements
IEC 61158-6-18 2010 Industrial communication networks - Fieldbus EN 61158-6-18 2012
specifications - Part 6-18: Application layer
protocol specification - Type 18 elements
IEC 61158-6-19 2019 Industrial communication networks - Fieldbus EN IEC 61158-6-19 2019
specifications - Part 6-19: Application layer
protocol specification - Type 19 elements
IEC 61158-6-20 2014 Industrial communication networks - Fieldbus EN 61158-6-20 2014
specifications - Part 6-20: Application layer
protocol specification - Type 20 elements
IEC 61158-6-24 2014 Industrial communication networks - Fieldbus EN 61158-6-24 2014
specifications - Part 6-24: Application layer
protocol specification - Type 24 elements
IEC 61784-2 2019 Industrial communication networks - Profiles - EN IEC 61784-2 2019
Part 2: Additional fieldbus profiles for real-time
networks based on ISO/IEC/IEEE 8802-3
IEC 61784-5-2 2018 Industrial communication networks - Profiles - EN IEC 61784-5-2 2018
Part 5-2: Installation of fieldbuses - Installation
profiles for CPF 2
IEC 61918 2018 Industrial communication networks - Installation EN IEC 61918 2018
of communication networks in industrial
premises
- - EN IEC 61918:2018/
AC:2019-03
IEC 62026-3 2014 Low-voltage switchgear and controlgear - - -
Controller-device interfaces (CDIs) - Part 3:
DeviceNet
IEC 62591 2016 Industrial networks - Wireless communication EN 62591 2016
network and communication profiles -
WirelessHART™
ISO/IEC 8482 - Information technology - Telecommunications - -
and information exchange between systems -
Twisted pair multipoint interconnections
ISO/IEC 8802-2 1998 Information technology - Telecommunications - -
and information exchange between systems -
Local and metropolitan area networks - Specific
requirements - Part 2: Logical link control
ISO/IEC/IEEE 2017 Information technology - Telecommunications - -
8802-3 and information exchange between systems -
Local and metropolitan area networks - Specific
requirements - Part 3: Standard for Ethernet
ISO/IEC 15802-3 - Information technology - Telecommunications - -
and information exchange between systems -
Local and metropolitan area networks -
Common specifications - Part 3: Media Access
Control (MAC) Bridges
ISO 15745-3 2003 Industrial automation systems and integration - - -
Open systems application integration
framework - Part 3: Reference description for
IEC 61158 based control systems
ANSI TIA/ - Electrical Characteristics of Generators and - -
EIA-485-A Receivers for Use in Balanced Digital Multipoint
Systems
IETF RFC 768 - User Datagram Protocol - -
IETF RFC 791 - INTERNET PROTOCOL DARPA INTERNET - -
PROGRAM PROTOCOL SPECIFICATION
IETF RFC 792 - Internet Control Message Protocol - -
IETF RFC 793 - TRANSMISSION CONTROL PROTOCOL - -
DARPA INTERNET PROGRAM PROTOCOL
SPECIFICATION
IETF RFC 826 - Ethernet Address Resolution Protocol: Or - -
Converting Network Protocol Addresses to
48.bit Ethernet Address for Transmission on
Ethernet Hardware
IETF RFC 894 - Standard for the Transmission of IP Datagrams - -
over Ethernet Networks
IETF RFC 1112 - Host Extensions for IP Multicasting - -
IETF RFC 1122 - Requirements for Internet Hosts - - -
Communication Layers
IETF RFC 1123 - Requirements for Internet Hosts - Application - -
and Support
IETF RFC 1127 - A Perspective on the Host Requirements RFCs - -
IETF RFC 2236 - Internet Group Management Protocol, Version - -
IEC 61784-1 ®
Edition 5.0 2019-04
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 1: Fieldbus profiles
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.100.20; 35.240.50 ISBN 978-2-8322-6724-0
– 2 – IEC 61784-1:2019 © IEC 2019
CONTENTS
FOREWORD . 15
INTRODUCTION . 17
1 Scope . 18
2 Normative references . 19
3 Terms, definitions, abbreviated terms, symbols, and conventions . 23
3.1 Terms and definitions . 23
3.2 Abbreviations and symbols . 24
3.2.1 IEC 61158 abbreviations and symbols . 24
3.2.2 Other abbreviations and symbols . 24
3.3 Conventions . 24
3.3.1 Conventions common to all layers . 24
3.3.2 Physical layer . 26
3.3.3 Data-link layer . 26
3.3.4 Application layer . 27
4 Conformance to communication profiles . 27
5 Communication Profile Family 1 (FOUNDATION™ fieldbus) . 28
5.1 General overview . 28
5.2 Profile 1/1 (FOUNDATION™ H1) . 29
5.2.1 Physical layer . 29
5.2.2 Data-link layer . 45
5.2.3 Application layer . 115
5.3 Profile 1/2 (FOUNDATION™ HSE) . 117
5.3.1 Physical layer . 117
5.3.2 Data-link layer . 117
5.3.3 Network layer . 117
5.3.4 Transport layer . 117
5.3.5 Application layer . 117
5.4 Profile 1/3 (FOUNDATION™ H2) . 118
5.4.1 Physical layer . 118
5.4.2 Data-link layer . 121
5.4.3 Application layer . 121
6 Communication Profile Family 2 (CIP™) . 121
6.1 General overview . 121
6.2 Profile 2/1 (ControlNet) . 122
6.2.1 Physical layer . 122
6.2.2 Data-link layer . 123
6.2.3 Application layer . 125
6.3 Profile 2/2 (EtherNet/IP) . 126
6.3.1 Physical layer . 126
6.3.2 Data-link layer . 127
6.3.3 Application layer . 128
6.4 Profile 2/3 (DeviceNet) . 130
6.4.1 Physical layer . 130
6.4.2 Data-link layer . 131
6.4.3 Application layer . 132
7 Communication Profile Family 3 (PROFIBUS & PROFINET) . 134
IEC 61784-1:2019 © IEC 2019 – 3 –
7.1 General overview . 134
7.2 Profile 3/1 (PROFIBUS DP). 135
7.2.1 Physical layer . 135
7.2.2 Data-link layer . 137
7.2.3 Application layer . 162
7.3 Profile 3/2 (PROFIBUS PA) . 219
7.3.1 Physical layer . 219
7.3.2 Data-link layer . 223
7.3.3 Application layer . 235
8 Communication Profile Family 4 (P-NET®) . 236
8.1 General overview . 236
8.2 Profile 4/1 (P-NET RS-485) . 236
8.2.1 Physical layer . 236
8.2.2 Data-link layer . 237
8.2.3 Application layer . 238
9 Communication Profile Family 5 (WorldFIP®) . 239
9.1 General overview . 239
9.2 Profile 5/1 (WorldFIP) . 240
9.2.1 Physical layer . 240
9.2.2 Data-link layer . 242
9.2.3 Application layer . 245
9.3 Profile 5/2 (WorldFIP) . 251
9.3.1 Physical layer . 251
9.3.2 Data-link layer . 251
9.3.3 Application layer . 251
9.4 Profile 5/3 (WorldFIP) . 257
9.4.1 Physical layer . 257
9.4.2 Data-link layer . 257
9.4.3 Application layer . 257
10 Communication Profile Family 6 (INTERBUS®) . 258
10.1 General overview . 258
10.2 Profile 6/1 . 259
10.2.1 Physical layer . 259
10.2.2 Data-link layer . 261
10.2.3 Application layer . 263
10.3 Profile 6/2 . 264
10.3.1 Physical layer . 264
10.3.2 Data-link layer . 265
10.3.3 Application layer . 266
10.4 Profile 6/3 . 267
10.4.1 Physical layer . 267
10.4.2 Data-link layer . 267
10.4.3 Application layer . 268
11 Communication Profile Family 7 – Void . 269
12 Communication Profile Family 8 (CC-Link) . 270
12.1 General overview . 270
12.1.1 General . 270
12.1.2 Profile 8/1 . 270
– 4 – IEC 61784-1:2019 © IEC 2019
12.1.3 Profile 8/2 . 271
12.1.4 Profile 8/3 . 271
12.2 Profile 8/1 . 271
12.2.1 Physical layer . 271
12.2.2 Data-link layer . 273
12.2.3 Application layer . 276
12.3 Profile 8/2 . 279
12.3.1 Physical layer . 279
12.3.2 Data-link layer . 279
12.3.3 Application layer . 279
12.4 Profile 8/3 . 279
12.4.1 Physical layer . 279
12.4.2 Data-link layer . 281
12.4.3 Application layer . 284 ®
13 Communication Profile Family 9 (HART ) . 287
13.1 General Overview . 287 ®
13.2 Profile 9/1, HART . 287
13.2.1 Physical layer . 287
13.2.2 Data-link layer . 288
13.2.3 Application layer . 289
13.3 Profile 9/2, WirelessHART® . 290
14 Communication Profile Family 16 (SERCOS) . 290
14.1 General overview . 290
14.2 Profile 16/1 (SERCOS I) . 290
14.2.1 Physical layer selection . 290
14.2.2 Data-link layer . 291
14.2.3 Application layer . 292
14.3 Profile 16/2 (SERCOS II) . 292
14.3.1 Physical layer . 292
14.3.2 Data-link layer . 293
14.3.3 Application layer . 294
15 Communication Profile Family 19 (MECHATROLINK) . 294
15.1 General overview . 294
15.2 Profile 19/1 (MECHATROLINK-II) . 294
15.2.1 Physical layer selection . 294
15.2.2 Data-link layer . 296
15.2.3 Application layer . 305
15.3 Profile 19/2 (M-III) . 311
15.3.1 Physical layer . 311
15.3.2 Data-link layer . 312
15.3.3 Application layer . 320
Annex A (informative) Communication concepts . 326
A.1 CPF 1 (FOUNDATION Fieldbus) communication concepts . 326
A.1.1 Overview . 326
A.1.2 Physical layer characteristics . 326
A.1.3 Data-link layer characteristics . 326
A.1.4 Application layer characteristics. 327
A.1.5 Management characteristics . 327
IEC 61784-1:2019 © IEC 2019 – 5 –
A.2 CPF 2 (CIP) communication concepts . 327
A.2.1 Overview . 327
A.2.2 CIP common characteristics . 328
A.2.3 ControlNet . 328
A.2.4 EtherNet/IP . 329
A.2.5 DeviceNet . 330
A.3 CPF 3 (PROFIBUS & PROFINET) communication concepts . 330
A.3.1 Basic characteristics . 330
A.3.2 Physical layer profiles . 331
A.3.3 Communication feature list (GSD) . 332
A.4 CPF 4 (P-NET) communication concepts . 332
A.5 CPF 5 (WorldFIP) communication concepts . 333
A.5.1 Physical layer characteristics . 333
A.5.2 Data-link layer characteristics . 334
A.5.3 Application layer characteristics. 334
A.6 CPF 6 (INTERBUS) communication concepts . 334
A.7 CPF 8 (CC-LINK) communication concepts . 336
A.7.1 Basic characteristics . 336
A.7.2 Variants . 336
A.8 CPF 9 (HART) communication concepts . 337
A.9 CPF 16 (SERCOS) communication concepts . 337
Annex B (informative) Added value of IEC 61784-1 . 339
Bibliography . 340
Figure 1 – Communication profile families and profiles . 18
Figure 2 – Example optical power budget for a 100/140 µm fiber system with a 16/16
optical passive star coupler . 45
Figure 3 – CP 3/2 Slave devices usable in applications . 135
Figure A.1 – Ring structure . 337
Figure A.2 – Topology example . 338
Table 1 – Relations of Communication Profile Families to type numbers . 19
Table 2 – Layout of profile (sub)clause selection tables . 25
Table 3 – Contents of (sub)clause selection tables . 25
Table 4 – Layout of service selection tables . 25
Table 5 – Contents of service selection tables . 26
Table 6 – Layout of parameter selection tables . 26
Table 7 – Contents of parameter selection tables. 26
Table 8 – Layout of class attribute selection tables . 27
Table 9 – Contents of class attribute selection tables . 27
Table 10 – CPF 1: overview of profile sets . 29
Table 11 – CP 1/1: PhL selection for communicating devices and their MAUs . 29
Table 12 – CP 1/1: PhL classification of MAUs and attached devices . 31
Table 13 – CP 1/1: PhL selection of Clause 16 for devices and their MAUs . 32
Table 14 – CP 1/1: PhL selection of Clause 12 for devices and their MAUs . 33
Table 15 – Void . 33
– 6 – IEC 61784-1:2019 © IEC 2019
Table 16 – CP 1/1: PhL selection of recommended IS parameters for MAU classes
111, 112, 121, 122, 511 and 512 . 34
Table 17 – CP 1/1: PhL selection for media components . 35
Table 18 – CP 1/1: PhL selection of imperative IS parameters for media in FISCO
systems . 36
Table 19 – CP 1/1: PhL selection for power supplies. 37
Table 20 – CP 1/1: PhL selection of power supply types . 38
Table 21 – CP 1/1: PhL selection of permissible output voltage and IS parameters for
FISCO power supplies . 38
Table 22 – CP 1/1: PhL selection for terminators . 39
Table 23 – CP 1/1: PhL selection of IS parameters for terminators . 40
Table 24 – CP 1/1: PhL selection of Clause 12 for intrinsic safety barriers . 40
Table 25 – CP 1/1: PhL selection of recommended IS parameters for intrinsic safety
barriers and galvanic isolators (Entity model only) . 41
Table 26 – CP 1/1: PhL selection of Clause 12 for intrinsically safe galvanic isolators . 42
Table 27 – CP 1/1: PhL selection of Clause 15, recommended optical fiber types . 43
Table 28 – CP 1/1: PhL selection of passive star couplers, recommended maximum
insertion loss . 43
Table 29 – CP 1/1: PhL selection of active star couplers . 44
Table 30 – CP 1/1: Optical power budget considerations . 44
Table 31 – CP 1/1: DLL service selection . 46
Table 32 – CP 1/1: DLL service selection of Clause 5 . 46
Table 33 – CP 1/1: DLL service selection of 5.4 . 46
Table 34 – CP 1/1: DLL service selection of 5.4.1 . 47
Table 35 – CP 1/1: DLL service selection of 5.4.3 . 47
Table 36 – CP 1/1: DLL service selection of 5.4.6 . 48
Table 37 – CP 1/1: DLL service selection of Clause 6 . 48
Table 38 – CP 1/1: DLL service selection of the summary of 6.3, DL-connection QoS . 49
Table 39 – CP 1/1: DLL service selection of Figures 9 to 14 of 6.4. 49
Table 40 – CP 1/1: DLL service selection of 6.5 . 50
Table 41 – CP 1/1: DLL service selection: replacement for Table 13 of 6.5 . 51
Table 42 – CP 1/1: DLL service selection of 6.5, replacement for Table 14 . 52
Table 43 – CP 1/1: DLL service selection of 6.5 for use of addresses for peer DLC . 52
Table 44 – CP 1/1: DLL service selection of 6.5 for use of addresses for multipeer DLC
connect request at publisher . 52
Table 45 – CP 1/1: DLL service selection of 6.5 for use of addresses for multipeer DLC
connect request at subscriber . 52
Table 46 – CP 1/1: DLL service selection of 6.6 . 53
Table 47 – CP 1/1: DLL service selection: replacement for Table 15 of 6.6 . 53
Table 48 – CP 1/1: DLL service selection of 6.7 .
...
The EN IEC 61784-1:2019 standard is a crucial document for professionals involved in industrial communication networks, specifically focusing on fieldbus profiles. Its scope is well-defined, primarily offering a comprehensive set of protocol-specific communication profiles that are essential for the design and operation of devices within factory manufacturing and process control environments. One of the notable strengths of this standard lies in its foundation on the IEC 61158 series, ensuring compatibility and interoperability among various communication protocols commonly used in industrial settings. This aspect is critical as it enhances the efficiency of communication systems and facilitates seamless integration of new technologies into existing infrastructures. The fifth edition of this standard introduces significant updates compared to its predecessor, including refreshed references to various IEC standards such as the IEC 61784 series and IEC 61918. This attention to current standards underscores the document's relevance and applicability in contemporary industrial contexts, ensuring that users can rely on updated information that reflects the latest advancements in fieldbus communication technology. Additionally, the revisions to selection tables CPF 2, CPF 4, and CPF 8 provide users with clearer guidelines for making informed selections regarding protocol implementation. This is particularly beneficial for engineers and designers who must navigate complex communication requirements efficiently. In summary, the EN IEC 61784-1:2019 standard serves as an essential resource for maintaining robust and effective communication networks in industrial environments, highlighting its significance in promoting best practices and fostering innovation within the industry.
SIST EN IEC 61784-1:2019 표준 문서는 산업 통신 네트워크와 관련된 중요한 프로파일을 정의하고 있습니다. 이 문서는 주로 IEC 61158 시리즈를 기반으로 하여, 공장 제조 및 공정 제어에서의 통신에 참여하는 장치 설계에 활용되는 프로토콜 특정 통신 프로파일 세트를 형성합니다. 다섯 번째 판은 2014년에 발표된 네 번째 판을 취소하고 대체하며, 기술적인 개정을 포함하고 있습니다. 이 표준의 주요 강점 중 하나는 비슷한 프로토콜 간의 호환성을 보장하여, 제조업체들이 다양한 장치와 시스템 간의 통신을 쉽게 구현할 수 있도록 하는 점입니다. 또한, IEC 61158 시리즈, IEC 61784-2, IEC 61784-3 시리즈, IEC 61784-5 시리즈 및 IEC 61918로의 업데이트된 참조를 통해 최신 기술 동향을 반영하고 있습니다. 이러한 업데이트는 사용자에게 더 나은 가이드를 제공하며, 인프라 투자의 유연성을 증가시킵니다. 또한, CPF 2, CPF 4 및 CPF 8에 대한 선택 테이블의 업데이트는 사용자가 적절한 프로파일을 쉽게 선택할 수 있도록 도와줍니다. 이는 복잡한 통신 요구에 대한 간소화된 접근 방식을 제공하며, 사용자들이 자신의 필요에 맞는 최적의 솔루션을 찾는 데 유용합니다. 이러한 특성들은 SIST EN IEC 61784-1:2019가 산업 통신 네트워크의 발전과 안정성에 기여할 수 있도록 합니다. 결론적으로, SIST EN IEC 61784-1:2019 표준은 산업 통신 네트워크의 효율성을 높이고, 다양한 장치 간의 신뢰성 있는 통신을 보장하는 데 필수적인 문서로 자리 잡고 있습니다. 이 표준은 제조업체 및 관련 산업에 매우 중요하며, 지속적인 기술 개발 및 응용을 위한 기초를 제공합니다.
SIST EN IEC 61784-1:2019 は、工業通信ネットワークに関連する重要な規格であり、特にファクトリー製造およびプロセス制御における通信デバイスの設計に関して明確な指針を提供しています。この規格は、IEC 61158シリーズに基づいて特定のプロトコル通信プロファイルのセットを定義しており、業界の標準としての重要性を持っています。 この第5版は、2014年に発行された第4版を廃止し、技術的な改訂が行われています。主な変更点として、IEC 61158シリーズ、IEC 61784-2、IEC 61784-3シリーズ、IEC 61784-5シリーズ、そしてIEC 61918への古くなった参照の更新が挙げられます。この更新は、通信プロファイルの適用において、最新の技術や仕様を考慮する上で非常に重要です。 さらに、CPF 2、CPF 4、CPF 8の選択表も更新されており、実用的な通信プロファイルの利用を支援するための情報が一層明確になっています。これにより、エンジニアは必要なプロファイルをより迅速かつ効果的に選定できるようになります。 この規格の強みは、工場内およびプロセス制御のシステムにおける通信の信頼性と一貫性を高めることにあります。多様なデバイス間の相互運用性を確保することで、効率的かつ効果的なオペレーションを実現し、結果的には製造業界の競争力を向上させる材料となります。 したがって、SIST EN IEC 61784-1:2019は、工業通信ネットワークの設計と運用において重要な役割を果たし、産業界全体における通信技術の進化と標準化の基盤を提供しています。
Die Norm EN IEC 61784-1:2019 behandelt umfassend die Anforderungen und Vorgaben für industrielle Kommunikationsnetzwerke, insbesondere die Feldbusprofile. Der Anwendungsbereich dieser Norm ist in der Definition von protokollspezifischen Kommunikationsprofilen verankert, die auf der IEC 61158-Serie basieren. Diese Profile sind entscheidend für die Entwicklung von Geräten, die in der Kommunikation innerhalb der Fabrikfertigung und der Prozesskontrolle eingesetzt werden. Ein wesentliches Merkmal der Norm ist die umfassende Aktualisierung der veralteten Verweise auf die IEC 61158-Serie sowie auf die Serien IEC 61784-2, IEC 61784-3, IEC 61784-5 und IEC 61918. Diese Überarbeitungen sind von großer Bedeutung, da sie sicherstellen, dass die Norm auf dem neuesten Stand der Technik bleibt und den Entwicklungen in der industriellen Kommunikation Rechnung trägt. Die Stärkung der Auswahltabellen CPF 2, CPF 4 und CPF 8 stellt einen weiteren signifikanten Fortschritt dar. Diese Tabellen sind unerlässlich für Anwender, um die richtigen Kommunikationsprofile für ihre spezifischen Anwendungen auszuwählen, was zu einer erhöhten Effizienz und Zuverlässigkeit in der industriellen Kommunikation führt. Insgesamt ist die Norm EN IEC 61784-1:2019 ein unverzichtbares Dokument für Ingenieure und Entwickler im Bereich der industriellen Automation. Ihre Relevanz zeigt sich in der Verbesserung der Interoperabilität und der standardisierten Kommunikation zwischen verschiedenen Geräten und Systemen, was letztlich zu einer Optimierung der Produktionsprozesse beiträgt.
La norme EN IEC 61784-1:2019 constitue une avancée significative dans le domaine des réseaux de communication industrielle, avec un accent particulier sur les profils de Fieldbus. Son champ d'application est particulièrement pertinent pour les professionnels de l'automatisation et du contrôle des processus industriels, car elle définit un ensemble de profils de communication spécifiques aux protocoles basés principalement sur la série IEC 61158. Cette norme est essentielle pour le design des dispositifs impliqués dans les communications au sein des environnements de fabrication d'usine. Parmi ses points forts, la cinquième édition de la norme apporte une révision technique nécessaire, annulant ainsi la quatrième édition de 2014. Les mises à jour effectuées sont cruciales, notamment la révision des références à des documents fondamentaux tels que la série IEC 61158, ainsi que les séries IEC 61784-2, IEC 61784-3 et IEC 61784-5, et IEC 61918. Cette actualisation assure l'adéquation des profils de communication avec les avancées technologiques récentes, garantissant ainsi une intégration harmonieuse dans les systèmes industriels modernes. De plus, les tables de sélection CPF 2, CPF 4 et CPF 8 ont été mises à jour, ce qui optimise la gestion des choix de communication en facilitant la sélection des profils les plus appropriés selon les besoins spécifiques des applications. Cette amélioration élargit la portée de la norme en renforçant la flexibilité et la compatibilité des systèmes de communication entre différents dispositifs industriels. En somme, la norme EN IEC 61784-1:2019 s'avère être un document fondamental, pertinent et d'une actualité indiscutable pour quiconque est impliqué dans la conception et l'implémentation de réseaux de communication industriels, assurant un cadre robuste et actualisé pour le développement d'applications en automatisation.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
