SLOVENSKI STANDARD
SIST EN 61347-2-7:2012/A2:2022
01-september-2022
Stikalne naprave za sijalke - 2-7. del: Posebne zahteve za električni vir za
varnostne storitve (ESSS) napajane elektronske predstikalne naprave za zasilno
razsvetljavo - Dopolnilo A2 (IEC 61347-2-7/AMD2:2021)

Lamp controlgear - Part 2-7: Particular requirements for electric source for safety

services (ESSS) supplied electronic controlgear for emergency lighting (self-contained)

(IEC 61347-2-7/AMD2:2021)
Geräte für Lampen - Teil 2-7: Besondere Anforderungen an batterieversorgte

elektronische Betriebsgeräte für die Notbeleuchtung (mit Einzelbatterie) (IEC 61347-2-

7/AMD2:2021)

Appareillages de lampes - Partie 2-7: Exigences particulières relatives aux appareillages

électroniques alimentés par batterie pour l'éclairage de secours (autonome) (IEC 61347-

2-7/AMD2:2021)
Ta slovenski standard je istoveten z: EN 61347-2-7:2012/A2:2022
ICS:
29.130.01 Stikalne in krmilne naprave Switchgear and controlgear
na splošno in general
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
SIST EN 61347-2-7:2012/A2:2022 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61347-2-7:2012/A2:2022
---------------------- Page: 2 ----------------------
SIST EN 61347-2-7:2012/A2:2022
EUROPEAN STANDARD EN 61347-2-7:2012/A2
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2022
ICS 29.140.99
English Version
Lamp controlgear - Part 2-7: Particular requirements for electric
source for safety services (ESSS) supplied electronic
controlgear for emergency lighting (self-contained)
(IEC 61347-2-7/AMD2:2021)

Appareillages de lampes - Partie 2-7: Exigences Geräte für Lampen - Teil 2-7: Besondere Anforderungen an

particulières relatives aux appareillages électroniques batterieversorgte elektronische Betriebsgeräte für die

alimentés par source électrique de sécurité (ESSS) pour Notbeleuchtung (mit Einzelbatterie)

l'éclairage de secours (autonome) (IEC 61347-2-7/AMD2:2021)
(IEC 61347-2-7/AMD2:2021)

This amendment A2 modifies the European Standard EN 61347-2-7:2012; it was approved by CENELEC on 2022-02-16. CENELEC

members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the

status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 61347-2-7:2012/A2:2022 E
---------------------- Page: 3 ----------------------
SIST EN 61347-2-7:2012/A2:2022
EN 61347-2-7:2012/A2:2022 (E)

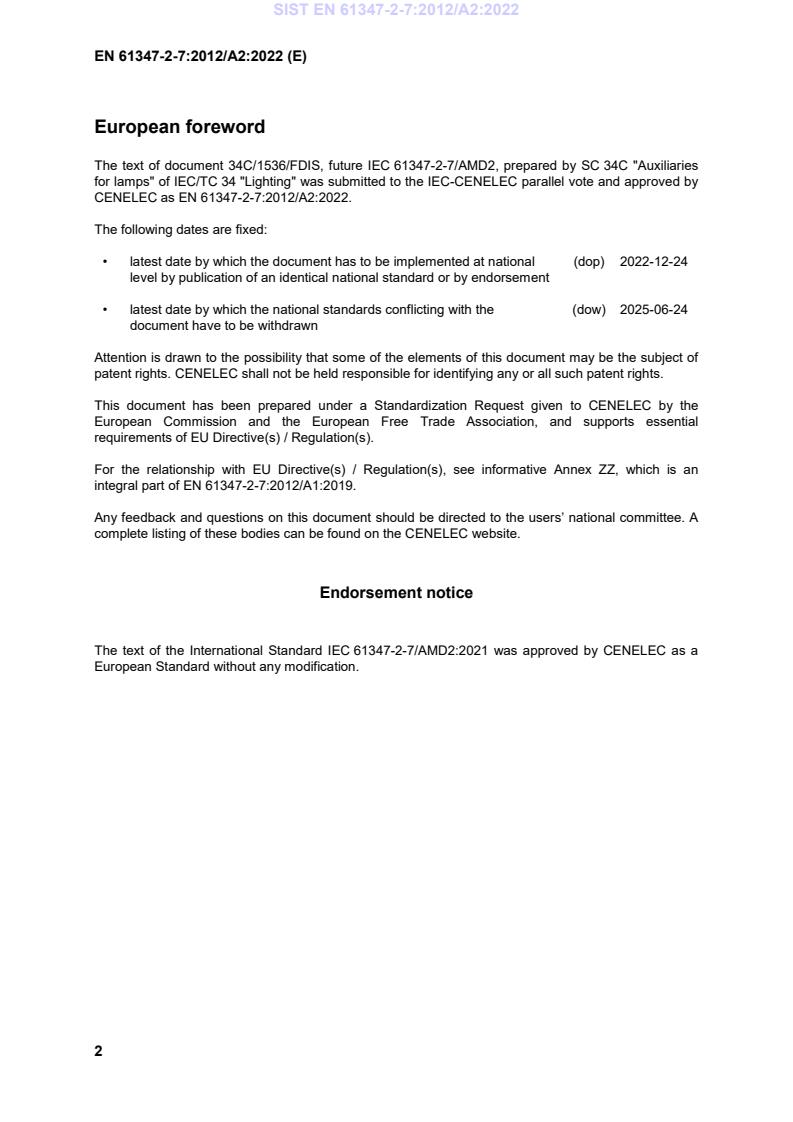

European foreword

The text of document 34C/1536/FDIS, future IEC 61347-2-7/AMD2, prepared by SC 34C "Auxiliaries

for lamps" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and approved by

CENELEC as EN 61347-2-7:2012/A2:2022.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2022-12-24

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2025-06-24

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a Standardization Request given to CENELEC by the

European Commission and the European Free Trade Association, and supports essential

requirements of EU Directive(s) / Regulation(s).

For the relationship with EU Directive(s) / Regulation(s), see informative Annex ZZ, which is an

integral part of EN 61347-2-7:2012/A1:2019.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
Endorsement notice

The text of the International Standard IEC 61347-2-7/AMD2:2021 was approved by CENELEC as a

European Standard without any modification.
---------------------- Page: 4 ----------------------
SIST EN 61347-2-7:2012/A2:2022
EN 61347-2-7:2012/A2:2022 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),

the relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available

here: www.cenelec.eu.
Replace Annex ZA of EN 61347-2-7:2012 by the following:
Publication Year Title EN/HD Year
IEC 60081 - Double-capped fluorescent lamps - EN 60081 1998
Performance specifications
EN 60081:1998/A1 2002
EN 60081:1998/A2 2003
EN 60081:1998/A3 2005
EN 60081:1998/A4 2010
EN 60081:1998/A5 2013
EN 60081:1998/A6 2017
+ A11 2018
IEC 60598-2-22 2021 Luminaires - Part 2-22: Particular EN IEC 60598-2-22 2022
requirements - Luminaires for emergency
lighting
IEC 60901 - Single-capped fluorescent lamps - EN 60901 1996
Performance specifications
EN 60901:1996/A1 1997
EN 60901:1996/A2 2000
EN 60901:1996/A3 2004
EN 60901:1996/A4 2008
EN 60901:1996/A5 2012
EN 60901:1996/A6 2017
IEC 60921 - Ballasts for tubular fluorescent lamps - EN 60921 2004
Performance requirements
EN 60921:2004/A1 2006
---------------------- Page: 5 ----------------------
SIST EN 61347-2-7:2012/A2:2022
EN 61347-2-7:2012/A2:2022 (E)
Publication Year Title EN/HD Year
IEC 60929 - AC and/or DC-supplied electronic control EN 60929 2011
gear for tubular fluorescent lamps -
Performance requirements
+ AC 2011
EN 60929:2011/A1 2016
IEC 61347-1 2015 Lamp controlgear - Part 1: General and EN 61347-1 2015
safety requirements
+ A1 2017 + A1 2021
IEC 61347-2-3 - Lamp control gear - Part 2-3: Particular EN 61347-2-3 2011
requirements for a.c. and/or d.c. supplied
electronic control gear for fluorescent
lamps
+ AC 2011
+ A1 2017
IEC 61558-1 2005 Safety of power transformers, power EN 61558-1 2005
supplies, reactors and similar products --
Part 1: General requirements and tests
+ A1 2009 + A1 2009
IEC 61558-2-1 2007 Safety of power transformers, power EN 61558-2-1 2007
supplies, reactors and similar products -
Part 2-1: Particular requirements and
tests for separating transformers and
power supplies incorporating separating
transformers for general applications
IEC 61558-2-6 2009 Safety of transformers, reactors, power EN 61558-2-6 2009
supply units and similar products for
supply voltages up to 1 100 V - Part 2-6:
Particular requirements and tests for
safety isolating transformers and power
supply units incorporating safety isolating
transformers
IEC 61558-2-16 2009 Safety of transformers, reactors, power EN 61558-2-16 2009
supply units and similar products for
supply voltages up to 1 100 V - Part 2-
16: Particular requirements and tests for
switch mode power supply units and
transformers for switch mode power
supply units
IEC 62034 - Automatic test systems for battery EN 62034 2012
powered emergency escape lighting
---------------------- Page: 6 ----------------------
SIST EN 61347-2-7:2012/A2:2022
IEC 61347-2-7
Edition 3.0 2021-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Lamp controlgear –
Part 2-7: Particular requirements for electric source for safety services (ESSS)
supplied electronic controlgear for emergency lighting (self-contained)
Appareillages de lampes –
Partie 2-7: Exigences particulières relatives aux appareillages électroniques
alimentés par source électrique de sécurité (ESSS) pour l'éclairage de secours
(autonome)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-1054-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61347-2-7:2012/A2:2022
– 2 – IEC 61347-2-7:2011/AMD2:2021
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-7: Particular requirements for electric source for safety services
(ESSS) supplied electronic controlgear for emergency lighting
(self-contained)
AMENDMENT 2
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

Amendment 2 to IEC 61347-2-7:2011 has been prepared by subcommittee 34C: Auxiliaries for

lamps, of IEC technical committee 34: Lighting.
The text of this Amendment is based on the following documents:
Draft Report on voting
34C/1536/FDIS 34C/1540/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Amendment is English.
---------------------- Page: 8 ----------------------
SIST EN 61347-2-7:2012/A2:2022
IEC 61347-2-7:2011/AMD2:2021 – 3 –
© IEC 2021

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications/.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Title of Part 2-7

In the existing title, replace "battery" with "electric source for safety services (ESSS)" as follows:

Part 2-7: Particular requirements for electric source for safety services (ESSS) supplied

electronic controlgear for emergency lighting (self-contained)
Introduction to Amendment 2

The following significant technical changes have been introduced in this Amendment 2:

a) clarification of rest mode and inhibiting mode requirements;
b) introduction of requirements for controlgear using lithium batteries;

c) introduction of requirements for controlgear using electric double-layer capacitors (EDLCs);

d) introduction of the term "electric source for safety services (ESSS)" to cover both batteries

and EDLCs;
e) clarification of changeover operation requirements.
1 Scope

Replace the text of the Scope, modified by Amendment 1, with the following new text:

This part of IEC 61347 specifies particular safety requirements for electric source for safety

services (ESSS) supplied electronic controlgear for maintained and non-maintained emergency

lighting purposes.

It includes specific requirements for electronic controlgear and control units for self-contained

luminaires for emergency lighting as specified in IEC 60598-2-22.

It is intended for controlgear for fluorescent lamps and other lamp types for example

incandescent lamps, high pressure discharge lamps and LEDs.
---------------------- Page: 9 ----------------------
SIST EN 61347-2-7:2012/A2:2022
– 4 – IEC 61347-2-7:2011/AMD2:2021
© IEC 2021

This document covers the emergency mode operation of a controlgear. For controlgear with a

combination of normal and emergency lighting operation, the normal lighting operation aspects

are covered by the appropriate Part 2 of the IEC 61347 series.

DC supplied electronic controlgear for emergency lighting can (or not) include the electric

source for safety services (ESSS).

This document does not apply to d.c. supplied electronic controlgear for emergency lighting,

which are intended for connection to a centralized emergency power supply system. A

centralized emergency power system could be a central battery system.

NOTE Annex J of IEC 61347-2-3:2011/AMD1:2016 applies to a.c., a.c./d.c. or d.c. supplied electronic controlgear

for connection to centralized emergency power supply systems that are also intended for emergency lighting

operations from a.c./d.c. supplies.
2 Normative references

Replace the existing references to IEC 60598-2-22 and IEC 61347-1 with the following new

references:

IEC 60598-2-22:2021, Luminaires – Part 2-22: Particular requirements – Luminaires for

emergency lighting
IEC 61347‑1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347‑1:2015/AMD1:2017
3 Terms and definitions
3.3

Replace the existing definition of "recharging device" with the following new definition:

recharging device

device to maintain the charge of and recharge an electric source for safety services (ESSS)

3.4

Replace the existing definition of "protection device against extensive discharge", modified by

Amendment 1, with the following new definition:
protection device against extensive discharge

automatic device to disconnect the controlgear from the electric source for safety services

(ESSS) when the ESSS voltage drops below a certain value
3.11

Replace the existing definition of "remote control" with the following new definition:

remote control

device to prevent discharge of the electric source for safety services (ESSS) by the lamp

operating circuit when normal illumination has been switched off centrally
3.12

Replace the existing definition of "indicator" with the following new definition:

indicator

device that indicates the luminaire is connected, the electric source for safety services (ESSS)

is being charged, and circuit continuity exists through the tungsten filament of emergency

lighting lamps where appropriate
---------------------- Page: 10 ----------------------
SIST EN 61347-2-7:2012/A2:2022
IEC 61347-2-7:2011/AMD2:2021 – 5 –
© IEC 2021
3.14

Replace the existing definition of "control unit" with the following new definition:

control unit

unit or set of units comprising a supply changeover system, an electric source for safety

services (ESSS) charging device and a means for testing as appropriate

Add, at the end of 3.18, added by Amendment 1, the following new entries 3.19, 3.20 and 3.21:

3.19
rated duration of emergency operation

time, as claimed by the manufacturer, during which the rated emergency lumen output is

provided
3.20
rest mode

state of a controlgear in a self-contained emergency luminaire where the output is intentionally

shut down while the normal supply is off and that, in the event of restoration of the normal

supply, automatically reverts to normal mode

[SOURCE: IEC 60598-2-22:2021, 22.3.18, modified – The definition has been revised to assign

this function to the controlgear.]
3.21
remote inhibiting mode

state of a controlgear in a self-contained emergency luminaire which is inhibited from operating

by a remote device while the normal supply is on and in the case of a normal supply failure

when the controlgear in the luminaire does not change over to emergency mode

[SOURCE: IEC 60598-2-22:2021, 22.3.21, modified – The definition has been revised to assign

this function to the controlgear.]
5 General notes on tests

In the fourth dashed item and in the penultimate paragraph replace "batteries" and "battery"

with "ESSSs" and "ESSS".
7 Marking
7.2 Information to be provided

In the 10th, 11th, 12th and 13th (modified by Amendment 1) dashed items, replace "battery"

with "ESSS".

Replace the 14 dashed item beginning with "information required for correct battery

selection...", including NOTES 2 and 3, with the following new dashed item and notes:

– for controlgear designed to use rechargeable battery, information required for correct

battery selection shall be provided.

If the manufacturer indicates that batteries are only replaceable with a specific type, the

battery technology (e.g. NiMH) together with the type reference or the code of the

replaceable battery shall be provided. If the battery is replaceable with another type, the

following details shall be provided:
• technology of the battery (e.g. NiCd, NiMH);

• type designation of the battery according to the relevant standard (e.g. temperature

classification);
---------------------- Page: 11 ----------------------
SIST EN 61347-2-7:2012/A2:2022
– 6 – IEC 61347-2-7:2011/AMD2:2021
© IEC 2021
• capacity and voltage of the battery;

• information about the charge rating of the controlgear (maximum and minimum charge

current and voltage limits);
• information about the discharge rating request by the controlgear (maximum and
minimum discharge current and voltage limits);
• temperature rating to provide the controlgear performances;

Controlgear containing any non-replaceable battery shall be marked to indicate that the

battery is non-replaceable.
NOTE 2 All electrical data are based on 25 °C reference conditions.
NOTE 3 Reference to an ESSS type and manufacturer is also acceptable.
th th

Insert, between the 14 dashed item and the 15 last dashed item, the following new dashed

item:

– for controlgear designed to use an EDLC as an ESSS, information required for correct EDLC

selection shall be provided.

If the manufacturer indicates that the EDLC is only replaceable with a specific type, the type

reference or the code of the replaceable EDLC shall be provided. If the EDLC is replaceable

with another type, the following details shall be provided:
• type of EDLC (according to the applicable IEC standard);
• rated voltage, and maximum charge voltage provided by the controlgear;
• capacity;
• temperature rating;
• temperature classification;
• dimensions.

Controlgear containing non-replaceable EDLC(s) shall be marked to indicate that the EDLC

is non-replaceable.
NOTE 4 All electrical data are based on 25 °C reference conditions.
NOTE 5 Reference to an ESSS type and manufacturer is also acceptable.

Add, at the end of the last dashed item beginning with "information regarding the installation...",

the following new dashed items and note:
– the rated charge time, if lower than 24 h, can be declared;

– the manufacturer shall make available information of the allowed time for the controlgear to

stay in rest mode or remote inhibiting mode after a full charging period, in order to provide

at least 50 % of the rated duration of the emergency operation.
• time shall be declared in days;

• for controlgear provided without battery or without a clear indication about which battery

to use, details for calculation shall be provided in accordance with 25.6.2.
NOTE 6 Examples of declared periods are 7, 30 or 90 days.
14 Fault conditions
Replace the title of Clause 14 "Fault conditions" with "Void" as follows :
14 Void
and delete the text "Not applicable.".
---------------------- Page: 12 ----------------------
SIST EN 61347-2-7:2012/A2:2022
IEC 61347-2-7:2011/AMD2:2021 – 7 –
© IEC 2021
17 Supply current

In the first two paragraphs, modified by Amendment 1, replace "battery" with "ESSS" and

"batteries" with "ESSSs".
20 Functional safety (EBLF, EOFX)
20.1 Requirements for fluorescent lamp controlgear

Replace the fourth paragraph beginning with "Electronic controlgear provided..." and the fifth

paragraph, including the list items, with the following new text:
Electronic controlgear provided with or without ESSSs:

For measurement of EBLF, voltages representative of a fully charged ESSS and the ESSS

voltage present just before lamp extinguishing are used as follows:
V – Full charge battery voltage per cell dependent on battery type as follows:
NiCd (Nickel Cadmium) 1,35 V per cell;
NiMH (Nickel Metal-Hydride) 1,35 V per cell;
Pb (Lead acid) 2,10 V per cell;
Li(NiCoMn)O (Lithium Nickel Manganese Cobalt Oxide) 4,0 V;
(Lithium Iron Phosphate) 3,65 V;
LiFePO
LTO (Lithium Titanate Oxide) 2,80 V;

(values given by default and can be different depending on the battery manufacturer's

declaration of design);
EDLC – Full charge EDLC voltage measured after full charge;

V – End of capacity battery voltage per cell dependent on battery type as follows:

min
NiCd 1,10 V;
NiMH 1,10 V;
Pb 1,80 V;
Li(NiCoMn)O 3,10 V;
LiFePO 2,00 V;
LTO 1,65 V;

(values given by default and can be different depending on the battery manufacturer's

declaration of design);

EDLC – The lowest value measured at the end of emergency operation immediately before the

light source extinguishes.
20.2 Requirements for LED lamp controlgear
20.2.1 Constant current LED controlgear: EOF and I
I emergency

Replace the existing Subclause 20.2.1, added by Amendment 1, with the following new text:

LED light sources show a direct relation between forward current and light output with only a

slight deviation due to an improved efficacy when operated at lower temperatures.

---------------------- Page: 13 ----------------------
SIST EN 61347-2-7:2012/A2:2022
– 8 – IEC 61347-2-7:2011/AMD2:2021
© IEC 2021

The emergency output factor of the forward current, EOF , is the ratio of the average current

measured in emergency mode (I ) and the average forward current measured at rated

emergency
conditions (I ).
normal mode
Compliance is checked by the following test set-up:

For compliance measurements of EOF the controlgear shall be operated with a load producing

the maximum and the minimum of the output voltage range (or power).
Electronic controlgear provided with or without ESSSs:

For the measurement of I and EOF voltages representative of a fully charged battery

emergency I

and the battery voltage present just before the lamp extinguishes are used as follows:

V – Full charge battery voltage per cell dependent on battery type as follows:
NiCd 1,35 V per cell;
NiMH 1,35 V per cell;
Pb 2,10 V per cell;
Li(NiCoMn)O 4,0 V;
LiFePO 3,65 V
LTO 2,80 V;

(values given by default and can be different depending on the battery manufacturer's

declaration of design).
EDLC – Full charge EDLC voltage measured after full charge;

V – End of capacity battery voltage per cell dependent on battery type as follows:

min
NiCd 1,10 V;
NiMH 1,10 V;
Pb 1,80 V;
3,1 V;
Li(NiCoMn)O
LiFePO 2,00 V;
LTO 1,65 V.

(values given by default and can be different depending on the battery manufacturer's

declaration of design).

EDLC – the lowest value measured at the end of emergency operation immediately before the

light source extinguishes.

Where the controlgear cut off voltage is above these voltages, the cut off voltage becomes V .

min
Measurement of I shall be made at an ambient temperature of 25 °C. The first
emergency

measurement of the output current is made at V at 5 s and at 60 s after the application of the

d.c. voltage.
The second measurement of the output current is made at V .
min
The lower of the current measured at 60 s and V or V shall be retained as I and
1 min emergency

shall reach at least the declared value for I and EOF when compared with the output

emergency I

current (I ) of the controlgear measured under normal conditions with the same load.

normal mode
---------------------- Page: 14 ----------------------
SIST EN 61347-2-7:2012/A2:2022
IEC 61347-2-7:2011/AMD2:2021 – 9 –
© IEC 2021
The value measured at 5 s and V shall reach at least 50 % of the current I .
1 emergency
emergency
EOF =
normal mode

For LED controlgear declared for use in luminaires for high-risk task area lighting the

measurements at V are carried out after 0,5 s.
21 Changeover operation

Insert, between the existing first and second paragraphs of Clause 21, modified by

Amendment 1, the following new paragraphs:

In the case of a rated supply voltage range, then changeover from normal to emergency mode

shall occur at not less than 0,6 times the maximum of the rated supply voltage range. It shall

not occur at greater than 0,85 times the minimum of the rated supply voltage range.

Controlgear with a selectable input voltage should be tested for changeover operation at each

voltage setting.
In NOTE 1, replace "batteries" with "ESSSs" and "may" with "can".

In the first sentence of the last existing paragraph, modified by Amendment 1, replace "rated

supply voltage" with "minimum rated supply voltage".
Replace the existing NOTE 2 with the following new NOTE 2:

NOTE 2 In Japan, changeover from normal to emergency mode at not less than 0,4 times the rated supply voltage

is accepted. In the case of universal controlgear without a selectable input voltage, changeover from normal to

emergency mode at not less than 0,4 times the minimum of the supply voltage range is accepted.

22 Recharging device

Replace the existing Clause 22, modified by Amendment 1, with the following new Clause 22:

The recharging device, if provided, shall provide the rated charge performance as declared by

the controlgear manufacturer to charge the ESSS within 24 h
...
