Methods of measurement and declaration of the detection range of detectors - Passive infrared detectors for major and minor motion detection

IEC 63180:2020 provides a methodology and test procedures to be able to declare and verify the detection area for motion detectors using passive infrared technology in electronic control devices and appliance switches, whether stand-alone (direct control of one or more applications) or as part of home and building electronic systems or building automation control systems (HBES/BACS) or similar.

Verfahren zur Messung und Bestimmung des Erfassungsbereichs von Meldern - Passive Infrarotmelder für die Erfassung großer und kleiner Bewegungen

Méthodes de mesure et qualification de la plage de détection des détecteurs - Détecteurs infrarouges passifs pour la détection de mouvements de forte et de faible amplitude

L'IEC 63180:2020 fournit une méthodologie et des procédures d’essai permettant de caractériser et de vérifier la zone de détection des détecteurs de mouvements utilisant la technologie infrarouge passive dans les dispositifs de commande électroniques et les commutateurs d’appareils, qu’ils soient autonomes (commande directe d’une ou plusieurs applications), faisant partie intégrante de systèmes électroniques pour les foyers domestiques et les bâtiments (HBES) ou de systèmes de gestion technique du bâtiment (SGTB), ou assimilés.

Metode merjenja in deklariranje območja zaznavanja detektorjev - Pasivni infrardeči javljalniki zaznavanja večjih in manjših gibov (IEC 63180:2020)

General Information

Status
Published
Technical Committee
Drafting Committee
Current Stage
6060 - Document made available
Due Date
21-Aug-2020
Completion Date
21-Aug-2020

Buy Standard

Standard
EN IEC 63180:2021 - BARVE na PDF-str 15,16,17,18,19,22,23,24,25,27,28,30,31,32
English language
31 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN IEC 63180:2021
01-januar-2021
Metode merjenja in deklariranje območja zaznavanja detektorjev - Pasivni
infrardeči javljalniki zaznavanja večjih in manjših gibov (IEC 63180:2020)

Methods of measurement and declaration of the detection range of detectors - Passive

infrared detectors for major and minor motion detection (IEC 63180:2020)

Verfahren für die Bestimmung der Funktionalität von Meldern - Passive Infrarotmelder für

die Bewegungs- und Präsenzmeldung (IEC 63180:2020)
Méthodes de mesure et qualification de la plage de détection des détecteurs -

Détecteurs infrarouges passifs pour la détection de mouvements de forte et de faible

amplitude (IEC 63180:2020)
Ta slovenski standard je istoveten z: EN IEC 63180:2020
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
29.120.40 Stikala Switches
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
SIST EN IEC 63180:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63180:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 63180:2021
EUROPEAN STANDARD EN IEC 63180
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2020
ICS 29.120.40
English Version
Methods of measurement and declaration of the detection range
of detectors - Passive infrared detectors for major and minor
motion detection
(IEC 63180:2020)

Méthodes de mesure et qualification de la plage de Verfahren für die Bestimmung der Funktionalität von

détection des détecteurs - Détecteurs infrarouges passifs Meldern - Passive Infrarotmelder für die Bewegungs- und

pour la détection de mouvements de forte et de faible Präsenzmeldung
amplitude (IEC 63180:2020)
(IEC 63180:2020)

This European Standard was approved by CENELEC on 2020-07-29. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 63180:2020 E
---------------------- Page: 3 ----------------------
SIST EN IEC 63180:2021
EN IEC 63180:2020 (E)

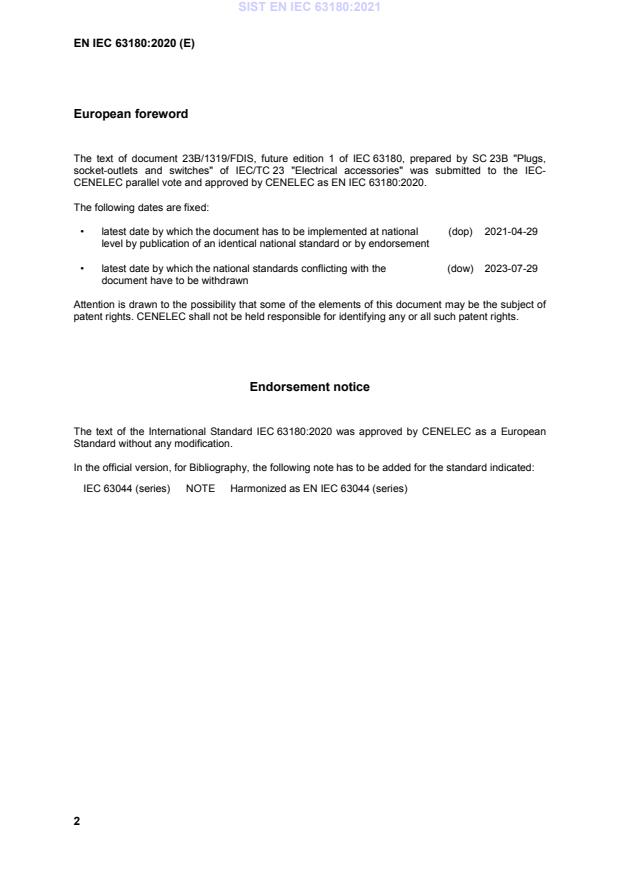

European foreword

The text of document 23B/1319/FDIS, future edition 1 of IEC 63180, prepared by SC 23B "Plugs,

socket-outlets and switches" of IEC/TC 23 "Electrical accessories" was submitted to the IEC-

CENELEC parallel vote and approved by CENELEC as EN IEC 63180:2020.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2021-04-29

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2023-07-29

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice

The text of the International Standard IEC 63180:2020 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following note has to be added for the standard indicated:

IEC 63044 (series) NOTE Harmonized as EN IEC 63044 (series)
---------------------- Page: 4 ----------------------
SIST EN IEC 63180:2021
IEC 63180
Edition 1.0 2020-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Methods of measurement and declaration of the detection range of detectors –
Passive infrared detectors for major and minor motion detection
Méthodes de mesure et qualification de la plage de détection des détecteurs –
Détecteurs infrarouges passifs pour la détection de mouvements de forte
et de faible amplitude
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.40 ISBN 978-2-8322-8525-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 5 ----------------------
SIST EN IEC 63180:2021
– 2 – IEC 63180:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 General requirements on tests ......................................................................................... 9

5 Test environment ........................................................................................................... 10

6 Test equipment .............................................................................................................. 11

6.1 Test person for major motion detection ................................................................. 11

6.2 Test dummies for major motion detection when using automated test

systems ................................................................................................................ 11

6.3 Test arm for minor motion detection ...................................................................... 15

7 Test procedure .............................................................................................................. 16

7.1 General ................................................................................................................. 16

7.2 Pre-conditioning of the detector ............................................................................ 17

7.3 Major motion detection .......................................................................................... 17

7.3.1 Detection via walking test .............................................................................. 17

7.3.2 Detection via an automated test system ......................................................... 19

7.4 Minor motion detection .......................................................................................... 21

7.5 Determining the detection boundary ...................................................................... 22

7.5.1 Determining the detection boundary for the human walking test

(tangential movement +10° from the detector) ............................................... 22

7.5.2 Determining the detection boundary for automated test (tangential

movement ±5° from the detector) ................................................................... 23

8 Presentation of test results ............................................................................................ 24

8.1 General ................................................................................................................. 24

8.2 Major motion radial and tangential area ................................................................ 25

8.3 Minor motion area ................................................................................................. 26

8.4 Creation of 3D data model for detection display of major motion ........................... 27

Bibliography .......................................................................................................................... 29

Figure 1 – Radial motion ......................................................................................................... 8

Figure 2 – Tangential motion .................................................................................................. 8

Figure 3 – Example of a major motion detector ....................................................................... 9

Figure 4 – Test dummy perspective view .............................................................................. 11

Figure 5 – Full size test dummy for testing motion detection ................................................. 12

Figure 6 – Scaled 1:2 test dummy for testing motion detection .............................................. 13

Figure 7 – Scaled 1:5 test dummy for testing motion detection .............................................. 14

Figure 8 – Test arm for testing minor motion detection .......................................................... 15

Figure 9 – Example of a test grid for tangential walking and minor motion............................. 18

Figure 10 – Test grid for radial walking test .......................................................................... 19

Figure 11 – Test setup for tangential movements (top view) .................................................. 20

Figure 12 – Test setup for radial movements (side view) ....................................................... 20

Figure 13 – Test setup for minor motion detection (view from above) .................................... 21

Figure 14 – Walking test pattern for determining the detection boundary............................... 23

---------------------- Page: 6 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 3 –
Figure 15 – Symbol used when the major motion coverage pattern has been

determined using a human subject ........................................................................................ 24

Figure 16 – Symbol used when the major motion coverage pattern has been

determined by an automated test system .............................................................................. 25

Figure 17 – Diagram for major motion and detection boundary with sample results for 90° ... 26

Figure 18 – Example of measurement result of a minor motion measurement ....................... 27

Figure 19 – Display of minor motion measurement ................................................................ 27

Figure 20 – Example of a 3D model ...................................................................................... 28

Table 1 – Relation between the declared mounting height, the mounting height of the

DUT and test dummy used .................................................................................................... 15

Table 2 – Tangential moving distance related −5° to +5° to the distance from the

detector ................................................................................................................................ 24

---------------------- Page: 7 ----------------------
SIST EN IEC 63180:2021
– 4 – IEC 63180:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
METHODS OF MEASUREMENT AND DECLARATION
OF THE DETECTION RANGE OF DETECTORS –
Passive infrared detectors for major and minor motion detection
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63180 has been prepared by subcommittee 23B: Plugs, socket-

outlets and switches, of IEC technical committee 23: Electrical accessories.
The text of this International Standard is based on the following documents:
FDIS Report on voting
23B/1319/FDIS 23B/1320/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 8 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 5 –

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 9 ----------------------
SIST EN IEC 63180:2021
– 6 – IEC 63180:2020 © IEC 2020
INTRODUCTION

Passive infrared detectors are an important element in an energy efficient building. They allow

for switching on and off and for controlling loads in order to achieve an optimum degree of

comfort and energy efficiency.

The detectors covered in this document are motion detectors using passive infrared (PIR)

technology in electronic control devices and appliance switches whether stand-alone (direct

control of one or more applications) or as part of home and building electronic systems or

building automation control systems (HBES/BACS) or similar. In the case of HBES/BACS, the

resulting action depends on the programming of the relevant HBES/BACS.
The purpose of these detectors is to detect the movement of persons.

Detectors linked to a system may also be assigned other tasks: state reporting, power

consumption, event reporting, scenarios, etc. These additional functions are not part of this

document.

In order to achieve the energy efficiency targets and comfort, the detectors should operate

accurately. In addition, the detection area will need to be provided with sufficient accuracy in

order to allow integrators to choose the correct detectors for the needed action.

This document provides a methodology and test procedures for a manufacturer to declare and

verify the detection performance of these devices with respect to the detection area.

---------------------- Page: 10 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 7 –
METHODS OF MEASUREMENT AND DECLARATION
OF THE DETECTION RANGE OF DETECTORS –
Passive infrared detectors for major and minor motion detection
1 Scope

This document provides a methodology and test procedures to be able to declare and verify

the detection area for motion detectors using passive infrared technology in electronic control

devices and appliance switches, whether stand-alone (direct control of one or more

applications) or as part of home and building electronic systems or building automation

control systems (HBES/BACS) or similar.
It also provides a uniform way to present the test results.

The purpose of these detectors is to detect the major and minor movements of persons.

2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
infrared

optical radiation for which the wavelengths in vacuum are longer than those for visible

radiation, that is approximately between 780 nm and 1 mm
[SOURCE: IEC 60050-731:1991, 731-01-05]
3.2
passive infrared detector

electronic detector that measures infrared (IR) light radiating from humans in its field of view

3.3
motion detector

unit detecting motion that can be part of an electronic control device or an appliance switch

Note 1 to entry: "Electronic control device" is used as a general term to cover electronic switches, HBES/BACS

switches and electronic extension units.
3.4
major motion
movement of a person walking into an area or walking within an area
---------------------- Page: 11 ----------------------
SIST EN IEC 63180:2021
– 8 – IEC 63180:2020 © IEC 2020
3.5
radial motion
motion directly toward the motion detector
EXAMPLE See the example given in Figure 1.
Figure 1 – Radial motion
3.6
tangential motion
motion laterally or obliquely to the motion detector
EXAMPLE See the example given in Figure 2.
Figure 2 – Tangential motion
3.7
minor motion
small movements of a person or a part of a person within an area

Note 1 to entry: Typical examples of minor motion are in working areas, for example, offices, classrooms, meeting

rooms, where the attendance time is long, and the motions of the persons are small (e.g. sitting activities with arm

movements).

Note 2 to entry: Non-standardized terms for a minor motion detector are "presence detector" or "occupancy

detector".
3.8
detection area
surface area in which the detector is specified to detect the motion of a person
EXAMPLE See the example given in Figure 3.
---------------------- Page: 12 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 9 –
Figure 3 – Example of a major motion detector
3.9
non-detection area
surface area where detection is not expected

Note 1 to entry: Although it becomes unlikely that detection of persons will occur, triggering of the detector is not

excluded in this area.
3.10
sensitivity
degree of response of a detector to an incoming signal

Note 1 to entry: Depending on the technology, sensitivity can be adjusted for certain parameters (e.g. range,

amplification of infrared signal).
3.11
delay-time

duration of time from the moment the motion was last detected until the status of the

controlled load is changed
3.12
dead time

time during which the detector is unable to detect after the delay-time and at start up

4 General requirements on tests

Detectors shall be mounted and installed according to the manufacturer's instructions.

Manufacturer's instructions regarding operation shall be applied to all tests, where applicable.

It is allowed to set the delay-time of detectors at minimum setting or in test mode. The

sensitivity is set at maximum.

NOTE A modification of the detector software with a minimum value of 5 s for the delay-time can be necessary to

shorten the test time in total.

During the test, the detectors shall be able to activate the load independently of the light level

in the test room.

The dead time of the detector shall be considered according to the manufacturer's

instructions. The timing of any persons' (dummy) movement and any test arm movement shall

be adjusted accordingly.
Tests according to this document are type tests.
NOTE Type tests are defined in IEC 60050-581:2008, 581-21-08.
---------------------- Page: 13 ----------------------
SIST EN IEC 63180:2021
– 10 – IEC 63180:2020 © IEC 2020

For detectors installed in an HBES/BACS, a minimum configuration is built to test the

performance of the detectors. The digital output signal is monitored to verify the activation of

the detectors or a load can be switched in the HBES/BACS. In the latter case the dead time of

the HBES/BACS shall be taken into consideration.

The major motion test can be executed via a human walking test or via an automated test

system as described in this document.
5 Test environment
The general ambient conditions in the test room shall be as follows:
– temperature 18 °C to 23 °C;
– relative humidity maximum 70 % RH.

The size of the room shall be large enough in order not to influence the test result.

The walls of the test room, if located within the coverage area of the detector, shall not

influence the result.

NOTE This can be achieved by covering the detection area of the detector towards the wall or by covering the

wall with a coating or a curtain.

During the tests, air movement (for example, air-conditioning) shall not affect the results; and

the walls, floor and ceilings shall have a negligible effect on the reflection in the infrared

range.

The room shall be a closed room and daylight entrance shall be limited. Direct sunlight on the

test area is not allowed.
The use of artificial light shall not contain an IR component.

NOTE Artificial light without an IR component can be achieved using LED technology.

The supply voltage to the detector shall meet the following requirements:
– voltage stability ±3 %;
– frequency stability ±2 %;
– total harmonic distortion 5 %.

The temperature measurements shall be taken at 1,7 m ± 5 cm height from the floor. The

temperature measurement shall be performed as close as possible to the centre of the

expected detection area.

The temperature of walls, ceiling and floor of the test room shall be allowed to stabilize prior

to testing.

NOTE It can be required to set the test room temperature several hours prior to testing.

The test room temperature and the temperature of the walls, ceiling and floor shall be stable

within a tolerance of ±2 K during the tests.

When using test dummies and test arms to perform the tests, the difference between the

temperature of these tools and that of the test room shall be stable during the tests within a

tolerance of ±2 K.
There shall be no other people or moving objects in the coverage area.
---------------------- Page: 14 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 11 –
6 Test equipment
6.1 Test person for major motion detection
The test person shall meet the following criteria:
– height: 1,7 m ± 10 cm;
– weight: 70 kg ± 10 kg.

The test person shall be dressed in tight fitting clothes with the hands and head exposed (e.g.

bicycling clothes, running clothes) in such a way that, when measured with infrared camera on

one point of the body, in the vicinity of the belly button, the test person achieves a

temperature average of 7 K ± 2 K above the ambient temperature of the room.

NOTE The 7 K delta value was found to be the average surface temperature of people with only the head and

hands exposed.
6.2 Test dummies for major motion detection when using automated test systems
For testing the detection area, a test dummy as given in Figure 4 shall be used.
Figure 4 – Test dummy perspective view

For detectors with an installation height up to and including 3 m, a full-size test dummy as

given in Figure 5 shall be used. Providing that a sufficiently large testing room is available, a

full-size dummy can also be used for testing higher installation heights. If the test room is not

large enough, smaller test dummies can be used as given in Figure 6 and Figure 7, and shall

be chosen according to Table 1.
---------------------- Page: 15 ----------------------
SIST EN IEC 63180:2021
– 12 – IEC 63180:2020 © IEC 2020
Dimensions in millimetres (tolerance ± 3 mm)

The temperature of the zone between the head and the shoulders, within 50 mm, is undefined.

Figure 5 – Full size test dummy for testing motion detection
---------------------- Page: 16 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 13 –
Dimensions in millimetres (tolerance ± 3 mm)

The temperature of the zone between the head and the shoulders, within 30 mm, is undefined.

Figure 6 – Scaled 1:2 test dummy for testing motion detection
---------------------- Page: 17 ----------------------
SIST EN IEC 63180:2021
– 14 – IEC 63180:2020 © IEC 2020
Dimensions in millimetres (tolerance ± 3 mm)

The temperature of the zone between the head and the shoulders, within 20 mm, is undefined.

Figure 7 – Scaled 1:5 test dummy for testing motion detection

The test dummies are built in accordance with Figure 5 to Figure 7. The temperature of each

zone (head, body and legs) can be controlled separately as follows:

The head is heated to a temperature of 14 K ± 1 K above the ambient temperature of the test

room.

The body and legs are heated to a temperature of 7 K ± 1 K above the ambient temperature of

the test room.

All test sides of the dummies shall be heated except the back side and the bottom side, which

are not relevant for the test.

The temperature of the surface for each zone of the dummy shall be homogeneous and the

spread shall be ≤ 1,5 K.

NOTE The dummy can be made of aluminium, painted black and heated by heating plates placed inside the

dummy.

The temperature of the dummy shall be stable for a minimum of 10 min prior to testing and for

the duration of the tests.
The weight of the test dummy is irrelevant.

A full size dummy can be used for testing real installation height, providing that a sufficiently

large testing room is available; otherwise, for testing different mounting heights or simulated

mounting heights, the test dummy shall be chosen according Table 1.
---------------------- Page: 18 ----------------------
SIST EN IEC 63180:2021
IEC 63180:2020 © IEC 2020 – 15 –
Table 1 – Relation between the declared mounting height,
the mounting height of the DUT and test dummy used
Declared mounting Mounting height of the Test dummy used
height of the DUT (H) DUT during the test
0,9 m to 15 m H Figure 5: Scale 1:1
Above 3 m up to and H/2 Figure 6: Scale 1:2
including 6 m
Above 6 m up to and H/5 Figure 7: Scale 1:5
including 15 m
6.3 Test arm for minor motion detection
The test a
...
