EUROPEAN STANDARD
EN 50483-5
NORME EUROPÉENNE
January 2009
EUROPÄISCHE NORM
ICS 29.240.20
English version
Test requirements for low voltage aerial bundled cable accessories -
Part 5: Electrical ageing test
Prescriptions relatives aux essais Prüfanforderungen für Bauteile für isolierte
des accessoires pour réseaux aériens Niederspannungsfreileitungen -
basse tension torsadés - Teil 5: Elektrische Alterungsprüfungen
Partie 5: Essai de vieillissement électrique
This European Standard was approved by CENELEC on 2008-12-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: avenue Marnix 17, B - 1000 Brussels
© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50483-5:2009 E

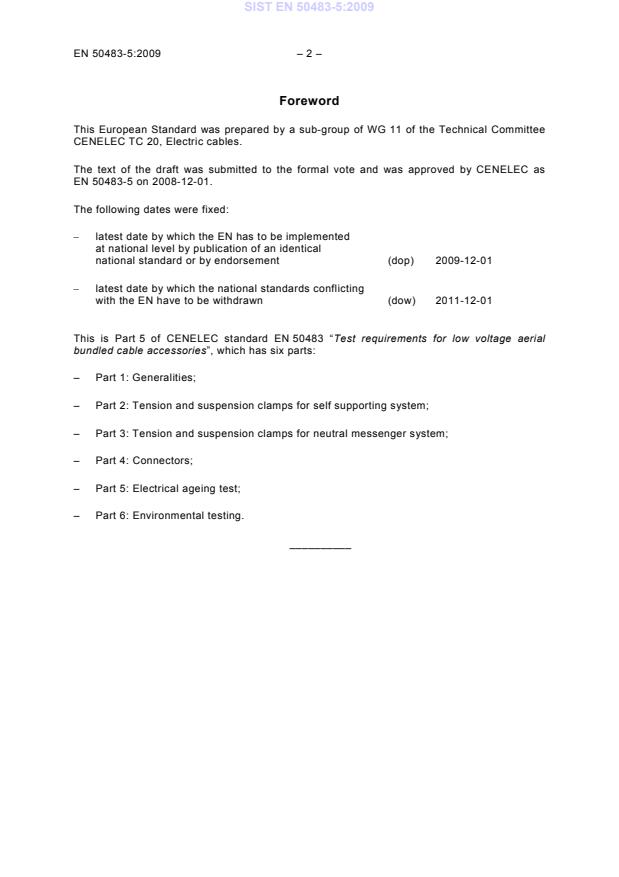

Foreword
This European Standard was prepared by a sub-group of WG 11 of the Technical Committee
CENELEC TC 20, Electric cables.
The text of the draft was submitted to the formal vote and was approved by CENELEC as
EN 50483-5 on 2008-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-12-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2011-12-01
This is Part 5 of CENELEC standard EN 50483 “Test requirements for low voltage aerial
bundled cable accessories”, which has six parts:
– Part 1: Generalities;
– Part 2: Tension and suspension clamps for self supporting system;
– Part 3: Tension and suspension clamps for neutral messenger system;
– Part 4: Connectors;
– Part 5: Electrical ageing test;
– Part 6: Environmental testing.
__________
– 3 – EN 50483-5:2009
Contents
1 Sc op e . . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Symbols . 7
5 Type test . 8
5.1 Principle . 8
5.2 Test arrangement . 8
5.3 Test spec im en . 11
5.4 Measurement . 13
5.5 Heat cycle . 15
5.6 Requir em ents . 19
Annex A (normative) Equalizers . 29
Annex B (informative) Determination of the value of the short-circuit current . 31
Annex C (informative) Recommendations to improve accuracy of measurement . 32
Bibliography . 33
Figures
Figure 1 – Lengths and configurations of conducting paths . 10
Figure 2 – Location of thermocouples . 14
Figure 3 – First heat cycle . 17
Figure 4 – Use of a concentric return conductor . 18
Figure 5 – Test loop for branch connectors with main and branch conductors having
equal cross-sections and linear resistances . 24
Figure 6 – Test loop for branch connectors with main and branch conductors having
unequal cross-sections and linear resistances . 25
Figure 7 – Test loop for through connectors with conductors having equal or unequal
cross-sections and linear resistances . 26
Figure 8 – Test loop for pre-insulated lugs . 28
Figure A.1 – Equalizers. 30
Figure B.1 – Diagram of short-circuit current . 31
Tables
Table 1 – Conducting path lengths . 11
Table 2 – Testing cross-sections of main and branch conductors . 12
Table 3 – Minimum elevated current heating time . 16
Table 4 – Test requirements . 23
Table A.1 – Dimensions of equalizers . 29
1 Scope
EN 50483 series applies to overhead line fittings for tensioning, supporting and connecting
aerial bundled cables (ABC) of rated voltage U /U (U ): 0,6/1 (1,2) kV.
0 m
This Part 5 applies to the connections described in EN 50483-4, including branch connectors,
Insulation Piercing Connectors (IPC), pre-insulated lugs (terminals) and through pre-insulated
connectors (sleeves).
The objective is to provide a method of testing the suitability of connectors when used under
normal operating conditions with low voltage aerial bundled cables complying with HD 626.
Two classes of connectors are covered by this standard:
Class A: These are connectors intended for electricity distribution or industrial networks in
which they can be subjected to short-circuits of relatively high intensity and duration. As a
consequence, Class A connectors will be suitable for the majority of applications.
Class B: These are connectors for networks in which overloads or short-circuits are rapidly
cleared by the operation of protection devices.
Depending on their application, the connectors are subjected to heat cycles and short-circuit
current tests.
Class A: the connectors are subjected to heat cycles and short-circuit current tests.
Class B: the connectors are subjected to heat cycles only.
The object of this Part 5 is to define the heating cycles test methods and requirements which
apply to compression through connectors, insulation piercing connectors and all other type of
connections for low voltage aerial bundled cables.
NOTE This European Standard does not invalidate existing approvals of products achieved on the basis of
national standards and specifications and/or the demonstration of satisfactory service performance. However,
products approved according to such national standards or specifications cannot directly claim approval to this
European Standard. It may be possible, subject to agreement between supplier and purchaser, and/or the relevant
conformity assessment body, to demonstrate that conformity to the earlier standard can be used to claim
conformity to this standard, provided an assessment is made of any additional type testing that may need to be
carried out. Any such additional testing that is part of a sequence of testing cannot be done separately.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
EN 50483 series, Test requirements for low voltage aerial bundled cable accessories
EN 61238-1:2003, Compression and mechanical connectors for power cables for rated voltages up to
36 kV (U = 42 kV) – Part 1: Test methods and requirements (IEC 61238-1:2003, mod.)
m
IEC 60050-461, International Electrotechnical Vocabulary (IEV) – Part 461: Electric cables
– 5 – EN 50483-5:2009
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-461 and the
following apply.
3.1
adiabatic
occurring with no addition or loss of heat from the system under consideration
3.2
aerial bundled cable (ABC)
aerial cable consisting of a group of insulated conductors which are twisted together
including, or not, a non insulated conductor
[IEV 461-08-02, modified]
NOTE The terms bundled conductors, bundled cables, bundled cores, conductor bundles and bundle could be
used as equivalent to the term aerial bundled cable (ABC).
3.3
aerial-insulated-cable
insulated cable designed to be suspended overhead and outdoors
[IEV 461-08-01]
3.4
branch connector
metallic device for connecting a branch conductor to a main conductor at an intermediate
point on the latter
[IEV 461-17-05]
3.5
branch conductor
conductor connected to the main conductor by a connector
3.6
conductor insulation
insulation applied on a conductor
[IEV 461-02-02, modified]
3.7
conductor (of a cable)
part of a cable which has the specific function of carrying current
[IEV 461-01-01]
3.8
connector
metallic device to connect cable conductors together
[IEV 461-17-03]
3.9
core
assembly comprising conductor and its own insulation
[IEV 461-04-04, modified]
3.10
equalizer
arrangement used in the test loop to ensure a point of equipotential in a stranded conductor
[EN 61238-1:2003, 3.8]
3.11
insulation (of a cable)
insulating materials incorporated in a cable with the specific function of withstanding voltage
[IEV 461-02-01]
3.12
insulation piercing connector (IPC)
connector in which electrical contact with the conductor is made by metallic protrusions which
pierce the insulation of the ABC core
[IEV 461-11-08, modified]
3.13
median connector
connector which during the first heat cycle records the third highest temperature of the six
connectors in the test loop
[EN 61238-1:2003, 3.11]
3.14
pre-insulated (terminal) lug
insulated metallic device for connecting an insulated cable conductor to other electrical
equipment
3.15
pre-insulated through connector (sleeve)
insulated metallic device for connecting two consecutive lengths of insulated conductors
3.16
reference conductor
length of conductor(s) without any joints, which is included in the test loop and which enables
the reference temperature and reference resistance(s) to be determined
3.17
reusable connector
connector for connecting ABC to stripped cable or bare conductor where only the branch
connection can be reused
3.18
sheath
uniform and continuous tubular covering of metallic or non metallic material, generally
extruded
[IEV 461-05-03]
3.19
shear head
head of a bolt, or a device fitted over the head of a bolt or a nut, which is designed to break at
a specified torque
3.20
type test
test required to be made before supplying a type of material covered by this standard on a
general commercial basis, in order to demonstrate satisfactory performance characteristics to
meet the intended application
NOTE These tests are of such a nature that, after they have been made, they need not be repeated unless
changes are made to the accessory materials, design or type of manufacturing process which might change the
performance characteristics.
– 7 – EN 50483-5:2009
4 Symbols
A, A , A electrical cross-sectional area of the conductors
1 2
D conductor diameter
D equalizer diameter
Eq
d conductor len
...
