EN 61606-3:2008

Audio and audiovisual equipment - Digital audio parts - Basic measurement methods of audio characteristics - Part 3: Professional use

IEC 61606-3:2008(E) is applicable to the basic measurement methods of audio equipment for professional use. The definitions, measuring conditions and methods common to both consumer and professional equipment are described in the IEC 61606-1. This standard contains details of definitions and measuring conditions and methods applicable to professional equipment which differ from those described in IEC 61606-1.

Audio- und audiovisuelle Geräte - Digitale Tonteile - Grundlegende Messverfahren der Audio-Eigenschaften - Teil 3: Professioneller Gebrauch

Equipements audio et audiovisuels - Parties audionumériques - Méthodes fondamentales pour la mesure des caractéristiques audio - Partie 3: Utilisations professionnelles

La CEI 61606-3:2008 s'applique aux méthodes fondamentales pour la mesure des équipements audio à usage professionnel. Les définitions, les conditions et les méthodes de mesure communes aux équipements grand public et professionnels sont décrites dans la CEI 61606-1. Cette norme contient des détails relatifs aux définitions et aux conditions et méthodes de mesure applicables aux équipements professionnels qui sont différentes de celles décrites dans la CEI 61606-1. Cette publication doit être lue conjointement avec la CEI 61606-1:2009.

Avdio in avdiovizualna oprema - Digitalni avdio deli - Osnovne merilne metode zvokovnih karakteristik - 3. del: Profesionalna uporaba (IEC 61606-3:2008)

General Information

• Status: Published
• Publication Date: 13-Nov-2008
• Withdrawal Date: 31-Oct-2011
• ICS: 33.160.30 - Audio systems
• Technical Committee: CLC/TC 100X - Audio, video and multimedia systems and equipment and related sub-systems
• Drafting Committee: IEC/TC 100 - IEC_TC_100
• Parallel Committee: IEC/TC 100 - IEC_TC_100
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 14-Nov-2008
• Completion Date: 14-Nov-2008
• Ref Project: SIST EN 61606-3:2009 - Audio and audiovisual equipment - Digital audio parts - Basic measurement methods of audio characteristics - Part 3: Professional use (IEC 61606-3:2008)

Overview

EN 61606-3:2008 (IEC 61606-3:2008) - Audio and audiovisual equipment - Digital audio parts - Basic measurement methods of audio characteristics - Part 3: Professional use - specifies the measurement methods, definitions and measuring conditions that are specific to professional digital audio equipment. It is intended to be used together with IEC/EN 61606-1, which covers the general definitions and methods common to both consumer and professional equipment. EN 61606-3 focuses on the additional or differing requirements needed when measuring studio, broadcast and other professional-grade audio devices.

Key topics

This standard addresses practical measurement topics for digital audio parts, including:

• Definitions and rated values specific to professional equipment and interfaces.
• Measuring conditions: environmental, power supply, test-signal frequencies, preconditioning and standard settings.
• Measurement instrumentation: signal generators, analyzers and recommended measurement setups.
• General audio characteristics:
  • Linear response and frequency response measurement
  • Amplitude non-linearity and overload behaviour
  • Noise measurement (idle-channel noise, weighted noise, dynamic range)
  • Distortion and interference products (THD, intermodulation, harmonic/spurious products)
  • Sampling effects (aliasing, imaging, sampling-jitter susceptibility)
• Input/output characteristics for analogue and digital ports: full-scale levels, common-mode rejection, channel separation and output balance.
• Alternative methods and annexed stimulus wavetables for reproducible testing.

Practical applications

EN 61606-3 is used to:

• Develop test procedures and QA protocols for professional audio equipment (mixing consoles, converters, studio recorders, broadcast interfaces).
• Validate performance during design verification and production testing.
• Provide objective test data for datasheets and compliance reports.
• Support calibration and certification activities in test laboratories.

Keywords: EN 61606-3:2008, IEC 61606-3, digital audio parts, audio measurement, professional audio testing.

Who should use this standard

• Audio equipment manufacturers (R&D and QA teams)
• Independent test and calibration laboratories
• Broadcast and studio engineers specifying or verifying gear
• Standards and compliance officers preparing technical documentation

Related standards

• EN/IEC 61606-1 - General measurement methods for digital audio parts
• IEC 60268 series - Sound system equipment
• IEC 60958-1 - Digital audio interface
• IEC 61260 - Octave and fractional-octave filters
• AES11 - Synchronization of digital audio equipment

EN 61606-3:2008 provides the professional-grade extension to the IEC 61606 series, enabling consistent, repeatable measurement of digital audio characteristics in pro-audio contexts.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2009
Avdio in avdiovizualna oprema - Digitalni avdio deli - Osnovne merilne metode
zvokovnih karakteristik - 3. del: Profesionalna uporaba (IEC 61606-3:2008)
Audio and audiovisual equipment - Digital audio parts - Basic measurement methods of
audio characteristics - Part 3: Professional use (IEC 61606-3:2008)
Audio- und audiovisuelle Geräte - Digitale Tonteile - Grundlegende Messverfahren der
Audio-Eigenschaften - Teil 3: Professioneller Gebrauch (IEC 61606-3:2008)
Equipements audio et audiovisuels - Parties audionumériques - Méthodes
fondamentales pour la mesure des caractéristiques audio - Partie 3 : Utilisations
professionnelles (CEI 61606-3:2008)
Ta slovenski standard je istoveten z: EN 61606-3:2008
ICS:
33.160.30 Avdio sistemi Audio systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61606-3
NORME EUROPÉENNE
November 2008
EUROPÄISCHE NORM
ICS 33.160.30
English version
Audio and audiovisual equipment -
Digital audio parts -
Basic measurement methods of audio characteristics -
Part 3: Professional use
(IEC 61606-3:2008)
Equipements audio et audiovisuels -  Audio- und audiovisuelle Geräte -
Parties audionumériques - Digitale Tonteile -
Méthodes fondamentales pour Grundlegende Messverfahren
la mesure des caractéristiques audio - der Audio-Eigenschaften -
Partie 3: Utilisations professionnelles Teil 3: Professioneller Gebrauch
(CEI 61606-3:2008) (IEC 61606-3:2008)

This European Standard was approved by CENELEC on 2008-11-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61606-3:2008 E

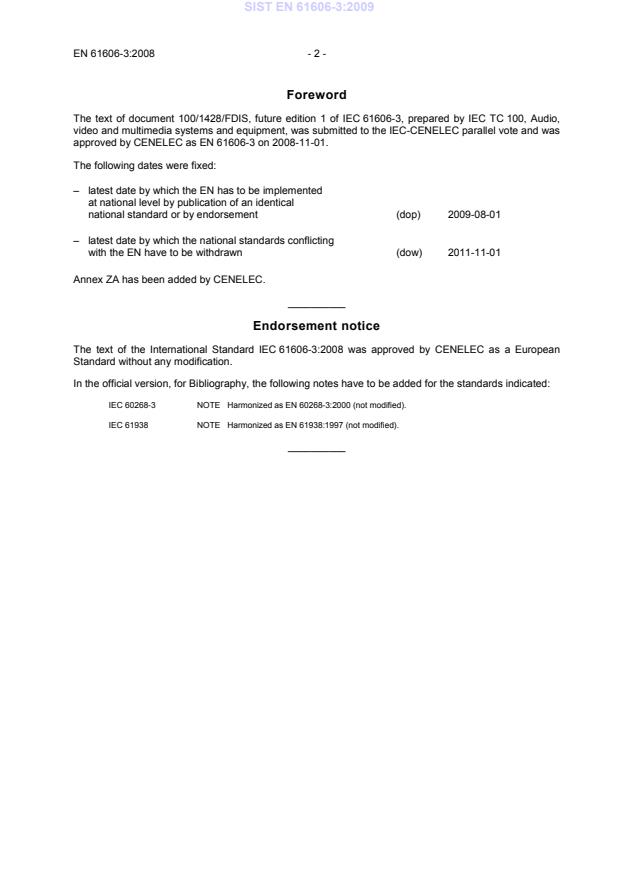

Foreword
The text of document 100/1428/FDIS, future edition 1 of IEC 61606-3, prepared by IEC TC 100, Audio,
video and multimedia systems and equipment, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 61606-3 on 2008-11-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-08-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2011-11-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61606-3:2008 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60268-3 NOTE  Harmonized as EN 60268-3:2000 (not modified).
IEC 61938 NOTE  Harmonized as EN 61938:1997 (not modified).
__________
- 3 - EN 61606-3:2008
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1) 2)
IEC 60268-1 - Sound system equipment - HD 483.1 S2 1989
Part 1: General
1) 2)
IEC 60268-2 - Sound system equipment - HD 483.2 S2 1993
Part 2: Explanation of general terms and
calculation methods
1) 2)
IEC 60958-1 - Digital audio interface - EN 60958-1 2008
Part 1: General
1) 2)
IEC 61260 - Electroacoustics - Octave-band EN 61260 1995
and fractional-octave-band filters

1) 2)
IEC 61606-1 - Audio and audiovisual equipment - EN 61606-1 2004
Digital audio parts - Basic measurement
methods of audio characteristics -
Part 1: General
AES11 2003 AES recommended practice for digital audio - -
engineering - Synchronization of digital audio
equipment in studio operations

1)
Undated reference.
2)
Valid edition at date of issue.

IEC 61606-3
Edition 1.0 2008-10
INTERNATIONAL
STANDARD
Audio and audiovisual equipment – Digital audio parts – Basic measurement
methods of audio characteristics –
Part 3: Professional use
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
X
ICS 33.160.30 ISBN 2-8318-1008-6
– 2 – 61606-3 © IEC:2008(E)
CONTENTS
FOREWORD.4
1 Scope.6
2 Normative references .6
3 Terms and definitions .7
4 Rated values .10
5 Measuring conditions.10
5.1 Environmental conditions .10
5.2 Power supply.10
5.3 Test signal frequencies .11
5.4 Standard settings .11
5.5 Preconditioning .11
5.6 Measuring instruments .11
5.6.1 General .11
5.6.2 Signal generator .11
5.6.3 Signal analyzer.12
6 Measurement methods .16
6.1 Overview .16
6.2 General characteristics.16
6.2.1 Linear response.16
6.2.2 Amplitude non-linearity .21
6.2.3 Noise.26
6.2.4 Interference products.28
6.2.5 Sampling effects.30
6.3 Input/output characteristics .32
6.3.1 Analogue input characteristics .32
6.3.2 Analogue output characteristics.34
6.3.3 Digital input characteristics.35
6.3.4 Digital output characteristics.36
Annex A (normative) Alternative measurement methods .37
Bibliography.41

Figure 1 – Signal generator .11
Figure 2 – Wideband amplitude.13
Figure 3 – In-band amplitude .13
Figure 4 – Out-of-band amplitude .13
Figure 5 – Selective amplitude.13
Figure 6 – Residual amplitude.13
Figure 7 – Weighted amplitude .14
Figure 8 – Gain method .16
Figure 9 – Frequency response method .17
Figure 10 – Maximum input and output amplitude method.18
Figure 11 – Distortion-and-noise method .21
Figure 12 – Distortion and noise versus frequency method .21
Figure 13 – Distortion and noise versus amplitude method .22

61606-3 © IEC:2008(E) – 3 –
Figure 14 – Individual harmonic distortion method .22
Figure 15 – Total harmonic distortion method .22
Figure 16 – Largest spurious signal method.23
Figure 17 – Intermodulation method.23
Figure 18 – Intermodulation method.24
Figure 19 – Amplitude-dependent gain method .25
Figure 20 – Intrinsic signal modulation products method .25
Figure 21 – Low-amplitude noise modulation method.26
Figure 22 – Idle-channel noise method .26
Figure 23 – Idle-channel noise spectrum method .27
Figure 24 – Dynamic range method .27
Figure 25 – Out-of-band noise ratio method .27
Figure 26 – Channel separation method.28
Figure 27 – Non-linear cross-talk method.29
Figure 28 – Power-line (mains) related products method.30
Figure 29 – Suppression of the aliasing components method .30
Figure 30 – Suppression of imaging components method.31
Figure 31 – Sampling jitter susceptibility method .32
Figure 32 – Analogue full-scale input amplitude method .32
Figure 33 – Overload behaviour method .33
Figure 34 – Common-mode rejection ratio method .33
Figure 35 – Analogue full-scale output amplitude method .34
Figure 36 – Output balance method .35

Table A.1 – Stimulus wavetables .38

– 4 – 61606-3 © IEC:2008(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUDIO AND AUDIOVISUAL EQUIPMENT –
DIGITAL AUDIO PARTS –
BASIC MEASUREMENT METHODS
OF AUDIO CHARACTERISTICS –
Part 3: Professional use
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61606-3 has been prepared by IEC technical committee 100:Audio,
video and multimedia systems and equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
100/1428/FDIS 100/1453/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

61606-3 © IEC:2008(E) – 5 –
A list of all parts of the IEC 61606 series, under the general title Audio and audiovisual
equipment – Digital audio parts – Basic measurement methods of audio characteristics, can
be found on the IEC website.
This International Standard is to be used in conjunction with IEC 61606-1.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – 61606-3 © IEC:2008(E)
AUDIO AND AUDIOVISUAL EQUIPMENT –
DIGITAL AUDIO PARTS –
BASIC MEASUREMENT METHODS
OF AUDIO CHARACTERISTICS –
Part 3: Professional use
1 Scope
This part of IEC 61606 is applicable to the basic measurement methods of audio equipment
for professional use.
The definitions, measuring conditions and methods common to both consumer and
professional equipment are described in the IEC 61606-1.
This standard contains details of definitions and measuring conditions and methods applicable
to professional equipment which differ from those described in IEC 61606-1.
This standard excludes consideration of
− measurement of low-quality audio devices,
− measurement of low-bit-rate audio devices (‘sub-band’ or ‘perceptual’ coding devices),
− measurement of devices which significantly modify time or frequency characteristics of the
signal, such as pitch shifters or reverberators,
− measurement of signals from analogue input to analogue output, beyond the most general,
− EMC and safety related testing.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60268-1, Sound system equipment – Part 1: General
IEC 60268-2, Sound system equipment – Part 2: Explanation of general terms and calculation
methods
IEC 60958-1, Digital audio interface – Part 1: General
IEC 61260, Electroacoustics – Octave-band and fractional-octave-band filters
IEC 61606-1, Audio and audiovisual equipment – Digital audio parts – Basic measurement
methods of audio characteristics – Part 1: General
AES11-2003, AES Recommended Practice for Digital Audio Engineering – Synchronization of
digital audio equipment in studio operations

61606-3 © IEC:2008(E) – 7 –
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
aliasing components
see definition in IEC 61606-1
3.2
analogue full-scale input and output amplitude
when applied to an analogue input of the EUT, it produces digital full-scale amplitude within
the EUT; conversely, the analogue output full-scale amplitude is that which is produced at an
analogue output from the EUT by a digital full-scale amplitude within the EUT
NOTE 1 Sometimes the range of an analogue input or output path may be less than that corresponding to digital
full-scale amplitude. For this reason, analogue full-scale input and output amplitudes are usually inferred by driving
the converters at a lower amplitude (see 6.3.1.1 and 6.3.2.1).
NOTE 2 The ideal values of these amplitudes cannot be defined within the standard since they are different for
different EUTs, and may be modally variable for a single EUT.
NOTE 3 Where these values are unknown for an EUT at the outset of testing, they should generally be
established first (using the methods described in 6.3.1.1 and 6.3.2.1 since it may subsequently be necessary, for
example, to drive an analogue input at –60 dB or to measure an amplitude at an analogue output in dB
FS FS
relative to a digital stimulus.
3.3
coding format
a numerical convention used to represent digital audio data at the inputs or outputs of the
EUT
NOTE This standard is primarily intended to be applied to EUTs which transact digital audio signals expressed as a
stream of LPCM (Linear Pulse Code Modulation) samples; that is, a stream of binary words, directly representing
the amplitudes of successive audio samples quantised at the sampling frequency, and rendered as binary 2's
complement numbers. Positive analogue voltages correspond to positive digital sample values (that is, 2’s
complement numbers whose most-significant bit (MSB) is zero). Many of the methods described in the standard are
applicable to other coding formats.
3.4
decibels full-scale
dB
FS
the r.m.s. amplitude of a sinusoid described in 3.10 is defined as 0 dB , where the amplitude
FS
of any signal can be defined in dB as 20 times the common logarithm of the ratio of the
FS
r.m.s. amplitude of the signal to that of the signal defined in 3.10
NOTE Analogue amplitudes at the input or output of an EUT can be expressed in dB by referring to the
FS
analogue full-scale input or output amplitudes as defined in 3.2.
3.5
digital audio interface
a physical medium upon which digital audio data are transferred into or out of the EUT
NOTE Digital audio interfaces may include packaged media (such as in the case of a CD player) or
radio-frequency (RF) carriers (such as in the case of a set-top-box) as well as conventional copper or optical digital
interconnections.
3.6
digital audio signal
see definition in IEC 61606-1
3.7
digital zero
see definition in IEC 61606-1
– 8 – 61606-3 © IEC:2008(E)
3.8
equipment under test
EUT
see definition in IEC 61606-1
NOTE In structuring an equipment or installation specification, it is important to consider the way in which the
different elements of the equipment might best be segmented for the purposes of the specification or measurement.
A basic D/A converter, for example, would represent a simple EUT with ‘General characteristics’, ‘Digital input
characteristics’ and ‘Analogue output characteristics’. But consider a large studio mixing console, which may have
many different functional blocks, and many different inputs and outputs of different types and in different domains.
Such a mixing console example might be considered as a collection of different elements; for example, ‘analogue
line inputs’, ‘analogue mic inputs’, ‘AES3 inputs’, ‘channel equalizers’, ‘mix bus processors’ etc. Typically, different
measurement criteria are applicable to each different element, and different performance levels might be specified.
In such a case each element or subsystem should, where possible, be considered as a discrete ‘EUT’ and should
be specified and measured individually. In addition, typical signal paths through the entire equipment may also be
specified, and their performance criteria stated as a single EUT.
3.9
folding frequency
half the sampling frequency of the EUT
NOTE 1 Signals above this frequency applied to the EUT are subject to aliasing.
NOTE 2 Complex EUTs may have an input folding frequency and an output folding frequency which are different.
In such cases, where input or output is unspecified, the folding frequency shall refer to the lower frequency.
3.10
full-scale amplitude
FS
amplitude of a 997 Hz sinusoid whose peak positive sample just reaches positive digital full-
scale (in 2’s-complement a binary value of 0111…1111 to make up the word length) and
whose peak negative sample just reaches a value one away from negative digital full-scale
(1000…0001 to make up the word length) leaving the maximum negative code (1000…0000)
unused
3.11
high and low interference frequencies
moderately high and low signal frequencies of 15 kHz and 60 Hz respectively at which certain
interference effects may be quoted if a graphical report is not required
3.12
in-band amplitude
an amplitude measurement incorporating a standard low-pass filter so as to exclude out-of-
band components above the upper band-edge frequency
3.13
in-band frequency range
see definition in IEC 61606-1
3.14
input word length
the maximum audio word length which can be applied to a digital input of the EUT at its
present settings, for which the least significant bit is not ignored
3.15
interface jitter
timing errors in the transitions of a digital audio carrier or reference sync, owing to cabling
effects or jitter in the clock of the sourcing equipment

61606-3 © IEC:2008(E) – 9 –
3.16
jitter susceptibility
the effect on EUT performance as a result of sampling jitter caused by interface jitter on the
incoming reference sync
3.17
maximal measuring amplitude
a signal amplitude of –1 dB , close to (but below) full scale amplitude, which is applied to
FS
the EUT in certain of the described methods
NOTE This definition can apply to either a digital or an analogue signal (see 3.4).
3.18
normal load impedance
required differential input impedance of the analogue measuring equipment defined as 100 kΩ
or more, in parallel with not more than 500 pF in this standard
3.19
normal measuring amplitude
a signal amplitude of −20 dB , representative of a typical operating amplitude, which is
FS
applied to the EUT in certain of the described methods

NOTE This definition can apply to either a digital or an analogue signal (see 3.4).
3.20
normal measuring frequency
a signal frequency of 997 Hz, representative of a typical mid-range frequency, which is
applied to the EUT in certain of the described methods
3.21
normal source impedance
required differential output impedance of the analogue measuring equipment defined as 50 Ω
or less for a balanced output and 25 Ω or less for an unbalanced output in this standard
3.22
out-of-band amplitude
amplitude measurement incorporating a standard out-of-band filter so as to exclude in-band
components below the upper band-edge frequency
3.23
out-of-band frequency range
frequency range from the folding frequency to 192 kHz (or some other stated maximum)
NOTE Signals applied to the EUT input in this frequency range are subject to aliasing.
3.24
output word length
number of significant bits transmitted by a digital output of the EUT at its present settings, of
which none is continuously zero
3.25
residual amplitude
an amplitude measurement incorporating a standard band-reject filter to suppress the effects
of an unwanted frequency, usually the stimulus frequency
3.26
sampling frequency
f
s
the rate at which audio samples are processed within the EUT

– 10 – 61606-3 © IEC:2008(E)
NOTE Complex EUTs may have an input sampling frequency and an output sampling frequency which are
different. In such cases, where input or output is unspecified, the sampling frequency shall refer to the lower
frequency.
3.27
sampling jitter
timing errors in the sampling instants applied by an A/D converter, D/A converter or
asynchronous sample-rate converter which lead to phase modulation of the converted audio
signal
3.28
selective amplitude
amplitude measurement incorporating a standard band-pass filter to suppress the effects of
spurious components and wideband noise
3.29
standard third-octave frequencies
set of measurement frequencies set at one-third-octave intervals, as defined in IEC 61260,
where these frequencies are preferred whenever third-octave analysis is specified
3.30
upper band-edge frequency
see definition in IEC 61606-1
4 Rated values
For a full explanation of these terms, see IEC 60268-2. The followings are rated conditions for
digital audio equipment. They should be specified by the manufacturer.
• rated supply voltage
• rated supply frequency
• rated pre-emphasis and de-emphasis characteristics
• rated digital input word length
• rated sampling frequencies
5 Measuring conditions
5.1 Environmental conditions
Where environmental conditions for EUT operation are specified by the manufacturer,
measurements will be assumed to be valid over the entire range, and shall be so verified. In
the absence of an environmental specification, tests will be performed at a temperature of
25 ˚C ± 10 ˚C, relative humidity of 60 % ± 15 % and air pressure of 96 kPa ± 10 kPa.
5.2 Power supply
Power-line (mains) voltage shall be set within 2 % of the nominal value listed on the panel of
the device being tested. If a range of values is given, the specifications are assumed to be
valid over the entire range and may be so verified.
Power-line (mains) frequency shall be set within 1 % of the nominal value listed on the panel
of the device being tested. If a range of values is given, the specifications are assumed to be
valid over the entire range and shall be so verified.
For dc-powered devices the dc supply voltage shall have a peak-to-peak ripple content of less
than 0,5 % of the nominal supply voltage.

61606-3 © IEC:2008(E) – 11 –
5.3 Test signal frequencies
The test signal frequencies defined in IEC 61606-1 are not especially applicable in the
professional context. Although these frequencies are referenced where possible, in general
this standard specifies directly such frequencies as may be required.
5.4 Standard settings
All controls of the EUT shall be set to the reference positions specified by the manufacturer,
or to their normal operating positions or to those specified in IEC 61606-1 where none is
specified.
5.5 Preconditioning
The EUT shall be preconditioned as described in IEC 61606-1.
5.6 Measuring instruments
5.6.1 General
All measuring instruments specified in this standard shall comply with the instrument
specifications in 4.6 of IEC 61606-1 except for variations and additions to their specifications
as detailed in this document.
In general, equivalent analogue and digital instruments should behave identically except
where detailed.
Digital instruments shall be able to generate and analyze data in whatever digital audio
interface format(s) are supported by the EUT.
Analogue instrument outputs should present the normal source impedance as defined in 3.21;
analogue instrument inputs should present the normal load impedance as defined in 3.18.
5.6.2 Signal generator
5.6.2.1 Generator modes
The methods described in this Clause require a variety of generator modes, which are
detailed below. These are most easily realised using a multi-function generator.
The different generator modes are indicated for each method by a generator block symbol as
shown in Figure 1.
IEC  1824/08
Figure 1 – Signal generator
The lower section of the symbol describes the mode of the generator: its function, amplitude
and frequency settings. Abbreviations are as follows:
Amplitude:
• NRM Normal measuring amplitude
• MAX Maximal measuring amplitude

– 12 – 61606-3 © IEC:2008(E)
• SWP Swept amplitude; the method is repeated at each of a defined series of test
amplitudes
• ADJ Manually adjusted amplitude
Frequency:
• NRM Normal measuring frequency
• UBE Upper band-edge frequency
• SWP Swept frequency
Other settings, as required in various modes, are described in the accompanying text.
If synchronous multi-tone analysis is to be performed, the signal generator shall additionally
have wavetable generation capabilities as described in A.1.
5.6.2.2 Dither
Unless otherwise stated, all stimuli which are used to drive the EUT in the digital domain shall
be dithered with triangular probability-density function (TPDF) white dither at the appropriate
amplitude as determined by the input word length of the EUT.
NOTE This type of dithering precisely linearizes the quantization noise of the test stimuli to finite word lengths. It
is achieved by adding a dither signal to the test stimulus signal prior to its truncation to the input word length of the
EUT. The correct dither signal is a random or pseudo-random sequence having a triangular probability density
function (TPDF), no DC offset, and a peak-to-peak amplitude of two least-significant bits of the EUT input word
length. The amplitude is constant per unit bandwidth (white) up to at least the upper band-edge frequency. TPDF is
achieved by adding pairs of uniformly-distributed random or pseudo-random numbers to form each dither sample;
the generating sequence should be long in duration and maximally random, and the extraction points of the number
pairs should be well separated in order to minimize correlation.
5.6.2.3 Accuracy
Signal generators used for measurements in this standard shall provide control over
frequency with an accuracy of at least ±0,05 %. For analogue signal generators, the
frequency may be measured with a frequency counter and adjusted to be within the required
accuracy. The frequency adjustment resolution shall be adequate to produce the frequencies
specified for each test.
Analogue stimuli shall be generated with an amplitude accuracy of at least ± (0,2 dB + 3 μV)
at the normal measuring frequency, and ±(0,3 dB + 3 μV) from 20 Hz to the upper band-edge
frequency. Digital stimuli shall be generated with an amplitude accuracy of ±(0,01 dB +
0,5 LSB).
5.6.3 Signal analyzer
5.6.3.1 Analyzer modes
The methods described in this Clause require a variety of analyzer modes which are detailed
below. These are most easily realised using a multi-function analyzer. However, individual
filters, meters etc. may be used if required. All amplitude measurements specified in this
standard shall be made with true root-mean-square (r.m.s.) responding meters. Filters are
described in 5.6.3.2.
A wideband amplitude meter, as shown in Figure 2, is a simple r.m.s. amplitude meter with no
pre-metering filters.
61606-3 © IEC:2008(E) – 13 –
IEC  1825/08
Figure 2 – Wideband amplitude
An in-band amplitude meter, as shown in Figure 3, incorporates the low-pass filter as
described in 5.6.3.2.1.
IEC  1826/08
Figure 3 – In-band amplitude
An out-of-band amplitude meter, as shown in Figure 4, incorporates the high-pass filter as
described in 5.6.3.2.2.
IEC  1827/08
Figure 4 – Out-of-band amplitude
A selective amplitude meter, as shown in Figure 5, incorporates the band-pass filter as
described in 5.6.3.2.3 to measure the amplitude of a single frequency component. Unless
otherwise stated, the band-pass filter is auto-tuned to the generator frequency.

IEC  1828/08
Figure 5 – Selective amplitude
A residual amplitude meter, as shown in Figure 6, incorporates the band-reject filter as
5.6.3.2.6 to exclude the effects of a single frequency component, usually the
described in
stimulus frequency. Unless otherwise stated, the band-reject filter is auto-tuned to the
predominant input frequency.
IEC  1829/08
Figure 6 – Residual amplitude
A weighted amplitude meter, as shown in Figure 7, incorporates the weighting filter as
described in 5.6.3.2.9.
– 14 – 61606-3 © IEC:2008(E)
IEC  1830/08
Figure 7 – Weighted amplitude
Where methods require variations on the analyzer modes described, these are detailed in the
accompanying text.
Some analyzer modes require the use of more than one cascaded filter (for example it is
sometimes necessary to exclude out-of-band components from residual measurements); in
these cases, the analyzer block symbol is designated with both filters (for example
A ).
INBAND RESIDUAL
NOTE If synchronous multi-tone analysis is to be performed, a signal analyzer with additional FFT analysis and
computation capabilities is required, as described in Annex A.
5.6.3.2 Filters
5.6.3.2.1 Low-pass filter (in-band filter)
Defined in IEC 61606-1.
5.6.3.2.2 High-pass filter (out-of-band filter)
Defined in IEC 61606-1, except as dictated by the revised out-of-band frequency range or the
sampling frequency.
5.6.3.2.3 Band-pass filter
Unless otherwise specified, band-pass filters shall conform to class II or class III response
limits as outlined in IEC 61260. This provides at least 30 dB of attenuation of signals one
octave away from the filter centre frequency and 60 dB, three octaves away. Such band-pass
filters shall be used where third-octave analysis is described (at the standard third-octave
frequencies), and for all selective amplitude measurements, except where a more selective
filter is specified.
5.6.3.2.4 Narrow band-pass filter
Defined in IEC 61606-1.
5.6.3.2.5 Window-width band-pass filter
A band-pass filter realised in the frequency domain, having an extremely narrow unity-gain
pass-band defined by the sampling frequency, Fast Fourier Transform (FFT) record length
and window function, and extreme attenuation outside that band. The width of the pass-band
is the minimum number of bins required to effectively pass the selected frequency, since the
energy at that frequency is dispersed into a number of adjacent bins dependent on the chosen
window function.
5.6.3.2.6 Band-reject filter
The band-reject filter used by default for residual and Distortion-and-noise measurements
shall have a Q of at least 1 and not more than 5, except where a greater selectivity is
specified.
The band-reject filter may be substituted in residual measurements by sharper (more
selective) band-reject filters, as described below, in certain circumstances.

61606-3 © IEC:2008(E) – 15 –
5.6.3.2.7 Narrow band-reject filter
A band-reject filter with a Q of between 5 and 10.
5.6.3.2.8 Window-width band-reject filter
A band-reject filter realised in the frequency domain, having an extremely narrow stop-band
defined by the sampling frequency, FFT record length and window function, providing extreme
attenuation, and unity gain outside that band. The width of the stop-band is the minimum
number of bins required to effectively exclude the selected frequency, since the energy at that
frequency is dispersed into a number of adjacent bins dependent on the chosen window
function.
5.6.3.2.9 Weighting filter
The weighting filter for all weighted noise measurements shall conform to IEC 60268-1 except
for overall gain. The filter unity-gain frequency shall be 2 kHz. Relative amplitude
measurements, such as signal-to-noise ratio, performed using this recommended standard
weighting filter, shall be abbreviated “dB CCIR-RMS”. Absolute amplitude measurements
performed using this recommended filter shall be denoted by the appropriate quantity
abbreviation followed by “CCIR-RMS”; for example, dB shall be “dB CCIR-RMS” If a
FS FS
standard weighting filter differing from this recommendation is used for a measurement
according to this standard, the filter network – and gain if appropriate – shall be specified.
NOTE The 2 kHz reference in this standard is equivalent to inserting an attenuation of 5,629 dB at all frequencies
when compared with the reference frequency of 1 kHz specified in IEC 60268-1.
5.6.3.3 Absolute and relative amplitude measurements
Absolute amplitude results shall be stated directly in r.m.s. units, for example dB for digital
FS
signals and dB or V for analogue signals.
u rms
Amplitude results may also be stated relative to a reference amplitude, as a ratio in decibels
or percent. Self-relative results should be stated relative to the measured analyzer input
amplitude for the same channel (prior to any filters), for example in the ‘Distortion-and-noise’
method. Channel-relative results shall be stated relative to the analyzer input amplitude of a
reference channel, for example in the cross-talk method.
Multi-function analyzers are generally capable of performing relative measurements directly.
Otherwise, the reference amplitude shall be measured in addition to the desired measurement,
and the relative result computed manually.
5.6.3.4 Accuracy
Unless otherwise specified, equipment used for measurements in this standard shall have an
accuracy in the parameter being measured of at least three times better than the specification
being verified.
All amplitude meters used for measurements in this standard shall be true root-mean-square
(r.m.s.) responding devices with a minimum required accuracy of 0,25 dB (in-band or selective
measurements) or 1,0 dB (residual measurements) over the range from 20 Hz to the upper
band-edge frequency. This accuracy shall be maintained for a signal having a crest factor of 5
or less. RMS. calibrated average or peak-responding devices shall not be used.
Analogue analysis shall apply an additional allowed tolerance of ±3 μV, and digital analysis
shall apply an additional allowed tolerance of ±0,5 LSB.
All amplitude meters used for measurements in this standard shall integrate the signal for a
minimum of 25 ms to ensure an adequate number of codes are exercised in the EUT. For low

– 16 – 61606-3 © IEC:2008(E)
detected signal frequencies the required time shall be increased to ensure that at least one
full cycle of the signal shall be measured.
6 Measurement methods
6.1 Overview
The measurement methods described in ‘General characteristics’ below shall apply to all
EUTs irrespective of their input and output types. In addition, the methods described in
‘analogue input characteristics’, ‘analogue output characteristics’, ‘digital input characteristics’
and ‘digital output characteristics’ shall be applied as dictated by the input and output
domains of the particular EUT.
If the EUT provides two or more channels, the mea
...
