Overview - EN IEC 61558-2-6:2025 (Safety isolating transformers & PSUs)

EN IEC 61558-2-6:2025 (CLC) is the European adoption of IEC 61558-2-6:2021 and is the third edition replacing EN 61558-2-6:2009. It specifies particular safety requirements and tests for safety isolating transformers and for power supply units (PSUs) incorporating safety isolating transformers intended for general applications. The document covers transformers that include electronic circuits and introduces editorial and technical updates aligned with IEC 61558-1:2017, including a new symbol for power supplies with linearly regulated outputs. This part is to be used together with IEC/EN 61558-1 (general requirements and tests).

Key topics and technical requirements

The standard supplements IEC 61558-1 and focuses on practical test and construction criteria for safety isolating transformers and related PSUs. Major topics include:

• Protection against electric shock and requirements for achieving SELV or equivalent protective measures.
• Insulation and dielectric tests: insulation resistance, dielectric strength and leakage current checks.
• Thermal requirements: heating tests and temperature limits under rated conditions.
• Short-circuit and overload protection requirements and related tests.
• Output characteristics: output voltage and current under load, no-load voltage and short-circuit voltage considerations.
• Mechanical and environmental requirements: mechanical strength, ingress protection (dust/moisture), resistance to heat, fire and tracking, and resistance to rusting.
• Construction and components: internal wiring, terminals, screws, protective earthing provisions, creepage and clearance distances.
• Marking, classification and documentation: symbols, ratings, and required information for safe operation and conformity.

Practical applications and who uses it

EN IEC 61558-2-6 is used by:

• Manufacturers and designers of safety isolating transformers and power supply units for industrial, laboratory, control and consumer equipment.
• Test laboratories and conformity assessment bodies performing type and routine testing.
• Electrical safety engineers and compliance managers preparing technical files for CE marking and national approvals.
• Procurement teams, spec writers and OEMs who need to specify transformer/PSU safety and performance for product integration.

Typical applications include control circuits, SELV supplies, instrumentation, medical-adjacent equipment (where appropriate standards apply), and general-purpose isolated power supplies.

Related standards

• EN/IEC 61558-1 (general requirements and tests) - mandatory companion document.
• IEC 61140 (protective measures), IEC 60364-4-41 (SELV guidance), IEC 60204-1 (control circuit considerations) - referenced for group safety context.
• Other parts of the IEC 61558 series for specific transformer types and applications.

Keywords: EN IEC 61558-2-6:2025, safety isolating transformers, power supply units, transformer safety standard, transformer tests, insulation testing, SELV, IEC 61558.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2025
Nadomešča:
SIST EN 61558-2-6:2010
Varnost transformatorjev, dušilk, napajalnikov in kombinacije teh - 2-6. del:
Posebne zahteve in preskusi za varnostne ločilne transformatorje in napajalnike z
varnostnimi ločilnimi transformatorji za splošno rabo
Safety of transformers, reactors, power supply units and combinations thereof - Part 2-6:
Particular requirements and tests for safety isolating transformers and power supply
units incorporating safety isolating transformers for general applications
Sicherheit von Transformatoren, Drosseln, Netzgeräten und entsprechenden
Kombinationen - Teil 2-6: Besondere Anforderungen und Prüfungen an
Sicherheitstransformatoren und Netzgeräte, die Sicherheitstransformatoren enthalten,
für allgemeine Anforderungen
Sécurité des transformateurs, bobines d'inductance, blocs d'alimentation et produits
analogues pour des tensions d'alimentation jusqu'à 1 100 V - Partie 2-6: Règles
particulières et essais pour les transformateurs de sécurité et les blocs d'alimentation
incorporant des transformateurs de sécurité
Ta slovenski standard je istoveten z: EN IEC 61558-2-6:2025
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61558-2-6

NORME EUROPÉENNE
EUROPÄISCHE NORM March 2025
ICS 29.180 Supersedes EN 61558-2-6:2009
English Version
Safety of transformers, reactors, power supply units and
combinations thereof - Part 2-6: Particular requirements and
tests for safety isolating transformers and power supply units
incorporating safety isolating transformers for general
applications
(IEC 61558-2-6:2021)
Sécurité des transformateurs, bobines d'inductance, blocs Sicherheit von Transformatoren, Drosseln, Netzgeräten und
d'alimentation et produits analogues pour des tensions entsprechenden Kombinationen - Teil 2-6: Besondere
d'alimentation jusqu'à 1 100 V - Partie 2-6: Règles Anforderungen und Prüfungen für
particulières et essais pour les transformateurs de sécurité Sicherheitstransformatoren und Netzgeräte, die
et les blocs d'alimentation incorporant des transformateurs Sicherheitstransformatoren enthalten, für allgemeine
de sécurité Anforderungen
(IEC 61558-2-6:2021) (IEC 61558-2-6:2021)
This European Standard was approved by CENELEC on 2021-06-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61558-2-6:2025 E

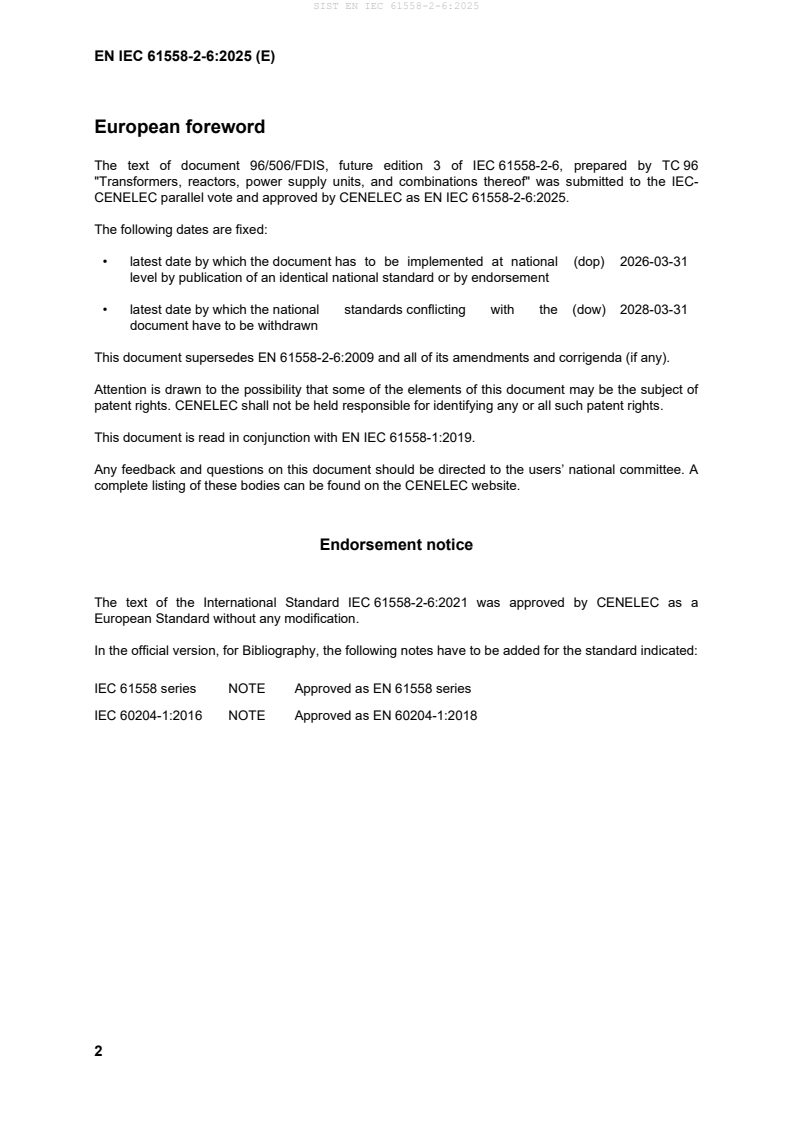

European foreword
The text of document 96/506/FDIS, future edition 3 of IEC 61558-2-6, prepared by TC 96
"Transformers, reactors, power supply units, and combinations thereof" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 61558-2-6:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-03-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-03-31
document have to be withdrawn
This document supersedes EN 61558-2-6:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 61558-1:2019.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61558-2-6:2021 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61558 series NOTE Approved as EN 61558 series
IEC 60204-1:2016 NOTE Approved as EN 60204-1:2018
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Annex ZA of EN IEC 61558-1 is applicable, except as follows:
Add:
Publication Year Title EN/HD Year
IEC 61558-1 2017 Safety of transformers, reactors, power EN IEC 61558-1 2019
supply units and combinations thereof -
Part 1: General requirements and tests

IEC 61558-2-6 ®
Edition 3.0 2021-05
INTERNATIONAL
STANDARD
GROUP SAFETY PUBLICATION
Safety of transformers, reactors, power supply units and combinations thereof –

Part 2-6: Particular requirements and tests for safety isolating transformers and

power supply units incorporating safety isolating transformers for general

applications
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.180 ISBN 978-2-8322-9791-9

– 2 – IEC 61558-2-6:2021 © IEC 2021
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirements . 8
5 General notes on tests . 8
6 Ratings . 8
7 Classification . 9
8 Marking and other information . 9
9 Protection against electric shock . 10
10 Change of input voltage setting . 10
11 Output voltage and output current under load . 10
12 No-load output voltage . 10
13 Short-circuit voltage . 11
14 Heating . 11
15 Short-circuit and overload protection . 12
16 Mechanical strength . 12
17 Protection against harmful ingress of dust, solid objects and moisture . 12
18 Insulation resistance, dielectric strength and leakage current . 12
19 Construction . 12
20 Components . 12
21 Internal wiring . 12
22 Supply connection and other external flexible cable or cords . 12
23 Terminals for external conductors . 12
24 Provisions for protective earthing. 12
25 Screws and connections . 12
26 Creepage distances, clearances and distances through insulation . 12
27 Resistance to heat, fire and tracking . 13
28 Resistance to rusting . 13
Annexes . 14
Bibliography . 15

Table 101 – Symbols indicating the kind of transformer . 10
Table 102 – Output voltage ratio . 11

IEC 61558-2-6:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY OF TRANSFORMERS, REACTORS, POWER SUPPLY
UNITS AND COMBINATIONS THEREOF –

Part 2-6: Particular requirements and tests for safety isolating
transformers and power supply units incorporating safety
isolating transformers for general applications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9)
...
