Overview

EN 60146-1-1:2010 (CLC) – equivalent to IEC 60146-1-1:2009 – specifies the basic requirements for semiconductor power converters and semiconductor power switches, with a primary focus on line commutated converters used to convert a.c. to d.c. power (and vice versa). This fourth edition is a technical revision that updates definitions, electromagnetic compatibility (EMC) and insulation co‑ordination, service condition tolerances and insulation tests, and adds three annexes.

Key topics and technical requirements

• Scope and classification of semiconductor converters and valve devices (controllable/non‑controllable).
• Definitions and terminology updates, including terms for EMC, harmonic distortion and insulation co‑ordination.
• Service condition tolerances revised in line with the IEC 61000 series (environmental and EMC-related conditions).
• Insulation tests and coordination: revised test requirements and considerations for insulation co‑ordination across low-voltage equipment.
• Operational principles for line commutated converters: commutation, quenching, calculation factors for conversion and disturbance/fault handling.
• Rated values and duty classes: rated output voltage/current, cooling codes, selection of duty class, and marking requirements.
• Performance and testing: methods and kinds of tests for valve assemblies and complete converter equipment; insulation routine tests.
• Electromagnetic compatibility and harmonic limits: guidance referencing IEC 61000 series and harmonic measurement/testing standards.
• Power conversion metrics: losses and efficiency, power factor, voltage regulation and calculation factors applicable to converter design and assessment.

Applications and who uses this standard

EN 60146-1-1 is essential for professionals and organizations involved with power-electronic equipment:

• Power electronics designers and manufacturers (rectifiers, inverters, HVDC and static VAR compensators).
• Test laboratories and certification bodies performing functional, insulation and EMC testing.
• Electrical utilities and system integrators specifying converters for power transmission, industrial drives and UPS systems.
• Compliance and safety engineers referencing insulation co‑ordination and EMC limits.
• Project engineers developing power conversion systems where no dedicated product standard exists.

Related standards (for implementation and testing)

This standard references multiple IEC/CENELEC norms relevant for practical compliance, including:

• IEC 61000 series (EMC, harmonic limits)
• IEC 60664-1 (insulation co‑ordination)
• IEC 62040 (UPS standards)
• IEC 61800 (adjustable speed drive EMC/safety) Use these related documents together with EN 60146-1-1 to ensure comprehensive design, testing and regulatory compliance for semiconductor converters.

Keywords: EN 60146-1-1:2010, IEC 60146-1-1, semiconductor converters, line commutated converters, insulation co‑ordination, EMC, harmonic distortion, power conversion, valve devices.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2010
1DGRPHãþD
SIST EN 60146-1-1:2001
SIST EN 60146-1-1:2001/A1:2001
Polprevodniški pretvorniki - Splošne zahteve in linijsko komutirani pretvorniki - 1-
1. del: Specifikacija osnovnih zahtev (IEC 60146-1-1:2009)
Semiconductor converters - General requirements and line commutated converters - Part
1-1: Specification of basic requirements (IEC 60146-1-1:2009)
Halbleiter-Stromrichter - Allgemeine Anforderungen und netzgeführte Stromrichter - Teil
1-1: Festlegung der Grundanforderungen (IEC 60146-1-1:2009)
Convertisseurs à semiconducteurs - Exigences générales et convertisseurs commutés
par le réseau - Partie 1-1: Spécification des exigences de base (CEI 60146-1-1:2009)
Ta slovenski standard je istoveten z: EN 60146-1-1:2010
ICS:
29.200 8VPHUQLNL3UHWYRUQLNL Rectifiers. Convertors.
6WDELOL]LUDQRHOHNWULþQR Stabilized power supply
QDSDMDQMH
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60146-1-1
NORME EUROPÉENNE
July 2010
EUROPÄISCHE NORM
ICS 29.200;29.045 Supersedes EN 60146-1-1:1993 + A1:1997

English version
Semiconductor converters -
General requirements and line commutated converters -
Part 1-1: Specification of basic requirements
(IEC 60146-1-1:2009)
Convertisseurs à semiconducteurs -  Halbleiter-Stromrichter -
Exigences générales et convertisseurs Allgemeine Anforderungen
commutés par le réseau - und netzgeführte Stromrichter -
Partie 1-1: Spécification des exigences Teil 1-1: Festlegung
de base der Grundanforderungen
(CEI 60146-1-1:2009) (IEC 60146-1-1:2009)

This European Standard was approved by CENELEC on 2010-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60146-1-1:2010 E

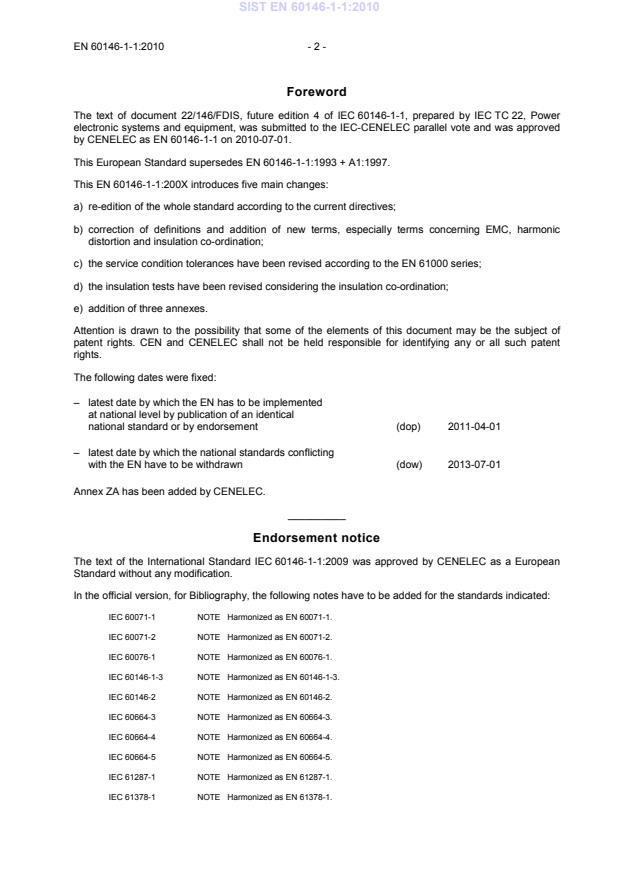

Foreword
