Guidance for installation procedures and tolerances of hydroelectric machines - Part 5: Bulb turbines and generators

The purpose of this guide is to establish, in a general way, suitable procedures and tolerances for the installation of bulb turbine and generator. This guide presents a typical assembly and whenever the words "turbine" and "generator" are used in this part, it refers to bulb turbine and generator. There are many possible ways to assemble a unit. The size of the machine, the design of the machine, the layout of the powerhouse, the sequence of concreting or the delivery schedule of the components are some of the elements that could result in additional steps, or the elimination of some steps and/or assembly sequences. It is understood that a publication of this type will be binding only if, and to the extent that, both contracting parties have agreed upon it. The guide excludes matters of purely commercial interest, except those inextricably bound up with the conduct of installation. It also excluded to specifications of the civil works but this aspect of the work should be taken into consideration during the assembly of the units. Wherever the guide specifies that documents, drawings or information is supplied by a manufacturer (or by manufacturers), each individual manufacturer will furnish the appropriate information for their own supply only.

Leitfaden für Installations-Prozeduren und -Toleranzen von hydroelektrischen Maschinen - Teil 5: Rohrturbinen und Generatoren

Lignes directrices des procédures et tolérances d’installation des machines hydroélectriques - 5: Turbines et alternateurs de type bulbe

IEC 63132-5:2023 doit établir, de manière générale, des procédures et des tolérances appropriées pour l’installation de turbines et de générateurs hydroélectriques. Ce guide présente un assemblage typique. Il faut reconnaître qu’il existe de nombreuses façons possibles d’assembler une unité. La taille des machines, la conception des machines, la disposition de la centrale et le calendrier de livraison des composants sont quelques-uns des éléments qui pourraient entraîner des étapes supplémentaires, l’élimination de certaines étapes et / ou des séquences d’assemblage.

Navodila za postopke vgradnje in tolerance hidroelektričnih strojev - 5. del: Cevne (Kaplanove) turbine in generatorji (IEC 63132-5:2023)

Namen teh navodil je na splošno vzpostaviti ustrezne postopke in dovoljene tolerance za vgradnjo cevnih (Kaplanovih) turbin in generatorjev. V navodilih je predstavljen tipični sestav, izraza »turbina« in »generator« pa se povsod navezujeta na cevno (Kaplanovo) turbino in generator. Enoto je mogoče sestaviti na več načinov. Velikost in zasnova stroja, postavitev elektrarne, zaporedje betoniranja ter razpored dobave komponent so nekateri od elementov, ki lahko zahtevajo dodatne korake ali odpravo nekaterih postopkov in/ali korakov sestavljanja.
Publikacija te vrste je zavezujoča le, če in v obsegu, v katerem jo potrdita obe pogodbenici.
Navodila ne zajemajo izključno komercialnih interesov, razen tiste, ki so neločljivo povezani z izvajanjem vgradnje. Prav tako niso zajete specifikacije gradbenih del, vendar je priporočljivo ta vidik del upoštevati pri sestavljanju enot.
Če je v navodilih navedeno, da dokumente, skice ali informacije zagotovi proizvajalec (ali proizvajalci), bo vsak posamezni proizvajalec predložil samo ustrezne informacije za lastno dobavo.

General Information

Status
Published
Publication Date
25-May-2023
Technical Committee
Drafting Committee
Current Stage
6060 - Document made available - Publishing
Start Date
26-May-2023
Due Date
30-Oct-2023
Completion Date
26-May-2023

Buy Standard

Standard
EN IEC 63132-5:2023 - BARVE
English language
36 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-julij-2023
Navodila za postopke vgradnje in tolerance hidroelektričnih strojev - 5. del: Cevne
(Kaplanove) turbine in generatorji (IEC 63132-5:2023)
Guide for installation procedures and tolerances of hydroelectric machines - Part 5: Bulb
turbines and generators (IEC 63132-5:2023)
Leitfaden für Installations-Prozeduren und -Toleranzen von hydroelektrischen Maschinen
- Teil 5 (IEC 63132-5:2023)
Lignes directrices des procédures et tolérances d’installation des machines
hydroélectriques - Partie 5: Turbines bulbes et alternateurs (IEC 63132-5:2023)
Ta slovenski standard je istoveten z: EN IEC 63132-5:2023
ICS:
27.140 Vodna energija Hydraulic energy engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 63132-5

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 27.140
English Version
Guidance for installation procedures and tolerances of
hydroelectric machines - Part 5: Bulb turbines and generators
(IEC 63132-5:2023)
Lignes directrices des procédures et tolérances Leitfaden für Installations-Prozeduren und -Toleranzen von
d'installation des machines hydroélectriques - 5: Turbines et hydroelektrischen Maschinen - Teil 5
alternateurs de type bulbe (IEC 63132-5:2023)
(IEC 63132-5:2023)
This European Standard was approved by CENELEC on 2023-05-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63132-5:2023 E

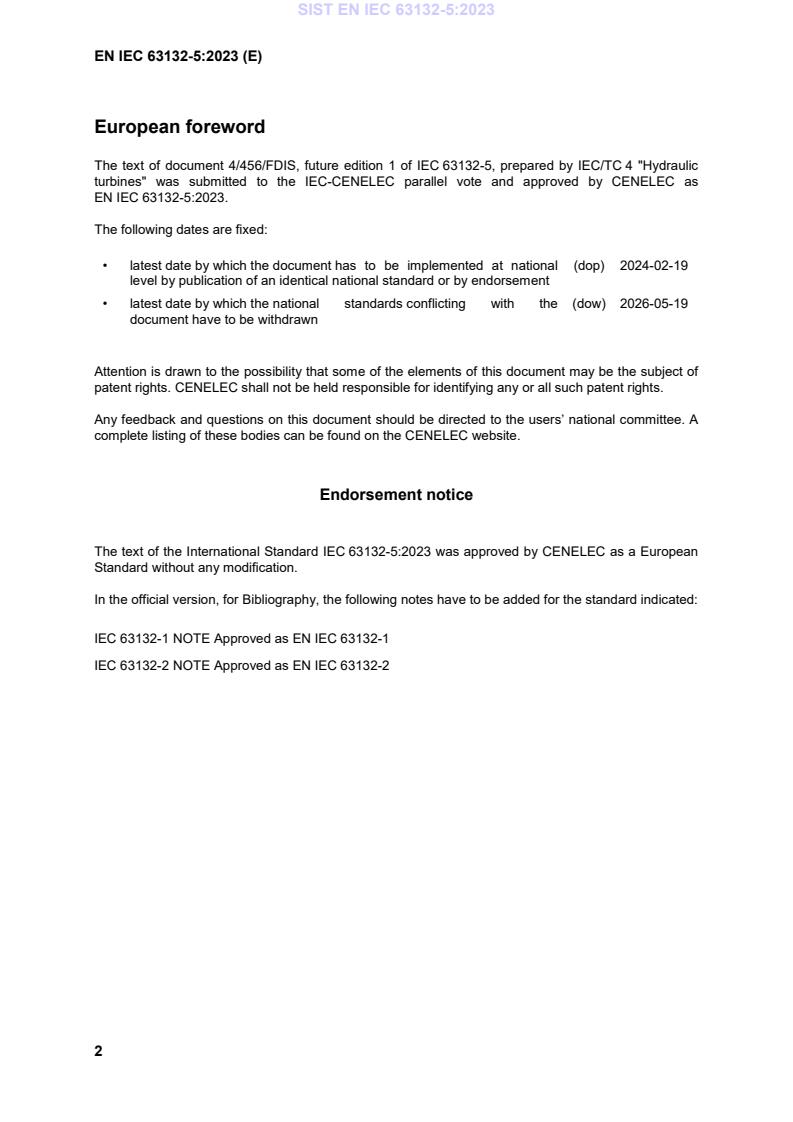

European foreword
The text of document 4/456/FDIS, future edition 1 of IEC 63132-5, prepared by IEC/TC 4 "Hydraulic
turbines" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-02-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-05-19
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63132-5:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 63132-1 NOTE Approved as EN IEC 63132-1
IEC 63132-2 NOTE Approved as EN IEC 63132-2

IEC 63132-5 ®
Edition 1.0 2023-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Guidance for installation procedures and tolerances of hydroelectric machines –

Part 5: Bulb turbines and generators

Lignes directrices des procédures et tolérances d’installation des machines

hydroélectriques –
Partie 5: Turbines et alternateurs de type bulbe

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.140 ISBN 978-2-8322-6742-4

– 2 – IEC 63132-5:2023  IEC 2023
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Installation flowchart . 6
4.1 Turbine and generator embedded parts. 6
4.2 Turbine and generator mechanical parts . 7
5 Steps . 9
5.1 Turbine and generator embedded parts. 9
5.1.1 Step 1: Benchmarks set-up . 9
5.1.2 Step 2: Powerhouse primary stage concrete with anchor plates and
embedded pipes . 9
5.1.3 Step 3: Anchor plates, embedded pipes and workspace verification . 9
5.1.4 Step 4: Handing over to installation . 10
5.1.5 Step 5: Draft tube installation. 10
5.1.6 Step 6: Secondary embedded pipes installation around the draft tube . 12
5.1.7 Step 7: Handing over to concreting phase. 12
5.1.8 Step 8: Draft tube embedment . 13
5.1.9 Step 9: Concrete voids testing . 13
5.1.10 Step 10: Draft tube grout injection . 14
5.1.11 Step 11: Handing over to installation . 14
5.1.12 Step 12: Draft tube dimensional inspection after embedment . 14
5.1.13 Step 13: Installation of turbine housing . 15
5.1.14 Step 14: Installation of pier nose liner . 17
5.1.15 Step 15: Installation of generator foundation base . 17
5.1.16 Step 16: Installation of generator hatch cover frame . 18
5.1.17 Step 17: Secondary embedded pipes installation around the turbine
housing. 18
5.1.18 Step 18: Handing over to concreting phase . 18
5.1.19 Step 19: Embedment of turbine housing, pier nose, generator
foundation base plate and hatch cover frame . 18
5.1.20 Step 20: Handing over to installation . 19
5.1.21 Step 21: Corrosion protection for embedded parts . 19
5.1.22 Step 22: Turbine and generator embedded parts complete . 19
5.1.23 Step 23: Turbine and generator mechanical parts installation . 19
5.2 Turbine and generator mechanical parts . 20
5.2.1 Step 1: Turbine and generator embedded parts complete . 20
5.2.2 Step 2: Handing over to installation . 20
5.2.3 Step 3: Dimensional inspection of turbine housing after embedment . 20
5.2.4 Step 4-1: Distributor assembly . 20
5.2.5 Step 4: Distributor installation . 21
5.2.6 Step 5: Lowering and storing of lower half of discharge ring . 21
5.2.7 Step 6-1: Pre-assembly of shaft and bearings . 21
5.2.8 Step 6: Shaft installation . 21
5.2.9 Step 7: Shaft free . 22
5.2.10 Step 8: Combined bearing installation . 23
5.2.11 Step 9: Guide vane servomotor and counterweight installation . 23

IEC 63132-5:2023  IEC 2023 – 3 –
5.2.12 Step 10-1: Turbine runner assembly . 24
5.2.13 Step 10: Runner installation . 24
5.2.14 Step 11: Guide vane apparatus final adjustment . 25
5.2.15 Step 12: Lowering and storing of bulb nose . 26
5.2.16 Step 13-1: Rotor assembly . 26
5.2.17 Step 13: Rotor installation . 27
5.2.18 Step 14: Discharge ring installation . 27
5.2.19 Step 15: Shaft alignment . 28
5.2.20 Step 16-1: Stator assembly . 29
5.2.21 Step 16: Stator installation . 29
5.2.22 Step 17: Shaft seal installation . 30
5.2.23 Step 18: Runner blade operating pipes installation . 30
5.2.24 Step 19: Runner oil supply head and extension shaft installation . 30
5.2.25 Step 20: Runner cone installation . 31
5.2.26 Step 21: Bulb nose installation . 31
5.2.27 Step 22: Generator supports installation . 31
5.2.28 Step 23: Access shaft installation and hatch cover closing . 31
5.2.29 Step 24: Remaining turbine parts installation completion . 32
5.2.30 Step 25: Final installation and cabling generator . 32
5.2.31 Step 26: Generator auxiliary systems installation . 32
5.2.32 Step 27: Turbine auxiliary systems installation . 33
5.2.33 Step 28: Cleaning, painting and inspection before initial tests . 33
5.2.34 Step 29: Turbine and generator mechanical parts complete . 33
5.2.35 Step 30: Commissioning . 33
Bibliography . 34

Figure 1 – Generic installation flowchart – Bulb turbine and generator embedded parts . 7
Figure 2 – Generic installation flowchart – Bulb turbine and generator mechanical parts . 8
Figure 3 – Draft tube liner installation . 12
Figure 4 – Draft tube liner embedment plan . 13
Figure 5 – Radial tilting of turbine housing flange. 16
Figure 6 – Turbine housing installation . 17
Figure 7 – Shaft free . 23
Figure 8 – Guide vane apparatus final adjustment . 26
Figure 9 – Discharge ring installation . 28

Table 1 – Draft tube installation tolerances . 11
Table 2 – Turbine housing installation tolerances . 15
Table 3 – Shaft free verifications.
...
