IEC 62305-2:2024 is applicable to the risk management of a structure due to lightning flashes to earth. Its purpose is to provide a procedure for the evaluation of such a risk. Once an upper tolerable limit for the risk has been selected, this procedure provides a means for the selection of appropriate protection measures to be adopted to reduce the risk to or below the tolerable limit. This third edition cancels and replaces the second edition, published in 2010. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) The concept of a single risk, to combine loss of human life and loss due to fire, has been introduced. b) The concept of frequency of damage that can impair the availability of the internal systems within the structure has been introduced. c) The lightning ground strike-point density NSG has been introduced replacing the lightning flash density NG in the evaluation of expected average annual number of dangerous events. d) Reduction of a few risk components can be achieved by the use of preventive temporary measures activated by means of a thunderstorm warning system (TWS) compliant with IEC 62793. The risk of direct strike to people in open areas has been introduced, considering the reduction of that risk using a TWS.
Blitzschutz - Teil 2: Risiko-Management
Protection contre la foudre - Partie 2: Évaluation des risques
L'IEC 62305-2:2024 s'applique à l'évaluation des risques auxquels une structure est exposée en raison des coups de foudre à la terre. Elle est destinée à proposer une procédure d'évaluation d'un tel risque. Lorsque la limite supérieure du risque tolérable est fixée, la procédure permet de choisir les mesures de protection appropriées pour réduire le risque à une valeur inférieure ou égale à la valeur limite tolérable. Cette troisième édition annule et remplace la deuxième édition parue en 2010. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) adoption du concept de risque unique, afin de combiner les pertes de vies humaines et les pertes dues à un incendie; b) adoption du concept de fréquence des dommages qui peuvent influencer la disponibilité des réseaux internes à la structure; c) adoption de la densité de points d'impact au sol de la foudre NSG en remplacement de la densité des coups de foudre NG dans l'évaluation du nombre moyen annuel d'événements dangereux prévisibles; d) la réduction de quelques composantes de risque peut être obtenue par l'utilisation de mesures préventives temporaires activées par un système d'alerte aux orages (TWS) conforme à l'IEC 62793. Le risque que des personnes soient directement frappées par la foudre dans des espaces ouverts a été décrit, en tenant compte de la réduction de ce risque au moyen d'un TWS.
Zaščita pred delovanjem strele - 2. del: Obvladovanje tveganja
Standard IEC 62305-2:2024 se uporablja za obvladovanje tveganja za zgradbo zaradi udara strele v zemljo.
Njegov namen je določiti postopek za ocenjevanje takšnega tveganja. Ko je izbrana zgornja sprejemljiva meja za tveganje, ta postopek omogoča izbor ustreznih zaščitnih ukrepov za zmanjšanje tveganja na sprejemljivo mejo ali pod njo.
Tretja izdaja razveljavlja in nadomešča drugo izdajo, objavljeno leta 2010. Ta izdaja je tehnično popravljena izdaja.
Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) Uveden je bil koncept posameznega tveganja, ki združuje izgubo človeškega življenja in izgubo zaradi požara.
b) Uveden je koncept pogostosti poškodb, ki lahko vplivajo na razpoložljivost notranjih sistemov znotraj zgradbe.
c) Uvedena je bila gostota točk udarov strele proti zemlji (NSG), ki je pri ocenjevanju pričakovanega povprečnega letnega števila nevarnih dogodkov nadomestila gostoto strel proti zemlji (NG).
d) Zmanjšanje nekaterih komponent tveganja je mogoče doseči s preventivnimi začasnimi ukrepi, ki jih aktivira sistem za opozarjanje pred nevihtami (TWS), skladen s standardom IEC 62793. Tveganje neposrednega udara v ljudi na odprtih območjih je bilo uvedeno ob upoštevanju, da se takšno tveganje zmanjša s sistemom za opozarjanje pred nevihtami.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2024
Nadomešča:
SIST EN 62305-2:2012
Zaščita pred delovanjem strele - 2. del: Obvladovanje tveganja
Protection against lightning - Part 2: Risk management
Blitzschutz - Teil 2: Risiko-Management
Protection contre la foudre - Partie 2: Evaluation des risques
Ta slovenski standard je istoveten z: EN IEC 62305-2:2024
ICS:
91.120.40 Zaščita pred strelo Lightning protection
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62305-2
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2024
ICS 29.020; 91.120.40 Supersedes EN 62305-2:2012
English Version
Protection against lightning - Part 2: Risk management
(IEC 62305-2:2024)
Protection contre la foudre - Partie 2: Évaluation des Blitzschutz - Teil 2: Risiko-Management
risques (IEC 62305-2:2024)
(IEC 62305-2:2024)
This European Standard was approved by CENELEC on 2024-10-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62305-2:2024 E

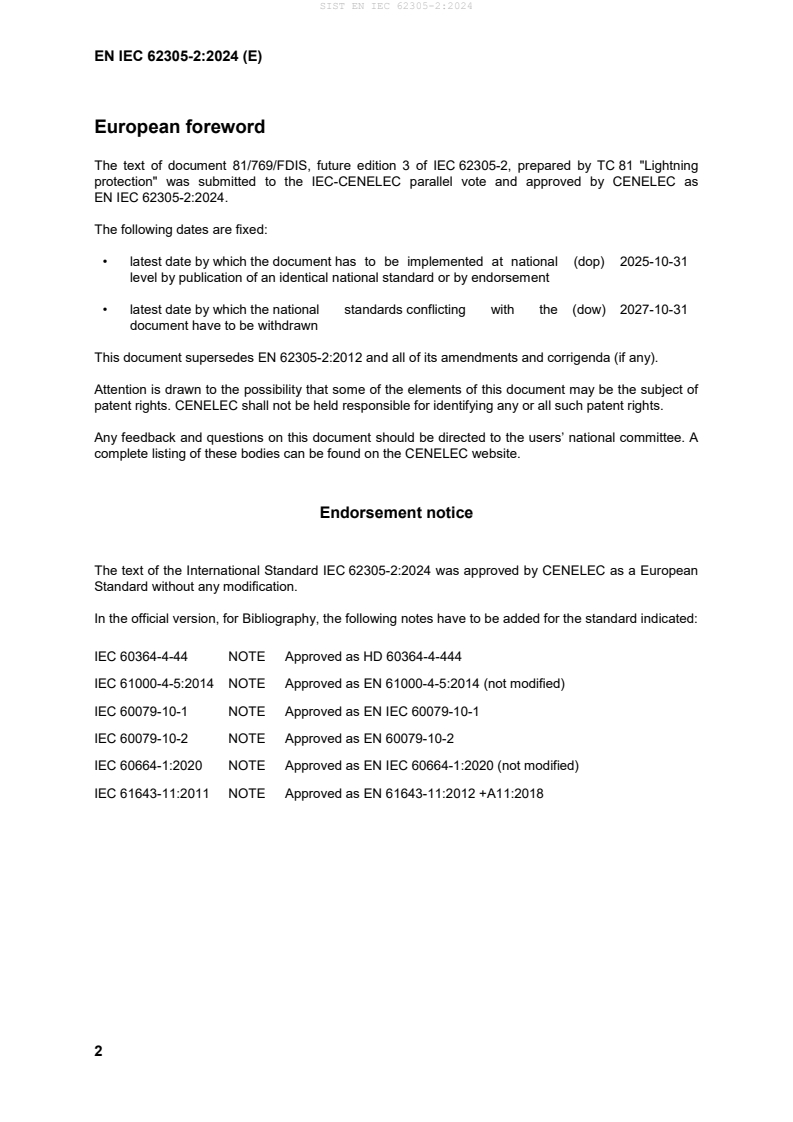

European foreword
