EN 62566:2014

(Main)

Nuclear power plants - Instrumentation and control important to safety - Development of HDL-programmed integrated circuits for systems performing category A functions

Nuclear power plants - Instrumentation and control important to safety - Development of HDL-programmed integrated circuits for systems performing category A functions

IEC 62566:2012 provides requirements for achieving highly reliable 'HDL-Programmed Devices' (HPD), for use in I&C systems of nuclear power plants performing functions of safety category A as defined by IEC 61226. The programming of HPDs relies on Hardware Description Languages (HDL) and related software tools. They are typically based on blank FPGAs or similar micro-electronic technologies.

Kernkraftwerke - Leittechnik für Systeme mit sicherheitstechnischer Bedeutung - Entwicklung HDL-programmierter integrierter Schaltkreise für Systeme, die Funktionen der Kategorie A ausführen

Centrales nucléaires de puissance - Instrumentation et contrôle-commande importants pour la sûreté - Développement des circuits intégrés programmés en HDL pour les systèmes réalisant des fonctions de catégorie A

La CEI 62566:2012 énonce des exigences pour atteindre une fiabilité élevée dans les 'circuits intégrés programmés en HDL' (HPD) destinés aux systèmes d'I&C des centrales nucléaires de puissance réalisant des fonctions de sûreté de catégorie A telles que définies par la CEI 61226. La programmation des HPD repose sur des Langages de Description de Matériel (HDL) et des outils logiciels associés. Ils sont typiquement basés sur des FPGA vierges ou des technologies micro-électroniques similaires.

Jedrske elektrarne - Instrumenti in krmilje, pomembni za varnost - Razvoj HDL-programiranih integriranih vezij za sisteme, ki izvajajo funkcije kategorije A (IEC 62566:2012)

Standard EN IEC 62566 določa zahteve za doseganje visoko zanesljivih HDL-programiranih naprav (HPD) za uporabo v merilni in nadzorni opremi jedrskih elektrarn, ki izvaja funkcije varnostne kategorije A, kot je opredeljeno v standardu IEC 61226. Programiranje HDL-programiranih naprav se izvaja na podlagi opisnega jezika za strojno opremo (HDL) in povezanih orodij programske opreme. Običajno temeljijo na praznih programirljivih poljih vrat (FPGA) ali podobnih mikroelektronskih tehnologijah. Integrirana vezja za splošne namene, kot so mikroprocesorji, niso HDL-programirane naprave. Ta standard določa zahteve za: a) ustrezen življenjski cikel razvoja, ki obravnava vsako fazo razvoja HDL-programiranih naprav, vključno s specifikacijo zahtev, zasnovo, izvajanjem, preverjanjem, integracijo in potrjevanjem, b) načrtovanje in dopolnilne dejavnosti, kot sta spreminjanje in proizvodnja, c) izbiro vnaprej razvitih komponent. To vključuje mikroelektronske vire (kot je prazni FPGA ali CPLD) in izjave HDL, ki predstavljajo vnaprej razvite bloke (PBD), d) uporabo načel enostavnosti in determinizma, ki so ključni za doseganje izvajanja »brez napak« funkcij kategorije A, e) orodja, ki se uporabljajo za zasnovo, izvajanje in preverjanje HDL-programiranih naprav. Ta standard ne postavlja zahtev za razvoj mikroelektronskih virov, ki so običajno na voljo kot »nabavljeni komercialni« elementi in niso razviti v skladu s standardi zagotavljanja kakovosti na področju jedrskih elektrarn. Obravnava razvojne dosežke s temi mikroelektronskimi viri v merilnem in nadzornem projektu s HDL-ji in povezanimi orodji. Ta standard podaja napotke, kako v čim večji meri preprečiti latentne napake, ki ostajajo v HDL-programiranih napravah, in zmanjša dovzetnost za posamezne odpovedi delovanja ter tudi za morebitne odpovedi iz normalnih razlogov (CCF). Zahteve v tem standardu glede jasne in izčrpne dokumentacije naj bi spodbudile učinkovito uporabo standarda IEC 62340. Vidiki zanesljivosti, povezani z okoljsko kvalifikacijo in odpovedmi zaradi staranja ali fizične degradacije, niso obravnavani v tem standardu. Drugi standardi, zlasti IEC 60987, IEC 60780 in IEC 62342, obravnavajo te teme. Točka 5.7 standarda IEC 60880:2006 vsebuje varnostne zahteve, ki se uporabljajo za razvoj HDL-programiranih naprav, kjer je to primerno.

General Information

Status
Published
Publication Date
28-Aug-2014
Withdrawal Date
03-Aug-2017
ICS
27.120.20 - Nuclear power plants. Safety
Technical Committee
CLC/TC 45AX - Nuclear power plants
Drafting Committee
IEC/SC 45A - IEC_SC_45A
Current Stage
6060 - Document made available - Publishing
Start Date
29-Aug-2014
Completion Date
29-Aug-2014
Ref Project
SIST EN 62566:2014 - Nuclear power plants - Instrumentation and control important to safety - Development of HDL-programmed integrated circuits for systems performing category A functions

Buy Standard

EN 62566:2014EN 62566:2014
PreviousNext
Standard
EN 62566:2014
English language
55 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 62566:2014
01-oktober-2014
Jedrske elektrarne - Instrumenti in krmilje, pomembni za varnost - Razvoj HDL-
programiranih integriranih vezij za sisteme, ki izvajajo funkcije kategorije A (IEC
62566:2012)
Nuclear power plants - Instrumentation and control important to safety - Development of
HDL-programmed integrated circuits for systems performing category A functions
Kernkraftwerke – Leittechnik für Systeme mit sicherheitstechnischer Bedeutung –
Entwicklung HDL-programmierter integrierter Schaltkreise für Systeme, die Funktionen
der Kategorie A ausführen
Centrales nucléaires de puissance - Instrumentation et contrôle-commande importants
pour la sûreté - Développement des circuits intégrés programmés en HDL pour les
systèmes réalisant des fonctions de catégorie A
Ta slovenski standard je istoveten z: EN 62566:2014
ICS:
27.120.20 Jedrske elektrarne. Varnost Nuclear power plants. Safety
SIST EN 62566:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62566:2014

---------------------- Page: 2 ----------------------

SIST EN 62566:2014


EUROPEAN STANDARD EN 62566

NORME EUROPÉENNE

EUROPÄISCHE NORM
August 2014
ICS 27.120.20

English Version
Nuclear power plants - Instrumentation and control important to
safety - Development of HDL-programmed integrated circuits for
systems performing category A functions
(IEC 62566:2012)
Centrales nucléaires de puissance - Instrumentation et Kernkraftwerke - Leittechnik für Systeme mit
contrôle-commande importants pour la sûreté - sicherheitstechnischer Bedeutung - Entwicklung HDL-
Développement des circuits intégrés programmés en HDL programmierter integrierter Schaltkreise für Systeme,
pour les systèmes réalisant des fonctions de catégorie A die Funktionen der Kategorie A ausführen
(CEI 62566:2012) (IEC 62566:2012)
This European Standard was approved by CENELEC on 2014-08-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62566:2014 E

---------------------- Page: 3 ----------------------

SIST EN 62566:2014
EN 62566:2014 - 2 -

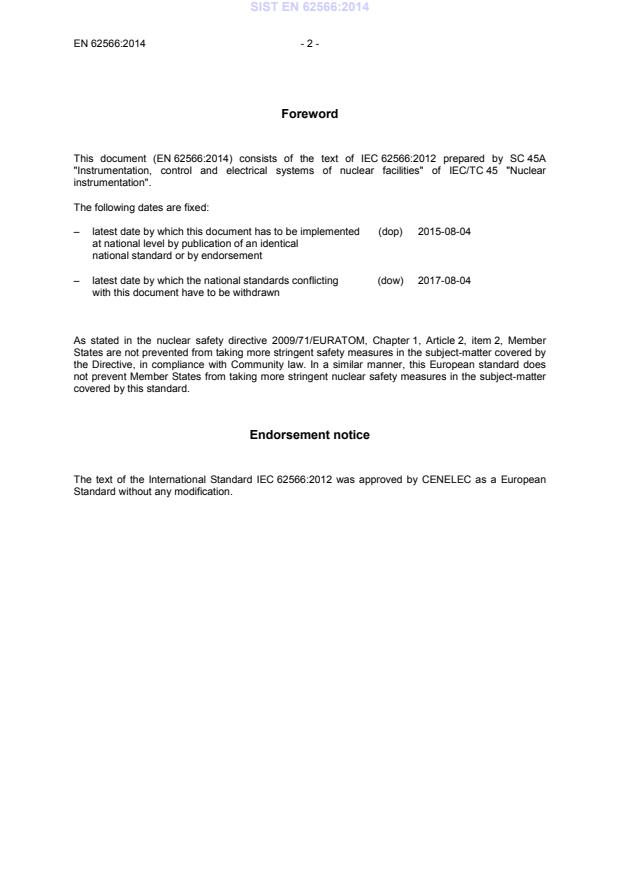

Foreword
This document (EN 62566:2014) consists of the text of IEC 62566:2012 prepared by SC 45A
"Instrumentation, control and electrical systems of nuclear facilities" of IEC/TC 45 "Nuclear
instrumentation".
The following dates are fixed:
– latest date by which this document has to be implemented (dop) 2015-08-04
at national level by publication of an identical
national standard or by endorsement
– latest date by which the national standards conflicting (dow) 2017-08-04
with this document have to be withdrawn

As stated in the nuclear safety directive 2009/71/EURATOM, Chapter 1, Article 2, item 2, Member
States are not prevented from taking more stringent safety measures in the subject-matter covered by
the Directive, in compliance with Community law. In a similar manner, this European standard does
not prevent Member States from taking more stringent nuclear safety measures in the subject-matter
covered by this standard.
Endorsement notice
The text of the International Standard IEC 62566:2012 was approved by CENELEC as a European
Standard without any modification.

---------------------- Page: 4 ----------------------

SIST EN 62566:2014
- 3 - EN 62566:2014
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are no
...
